Presentation Transcript
marcet boiler

MARCET BOILER

Engr. SyedWaheedulHasan

marcet boiler1
MARCET BOILER
  • Stainless steel pressure vessel
  • Safety relief valve
  • Temperature and pressure transducers
  • Water heater is protected from burn out by setting the maximum operating temperature with a temperature controller
description of assembly
DESCRIPTION OF ASSEMBLY
  • PRESSURE VESSEL

Capacity ------- 7 liters

Material -------stainless steel 304

Operating Pressure----------10 bars

Certification------------ DOSH certified

  • PRESSURE GAUGE

Type ------------Bourdon Tube

Range ----------- 0-20 bars (g)

description and assembly

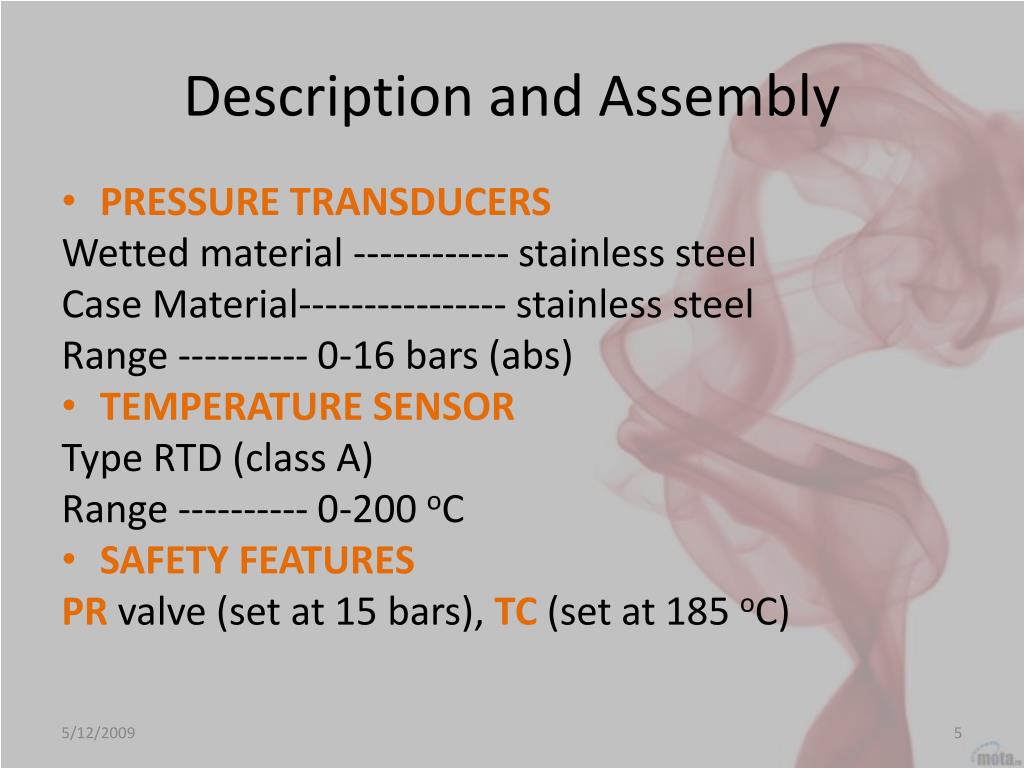

Description and Assembly
  • PRESSURE TRANSDUCERS

Wetted material ------------ stainless steel

Case Material---------------- stainless steel

Range ---------- 0-16 bars (abs)

  • TEMPERATURE SENSOR

Type RTD (class A)

Range ---------- 0-200 oC

  • SAFETY FEATURES

PR valve (set at 15 bars), TC (set at 185 oC)

objective
OBJECTIVE

Our objective here is to collect PT (saturation data) by operating the boiler and compare that data with calculated one

calaculation procedures
CALACULATION PROCEDURES
  • Obtain the TP saturation data from boiler
  • Plot this TP data(P on abscissa and T on ordinate)
  • Measure the slope of the plot at each pressure reading.this gives dT/dP
  • Obtain the values of calculated slope by ClausiusClapeyron equation Feeding it the values of TsatVfg and hfg from Steam table.
  • Calculate the difference of these slopes which gives you the accuracy of of the ClausiusClapeyron equation and strenghtens your measured readings
how to make it simple
HOW TO MAKE IT SIMPLE…
  • As it is a very hectic job to calculate slope of the graph at 50 points, it can be made easy by using a machine for that i.e. your PC will calculate it for u.
  • All you need to do is to tell your machine what it has to do for u, i.e. communicate with your machine. It need a machine language and you can use one that suits you. Lets use MATLABfor that
matlab
MATLAB
  • P=[1 1.1 1.2 1.3 1.4 1.5 1.6 1.7 1.8 1.9 2 2.1 2.2 2.3 2.4 2.5 2.6 2.7 2.8 2.9 3 3.1 3.2 3.3 3.4 3.5 3.6 3.8 4 4.2 4.4 4.6 4.8 5 5.2 5.4 5.6 5.8 6 6.2 6.4 6.6 6.8 7 7.5 8 8.5 9 9.5 10];
  • T=[373 375.4 378.1 380.1 382.6 384.5 386.6 388.5 390.3 391.9 393.5 394.8 396.6 398.1 399.3 400.7 401.9 403.3 404.5 405.7 406.8 407.8 408.9 410.1 411.3 412.4 413.2 415 416.8 418.8 420.3 421.9 423.6 425.1 426.7 428.1 429.7 431 432.1 433.4 434.8 435.9 437.2 438.4 440.3 443.8 446.3 448.6 450.8 452.9];
slide11

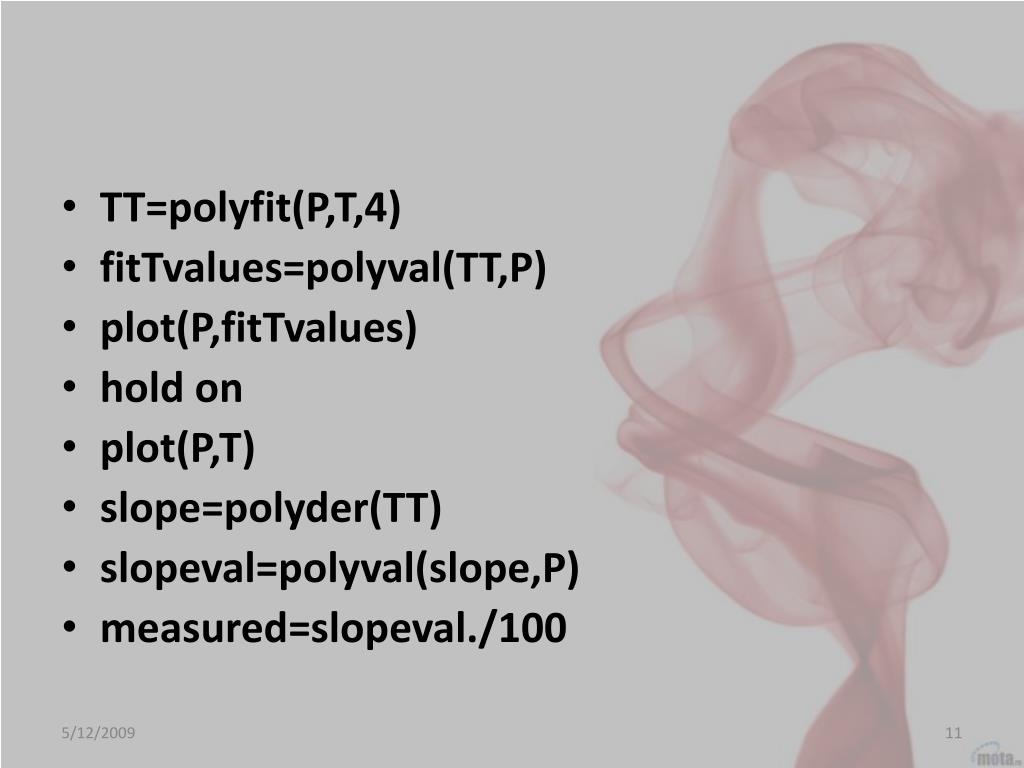

TT=polyfit(P,T,4)

  • fitTvalues=polyval(TT,P)
  • plot(P,fitTvalues)
  • hold on
  • plot(P,T)
  • slope=polyder(TT)
  • slopeval=polyval(slope,P)
  • measured=slopeval./100
assignment to be submitted on 19 th may
ASSIGNMENTto be submitted on 19th May
  • What are pressure transducers,how they work? Group 1 ok
  • What is RTD. Working principle,its types and reason for different types of RTD? 2 ok
  • Comparison of RTD with a Thermocouple? 3 ok
  • What is Pressure relief valve, usage, construction of one mounted on your lab boiler? Group 4
  • Comparison of PRV with rupture disk? 5 ok
  • SS-304, reason for use.why not SS-316? 6 ok
slide13

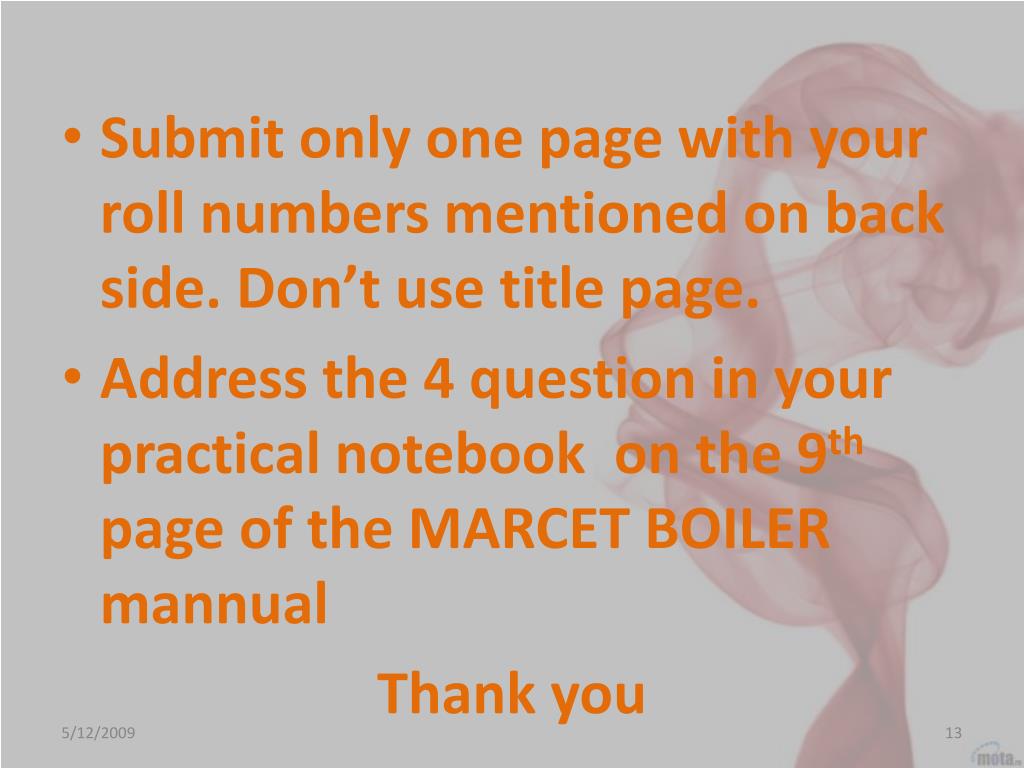

Submit only one page with your roll numbers mentioned on back side. Don’t use title page.

  • Address the 4 question in your practical notebook on the 9th page of the MARCET BOILER mannual

Thank you
