  1. CS184a:Computer Architecture(Structure and Organization) Day 6: January 22, 2003 VLSI Scaling

  2. Today • VLSI Scaling Rules • Effects • Historical/predicted scaling • Variations (cheating) • Limits

  3. Why Care? • In this game, we must be able to predict the future • Rapid technology advance • Reason about changes and trends • re-evaluate prior solutions given technology at time X.

  4. Why Care • Cannot compare against what competitor does today • but what they can do at time you can ship • Careful not to fall off curve • lose out to someone who can stay on curve

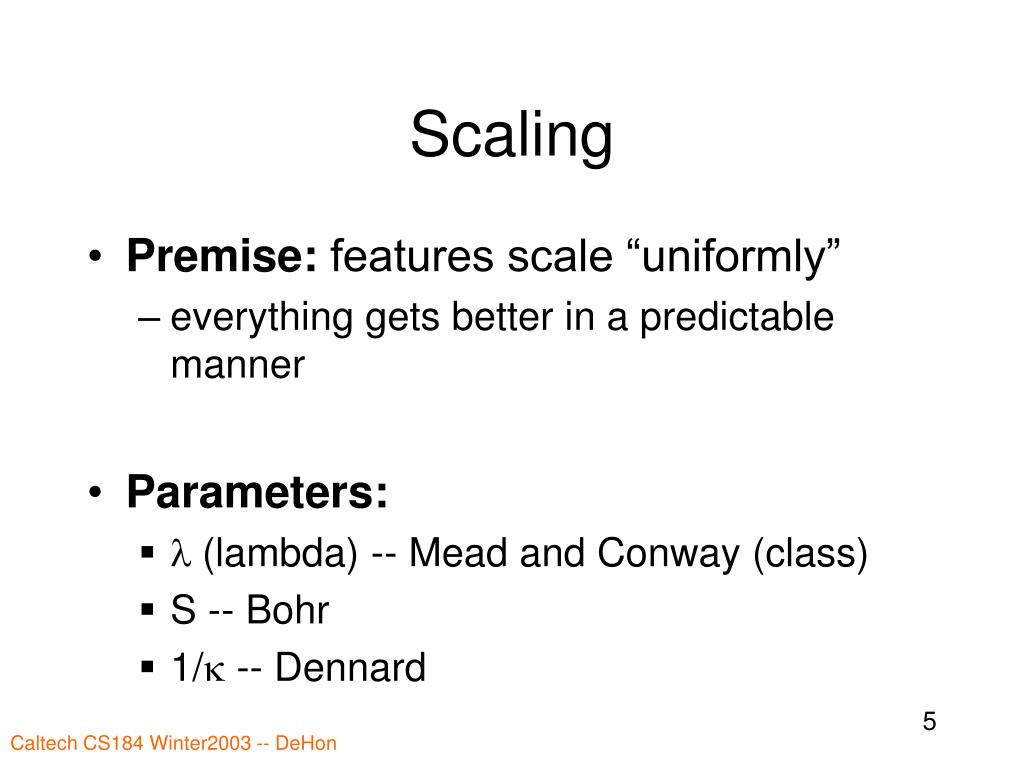

  5. Scaling • Premise: features scale “uniformly” • everything gets better in a predictable manner • Parameters: • l (lambda) -- Mead and Conway (class) • S -- Bohr • 1/k -- Dennard

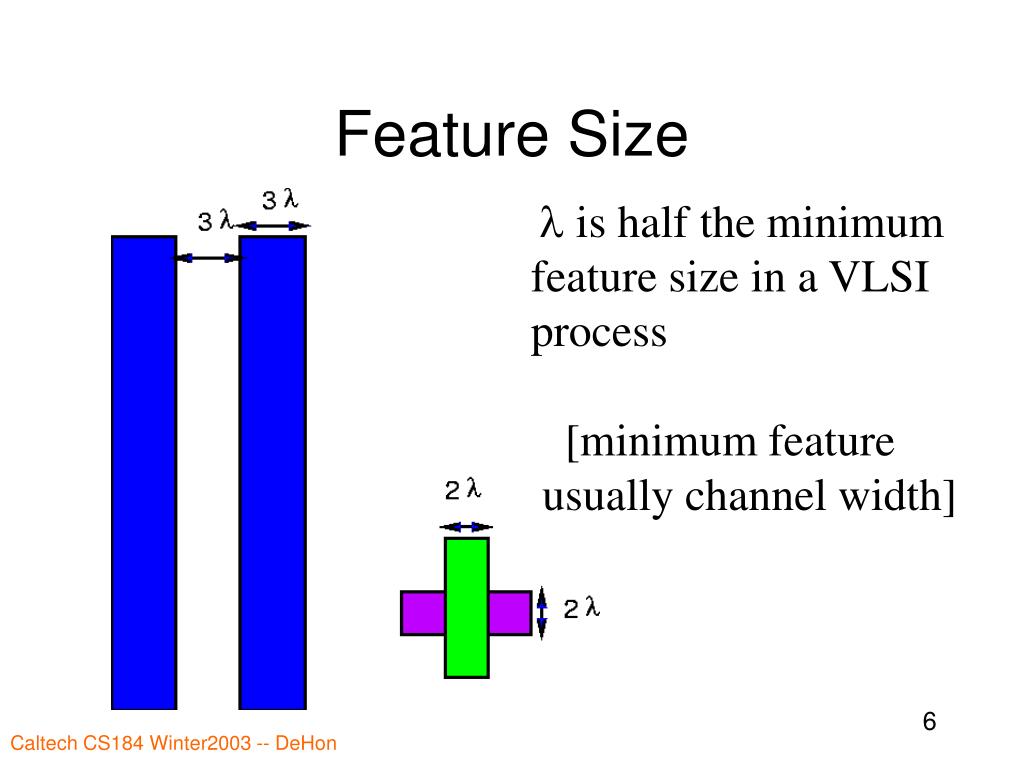

  6. Feature Size l is half the minimum feature size in a VLSI process [minimum feature usually channel width]

  7. Scaling • Channel Length (L) • Channel Width (W) • Oxide Thickness (Tox) • Doping (Na) • Voltage (V)

  8. Scaling • Channel Length (L) l • Channel Width (W) l • Oxide Thickness (Tox) l • Doping (Na) 1/l • Voltage (V) l

  9. Area Capacitance Resistance Threshold (Vth) Current (Id) Gate Delay (tgd) Wire Delay (twire) Power Effects?

  10. l  l/k A = L * W A  A/k2 0.35mm  0.25mm 50% area 2x capacity same area Area

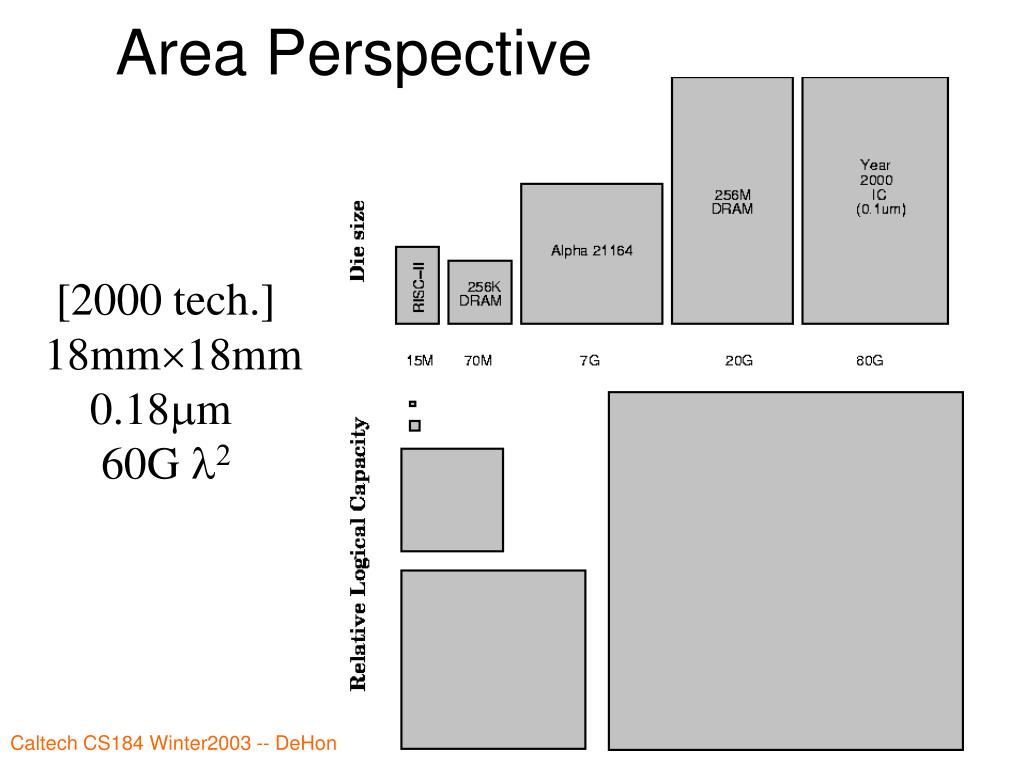

  11. Area Perspective [2000 tech.] 18mm18mm 0.18mm 60G l2

  12. Capacity Scaling from Intel

  13. Capacitance per unit area Cox= eSiO2/Tox ToxTox/k Cox  k Cox Capacitance

  14. Gate Capacitance Cgate= A*Cox A  A/k2 Cox  k Cox Cgate Cgate /k Capacitance

  15. Threshold Voltage

  16. VTHVTH /k Threshold Voltage

  17. Saturation Current Id=(mCOX/2)(W/L)(Vgs-VTH)2 Vgs=VV/k VTHVTH /k WW/k Cox  k Cox IdId/k Current

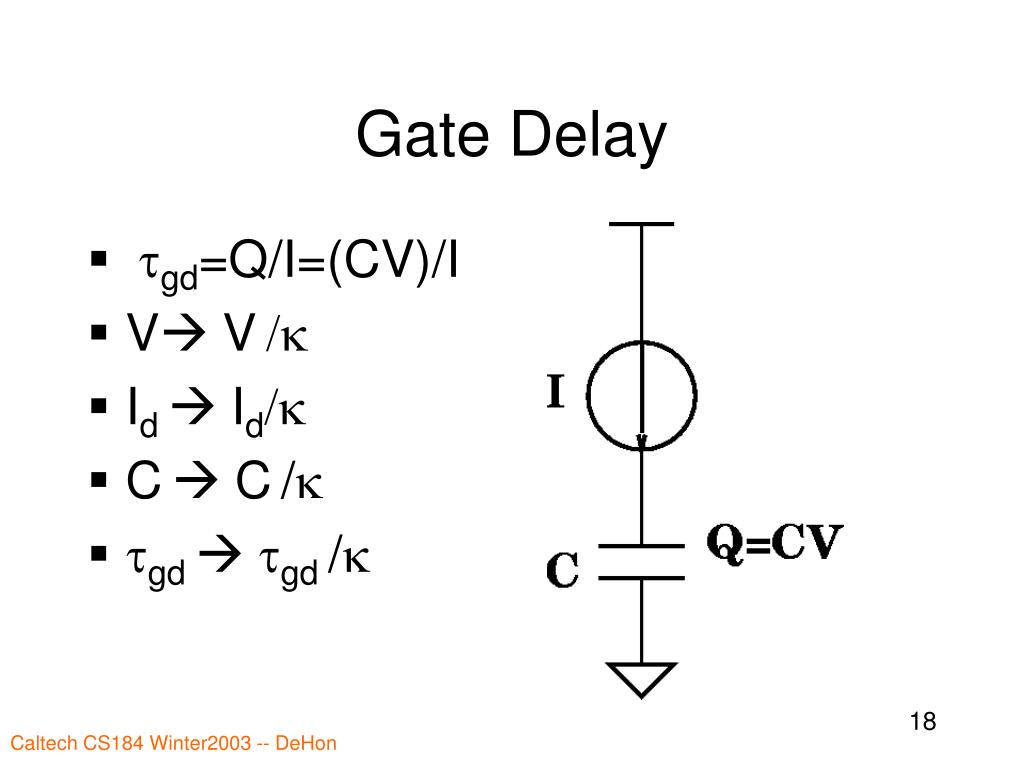

  18. tgd=Q/I=(CV)/I VV/k IdId/k CC/k tgd  tgd /k Gate Delay

  19. R=rL/(W*t) WW/k L, t similar R  k R Resistance

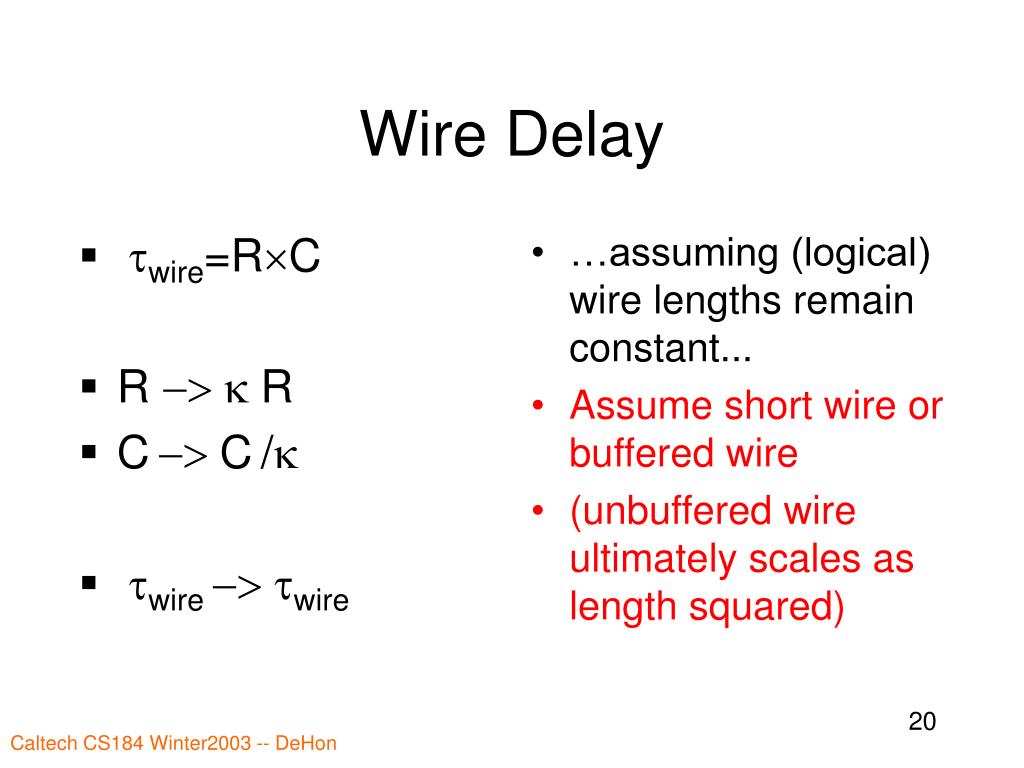

  20. twire=RC R -> k R C-> C/k twire -> twire …assuming (logical) wire lengths remain constant... Assume short wire or buffered wire (unbuffered wire ultimately scales as length squared) Wire Delay

  21. Resistive Power P=V*I VV/k IdId/k PP/k2 Power Dissipation (Static)

  22. Capacitive (Dis)charging P=(1/2)CV2f VV/k CC/k PP/k3 Increase Frequency? f  kf ? P P/k2 Power Dissipation (Dynamic)

  23. Area 1/k2 Capacitance 1/k Resistance k Threshold (Vth) 1/k Current (Id) 1/k Gate Delay (tgd) 1/k Wire Delay (twire) 1 Power 1/k21/k3 Effects?

  24. ITRS Roadmap • Semiconductor Industry rides this scaling curve • Try to predict where industry going • (requirements…self fulfilling prophecy) • http://public.itrs.net

  25. S=0.7 [0.5x per 2 nodes] Pitch Gate MOS Transistor Scaling(1974 to present) [from Andrew Kahng] Source: 2001 ITRS - Exec. Summary, ORTC Figure

  26. Poly • Pitch • Metal • Pitch (Typical MPU/ASIC) (Typical DRAM) Half Pitch (= Pitch/2) Definition [from Andrew Kahng] Source: 2001 ITRS - Exec. Summary, ORTC Figure

  27. 1994 NTRS - .7x/3yrs Log Half-Pitch Actual - .7x/2yrs 0.7x 0.7x Linear Time 250 -> 180 -> 130 -> 90 -> 65 -> 45 -> 32 -> 22 -> 16 0.5x Node Cycle Time (T yrs): *CARR(T) = [(0.5)^(1/2T yrs)] - 1 CARR(3 yrs) = -10.9% CARR(2 yrs) = -15.9% N N+1 N+2 * CARR(T) = Compound Annual Reduction Rate (@ cycle time period, T) Scaling Calculator + Node Cycle Time: [from Andrew Kahng] Source: 2001 ITRS - Exec. Summary, ORTC Figure

  28. [from Andrew Kahng] Source: 2001 ITRS - Exec. Summary, ORTC Figure

  29. Delays? • If delays in gates/switching? • If delays in interconnect? • Logical interconnect lengths?

  30. Delays? • If delays in gates/switching? • Delay reduce with 1/k [l]

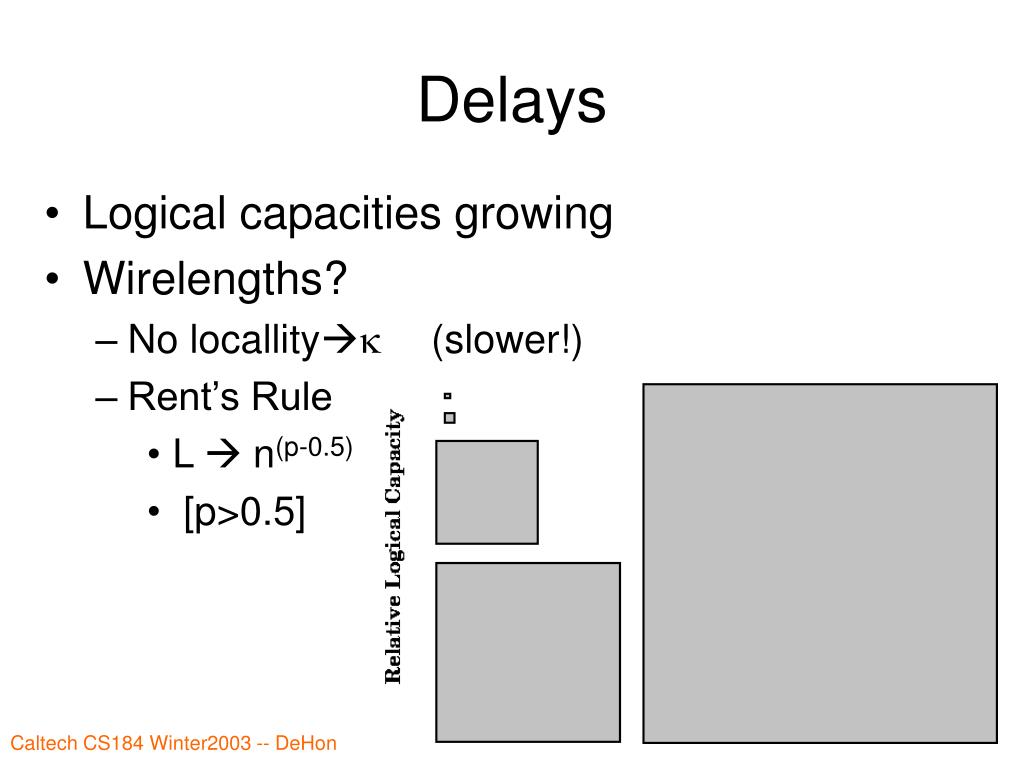

  31. Delays • Logical capacities growing • Wirelengths? • No locallityk (slower!) • Rent’s Rule • L  n(p-0.5) • [p>0.5]

  32. Compute Density • Density = compute / (Area * Time) • k3>compute density scaling>k • k3: gates dominate, p<0.5 • k2: moderate p, good fraction of gate delay • [p from Rent’s Rule again – more on Day12] • k: large p (wires dominate area and delay)

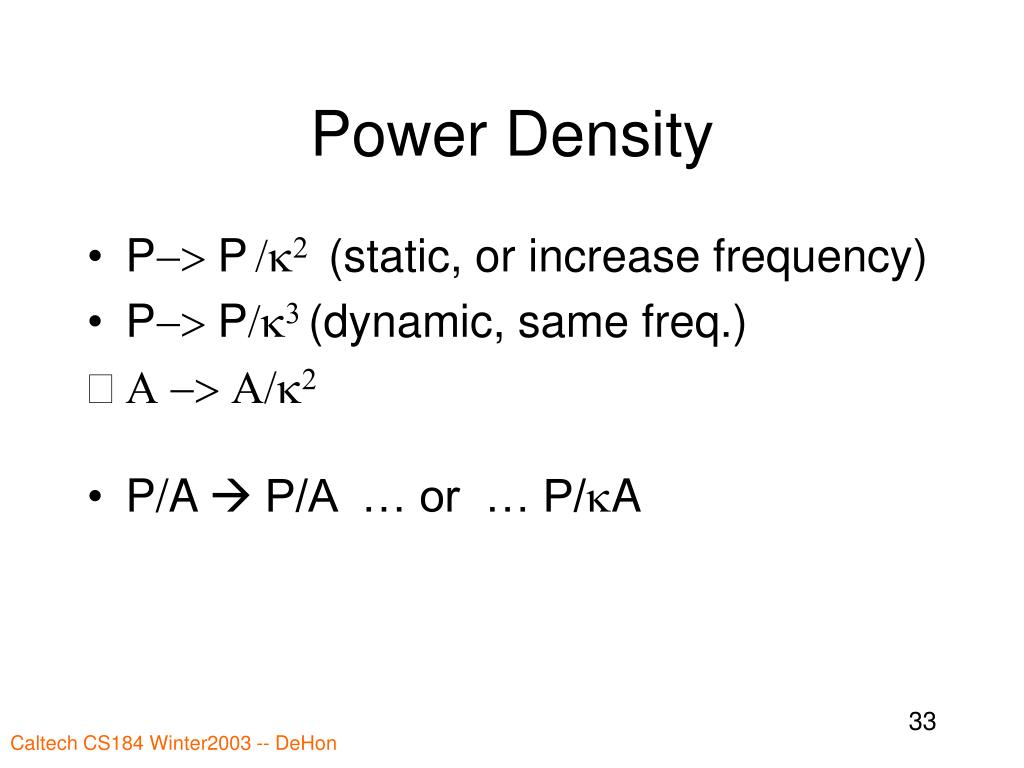

  33. Power Density • P-> P/k2 (static, or increase frequency) • P-> P/k3 (dynamic, same freq.) • A -> A/k2 • P/A P/A … or … P/kA

  34. Cheating… • Don’t like some of the implications • High resistance wires • Higher capacitance • Need for more wiring • Not scale speed fast enough

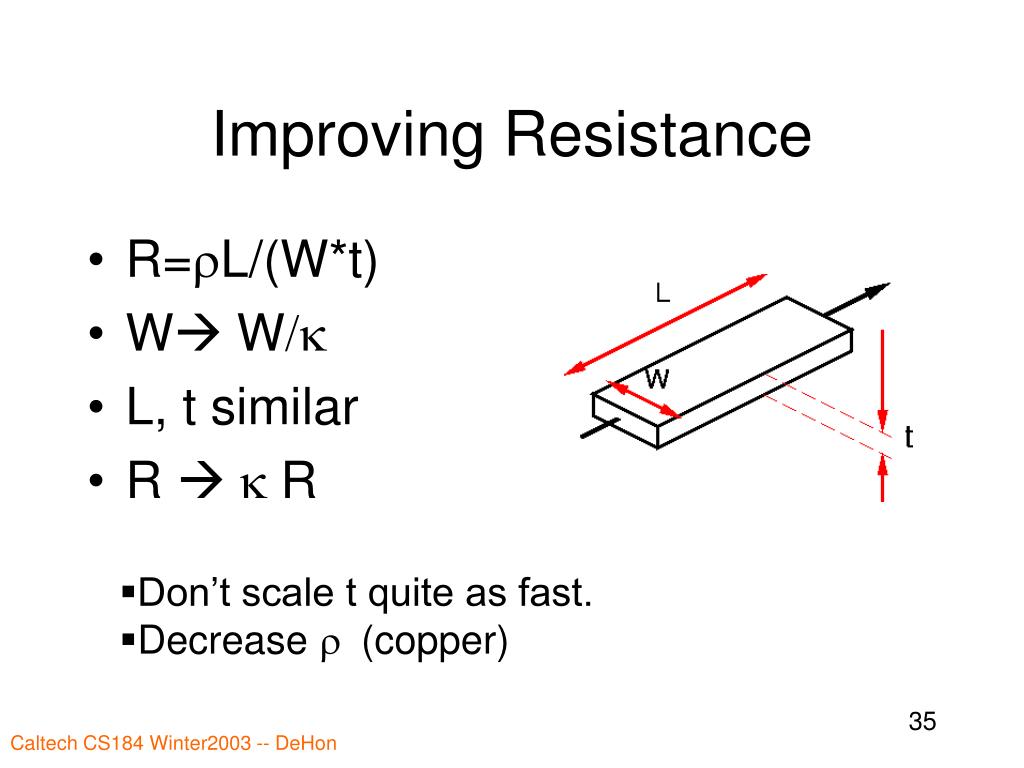

  35. R=rL/(W*t) WW/k L, t similar R  k R Improving Resistance • Don’t scale t quite as fast. • Decrease r (copper)

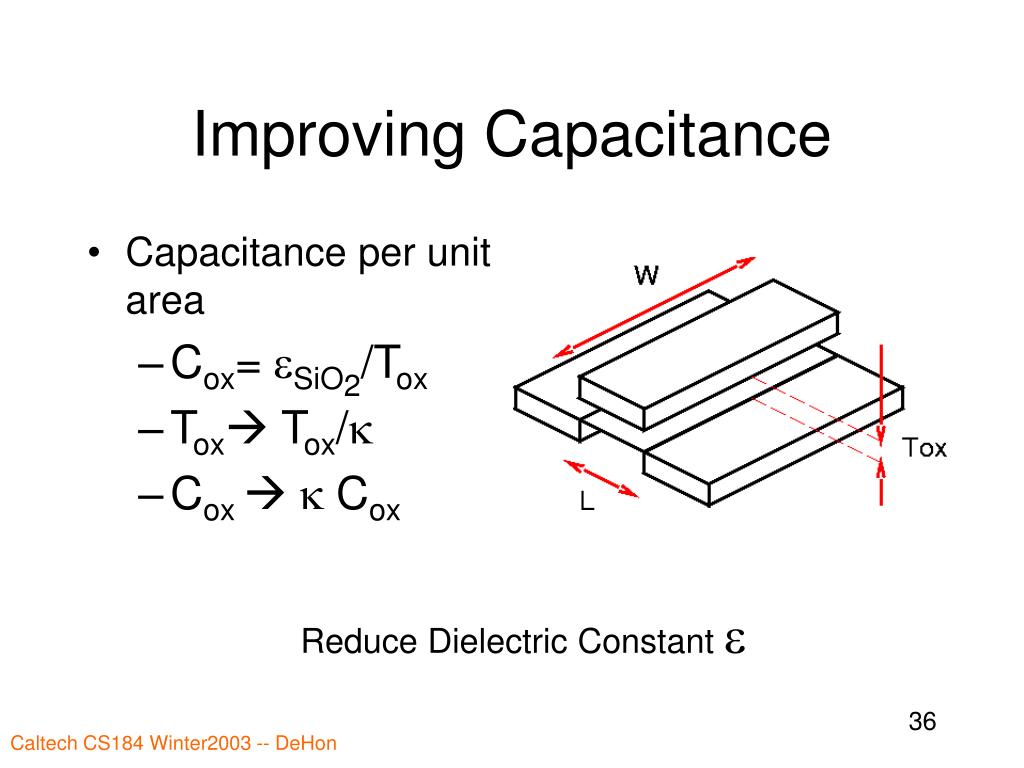

  36. Capacitance per unit area Cox= eSiO2/Tox ToxTox/k Cox  k Cox Improving Capacitance Reduce Dielectric Constant e

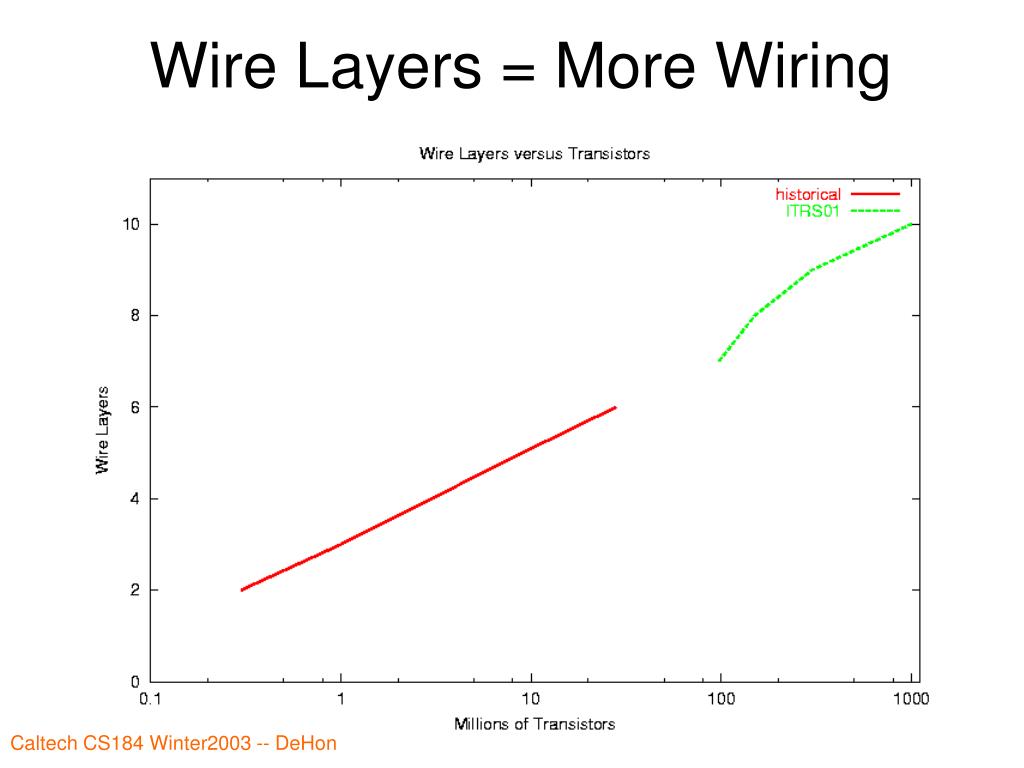

  37. Wire Layers = More Wiring

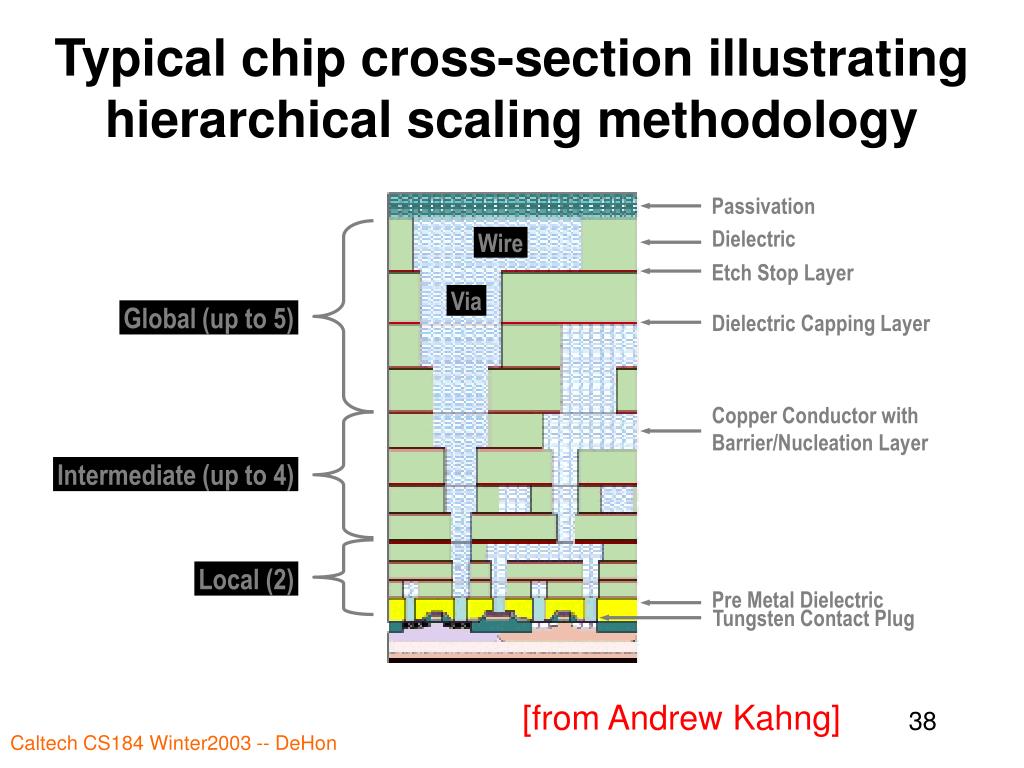

  38. Typical chip cross-section illustrating hierarchical scaling methodology Passivation Dielectric Wire Etch Stop Layer Via Global (up to 5) Dielectric Capping Layer Copper Conductor with Barrier/Nucleation Layer Intermediate (up to 4) Local (2) Pre Metal Dielectric Tungsten Contact Plug [from Andrew Kahng]

  39. tgd=Q/I=(CV)/I VV/k Id=(mCOX/2)(W/L)(Vgs-VTH)2 IdId/k CC/k tgd  tgd /k Improving Gate Delay Don’t scale V: VV IkI tgdtgd /k2 • Lower C. • Don’t scale V.

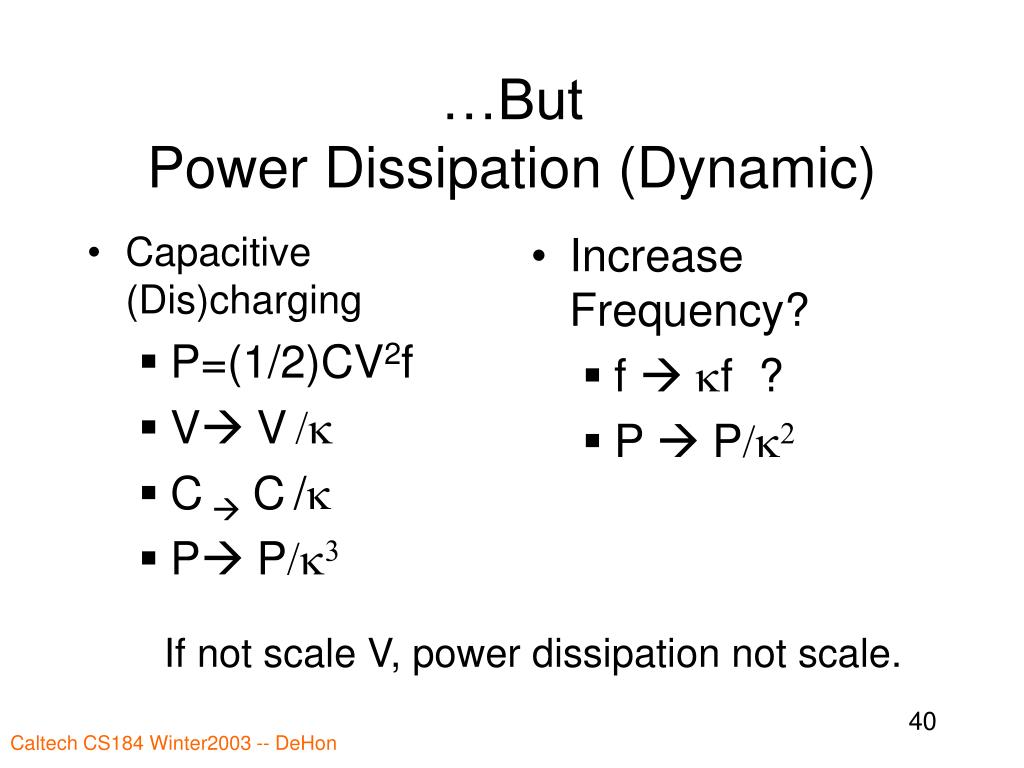

  40. Capacitive (Dis)charging P=(1/2)CV2f VV/k CC/k PP/k3 Increase Frequency? f  kf ? P P/k2 …But Power Dissipation (Dynamic) If not scale V, power dissipation not scale.

  41. …AndPower Density • PP(increase frequency) • P> P/k(dynamic, same freq.) • A  A/k2 • P/A  kP/A … or … k2P/A • Power Density Increases

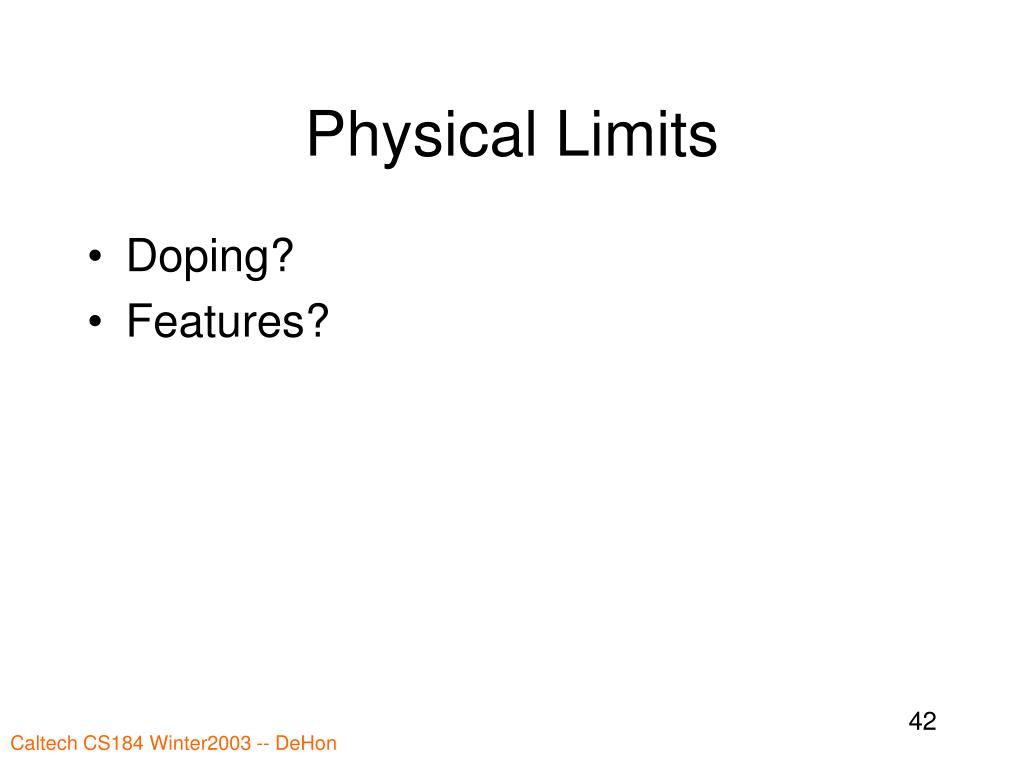

  42. Physical Limits • Doping? • Features?

  43. Physical Limits • Depended on • bulk effects • doping • current (many electrons) • mean free path in conductor • localized to conductors • Eventually • single electrons, atoms • distances close enough to allow tunneling

  44. What Is A “Red Brick” ? • Red Brick = ITRS Technology Requirement with no known solution • Alternate definition: Red Brick = something that REQUIRES billions of dollars in R&D investment [from Andrew Kahng]

  45. The “Red Brick Wall” - 2001 ITRS vs 1999 Source: Semiconductor International - http://www.e-insite.net/semiconductor/index.asp?layout=article&articleId=CA187876 [from Andrew Kahng]

  46. Finishing Up...

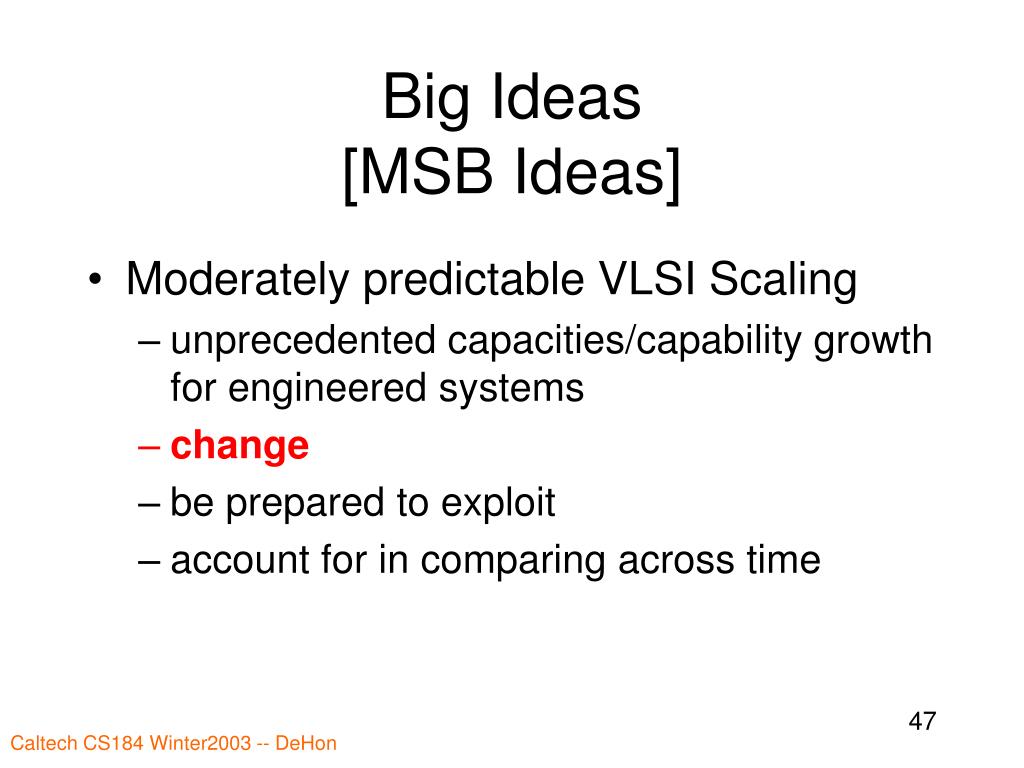

  47. Big Ideas[MSB Ideas] • Moderately predictable VLSI Scaling • unprecedented capacities/capability growth for engineered systems • change • be prepared to exploit • account for in comparing across time

  48. Big Ideas[MSB-1 Ideas] • Uniform scaling reasonably accurate for past couple of decades • Area increase k2 • Real capacity maybe a little less? • Gate delay decreases (1/k) • Wire delay not decrease, maybe increase • Overall delay decrease less than (1/k)
