multiple processor organization
Multiple Processor Organization
  • Single instruction, single data stream - SISD
  • Single instruction, multiple data stream - SIMD
  • Multiple instruction, single data stream - MISD
  • Multiple instruction, multiple data stream- MIMD
single instruction single data stream sisd
Single Instruction, Single Data Stream - SISD
  • Single processor
  • Single instruction stream
  • Data stored in single memory
  • Uni-processor
single instruction multiple data stream simd

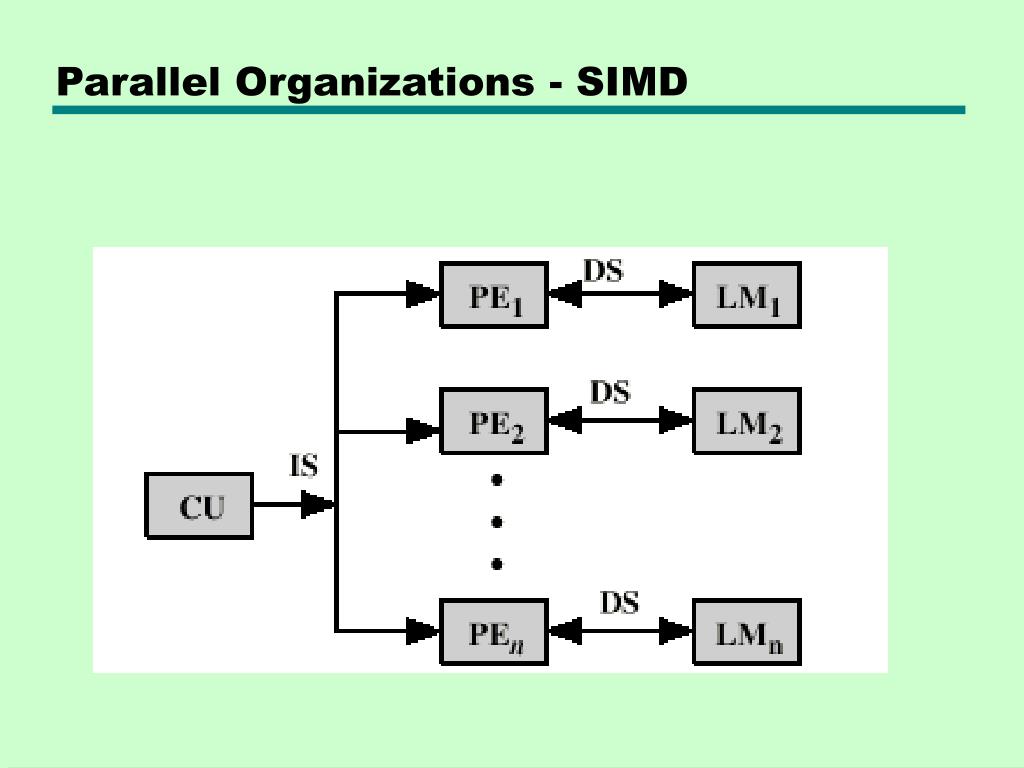

Single Instruction, Multiple Data Stream - SIMD
  • Single machine instruction
  • Controls simultaneous execution
  • Number of processing elements
  • Lockstep basis
  • Each processing element has associated data memory
  • Each instruction executed on different set of data by different processors
  • Vector and array processors
multiple instruction single data stream misd

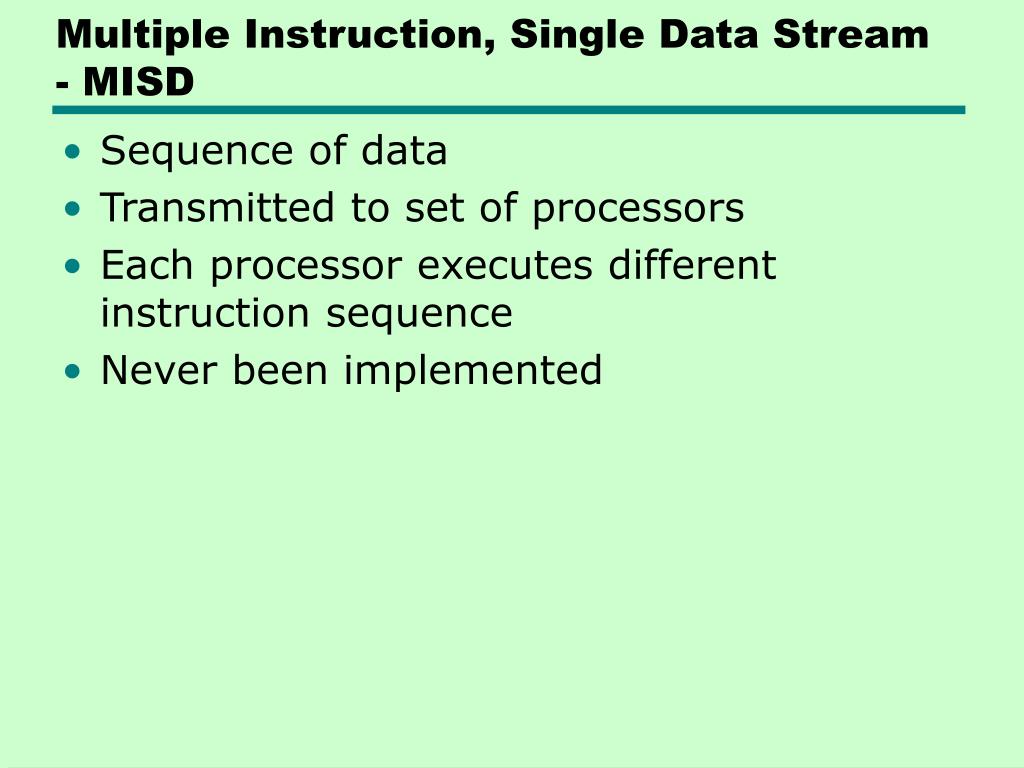

Multiple Instruction, Single Data Stream - MISD
  • Sequence of data
  • Transmitted to set of processors
  • Each processor executes different instruction sequence
  • Never been implemented
multiple instruction multiple data stream mimd

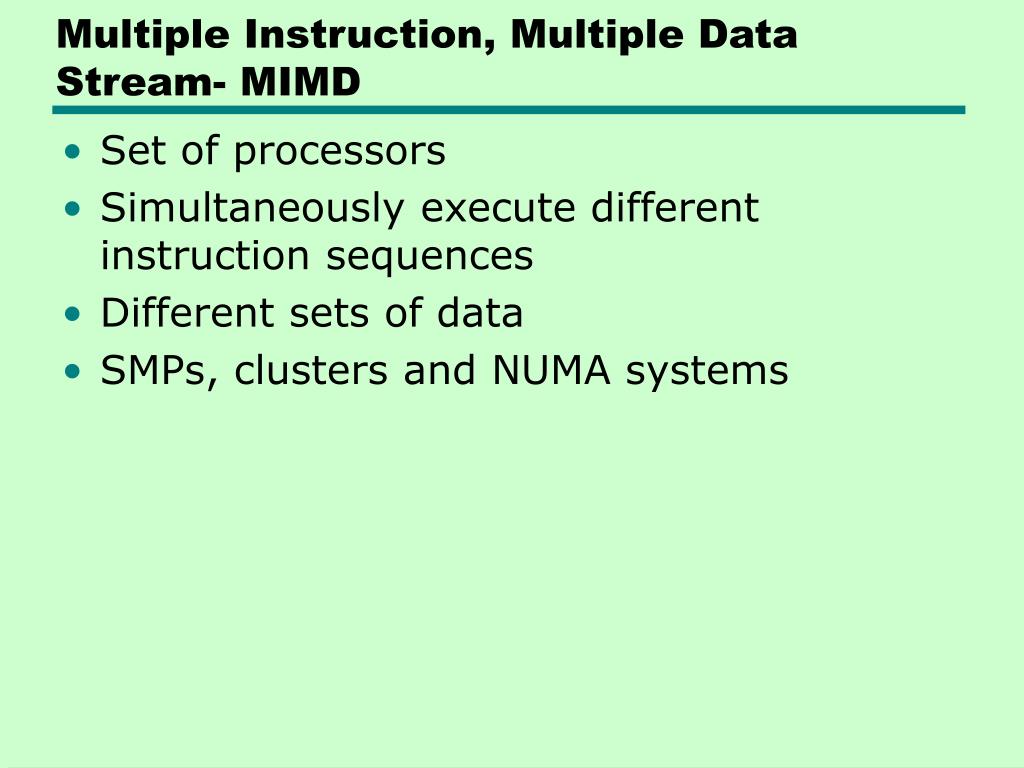

Multiple Instruction, Multiple Data Stream- MIMD
  • Set of processors
  • Simultaneously execute different instruction sequences
  • Different sets of data
  • SMPs, clusters and NUMA systems
mimd overview

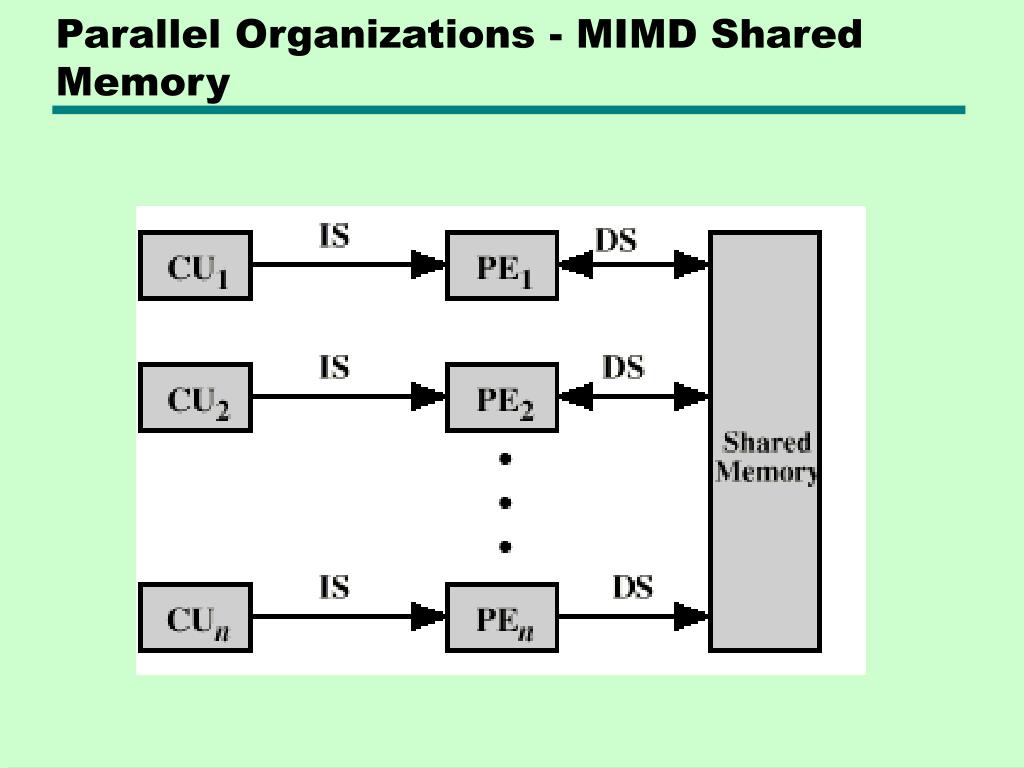

MIMD - Overview
  • General purpose processors
  • Each can process all instructions necessary
  • Further classified by method of processor communication
tightly coupled smp

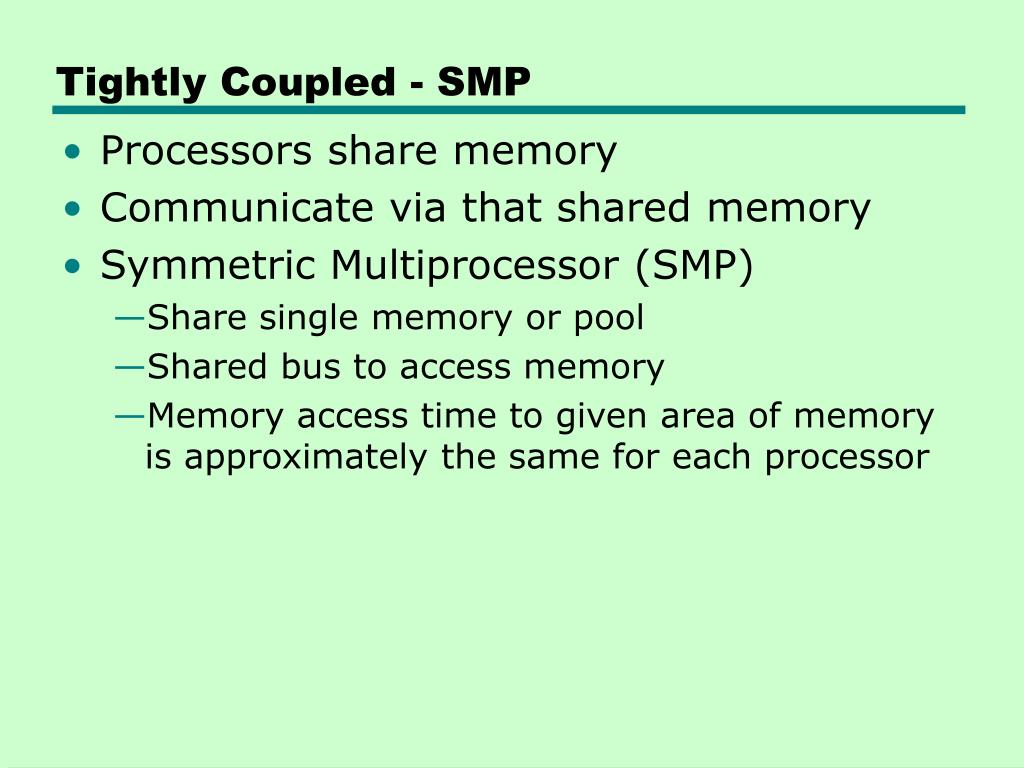

Tightly Coupled - SMP
  • Processors share memory
  • Communicate via that shared memory
  • Symmetric Multiprocessor (SMP)
    • Share single memory or pool
    • Shared bus to access memory
    • Memory access time to given area of memory is approximately the same for each processor
tightly coupled numa
Tightly Coupled - NUMA
  • Nonuniform memory access
  • Access times to different regions of memory may differ
loosely coupled clusters
Loosely Coupled - Clusters
  • Collection of independent uniprocessors or SMPs
  • Interconnected to form a cluster
  • Communication via fixed path or network connections
symmetric multiprocessors
Symmetric Multiprocessors
  • A stand alone computer with the following characteristics
    • Two or more similar processors of comparable capacity
    • Processors share same memory and I/O
    • Processors are connected by a bus or other internal connection
    • Memory access time is approximately the same for each processor
    • All processors share access to I/O
      • Either through same channels or different channels giving paths to same devices
    • All processors can perform the same functions (hence symmetric)
    • System controlled by integrated operating system
      • providing interaction between processors
      • Interaction at job, task, file and data element levels
smp advantages
SMP Advantages
  • Performance
    • If some work can be done in parallel
  • Availability
    • Since all processors can perform the same functions, failure of a single processor does not halt the system
  • Incremental growth
    • User can enhance performance by adding additional processors
  • Scaling
    • Vendors can offer range of products based on number of processors
organization classification
Organization Classification
  • Time shared or common bus
  • Multiport memory
  • Central control unit
time shared bus

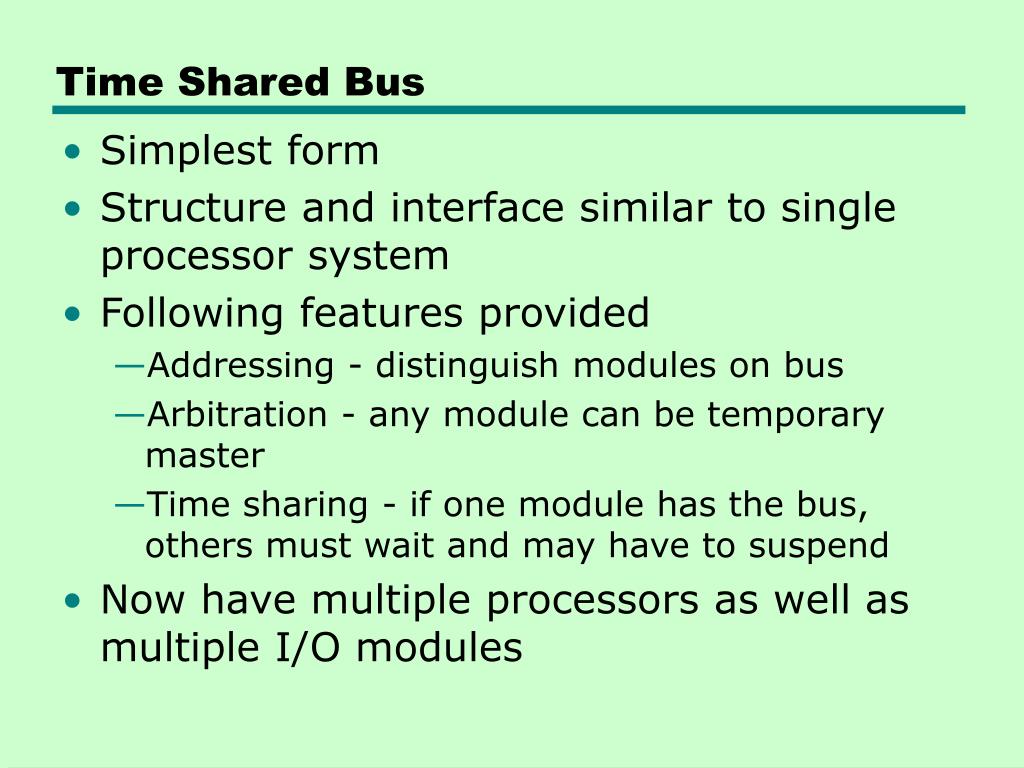

Time Shared Bus
  • Simplest form
  • Structure and interface similar to single processor system
  • Following features provided
    • Addressing - distinguish modules on bus
    • Arbitration - any module can be temporary master
    • Time sharing - if one module has the bus, others must wait and may have to suspend
  • Now have multiple processors as well as multiple I/O modules
time share bus advantages

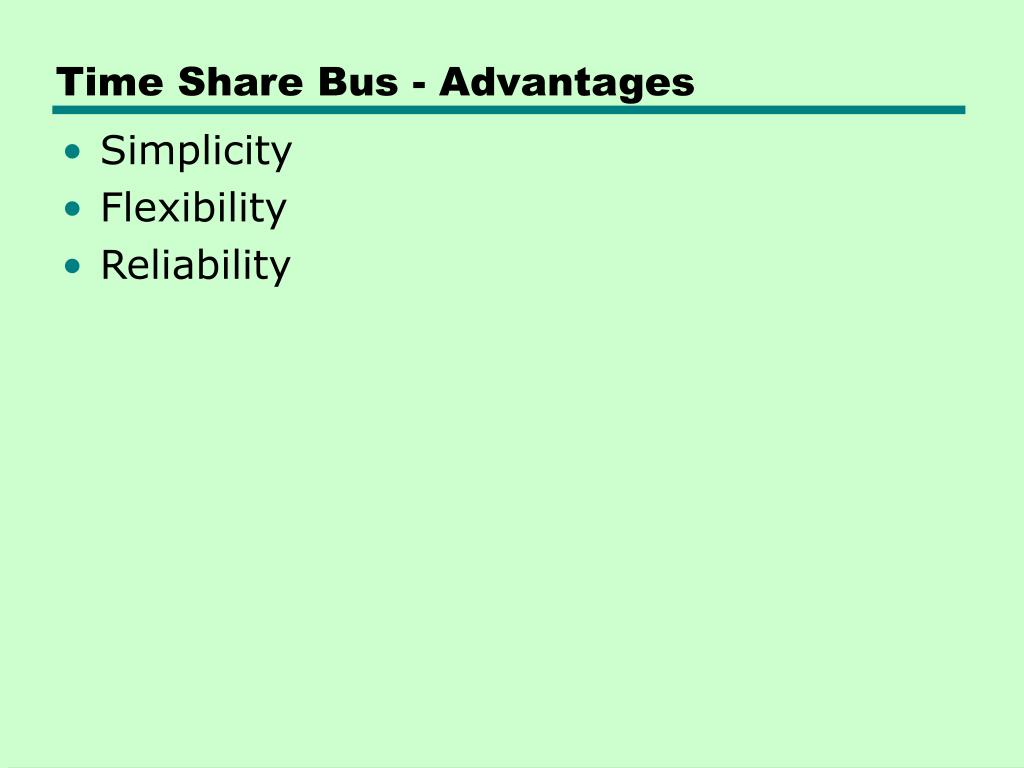

Time Share Bus - Advantages
  • Simplicity
  • Flexibility
  • Reliability
time share bus disadvantage
Time Share Bus - Disadvantage
  • Performance limited by bus cycle time
  • Each processor should have local cache
    • Reduce number of bus accesses
  • Leads to problems with cache coherence
    • Solved in hardware - see later
operating system issues
Operating System Issues
  • Simultaneous concurrent processes
  • Scheduling
  • Synchronization
  • Memory management
  • Reliability and fault tolerance
a mainframe smp ibm zseries
A Mainframe SMPIBM zSeries
  • Uniprocessor with one main memory card to a high-end system with 48 processors and 8 memory cards
  • Dual-core processor chip
    • Each includes two identical central processors (CPs)
    • CISC superscalar microprocessor
    • Mostly hardwired, some vertical microcode
    • 256-kB L1 instruction cache and a 256-kB L1 data cache
  • L2 cache 32 MB
    • Clusters of five
    • Each cluster supports eight processors and access to entire main memory space
  • System control element (SCE)
    • Arbitrates system communication
    • Maintains cache coherence
  • Main store control (MSC)
    • Interconnect L2 caches and main memory
  • Memory card
    • Each 32 GB, Maximum 8 , total of 256 GB
    • Interconnect to MSC via synchronous memory interfaces (SMIs)
  • Memory bus adapter (MBA)
    • Interface to I/O channels, go directly to L2 cache
cache coherence and mesi protocol
Cache Coherence and MESI Protocol
  • Problem - multiple copies of same data in different caches
  • Can result in an inconsistent view of memory
  • Write back policy can lead to inconsistency
  • Write through can also give problems unless caches monitor memory traffic
software solutions
Software Solutions
  • Compiler and operating system deal with problem
  • Overhead transferred to compile time
  • Design complexity transferred from hardware to software
  • However, software tends to make conservative decisions
    • Inefficient cache utilization
  • Analyze code to determine safe periods for caching shared variables
hardware solution
Hardware Solution
  • Cache coherence protocols
  • Dynamic recognition of potential problems
  • Run time
  • More efficient use of cache
  • Transparent to programmer
  • Directory protocols
  • Snoopy protocols
directory protocols

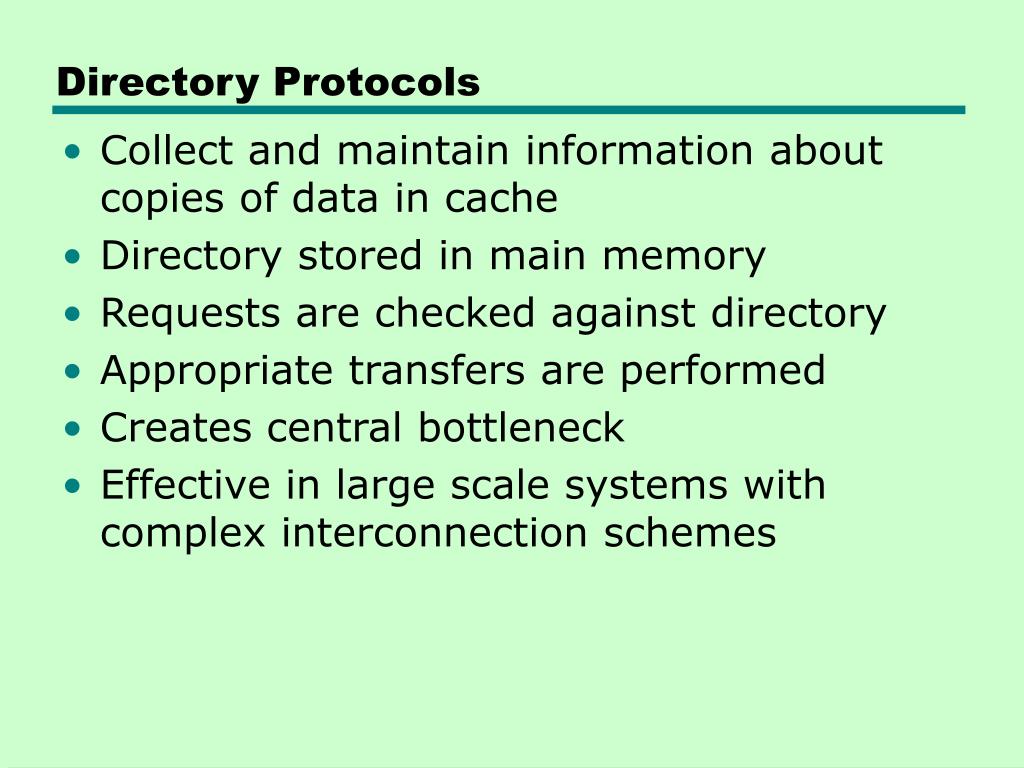

Directory Protocols
  • Collect and maintain information about copies of data in cache
  • Directory stored in main memory
  • Requests are checked against directory
  • Appropriate transfers are performed
  • Creates central bottleneck
  • Effective in large scale systems with complex interconnection schemes
snoopy protocols

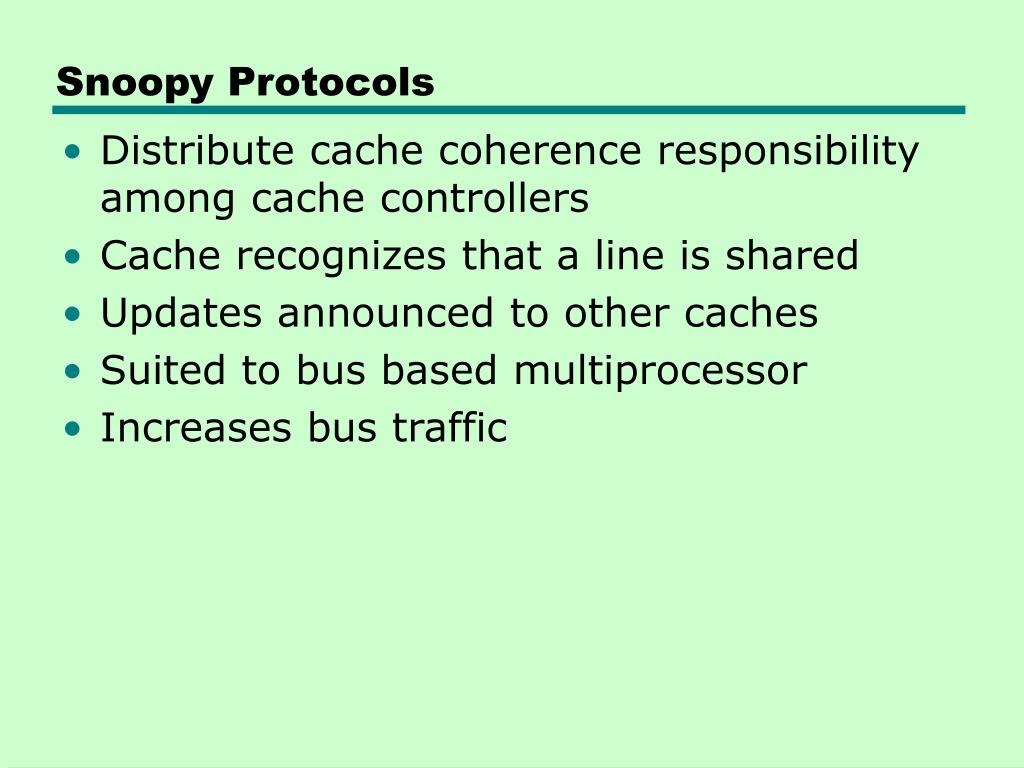

Snoopy Protocols
  • Distribute cache coherence responsibility among cache controllers
  • Cache recognizes that a line is shared
  • Updates announced to other caches
  • Suited to bus based multiprocessor
  • Increases bus traffic
write invalidate
Write Invalidate
  • Multiple readers, one writer
  • When a write is required, all other caches of the line are invalidated
  • Writing processor then has exclusive (cheap) access until line required by another processor
  • Used in Pentium II and PowerPC systems
  • State of every line is marked as modified, exclusive, shared or invalid
  • MESI
write update

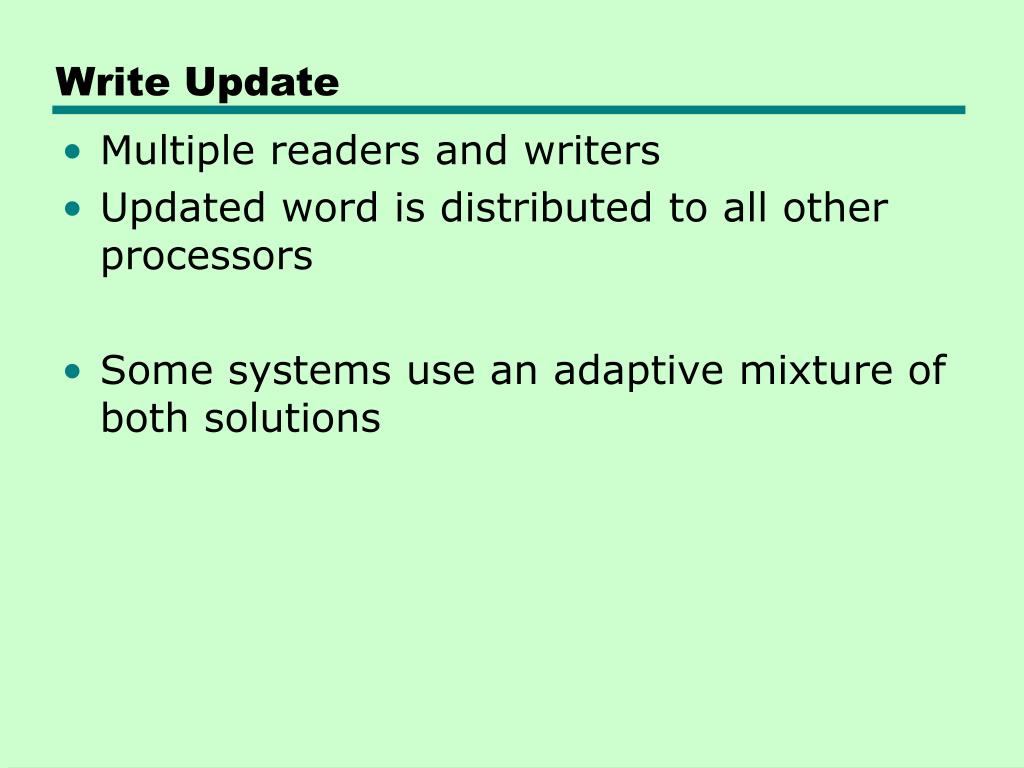

Write Update
  • Multiple readers and writers
  • Updated word is distributed to all other processors
  • Some systems use an adaptive mixture of both solutions
increasing performance
Increasing Performance
  • Processor performance can be measured by the rate at which it executes instructions
  • MIPS rate = f * IPC
    • f processor clock frequency, in MHz
    • IPC is average instructions per cycle
  • Increase performance by increasing clock frequency and increasing instructions that complete during cycle
  • May be reaching limit
    • Complexity
    • Power consumption
multithreading and chip multiprocessors
Multithreading and Chip Multiprocessors
  • Instruction stream divided into smaller streams (threads)
  • Executed in parallel
  • Wide variety of multithreading designs
definitions of threads and processes

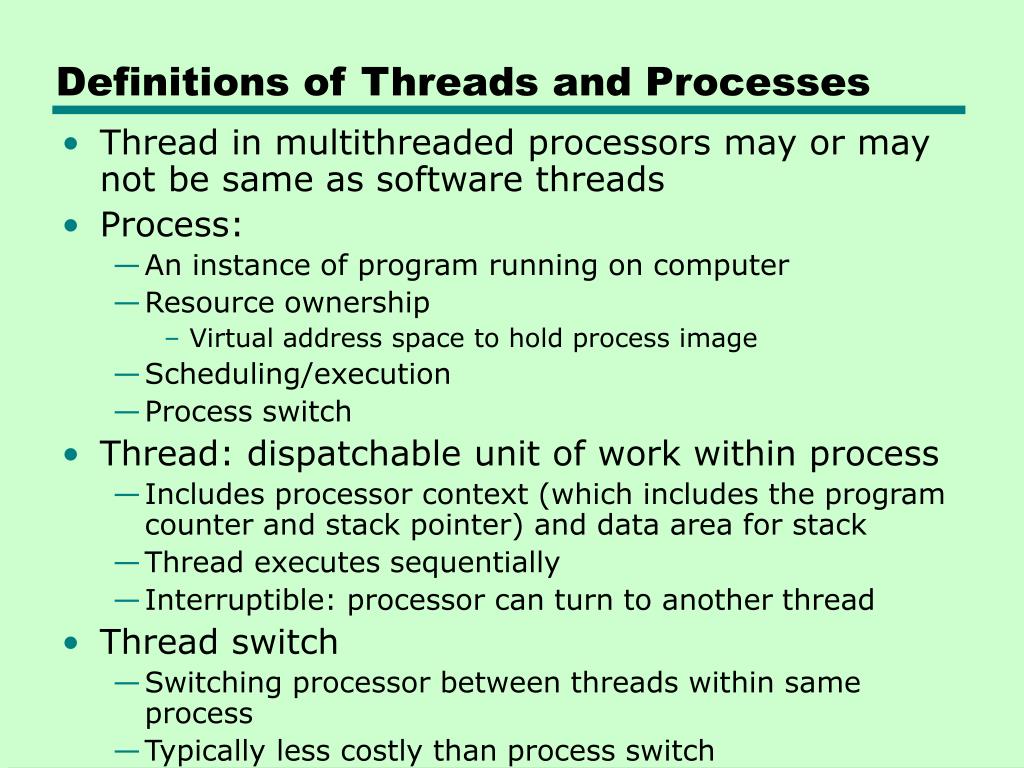

Definitions of Threads and Processes
  • Thread in multithreaded processors may or may not be same as software threads
  • Process:
    • An instance of program running on computer
    • Resource ownership
      • Virtual address space to hold process image
    • Scheduling/execution
    • Process switch
  • Thread: dispatchable unit of work within process
    • Includes processor context (which includes the program counter and stack pointer) and data area for stack
    • Thread executes sequentially
    • Interruptible: processor can turn to another thread
  • Thread switch
    • Switching processor between threads within same process
    • Typically less costly than process switch
implicit and explicit multithreading
Implicit and Explicit Multithreading
  • All commercial processors and most experimental ones use explicit multithreading
    • Concurrently execute instructions from different explicit threads
    • Interleave instructions from different threads on shared pipelines or parallel execution on parallel pipelines
  • Implicit multithreading is concurrent execution of multiple threads extracted from single sequential program
    • Implicit threads defined statically by compiler or dynamically by hardware
approaches to explicit multithreading
Approaches to Explicit Multithreading
  • Interleaved
    • Fine-grained
    • Processor deals with two or more thread contexts at a time
    • Switching thread at each clock cycle
    • If thread is blocked it is skipped
  • Blocked
    • Coarse-grained
    • Thread executed until event causes delay
    • E.g.Cache miss
    • Effective on in-order processor
    • Avoids pipeline stall
  • Simultaneous (SMT)
    • Instructions simultaneously issued from multiple threads to execution units of superscalar processor
  • Chip multiprocessing
    • Processor is replicated on a single chip
    • Each processor handles separate threads
scalar processor approaches

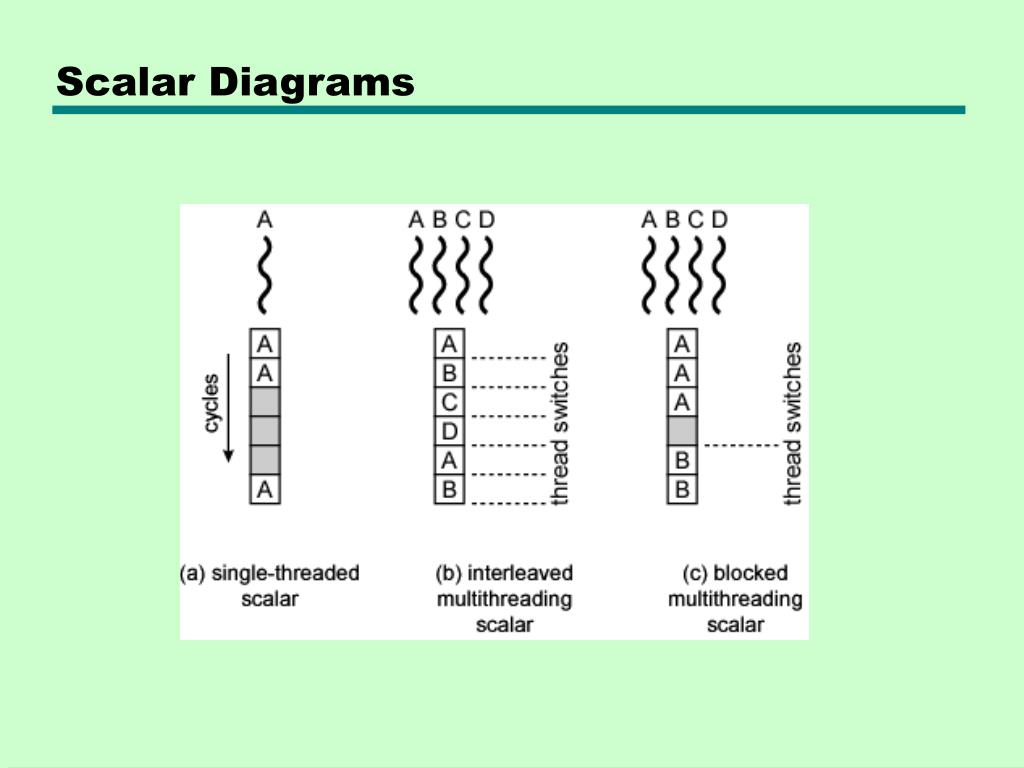

Scalar Processor Approaches
  • Single-threaded scalar
    • Simple pipeline
    • No multithreading
  • Interleaved multithreaded scalar
    • Easiest multithreading to implement
    • Switch threads at each clock cycle
    • Pipeline stages kept close to fully occupied
    • Hardware needs to switch thread context between cycles
  • Blocked multithreaded scalar
    • Thread executed until latency event occurs
    • Would stop pipeline
    • Processor switches to another thread
multiple instruction issue processors 1

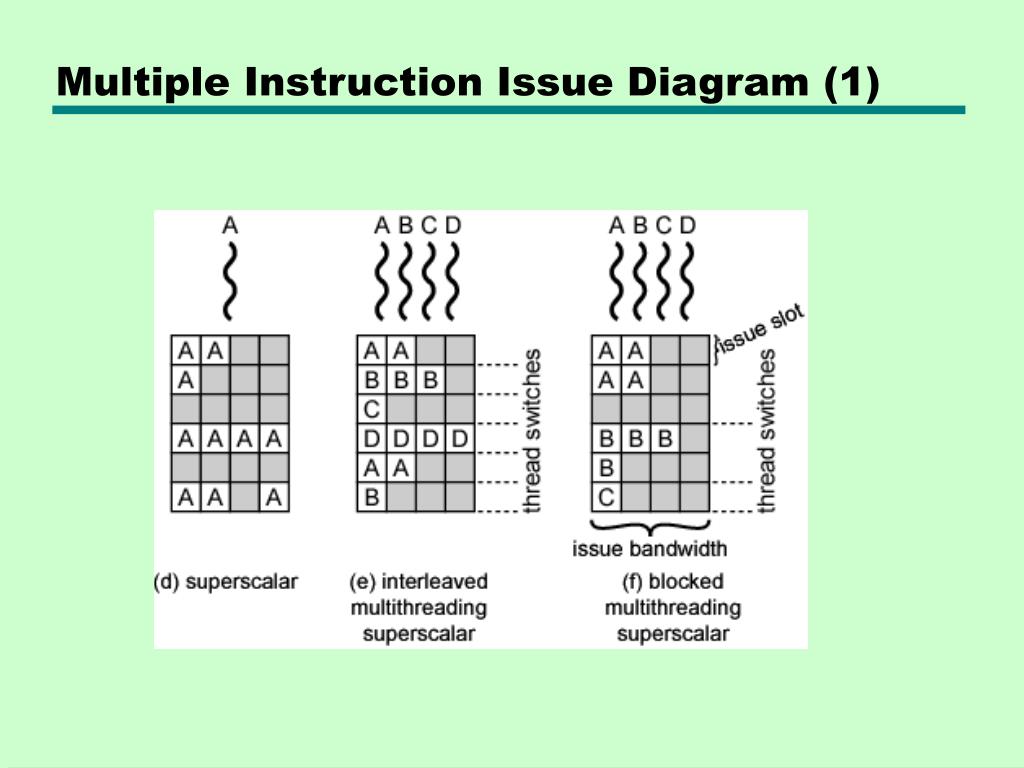

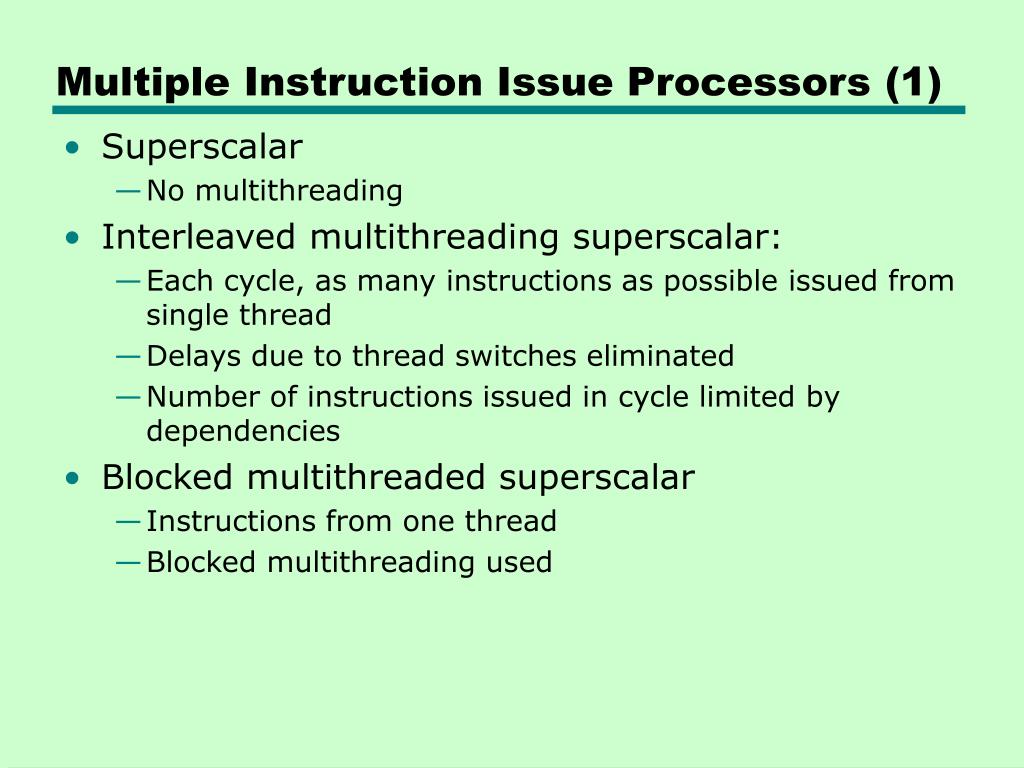

Multiple Instruction Issue Processors (1)
  • Superscalar
    • No multithreading
  • Interleaved multithreading superscalar:
    • Each cycle, as many instructions as possible issued from single thread
    • Delays due to thread switches eliminated
    • Number of instructions issued in cycle limited by dependencies
  • Blocked multithreaded superscalar
    • Instructions from one thread
    • Blocked multithreading used
multiple instruction issue processors 2
Multiple Instruction Issue Processors (2)
  • Very long instruction word (VLIW)
    • E.g. IA-64
    • Multiple instructions in single word
    • Typically constructed by compiler
    • Operations that may be executed in parallel in same word
    • May pad with no-ops
  • Interleaved multithreading VLIW
    • Similar efficiencies to interleaved multithreading on superscalar architecture
  • Blocked multithreaded VLIW
    • Similar efficiencies to blocked multithreading on superscalar architecture
parallel simultaneous execution of multiple threads
Parallel, SimultaneousExecution of Multiple Threads
  • Simultaneous multithreading
    • Issue multiple instructions at a time
    • One thread may fill all horizontal slots
    • Instructions from two or more threads may be issued
    • With enough threads, can issue maximum number of instructions on each cycle
  • Chip multiprocessor
    • Multiple processors
    • Each has two-issue superscalar processor
    • Each processor is assigned thread
      • Can issue up to two instructions per cycle per thread
examples
Examples
  • Some Pentium 4
    • Intel calls it hyperthreading
    • SMT with support for two threads
    • Single multithreaded processor, logically two processors

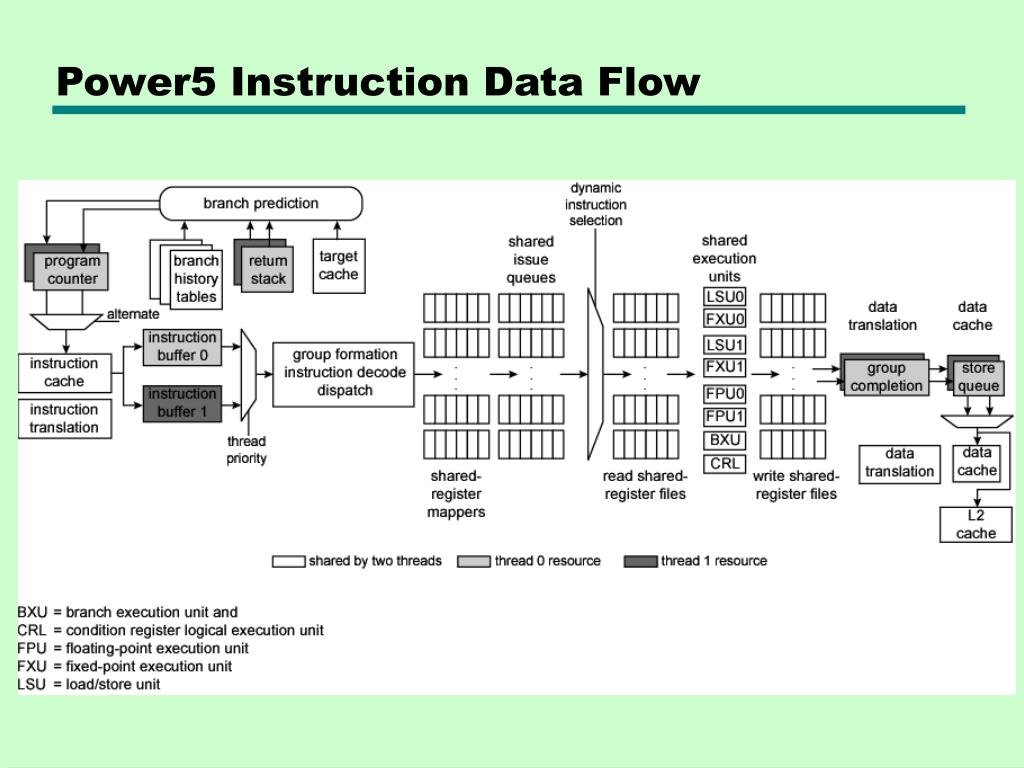

  • IBM Power5
    • High-end PowerPC
    • Combines chip multiprocessing with SMT
    • Chip has two separate processors
    • Each supporting two threads concurrently using SMT
clusters
Clusters
  • Alternative to SMP
  • High performance
  • High availability
  • Server applications
  • A group of interconnected whole computers
  • Working together as unified resource
  • Illusion of being one machine
  • Each computer called a node
cluster benefits
Cluster Benefits
  • Absolute scalability
  • Incremental scalability
  • High availability
  • Superior price/performance
operating systems design issues
Operating Systems Design Issues
  • Failure Management
    • High availability
    • Fault tolerant
    • Failover
      • Switching applications & data from failed system to alternative within cluster
    • Failback
      • Restoration of applications and data to original system
      • After problem is fixed
  • Load balancing
    • Incremental scalability
    • Automatically include new computers in scheduling
    • Middleware needs to recognise that processes may switch between machines
parallelizing
Parallelizing
  • Single application executing in parallel on a number of machines in cluster
    • Complier
      • Determines at compile time which parts can be executed in parallel
      • Split off for different computers
    • Application
      • Application written from scratch to be parallel
      • Message passing to move data between nodes
      • Hard to program
      • Best end result
    • Parametric computing
      • If a problem is repeated execution of algorithm on different sets of data
      • e.g. simulation using different scenarios
      • Needs effective tools to organize and run
cluster middleware
Cluster Middleware
  • Unified image to user
    • Single system image
  • Single point of entry
  • Single file hierarchy
  • Single control point
  • Single virtual networking
  • Single memory space
  • Single job management system
  • Single user interface
  • Single I/O space
  • Single process space
  • Checkpointing
  • Process migration
blade servers
Blade Servers
  • Common implementation of cluster
  • Server houses multiple server modules (blades) in single chassis
    • Save space
    • Improve system management
    • Chassis provides power supply
    • Each blade has processor, memory, disk
cluster v smp
Cluster v. SMP
  • Both provide multiprocessor support to high demand applications.
  • Both available commercially
    • SMP for longer
  • SMP:
    • Easier to manage and control
    • Closer to single processor systems
      • Scheduling is main difference
      • Less physical space
      • Lower power consumption
  • Clustering:
    • Superior incremental & absolute scalability
    • Superior availability
      • Redundancy
nonuniform memory access numa
Nonuniform Memory Access (NUMA)
  • Alternative to SMP & clustering
  • Uniform memory access
    • All processors have access to all parts of memory
      • Using load & store
    • Access time to all regions of memory is the same
    • Access time to memory for different processors same
    • As used by SMP
  • Nonuniform memory access
    • All processors have access to all parts of memory
      • Using load & store
    • Access time of processor differs depending on region of memory
    • Different processors access different regions of memory at different speeds
  • Cache coherent NUMA
    • Cache coherence is maintained among the caches of the various processors
    • Significantly different from SMP and clusters
motivation
Motivation
  • SMP has practical limit to number of processors
    • Bus traffic limits to between 16 and 64 processors
  • In clusters each node has own memory
    • Apps do not see large global memory
    • Coherence maintained by software not hardware
  • NUMA retains SMP flavour while giving large scale multiprocessing
    • e.g. Silicon Graphics Origin NUMA 1024 MIPS R10000 processors
  • Objective is to maintain transparent system wide memory while permitting multiprocessor nodes, each with own bus or internal interconnection system
cc numa operation
CC-NUMA Operation
  • Each processor has own L1 and L2 cache
  • Each node has own main memory
  • Nodes connected by some networking facility
  • Each processor sees single addressable memory space
  • Memory request order:
    • L1 cache (local to processor)
    • L2 cache (local to processor)
    • Main memory (local to node)
    • Remote memory
      • Delivered to requesting (local to processor) cache
  • Automatic and transparent
memory access sequence
Memory Access Sequence
  • Each node maintains directory of location of portions of memory and cache status
  • e.g. node 2 processor 3 (P2-3) requests location 798 which is in memory of node 1
    • P2-3 issues read request on snoopy bus of node 2
    • Directory on node 2 recognises location is on node 1
    • Node 2 directory requests node 1’s directory
    • Node 1 directory requests contents of 798
    • Node 1 memory puts data on (node 1 local) bus
    • Node 1 directory gets data from (node 1 local) bus
    • Data transferred to node 2’s directory
    • Node 2 directory puts data on (node 2 local) bus
    • Data picked up, put in P2-3’s cache and delivered to processor
cache coherence
Cache Coherence
  • Node 1 directory keeps note that node 2 has copy of data
  • If data modified in cache, this is broadcast to other nodes
  • Local directories monitor and purge local cache if necessary
  • Local directory monitors changes to local data in remote caches and marks memory invalid until writeback
  • Local directory forces writeback if memory location requested by another processor
numa pros cons
NUMA Pros & Cons
  • Effective performance at higher levels of parallelism than SMP
  • No major software changes
  • Performance can breakdown if too much access to remote memory
    • Can be avoided by:
      • L1 & L2 cache design reducing all memory access
        • Need good temporal locality of software
      • Good spatial locality of software
      • Virtual memory management moving pages to nodes that are using them most
  • Not transparent
    • Page allocation, process allocation and load balancing changes needed
  • Availability?
vector computation
Vector Computation
  • Maths problems involving physical processes present different difficulties for computation
    • Aerodynamics, seismology, meteorology
    • Continuous field simulation
  • High precision
  • Repeated floating point calculations on large arrays of numbers
  • Supercomputers handle these types of problem
    • Hundreds of millions of flops
    • $10-15 million
    • Optimised for calculation rather than multitasking and I/O
    • Limited market
      • Research, government agencies, meteorology
  • Array processor
    • Alternative to supercomputer
    • Configured as peripherals to mainframe & mini
    • Just run vector portion of problems
approaches
Approaches
  • General purpose computers rely on iteration to do vector calculations
  • In example this needs six calculations
  • Vector processing
    • Assume possible to operate on one-dimensional vector of data
    • All elements in a particular row can be calculated in parallel
  • Parallel processing
    • Independent processors functioning in parallel
    • Use FORK N to start individual process at location N
    • JOIN N causes N independent processes to join and merge following JOIN
      • O/S Co-ordinates JOINs
      • Execution is blocked until all N processes have reached JOIN
processor designs
Processor Designs
  • Pipelined ALU
    • Within operations
    • Across operations
  • Parallel ALUs
  • Parallel processors
chaining
Chaining
  • Cray Supercomputers
  • Vector operation may start as soon as first element of operand vector available and functional unit is free
  • Result from one functional unit is fed immediately into another
  • If vector registers used, intermediate results do not have to be stored in memory
