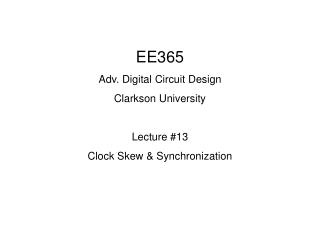

slide1

EE365

Adv. Digital Circuit Design

Clarkson University

Lecture #13

Clock Skew & Synchronization

topics
Topics
  • More Serial
  • Clock Skew
  • Synchronization

Lect #13

Rissacher EE365

serial data systems e g tpc
Serial data systems (e.g., TPC)

Lect #13

Rissacher EE365

serial data in the phone system e 1
Serial data in the phone system (E-1)
  • 2.048 Mb/s links between phone switches and subscribers
    • partitioned into 32 64 Kb/s channels
  • Each channel gets a timeslot in a “frame” where it can send 8 bits every 125 sec.
    • 8000 frames/sec

Lect #13

Rissacher EE365

timeslot details

count = 255

Timeslot details

Lect #13

Rissacher EE365

parallel to serial conversion

256

LSBs are bit number

Assert shift-registerLOAD input during bit 7

Timeslot number canbe decoded and usedto select source ofparallel data

count = 255

Serial data todestination

Parallel-to-serial conversion

Lect #13

Rissacher EE365

serial to parallel conversion

Synchronize destination’s counter to source’s

Detect that acomplete bytehas beenreceived

Note:

loads

0…0

Holding registerfor completebyte

Shift in serial data

Serial-to-parallel conversion

Lect #13

Rissacher EE365

destination timing

Grab complete byte when available

Holding-register outputs

Serial-in, parallel-outshift register outputs

Destination timing

Lect #13

Rissacher EE365

serial communication on one wire
Serial communication on ONE wire
  • Serial communication requires three signals: CLOCK, SYNC, and DATA. Yet only one “wire” is used. How?
  • One solution: Manchester code.
  • Or use a phase-locked loop (analog circuit)to extract clock from the data:

Lect #13

Rissacher EE365

still a couple of problems
Still a couple of problems
  • Framing -- SYNC signal
    • Solution: Use a unique data pattern for SYNC
  • PLL clock recovery -- what if too many zeroes are transmitted? PLL can’t stay in sync.
    • Solution: Use a code that guarantees a minimum number of ones
    • Phone system: Map 00000000 --> 00000010 (creating slight voice distortion)
  • Gigabit Ethernet: Uses 8B10B code, solving both problems
    • Map each byte into 8 bits
    • Use only a “good” subset of 210 code words
    • Use another code word for synchronization

Lect #13

Rissacher EE365

synchronous system structure
Synchronous System Structure

Everything is clocked by the same, common clock

Lect #13

Rissacher EE365

typical synchronous system timing
Typical synchronous-system timing
  • Outputs have one complete clock period to propagate to inputs.
  • Must take into account flip-flop setup times at next clock period.

Lect #13

Rissacher EE365

clock skew
Clock Skew
  • Clock signal may not reach all flip-flops simultaneously.
  • Output changes of flip-flops receiving “early” clock may reach D inputs of flip-flops with “late” clock too soon.

Reasons for slowness:(a) wiring delays

(b) capacitance

(c) incorrect design

Lect #13

Rissacher EE365

clock skew calculation
Clock-skew calculation
  • tffpd(min) + tcomb(min)-thold-tskew(max) > 0
  • First two terms are minimum time after clock edge that a D input changes
  • Hold time is earliest time that the input may change
  • Clock skew subtracts from the available hold-time margin
  • Compensating for clock skew:
    • Longer flip-flop propagation delay
    • Explicit combinational delays
    • Shorter (even negative) flip-flop hold times

Lect #13

Rissacher EE365

in class practice problem
In-Class Practice Problem

Calculate whether clock-skew is an issue for the indicated Flip-Flop

Comb Logic

(Excitation Eqns)

tffpd(min) = 5 ns

tcomb(min) = 20 ns

thold = 20 ns

tskew(max) = 10 ns

CLK

Delay

Lect #13

Rissacher EE365

in class practice problem16
In-Class Practice Problem

Calculate whether clock-skew is an issue for the indicated Flip-Flop

tffpd(min) = 5 ns

tcomb(min) = 20 ns

thold = 20 ns

tskew(max) = 10 ns

tffpd(min) + tcomb(min)-thold-tskew(max) = -5 ns

Lect #13

Rissacher EE365

in class practice problem17
In-Class Practice Problem

Now add a delay to the circuit to fix the issue.

Comb Logic

(Excitation Eqns)

tffpd(min) = 5 ns

tcomb(min) = 20 ns

thold = 20 ns

tskew(max) = 10 ns

CLK

Delay

Lect #13

Rissacher EE365

in class practice problem18
In-Class Practice Problem

> 5 ns

Comb Logic

(Excitation Eqns)

tffpd(min) = 5 ns

tcomb(min) = 20 ns

thold = 20 ns

tskew(max) = 10 ns

CLK

Delay

Lect #13

Rissacher EE365

example of bad clock distribution
Example of bad clock distribution

Lect #13

Rissacher EE365

clock distribution in asics
Clock distribution in ASICs
  • This is what a typical ASIC router will do if you don’t lay out the clock by hand.

Lect #13

Rissacher EE365

clock tree solution
“Clock-tree” solution
  • Often laid out by hand
  • Wide,fast metal (low R ==> fast RC time constant)

Lect #13

Rissacher EE365

gating the clock
Gating the clock
  • Definitely a no-no
    • Glitches possible if control signal (CLKEN) is generated by the same clock
    • Excessive clock skew in any case.

Lect #13

Rissacher EE365

asynchronous inputs
Asynchronous inputs
  • Not all inputs are synchronized with the clock
  • Examples:
    • Keystrokes
    • Sensor inputs
    • Data received from a network (transmitter has its own clock)
  • Inputs must be synchronized with the system clock before being applied to a synchronous system.

Lect #13

Rissacher EE365

a simple synchronizer
A simple synchronizer

Lect #13

Rissacher EE365

only one synchronizer per input
Only one synchronizer per input

Lect #13

Rissacher EE365

even worse
Even worse
  • Combinational delays to the two synchronizers are likely to be different.

Lect #13

Rissacher EE365

the way to do it
The way to do it
  • One synchronizer per input
  • Carefully locate the synchronization points in a system.
  • But still a problem -- the synchronizer output may become metastable when setup and hold time are not met.

Lect #13

Rissacher EE365

recommended synchronizer design
Recommended synchronizer design
  • Hope that FF1 settles down before “META” is sampled.
    • In this case, “SYNCIN” is valid for almost a full clock period.
    • Can calculate the probability of “synchronizer failure” (FF1 still metastable when META sampled)

Lect #13

Rissacher EE365

metastability decision window
Metastability decision window

Lect #13

Rissacher EE365

metastability resolution time
Metastability resolution time

Lect #13

Rissacher EE365

flip flop metastable behavior
Flip-flop metastable behavior
  • Probability of flip-flop output being in the metastable state is an exponentially decreasing function of tr (time since clock edge, a.k.a. “resolution time”).
  • Stated another way,MTBF(tr) = exp(tr /t) / [T0fa] , wheret and T0 are parameters for a particular flip-flop,f is the clock frequency, anda is the number of asynchronous transitions / sec

Lect #13

Rissacher EE365

typical flip flop metastability parameters

MTBF =

exp(tr /t)

________

[T0fa]

Typical flip-flop metastability parameters

MTBF = 1000 yrs.

F = 25 MHz

a = 100 KHz

tr = ?

Lect #13

Rissacher EE365

is 1000 years enough
Is 1000 years enough?
  • If MTBF = 1000 years and you ship 52,000 copies of the product, then some system experiences a mysterious failure every week.
  • Real-world MTBFs must be much higher.
  • How to get better MTBFs?
    • Use faster flip-flops
      • But clock speeds keep getting faster, thwarting this approach.
    • Wait for multiple clock ticks to get a longer metastabilty resolution time
      • Waiting longer usually doesn’t hurt performance
      • …unless there is a critical “round-trip” handshake.

Lect #13

Rissacher EE365

multiple cycle synchronizer
Multiple-cycle synchronizer
  • Clock-skew problem

Lect #13

Rissacher EE365

de skewed multiple cycle synchronizer
De-skewed multiple-cycle synchronizer
  • Necessary in really high-speed systems
  • DSYNCIN is valid for almost an entire clock period.

Lect #13

Rissacher EE365

next time
Next time
  • CPLDs
  • FPGAs

Lect #13

Rissacher EE365
