Discussion 2: PA1

1. Discussion 2: PA1 SiarheiVishniakou CSE 100 Summer 2014

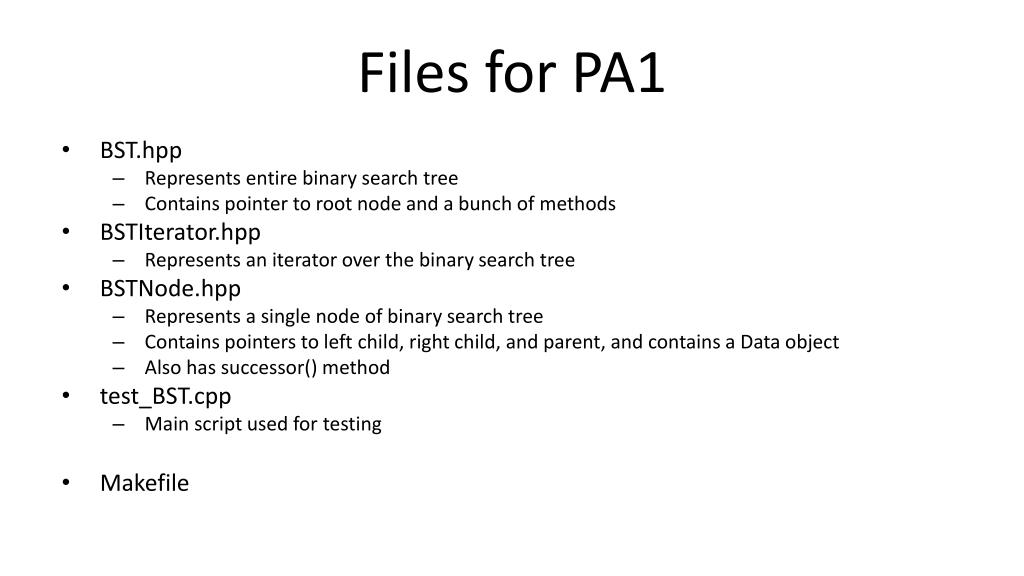

2. Files for PA1 • BST.hpp • Represents entire binary search tree • Contains pointer to root node and a bunch of methods • BSTIterator.hpp • Represents an iterator over the binary search tree • BSTNode.hpp • Represents a single node of binary search tree • Contains pointers to left child, right child, and parent, and contains a Data object • Also has successor() method • test_BST.cpp • Main script used for testing • Makefile

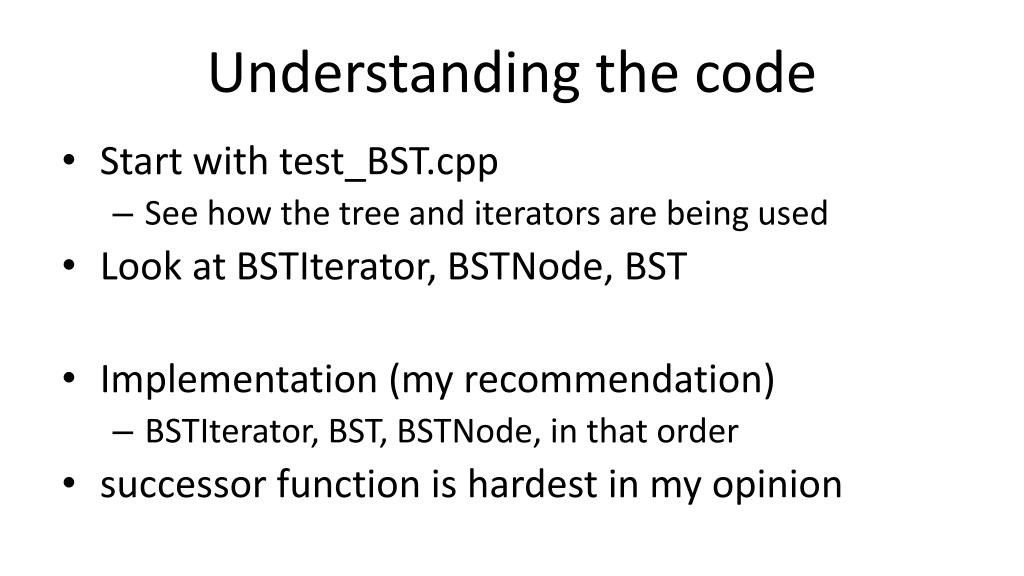

3. Understanding the code • Start with test_BST.cpp • See how the tree and iterators are being used • Look at BSTIterator, BSTNode, BST • Implementation (my recommendation) • BSTIterator, BST, BSTNode, in that order • successor function is hardest in my opinion

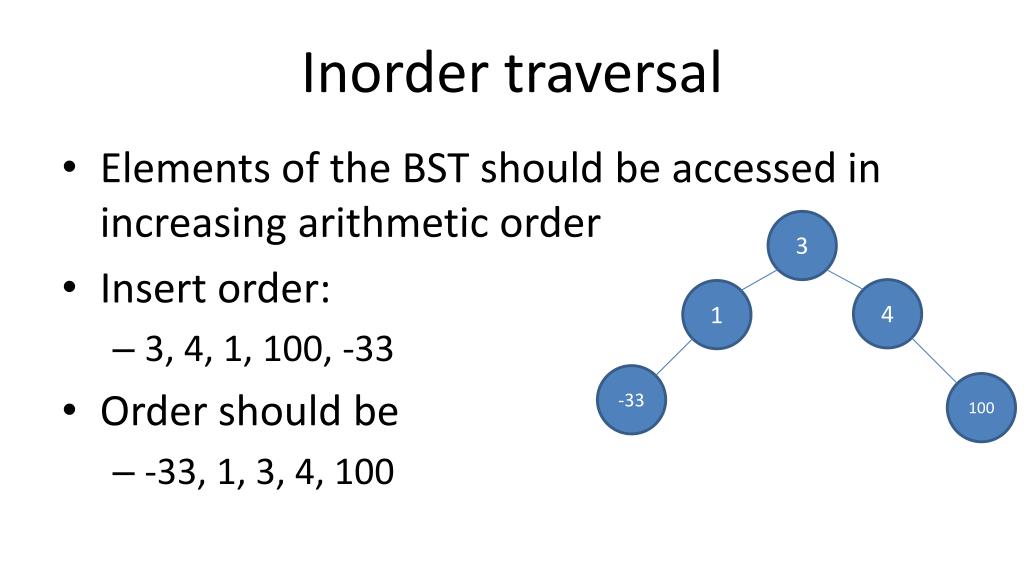

4. Inorder traversal • Elements of the BST should be accessed in increasing arithmetic order • Insert order: • 3, 4, 1, 100, -33 • Order should be • -33, 1, 3, 4, 100 3 4 1 -33 100

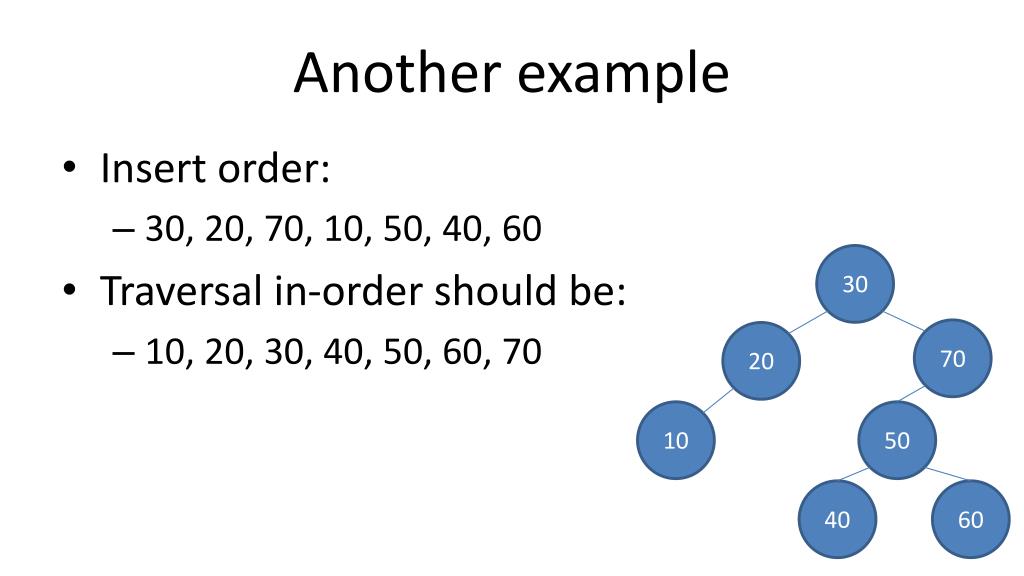

5. Another example • Insert order: • 30, 20, 70, 10, 50, 40, 60 • Traversal in-order should be: • 10, 20, 30, 40, 50, 60, 70 30 70 20 10 50 40 60

6. BST.hpp • insert, find : return iterator • Create a new iterator every time you return • Code is almost identical!

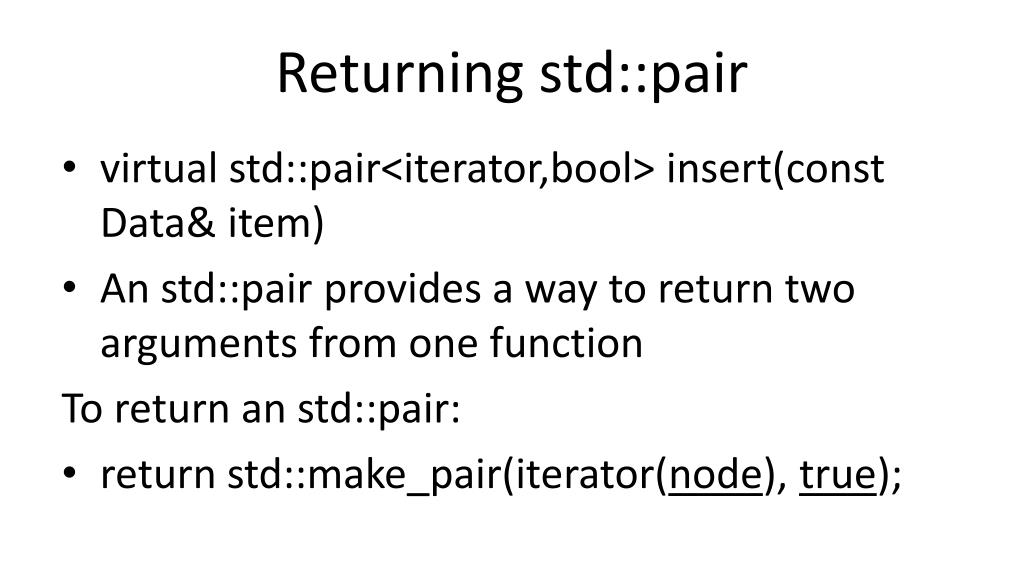

7. Returning std::pair • virtual std::pair<iterator,bool> insert(const Data& item) • An std::pair provides a way to return two arguments from one function To return an std::pair: • return std::make_pair(iterator(node), true);

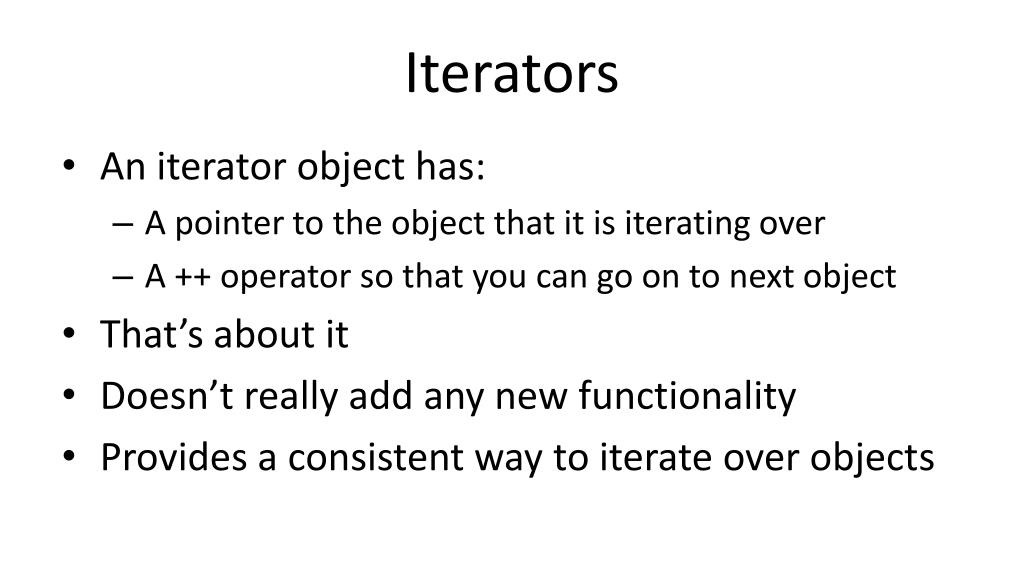

8. Iterators • An iterator object has: • A pointer to the object that it is iterating over • A ++ operator so that you can go on to next object • That’s about it • Doesn’t really add any new functionality • Provides a consistent way to iterate over objects

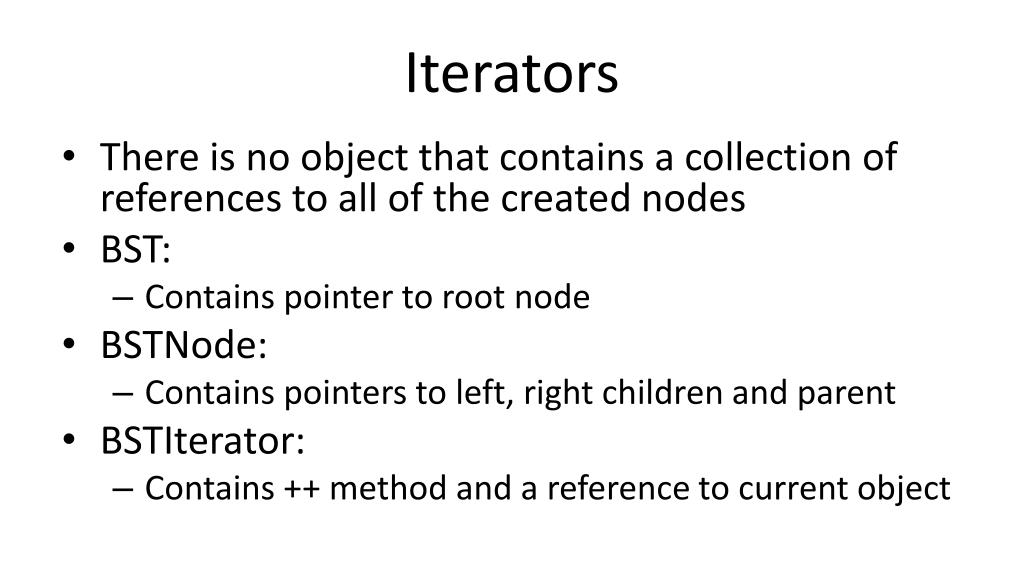

9. Iterators • There is no object that contains a collection of references to all of the created nodes • BST: • Contains pointer to root node • BSTNode: • Contains pointers to left, right children and parent • BSTIterator: • Contains ++ method and a reference to current object

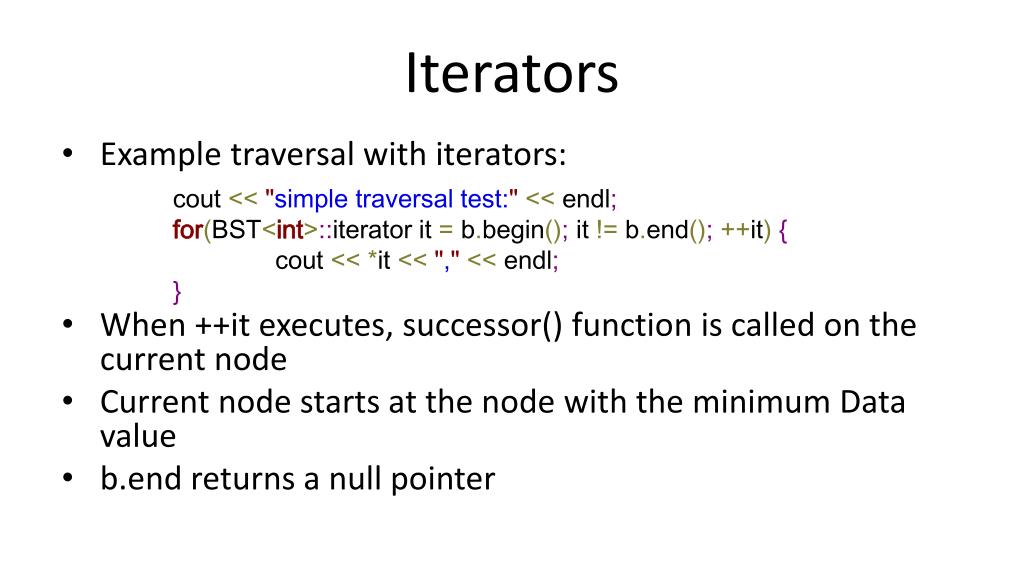

10. Iterators • Example traversal with iterators: • When ++it executes, successor() function is called on the current node • Current node starts at the node with the minimum Data value • b.end returns a null pointer cout<<"simple traversal test:"<<endl; for(BST<int>::iterator it =b.begin(); it !=b.end();++it){ cout<<*it <<","<<endl; }

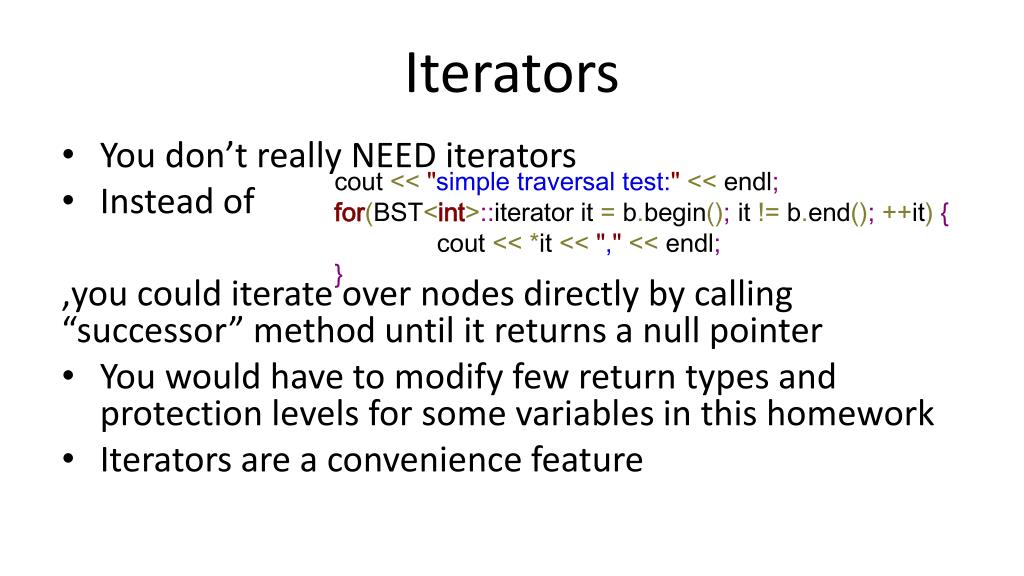

11. Iterators • You don’t really NEED iterators • Instead of ,you could iterate over nodes directly by calling “successor” method until it returns a null pointer • You would have to modify few return types and protection levels for some variables in this homework • Iterators are a convenience feature cout<<"simple traversal test:"<<endl; for(BST<int>::iterator it =b.begin(); it !=b.end();++it){ cout<<*it <<","<<endl; }

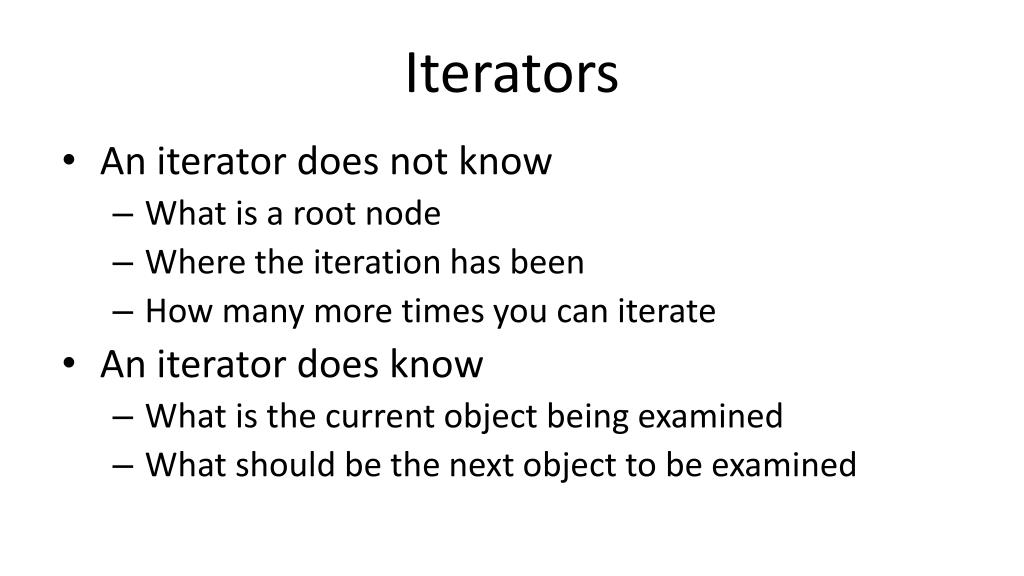

12. Iterators • An iterator does not know • What is a root node • Where the iteration has been • How many more times you can iterate • An iterator does know • What is the current object being examined • What should be the next object to be examined

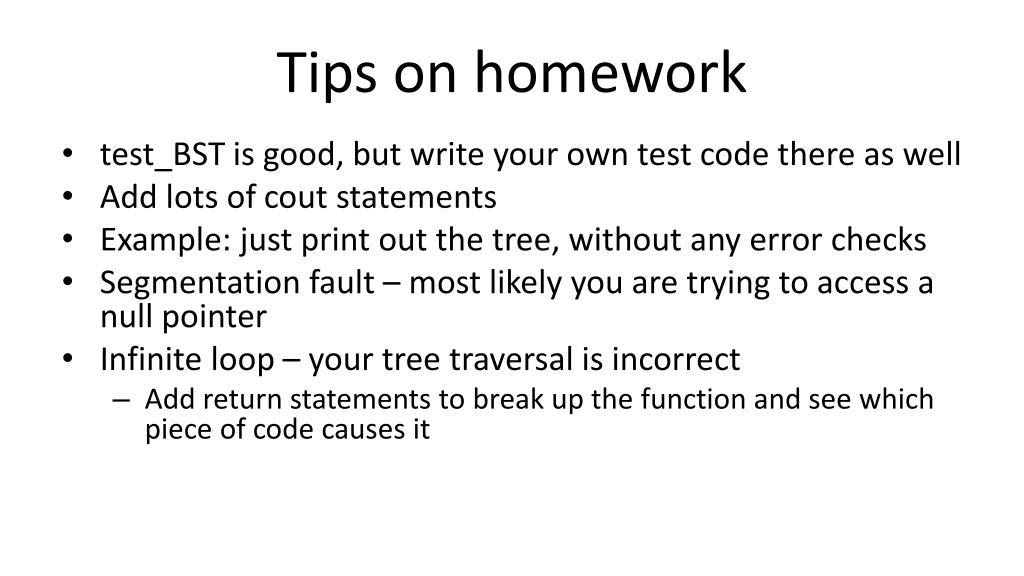

13. Tips on homework • test_BST is good, but write your own test code there as well • Add lots of cout statements • Example: just print out the tree, without any error checks • Segmentation fault – most likely you are trying to access a null pointer • Infinite loop – your tree traversal is incorrect • Add return statements to break up the function and see which piece of code causes it

14. gdb • Use gdb if segmentation fault • Turn off compiler optimizations: • Change CXX flag from –O2 to –O0 in the Makefile

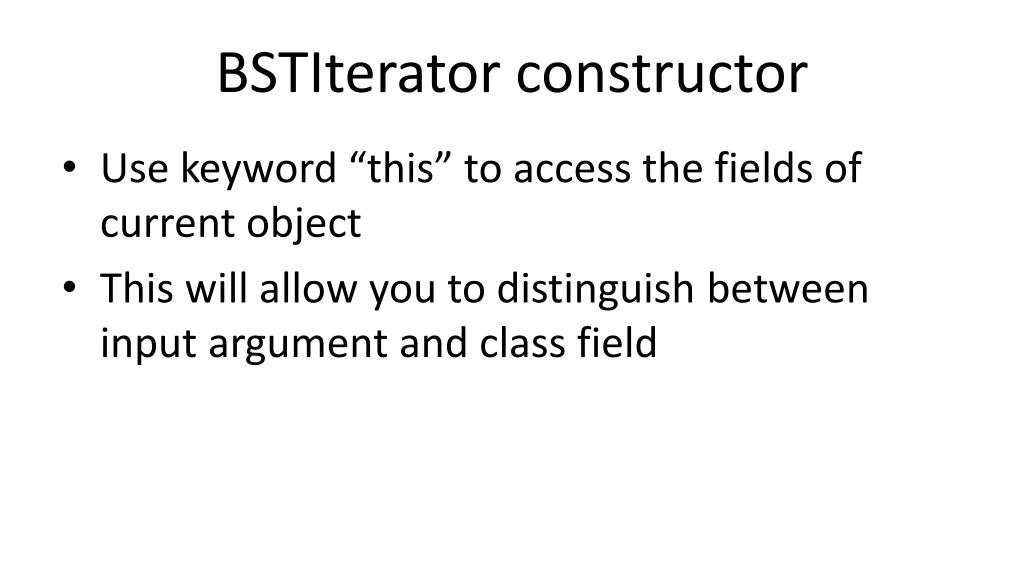

15. BSTIterator constructor • Use keyword “this” to access the fields of current object • This will allow you to distinguish between input argument and class field

16. Destructors • I have not tested this, but this is how I would do it: • Add a destructor for BSTNode • Inside, delete left and right children if exist* • According to Kacy, it’s OK to delete nullptr • For clear method for BST: • Delete root node, reset size • Destructor for BST: • Call “clear”

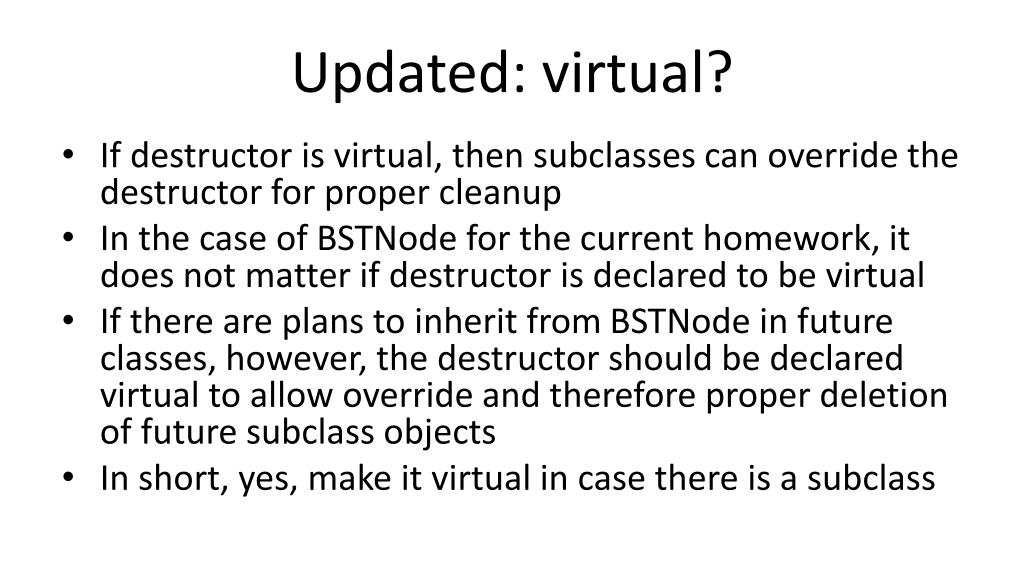

17. Updated: virtual? • If destructor is virtual, then subclasses can override the destructor for proper cleanup • In the case of BSTNode for the current homework, it does not matter if destructor is declared to be virtual • If there are plans to inherit from BSTNode in future classes, however, the destructor should be declared virtual to allow override and therefore proper deletion of future subclass objects • In short, yes, make it virtual in case there is a subclass

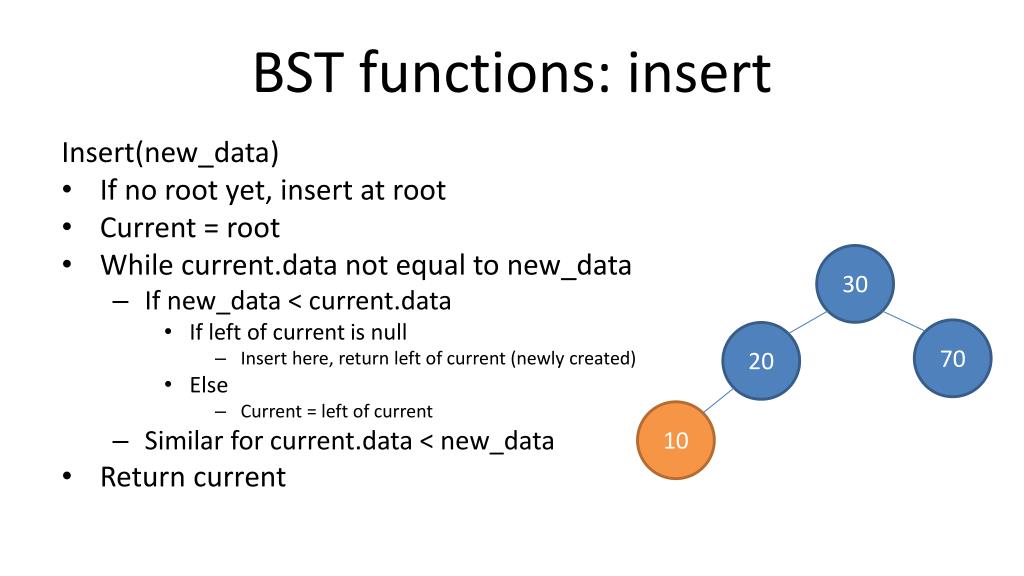

18. BST functions: insert Insert(new_data) • If no root yet, insert at root • Current = root • While current.datanot equal to new_data • If new_data< current.data • If left of current is null • Insert here, return left of current (newly created) • Else • Current = left of current • Similar for current.data< new_data • Return current 30 70 20 10

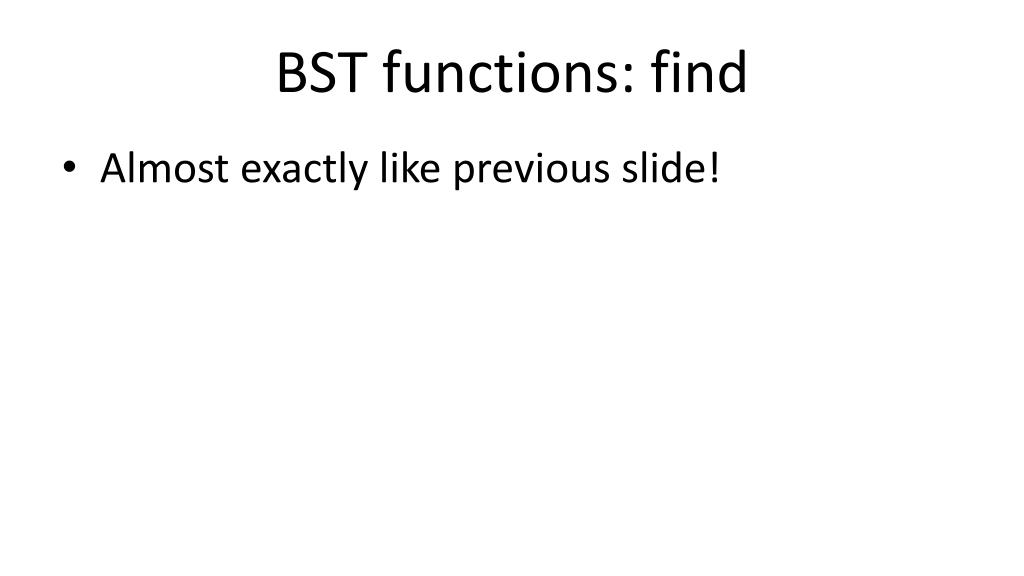

19. BST functions: find • Almost exactly like previous slide!

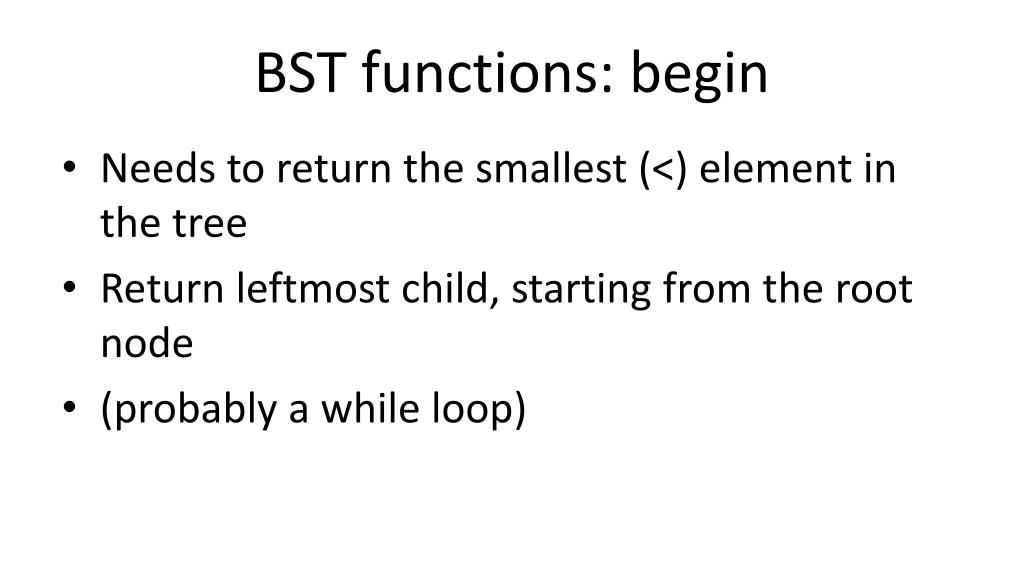

20. BST functions: begin • Needs to return the smallest (<) element in the tree • Return leftmost child, starting from the root node • (probably a while loop)

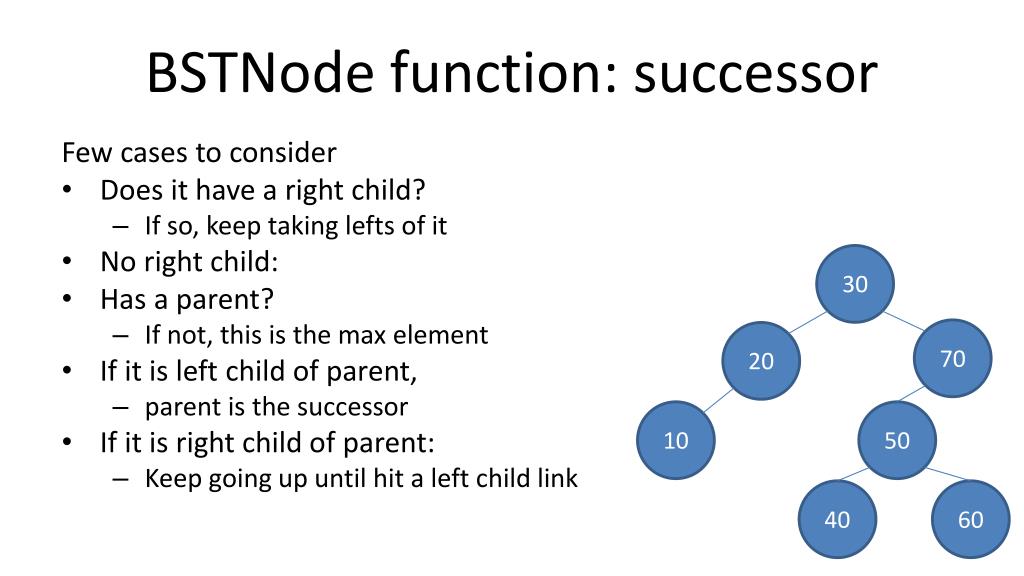

21. BSTNode function: successor Few cases to consider • Does it have a right child? • If so, keep taking lefts of it • No right child: • Has a parent? • If not, this is the max element • If it is left child of parent, • parent is the successor • If it is right child of parent: • Keep going up until hit a left child link 30 70 20 10 50 40 60

22. Return typename • Why is the reason to use “typename”? • What is the difference between line 150 and 151? • Either one compiles and runs correctly for me • I will post this question on piazza, perhaps other TA’s can clarify

23. Finally • There are tons of resources online • Lecture notes from other schools • Applets and web apps for visualization • Even source code • Use them! This is how you would be doing things at your job in the future
