Presentation Transcript

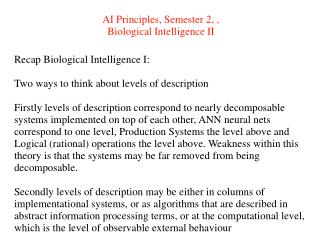

AI Principles, Semester 2, ,

Biological Intelligence II

Recap Biological Intelligence I:

Two ways to think about levels of description

Firstly levels of description correspond to nearly decomposable systems implemented on top of each other, ANN neural nets correspond to one level, Production Systems the level above and Logical (rational) operations the level above. Weakness within this theory is that the systems may be far removed from being decomposable.

Secondly levels of description may be either in columns of implementational systems, or as algorithms that are described in abstract information processing terms, or at the computational level, which is the level of observable external behaviour


Classical connectionism

Artificial Neural Networks

Many use the Back-propagation learning algorithm that is not considered biologically plausible

Some ANN may be considered to be at an implementational level, and hence at a lower level of description in Newell’s (1990) hierarchy.

However, as Rumelhart and Mclelland note - many connectionist models can be considered as being at the same, algorithmic level as most Production System models of cognition.


ACT-R (adaptive control of thought - rational)

AI = algorithms, representations and architectures

ACT-R is a leading cognitive architecture, it supports a number

of subsystems with their own representations within a single architecture

It explains (predicts) a lot of human behaviour, in experiments, in naturalistic settings such as using cockpits or computers

Its operation can be seen in imaging experiments


ACT-R (adaptive control of thought - rational)

Goal setting

Long term declarative memory

Central Production System

Sensory subsystems

Motor subsystems

Sensory subsystems

Motor subsystems

Sensory subsystems

Motor subsystems

In between each system are buffers that hold information for a set amount of time, and then let it decay, like forgetting. So the buffers are like short-term memory. We can speculate that the contents of buffers are the mental contents that a human is conscious of.


ACT-R - what do the productions look like?

(P initialize-addition


ISA add

arg1 =num1

arg2 =num2

sum nil



sum =num1

count 0


isa count-order

first =num1



ACT-R and the brain

Neuro-imaging studies of people undertaking cognitive tasks has allowed different subsystems of the ACT-R architecture to be localised into specific brain regions

Long term declarative memory= across the cortex

Goal setting =

prefrontal cortex

Central Production System = Basal Ganglia

Sensory subsystems

Motor subsystems

Sensory subsystems

Motor subsystems

Sensory subsystems

Motor subsystems


Newell test for a theory of cognition

1 - Arbitrary function of the environment

2 - Operate in real time

3 - Functional, adaptive, rational behaviour

4 - Possess a vast knowledge base

5 - Success in dynamic environments

6 - Integrate diverse knowledge

7 - Use (natural) language

8 - Self-aware

9 - Able to learn from its environment

10 - Acquire abilities through development

11 - Arise through evolution

12 - Be realisable within the brain


1 - Behave as an arbitrary function of the environment

Is it computationally universal?

This is the criteria that Newell (1990) states as the principal evidence that humans are at least partly symbol systems.

ACT-R is a hybrid system that can accomplish symbolic computations and so scores highly on this criteria.

Current connectionist models are less convincing, but a key issue is that connectionist models in future may be able to perform symbolic type computations in a way that maintains the advantages of analog, distributed representations (see O’Reilly’s paper which is discussed in relation to criterion 6)

Classical connectionism: mixed, ACT-R: better


2 - Operate in real time,

For any of the 12 abilities described in Newell’s test, just possession of that ability is no good if the agent cannot demonstrate that ability in a timely fashion.

It is unclear how connectionist models might be assessed in terms of timing, many are offline models (as opposed to online models that can interact dynamically with the world)

To capture all the aspects of timing for a task, you need to capture all the aspects of the task, such as the perceptual and motor aspects. These peripheral aspects of architecture are much more strongly developed in ACT-R, but this is probably because it is a single model. When connectionist modelling gives rise to large integrated architectures this may change.

Classical connectionism: worse, ACT-R: best


3 - Exhibit rational i.e. effective adaptive behaviour

Does the system yield functional behaviour in the real world?

Both systems use statistical methods to capture regularities in the environment.

Both systems allow for emergence rather than just hard-coding in arbitrary constraints.

(this criteria arose from Newell’s criticism of some older models of things like short term memory, which included capacity limitations as hard coded in so that they could reproduce empirical observations from real people, even if the models would perform more adaptively with greater capacity)

Classical connectionism: better, ACT-R: better


4 - Use vast amounts of knowledge about the environment

How does the size of the knowledge base affect performance?

How well does performance scale up with the size of the knowledge base increases?

Connectionist systems scale up badly, but ACT-R is limited like all declarative systems by issues such as the Frame Problem.

Classical connectionism: worse, ACT-R: mixed


5 - Success in Dynamic environments

ALVINN (a ANN) - good at driving on straight stretches of highway, bad at dealing with unpredictable situations

The reactive/deliberative (prepared/deliberative) trade-off

Linking perception to action

ACT-R - driving, air traffic control, control of power plants, game playing, collaborative problem solving with humans

Classical connectionism: mixed, ACT-R: better


6 - Integrate diverse knowledge

This criteria was originally described by Newell as the need for symbols and abstraction - but describing a requirement that way is too loaded. Anderson and Lebiere’s solution is to frame this criteria in terms of the function that Newell’s test requires of symbols.

For Newell a key function of symbols is distal access, that is getting information quickly and efficiently between different cognitive subsystems. Newell (1990) and Anderson and Lebiere (2003) all conclude that symbols (of the type used in programming languages such as POP11, LISP or PROLOG) are required to carry out this function.

It may be that not only does a future form of connectionism come up with a d istributed form of representation that can act as symbols do in ACT-R, but that this distributed representation overcomes problems with current symbolic computation (O’Reilly 2006).

Classical connectionism: worse, ACT-R: mixed


6 - Integrate diverse knowledge - O’Reilly (2006)

O’Reilly (2006, conclusion on page 94):

“Scientists are always concerned about strongly differentiating theoretical positions: the long dominance and current disfavour of the computer metaphor for understanding the mind has led the new generation of biological neural network theorists to emphasise the graded, analog, distributed character of the brain. It is clear that the brain is much more like a social network than a digital computer, with learning, memory and processing all being performed locally through graded communication between interconnected neurons. These neurons build up strong, complex ‘relationships’ over a long period of time; a neuron buried deep in the brain can only function by learning which of the other neurons it can trust to convey useful information.


6 - Integrate diverse knowledge - O’Reilly (2006)

In contrast, a digital computer functions like the post office, routing arbitrary symbolic packages between passive memory structures, without consideration for the content of these packages. This affords arbitrary flexibility (any symbol is as good as any other), but at some cost: When every thing is arbitrary, then it is difficult to encode the subktle and complex relationships present in our commonsense knowledge of the real world. In contrast, the highly social neural networks of the brain are great at keeping of “who’s who and what’s what,” but they lack flexibility, treating a new symbol like a stranger crashing a party.

The digital features of the PFC and associated areas help to broaden the horizons of naturally parochial neural networks. The dynamic gating mechanisms work more like a post-office, with the basal ganglia reading the zip code of which PFC strip to update, whereas the PFC cares more about the content of the package. Furthermore, the binary rule-like representations in the PFC are more symbol-like. Thus, perhaps a fuller understanding of this synthesis of analog and digital computation will finally unlock the mysteries of human intelligence.”


7 - Language

At one time, language use was a prime example of a domain thought difficult for associative theories of cognition such as connectionism.

However, numerous examples of connectionist successes with language use have now been developed:

Over-generalisations learnt from experience (eg in past-tense learning)

Syntactic parsing

Classical connectionism: better, ACT-R: worse


8 - Self awareness - consciousness

Neither framework makes a great impact in this requirements

Recurrent connectionist networks may be a starting point to self awareness and the buffers in ACT-R may be a starting point to consciousness, but it is early days for both frameworks

Classical connectionism: worse, ACT-R: worse


9 - Learning

Learning is a strength of connectionism and ACT-R, and the two approaches possess complimentary strengths

ACT-R does better on cognitive skills and list learning

Connectionism does better on perceptual and motor learning and semantic memory (see the model of the hippocampus in criterion 12)

Classical connectionism: better, ACT-R: better


10 - Development

Connectionism makes a clear stand on the empiricist-nativist debate, rejecting representational nativism

How do the symbols in ACT-R first come about in the course of development?

Classical connectionism: better, ACT-R: worse


11 - Arise through evolution

Neither framework makes a great impact in this requirement

Classical connectionism: worst, ACT-R: worst


12 - Realisability within the brain

Simulation of the hippocampus demonstrates connectionism’s real strength in meeting this criterion

Classical connectionism: best, ACT-R: worse


Can you think of any further criteria for the Newell test?





More naturalistic behaviours (rather than psychological experiments)

Perception and action


Conclusion and the future

ACT-R and other symbolic systems are more mature in their level of development than many connectionist models

O’Reilly’s work is just one recent example of a large architecture, what will the future hold?

O’Reilly and the ACT-R group are collaborating, they may not be exclusive approaches, but capture different sides of the same set of phenomena
