  1. Computer Animation Where we are (overview) Where we are going (perhaps)

  2. Animation overview Computer Animation Popular perception - CGI is animation (full length animations, CGI effects films or computer games).

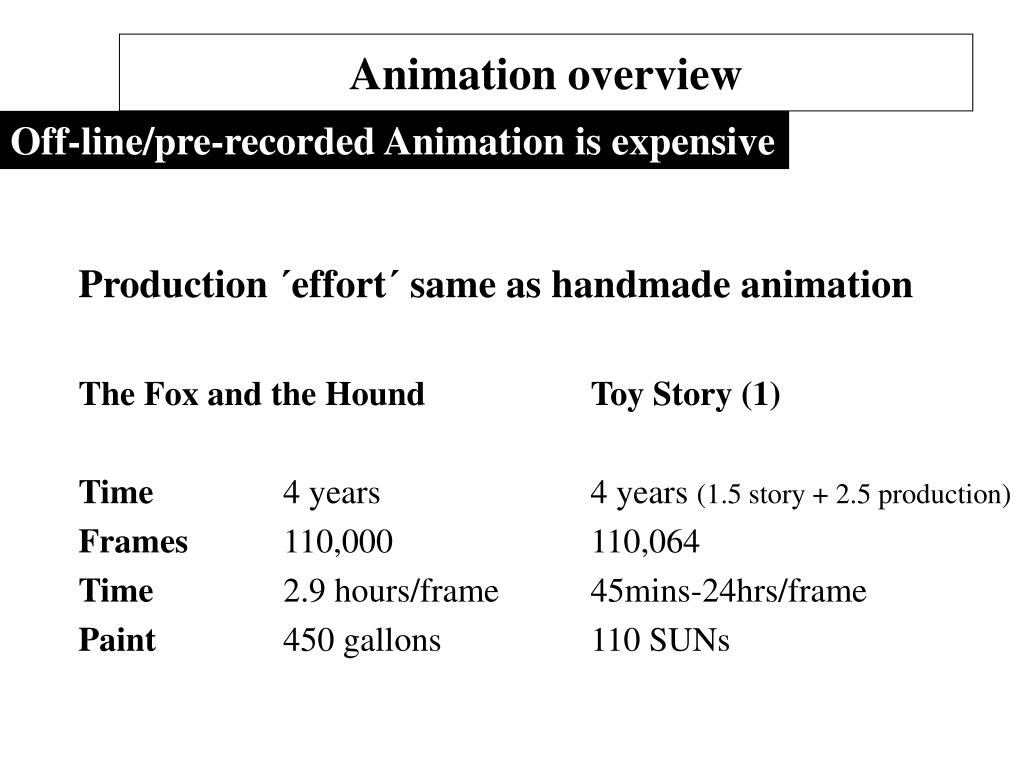

  3. Animation overview Off-line/pre-recorded Animation is expensive Production ´effort´ same as handmade animation The Fox and the Hound Toy Story (1) Time 4 years 4 years (1.5 story + 2.5 production) Frames 110,000 110,064 Time 2.9 hours/frame 45mins-24hrs/frame Paint 450 gallons 110 SUNs

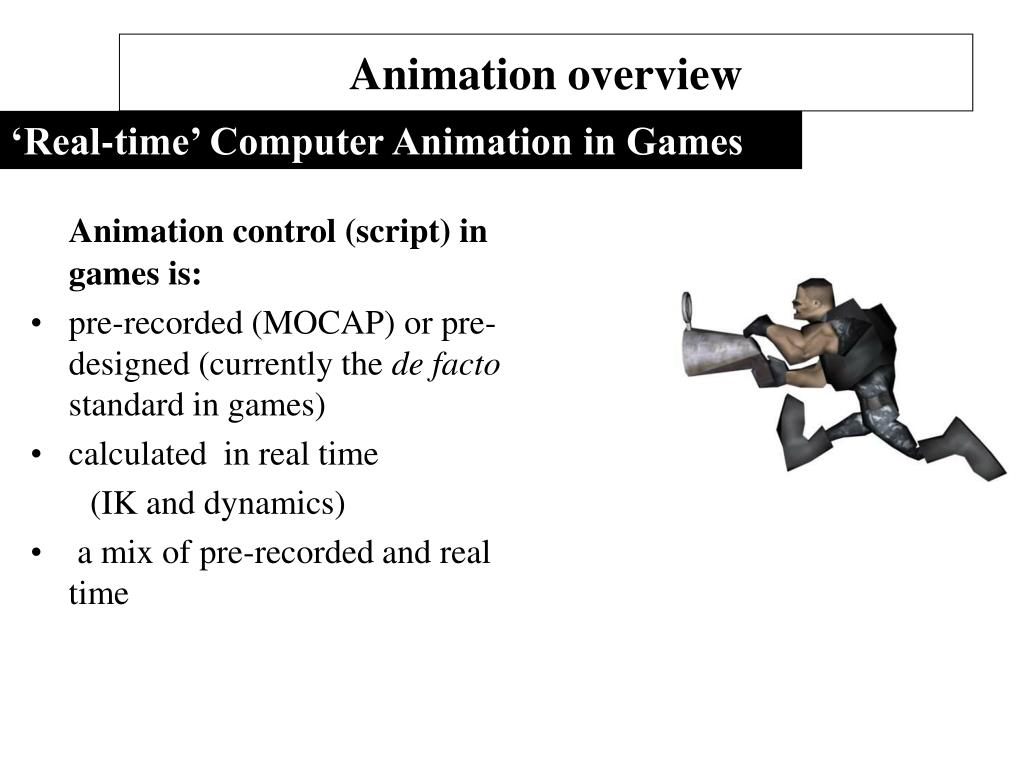

  4. Animation overview ‘Real-time’ Computer Animation in Games Animation control (script) in games is: • pre-recorded (MOCAP) or pre-designed (currently the de facto standard in games) • calculated in real time (IK and dynamics) • a mix of pre-recorded and real time

  5. Animation overview MOCAP in Games is select and blend Game events Animate skeleton MoCap 1 skin Render MoCap 2 For example a football game will have 200-300 sequences. MoCap n MoCap X blend MoCap Y

  6. Animation overview Script creation methods  Recording real motion (MOCAP) [1st=]  By ´hand´ using proprietary or in-house software, keyframe animation [1st=]  Posing real motion using a digital input device (DID) (film special effects)  Executing dynamic equations (scientific visualisation, computer games)  Behaviour models (film special effects)

  7. Animation overview Script creation -Motion quality-best is MOCAP Animación (portero)

  8. Animation overview Script creation -Motion quality-best is MOCAP z x Hombro = 3 DOFs y

  9. Animation overview Script creation -Motion quality-best is MOCAP Applying MOCAP to a skeleton y y x x z z

  10. Animation overview Motion Capture – quality motion is always perceivable as such (even with stick figures)

  11. Animation overview MOCAP-bones-skinning is a well-established technology

  12. Animation overview Script creation  By ´hand´ using proprietary or in-house software. The most popular method is keyframe animation.

  13. Animation overview Real time dynamics Executing dynamic equations (computer games, scientific visualisation) Flong = Ftraction+ Fdrag a = F/m v = v + dt*a p = p + dt*v

  14. Animation overview Script creation methods High level behavioural models – original was “flocking”

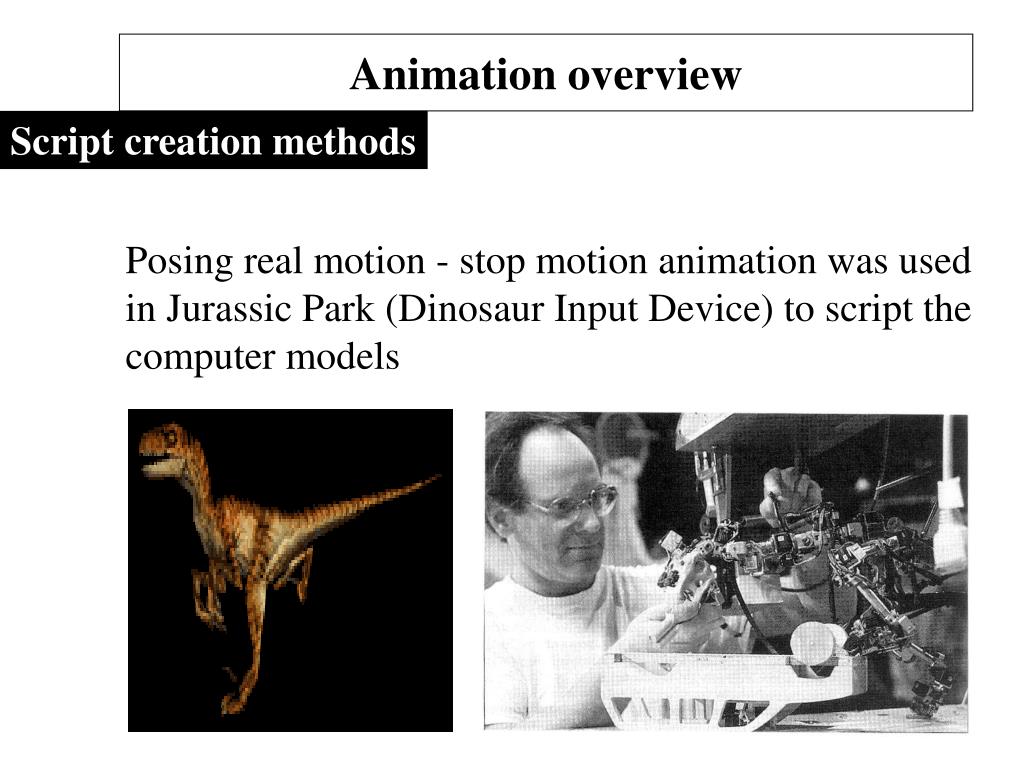

  15. Animation overview Script creation methods Posing real motion - stop motion animation was used in Jurassic Park (Dinosaur Input Device) to script the computer models

  16. Animation overview Animation in Science Zajac 1966 Bell Telephone Lab First Computer animation in science

  17. Animation overview Animation in Science Max Born 1935

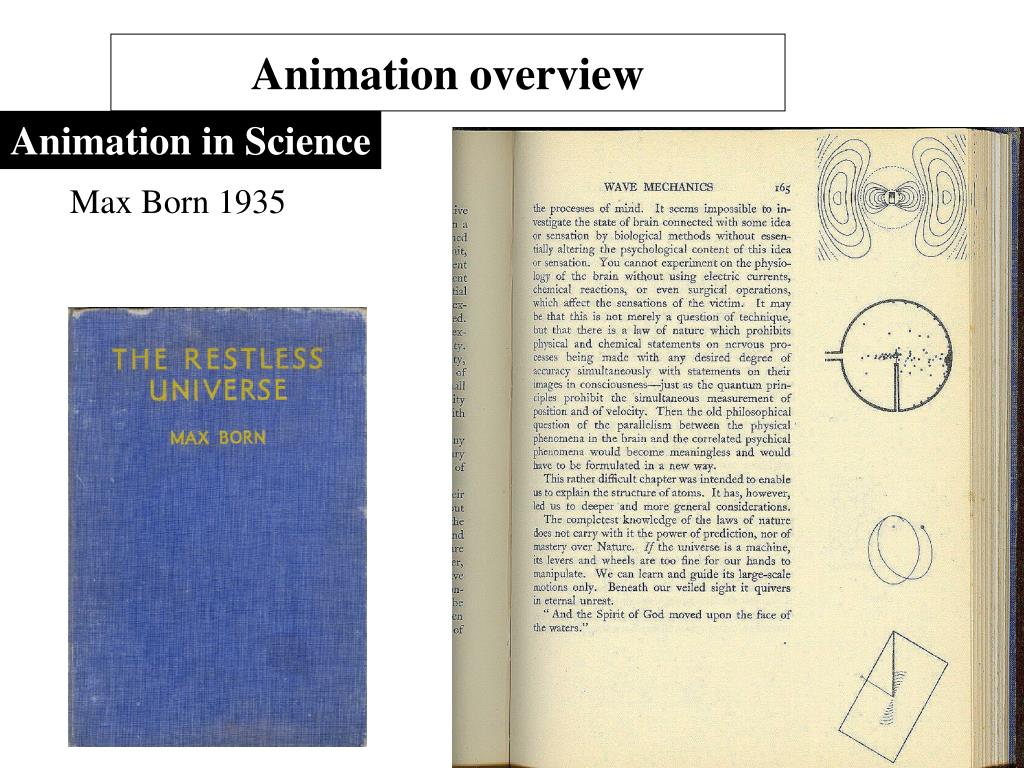

  18. Animation overview Animation in Science Max Born 1935 The Restless Universe

  19. Animation overview Animation in Science Muscle Fibres of the heart

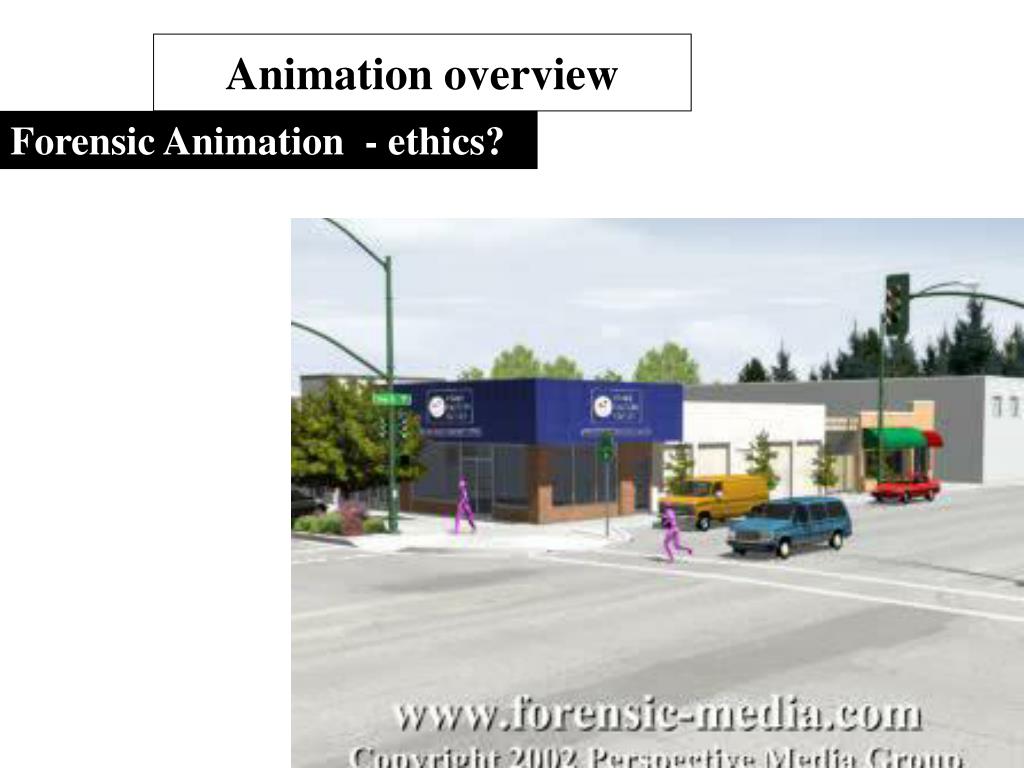

  20. Animation overview Forensic Animation - ethics?

  21. Animation overview Forensic Animation – ethics? Technology blesses the production with veracity? Who controls the content of simulation? How can the accuracy be guaranteed? No cross examination possible

  22. Animation overview Synthetic vision Provides a synthetic view of reality, constructed from a database, which cannot be seen because of, for example, weather conditions. The best example is civil aviation. Principles used are exactlty the same as games where a view frustum is ‘driven’ through an environment under user control.

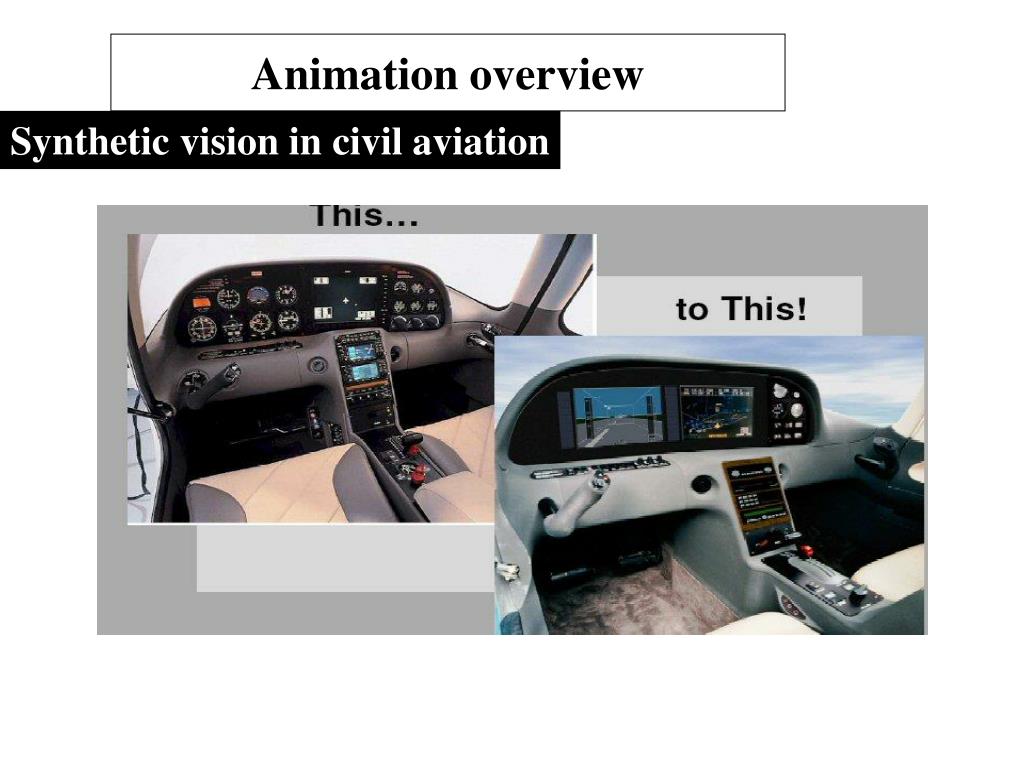

  23. Animation overview Synthetic vision in civil aviation Cockpit view

  24. Animation overview Synthetic vision in civil aviation Landing display

  25. Animation overview Synthetic vision in civil aviation Uses as database Shuttle Radar Topography Mission (SRTM) Wide Area Augmentation System (WASS) Local Area Augmentation System (LASS) Derives 3D position (Accuracy < 1m) from GPS + INS On-board sensors (such as RADAR altimeters)

  26. Animation overview Synthetic vision in civil aviation Animation of an approach

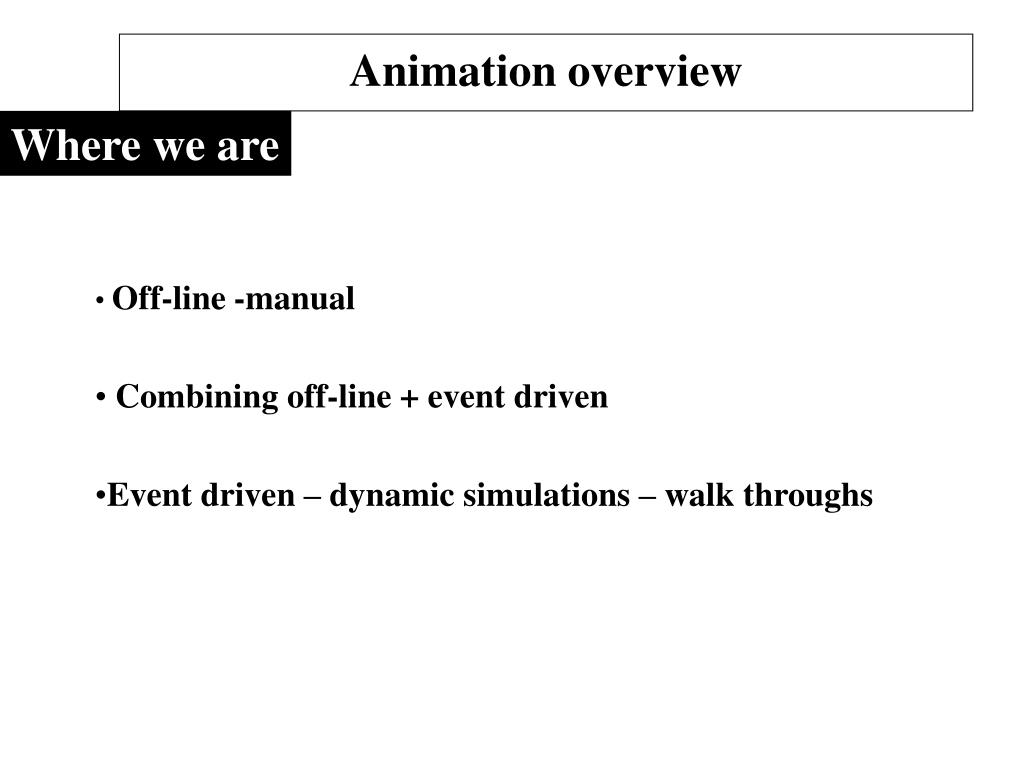

  27. Animation overview Where we are Off-line -manual Combining off-line + event driven Event driven – dynamic simulations – walk throughs

  28. Animation overview The future ? Whats wrong with MOCAP • Although pre-reorded aninimation is of high quality, it is inherently limited – the more complex the game the more clips are required. • Cannot MOCAP animals. • MOCAP transitions – blending is unsatifactory What we would like • Increase the quality of real-time animation and obtain any motion in real time accoording to the ‘action demand’ – event driven • Speech/emotion expression needs to be event driven

  29. Event driven animation for humanoids What we have now – event driven recorded animation Game events Animate skeleton MoCap 1 skin Render MoCap 2 This model can only react to completely pre-determined actions MoCap n MoCap X blend MoCap Y

  30. Event driven animation for humanoids What we have now- MOCAP – more general One generic motion fits all characters

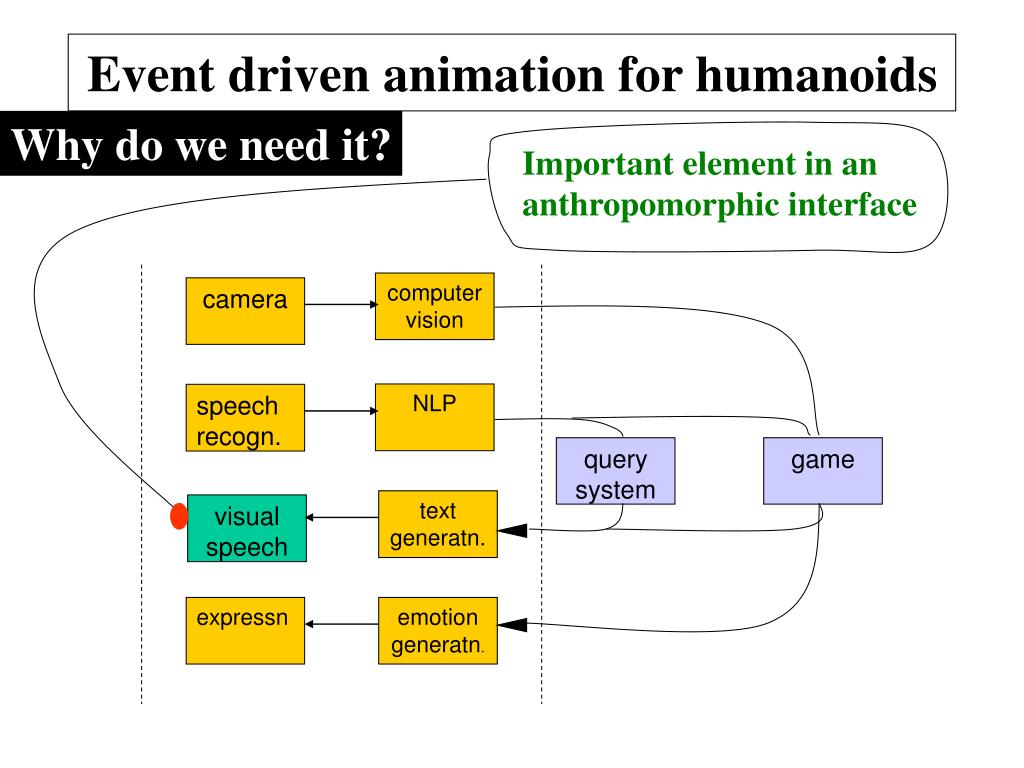

  31. Event driven animation for humanoids Why do we need it? Important element in an anthropomorphic interface computer vision camera NLP speech recogn. query system game text generatn. visual speech expressn emotion generatn.

  32. Event driven animation for humanoids What do we aim for Seems sensible to retain MOCAP technology – high quality, well established so increase its flexibility - adaptation BUT oranges are not the only fruit. Can we generate animation in real time.

  33. Event driven animation for humanoids Examples Using IK adapted MOCAP in human motion ‘Total’ IK solution for human motion Using MOCAP in visual speech ‘total’ solution for visual speech

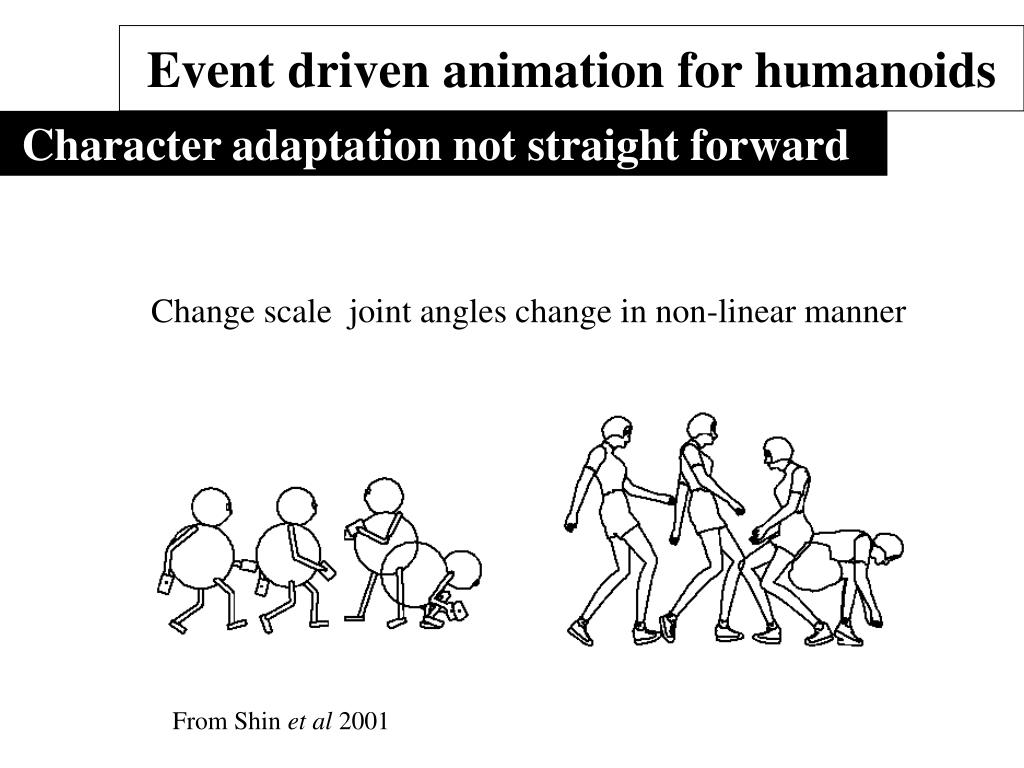

  34. Event driven animation for humanoids Character adaptation not straight forward Change scale joint angles change in non-linear manner From Shin et al 2001

  35. Event driven animation for humanoids Cheating for real-time Use v.simple skeleton and complex skin. C.G skeletons – 50 DOFs human skeletons - >250 DOFs Motion from skeleton, visual complexity from skin

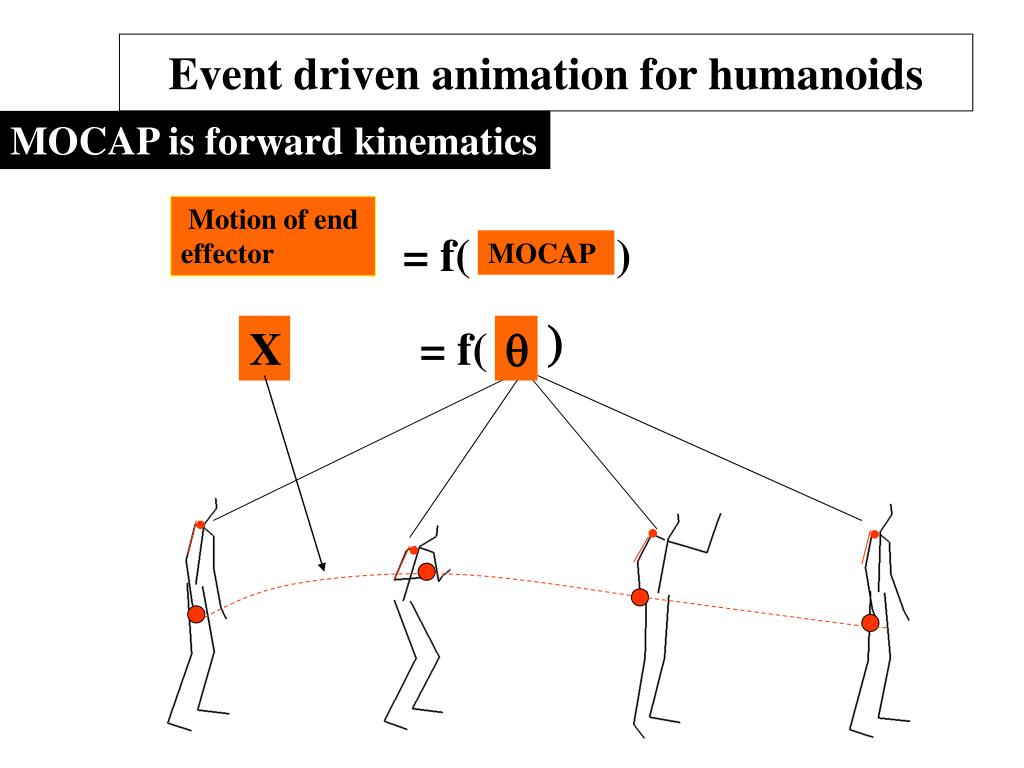

  36. Event driven animation for humanoids MOCAP is forward kinematics Motion of end effector = f( ) MOCAP ) X = f( q

  37. Event driven animation for humanoids Inverse Kinematics – an old idea Circa 1985 use for complete soln. use to adapt MOCAP x = f () Forward Kinematics joint space  Cartesian space x  = f-1 (x) Inverse Kinematics

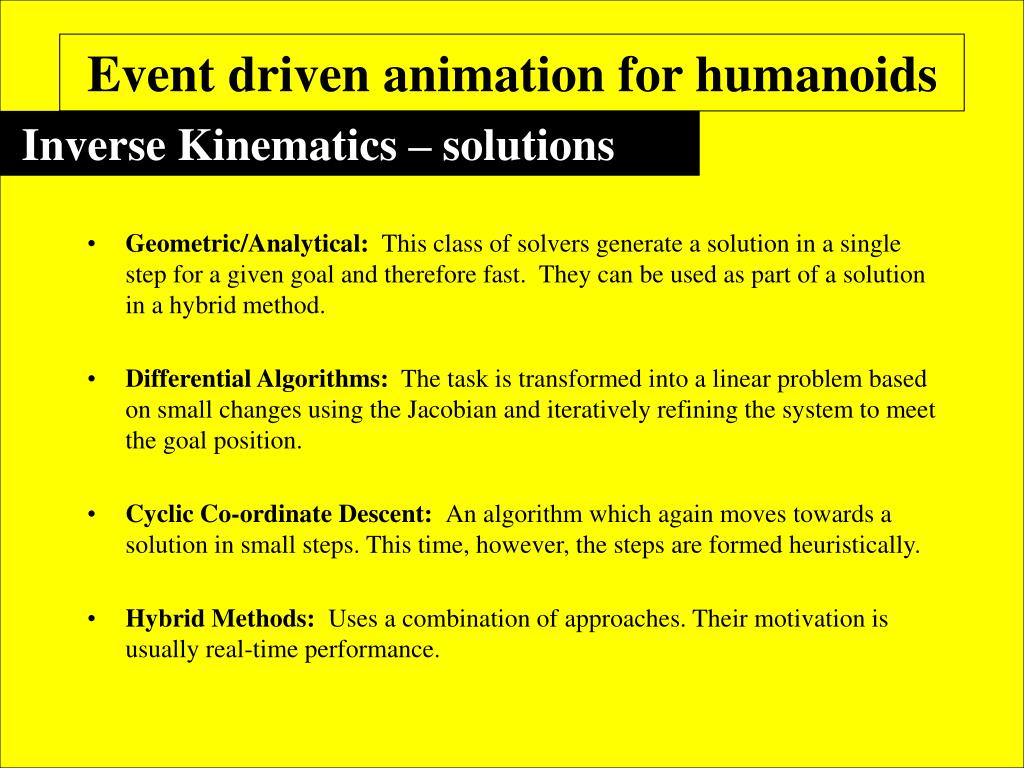

  38. Event driven animation for humanoids Inverse Kinematics – solutions Geometric/Analytical: This class of solvers generate a solution in a single step for a given goal and therefore fast. They can be used as part of a solution in a hybrid method. Differential Algorithms: The task is transformed into a linear problem based on small changes using the Jacobian and iteratively refining the system to meet the goal position. Cyclic Co-ordinate Descent: An algorithm which again moves towards a solution in small steps. This time, however, the steps are formed heuristically. Hybrid Methods: Uses a combination of approaches. Their motivation is usually real-time performance.

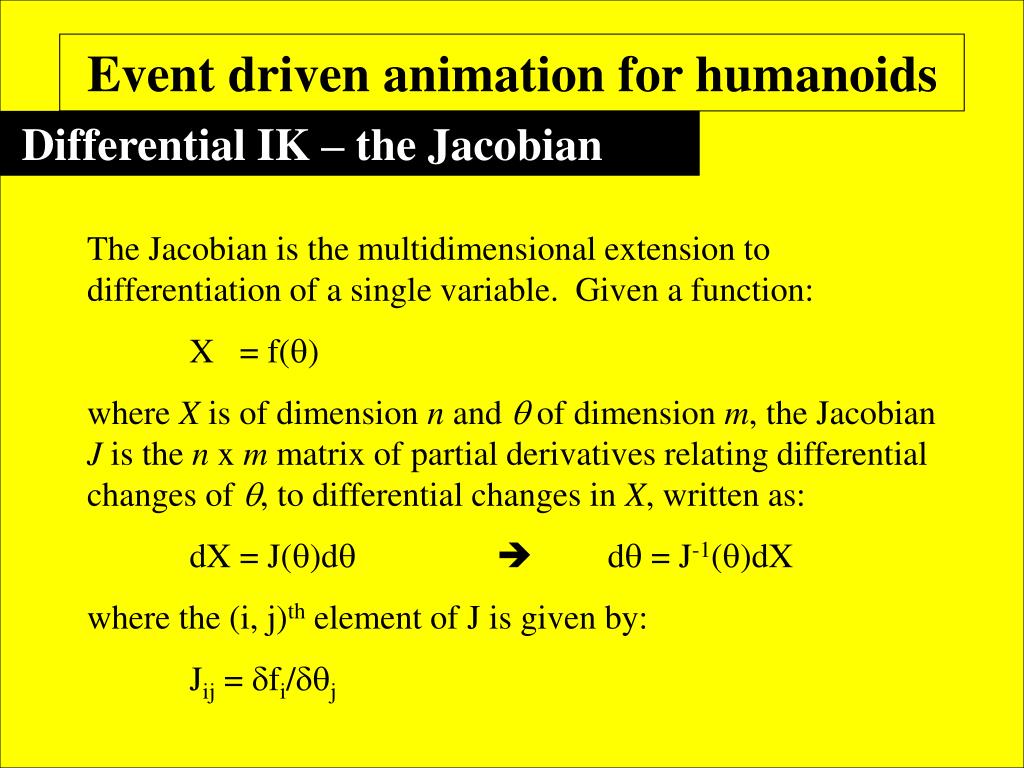

  39. Event driven animation for humanoids Differential IK – the Jacobian The Jacobian is the multidimensional extension to differentiation of a single variable. Given a function: X = f() where X is of dimension n and  of dimension m, the Jacobian J is the n x m matrix of partial derivatives relating differential changes of , to differential changes in X, written as: dX = J()d  d = J-1()dX where the (i, j)th element of J is given by: Jij = fi/j

  40. Event driven animation for humanoids Event driven animation for humanoids Inverse Kinematics – an old idea Differential IK - iteration • Calculate the incremental step X = Xgoal – X • Calculate the Jacobian matrix using the current joint angles • Calculate the inverse of the Jacobian – using right-hand generalised inverse if required; J-1 = JT(JJT)-1 • Check for iterative convergence – i.e. make sure the Jacobian inverse is suitably accurate (a) If ||(I – JJ-1)|| > e, reduce X=X/2 and repeat 4 (where e is a convergence threshold) (b) If ||(I – JJ-1)|| > e after a number of steps then the goal is likely out of reach so terminate • Calculate the updated values for the joint angles where  = J-1X • Using forward kinematics to determine whether the solution is close enough to the goal. If the solution is adequate then terminate iteration else go back to step 1 (as step 4 could have reduced X).

  41. Event driven animation for humanoids Event driven animation for humanoids Inverse Kinematics – an old idea Differential IK – example Jacobian Determining the Jacobian Consider:

  42. Event driven animation for humanoids Event driven animation for humanoids Inverse Kinematics – an old idea Differential IK – example Jacobian where   

  43. Event driven animation for humanoids Differential IK – the Jacobian For large articulations the complexity of analytically expressing the differentiation is very tedious. The Jacobian can be viewed as expressing the velocity of the end of the chain in terms of local angular velocities with respect to a base frame. This information is easily extracted from transformation matrices that already exist in the graphics pipeline – i.e. the matrix concatenation of child-parent relationships as the articulation is built up. When the Jacobian is not square (whenever the number of DOFs in the chain increase past the dimension of the end-effector), a pseudo-inverse is required, which could lead to numerical error. Singularities – a decrease in the rank of the Jacobian can result in the loss of a degree of freedom that usually happens when the chain is fully extended

  44. Event driven animation for humanoids Differential IK- main problem • Underdetermined System: The purpose of Inverse kinematics is to produce a set of joint angles that allows an end-effector to be positioned in a given location. This is an underdetermined system therefore many solutions exist.

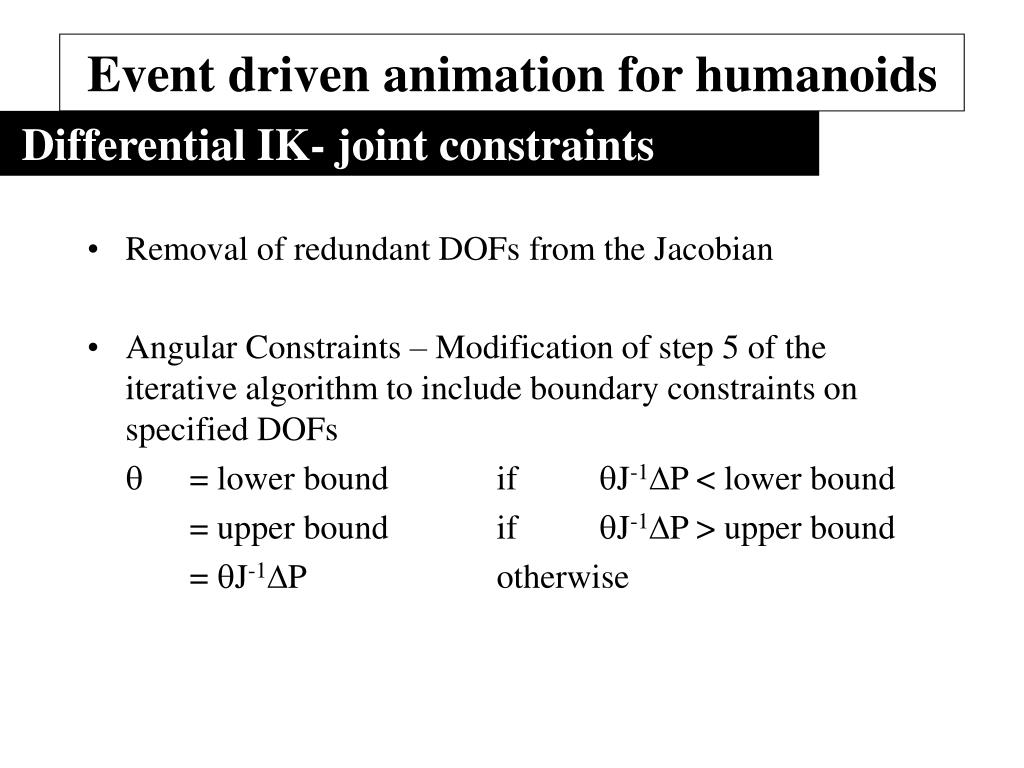

  45. Event driven animation for humanoids Differential IK- joint constraints • Removal of redundant DOFs from the Jacobian • Angular Constraints – Modification of step 5 of the iterative algorithm to include boundary constraints on specified DOFs  = lower bound if J-1P < lower bound = upper bound if J-1P > upper bound = J-1P otherwise

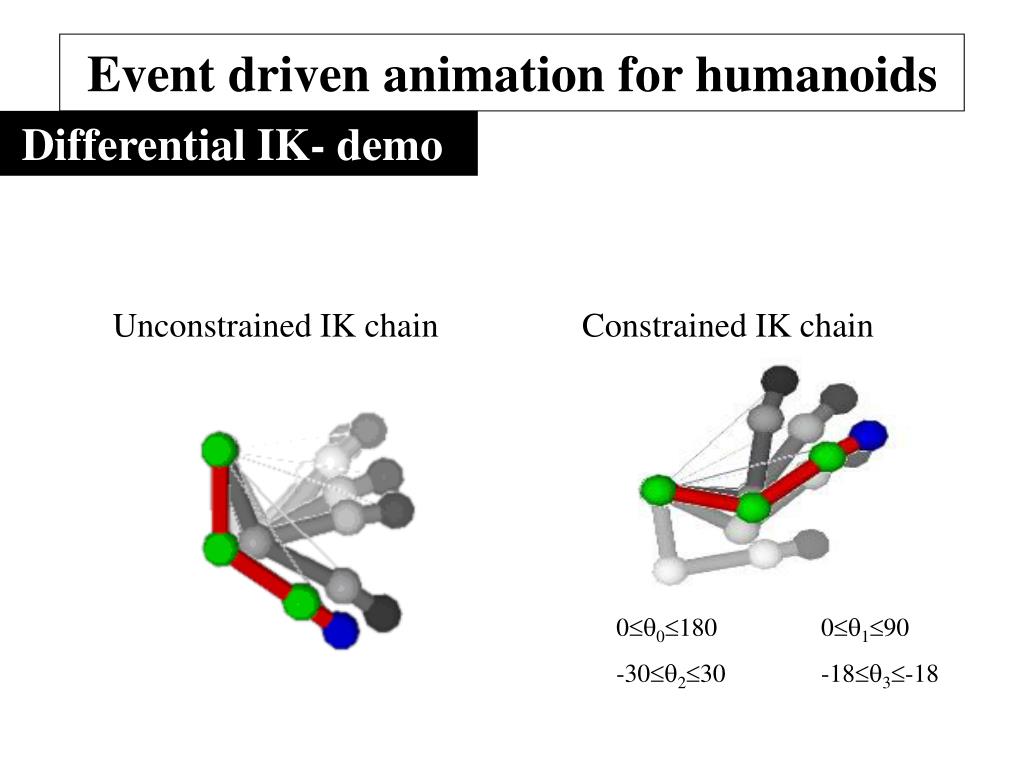

  46. Event driven animation for humanoids Differential IK- demo Unconstrained IK chain Constrained IK chain 00180 0190 -30230 -183-18
