cip modbus object read example

CIP Modbus Object ReadExample

M340 BMXNOC0401 usingExplicit unconnected_send request via DATA_EXCH to a Quantum 140NOC78000

Dec, 17, 2012

Rev 1.0

plc hardware configuration

100.100.100.102

100.100.100.103

Unity7

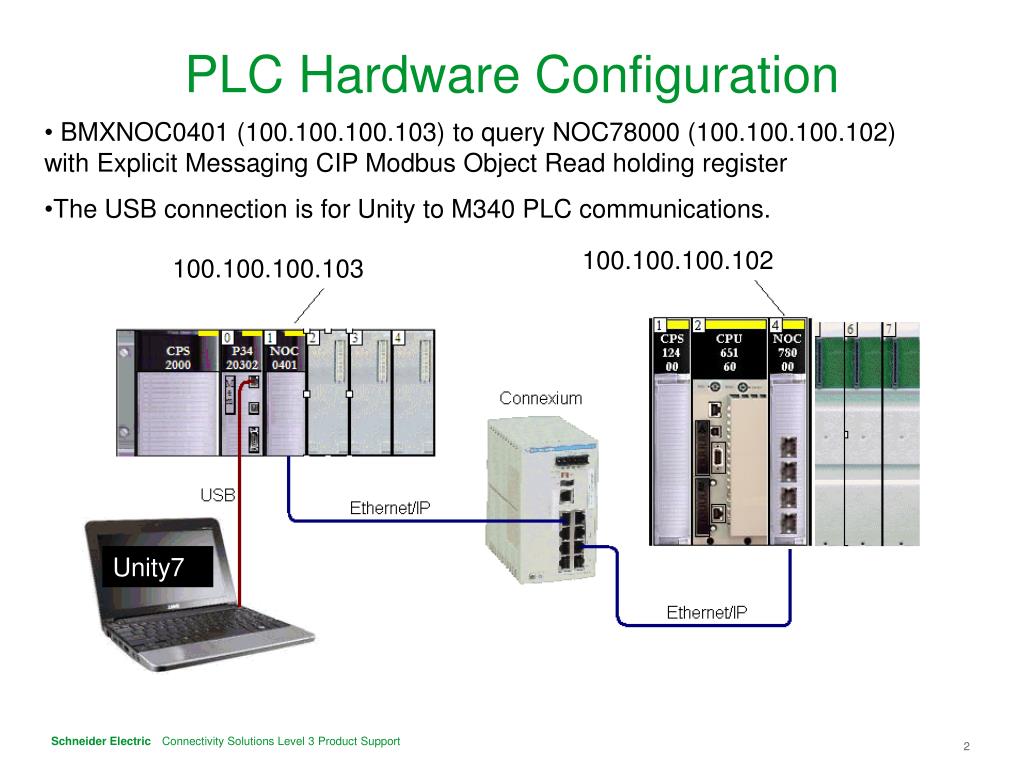

PLC Hardware Configuration
  • BMXNOC0401 (100.100.100.103) to query NOC78000 (100.100.100.102) with Explicit Messaging CIP Modbus Object Read holding register
  • The USB connection is for Unity to M340 PLC communications.
m340 unity program
M340 Unity Program
  • Note to add the ‘Pin negation’ on the activity bit ManagParam[0].0
  • Configuring the DATA_EXCH ADR Input:
  • ADDM(‘0.1.0{100.100.100.102}UNC.CIP’)
  • Rack = 0 Module (Slot Number) = 1 Channel = 0 Remote Device IP address = 100.100.100.102
  • Message Type = Unconnected_send Protocol = CIP
declaring variables

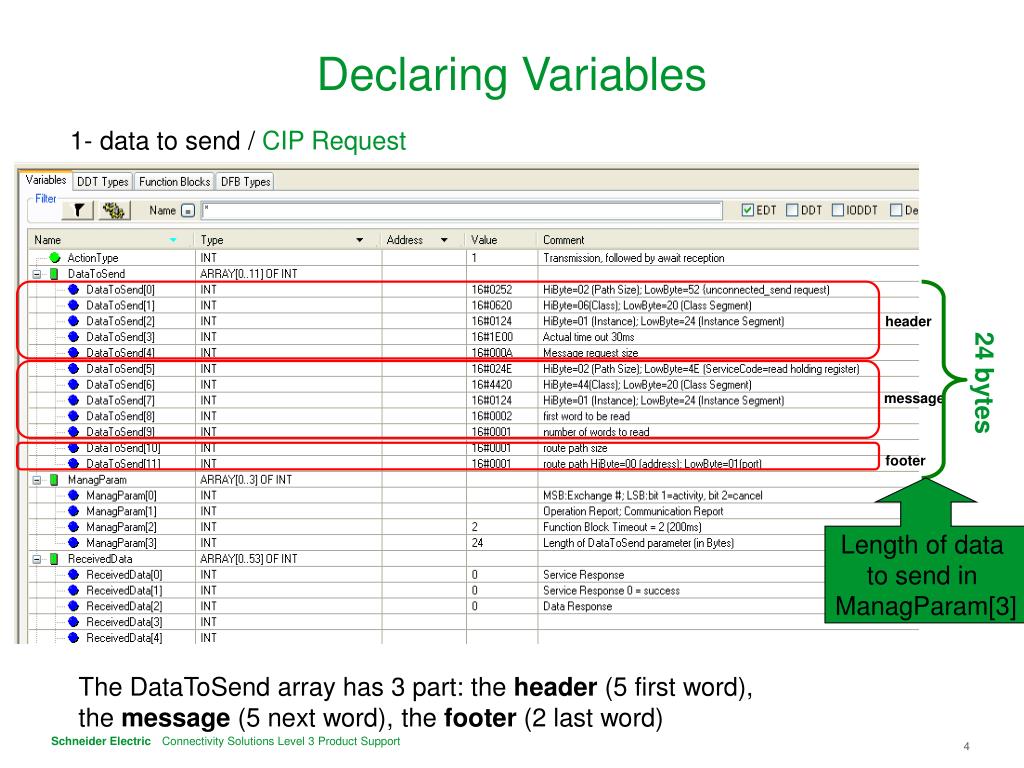

Declaring Variables

1- data to send / CIP Request

header

24 bytes

message

footer

Length of data

to send in

ManagParam[3]

The DataToSend array has 3 part: the header (5 first word), the message (5 next word), the footer (2 last word)

declaring variables1
Declaring Variables

2- Management parameters (array of 4 INT)

3- Reception data (array of 53 INT)

example program in quantum plc

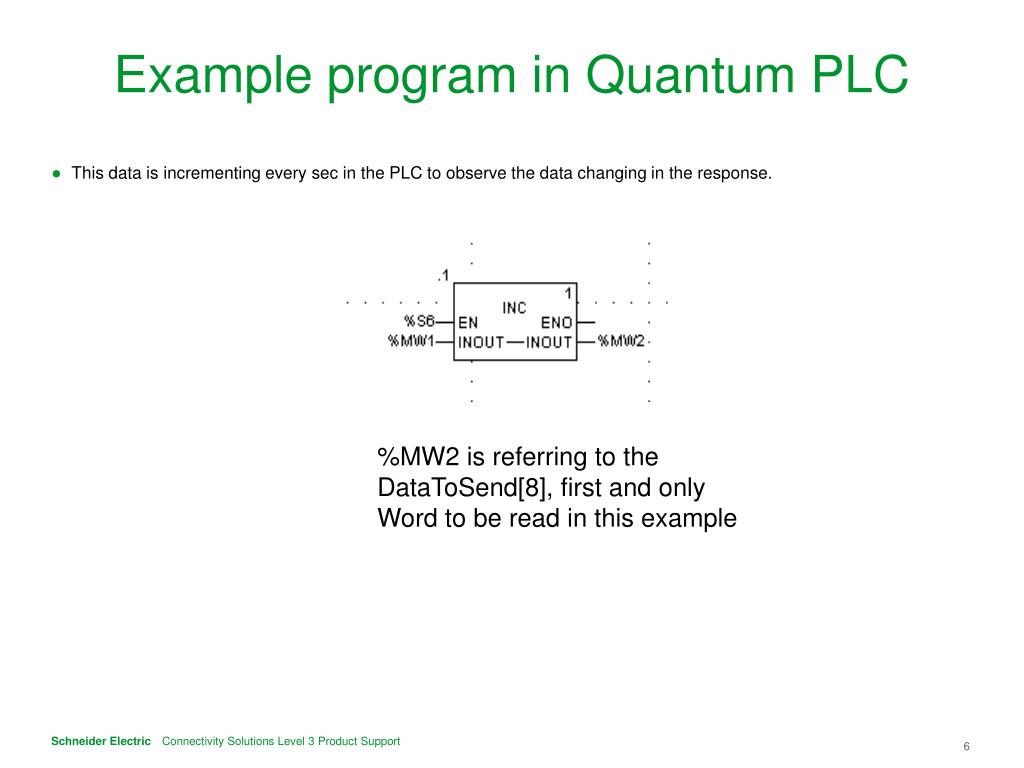

Example program in Quantum PLC
  • This data is incrementing every sec in the PLC to observe the data changing in the response.

%MW2 is referring to the DataToSend[8], first and only Word to be read in this example
