  1. What is DICOM? • The standard for Digital Imaging and Communications in Medicine. • Developed by the National Electrical Manufacturers Association (NEMA) in conjunction with the American College of Radiology (ACR). • Covers most image formats for all of medicine. • Specification for messaging and communication between imaging machines.

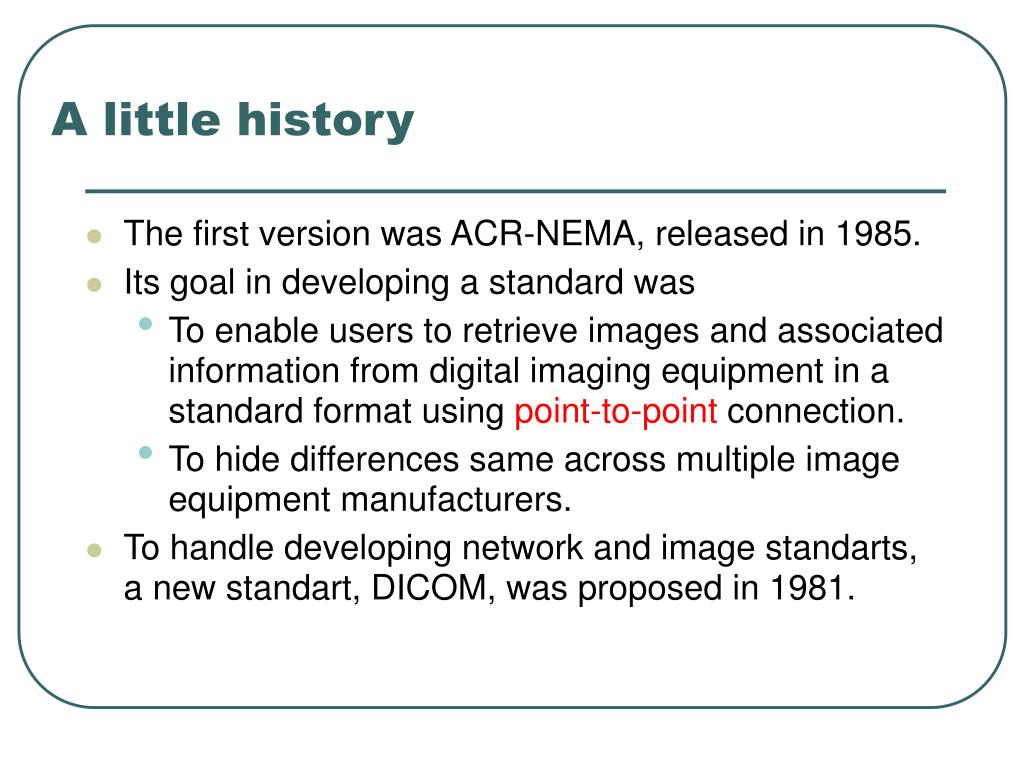

  2. A little history • The first version was ACR-NEMA, released in 1985. • Its goal in developing a standard was • To enable users to retrieve images and associated information from digital imaging equipment in a standard format using point-to-point connection. • To hide differences same across multiple image equipment manufacturers. • To handle developing network and image standarts, a new standart, DICOM, was proposed in 1981.

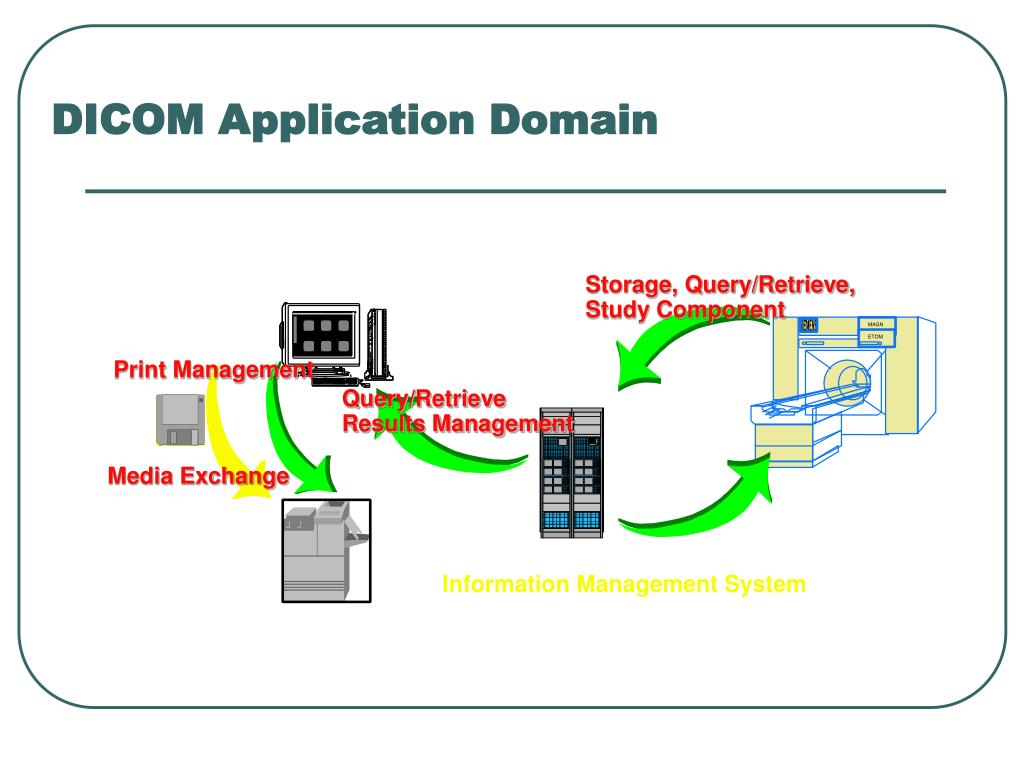

  3. Storage, Query/Retrieve, Study Component LiteBox MAGN ETOM Print Management Query/Retrieve Results Management Media Exchange Information Management System DICOM Application Domain

  4. Summary of DICOM Features • NETWORK PROTOCOL • DICOM incorporates negotiation to permit peers to agree on the functions to be performed • MESSAGE ENCODING • DICOM defines 24 data types (V2.0 had 4) • DICOM message encoding includes JPEG compression (17 varients) • DICOM supports multiple character repertoires

  5. Summary of DICOM Features • OBJECT DATA MODEL • DICOM is based on a completely specified data model • DICOM includes a robust UID mechanism • DATA DICTIONARY • DICOM includes a large number of new data elements • SERVICE CLASSES • DICOM defines classes of service for specific applications (e.g. image management, printing) and conformance levels

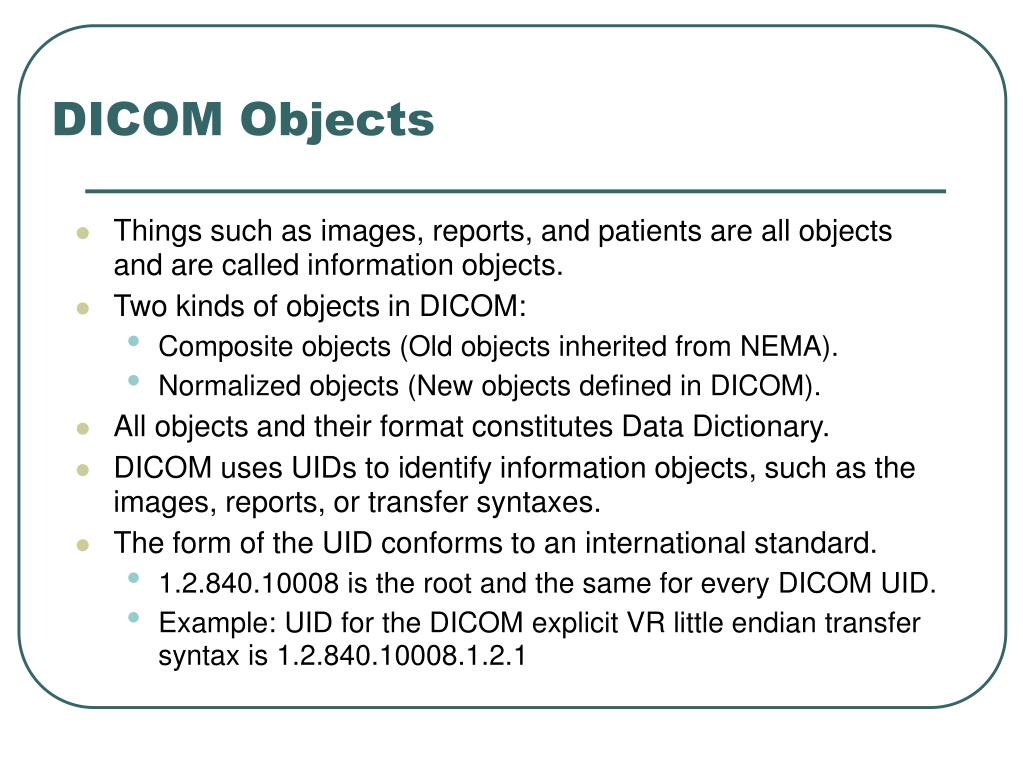

  6. DICOM Objects • Things such as images, reports, and patients are all objects and are called information objects. • Two kinds of objects in DICOM: • Composite objects (Old objects inherited from NEMA). • Normalized objects (New objects defined in DICOM). • All objects and their format constitutes Data Dictionary. • DICOM uses UIDs to identify information objects, such as the images, reports, or transfer syntaxes. • The form of the UID conforms to an international standard. • 1.2.840.10008 is the root and the same for every DICOM UID. • Example: UID for the DICOM explicit VR little endian transfer syntax is 1.2.840.10008.1.2.1

  7. DICOM Service Classes • Composite • Verification • Storage • Query/Retrieve • Study Content Notification • Normalized • Patient Management • Study Management • Results Management • Basic Print Management

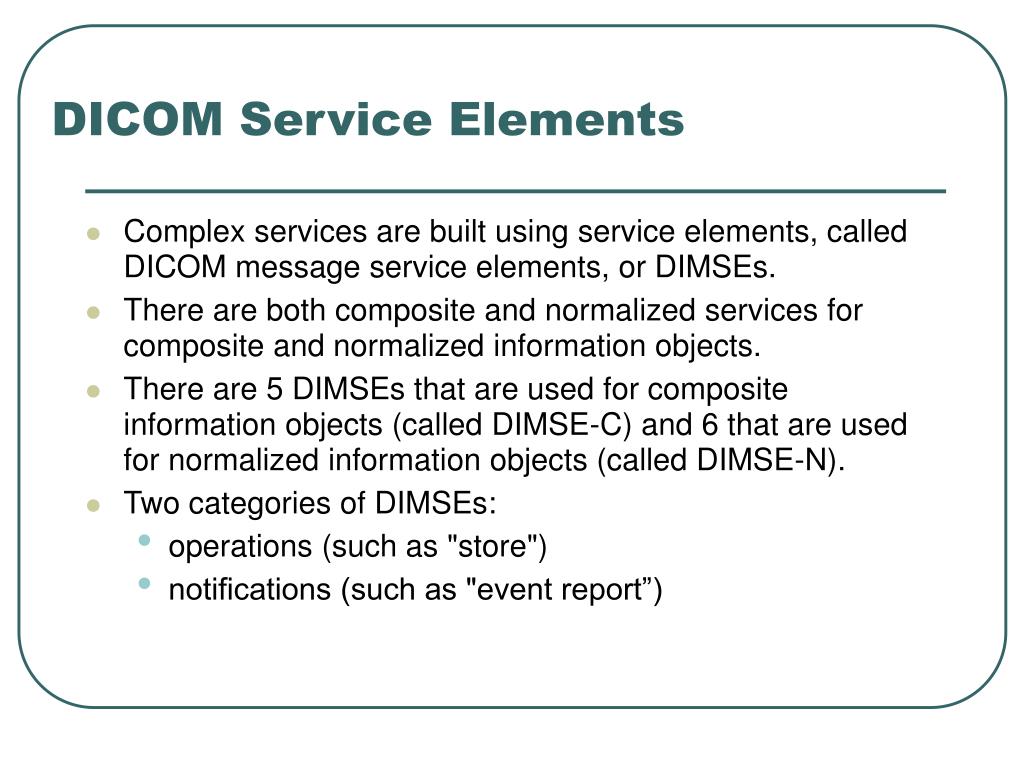

  8. DICOM Service Elements • Complex services are built using service elements, called DICOM message service elements, or DIMSEs. • There are both composite and normalized services for composite and normalized information objects. • There are 5 DIMSEs that are used for composite information objects (called DIMSE-C) and 6 that are used for normalized information objects (called DIMSE-N). • Two categories of DIMSEs: • operations (such as "store") • notifications (such as "event report”)

  9. DIMSE-C Services • DIMSE-C services: • Operations: • C-Store • C-Get • C-Move • C-Find • C-Echo • No notification services

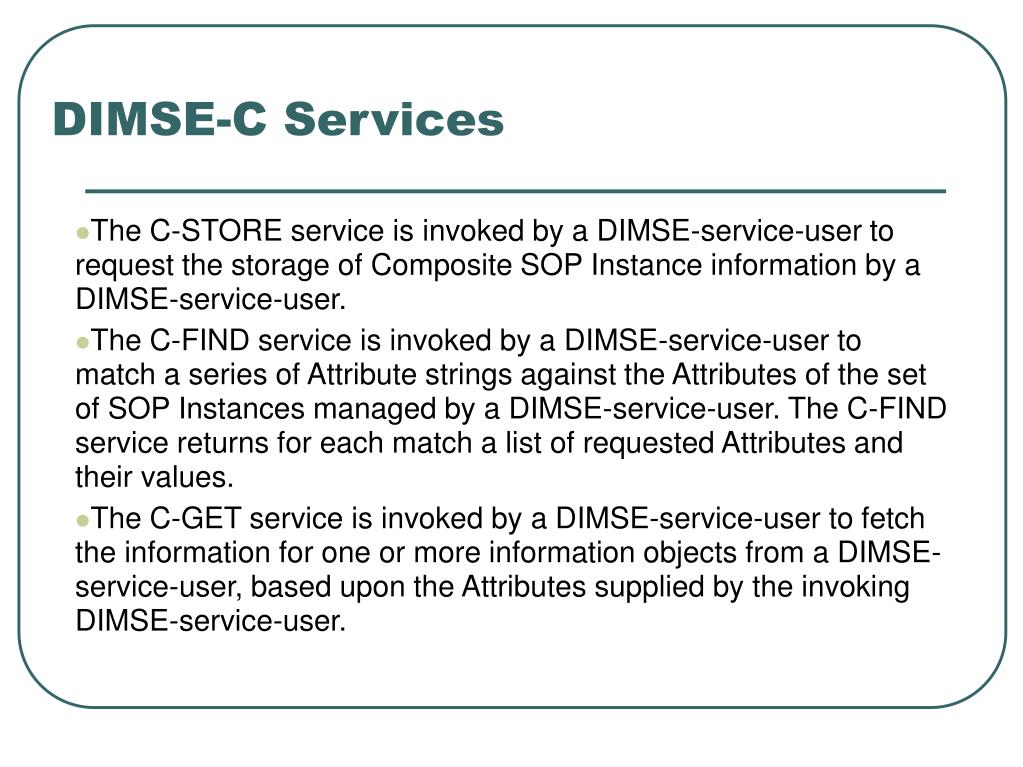

  10. DIMSE-C Services • The C-STORE service is invoked by a DIMSE-service-user to request the storage of Composite SOP Instance information by a DIMSE-service-user. • The C-FIND service is invoked by a DIMSE-service-user to match a series of Attribute strings against the Attributes of the set of SOP Instances managed by a DIMSE-service-user. The C-FIND service returns for each match a list of requested Attributes and their values. • The C-GET service is invoked by a DIMSE-service-user to fetch the information for one or more information objects from a DIMSE-service-user, based upon the Attributes supplied by the invoking DIMSE-service-user.

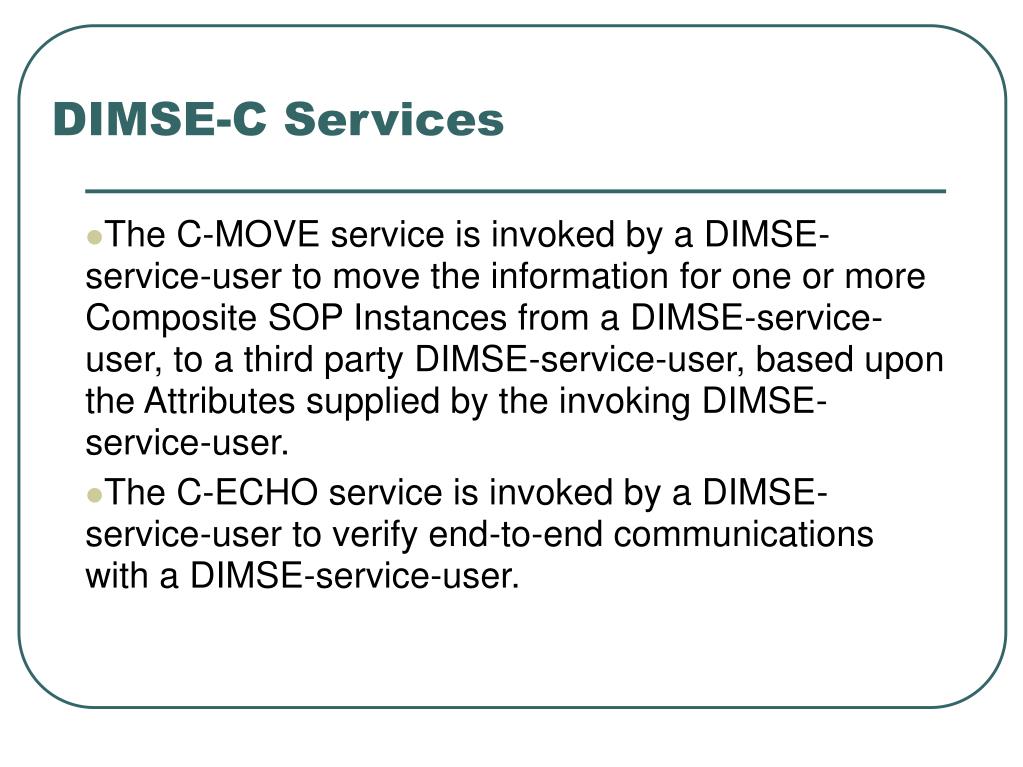

  11. DIMSE-C Services • The C-MOVE service is invoked by a DIMSE-service-user to move the information for one or more Composite SOP Instances from a DIMSE-service-user, to a third party DIMSE-service-user, based upon the Attributes supplied by the invoking DIMSE-service-user. • The C-ECHO service is invoked by a DIMSE-service-user to verify end-to-end communications with a DIMSE-service-user.

  12. DIMSE-N Services • DIMSE-N services: • Operations: • N-Get • N-Set • N-Action • N-Create • N-Delete • Notifications: • N-Event-Report

  13. DIMSE-N Services • N-EVENT-REPORT service is invoked by a DIMSE-service-user to report an event about a SOP Instance to a DIMSE-service-user. • N-GET service is invoked by a DIMSE-service-user to request the retrieval of information from a DIMSE-service-user. • N-SET service is invoked by a DIMSE-service-user to request the modification of information by a DIMSE-service-user.

  14. DIMSE-N Services • N-ACTION service is invoked by a DIMSE-service-user to request a DIMSE-service-user to perform an action. • N-CREATE service is invoked by a DIMSE-service-user to request a DIMSE-service-user to create an instance of a information object. • N-DELETE service is invoked by a DIMSE-service-user to request a DIMSE-service-user to delete an instance of a information object.

  15. DICOM Service-Object Pair (SOP) • The service classes and information objects are combined to form SOP. • The SOP class is the elemental unit of DICOM. • Everything that DICOM does is based on the use of SOP classes.

  16. Data Dictionary DIMSE Service Element Information Object SOP DICOM Service-Object Pair (SOP)

  17. DICOM File Format (Overview) • A single DICOM file contains: • A header (which stores information about the patient's name, the type of scan, image dimensions, etc) • Image data (in compressed (bitmap) or uncompressed form (jpeg, gif...))

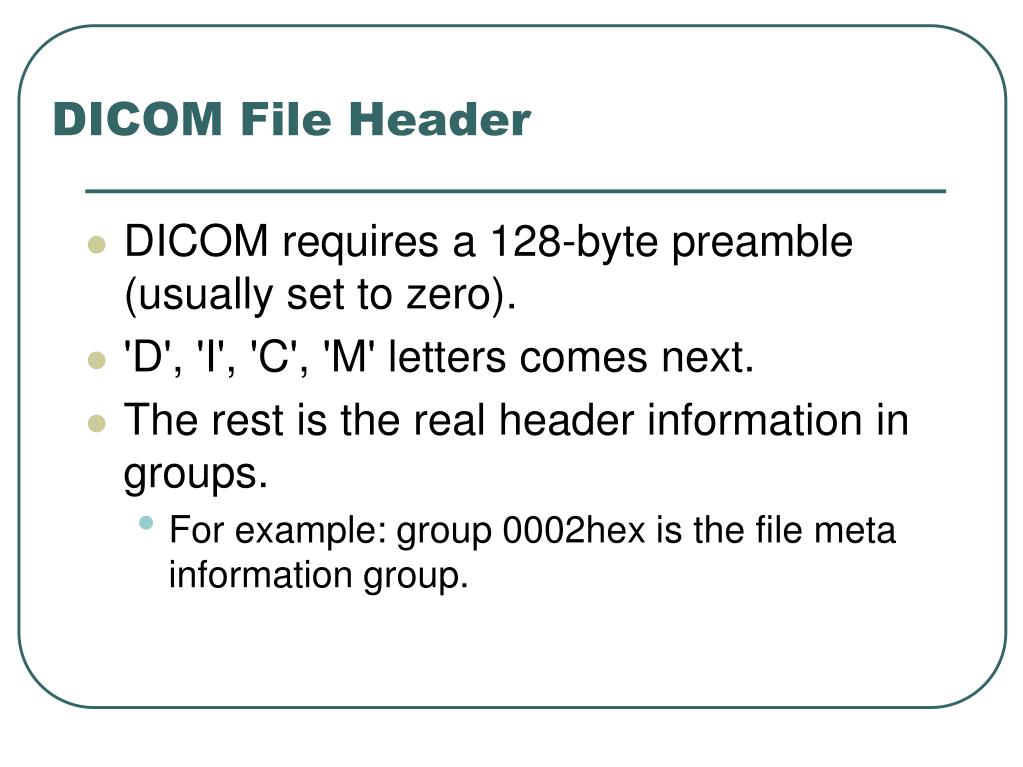

  18. DICOM File Header • DICOM requires a 128-byte preamble (usually set to zero). • 'D', 'I', 'C', 'M' letters comes next. • The rest is the real header information in groups. • For example: group 0002hex is the file meta information group.

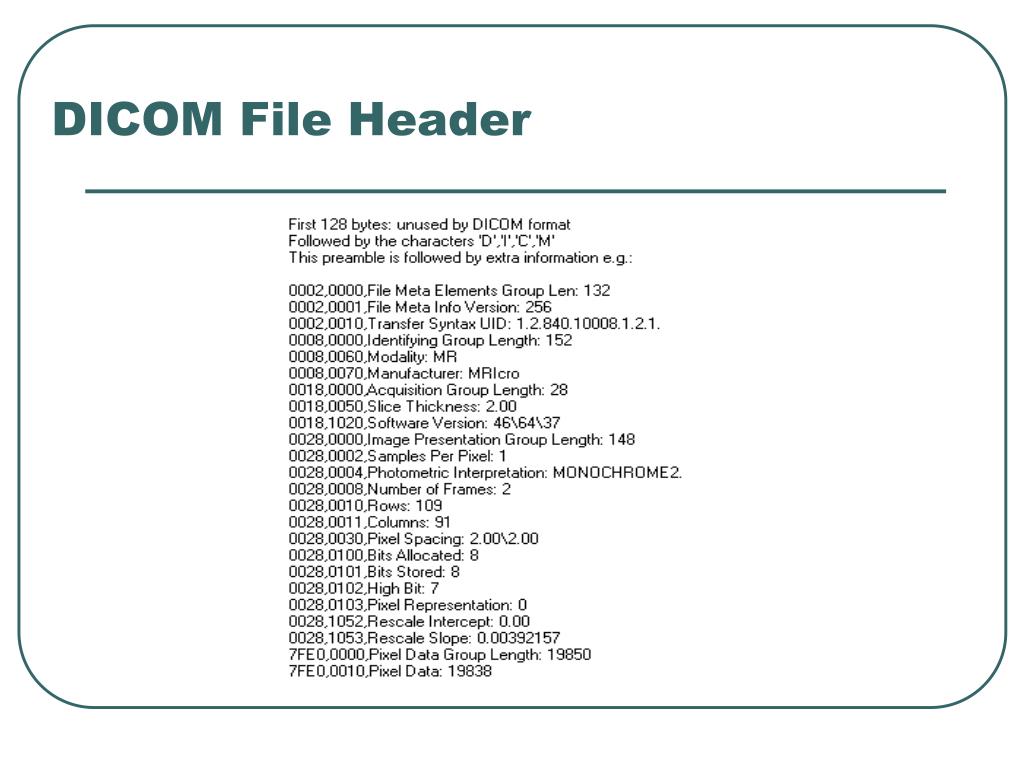

  19. DICOM File Header

  20. DICOM File Header • The meaning of some fields: • 0002:0010 --> Reports the structure of the image data • 0028:0002 --> Samples Per Pixel • 0028:0004 --> Photometric Interpretation • 0028:0100 --> Bits Allocated • ...

  21. Association Services • Before everything, Association establishment must be done. • During Association establishment, A DIMSE-service-user exchanges initialization information. • The initialization information includes: • Application context • DIMSE-specific user information • DIMSE service information • Presentation and session requirements

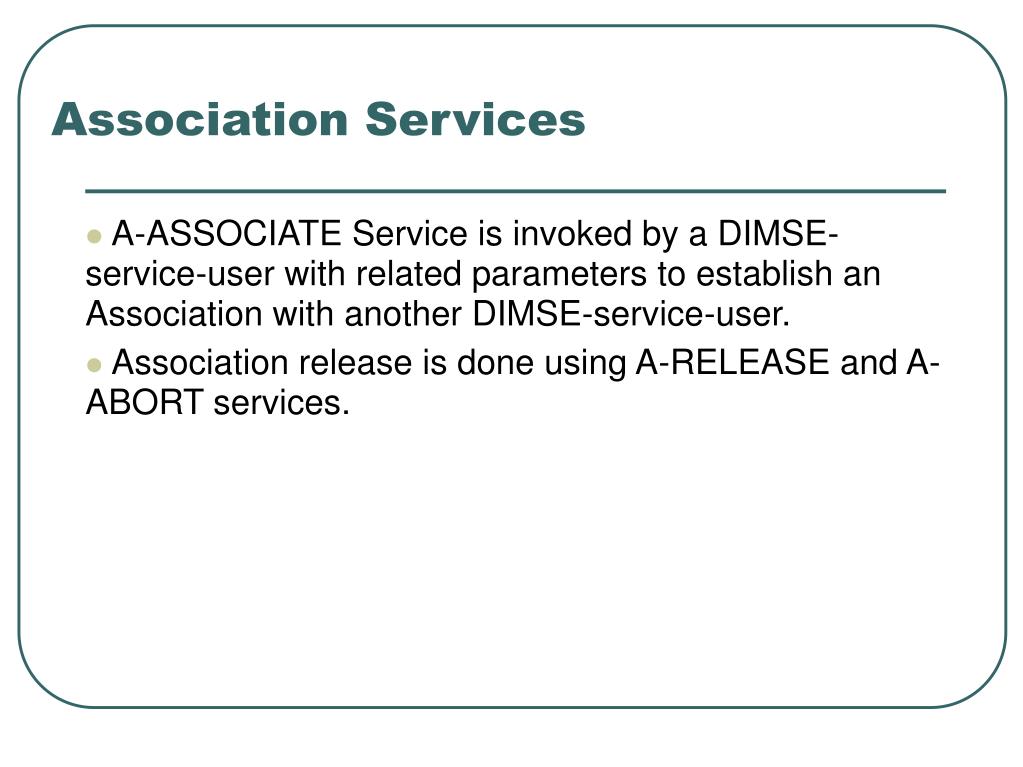

  22. Association Services • A-ASSOCIATE Service is invoked by a DIMSE-service-user with related parameters to establish an Association with another DIMSE-service-user. • Association release is done using A-RELEASE and A-ABORT services.
