Presentation Transcript
dicom security

DICOM Security

Lawrence Tarbox, Ph.D.

Chair, WG 14

Mallinckrodt Institute of Radiology

Washington University in St. Louis School of Medicine

3 supplements
3 Supplements

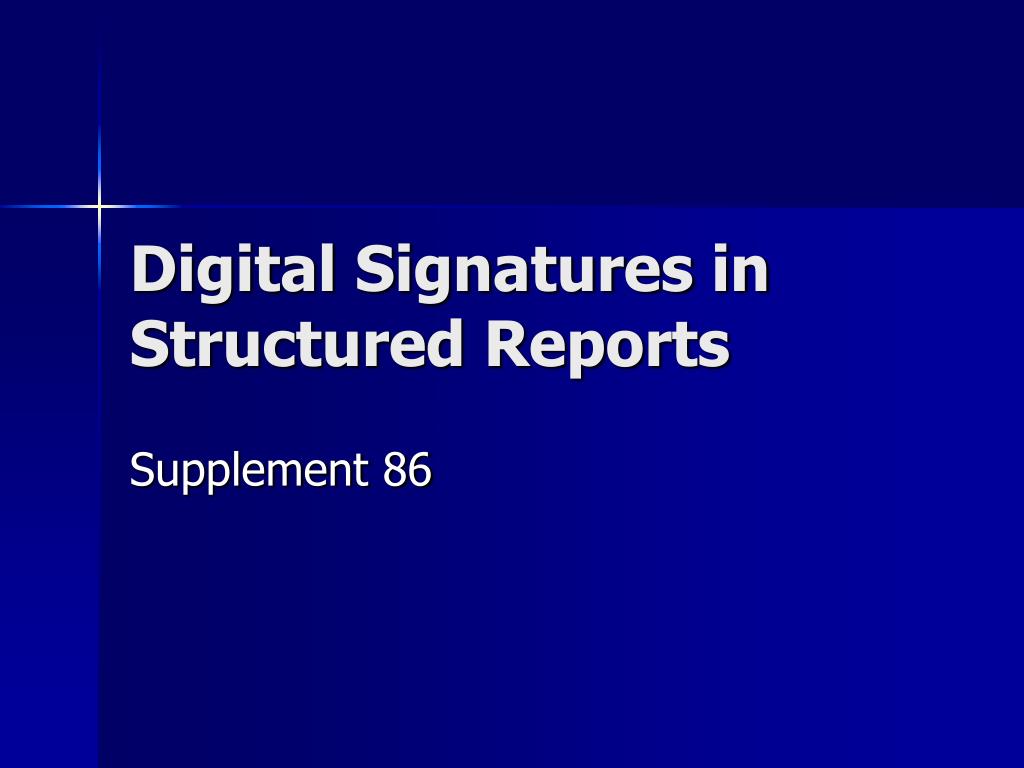

  • Digital Signatures in Structured Reports
    • In its public comment period (Supp. 86)
  • Audit Trail Messages
    • Frozen Trial Use Draft (Supp. 95)

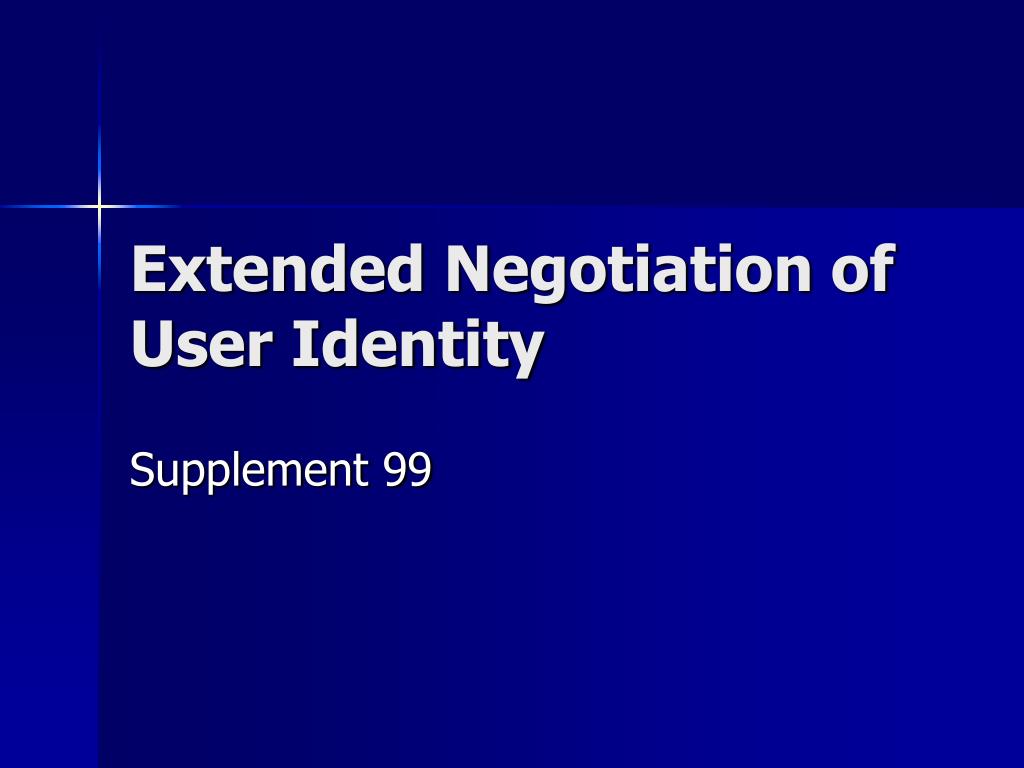

  • Extended Negotiation of User Identity
    • Out for letter ballot now (Supp. 99)
status
Status
  • Was on hold while WG 14 concentrated on other supplements
  • Has evolved to meet a new set of use cases
  • Now in public comment – please give us your input!
contents
Contents
  • Addresses issues brought up in Digital Signature implementations:
    • Digital Signature Purpose field (e.g. author, verifier, transcriptionist, device)
    • Reports with multiple signers
  • Adds methods to securely reference other composite objects
    • Via Digital Signature in the referenced object
    • Via MAC embedded in the reference itself
  • Adds profiles for using Digital Signatures in SRs
  • Extends Key Object Selection template to address new use cases
key use case
Key Use Case

How can an application know what objects constitute a complete set?

options considered
Options Considered
  • Why not MPPS?
    • MPPS is not a persistent (composite) object
    • MPPS could trigger generation of a signed Key Object Selection document
  • Why not Storage Commitment
    • Did not wish to change semantics some applications currently associate with Storage Commitment
key object selection extensions

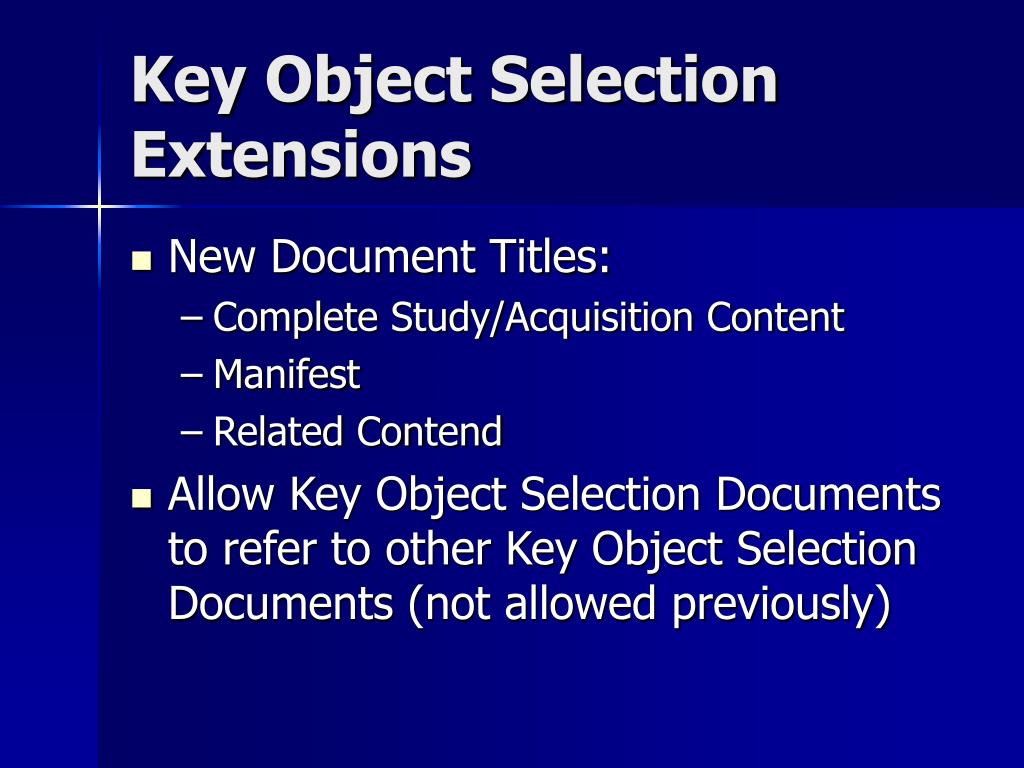

Key Object Selection Extensions
  • New Document Titles:
    • Complete Study/Acquisition Content
    • Manifest
    • Related Contend
  • Allow Key Object Selection Documents to refer to other Key Object Selection Documents (not allowed previously)
give us feedback
Give Us Feedback
  • Public Comment document available on the DICOM web site:http://dicom.nema.org
  • Mail comments to:how_clark@nema.org
audit messages

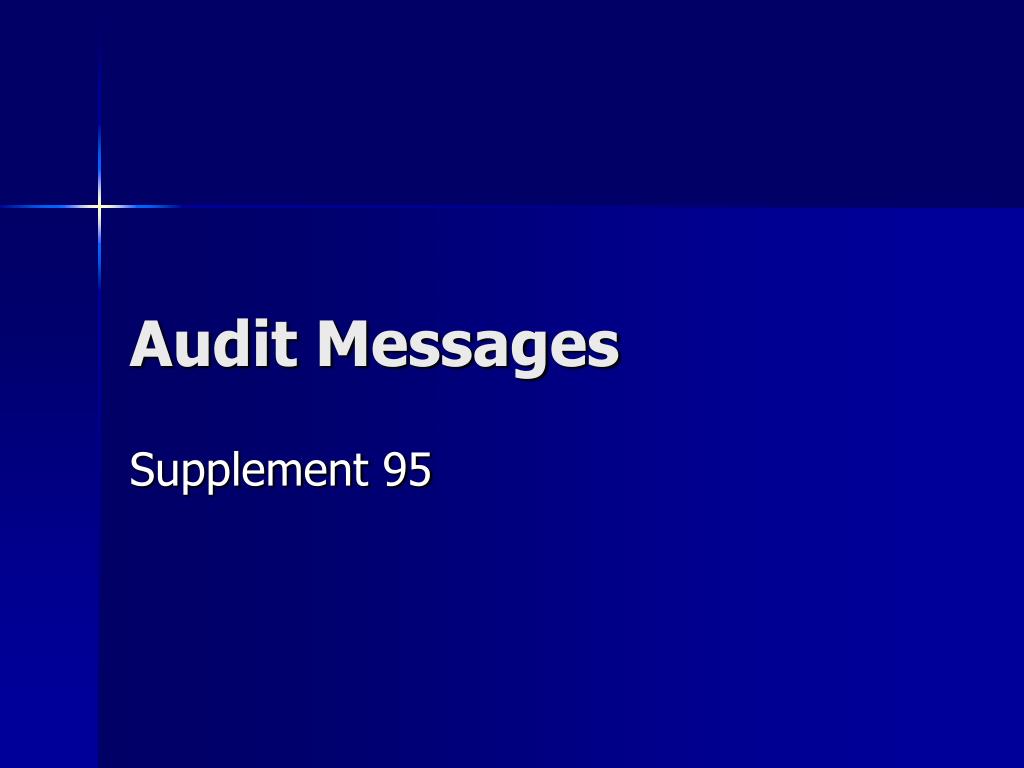

Audit Messages

Supplement 95

status11

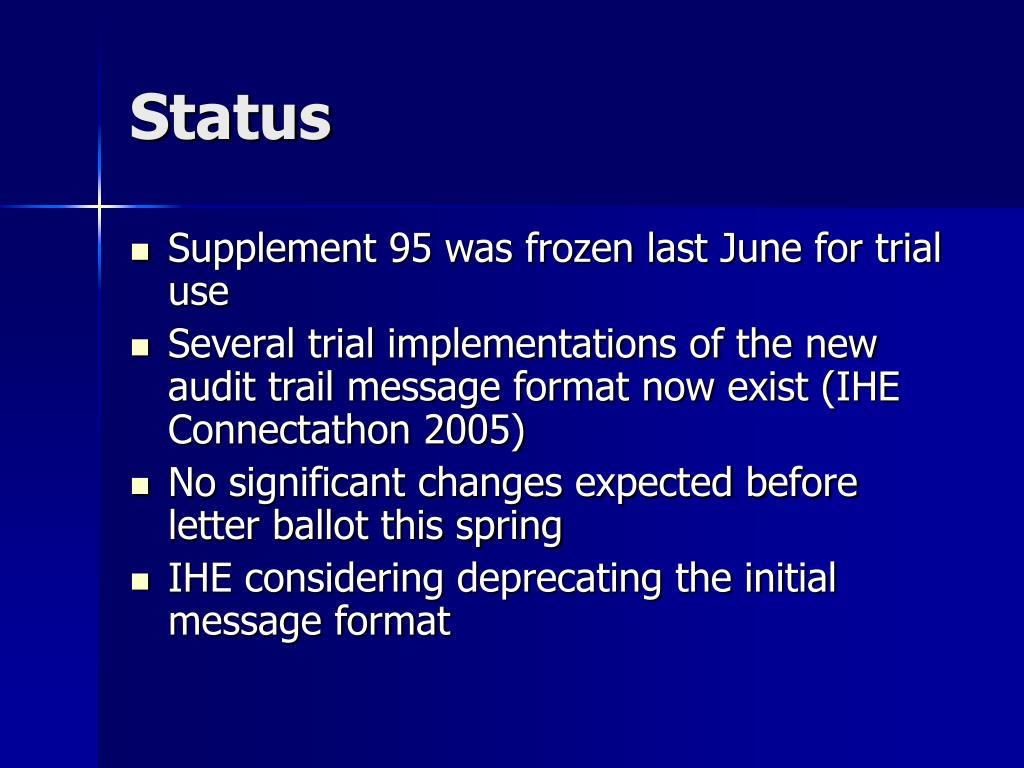

Status
  • Supplement 95 was frozen last June for trial use
  • Several trial implementations of the new audit trail message format now exist (IHE Connectathon 2005)
  • No significant changes expected before letter ballot this spring
  • IHE considering deprecating the initial message format
lets clear the confusion
Lets Clear the Confusion!
  • Base XML message format specified in RFC 3881
    • To be shared by multiple domains
    • Needs vocabulary definition to be useful
  • Supplement 95 profiles, augments, and defines DICOM-specific vocabulary
    • Use the schema in Supplement to create messages and read DICOM extensions
    • Audit repositories can interpret key using the schema in the RFC
beware the ides of march
Beware the Ides of March

Last chance to make suggestions before it goes to ballot! Send any comments to:how_clark@nema.orgbefore mid-March!

use cases

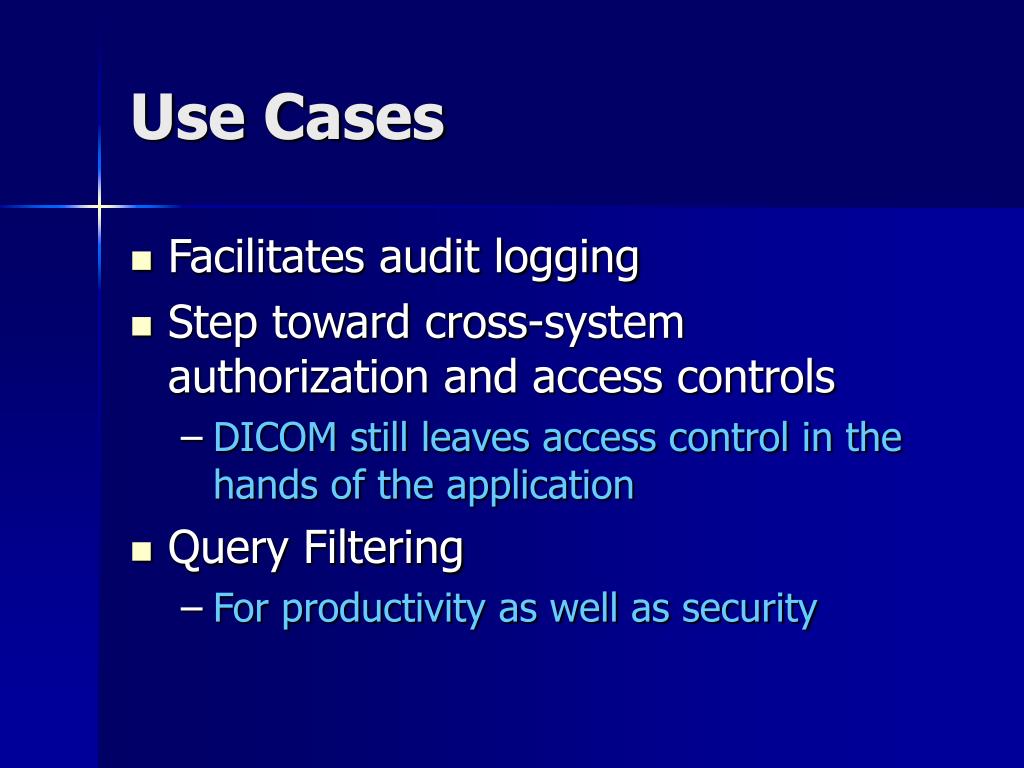

Use Cases
  • Facilitates audit logging
  • Step toward cross-system authorization and access controls
    • DICOM still leaves access control in the hands of the application
  • Query Filtering
    • For productivity as well as security
design goals

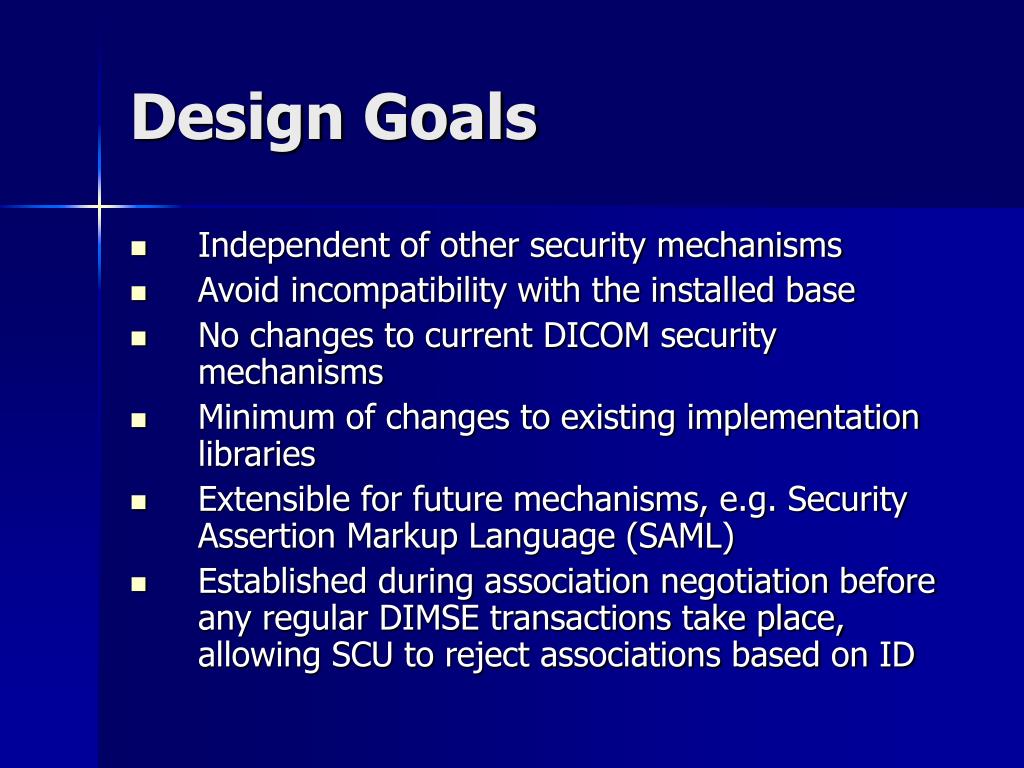

Design Goals
  • Independent of other security mechanisms
  • Avoid incompatibility with the installed base
  • No changes to current DICOM security mechanisms
  • Minimum of changes to existing implementation libraries
  • Extensible for future mechanisms, e.g. Security Assertion Markup Language (SAML)
  • Established during association negotiation before any regular DIMSE transactions take place, allowing SCU to reject associations based on ID
several options
Several Options
  • User identity alone, with no other security mechanisms
  • User identity plus the current DICOM TLS mechanism
  • User identity plus future lower level transport mechanisms (e.g. IPv6 with security option)
  • User identity plus VPN
extended negotiation response expected

DICOM Application Entity "A"

A-ASSOCIATE

User ID Sub-item (58H)

Request

ID Type (3)

User ID

(A B)

DICOM Application Entity "B"

User ID Sub-item (58H)

A-ASSOCIATE

Server-Response

Response

(A B)

Extended NegotiationResponse Expected
extended negotiation no response expected

DICOM Application Entity "A"

A-ASSOCIATE

User ID Sub-item (58H)

Request

ID Type (3)

User ID

(A B)

A-ASSOCIATE

Response

(A B)

Extended NegotiationNo Response Expected

DICOM Application Entity "B"

(No Sub-Item)

id type profiles
ID Type Profiles
  • Un-authenticated identity assertion
    • Systems in a trusted environment
  • Username plus passcode
    • Systems in a secure network
  • Kerberos-based authentication
    • Strongest security
kerberos

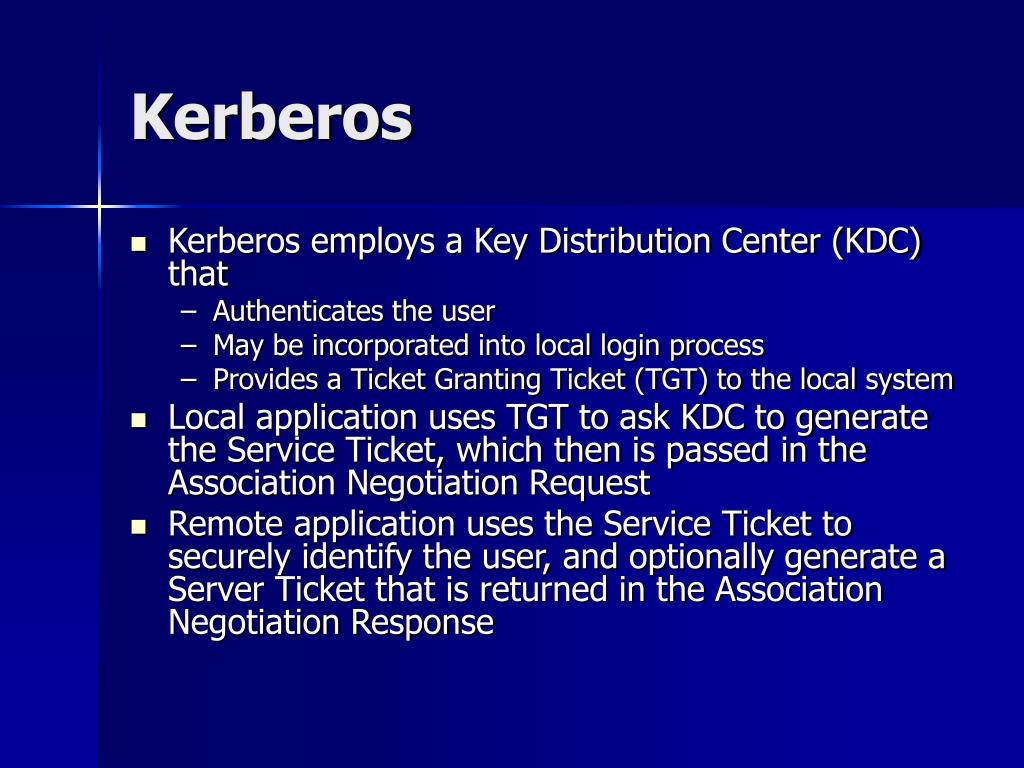

Kerberos
  • Kerberos employs a Key Distribution Center (KDC) that
    • Authenticates the user
    • May be incorporated into local login process
    • Provides a Ticket Granting Ticket (TGT) to the local system
  • Local application uses TGT to ask KDC to generate the Service Ticket, which then is passed in the Association Negotiation Request
  • Remote application uses the Service Ticket to securely identify the user, and optionally generate a Server Ticket that is returned in the Association Negotiation Response
prepared for the future

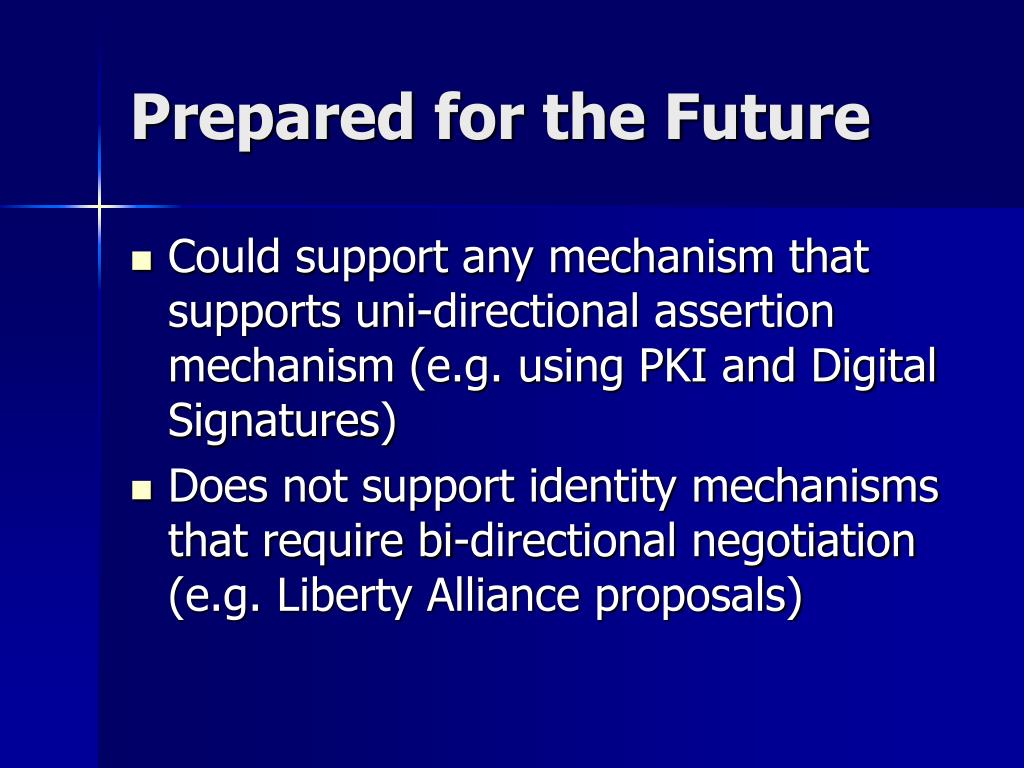

Prepared for the Future
  • Could support any mechanism that supports uni-directional assertion mechanism (e.g. using PKI and Digital Signatures)
  • Does not support identity mechanisms that require bi-directional negotiation (e.g. Liberty Alliance proposals)
