Presentation Transcript
seung oh kang saganamu@kut ac kr
한국기술교육대학교

Strong Barrier Coverage of Wireless Sensor Networks

Seung Oh Kang

[email protected]

[email protected]

2009. 04. 27

slide2
한국기술교육대학교

Contents

□ Introduction

□ Constructing Barriers

□ Performance Evaluation

□ Conclusion

[email protected]

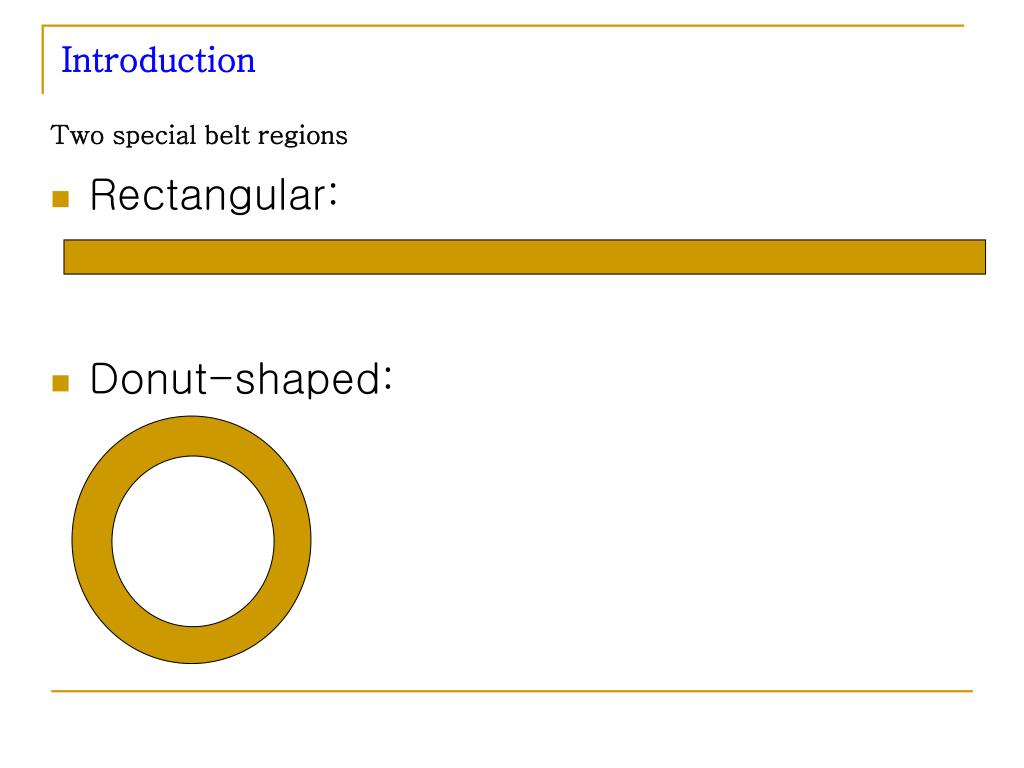

two special belt regions
Two special belt regions

Introduction

  • Rectangular:
  • Donut-shaped:
how to define a belt region
How to define a belt region?

Introduction

  • Parallel curves
  • Region between two parallel curves
introduction2
한국기술교육대학교Introduction

Crossing Paths

  • A crossing path is a path that crosses the complete width of the belt region.

Crossing pathsNot crossing paths

[email protected]

k covered
k-Covered

Introduction

  • A crossing path is said to be k-covered if it intersects the sensing disks of at least k sensors.

3-covered 1-covered 0-covered

k barrier covered
k-Barrier Covered

Introduction

  • A belt region is k-barrier covered if all crossing paths are k-covered.

Not barrier covered

1-barrier covered

barrier vs blanket coverage
Barrier vs. Blanket Coverage

Introduction

  • Barrier coverage
    • Every crossing path is k-covered
  • Blanket coverage
    • Every point is covered (or k-covered)
  • Blanket coverage Barrier coverage

1-barrier covered but

not 1-blanket covered

reduced to k connectivity problem
Reduced to k-connectivity problem

Introduction

  • Given a sensor network over a belt region
  • Construct a coverage graph G(V, E)
    • V: sensor nodes, plus two dummy nodes L, R
    • E: edge (u,v) if their sensing disks overlap
  • Region is k-barrier covered if L and R are k-connected in G.

R

L

slide15
한국기술교육대학교

Performance Evaluation

Conditions for strong barrier coverage

[email protected]

slide16
한국기술교육대학교

Performance Evaluation

Strengthened local barrier coverage

[email protected]

slide18
한국기술교육대학교

Conclusion

  • We want to ensure that intruders cannot cross the strip undetected no matter how they choose their crossing paths.
  • To this end, we make two main contributions that provide
  • theoretical foundations and practical algorithm for the
  • construction of strong barriers in a sensor network.
  • Specically, we obtain the critical conditions for strong barrier coverage in a strip sensor network, filling the gap in the understanding of the critical conditions for barrier coverage.

[email protected]
