  1. Drawing Circles on a Tight Budget Using an 8-pin PIC12F675 microcontroller, harmonic oscillator theory and software PWM to generate in-phase sine and cosine signals Catalin Patulea <cat@vv.carleton.ca> Second year Software Engineering student Carleton University

  2. Overview Microchip PIC12F675 Harmonic Oscillator Software PWM Reconstruction Filter Oscilloscope Y Harmonic Oscillator (90° out of phase) X Software PWM Reconstruction Filter

  3. Harmonic Oscillator: Theory • Second order recursive relation • Can be modeled using the z-transform • Can verify stability and period over integers (FSM) Y(n-1) Y(n-2) Y(n) = K·Y(n-1) - Y(n-2) Y(n)

  4. Harmonic Oscillator: Design • “Angular increment” • Frequency determined by K • Phase and amplitude determined by Y(0) and Y(1)

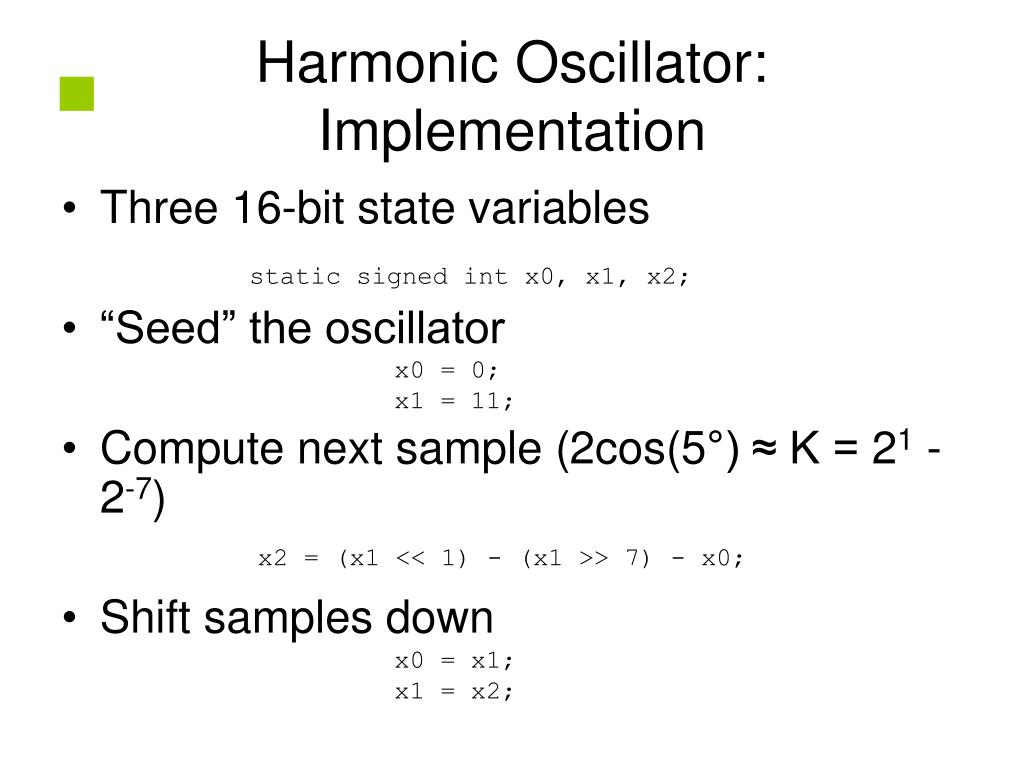

  5. Harmonic Oscillator: Implementation • Three 16-bit state variables • “Seed” the oscillator • Compute next sample (2cos(5°) ≈ K = 21- 2-7) • Shift samples down static signed int x0, x1, x2; x0 = 0; x1 = 11; x2 = (x1 << 1) - (x1 >> 7) - x0; x0 = x1; x1 = x2;

  6. Software PWM • PWM is Pulse Width Modulation • Constant frequency, variable duty cycle • Average value proportional to duty factor • Easily generated on a digital μC output pin • PWM + reconstruction filter = poor man’s DAC 10% 40% 100%

  7. Reconstruction Filter • Intuitively, a short-term averager • Low-pass filter with corner frequency between output frequency and PWM frequency • Cut out high-frequency “garbage” • Avoid attenuating useful signal • If PWM frequency is high enough (compared to output frequency), RC will do just fine Re- construction Filter 70% 70%

  8. Summary • 8-pin PIC12F675, two resistors, two capacitors • 62 lines of C code (17% ROM, 46% RAM) • Room for optimization in assembly • ~ 1 Hz in-phase sine and cosine, sampled at ~ 70 Hz • Applications • QAM (Quadrature Amplitude Modulation)

  9. Small, few components No external oscillator Cheap About 3 $ Low footprint No look-up table Dynamically changing the frequency requires recomputing only 3 coefficients Dynamic frequency variations are limited by reconstruction filter Probably needs an amplifier to drive anything significant Probably not well-suited for high frequency or high quality conditions Pros and Cons

  10. Demo

  11. Microchip PIC12F675 Harmonic Oscillator Software PWM Reconstruction Filter Oscilloscope Y Harmonic Oscillator (90° out of phase) X Software PWM Reconstruction Filter Q & A
