    1. Introduction to An ASHRAE Professional Development CourseCutting Utility CoststhroughStrategic Energy ManagementDraft01/21/06 1

    2. Introduction to An ASHRAE Professional Development CourseStrategic Energy Management:Cost Savings, Environmental Stewardship,and More!Draft01/21/06 2

    3. Introduction to An ASHRAE Professional Development CourseCost Savings andEnvironmental Stewardship throughStrategic Energy ManagementDraft01/21/06 3

    4. Introduction to An ASHRAE Professional Development CourseStrategic Energy Management: Cost Savings andEnvironmental StewardshipDraft01/21/06 4

    5. Energy Management • An On-line course, presented in 2-hour segments: • BENEFITS OF ENERGY MANAGEMENT / GETTING STARTED • ENERGY MANAGEMENT FLOW CHART • ENERGY MANAGER JOB DESCRIPTION • OVERCOMING BARRIERS • ESTABLISH COMMUNICATIONS • UNDERSTANDING AND ORGANIZING UTILITY BILLS DEVELOPING AND ANALYZING PROFILES • BENCHMARKING AND SETTING TARGETS • PURCHASING ENERGY • OFF-PEAK OPTIONS • ENERGY AUDITS • IMPLEMENTING ECM’S • CONTINUOUS MONITORING – REPORT SUCCESS 5

    6. Today’s Agenda Impact of Energy Management What is Energy Management? Simple Resources for Getting Started Resources at work Examples of success 6

    7. Energy Sources Energy Consumption Solar Etc. Hydroelectric 7

    8. Energy Management • Buildings consume 38.5% of US energy • A 33% reduction will save 13% of US energy • 4 times the environmental impact of renewable energy! 8

    9. Energy Management Systematic approach to energy conservation Assess needs Prioritize resources Take action Potential Cost Effective Savings: 10% - 30% A MANAGEMENT PROCESS!! 9

    10. Energy Management 101 10

    11. Energy Management 101 20 Story Office Building • 200,000 S.F. • 5 years old, no energy conservation • Complex, energy intensive HVAC systems • No building automation system Actions by Facility Manager • Read meters daily • Obtain previous day’s weather data • Harass/Compliment Building Engineer daily Result after 1 year: • Energy Use Reduced One-Third! 11

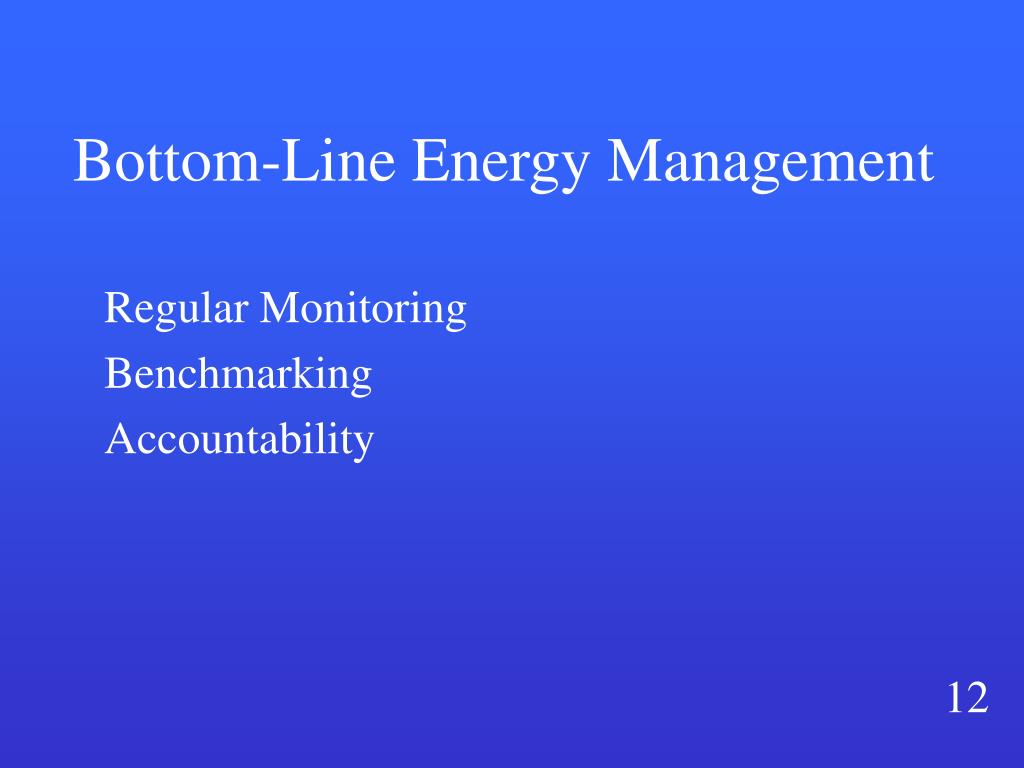

    12. Bottom-Line Energy Management Regular Monitoring Benchmarking Accountability 12

    13. Energy Star Guidelines for Energy Management http://www.energystar.gov Guidelines for Energy Management 13

    14. ASHRAE Energy Management 14

    15. Establish a Utility Database 15

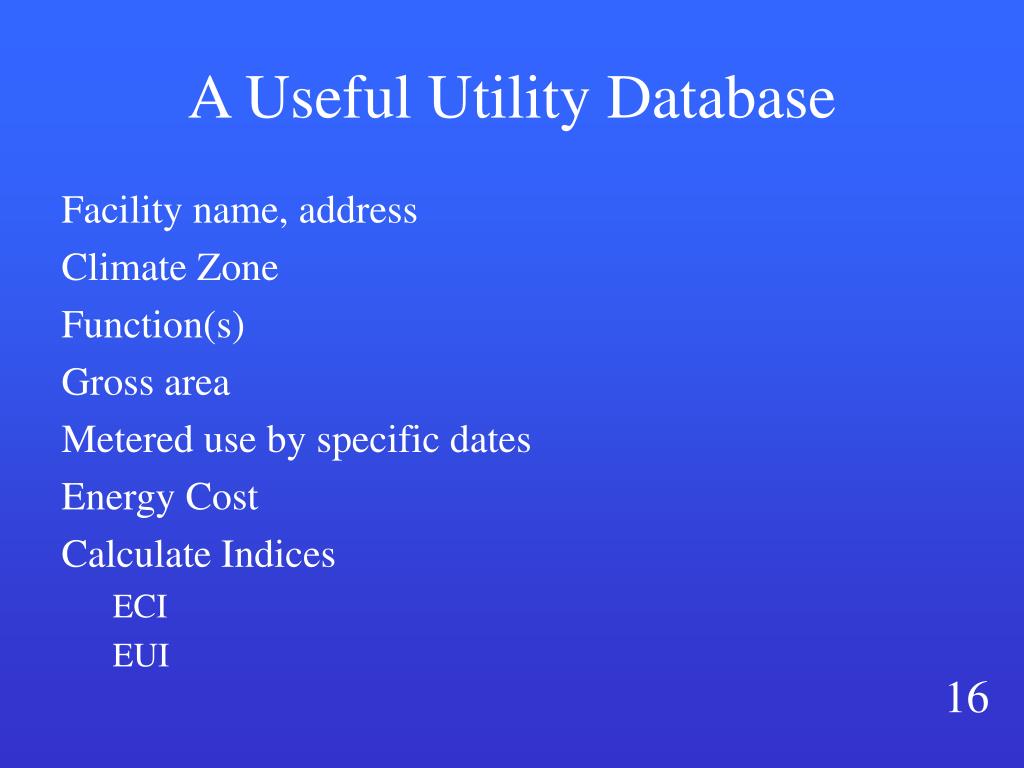

    16. A Useful Utility Database Facility name, address Climate Zone Function(s) Gross area Metered use by specific dates Energy Cost Calculate Indices ECI EUI 16

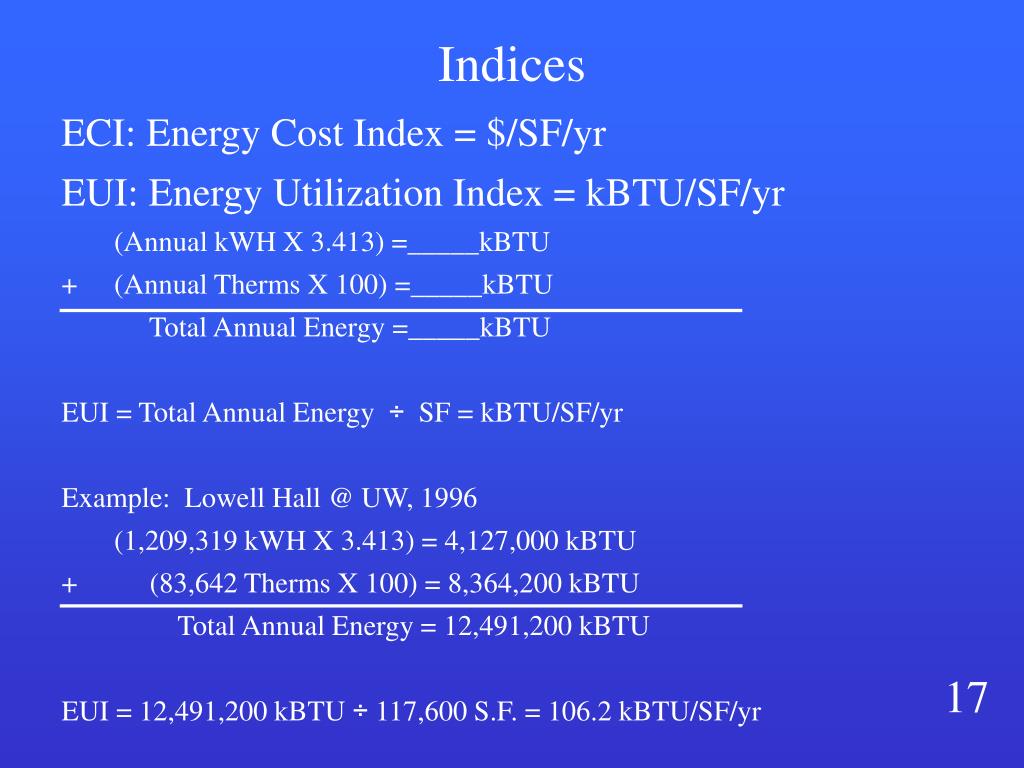

    17. Indices ECI: Energy Cost Index = $/SF/yr EUI: Energy Utilization Index = kBTU/SF/yr (Annual kWH X 3.413) =_____kBTU + (Annual Therms X 100) =_____kBTU Total Annual Energy =_____kBTU EUI = Total Annual Energy ÷ SF = kBTU/SF/yr Example: Lowell Hall @ UW, 1996 (1,209,319 kWH X 3.413) = 4,127,000 kBTU + (83,642 Therms X 100) = 8,364,200 kBTU Total Annual Energy = 12,491,200 kBTU EUI = 12,491,200 kBTU ÷ 117,600 S.F. = 106.2 kBTU/SF/yr 17

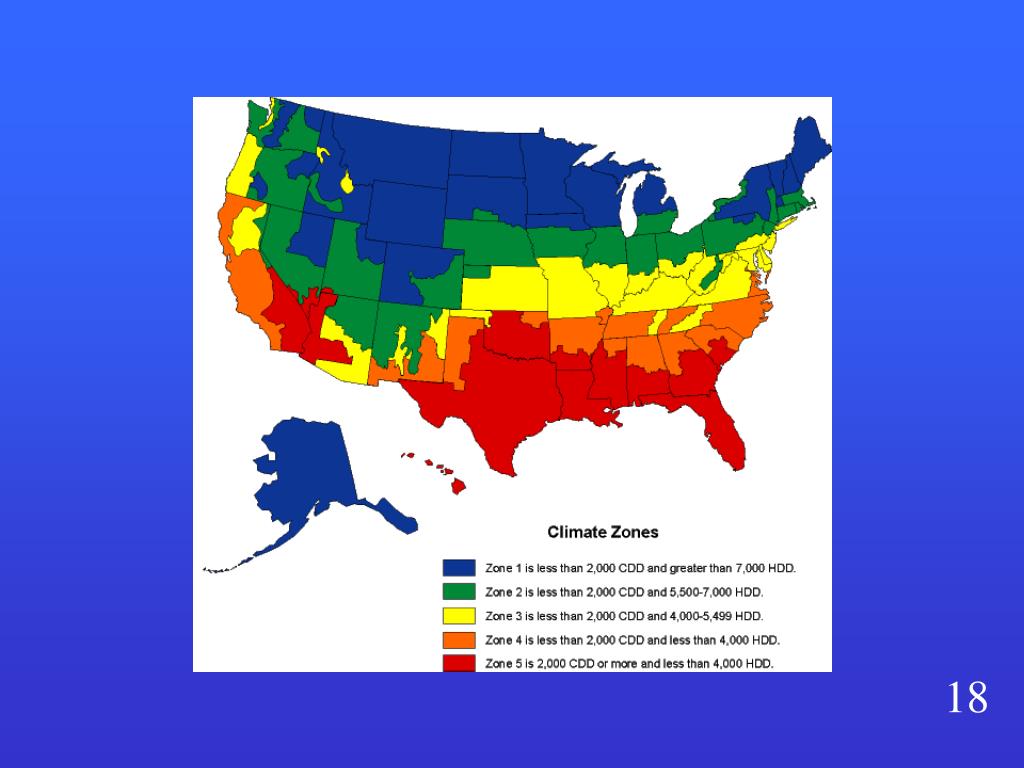

    18. 18

    19. Zone 4 19

    20. Zone 4 20

    21. Zone 4 21

    22. Zone 4Preliminary Savings Analysis 22

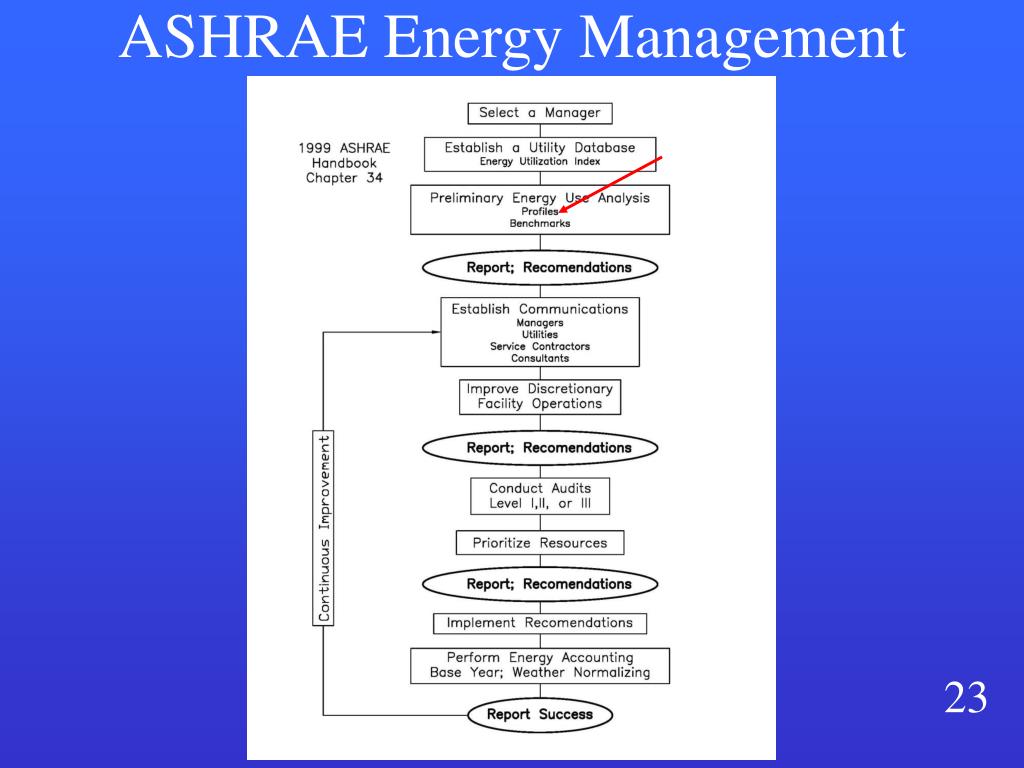

    23. ASHRAE Energy Management 23

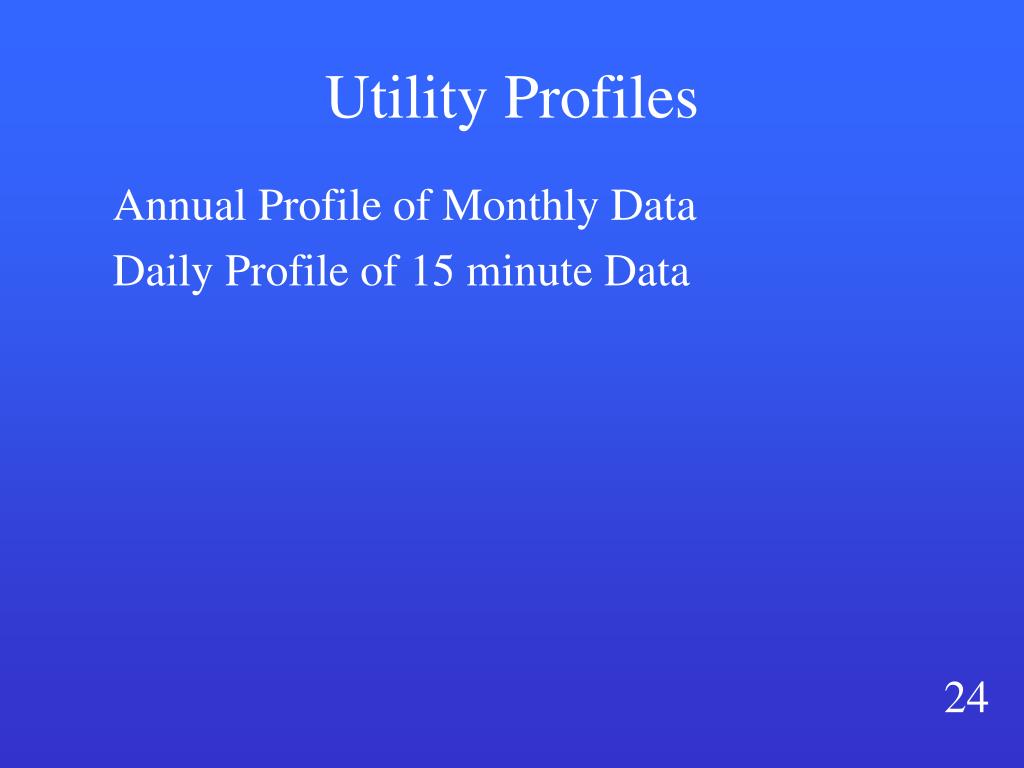

    24. Utility Profiles Annual Profile of Monthly Data Daily Profile of 15 minute Data 24

    25. Annual Profile of Monthly Data Madison Church 25

    26. Annual Profile of Monthly Data Madison Church 26

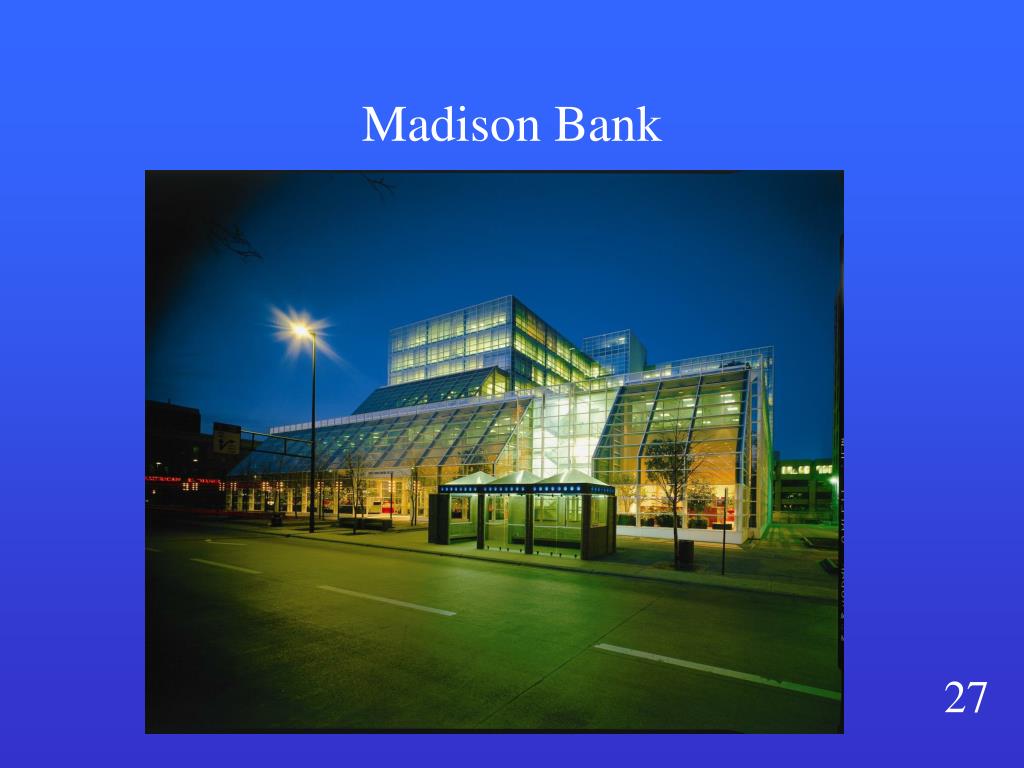

    27. Madison Bank 27

    28. Annual Profile of Monthly Data Madison Bank 28

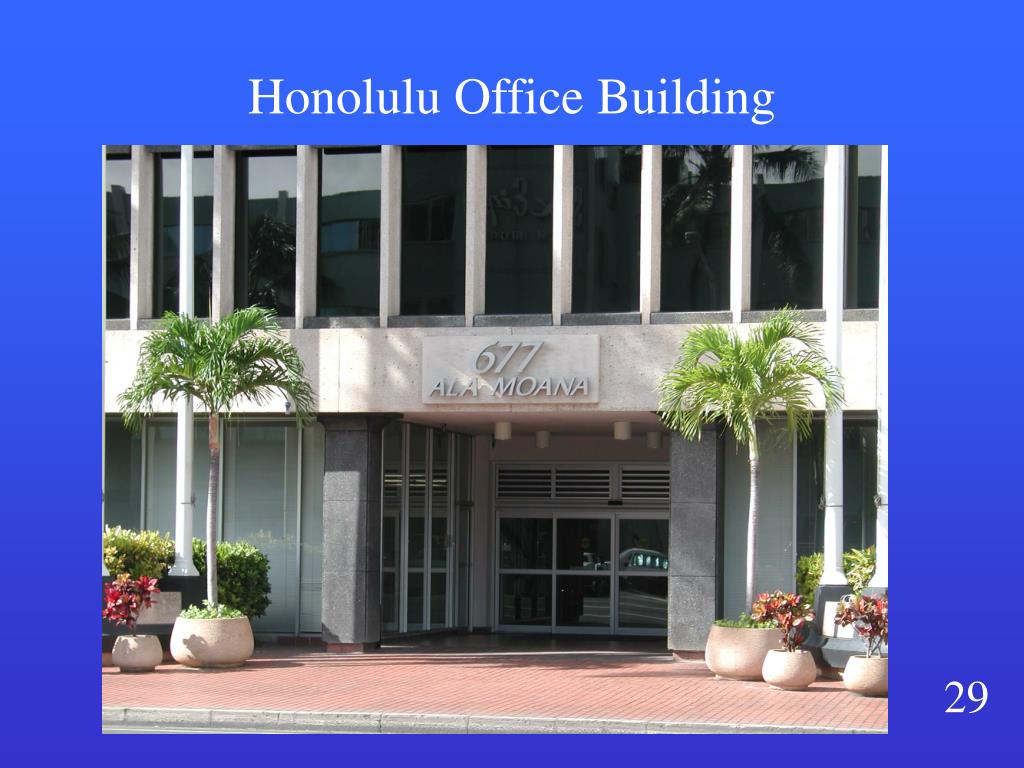

    29. Honolulu Office Building 29

    30. Daily Profile of 15 Minute Data Honolulu Office Building 30

    31. ASHRAE Energy Management 31

    32. Benchmarking Energy Intensity of Office Buildings Number of Buildings Number of Buildings 25 25 50 50 75 75 100 100 1 1 29.9 29.9 86.0 86.0 165.7 165.7 121.1 121.1 339.4 339.4 EPA Rating & Energy Intensity (kBtu/ft2-year) EPA Rating & Energy Intensity (kBtu/ft2-year) Worst Performers Worst Performers Best Performers Best Performers • Normalized EUI varies widely • Age and equipment not significant drivers of EUI 32

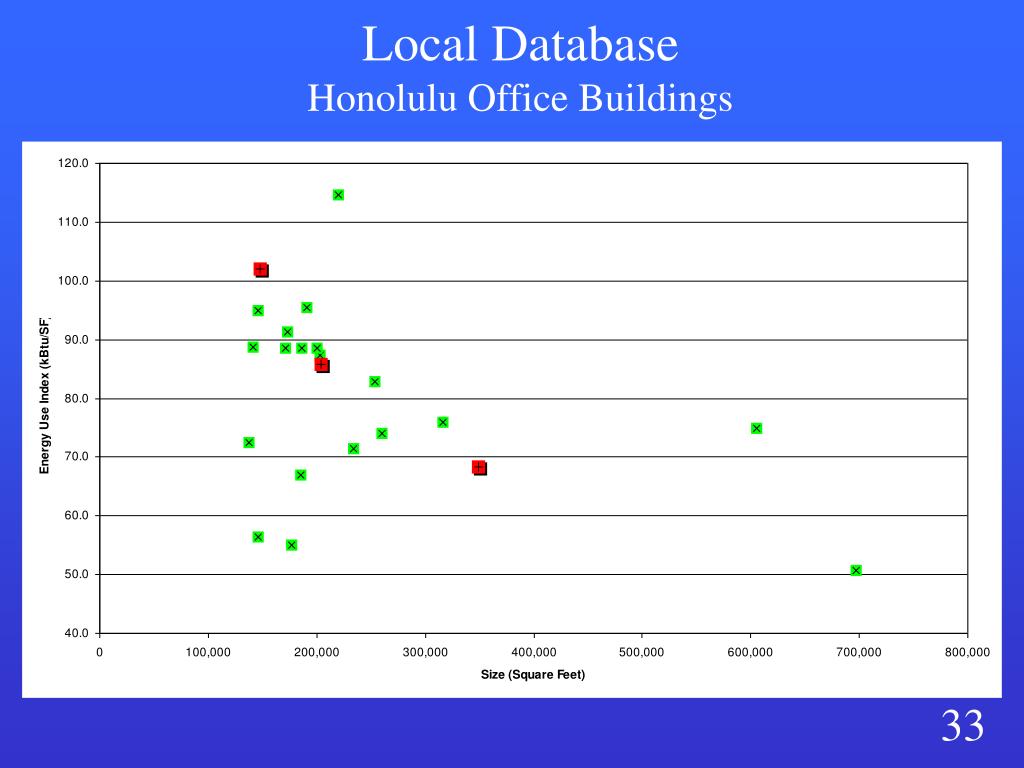

    33. Local DatabaseHonolulu Office Buildings 33

    34. 34 EnergyStar Target Finder http://www.energystar.gov/index.cfm?c=target_finder

    35. Target Page in Portfolio Managerhttp://www.energystar.gov/benchmark 35

    36. ASHRAE Energy Management 36

    37. Two Types of Action Discretionary Facility Operation Energy Audits and Capital Improvements 37

    38. ASHRAE Energy Management 38

    39. Discretionary Facility Operation 39

    40. Discretionary Facility Operation 20 Story Office Building • 200,000 S.F. • 5 years old, no energy conservation • Complex, energy intensive HVAC systems • No building automation system Actions by Facility Manager • Read meters daily • Obtain previous day’s weather data • Harass/Compliment Building Engineer daily Result after 1 year: • Energy Use Reduced One-Third! 40

    41. Discretionary Opportunities Match running time to activities Lower hot water and hot air temperatures Raise chilled water and cold air temperatures Lower fan pressure in ducts Lower pump pressure in piping Experiment with all setpoints 41

    42. Disincentives for the building engineer Risk of occupant discomfort Risk of equipment failure Experimentation can be terrifying 42

    43. Incentives for the building engineer Regular monitoring by the manager Managerial encouragement to experiment Occasional, brief discomfort is OK Teamwork 43

    44. ASHRAE Energy Management 44

    45. Conduct Energy Audits 45

    46. 46

    47. “Typical” Office Building End Use 47

    48. Honolulu Office Building Actual End Use 48

    49. ASHRAE Energy Management 49

    50. Examples of Success 50
