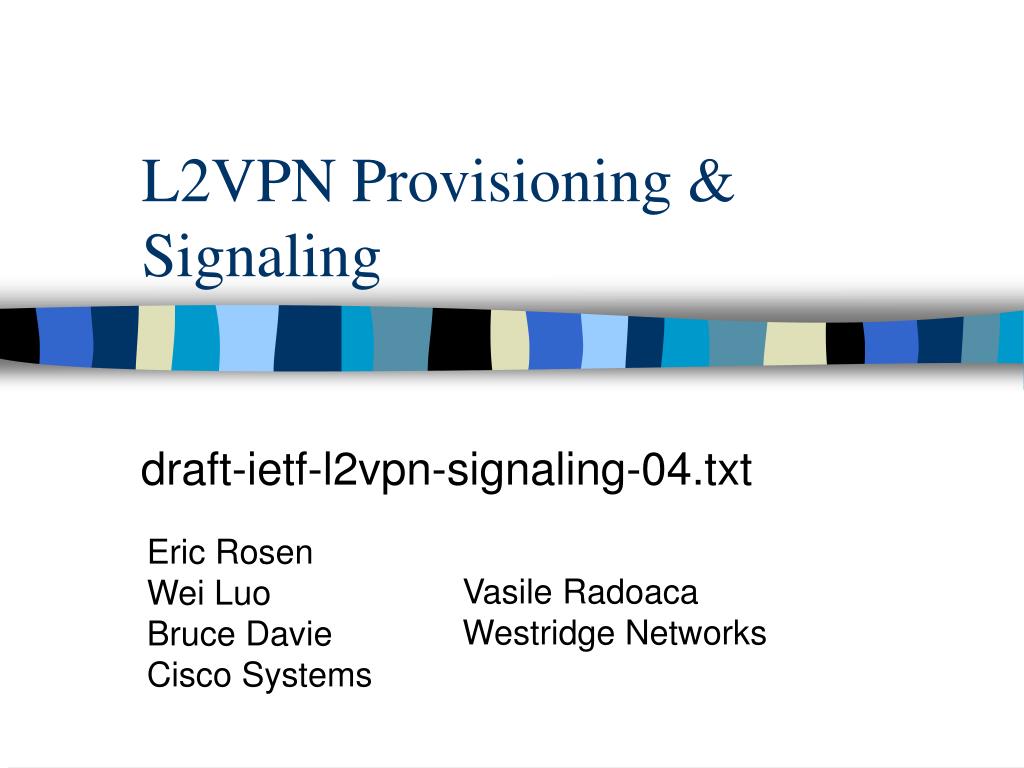

  1. L2VPN Provisioning & Signaling draft-ietf-l2vpn-signaling-04.txt Eric Rosen Wei Luo Bruce Davie Cisco Systems Vasile Radoaca Westridge Networks

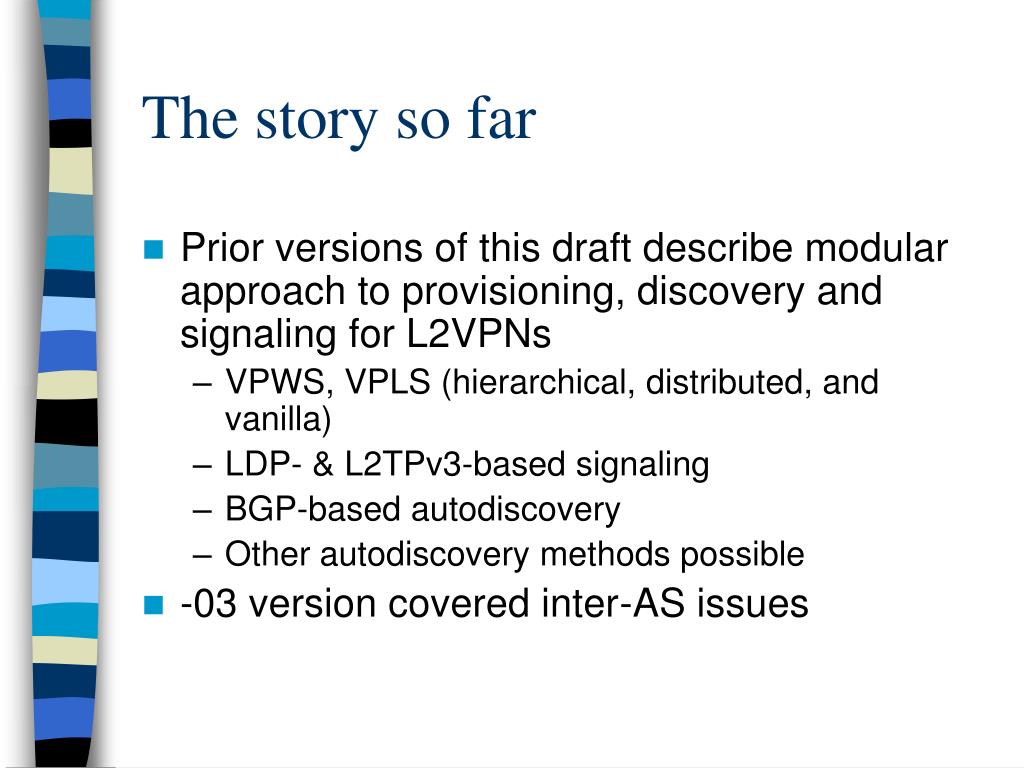

  2. The story so far • Prior versions of this draft describe modular approach to provisioning, discovery and signaling for L2VPNs • VPWS, VPLS (hierarchical, distributed, and vanilla) • LDP- & L2TPv3-based signaling • BGP-based autodiscovery • Other autodiscovery methods possible • -03 version covered inter-AS issues

  3. Changes from -03 version • Fixed issue with Distributed VPLS advertisement • Provision a VSI_ID per U-PE at N-PE • Advertise one NLRI per N-PE • Modelled on BGP-VPLS draft • Addressed comments on list • See next slide • Clarified use of PE address in VSI identifier • Just a convenience, not requirement • Added IANA considerations

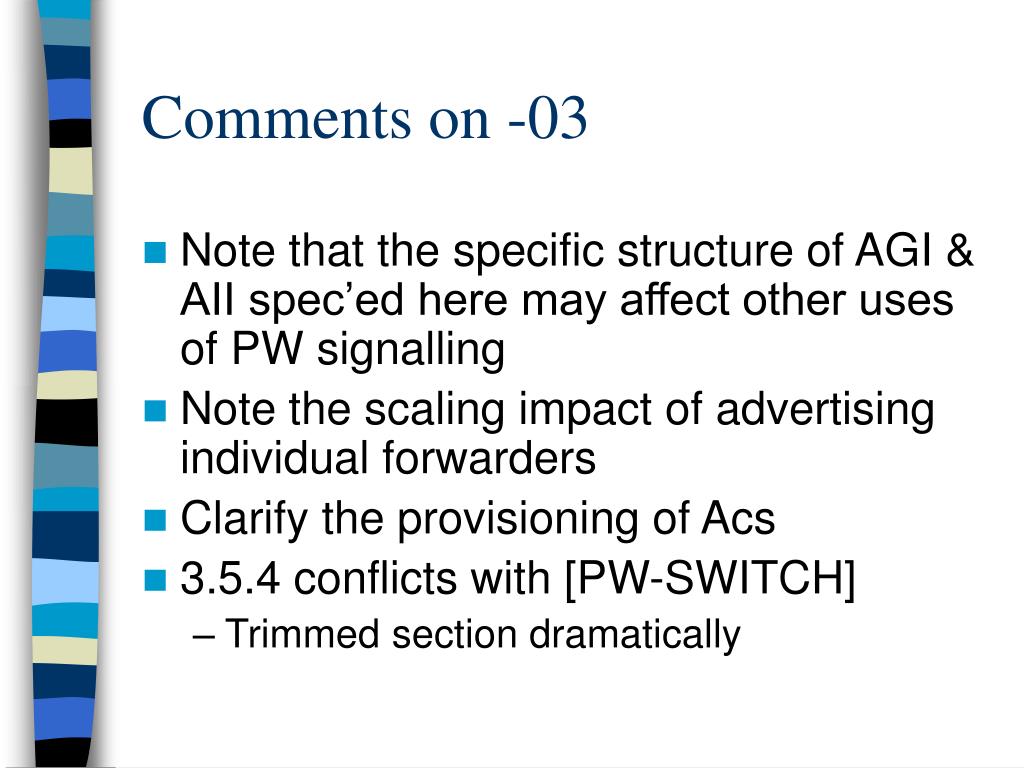

  4. Comments on -03 • Note that the specific structure of AGI & AII spec’ed here may affect other uses of PW signalling • Note the scaling impact of advertising individual forwarders • Clarify the provisioning of Acs • 3.5.4 conflicts with [PW-SWITCH] • Trimmed section dramatically

  5. Comments on -03 (cont.) • Discuss co-ordination of RD and RT assignment among ASes • Note that inter-AS model depends on BGP support by PEs • Explain how route selection among multiple ASBRs is done • Note that ASBR resiliency is provided by BGP (at corresponding timescale) • Note that ASBRs and SPEs are co-located • Editorial comments addressed • New ASCII art to illustrate D-VPLS

  6. Summary • All comments since Minneapolis have been addressed • WG last call for this draft?

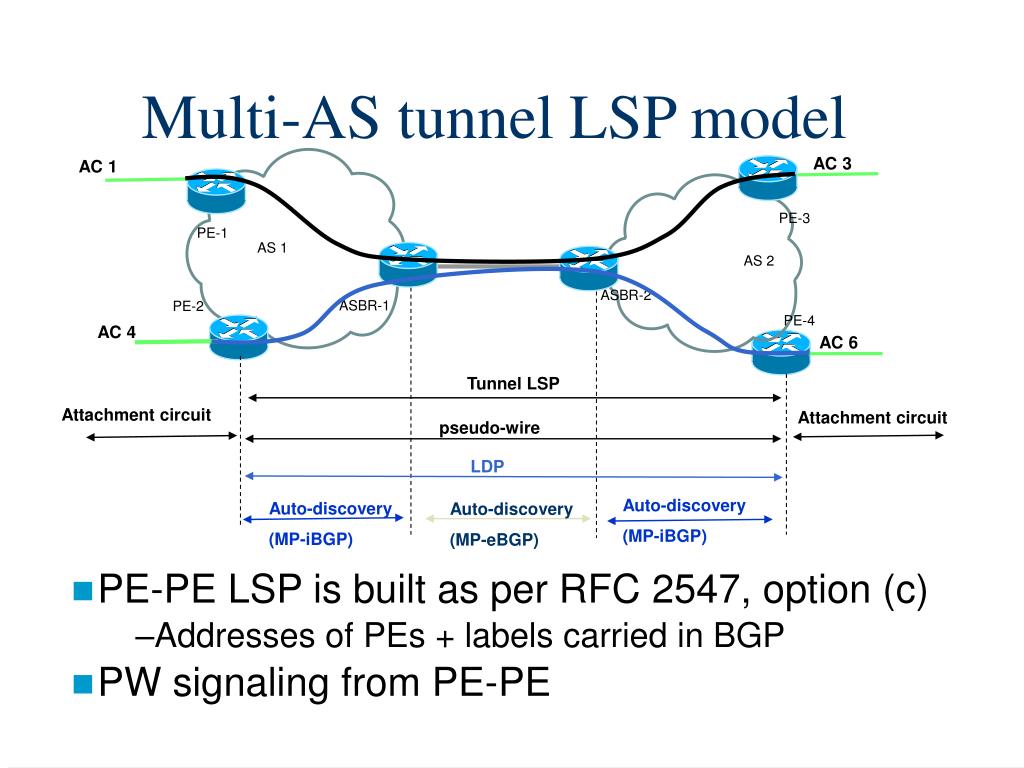

  7. Multi-AS tunnel LSP model AC 3 AC 1 PE-3 PE-1 • PE-PE LSP is built as per RFC 2547, option (c) • Addresses of PEs + labels carried in BGP • PW signaling from PE-PE AS 1 AS 2 ASBR-2 ASBR-1 PE-2 PE-4 AC 4 AC 6 Tunnel LSP Attachment circuit Attachment circuit pseudo-wire LDP Auto-discovery (MP-iBGP) Auto-discovery (MP-iBGP) Auto-discovery (MP-eBGP)

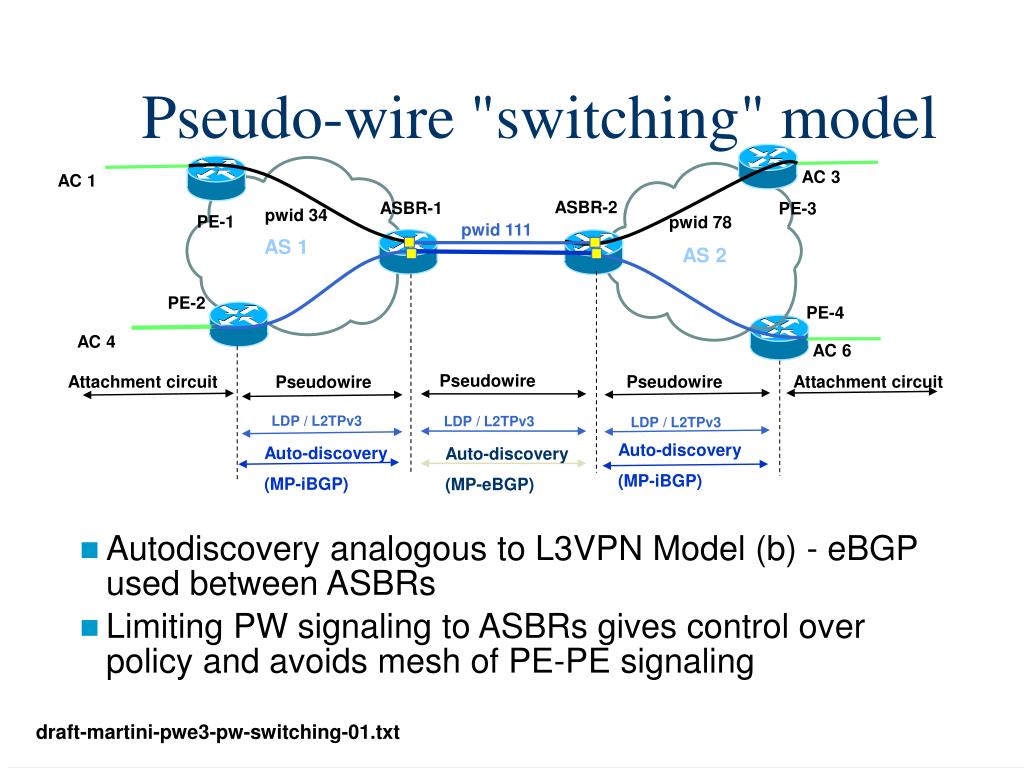

  8. Pseudo-wire "switching" model AC 3 AC 1 ASBR-2 ASBR-1 PE-3 pwid 34 PE-1 pwid 78 pwid 111 • Autodiscovery analogous to L3VPN Model (b) - eBGP used between ASBRs • Limiting PW signaling to ASBRs gives control over policy and avoids mesh of PE-PE signaling AS 1 AS 2 PE-2 PE-4 AC 4 AC 6 Pseudowire Attachment circuit Pseudowire Attachment circuit Pseudowire LDP / L2TPv3 LDP / L2TPv3 LDP / L2TPv3 Auto-discovery (MP-iBGP) Auto-discovery (MP-iBGP) Auto-discovery (MP-eBGP) draft-martini-pwe3-pw-switching-01.txt

  9. BGP Autodiscovery • VPLS: BGP advertisement for a particular VSI at a given PE will contain: • an NLRI of AFI = L2VPN1, SAFI = TBD2, encoded as RD:PE_addr • a BGP next hop equal to the loopback address of the PE • extended community attribute containing one or more RTs • VPWS: BGP advertisement for a pool of attachment circuits at a given PE will contain: • an NLRI of AFI = L2VPN1, SAFI = TBD2, encoded as RD:pool_num • a BGP next hop equal to the loopback address of the PE • extended community attribute containing one or more RTs 1. Same for all L2VPN schemes (e.g. vpls-bgp)2. Same value for both cases in this draft
