SCR / Thyristor

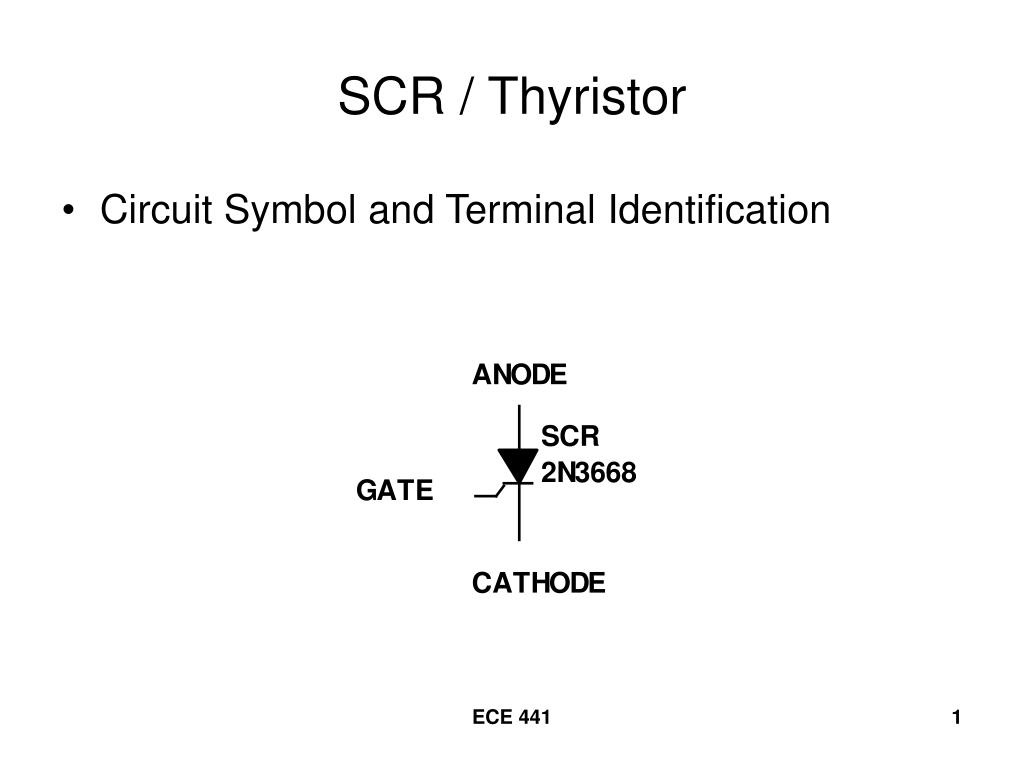

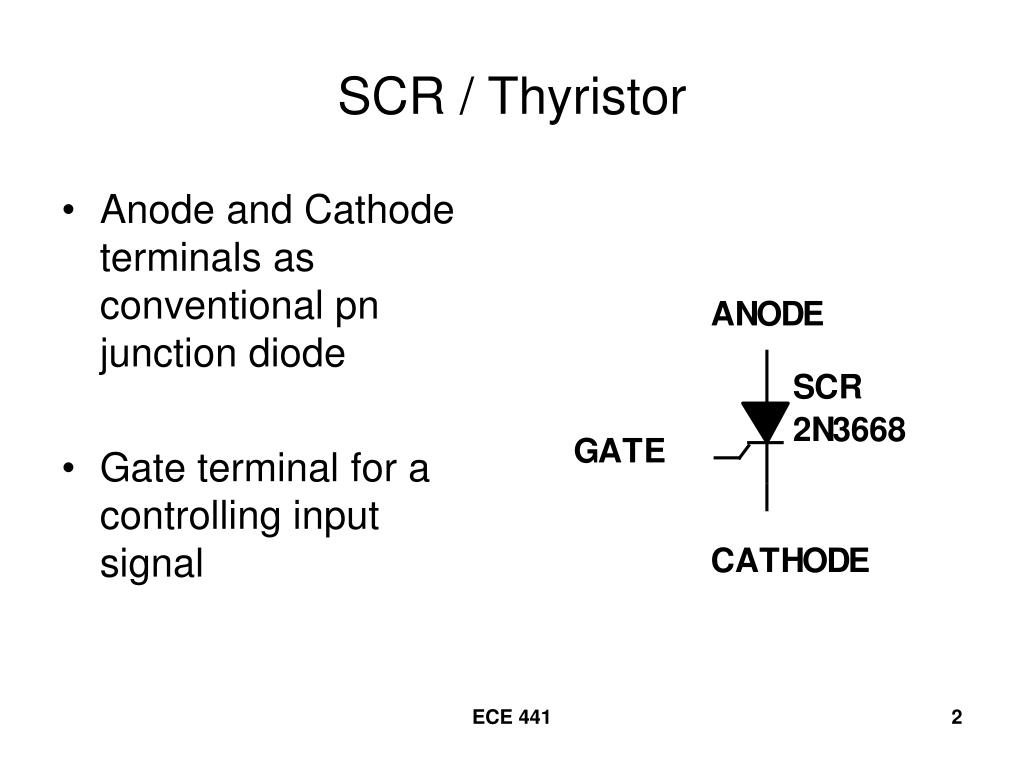

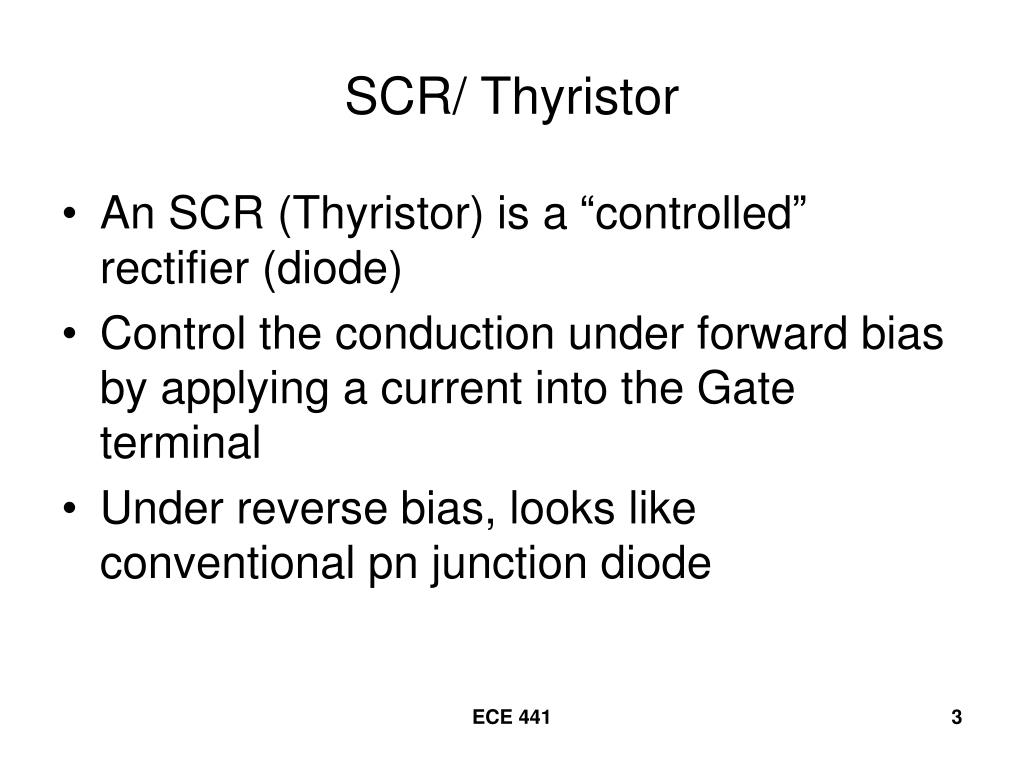

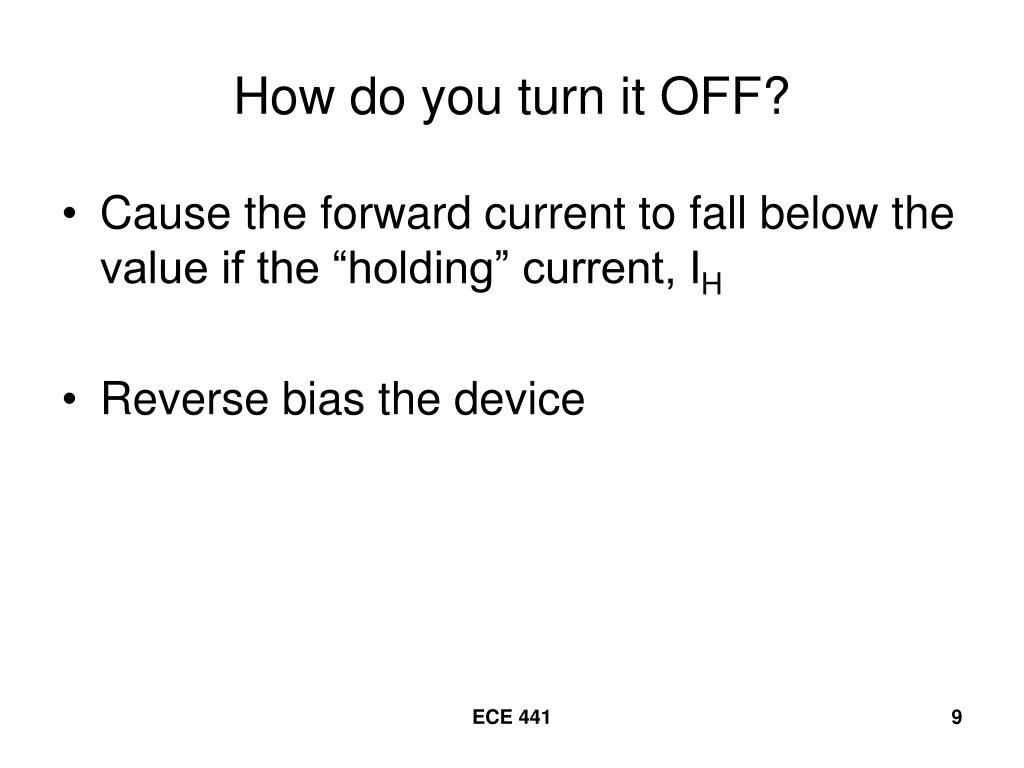

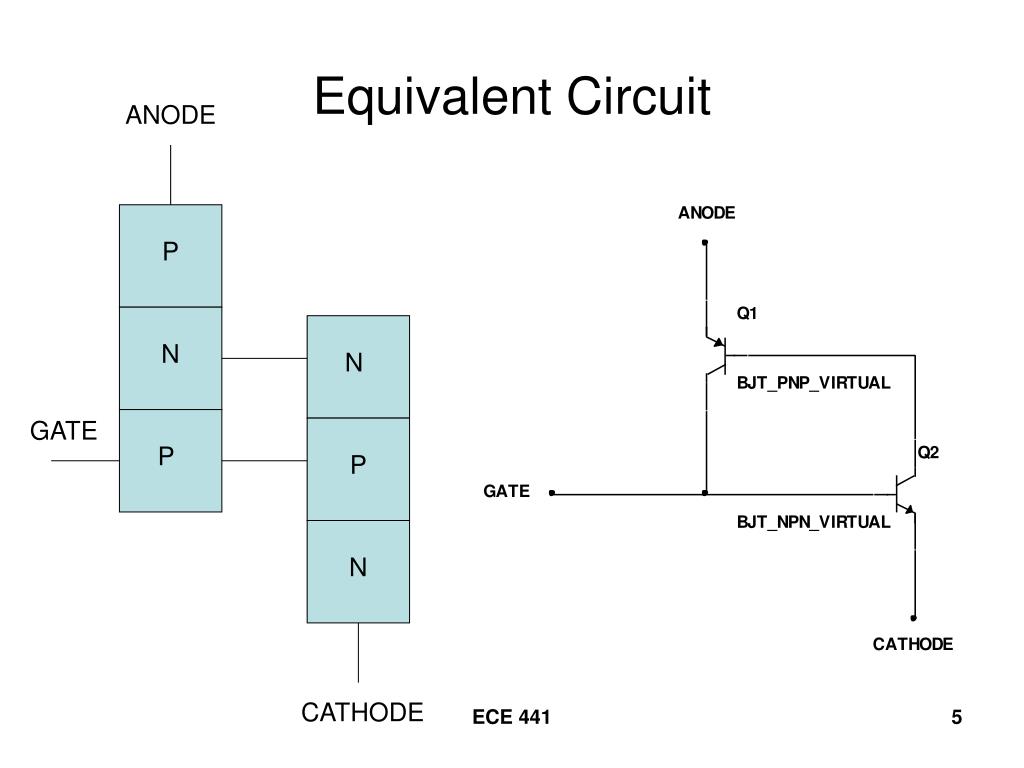

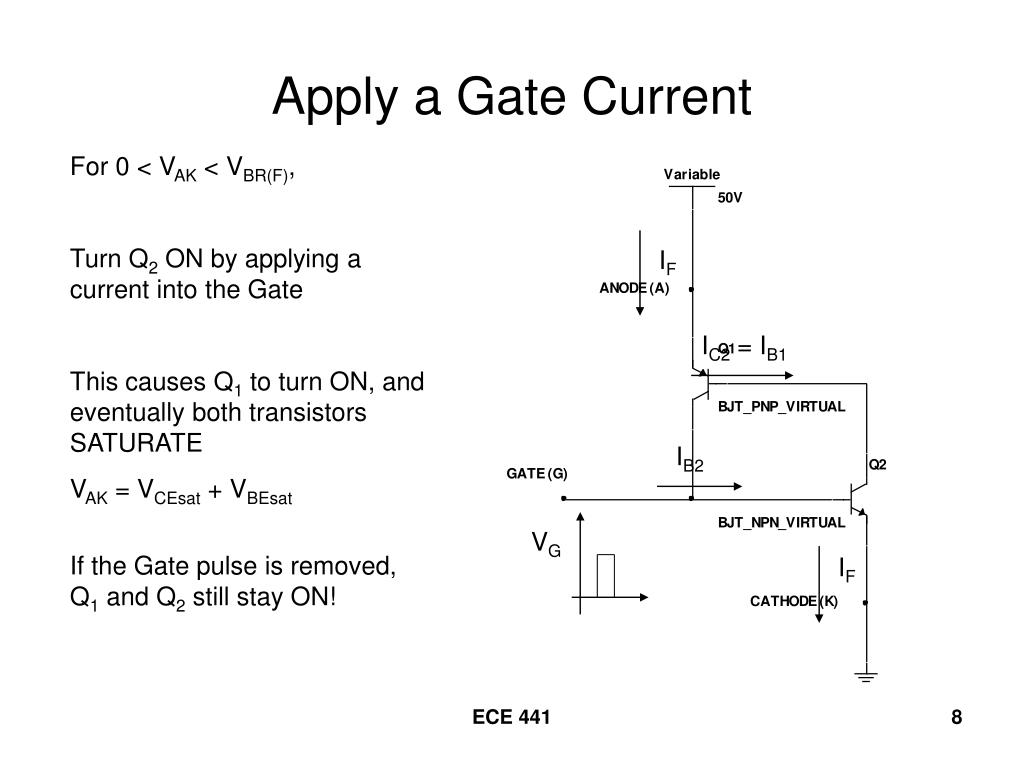

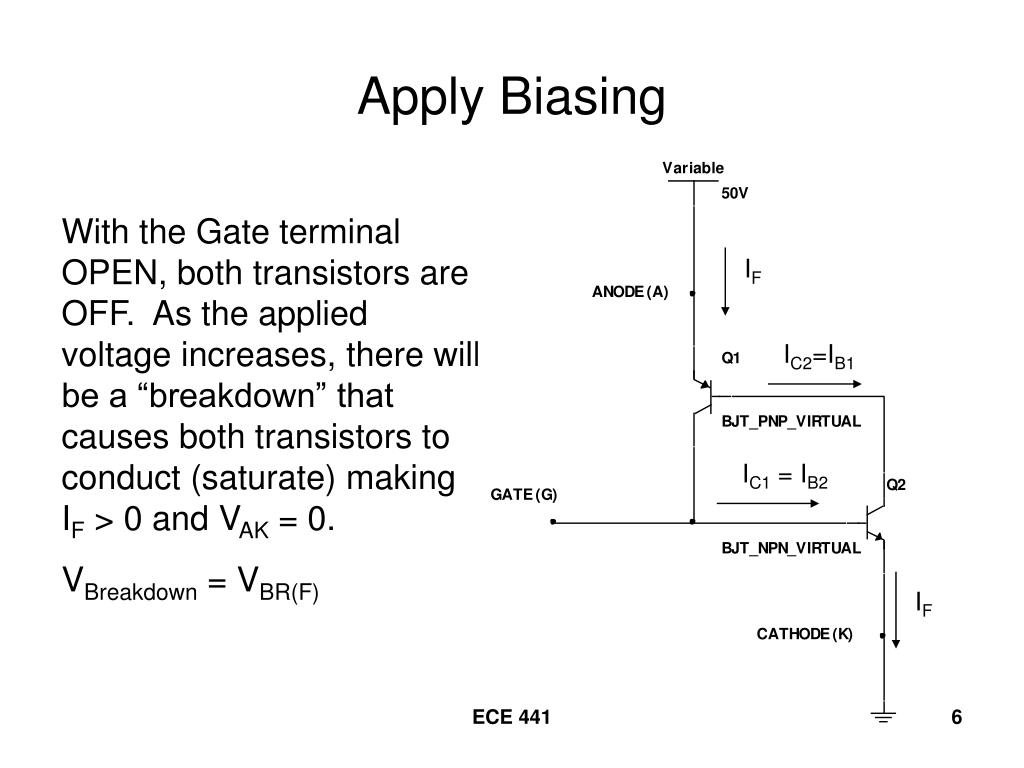

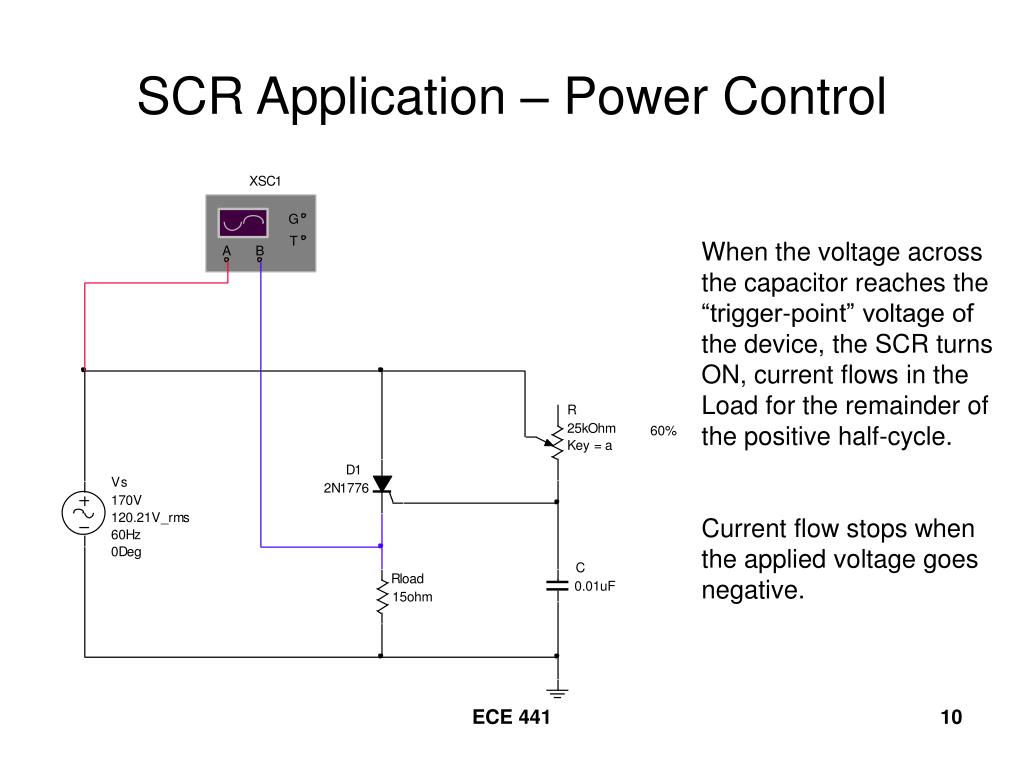

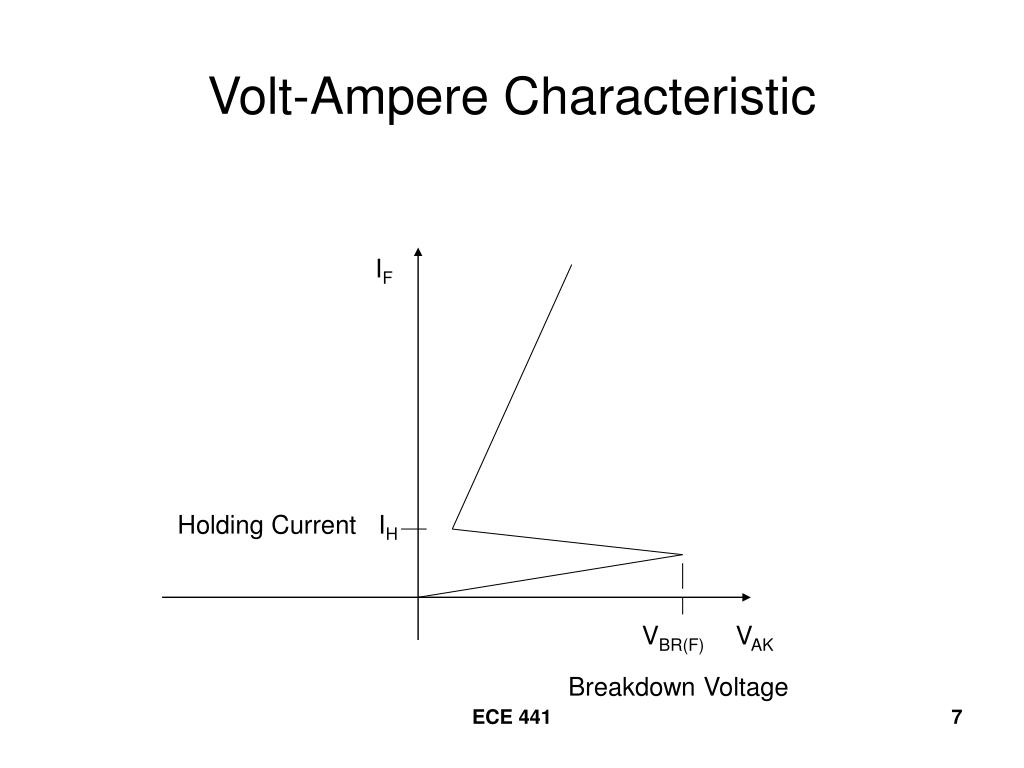

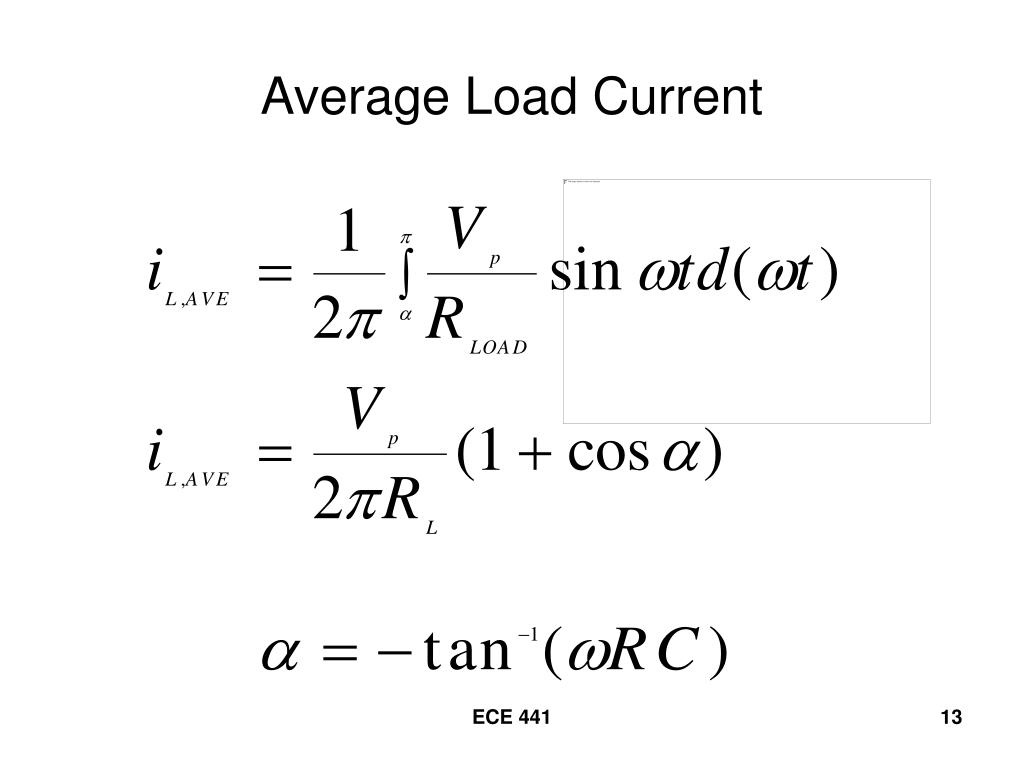

SCR / Thyristor. Circuit Symbol and Terminal Identification. SCR / Thyristor. Anode and Cathode terminals as conventional pn junction diode Gate terminal for a controlling input signal. SCR/ Thyristor. An SCR (Thyristor) is a “controlled” rectifier (diode)
