  1. Chapter 5 Combinational Logic By Taweesak Reungpeerakul 241-208 CH5

  2. Contents • Basic Combinational Logic Circuits • Implement SOP and POS using Basic Logic Gates • Universal Property of NAND and NOR • Combinational Logic using NAND and NOR • Operation with Pulse Waveforms • Digital System Application 241-208 CH5

  3. Inputs A B C AB AC BC OUT 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 1 0 0 0 0 0 0 1 1 0 0 1 1 1 0 0 0 0 0 0 1 0 1 0 1 0 1 1 1 0 1 0 0 1 1 1 1 1 1 1 1 5.1 Basic Combinational Logic Circuit Aims: Able to analyze&apply AND-OR,AND-OR-INV, XOR, XNOR circuits AB AC BC AB+AC+BC Actually AND-OR is a form of SOP expression ! 241-208 CH5

  4. AND-OR-INV Logic Invert AND-OR in SOP  AND-OR-INV in POS Prove ?? AB+AC+BC =(A+B)(A+C)(B+C) 241-208 CH5

  5. XOR OUT = AB + AB 241-208 CH5

  6. XNOR OUT = AB + AB = AB + AB 241-208 CH5

  7. Ex#1: OUT = ABC+DE Ex#2: OUT = A(BC+DE) 5.2 Implementing Combinational Logic Aims: Able to implement a logic circuit from a Boolean expression and truth table and also able to minimize logic circuit. 241-208 CH5

  8. From Truth Table Truth Table A B C OUT 0 0 0 0 0 0 1 1 0 1 0 1 0 1 1 0 1 0 0 0 1 0 1 1 1 1 0 0 1 1 1 0 If you should SOP form then just considering outputs “1s” 241-208 CH5

  9. Example TableLogic Circuit  Karnaugh Map  Simplified Circuit Truth Table A B C OUT 0 0 0 1 0 0 1 1 0 1 0 0 0 1 1 0 1 0 0 0 1 0 1 1 1 1 0 0 1 1 1 1 Minimize, don’t forget to use K-Map !! 241-208 CH5

  10. INV, OR, AND, and NOR created by using NAND gates 5.3 Universal Property of NAND&NOR Aims: implement OMV, OR, AND, and NOR using NAND or vice versa AND INV OR NOR 241-208 CH5

  11. INV, OR, AND, and NAND created by using NOR gates Universal Property of NOR AND INV OR NAND 241-208 CH5

  12. 5.4 Combinational Logic using NAND & NOR Aims: implement logic function using NAND/NOR gates • NAND; OUT = AB+CD = AB+CD= (AB)(CD) 241-208 CH5

  13. Dual Symbols of NAND, i.e. NAND+Negative-OR Always use the gate symbols in such a way that every connection between a gate output and a gate input is either bubble-to-bubble or nonbubble-to-nonbubble. AB+C ABC 241-208 CH5

  14. Example: implemented by NAND • Ex2: ABC+D+E • Ex1: ABC+DE 241-208 CH5

  15. Combinational Logic using NOR • NOR; (A+B)(C+D) = (A+B)(C+D)= (A+B)+(C+D) 241-208 CH5

  16. Dual Symbols (A+B)+C (A+B)C 241-208 CH5

  17. 5.5 Operation with Pulse Waveforms Aims: analyze combination logic circuits with pulse waveform inputs. develop a timing diagram for any given combination logic circuit with specified inputs Logic circuit  Timing diagram D C Determine the output waveform ? 241-208 CH5

  18. Develop logic circuit from waveforms Not in the form of NAND gates only yet ! Transform….. (use dual symbols) 241-208 CH5

  19. 5.6 Digital System Application MOTORS From switches 241-208 CH5

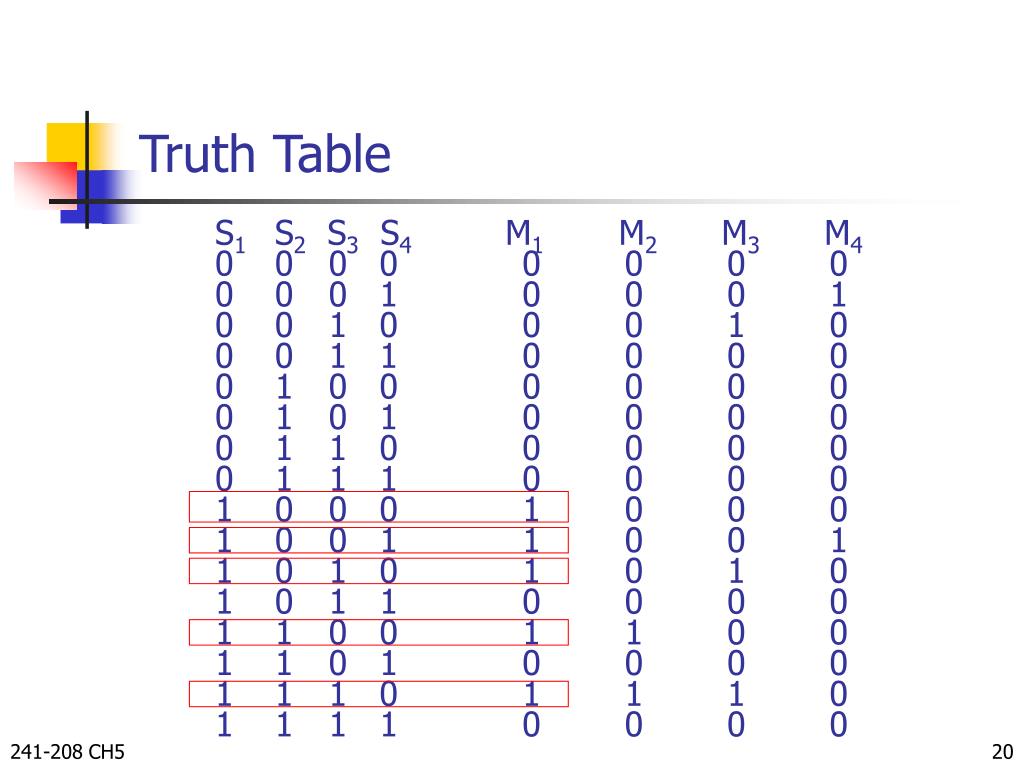

  20. Truth Table S1 S2 S3 S4 M1 M2 M3 M4 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 1 0 0 1 0 0 0 1 0 0 0 1 1 0 0 0 0 0 1 0 0 0 0 0 0 0 1 0 1 0 0 0 0 0 1 1 0 0 0 0 0 0 1 1 1 0 0 0 0 1 0 0 0 1 0 0 0 1 0 0 1 1 0 0 1 1 0 1 0 1 0 1 0 1 0 1 1 0 0 0 0 1 1 0 0 1 1 0 0 1 1 0 1 0 0 0 0 1 1 1 0 1 1 1 0 1 1 1 1 0 0 0 0 241-208 CH5

  21. Develop logic circuit from Truth Table 1 1 1 1 1 S1S4 For Motor M1 S1S2S3 241-208 CH5
