  1. Equipment Selection

  2. Commercial Pool Sizing Guide

  3. Residential Sizing Guide

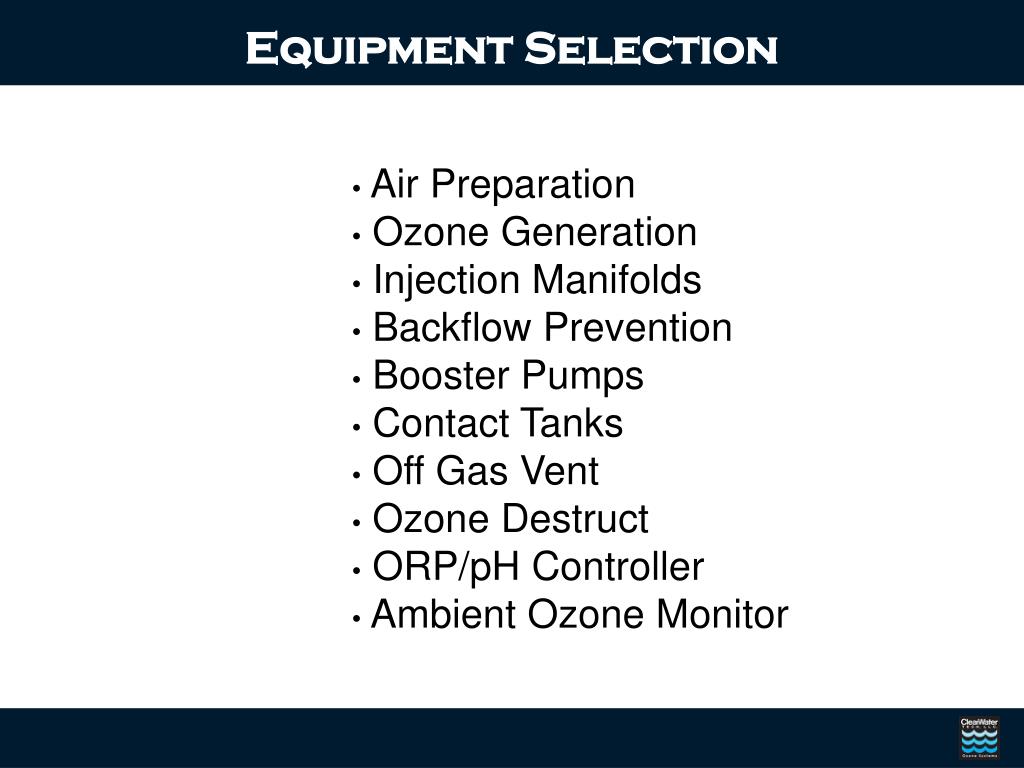

  4. Equipment Selection • Air Preparation • Ozone Generation • Injection Manifolds • Backflow Prevention • Booster Pumps • Contact Tanks • Off Gas Vent • Ozone Destruct • ORP/pH Controller • Ambient Ozone Monitor

  5. Equipment Selection Air Preparation System • Types • Heat Regenerative Air Dryer • LPSA Air Dryer • Oxygen Concentrator • Selection Criteria • Ozone output required • Ambient conditions • Duty cycle / Operation time Ozone Generators • Types • Wall Mounted • Skid Mounted • Cabinet (floor mounted) • Selection Criteria • Ozone output required • Equipment pad or room constraints CD8000 - Cabinet Ozone Generator AD40 - Heat Regenerative Air Dryer RMS60 - Oxygen Rack

  6. Equipment Selection (continued) Ozone Injection Manifolds • Types • 1” to 4” manifold inlet/outlet • Injector type • Selection Criteria • GPM flow rate of ozone side stream • System pressure • Ozone generators SCFH (standard cubic feet per hour) Backflow Prevention • Types • Check Valve Assembly - for Injector • Vacuum Break • Selection Criteria • Check valve assembly - based on Injector used • Vacuum break - based on ozone generator used Vacuum Break

  7. Equipment Selection (continued) Booster Pump • Types • Whisperflo • Selection Criteria • GPM flow rate of ozone side stream • Pressure required Contact Tanks (Vessels) • Types • 30, 40, 120, 264, 463, 850 gallon • Selection Criteria • GPM flow rate of ozone side stream • Desired contact time

  8. Equipment Selection (continued) Catalytic Destruct with Water Trap • Types • OCD12 for all contact tanks • Selection Criteria • All Contact Tanks, Especially indoors Ozone Off-Gas Vent • Types • Serviceable and see through • Expels excess gas while water in tank • Selection Criteria • Used on all contact tanks

  9. Equipment Selection (continued) ORP/Chlorine PPM/pH Controller • Types • ORP only • ORP/pH • PPM/pH • Digital Display • Selection Criteria • Sanitizers in use • Monitoring requirements Ambient Ozone PPM Monitor/Controller • Types • Handheld/wall-mounted • Digital display/no display • Data recording • Selection Criteria • Based on requirements
