  1. Visualization in theReal-Time Enterprise Ken Marsh Service Manager OSI Software Asia Pte Ltd

  2. Take Away • Visualization Big Picture - whole PI system • PB and DL examples (including man entry lab data, excel eye candy) • Batch, SQC, Process Templates, Profile • PB live - ad-hoc, zoom, cursor • Newer features - annotations (read, write), manual data entry with ActiveX Control, AF • Future features - from Tom's slides • RtWebParts live • - show SharePoint Portal first • - show one of each web part and interaction • - open graphic with PB to edit • - export data to Excel • - show how it fits together into an enterprise site • - show how easy to make own web page • RtWebParts slides • - architecture • - organization • Control trend type from TreeView selection • Table to value, time series, gauge

  3. Enterprise Visualization • Visualization tools fly-over • Smart Clients - new and future features • Thin Client - Visualization for the masses • Live Demo

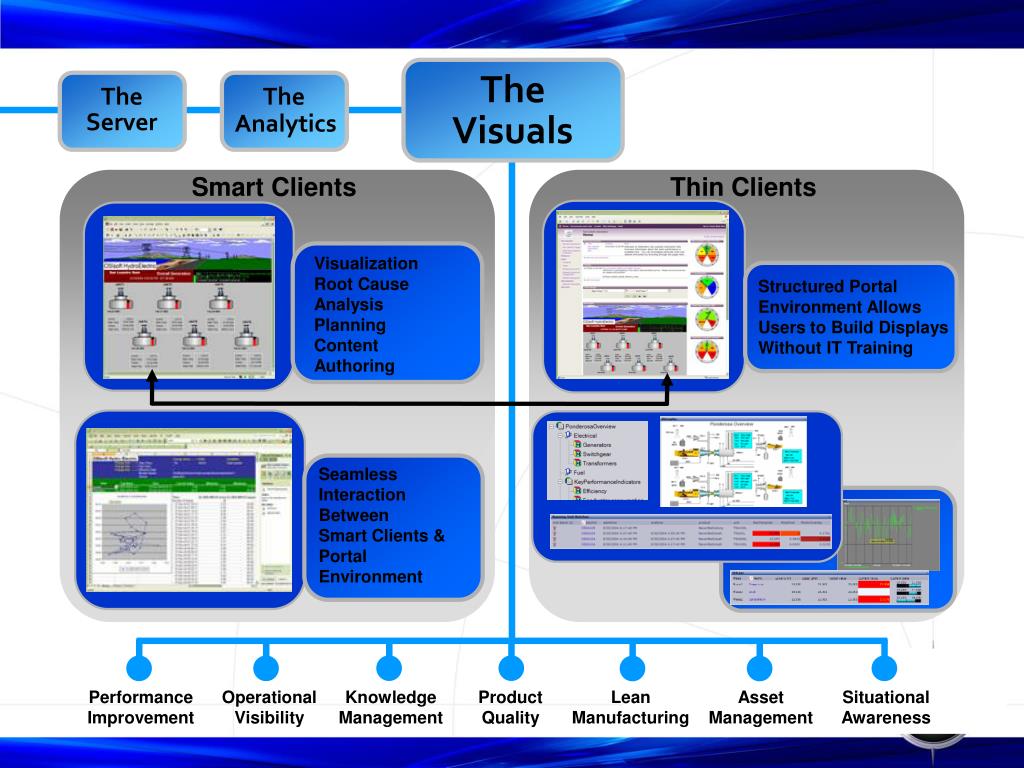

  4. The The The Visuals Server Analytics Smart Clients Thin Clients Visualization Root Cause Analysis Planning Content Authoring Structured PortalEnvironment Allows Users to Build DisplaysWithout IT Training Seamless Interaction Between Smart Clients & Portal Environment PerformanceImprovement OperationalVisibility KnowledgeManagement ProductQuality LeanManufacturing AssetManagement SituationalAwareness

  5. ProcessBook

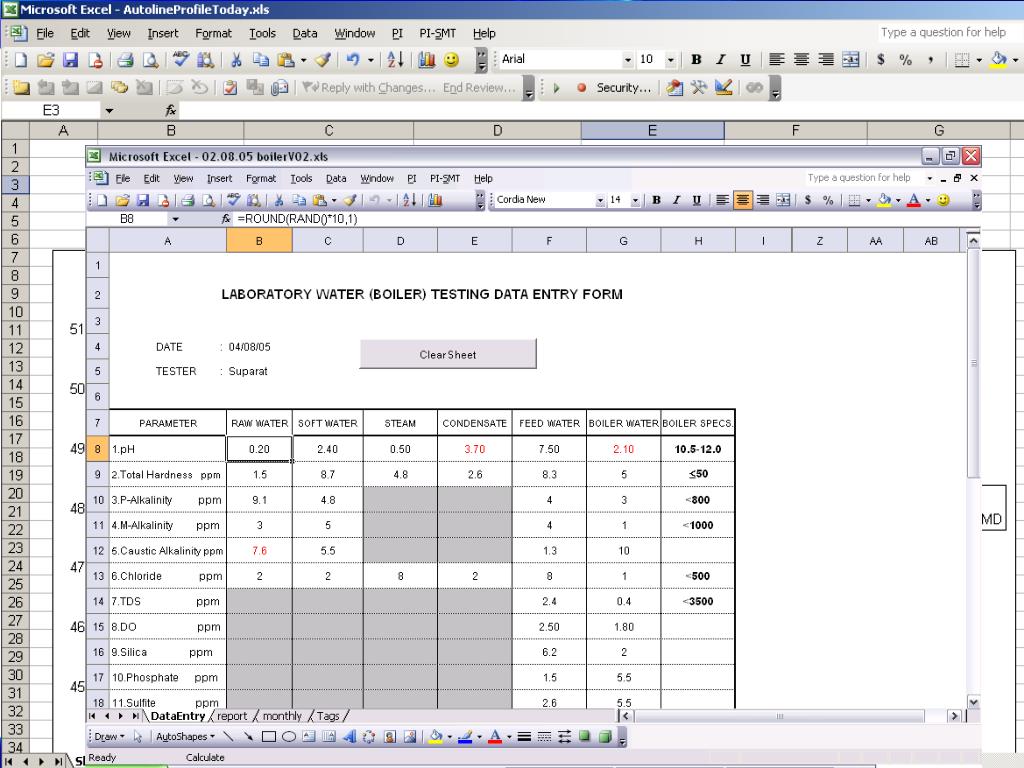

  6. PI-DataLink

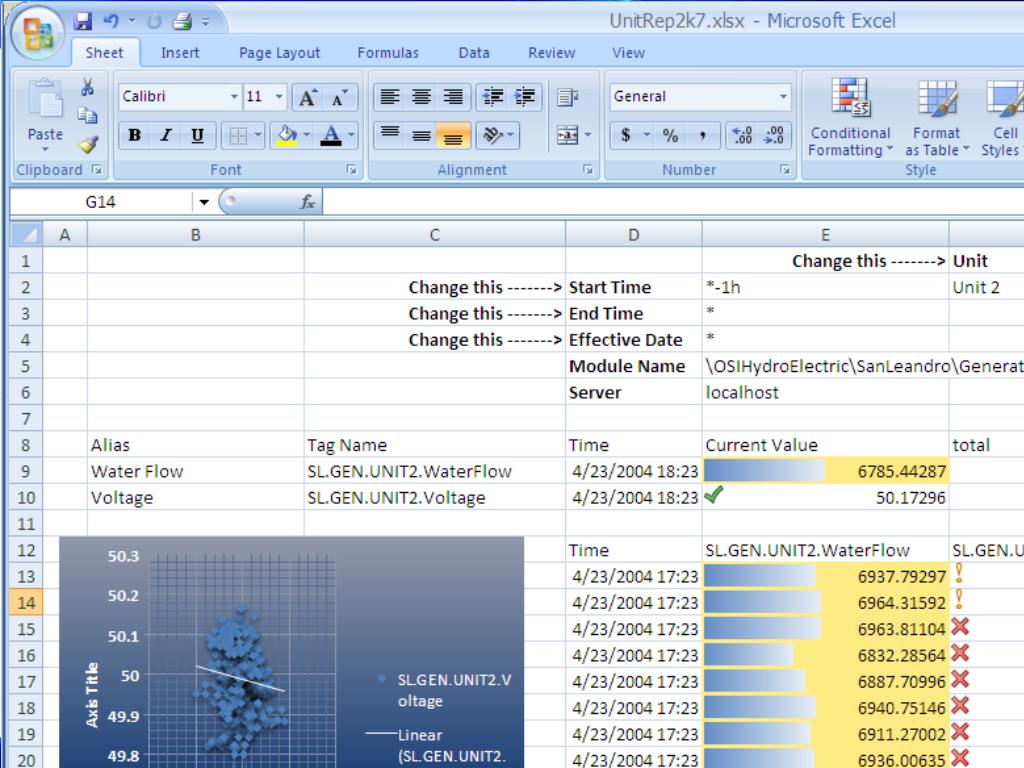

  7. Microsoft Excel 2007

  8. PI Profile

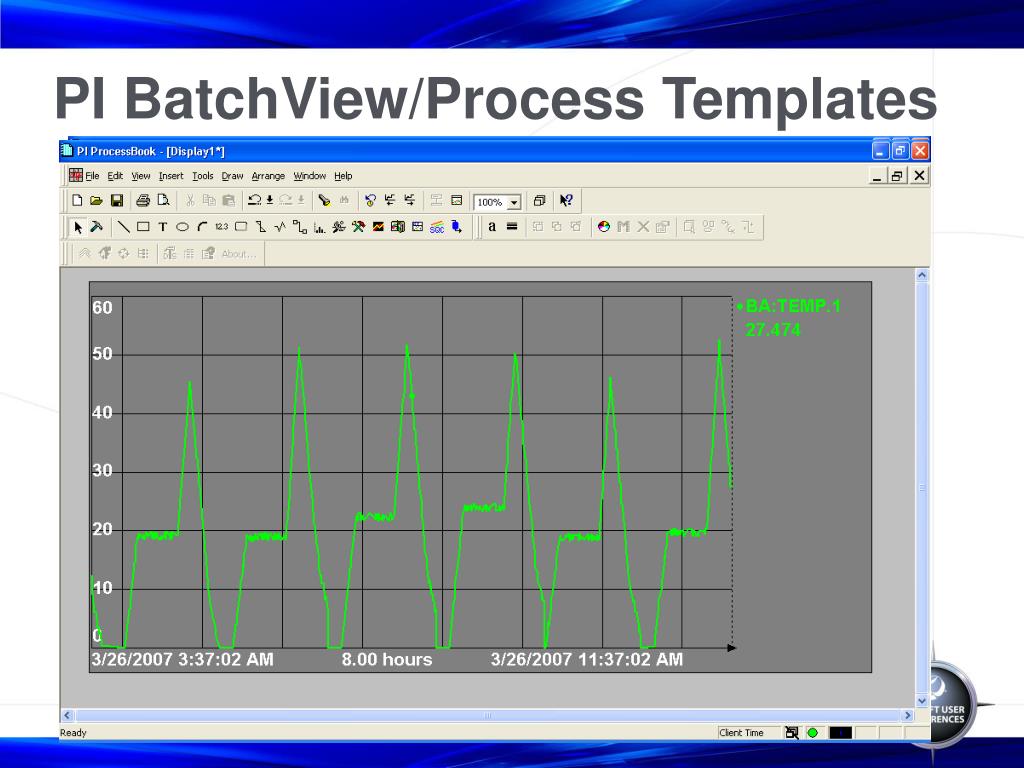

  9. PI BatchView/Process Templates

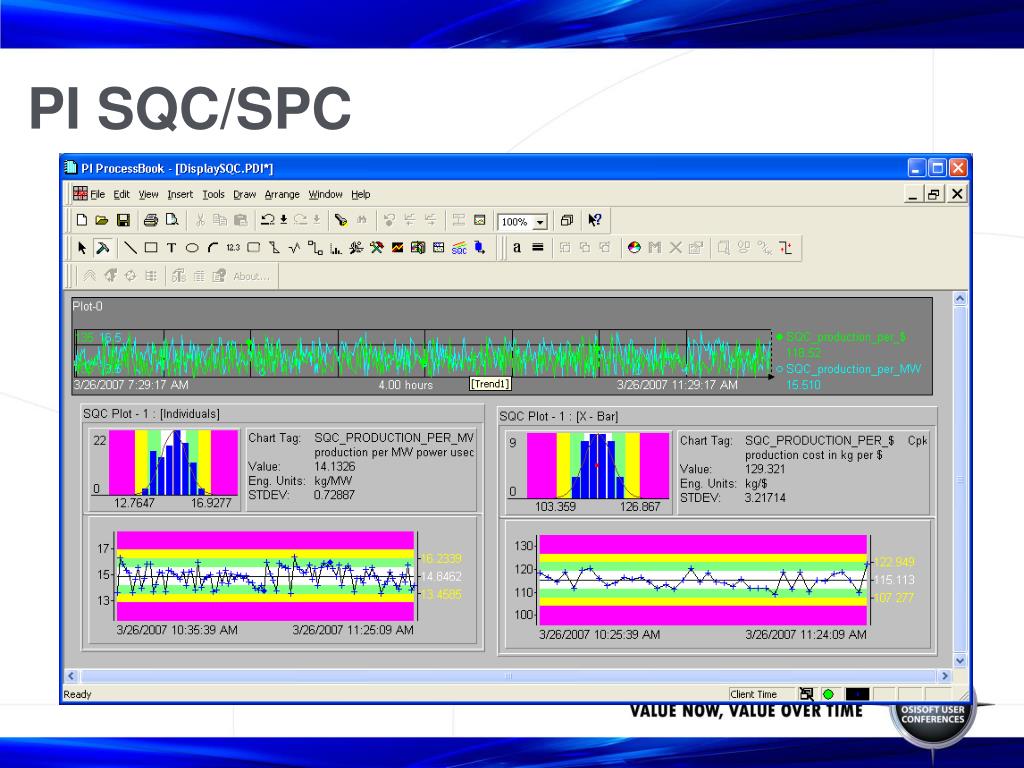

  10. PI SQC/SPC

  11. ProcessBook Annotations and VBA

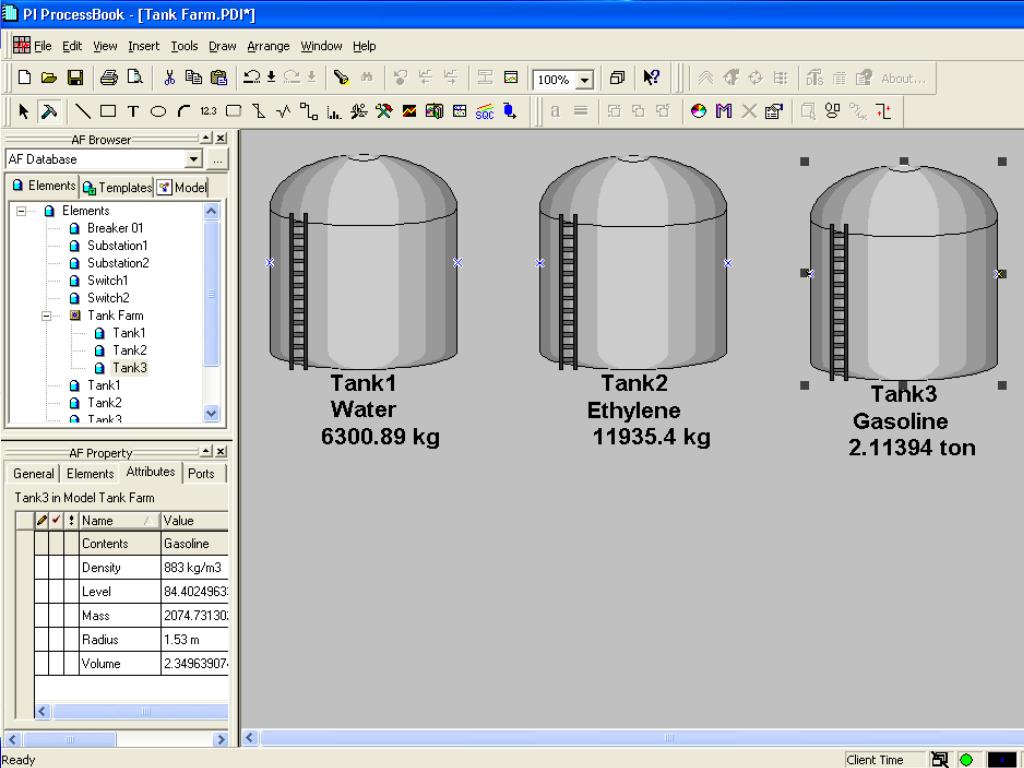

  12. AF Modeler in PB

  13. AF Modeler in PB

  14. AF Modeler in PB

  15. Features Coming Soon (PR2) • New Dynamic Symbols Pie Chart Table Vertical Trend Gauge Scales on bar

  16. Enterprise Visualization Needs • Easy to implement/maintain • Easy to use • Scalable • Secure • Makes information available to the masses

  17. The Answer – RtWebParts • Live Demo?

  18. RtPortal Architecture RtBaseline RtPortal Smart Client • ProcessBook • DataLink • ActiveView Trusted Connections Check in & out documents from SharePoint RtBaseline Services* Internet Explorer PI Server • Module Database RtWebParts • Windows Server 2003 • Windows SharePoint Services • Microsoft SQL Server 2000 Thin Client • RtWebParts Transactional, Web service, and other data

  19. RtWebParts Requirements • Server side • Windows 2003 Server with IIS and ASP.Net • Microsoft Windows SharePoint Services or Microsoft SharePoint Portal Server 2.0 • Client side • Internet Explorer 6.0 or later

  20. Security made simple • Integrated with Windows Active Directory for Authentication and Authorization • Uses ordinary web protocols for compatibility with standard security practices • Firewalls • SSL • Web Proxy • PI data access controlled through baseline services with PI trusts

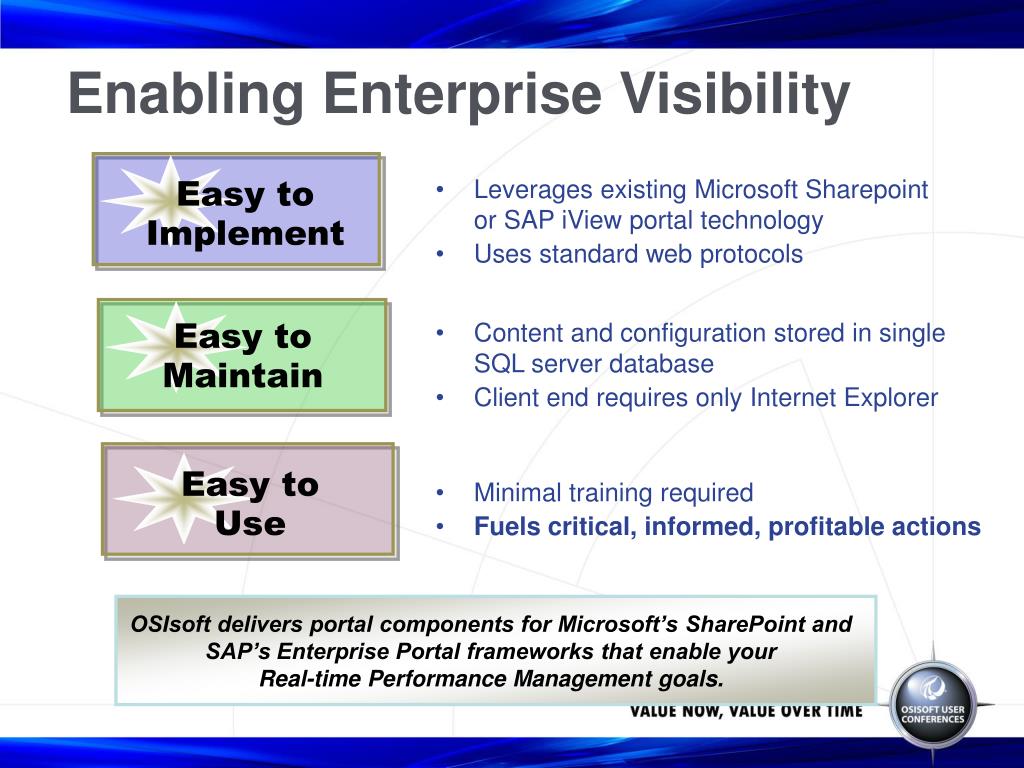

  21. Enabling Enterprise Visibility Easy to Implement • Leverages existing Microsoft Sharepoint or SAP iView portal technology • Uses standard web protocols • Content and configuration stored in single SQL server database • Client end requires only Internet Explorer Easy to Maintain Easy to Use • Minimal training required • Fuels critical, informed, profitable actions OSIsoft delivers portal components for Microsoft’s SharePoint and SAP’s Enterprise Portal frameworks that enable your Real-time Performance Management goals.

  22. Thank you! Questions? Ken Marsh Service Manager OSI Software Asia Pte Ltd

  23. Site Organization

  24. Site Organization

  25. Creating a New Site

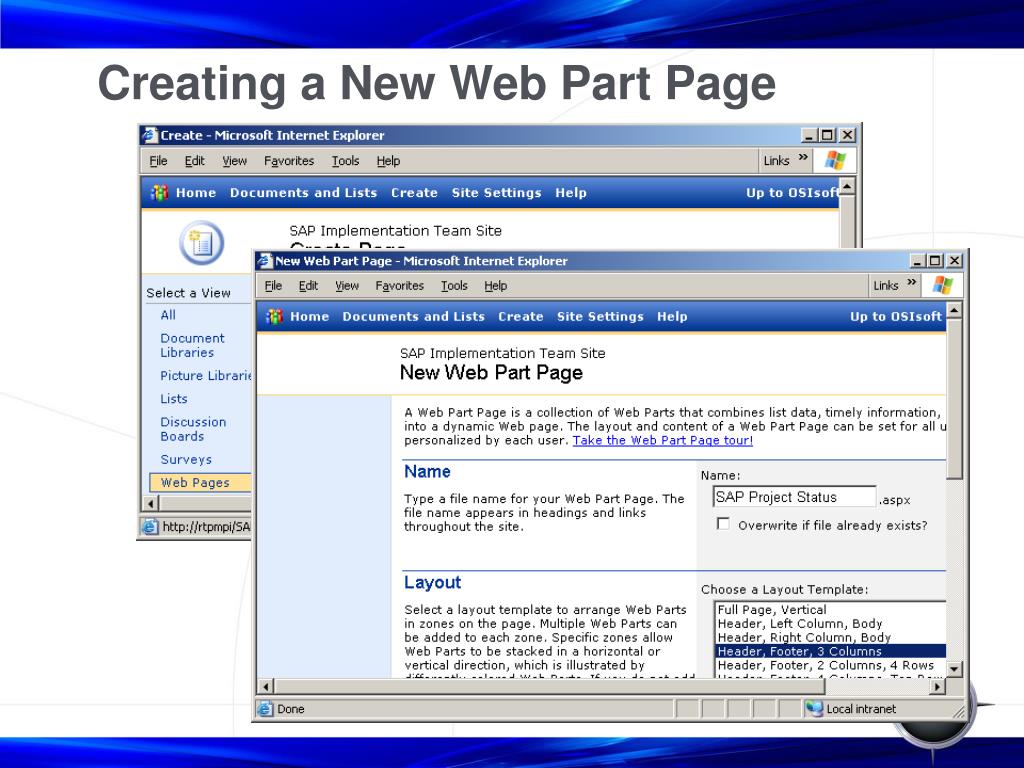

  26. Creating a New Web Part Page

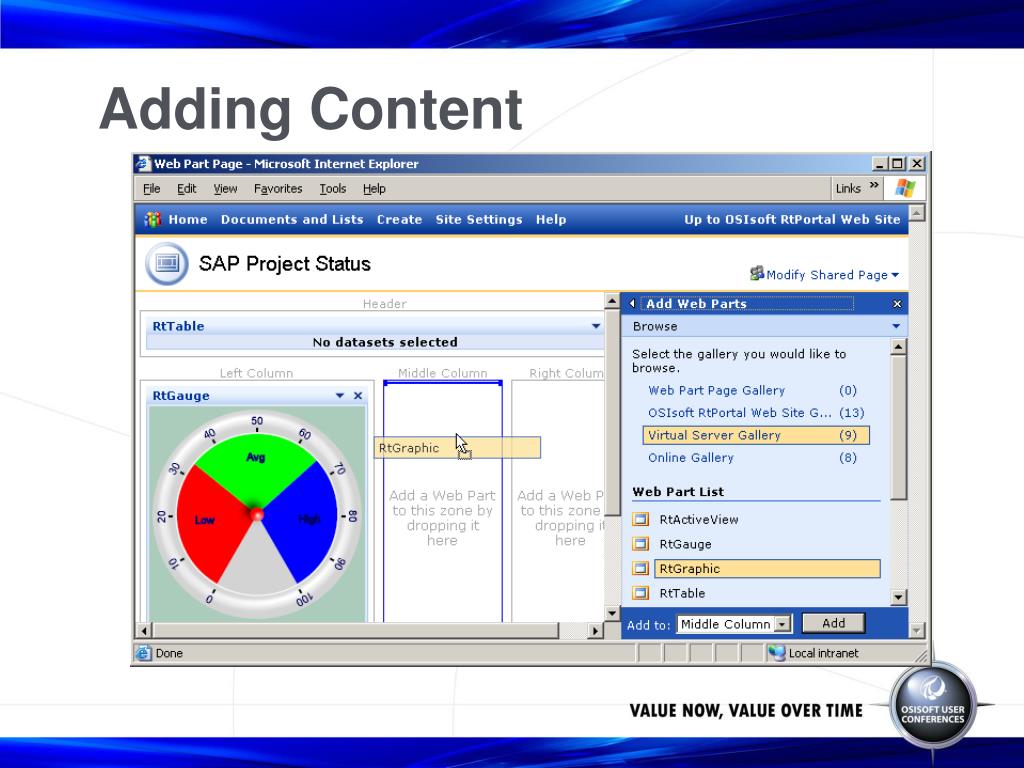

  27. Adding Content

  28. Data From PI Points

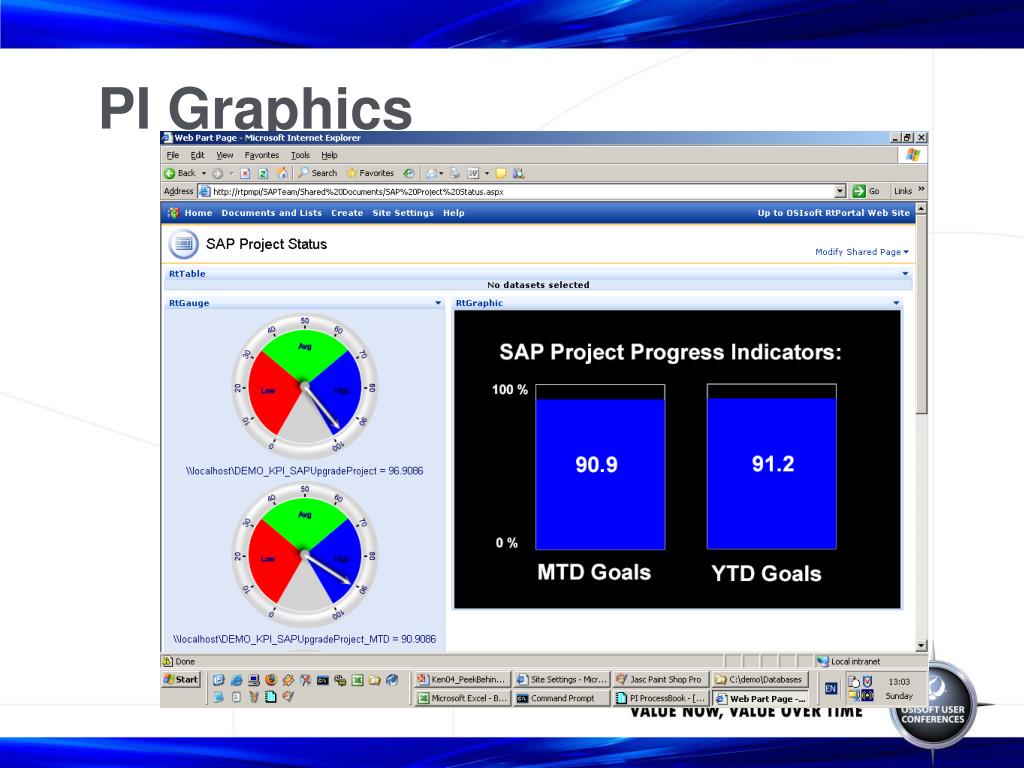

  29. PI Graphics

  30. Getting Relational Data

  31. Using Module Context

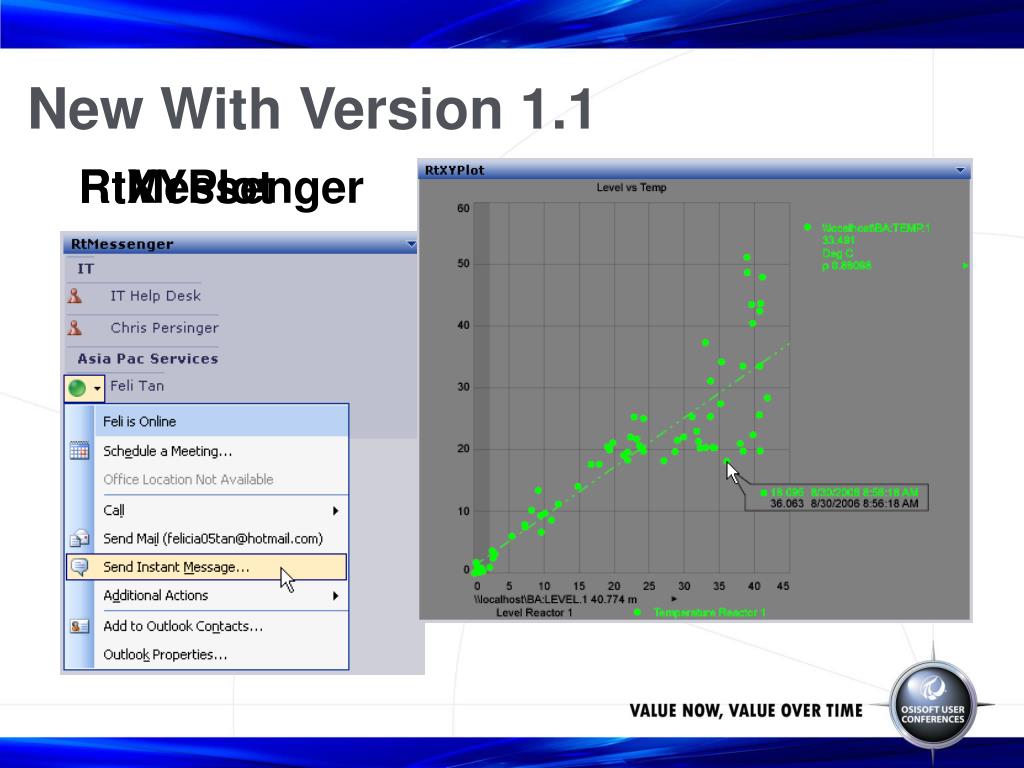

  32. New With Version 1.1 RtMessenger RtXYPlot
