  1. Paper Maps Review

  2. Georeferencing Process • Find the most specific named place. • Determine the coordinates and datumof the named place using orthogonal offsets (measured on map, converted to real-world distances) from known coordinates. • Determine the extent of the named place. • Determine map measurement error. • Determine Locality Type.

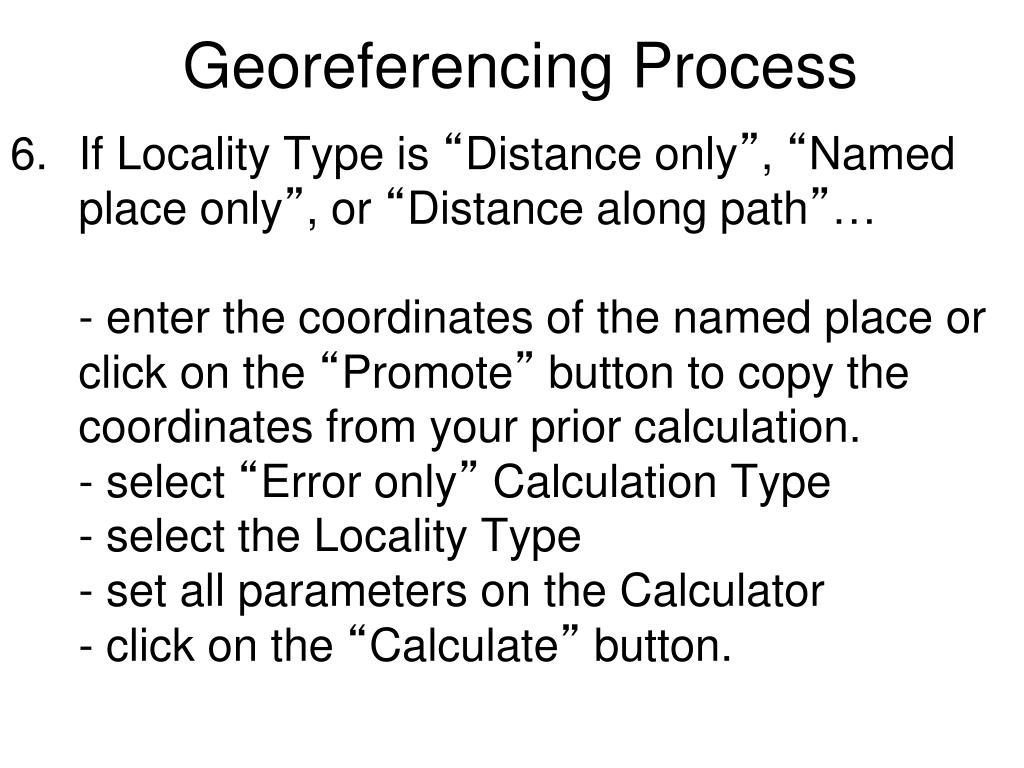

  3. Georeferencing Process • If Locality Type is “Distance only”, “Named place only”, or “Distance along path”…- enter the coordinates of the named place or click on the “Promote” button to copy the coordinates from your prior calculation.- select “Error only” Calculation Type- select the Locality Type- set all parameters on the Calculator- click on the “Calculate” button.

  4. Georeferencing Process • If Locality Type is “Distance at a heading” or “Distance along orthogonal directions”…- enter the coordinates of the named place or click on the “Promote” button to copy the coordinates from your prior calculation.- select “Coordinates and error” Calculation Type- select the Locality Type- set all parameters on the Calculator- click on the “Calculate” button.

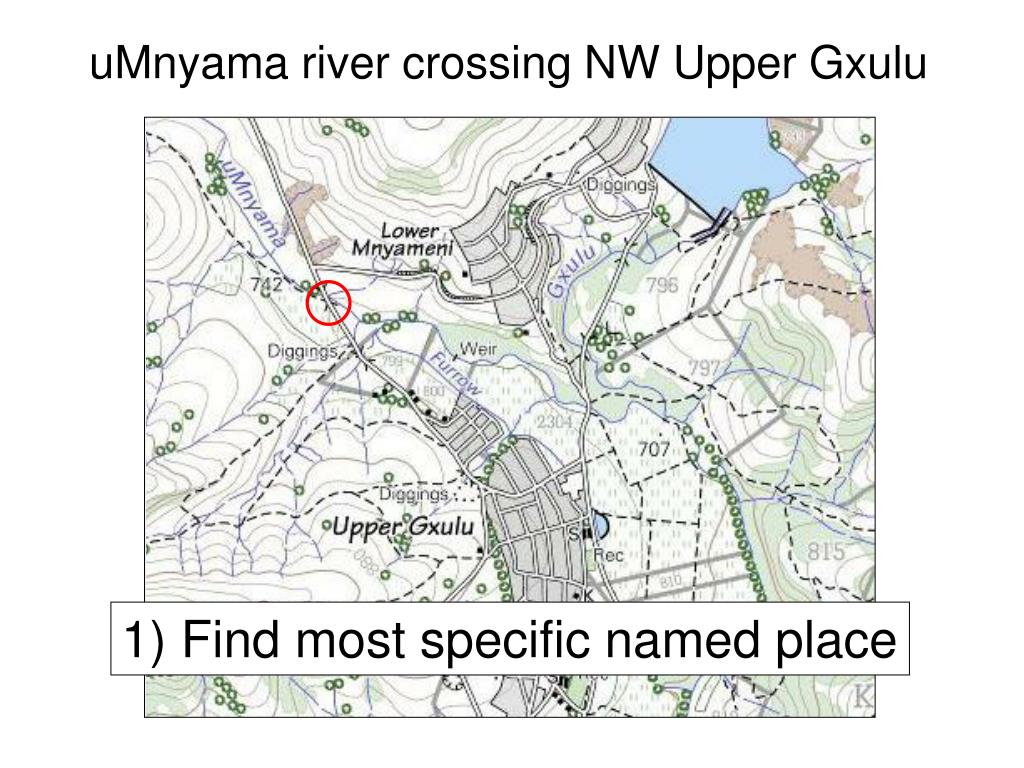

  5. uMnyama river crossing NW Upper Gxulu 1) Find most specific named place

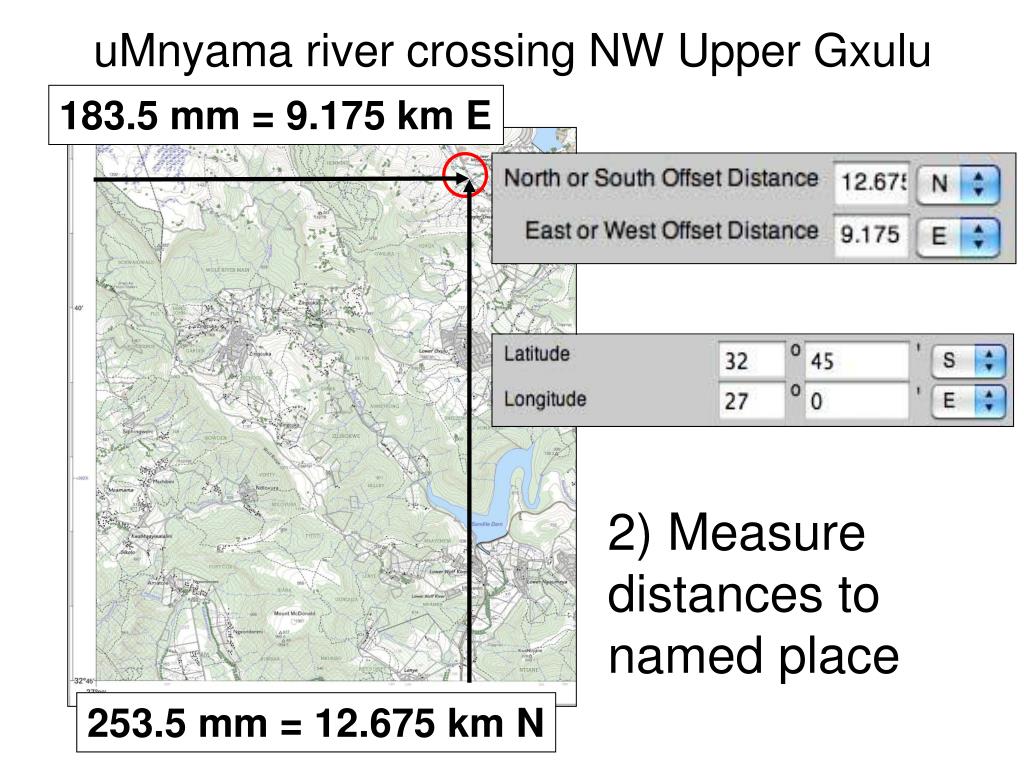

  6. uMnyama river crossing NW Upper Gxulu 183.5 mm = 9.175 km E 2) Measure distances to named place 253.5 mm = 12.675 km N

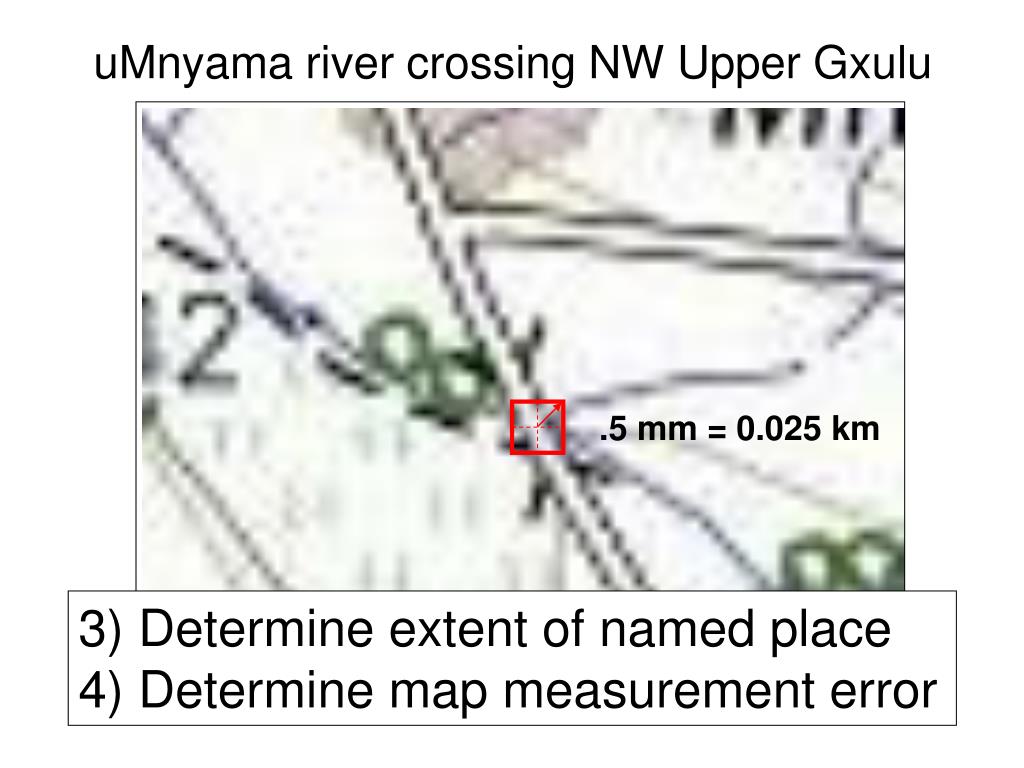

  7. uMnyama river crossing NW Upper Gxulu .5 mm = 0.025 km 3) Determine extent of named place 4) Determine map measurement error

  8. Swamp 1.5 km S Tavistock 1.5 km 1) Find most specific named place

  9. Swamp 1.5 km S Tavistock 2) Measure distances to named place 135 mm = 6.75 km S 89 mm = 4.45 km W

  10. Swamp 1.5 km S Tavistock 13 mm = 0.65 km 3) Determine extent of named place4) Determine map measurement error

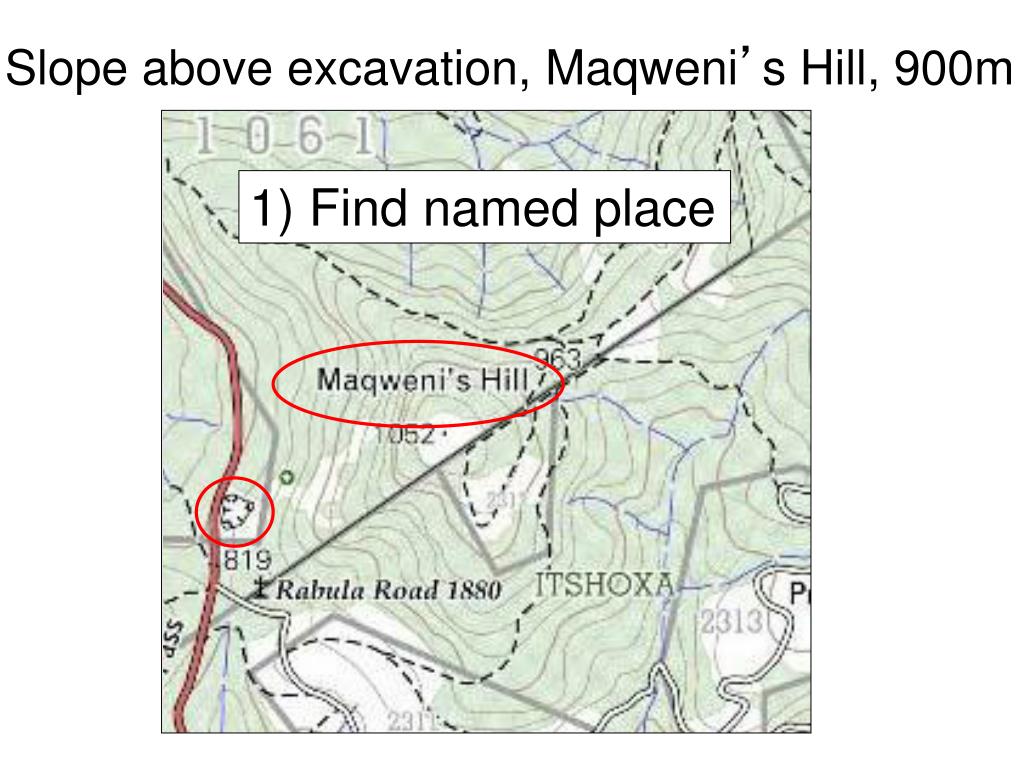

  11. Slope above excavation, Maqweni’s Hill, 900m 1) Find named place

  12. Slope above excavation, Maqweni’s Hill, 900m 1) Find most specific named place 900m

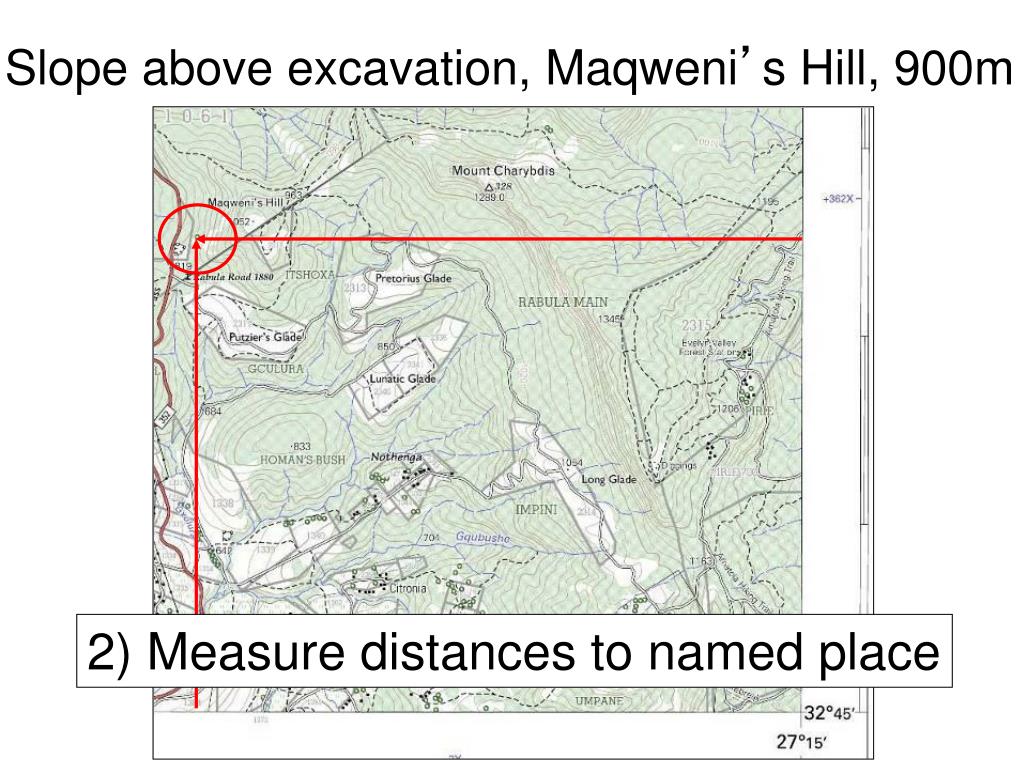

  13. Slope above excavation, Maqweni’s Hill, 900m 2) Measure distances to named place

  14. Slope above excavation, Maqweni’s Hill, 900m 1) Find most specific named place 17 mm = .85 km 3) Determine extent of named place4) Determine map measurement error

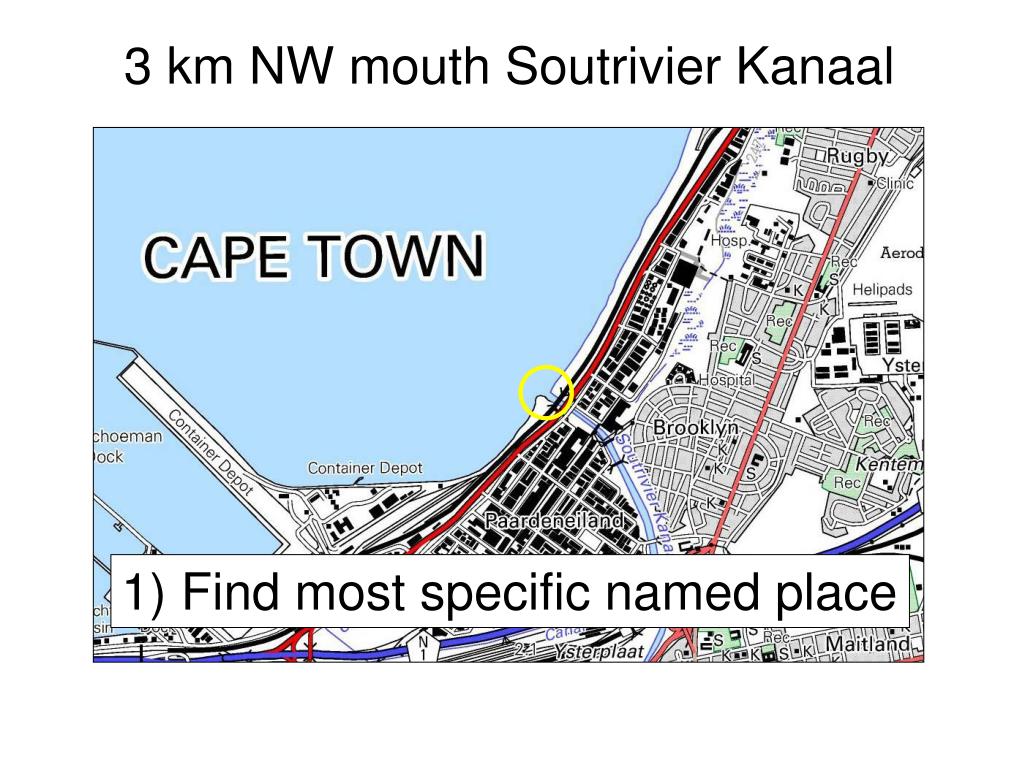

  15. 3 km NW mouth Soutrivier Kanaal 1) Find most specific named place

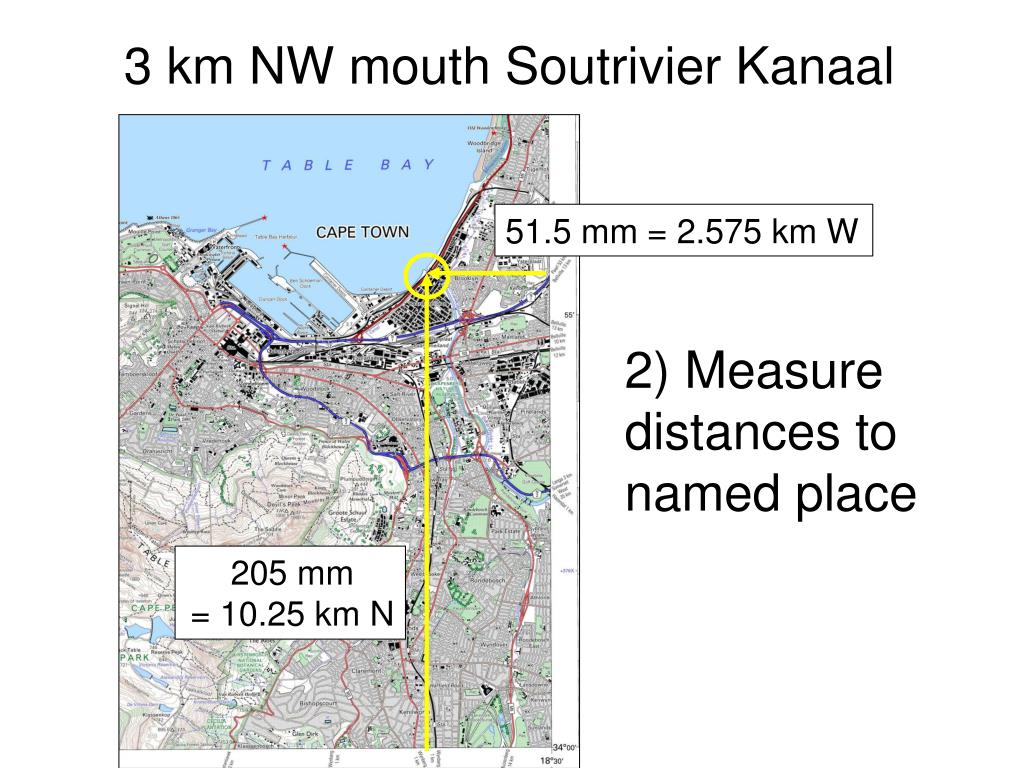

  16. 3 km NW mouth Soutrivier Kanaal 51.5 mm = 2.575 km W 2) Measure distances to named place 205 mm = 10.25 km N

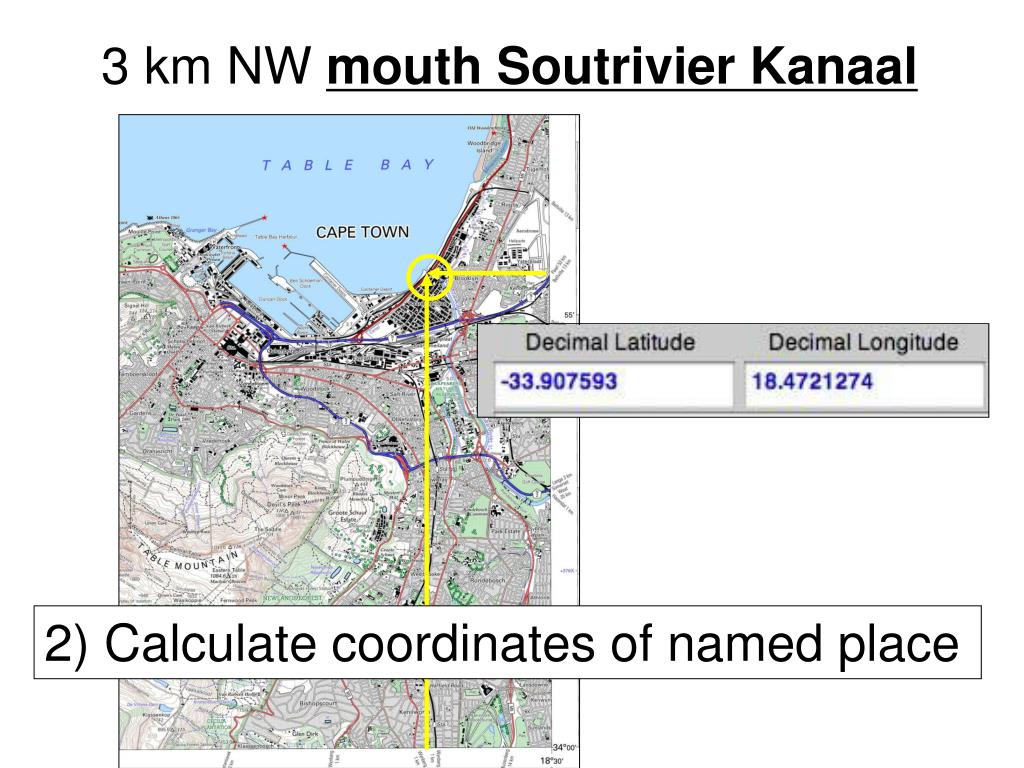

  17. 3 km NW mouth Soutrivier Kanaal 2) Calculate coordinates of named place

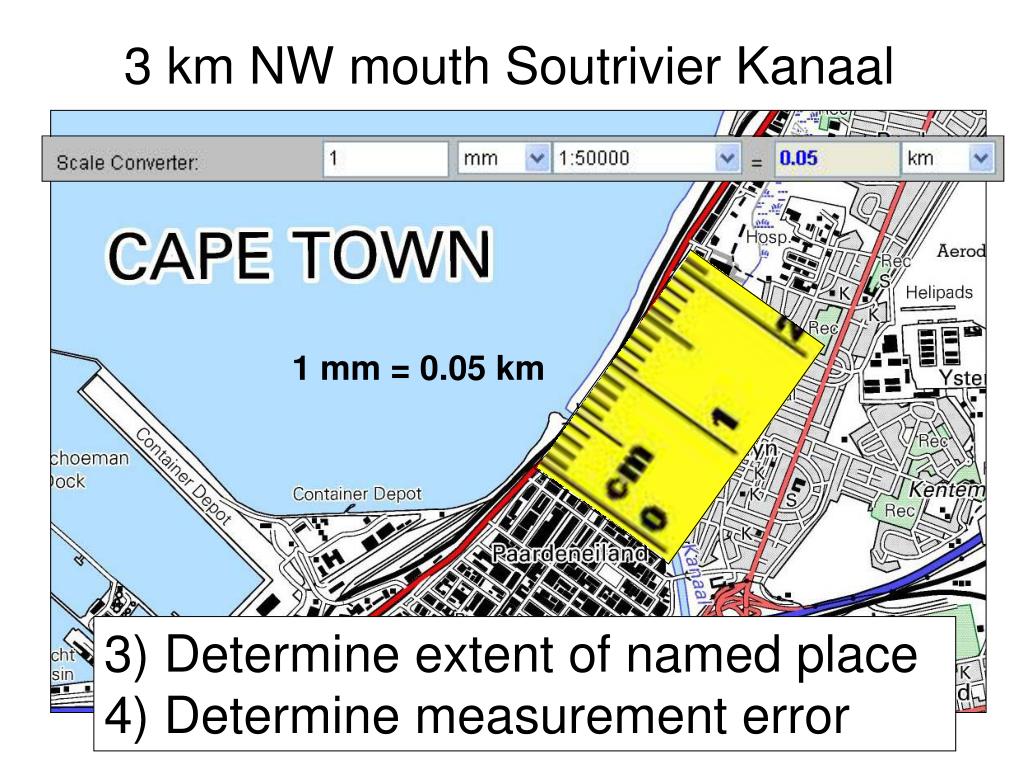

  18. 3 km NW mouth Soutrivier Kanaal 1 mm = 0.05 km 3) Determine extent of named place 4) Determine measurement error

  19. 3 km NW mouth Soutrivier Kanaal 5) Determine Locality Type 6) Calculate“Offset at a heading”

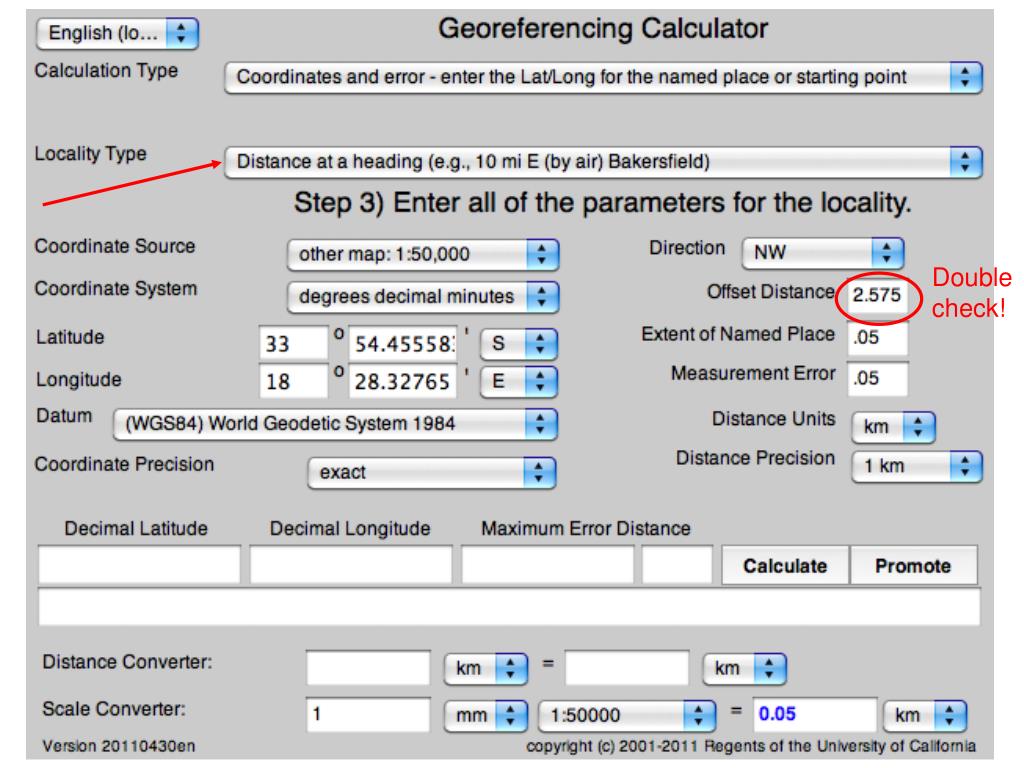

  20. Double check!

  21. 3 km NW mouth Soutrivier Kanaal Final georeference
