development life cycle using visual studio team edition for db professionals

Development Life Cycle using Visual Studio Team Edition for DB Professionals

Richard FennellEngineering DirectorSQLBits II Birmingham 1st March 2008

agenda

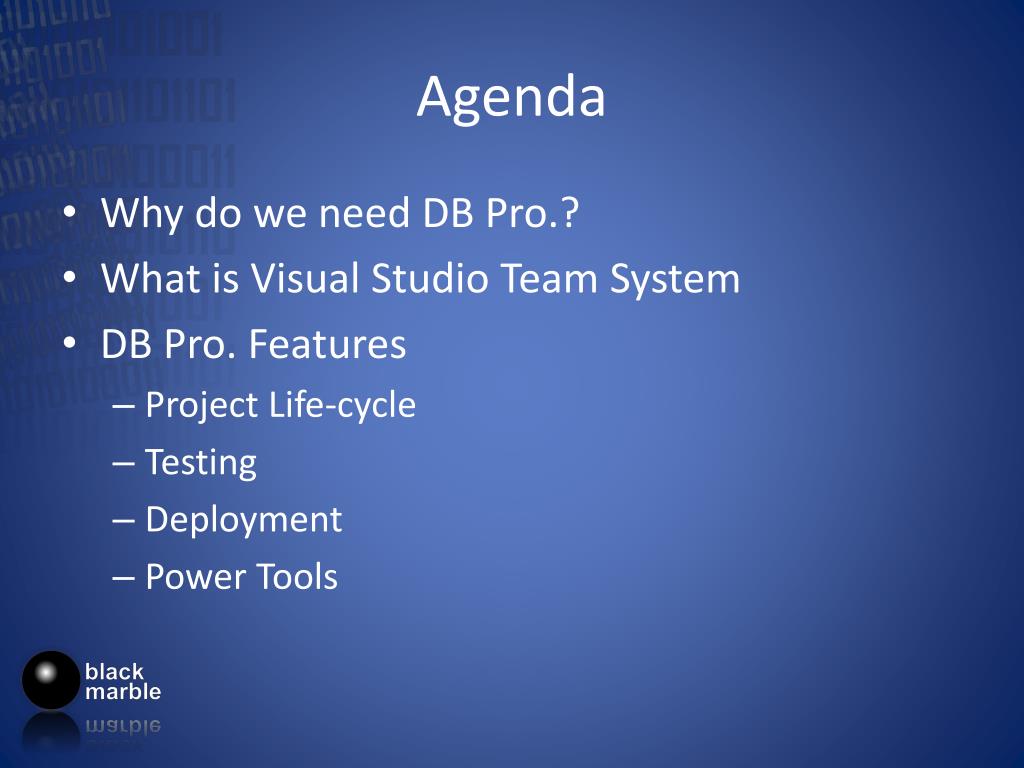

Agenda
  • Why do we need DB Pro.?
  • What is Visual Studio Team System
  • DB Pro. Features
    • Project Life-cycle
    • Testing
    • Deployment
    • Power Tools
pain points in db development

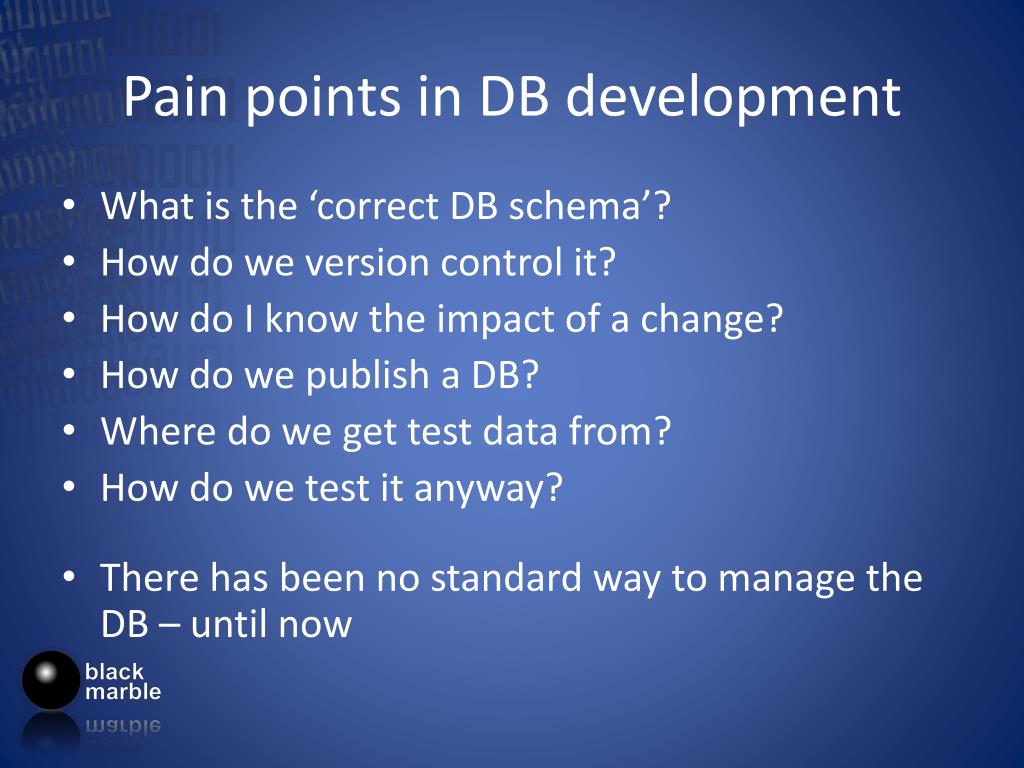

Pain points in DB development
  • What is the ‘correct DB schema’?
  • How do we version control it?
  • How do I know the impact of a change?
  • How do we publish a DB?
  • Where do we get test data from?
  • How do we test it anyway?
  • There has been no standard way to manage the DB – until now
visual studio team system application life cycle management alm solution

Excel

Project

Team System Web Access

Operations, QA and Help Desk

Non-Microsoft Developer

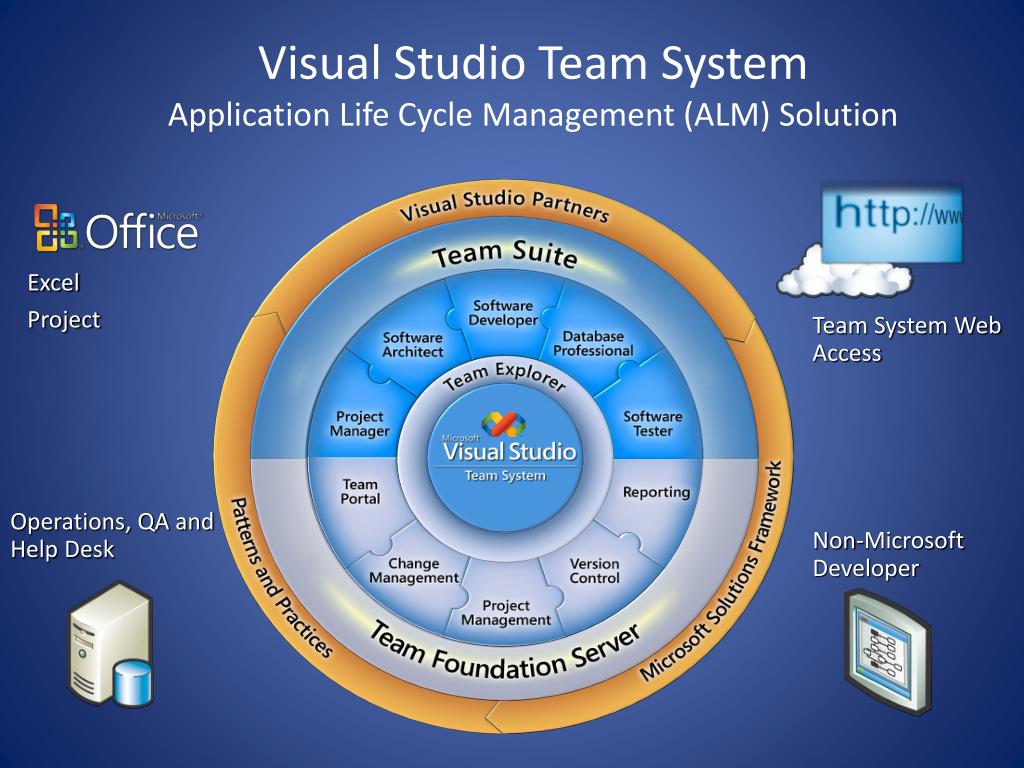

Visual Studio Team SystemApplication Life Cycle Management (ALM) Solution
visual studio for database professionals
Visual Studio for Database Professionals
  • Was known as ‘DataDude’ in beta phase
  • Came out in 2006, a year after the main VS 2005 release.
  • New release VS 2008 is really more of a service pack than a major release.
dbpro features

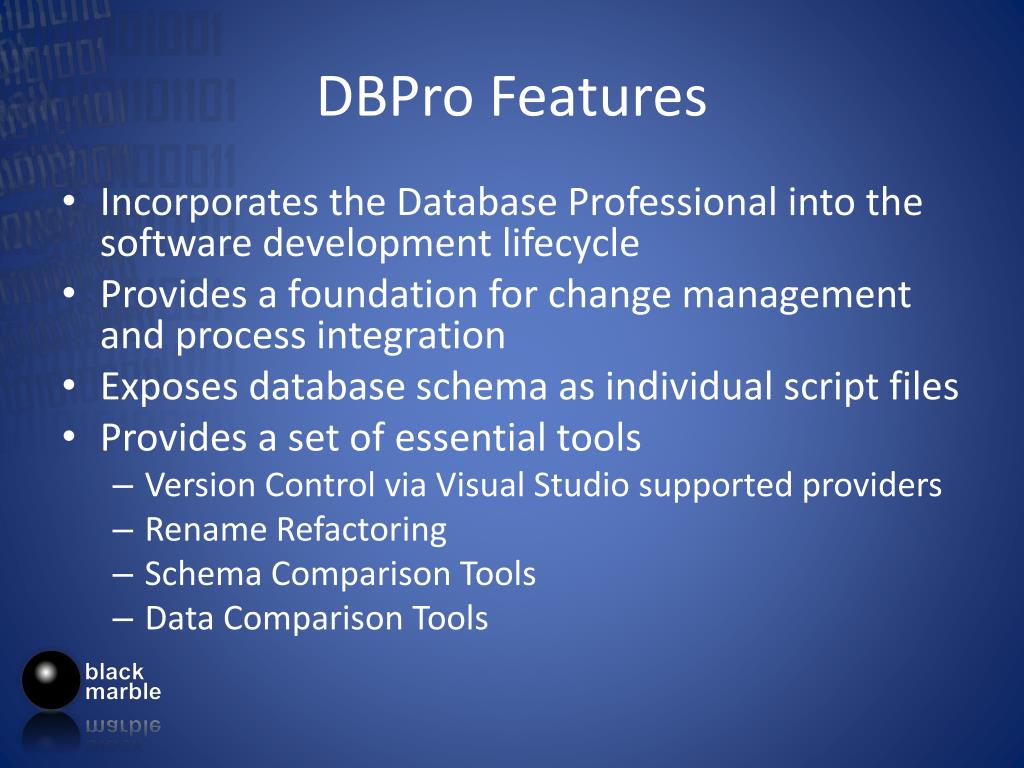

DBPro Features
  • Incorporates the Database Professional into the software development lifecycle
  • Provides a foundation for change management and process integration
  • Exposes database schema as individual script files
  • Provides a set of essential tools
    • Version Control via Visual Studio supported providers
    • Rename Refactoring
    • Schema Comparison Tools
    • Data Comparison Tools
dbpro features8
DBPro Features
  • Database Unit Testing
    • Leverages the existing Test Project Infrastructure
    • Supports data generation
  • Build and Deployment
    • MSBuild and Team Build integration
power tools

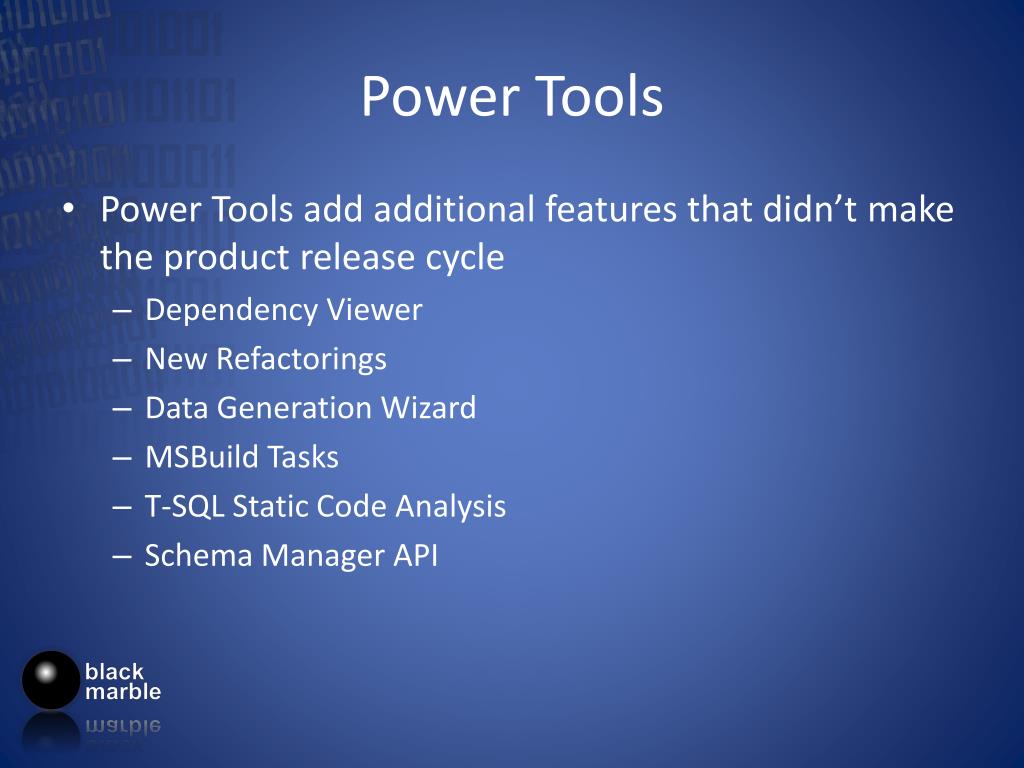

Power Tools
  • Power Tools add additional features that didn’t make the product release cycle
    • Dependency Viewer
    • New Refactorings
    • Data Generation Wizard
    • MSBuild Tasks
    • T-SQL Static Code Analysis
    • Schema Manager API
team foundation server integration

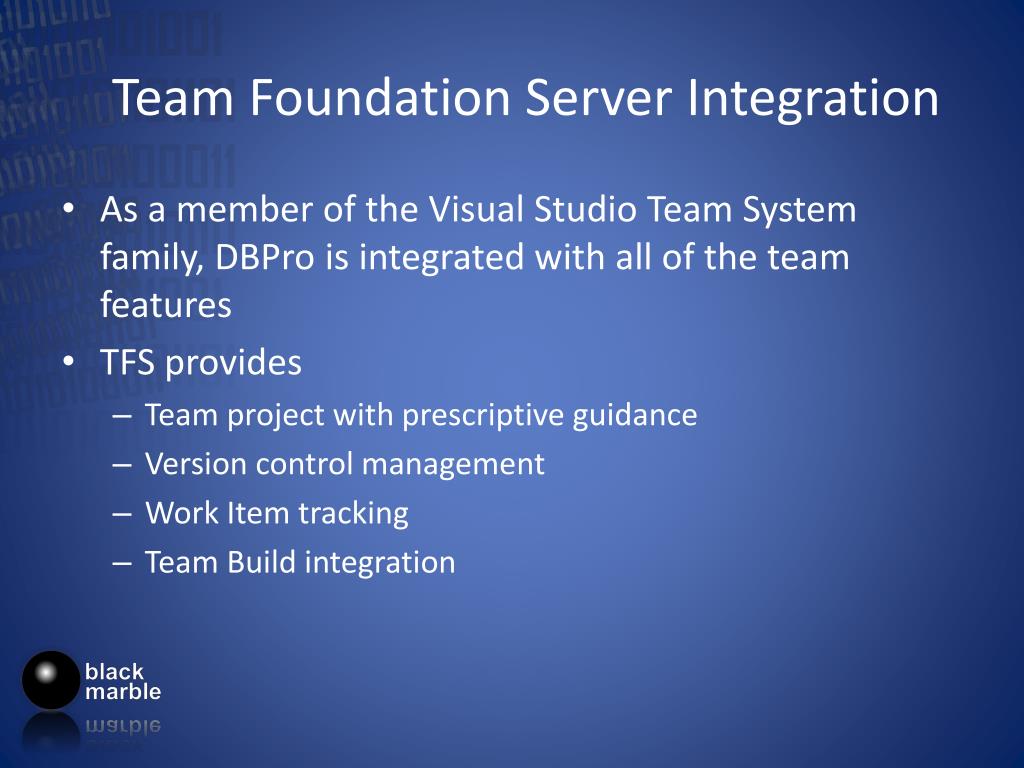

Team Foundation Server Integration
  • As a member of the Visual Studio Team System family, DBPro is integrated with all of the team features
  • TFS provides
    • Team project with prescriptive guidance
    • Version control management
    • Work Item tracking
    • Team Build integration
roles in a db project
Roles in a DB Project

Writes Tests

Writes DB Code

Refactors

Runs Tests

Checks In

Works with other developers to integrate

Creates New DB Project

Reverse Engineers DB to Project

Creates Data Generation Plan

Reviews Changes

Compares Updates to Production

Builds Deploy Package

Deploys to Production

Manage

Develop

Deploy

DB Administrator

DB Developer

DB Administrator

creating the db project

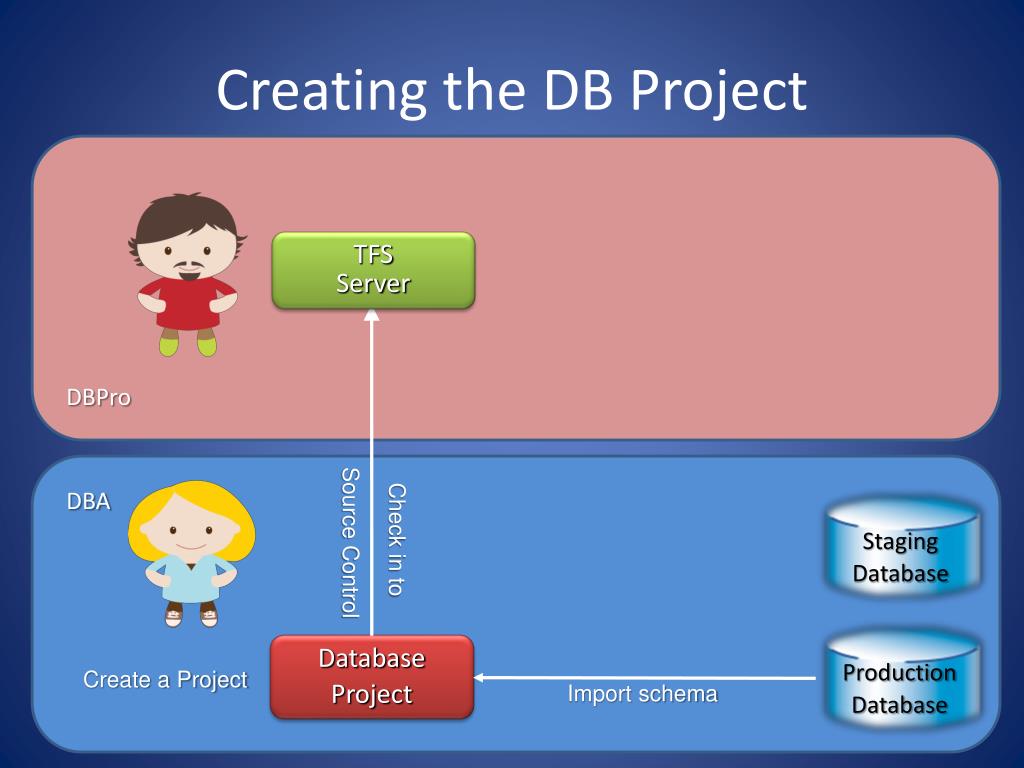

Creating the DB Project

TFSServer

DBPro

Check in to Source Control

DBA

Staging

Database

Database

Project

Production

Database

Create a Project

Import schema

isolated iterative development

Sync

  • Check-out
  • Edit/Refactor
  • Test
  • Check-in
  • Work is being drivenand tracked viawork items
  • Other team members can pick up changes

TFS Shelving allows DBAto provide guidance

and evaluate work

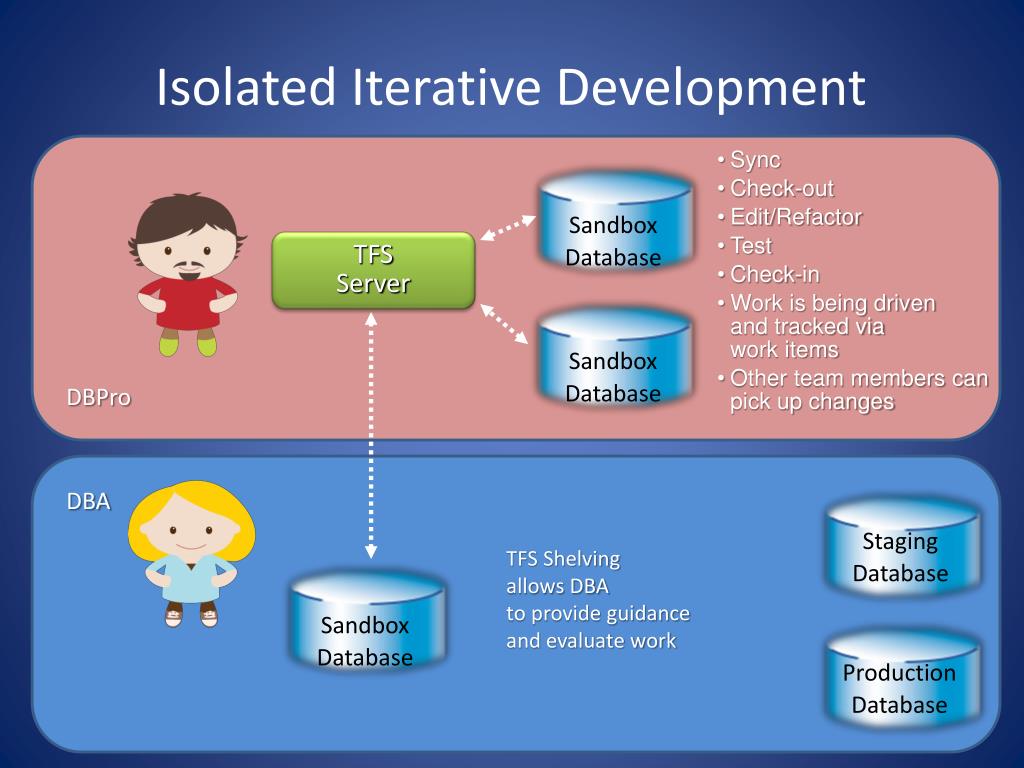

Isolated Iterative Development

Sandbox

Database

TFSServer

Sandbox

Database

DBPro

DBA

Staging

Database

Sandbox

Database

Production

Database

automated build testing

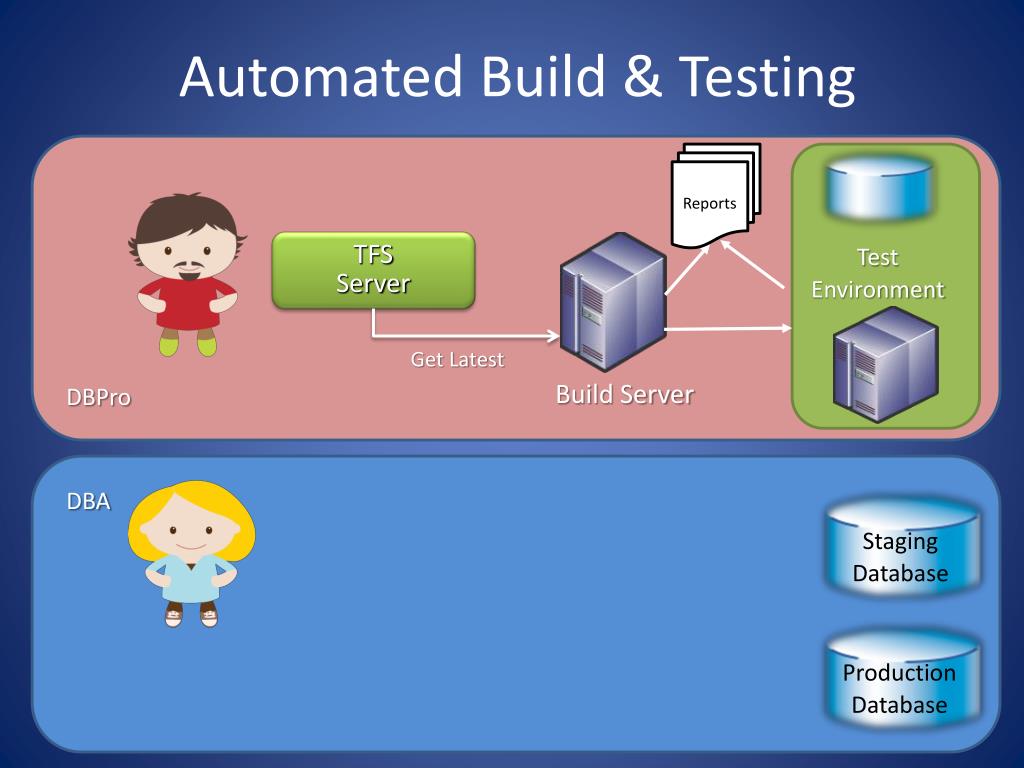

Automated Build & Testing

Reports

TFSServer

Test

Environment

Test

Get Latest

DBPro

Build Server

DBA

Staging

Database

Production

Database

deploy the project

SQL

Deploy

Script

Deploy the Project

TFSServer

DBPro

Sync from Label

DBA

Deploy

Staging

Database

Publish

Database

Project

Production

Database

Refine deploy

script

Build

Verify

slide16

demo

DB Life Cycle

so what dbs did i end up with

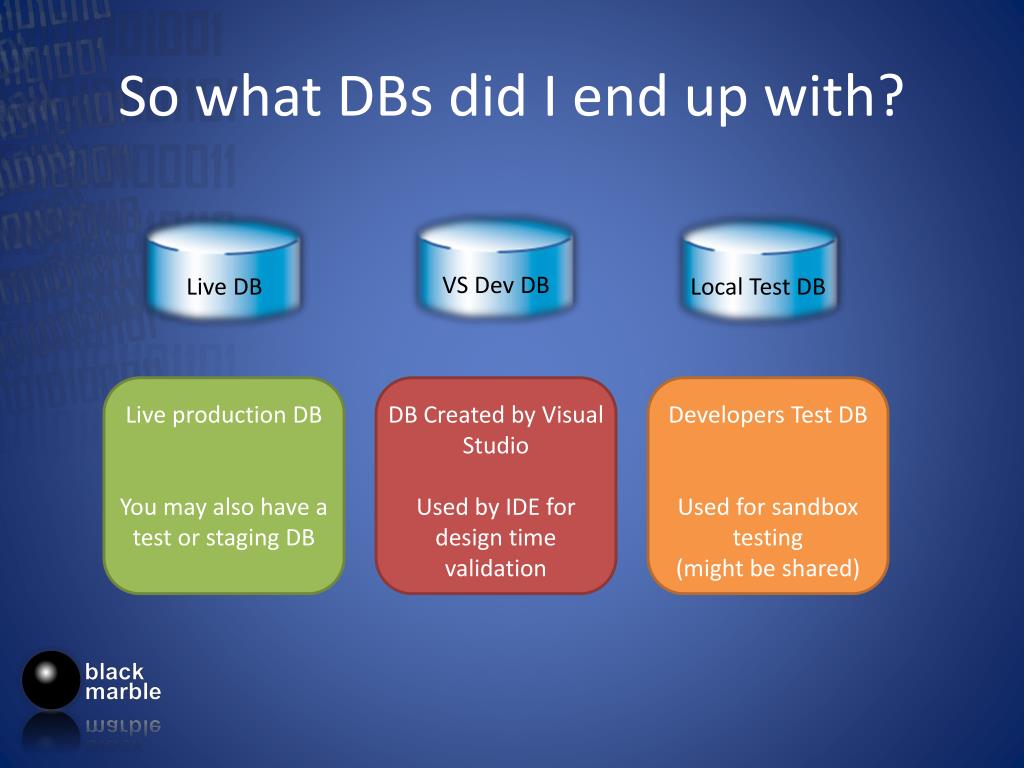

So what DBs did I end up with?

VS Dev DB

Live DB

Local Test DB

Live production DB

You may also have a

test or staging DB

DB Created by Visual Studio

Used by IDE for design time validation

Developers Test DB

Used for sandbox testing

(might be shared)

data generation

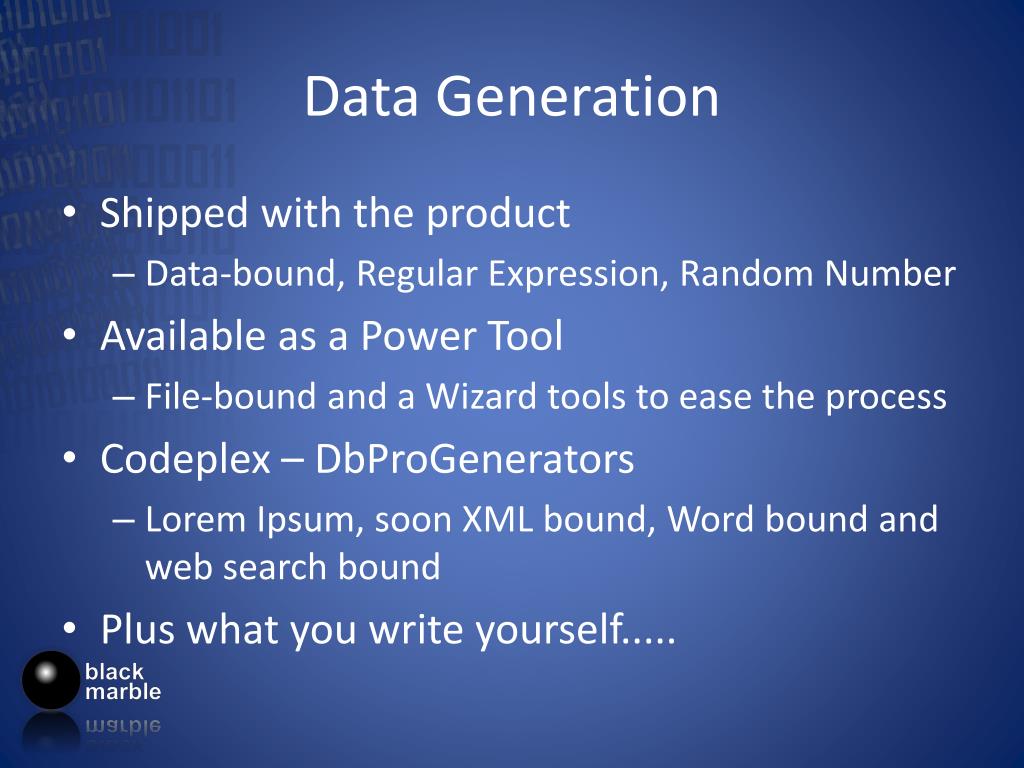

Data Generation
  • Shipped with the product
    • Data-bound, Regular Expression, Random Number
  • Available as a Power Tool
    • File-bound and a Wizard tools to ease the process
  • Codeplex – DbProGenerators
    • Lorem Ipsum, soon XML bound, Word bound and web search bound
  • Plus what you write yourself.....
slide19

demo

Data Generation

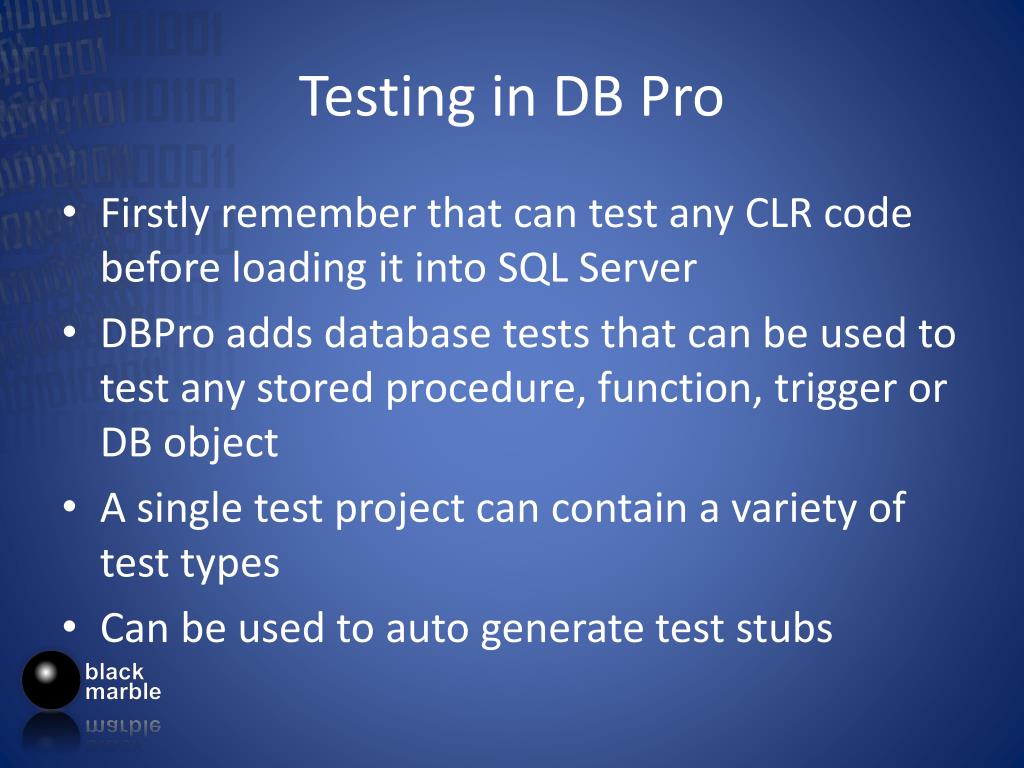

testing in db pro
Testing in DB Pro
  • Firstly remember that can test any CLR code before loading it into SQL Server
  • DBPro adds database tests that can be used to test any stored procedure, function, trigger or DB object
  • A single test project can contain a variety of test types
  • Can be used to auto generate test stubs
is db testing valid

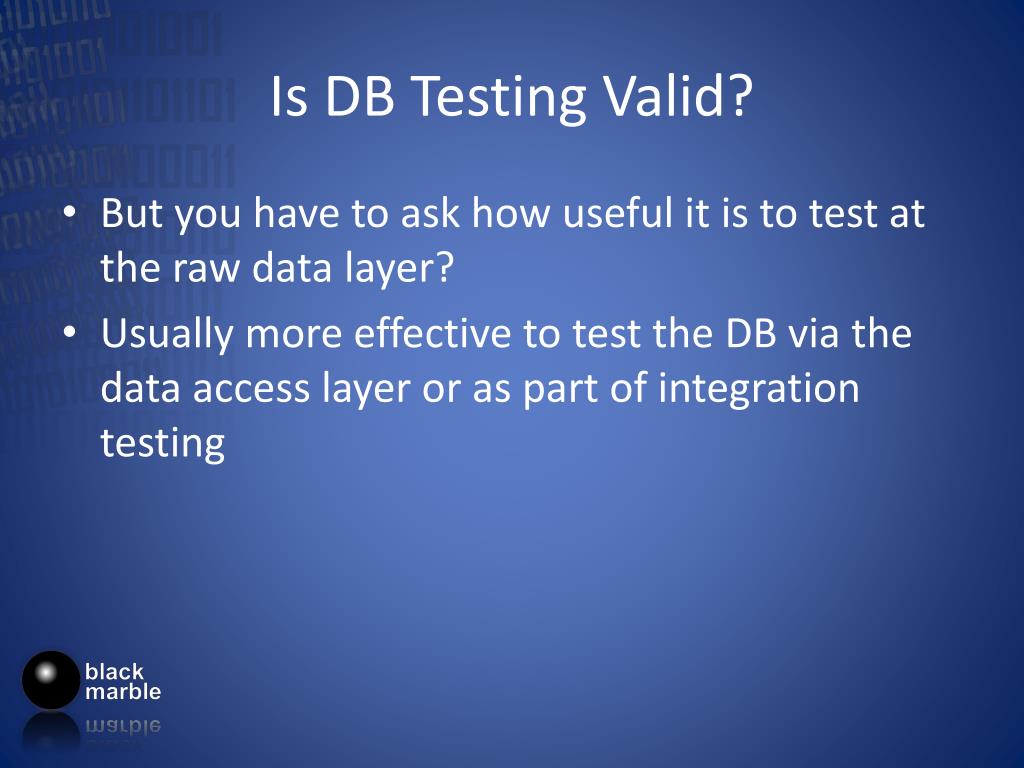

Is DB Testing Valid?
  • But you have to ask how useful it is to test at the raw data layer?
  • Usually more effective to test the DB via the data access layer or as part of integration testing
msbuild
MSBuild
  • All the key DB tasks can be scripted
  • Database operations can become part of a scheduled build
  • However this can all get a bit complex and DBPro MSBuild tasks are a bit idiosyncratic.
  • Check the web for examples
summary
Summary
  • Visual Studio Team Edition for Database Professionals make SQL development part of the project mainstream.
  • Team System coupled with integrated version control helps to mitigate risks associated with DB schema change
  • Build integration provides for quality tracking and improvement
  • Process reduces last minute problems and the need to rollback changes out of production
good vsts blogs

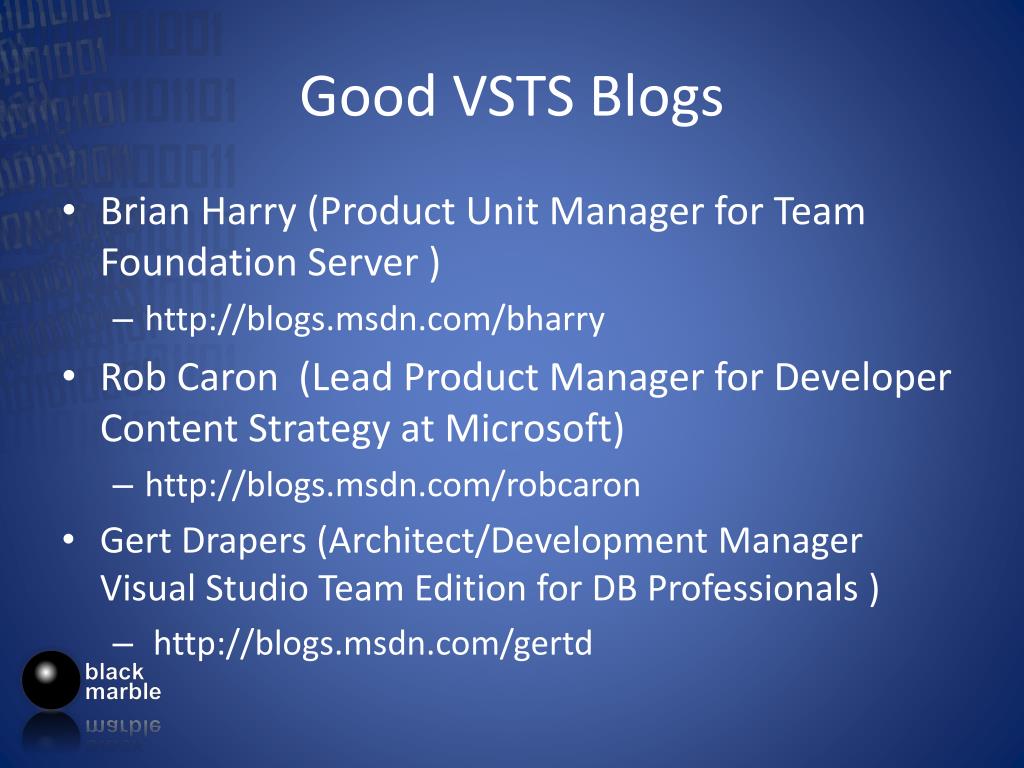

Good VSTS Blogs
  • Brian Harry (Product Unit Manager for Team Foundation Server )
    • http://blogs.msdn.com/bharry
  • Rob Caron (Lead Product Manager for Developer Content Strategy at Microsoft)
    • http://blogs.msdn.com/robcaron
  • Gert Drapers (Architect/Development Manager Visual Studio Team Edition for DB Professionals )
    •  http://blogs.msdn.com/gertd
for further information

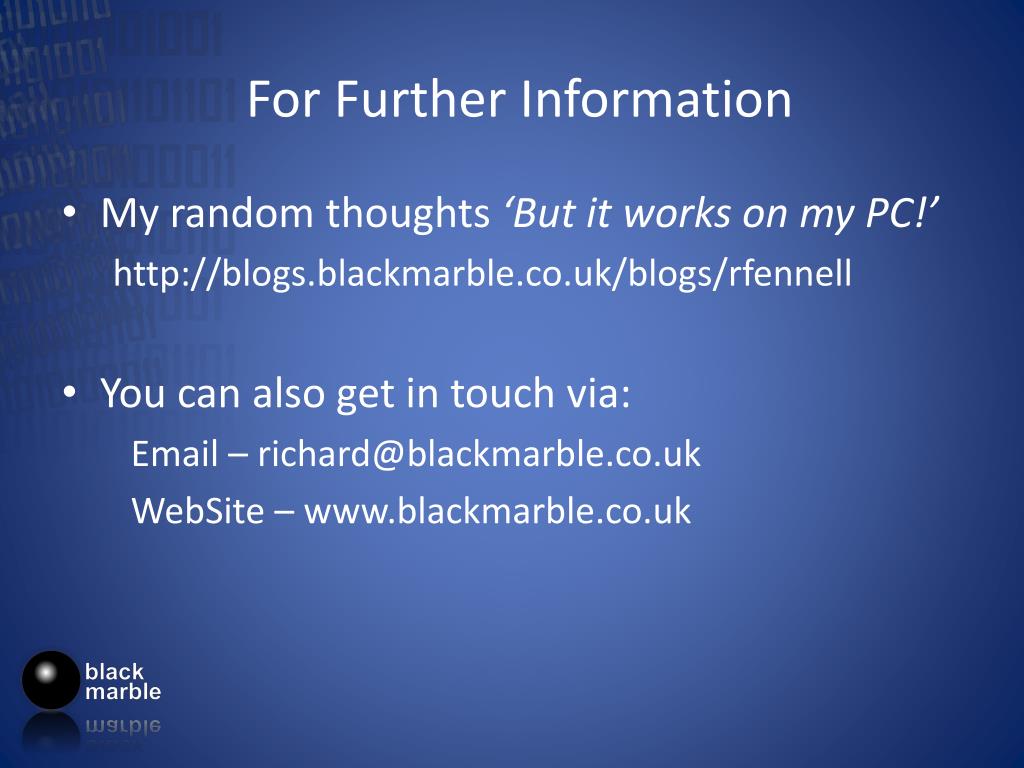

For Further Information
  • My random thoughts ‘But it works on my PC!’

http://blogs.blackmarble.co.uk/blogs/rfennell

  • You can also get in touch via:

Email – richard@blackmarble.co.uk

WebSite– www.blackmarble.co.uk
