creating a simplified global unique file catalogue

Creating a simplified global unique file catalogue

Miguel Martinez Pedreira

Pablo Saiz

motivations
Motivations
  • Reaching memory limits in the actual catalogue database machine(s)
  • Catalogue is now ~700 Gigabytes
  • Some tables are too large (in G#L and L#L)
    • e.g. G132L – 55 GB, tried to split
  • Conversion old-catalogue to new-catalogue takes too long
    • Between 15 and 20 hours
    • Stuck on some of these large tables
    • Several mysql configurations (threads, memory, pools...)
    • Tried on alientest03 and alientest07
    • Helped to find things that shouldn’t be there
  • In search of better performance
motivations1
Motivations
  • Tendency points to even bigger increase
previous status

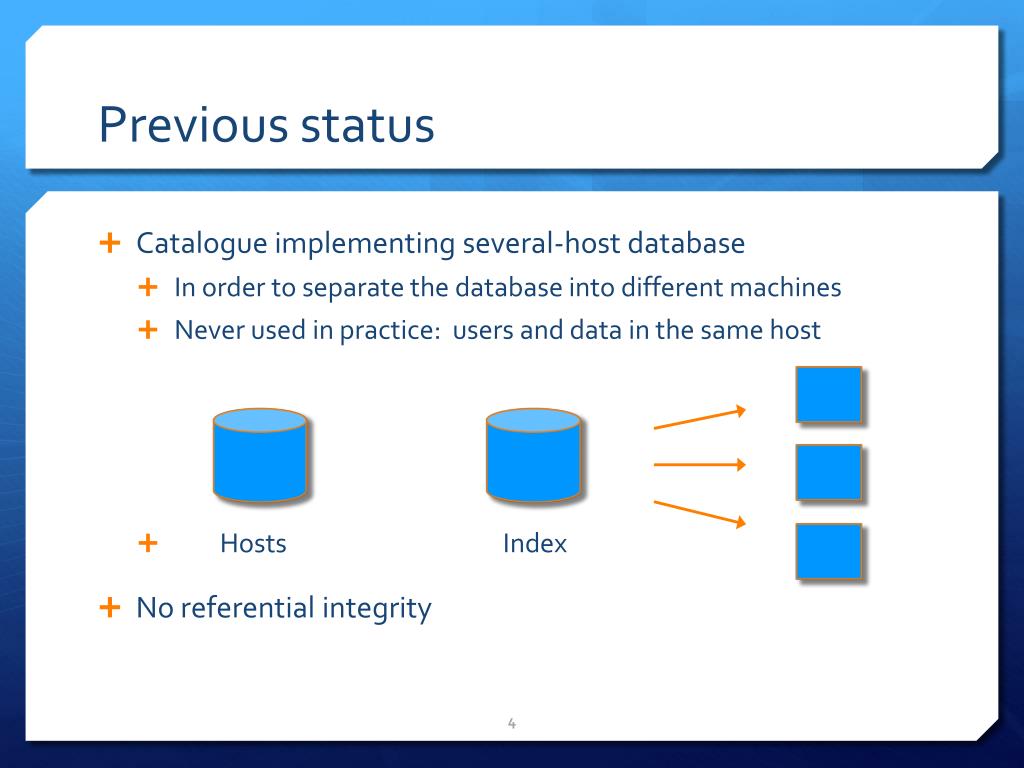

Previous status
  • Catalogue implementing several-host database
    • In order to separate the database into different machines
    • Never used in practice: users and data in the same host
    • Hosts Index
  • No referential integrity
current status production
Current status (production)
  • Only references between G#L_REF and G#L_PFN with G#L, and them with SE
  • Found some entries that shouldn’t be there
    • e.g. PFNs with GUIDs that don’t exist
    • some unused or temporary tables (old functionalities, L#L without _s)
  • ~250L tables (x3)
  • ~100 G tables (x4)
improvements
Improvements
  • Complete referential integrity: FKs all around
    • consistent database
    • InnoDB tables
    • row level locking
    • using ids (instead of text fields) for referencing
      • normalized data, surrogated keys
  • Cleaning tables, renaming fields
  • Fixing some keys
  • Lead to v2-20 version (currently in PANDA)
slide7

x 100

x 250

Link to documentation!

how to improve
How to improve
  • New (Pablo’s) idea: Filesystem catalogue
  • No database, instead the catalogue is a UNIX-like filesystem
  • Using metadata files to keep the necessary information
    • aggregating this information was quite similar to having the DB itself...
  • Tried/discussed about different available filesystems
    • dealing with inodes, file limits, performance...
  • Performance was measured
    • unfortunately, it was too slow
  • What else? -> guidless catalogue
guids

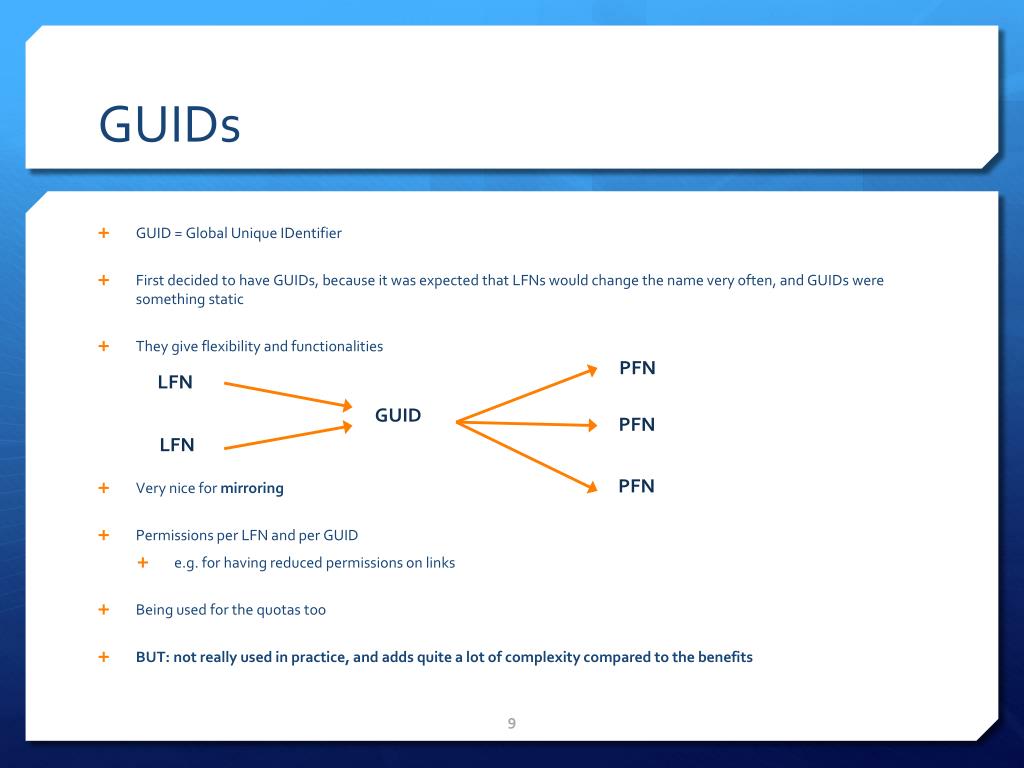

GUIDs
  • GUID = Global Unique IDentifier
  • First decided to have GUIDs, because it was expected that LFNs would change the name very often, and GUIDs were something static
  • They give flexibility and functionalities
  • Very nice for mirroring
  • Permissions per LFN and per GUID
    • e.g. for having reduced permissions on links
  • Being used for the quotas too
  • BUT: not really used in practice, and adds quite a lot of complexity compared to the benefits

PFN

LFN

GUID

PFN

LFN

PFN

deleting guids

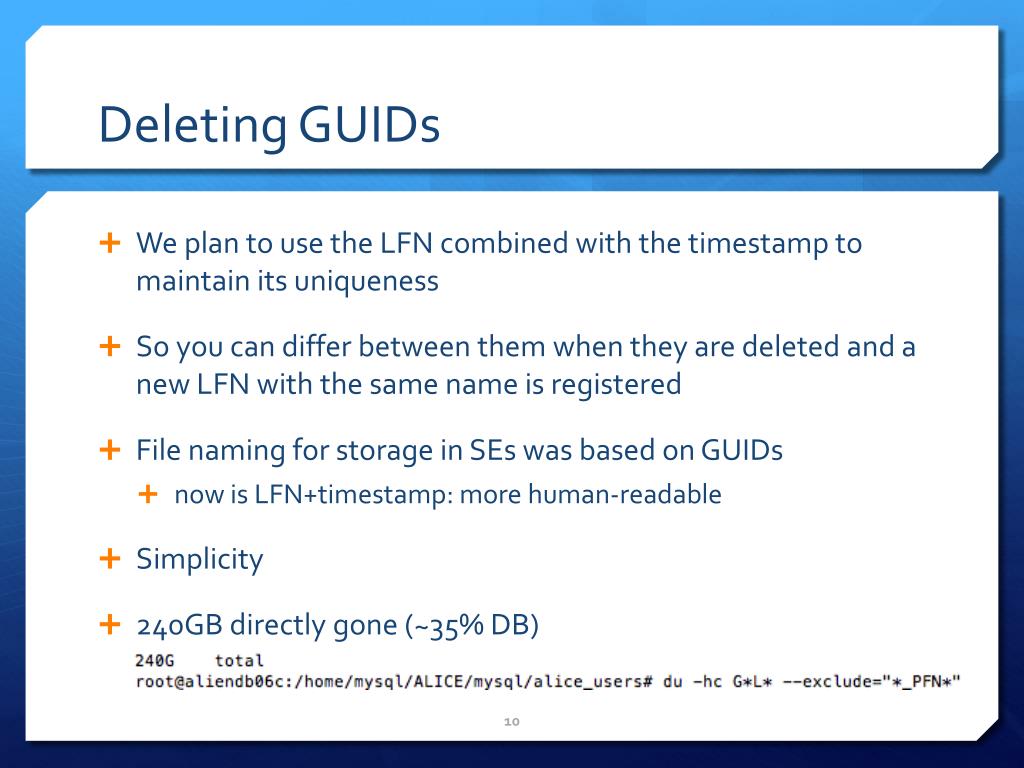

Deleting GUIDs
  • We plan to use the LFN combined with the timestamp to maintain its uniqueness
  • So you can differ between them when they are deleted and a new LFN with the same name is registered
  • File naming for storage in SEs was based on GUIDs
    • now is LFN+timestamp: more human-readable
  • Simplicity
  • 240GB directly gone (~35% DB)
links
Links
  • At this moment we have the ‘special’ PFN ‘guid://’ for handling links
  • A link is a LFN pointing to other LFN
  • Using GUIDs is more flexible (- consistent)
    • Our design implies pointing inside the same index: but is the use case in production (job outputs and archives).
  • This change helps us to get rid of 65% of the PFN entries-> 65% of 160GB = 100GB
  • Slightly different from UNIX symlinks, AliEn links point to part of an archive, not the full file
slide12

x 100

x 250

Link to documentation!

linkId

expectations
Expectations
  • GUIDs gone, LFNs stay the same, PFN significantly reduced
    • if there was consistency, GUIDs should be below LFNs
  • 35% PFNs (350000) should be similar to the number of stored files in SEs (310000)
expectations1
Expectations
  • We get rid of ~50% of the catalogue in terms of size (240GB from GUIDs + 100GB from links)
  • Performance based on all the changes expected to really increase
    • We’ve had good experience with the TaskQueue
  • Looks like simple changes from a high-level view
    • but it involves a lot of effort to check and adapt the code
    • GUIDs everywhere 
  • Found old, miss working, improvable code
  • When?
    • May-Jun all tests working (AliEntest set)
    • ALICE_TEST prepared in July to ‘really’ test
testing

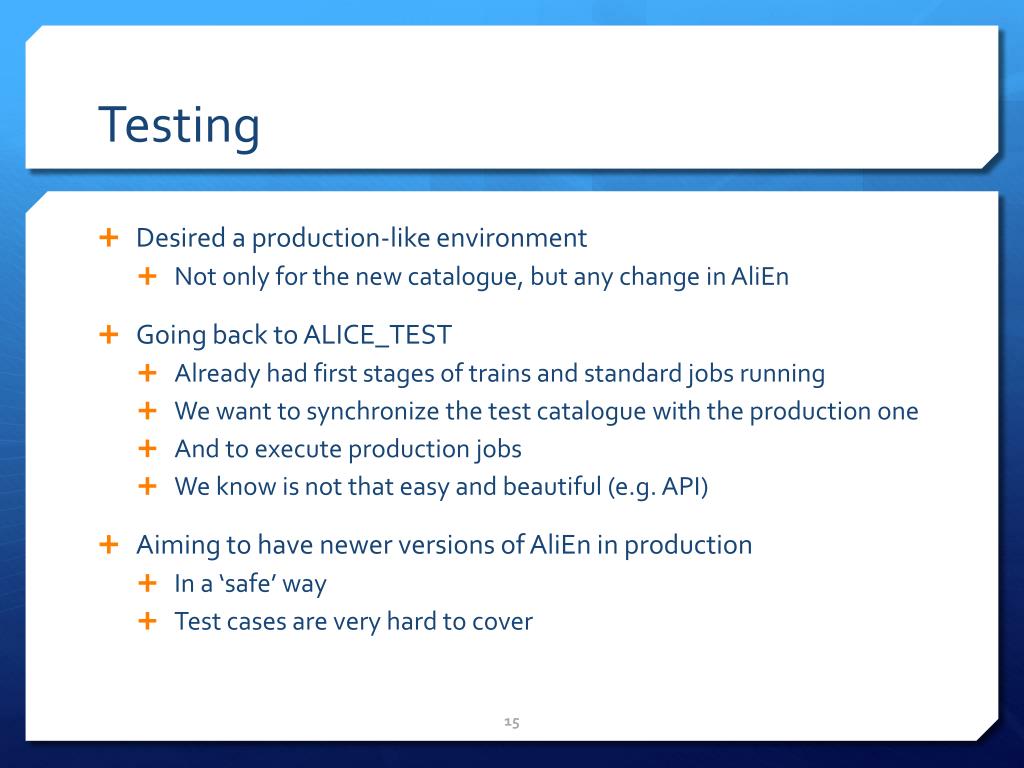

Testing
  • Desired a production-like environment
    • Not only for the new catalogue, but any change in AliEn
  • Going back to ALICE_TEST
    • Already had first stages of trains and standard jobs running
    • We want to synchronize the test catalogue with the production one
    • And to execute production jobs
    • We know is not that easy and beautiful (e.g. API)
  • Aiming to have newer versions of AliEn in production
    • In a ‘safe’ way
    • Test cases are very hard to cover
to sum up
To sum up
  • File Catalogue is getting unmaintainable
  • Is a critical part in AliEn
  • Some improvements implemented, we need more
  • Moving to a GUIDless catalogue
  • Planning to have production-like testing
    • and newer versions easier
