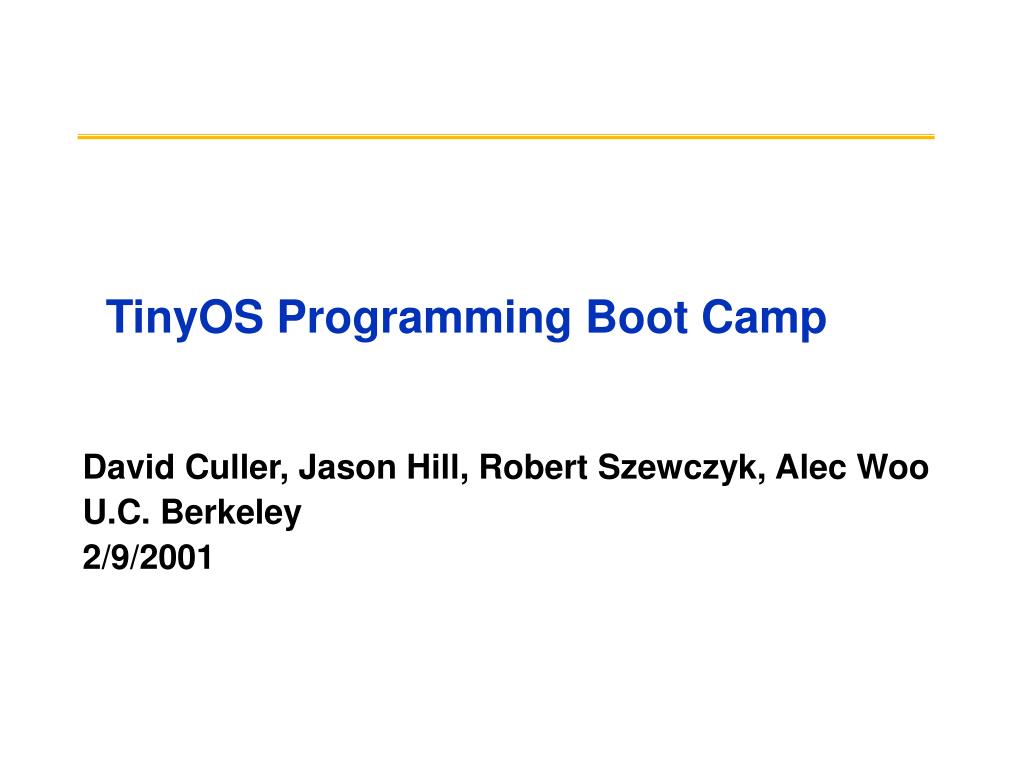

tinyos programming boot camp

TinyOS Programming Boot Camp

David Culler, Jason Hill, Robert Szewczyk, Alec Woo

U.C. Berkeley

2/9/2001

plan for the day

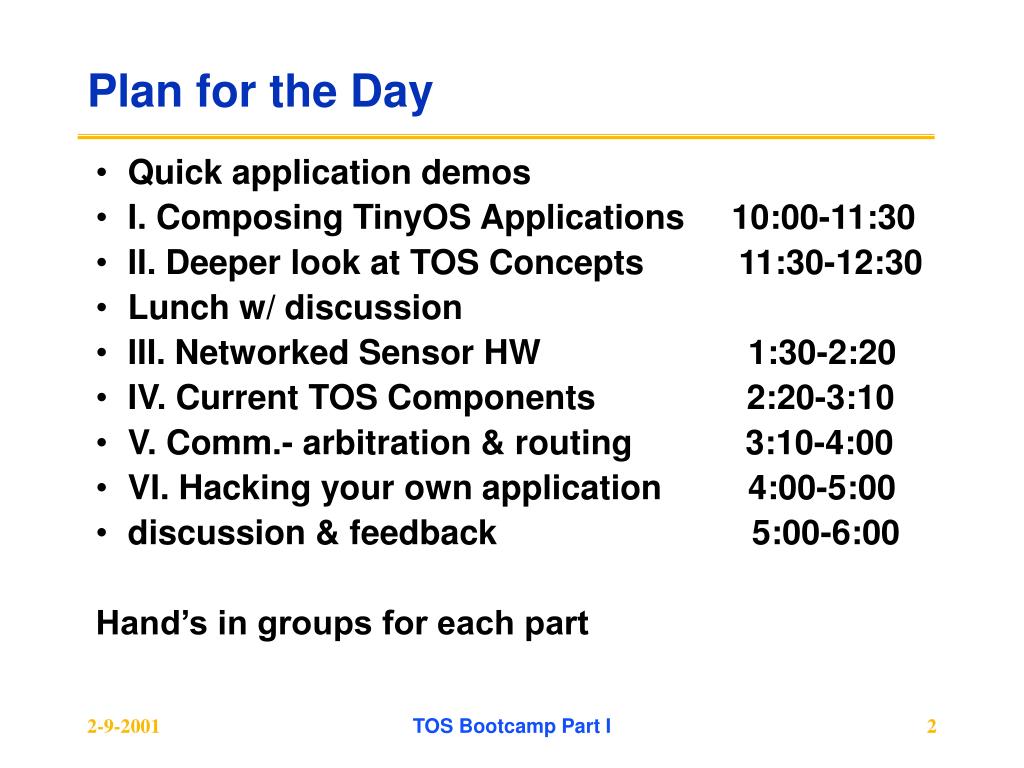

Plan for the Day
  • Quick application demos
  • I. Composing TinyOS Applications 10:00-11:30
  • II. Deeper look at TOS Concepts 11:30-12:30
  • Lunch w/ discussion
  • III. Networked Sensor HW 1:30-2:20
  • IV. Current TOS Components 2:20-3:10
  • V. Comm.- arbitration & routing 3:10-4:00
  • VI. Hacking your own application 4:00-5:00
  • discussion & feedback 5:00-6:00

Hand’s in groups for each part

TOS Bootcamp Part I

quick demos
Quick Demos
  • Array of Networked Photo sensors
  • Magnetometer signal analysis
  • Ad hoc routing

TOS Bootcamp Part I

why an os for tiny networked sensors

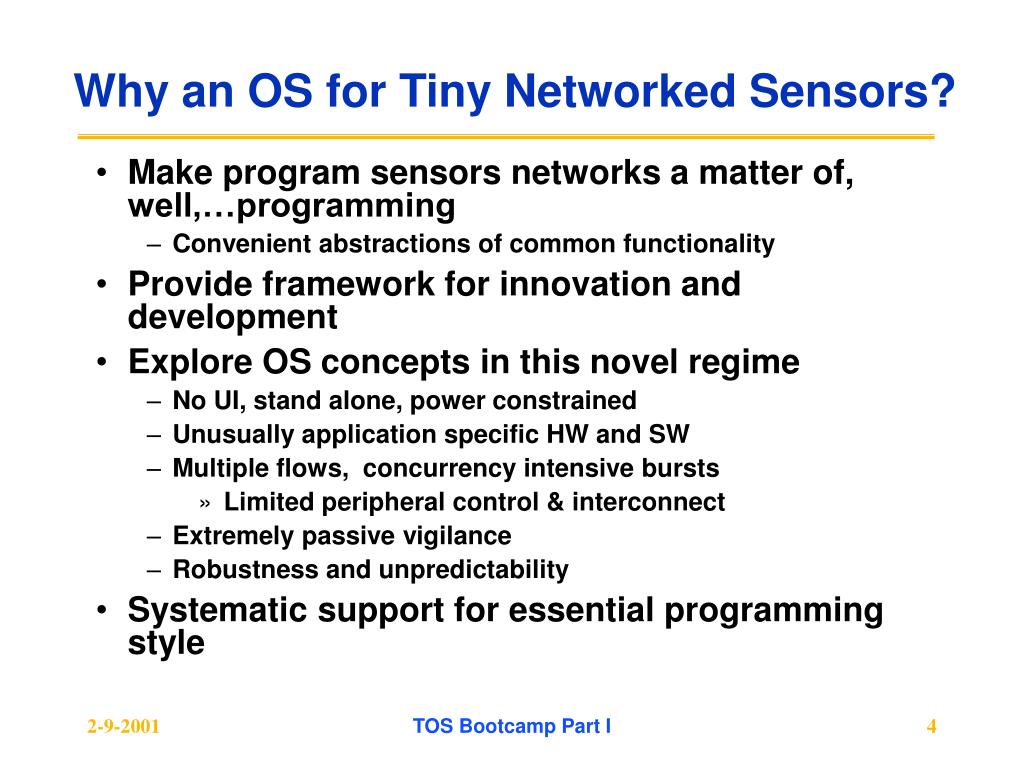

Why an OS for Tiny Networked Sensors?
  • Make program sensors networks a matter of, well,…programming
    • Convenient abstractions of common functionality
  • Provide framework for innovation and development
  • Explore OS concepts in this novel regime
    • No UI, stand alone, power constrained
    • Unusually application specific HW and SW
    • Multiple flows, concurrency intensive bursts
      • Limited peripheral control & interconnect
    • Extremely passive vigilance
    • Robustness and unpredictability
  • Systematic support for essential programming style

TOS Bootcamp Part I

tos approach

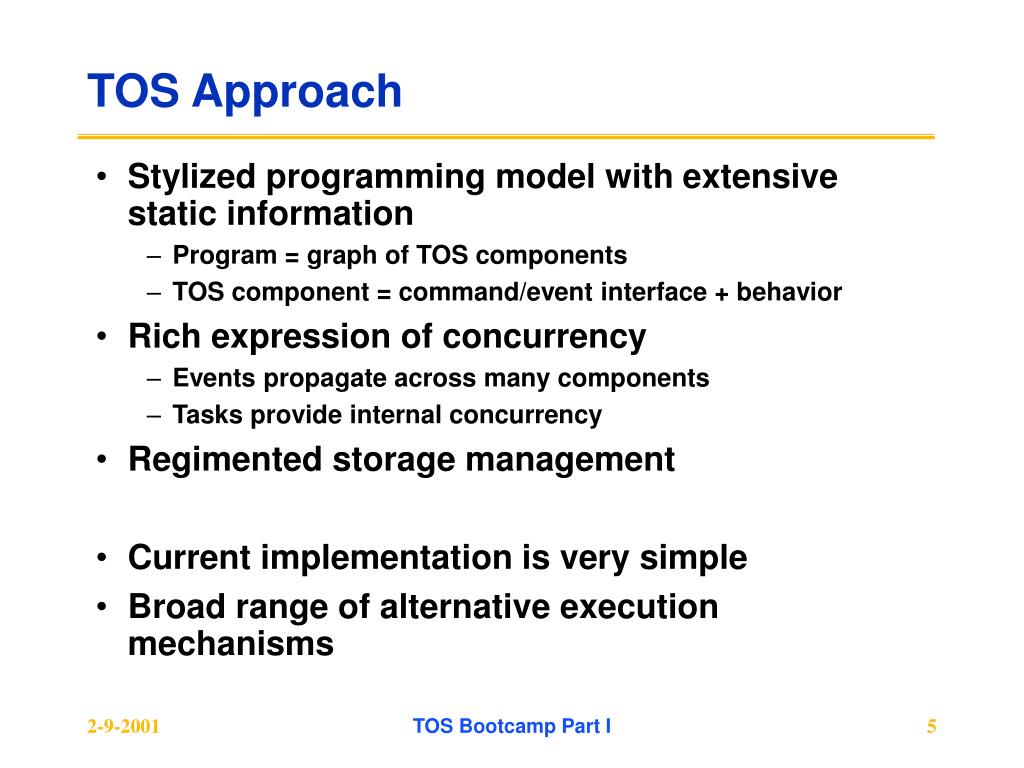

TOS Approach
  • Stylized programming model with extensive static information
    • Program = graph of TOS components
    • TOS component = command/event interface + behavior
  • Rich expression of concurrency
    • Events propagate across many components
    • Tasks provide internal concurrency
  • Regimented storage management
  • Current implementation is very simple
  • Broad range of alternative execution mechanisms

TOS Bootcamp Part I

tinyos concepts

Messaging Component

Internal State

Internal Tasks

Commands

Events

TinyOS concepts
  • Program = graph of components (.desc) + sched.
  • Component interface (.comp)
    • Commands that it accepts
    • Events that it signals
    • Commands that it uses
    • Events that it handles
  • Component implementation (.c)
    • Functions that implement interface
    • Frame: internal state
    • Tasks: internal concurrency
    • Uses only internal namespace
  • Scheduling and storage model
    • Shared stack, static frames
    • Events prempt tasks, tasks do not
    • Events can signal events or call commands
    • Commands don’t signal events
    • Either can post tasks

TOS Bootcamp Part I

tinyos application by composition

UART Packet

Radio Packet

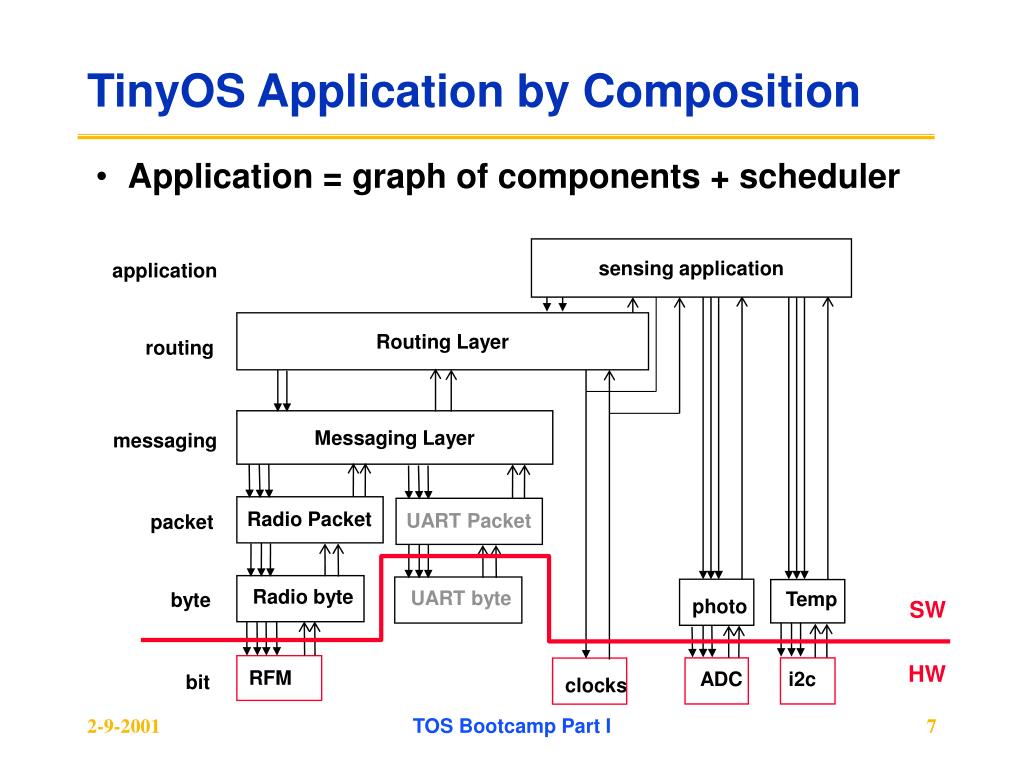

TinyOS Application by Composition
  • Application = graph of components + scheduler

sensing application

application

Routing Layer

routing

Messaging Layer

messaging

packet

Radio byte

UART byte

Temp

byte


SW

HW

RFM

ADC

i2c

bit

clocks

TOS Bootcamp Part I

plan for part i

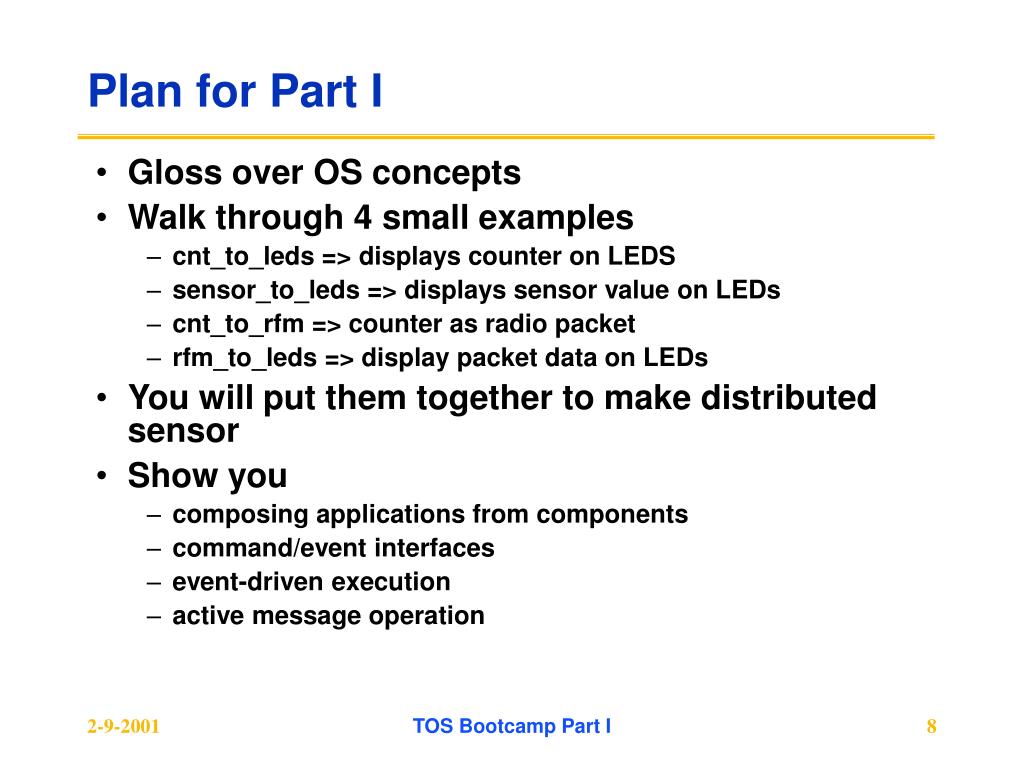

Plan for Part I
  • Gloss over OS concepts
  • Walk through 4 small examples
    • cnt_to_leds => displays counter on LEDS
    • sensor_to_leds => displays sensor value on LEDs
    • cnt_to_rfm => counter as radio packet
    • rfm_to_leds => display packet data on LEDs
  • You will put them together to make distributed sensor
  • Show you
    • composing applications from components
    • command/event interfaces
    • event-driven execution
    • active message operation

TOS Bootcamp Part I

example apps cnt to led desc

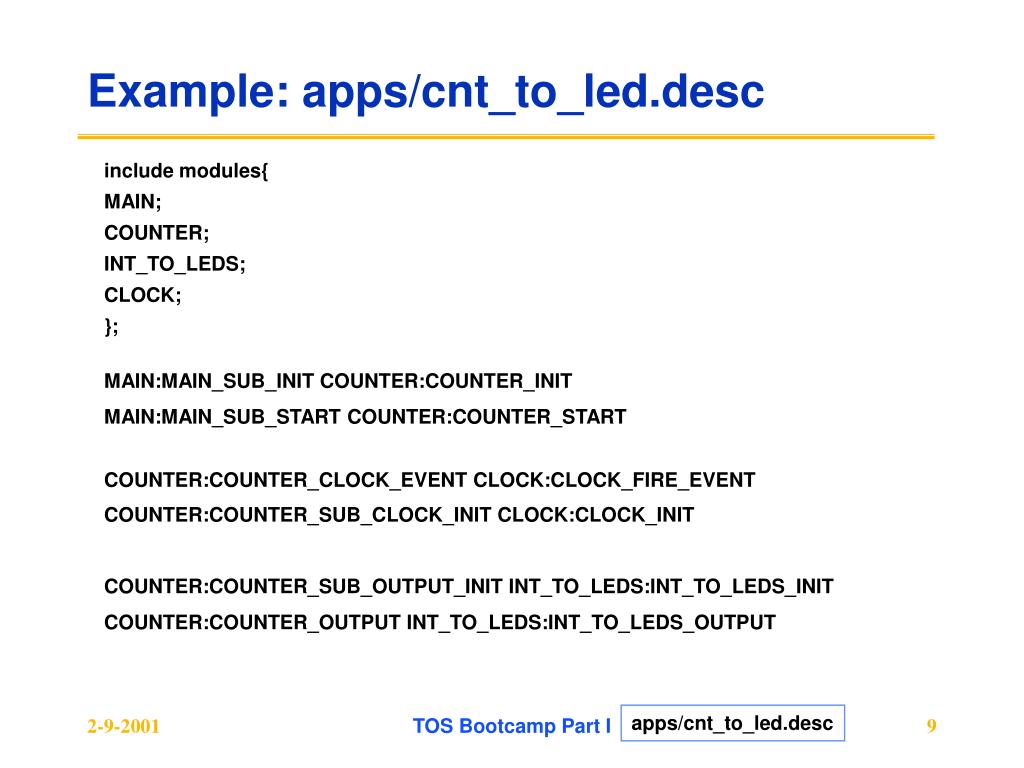

Example: apps/cnt_to_led.desc

include modules{

MAIN;

COUNTER;

INT_TO_LEDS;

CLOCK;

};

MAIN:MAIN_SUB_INIT COUNTER:COUNTER_INIT

MAIN:MAIN_SUB_START COUNTER:COUNTER_START

COUNTER:COUNTER_CLOCK_EVENT CLOCK:CLOCK_FIRE_EVENT

COUNTER:COUNTER_SUB_CLOCK_INIT CLOCK:CLOCK_INIT

COUNTER:COUNTER_SUB_OUTPUT_INIT INT_TO_LEDS:INT_TO_LEDS_INIT

COUNTER:COUNTER_OUTPUT INT_TO_LEDS:INT_TO_LEDS_OUTPUT

TOS Bootcamp Part I

apps/cnt_to_led.desc

graphical cnt to led desc

generic init i/f

MAIN

clock i/f

output i/f

COUNTER

CLOCK

INT_TO_LEDS

graphical cnt_to_led.desc

main_sub_start

main_sub_init

counter_init

counter_start

counter_output

clock_event

counter_sub_clock_init

counter_sub_output_init

clock_init

int_to_leds_init

clock_fire_event

int_to_leds_output

TOS Bootcamp Part I

comp component interface file

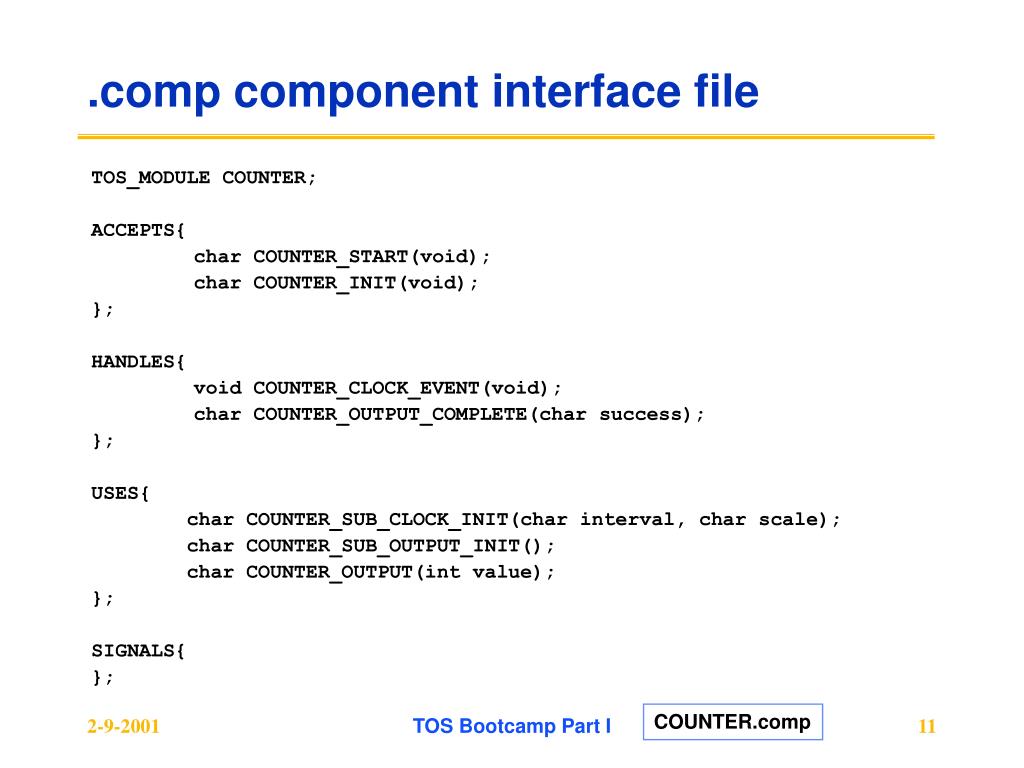

.comp component interface file

TOS_MODULE COUNTER;

ACCEPTS{

char COUNTER_START(void);

char COUNTER_INIT(void);

};

HANDLES{

void COUNTER_CLOCK_EVENT(void);

char COUNTER_OUTPUT_COMPLETE(char success);

};

USES{

char COUNTER_SUB_CLOCK_INIT(char interval, char scale);

char COUNTER_SUB_OUTPUT_INIT();

char COUNTER_OUTPUT(int value);

};

SIGNALS{

};

TOS Bootcamp Part I

COUNTER.comp

implemention counter c

Command Handshake:

  • return value == 0
  • cmd not accepted

or other error

  • Event Handshake similar

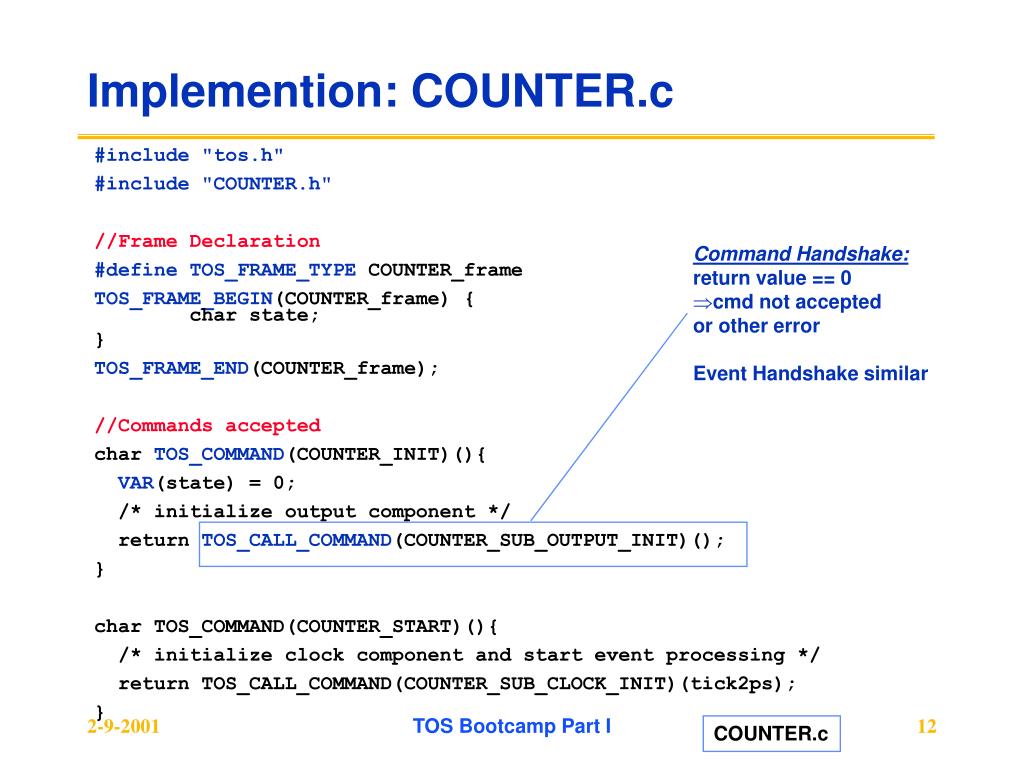

Implemention: COUNTER.c

#include "tos.h"

#include "COUNTER.h"

//Frame Declaration

#define TOS_FRAME_TYPE COUNTER_frame

TOS_FRAME_BEGIN(COUNTER_frame) {

char state;

}

TOS_FRAME_END(COUNTER_frame);

//Commands accepted

char TOS_COMMAND(COUNTER_INIT)(){

VAR(state) = 0;

/* initialize output component */

return TOS_CALL_COMMAND(COUNTER_SUB_OUTPUT_INIT)();

}

char TOS_COMMAND(COUNTER_START)(){

/* initialize clock component and start event processing */

return TOS_CALL_COMMAND(COUNTER_SUB_CLOCK_INIT)(tick2ps);

}

TOS Bootcamp Part I

COUNTER.c

counter c rudimentary event processing
COUNTER.c - rudimentary event processing

//Events handled

/* Clock Event Handler:

update LED state as 3-bit counter and set LEDs to match

*/

void TOS_EVENT(COUNTER_CLOCK_EVENT)(){

VAR(state) ++;

TOS_CALL_COMMAND(COUNTER_OUTPUT)(VAR(state));

}

/* Output Completion Event Handler

Indicate that notification was successful

*/

char TOS_EVENT(COUNTER_OUTPUT_COMPLETE)(char success){

return 1;

}

Events may propagate

or call commands

Generic output cmd

TOS Bootcamp Part I

quick tos summary
Quick TOS summary
  • TOS_FRAME_BEGIN, TOS_FRAME_END to declare a component frame
  • VAR(foo) to access a variable (foo) in the frame
  • TOS_COMMAND to declare a command
  • TOS_CALL_COMMAND to call a command
  • TOS_EVENT to declare an event handler
  • TOS_SIGNAL_EVENT to signal and event
  • TOS_TASK to declare a task (part II)
  • TOS_POST_TASK to post a task

TOS Bootcamp Part I

little hands on
Little hands on
  • Makefile
    • Set GROUP_ID in Makefile
    • generic definitions and rules
    • select application description
      • DESC = apps/cnt_to_leds.desc
    • make clean
    • make
  • Programming
    • seat sensor node in lab-board bay
    • insert in parallel port
    • make install as root or setuid uisp
  • Glitches
    • powered? priviledge?
    • -dlpt=3 (IBM thinkpad)

TOS Bootcamp Part I

little debugging

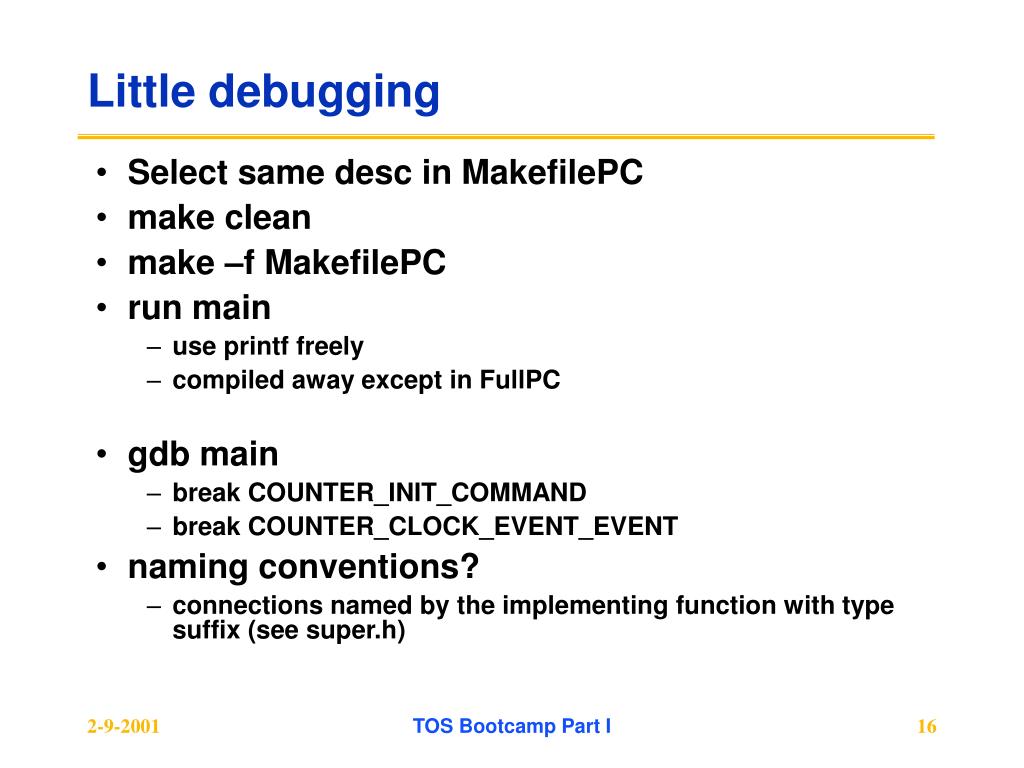

Little debugging
  • Select same desc in MakefilePC
  • make clean
  • make –f MakefilePC
  • run main
    • use printf freely
    • compiled away except in FullPC
  • gdb main
    • break COUNTER_INIT_COMMAND
    • break COUNTER_CLOCK_EVENT_EVENT
  • naming conventions?
    • connections named by the implementing function with type suffix (see super.h)

TOS Bootcamp Part I

event driven processing

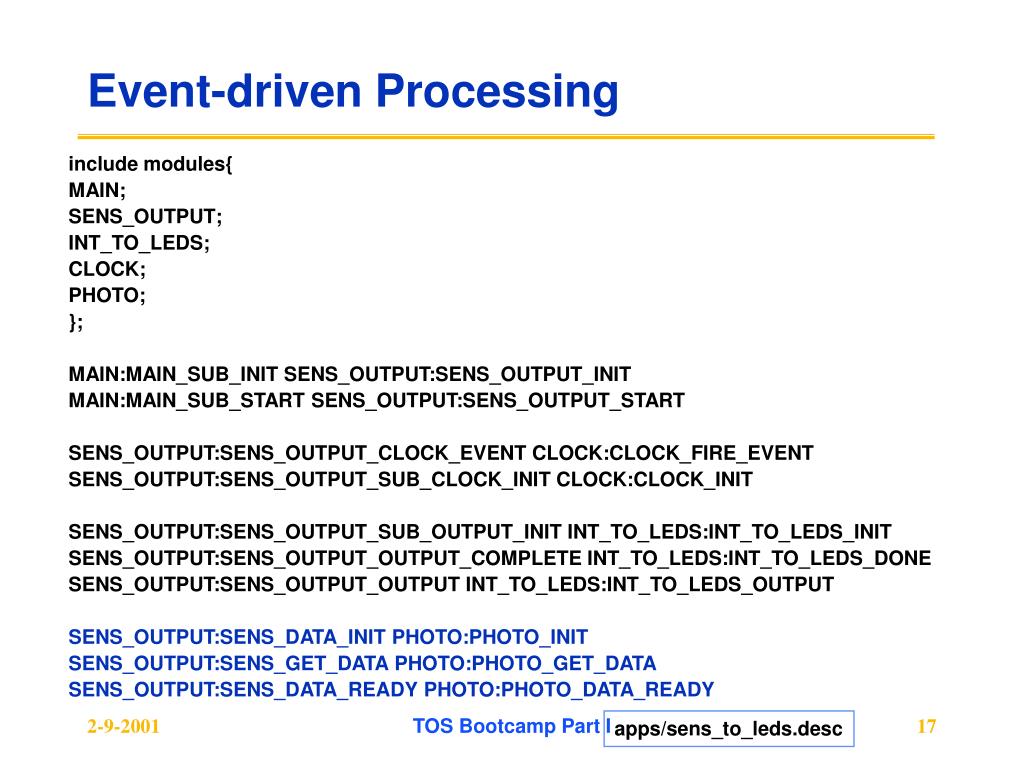

Event-driven Processing

include modules{

MAIN;

SENS_OUTPUT;

INT_TO_LEDS;

CLOCK;

PHOTO;

};

MAIN:MAIN_SUB_INIT SENS_OUTPUT:SENS_OUTPUT_INIT

MAIN:MAIN_SUB_START SENS_OUTPUT:SENS_OUTPUT_START

SENS_OUTPUT:SENS_OUTPUT_CLOCK_EVENT CLOCK:CLOCK_FIRE_EVENT

SENS_OUTPUT:SENS_OUTPUT_SUB_CLOCK_INIT CLOCK:CLOCK_INIT

SENS_OUTPUT:SENS_OUTPUT_SUB_OUTPUT_INIT INT_TO_LEDS:INT_TO_LEDS_INIT

SENS_OUTPUT:SENS_OUTPUT_OUTPUT_COMPLETE INT_TO_LEDS:INT_TO_LEDS_DONE

SENS_OUTPUT:SENS_OUTPUT_OUTPUT INT_TO_LEDS:INT_TO_LEDS_OUTPUT

SENS_OUTPUT:SENS_DATA_INIT PHOTO:PHOTO_INIT

SENS_OUTPUT:SENS_GET_DATA PHOTO:PHOTO_GET_DATA

SENS_OUTPUT:SENS_DATA_READY PHOTO:PHOTO_DATA_READY

TOS Bootcamp Part I

apps/sens_to_leds.desc

asynchronous sensor interface

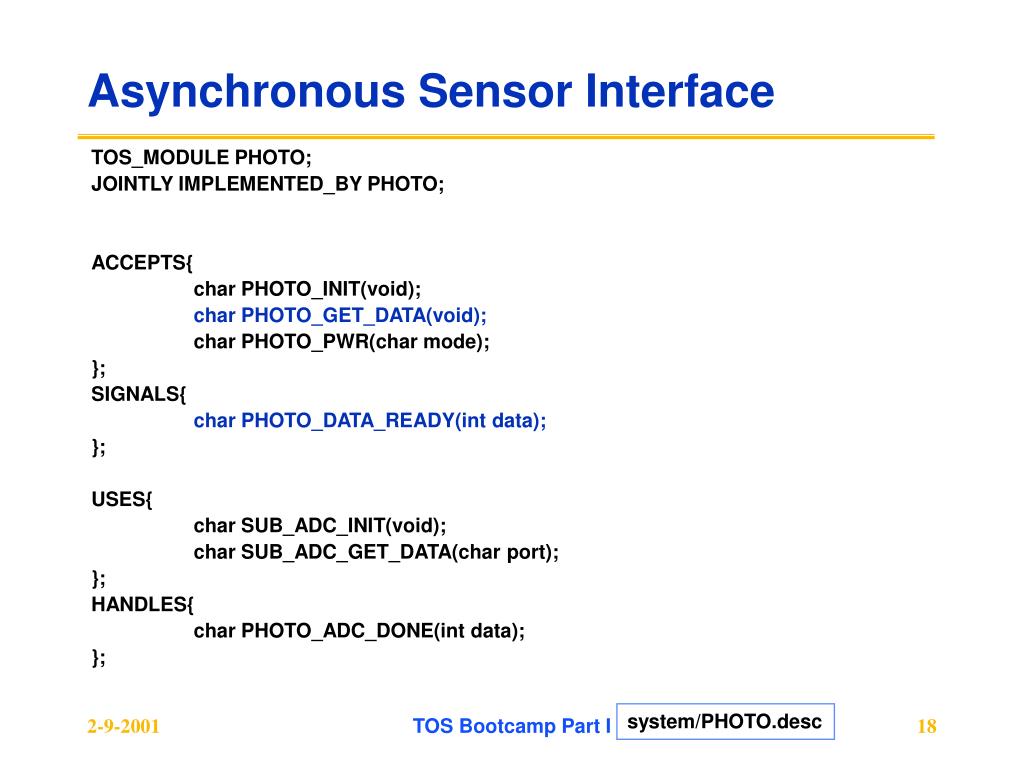

Asynchronous Sensor Interface

TOS_MODULE PHOTO;

JOINTLY IMPLEMENTED_BY PHOTO;

ACCEPTS{

char PHOTO_INIT(void);

char PHOTO_GET_DATA(void);

char PHOTO_PWR(char mode);

};

SIGNALS{

char PHOTO_DATA_READY(int data);

};

USES{

char SUB_ADC_INIT(void);

char SUB_ADC_GET_DATA(char port);

};

HANDLES{

char PHOTO_ADC_DONE(int data);

};

TOS Bootcamp Part I

system/PHOTO.desc

event driven sensor data

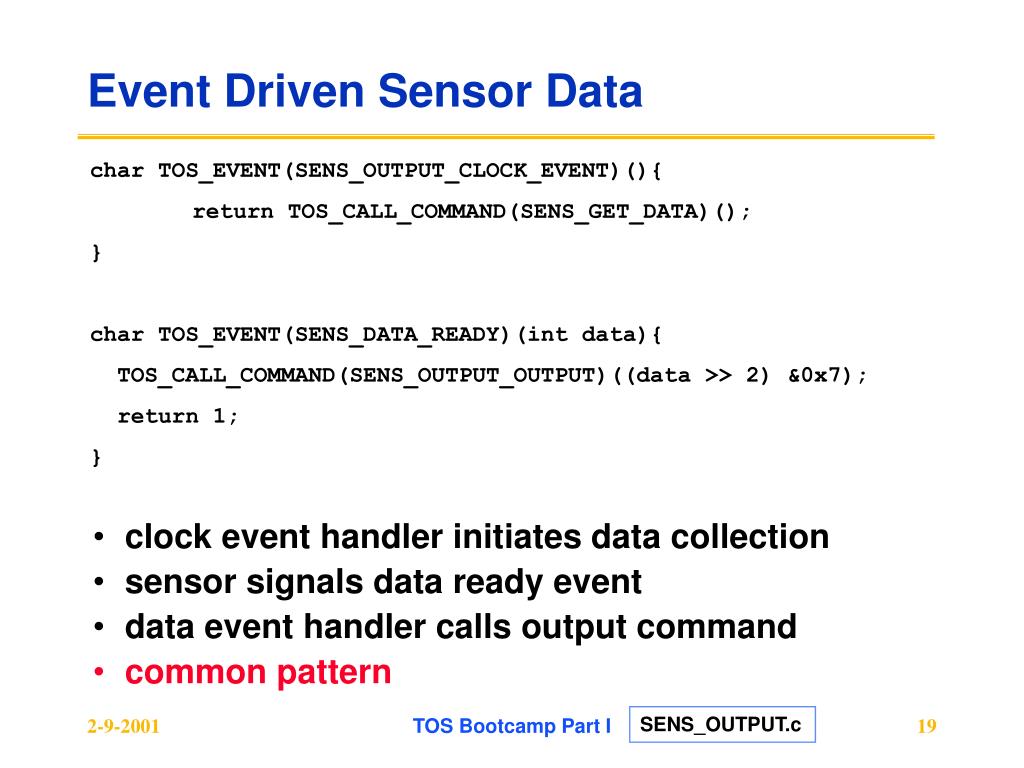

Event Driven Sensor Data

char TOS_EVENT(SENS_OUTPUT_CLOCK_EVENT)(){

return TOS_CALL_COMMAND(SENS_GET_DATA)();

}

char TOS_EVENT(SENS_DATA_READY)(int data){

TOS_CALL_COMMAND(SENS_OUTPUT_OUTPUT)((data >> 2) &0x7);

return 1;

}

  • clock event handler initiates data collection
  • sensor signals data ready event
  • data event handler calls output command
  • common pattern

TOS Bootcamp Part I

SENS_OUTPUT.c

component graph approach

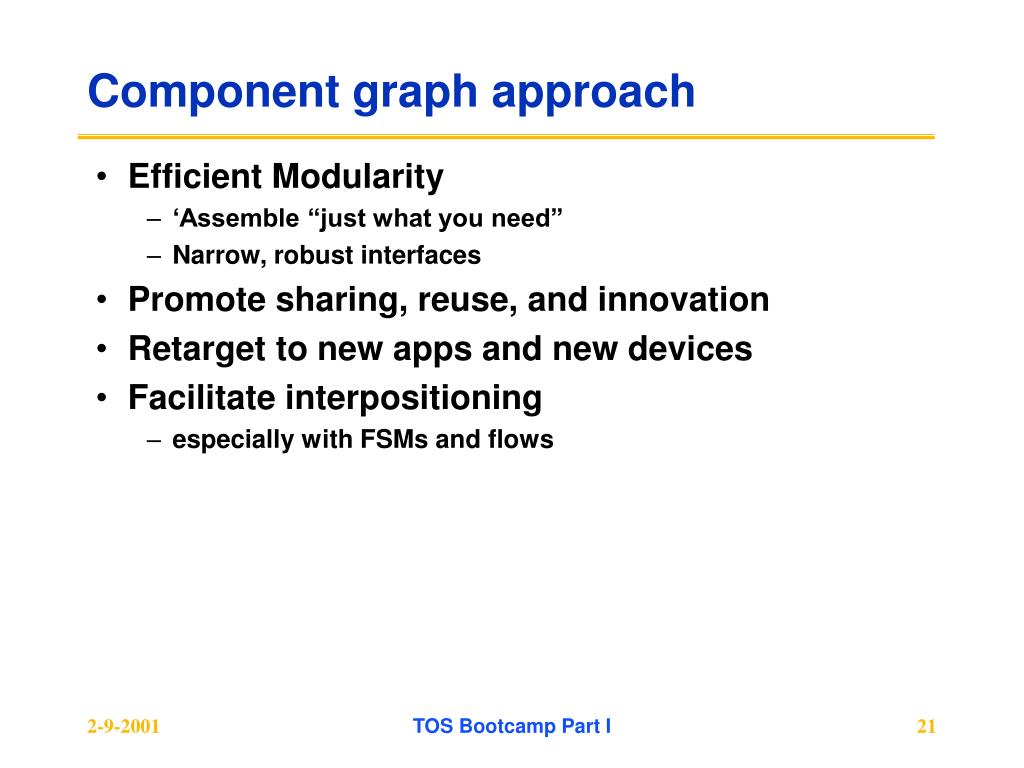

Component graph approach
  • Efficient Modularity
    • ‘Assemble “just what you need”
    • Narrow, robust interfaces
  • Promote sharing, reuse, and innovation
  • Retarget to new apps and new devices
  • Facilitate interpositioning
    • especially with FSMs and flows

TOS Bootcamp Part I

alternative output device

MAIN

COUNTER

CLOCK

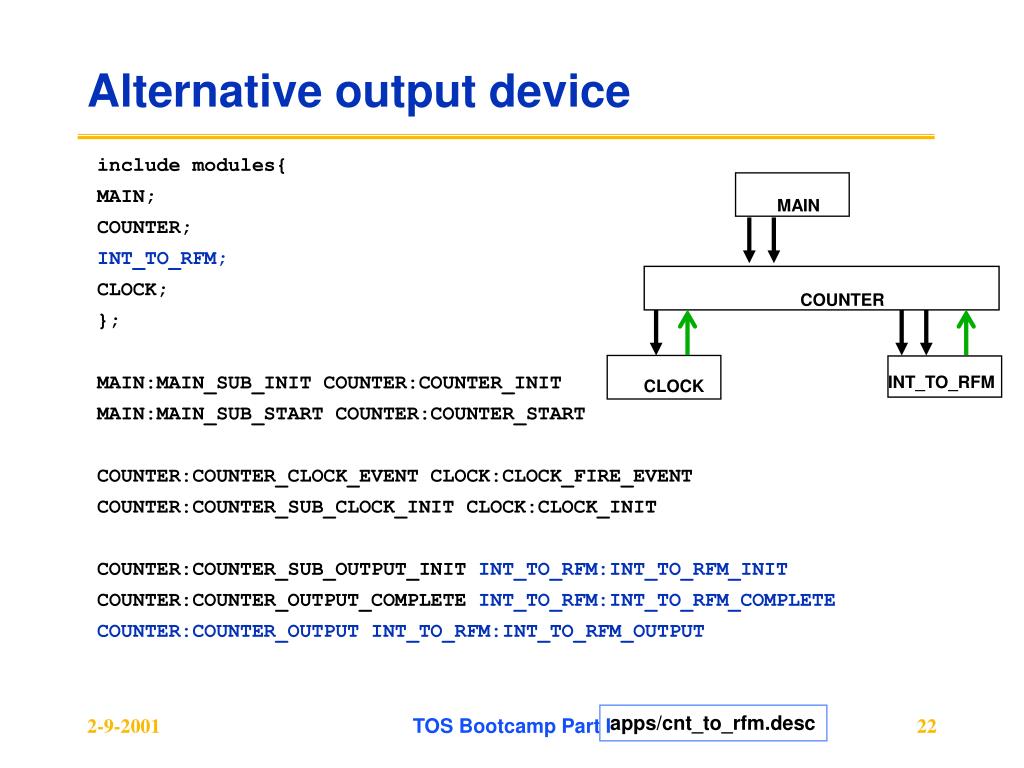

Alternative output device

include modules{

MAIN;

COUNTER;

INT_TO_RFM;

CLOCK;

};

MAIN:MAIN_SUB_INIT COUNTER:COUNTER_INIT

MAIN:MAIN_SUB_START COUNTER:COUNTER_START

COUNTER:COUNTER_CLOCK_EVENT CLOCK:CLOCK_FIRE_EVENT

COUNTER:COUNTER_SUB_CLOCK_INIT CLOCK:CLOCK_INIT

COUNTER:COUNTER_SUB_OUTPUT_INIT INT_TO_RFM:INT_TO_RFM_INIT

COUNTER:COUNTER_OUTPUT_COMPLETE INT_TO_RFM:INT_TO_RFM_COMPLETE

COUNTER:COUNTER_OUTPUT INT_TO_RFM:INT_TO_RFM_OUTPUT

INT_TO_RFM

TOS Bootcamp Part I

apps/cnt_to_rfm.desc

hierarchical components

MAIN

COUNTER

LED

hardware.h

CLOCK

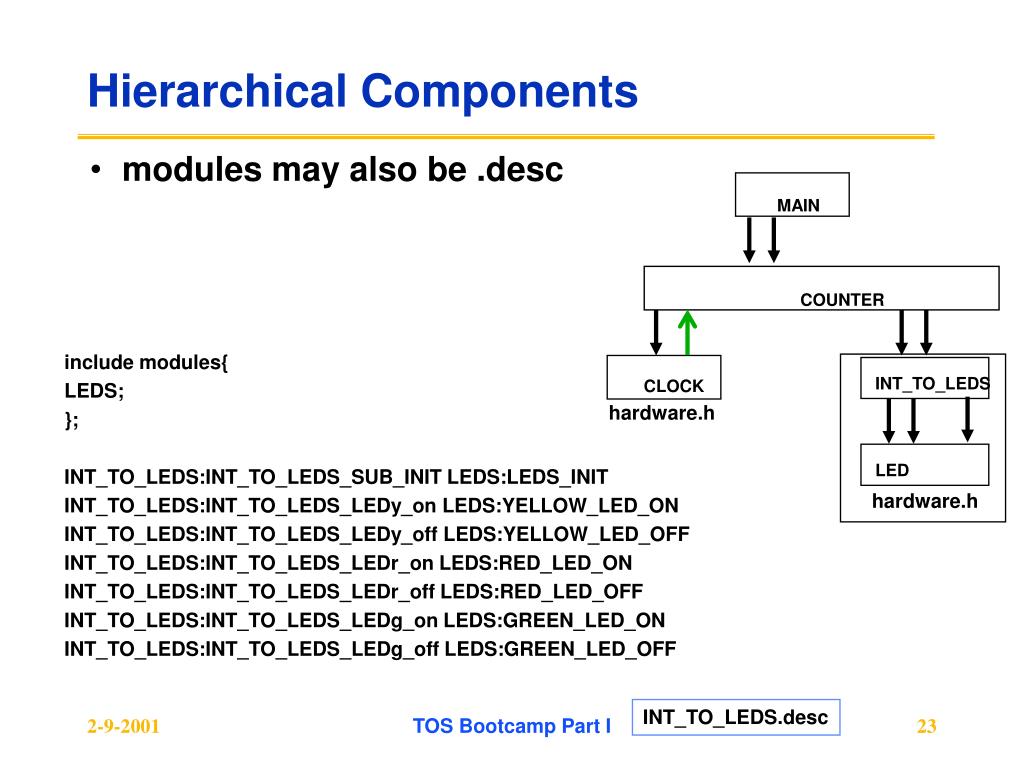

Hierarchical Components
  • modules may also be .desc

include modules{

LEDS;

};

INT_TO_LEDS:INT_TO_LEDS_SUB_INIT LEDS:LEDS_INIT

INT_TO_LEDS:INT_TO_LEDS_LEDy_on LEDS:YELLOW_LED_ON

INT_TO_LEDS:INT_TO_LEDS_LEDy_off LEDS:YELLOW_LED_OFF

INT_TO_LEDS:INT_TO_LEDS_LEDr_on LEDS:RED_LED_ON

INT_TO_LEDS:INT_TO_LEDS_LEDr_off LEDS:RED_LED_OFF

INT_TO_LEDS:INT_TO_LEDS_LEDg_on LEDS:GREEN_LED_ON

INT_TO_LEDS:INT_TO_LEDS_LEDg_off LEDS:GREEN_LED_OFF

INT_TO_LEDS

hardware.h

INT_TO_LEDS.desc

TOS Bootcamp Part I

module with joint description

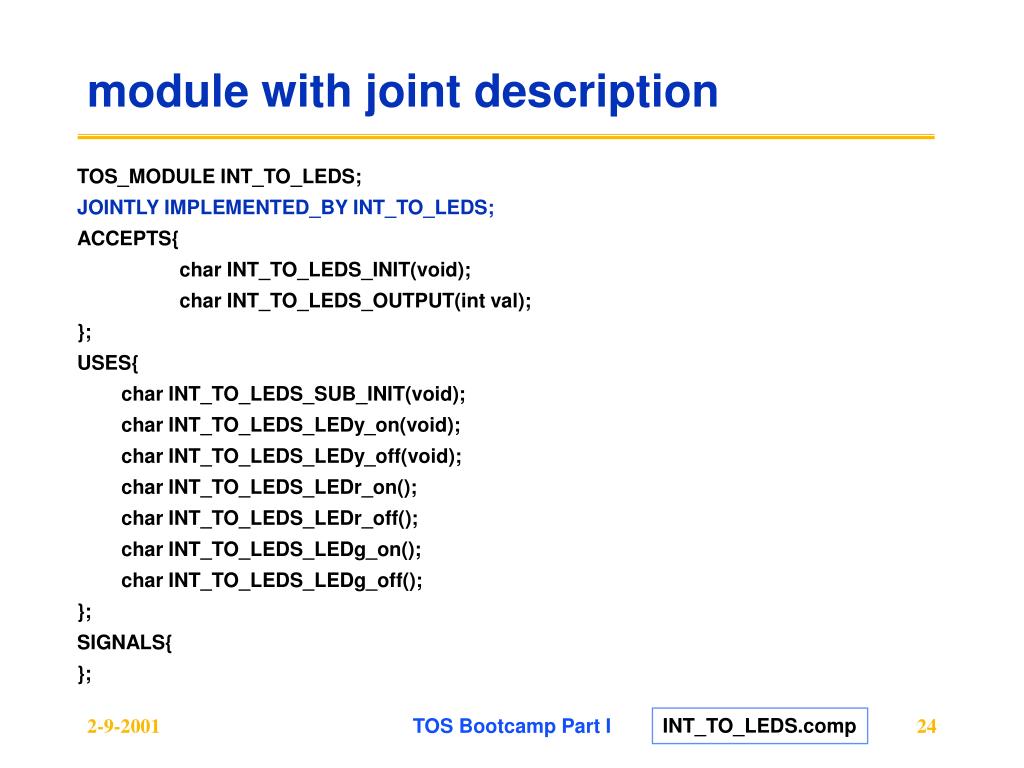

module with joint description

TOS_MODULE INT_TO_LEDS;

JOINTLY IMPLEMENTED_BY INT_TO_LEDS;

ACCEPTS{

char INT_TO_LEDS_INIT(void);

char INT_TO_LEDS_OUTPUT(int val);

};

USES{

char INT_TO_LEDS_SUB_INIT(void);

char INT_TO_LEDS_LEDy_on(void);

char INT_TO_LEDS_LEDy_off(void);

char INT_TO_LEDS_LEDr_on();

char INT_TO_LEDS_LEDr_off();

char INT_TO_LEDS_LEDg_on();

char INT_TO_LEDS_LEDg_off();

};

SIGNALS{

};

TOS Bootcamp Part I

INT_TO_LEDS.comp

more involved example comm graph

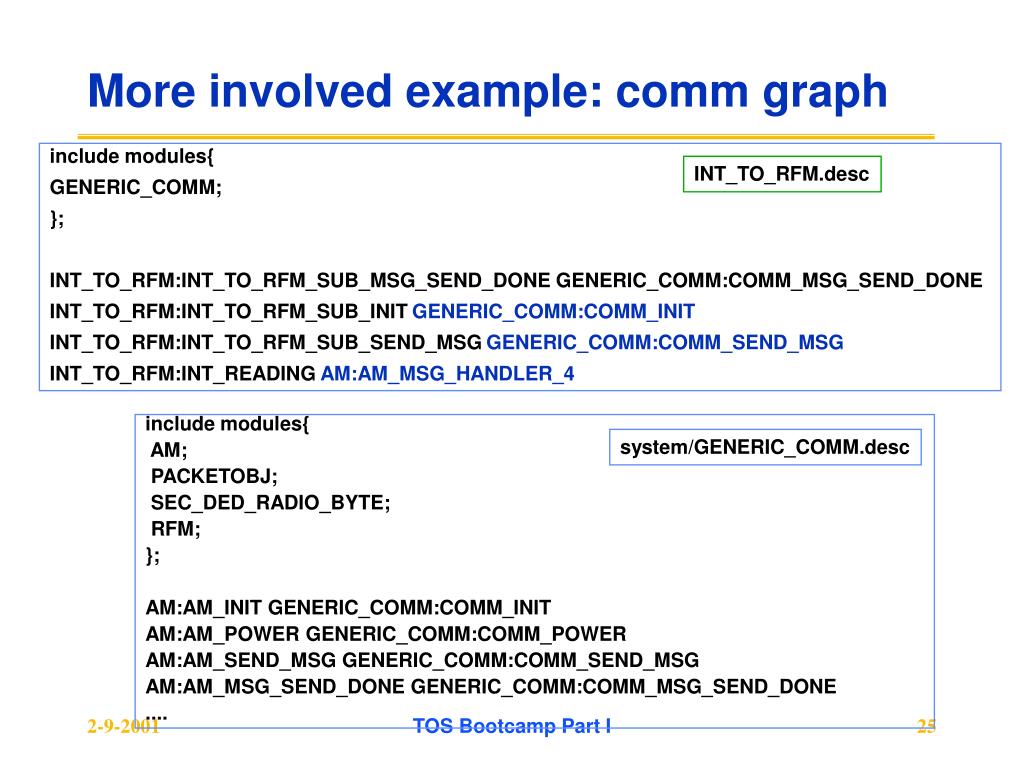

More involved example: comm graph

include modules{

GENERIC_COMM;

};

INT_TO_RFM:INT_TO_RFM_SUB_MSG_SEND_DONE GENERIC_COMM:COMM_MSG_SEND_DONE

INT_TO_RFM:INT_TO_RFM_SUB_INIT GENERIC_COMM:COMM_INIT

INT_TO_RFM:INT_TO_RFM_SUB_SEND_MSG GENERIC_COMM:COMM_SEND_MSG

INT_TO_RFM:INT_READING AM:AM_MSG_HANDLER_4

INT_TO_RFM.desc

include modules{

AM;

PACKETOBJ;

SEC_DED_RADIO_BYTE;

RFM;

};

AM:AM_INIT GENERIC_COMM:COMM_INIT

AM:AM_POWER GENERIC_COMM:COMM_POWER

AM:AM_SEND_MSG GENERIC_COMM:COMM_SEND_MSG

AM:AM_MSG_SEND_DONE GENERIC_COMM:COMM_MSG_SEND_DONE

....

system/GENERIC_COMM.desc

TOS Bootcamp Part I

cnt to rfm desc expanded

MAIN

CLOCK

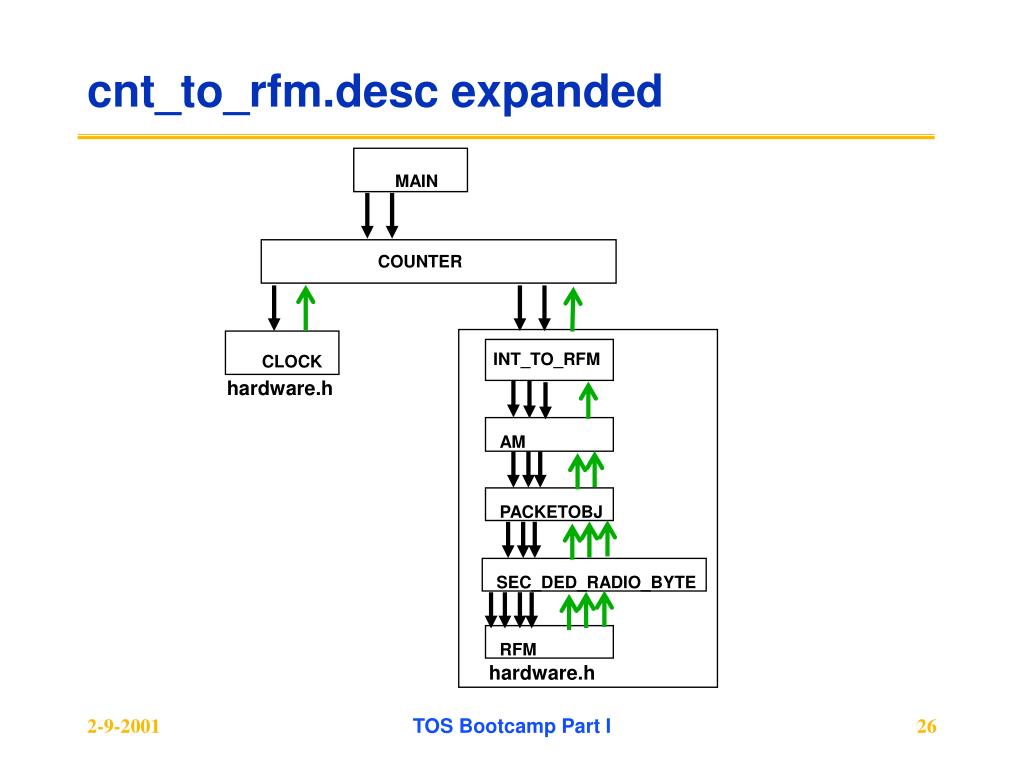

cnt_to_rfm.desc expanded

COUNTER

INT_TO_RFM

hardware.h

AM

PACKETOBJ

SEC_DED_RADIO_BYTE

RFM

hardware.h

TOS Bootcamp Part I

communication
Communication

TOS Bootcamp Part I

sending an active message

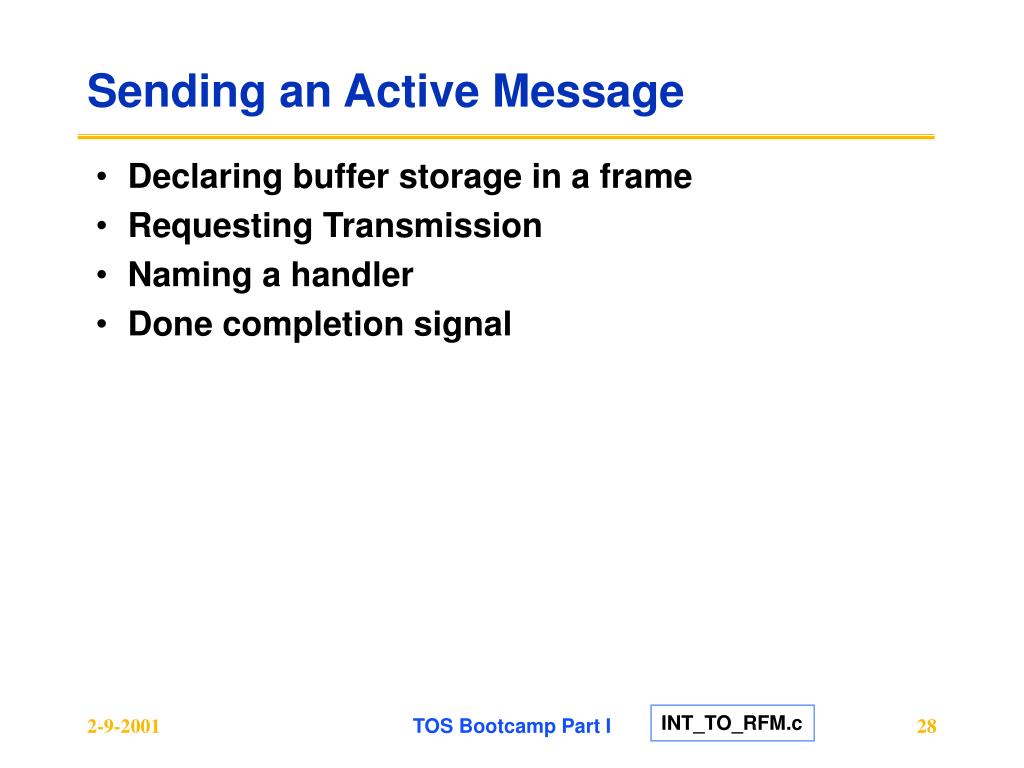

Sending an Active Message
  • Declaring buffer storage in a frame
  • Requesting Transmission
  • Naming a handler
  • Done completion signal

TOS Bootcamp Part I

INT_TO_RFM.c

message storage
Message Storage
  • Component that originates message provides buffer
  • TOS_Msg type provides header and trailer wrapper, so copies are avoided
  • Application data referenced as msg.data

TOS_FRAME_BEGIN(INT_TO_RFM_frame) {

char pending;

TOS_Msg msg;

}

TOS_FRAME_END(INT_TO_RFM_frame);

typedef struct{

char val;

} int_to_led_msg;

INT_TO_RFM.c

TOS Bootcamp Part I

send message

access appln msg buffer

cast to defined format

application specific ready check

build msg

request transmission

destination identifier

get handler identifier

mark busy

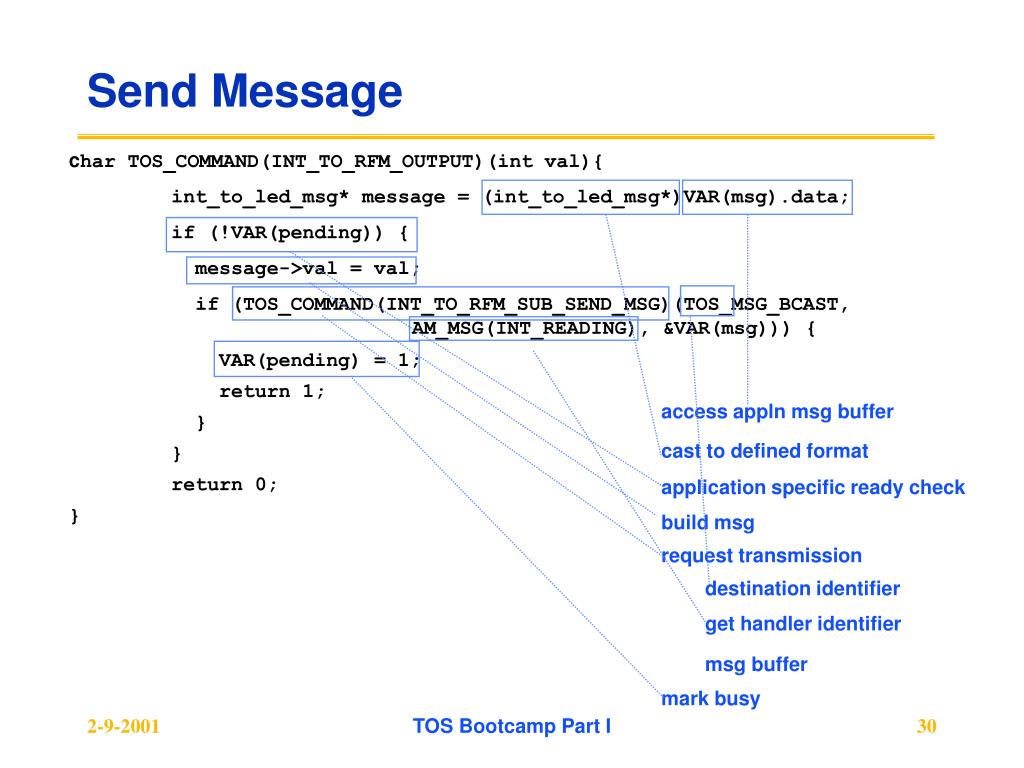

Send Message

char TOS_COMMAND(INT_TO_RFM_OUTPUT)(int val){

int_to_led_msg* message = (int_to_led_msg*)VAR(msg).data;

if (!VAR(pending)) {

message->val = val;

if (TOS_COMMAND(INT_TO_RFM_SUB_SEND_MSG)(TOS_MSG_BCAST, AM_MSG(INT_READING), &VAR(msg))) {

VAR(pending) = 1;

return 1;

}

}

return 0;

}

msg buffer

TOS Bootcamp Part I

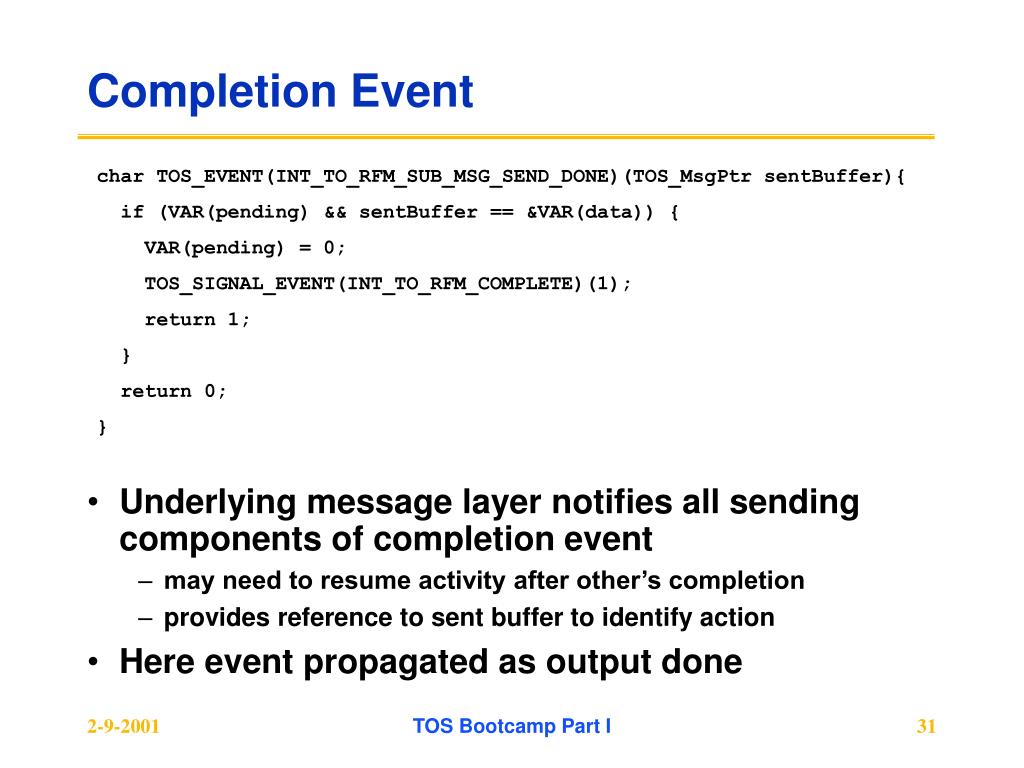

completion event
Completion Event
  • Underlying message layer notifies all sending components of completion event
    • may need to resume activity after other’s completion
    • provides reference to sent buffer to identify action
  • Here event propagated as output done

char TOS_EVENT(INT_TO_RFM_SUB_MSG_SEND_DONE)(TOS_MsgPtr sentBuffer){

if (VAR(pending) && sentBuffer == &VAR(data)) {

VAR(pending) = 0;

TOS_SIGNAL_EVENT(INT_TO_RFM_COMPLETE)(1);

return 1;

}

return 0;

}

TOS Bootcamp Part I

handling active messages

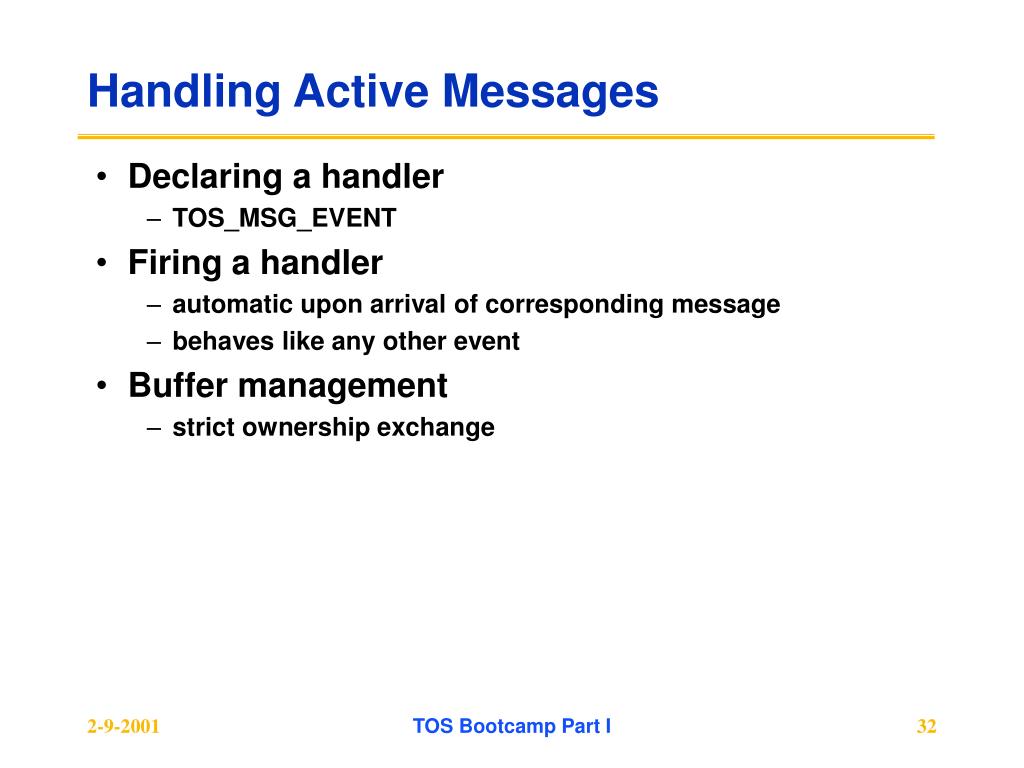

Handling Active Messages
  • Declaring a handler
    • TOS_MSG_EVENT
  • Firing a handler
    • automatic upon arrival of corresponding message
    • behaves like any other event
  • Buffer management
    • strict ownership exchange

TOS Bootcamp Part I

declaring a handler

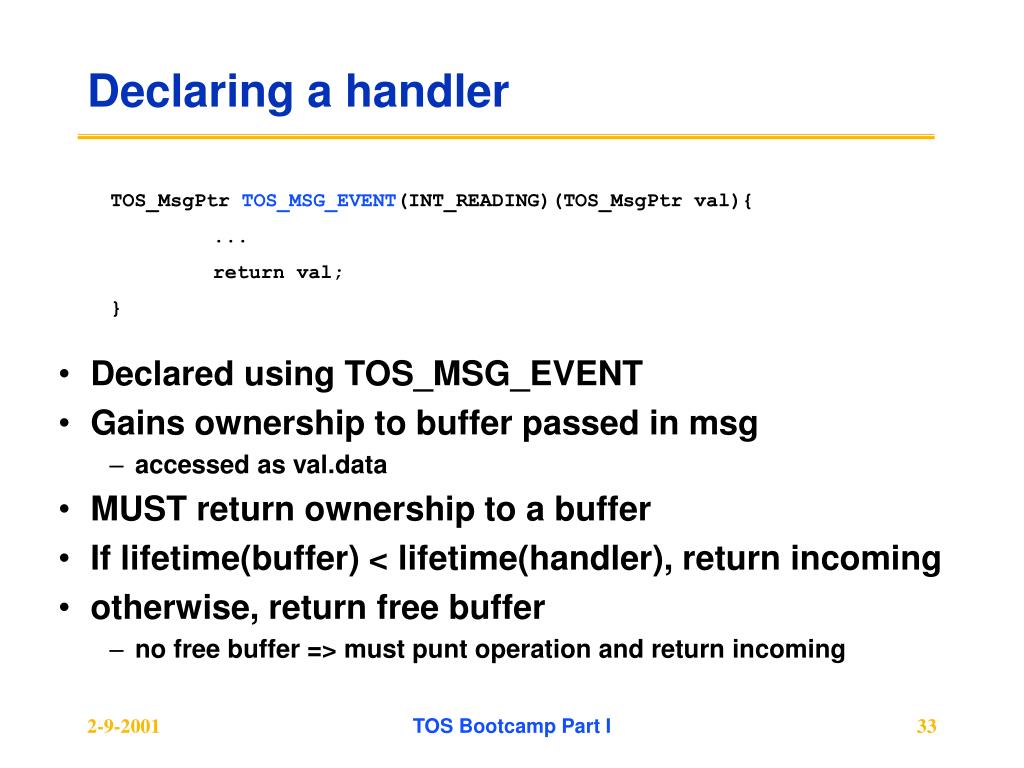

Declaring a handler
  • Declared using TOS_MSG_EVENT
  • Gains ownership to buffer passed in msg
    • accessed as val.data
  • MUST return ownership to a buffer
  • If lifetime(buffer) < lifetime(handler), return incoming
  • otherwise, return free buffer
    • no free buffer => must punt operation and return incoming

TOS_MsgPtr TOS_MSG_EVENT(INT_READING)(TOS_MsgPtr val){

...

return val;

}

TOS Bootcamp Part I

assigning a active message id
Assigning a Active Message Id

include modules{

GENERIC_COMM;

};

INT_TO_RFM:INT_TO_RFM_SUB_MSG_SEND_DONE GENERIC_COMM:COMM_MSG_SEND_DONE

INT_TO_RFM:INT_TO_RFM_SUB_INIT GENERIC_COMM:COMM_INIT

INT_TO_RFM:INT_TO_RFM_SUB_SEND_MSG GENERIC_COMM:COMM_SEND_MSG

INT_TO_RFM:INT_READING AM:AM_MSG_HANDLER_4

  • Application .desc binds named handler to AM_MSG_HANDLER_x

INT_TO_RFM.desc

TOS Bootcamp Part I

another example

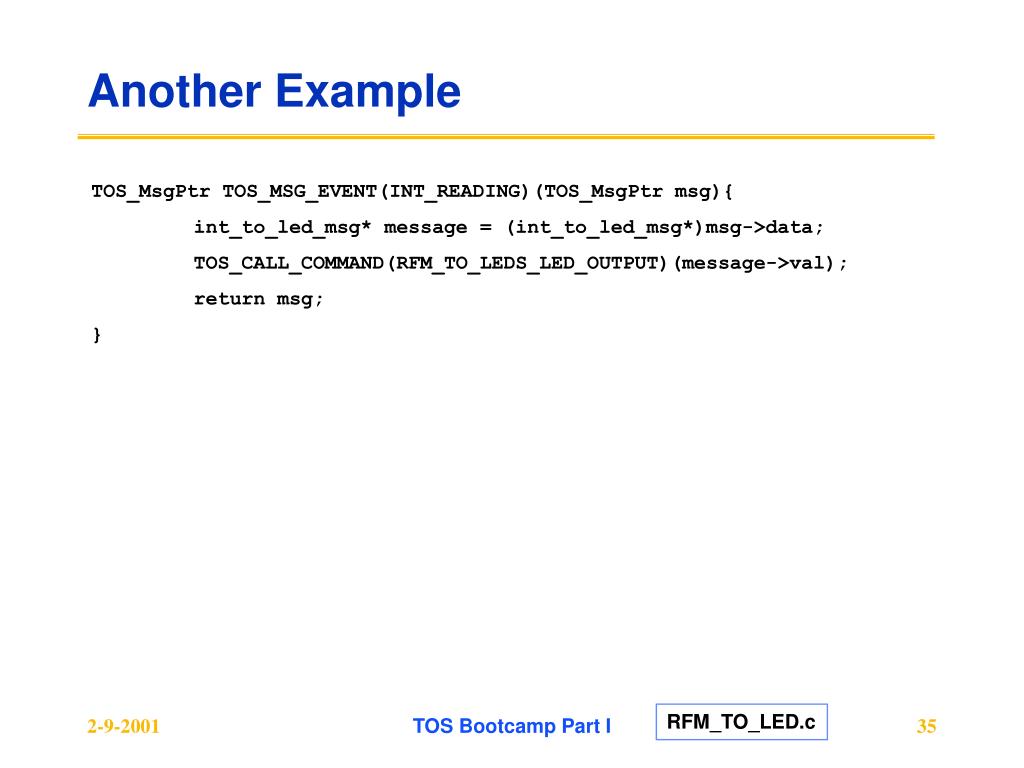

Another Example

TOS_MsgPtr TOS_MSG_EVENT(INT_READING)(TOS_MsgPtr msg){

int_to_led_msg* message = (int_to_led_msg*)msg->data;

TOS_CALL_COMMAND(RFM_TO_LEDS_LED_OUTPUT)(message->val);

return msg;

}

TOS Bootcamp Part I

RFM_TO_LED.c

composition summary

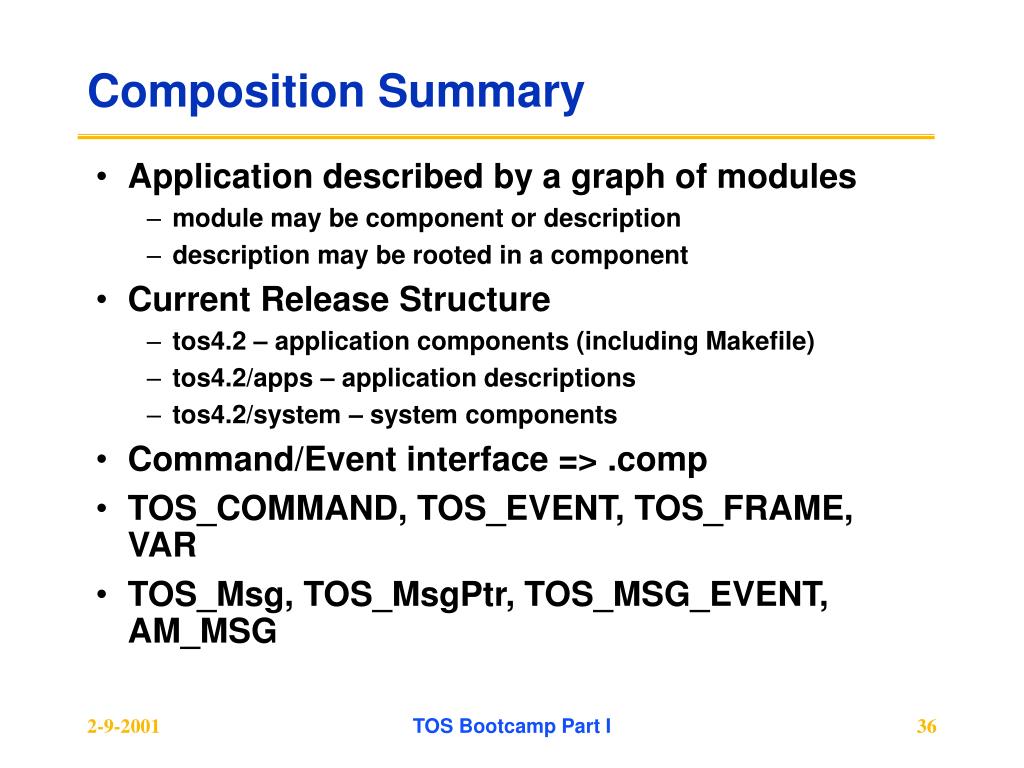

Composition Summary
  • Application described by a graph of modules
    • module may be component or description
    • description may be rooted in a component
  • Current Release Structure
    • tos4.2 – application components (including Makefile)
    • tos4.2/apps – application descriptions
    • tos4.2/system – system components
  • Command/Event interface => .comp
  • TOS_COMMAND, TOS_EVENT, TOS_FRAME, VAR
  • TOS_Msg, TOS_MsgPtr, TOS_MSG_EVENT, AM_MSG

TOS Bootcamp Part I

hands on exercises for part i
Hands-On Exercises for Part I
  • Basic communication
    • Build node as cnt_to_rfm
    • Build 2nd node as rfm_to_led
    • Convince yourself that the two work
    • set aside the rfm_to_led node
  • Basic Sensor
    • Build node as sens_to_leds
    • convince yourself that it works.
  • Build your own sens_to_rfm.desc
    • turn on the rfm_to_led node
    • demonstrate a working wireless, distributed sensor
    • hint1: .desc files are enough
    • hint2: build sens_to_led_and_rfm.desc to debug

TOS Bootcamp Part I
