peripheral joint mobilization

Peripheral joint mobilization

Made by Sajida Mazhar

joint mobilization

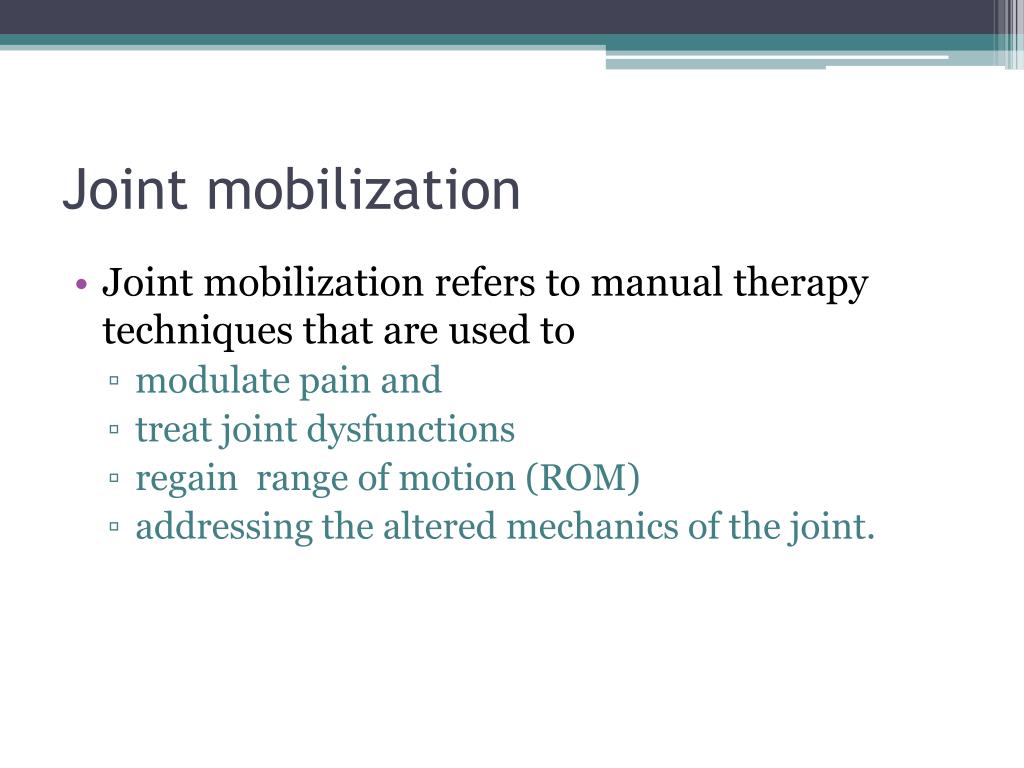

Joint mobilization
  • Joint mobilization refers to manual therapy techniques that are used to
    • modulate pain and
    • treat joint dysfunctions
    • regain range of motion (ROM)
    • addressing the altered mechanics of the joint.

The altered joint mechanics may be due to

    • pain
    • muscle guarding
    • joint effusion
    • Contractures
    • adhesions in the joint capsules
    • Adhesions in supporting ligaments
    • Malalignment
    • subluxation of the bony surfaces
joint mobilization1

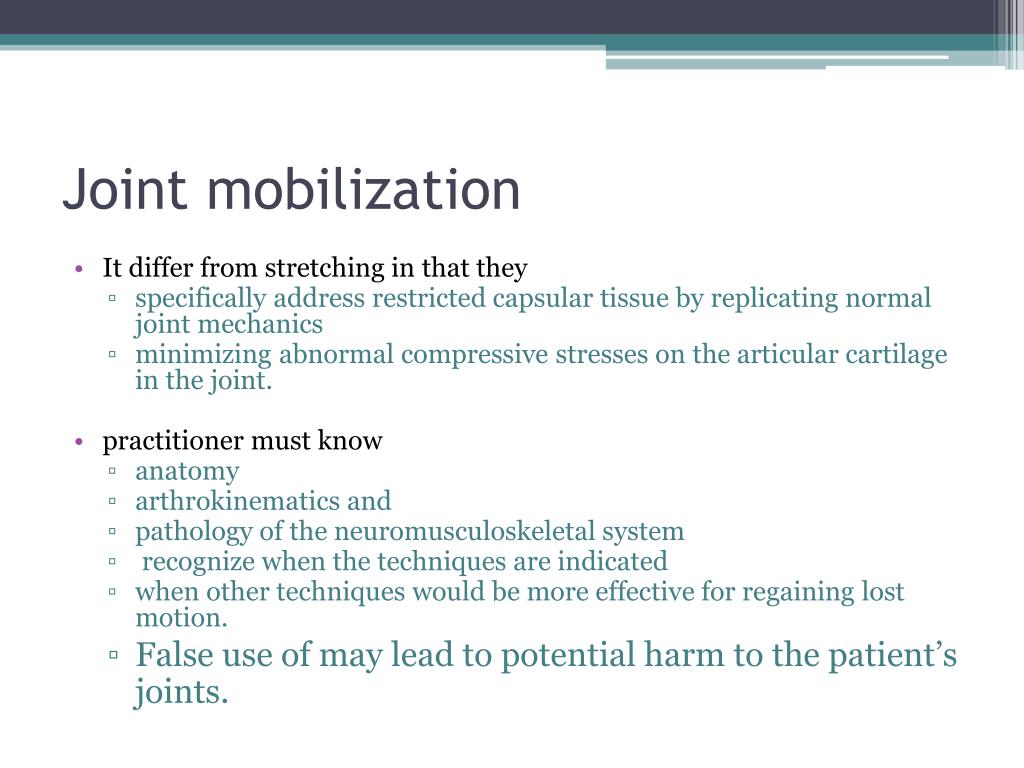

Joint mobilization
  • It differ from stretching in that they
    • specifically address restricted capsular tissue by replicating normal joint mechanics
    • minimizing abnormal compressive stresses on the articular cartilage in the joint.
  • practitioner must know
    • anatomy
    • arthrokinematics and
    • pathology of the neuromusculoskeletal system
    • recognize when the techniques are indicated
    • when other techniques would be more effective for regaining lost motion.
    • False use of may lead to potential harm to the patient’s joints.
mobilization manipulation

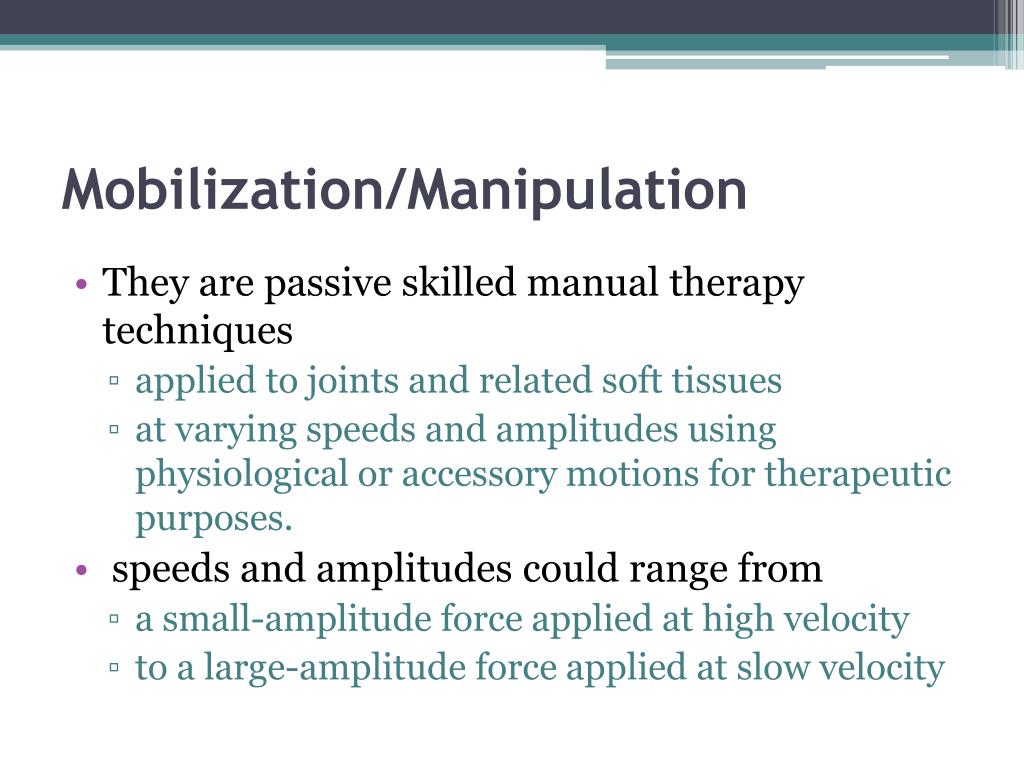

  • They are passive skilled manual therapy techniques
    • applied to joints and related soft tissues
    • at varying speeds and amplitudes using physiological or accessory motions for therapeutic purposes.
  • speeds and amplitudes could range from
    • a small-amplitude force applied at high velocity
    • to a large-amplitude force applied at slow velocity
self mobilization auto mobilization

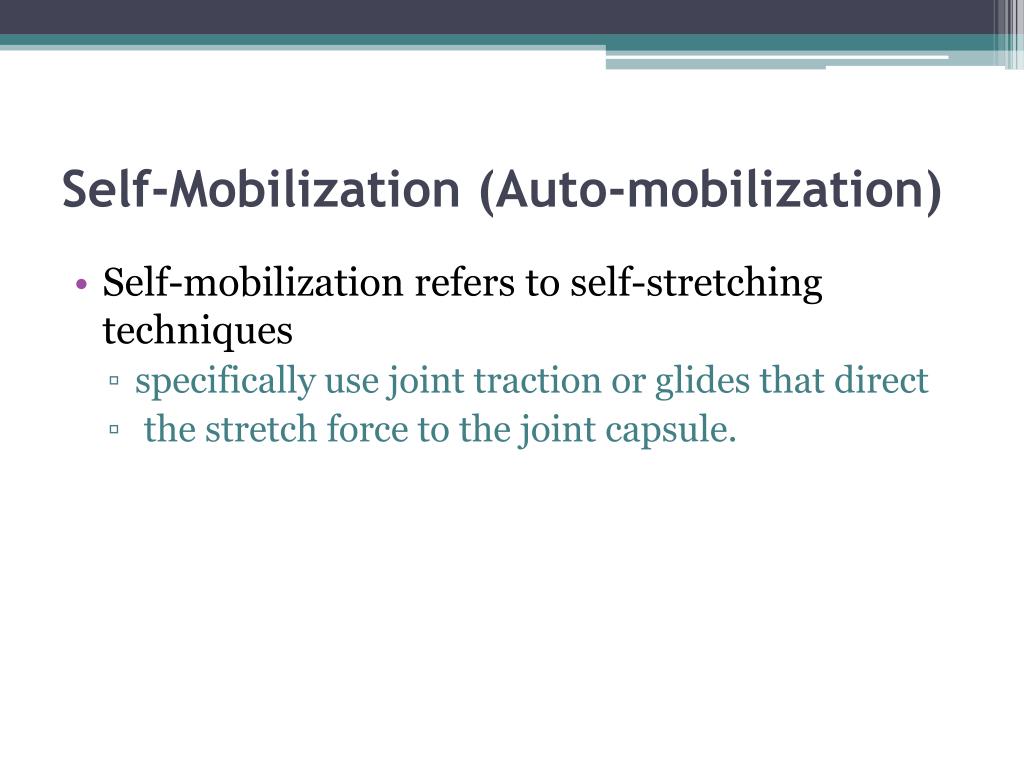

Self-Mobilization (Auto-mobilization)
  • Self-mobilization refers to self-stretching techniques
    • specifically use joint traction or glides that direct
    • the stretch force to the joint capsule.
mobilization with movement
Mobilization with Movement
  • Mobilization with movement (MWM) is
    • accessory mobilization Applied by a therapist
    • an active physiological movement to end range applied by the patient

The techniques are always applied in

    • a pain-free direction and
    • described as correcting joint tracking from a positional fault
physiological movements
Physiological Movements
  • Physiological movements are movements the patient can do voluntarily
  • (e.g., the classic or traditional movements,
  • such as flexion, abduction, and rotation)
  • term osteokinematics is used for these
accessory movements
Accessory Movements
  • Accessory movements are movements in the joint and surrounding tissues
    • that are necessary for normal ROM
    • cannot be actively performed by the patient.
  • Component motions
    • Accompany active motion
    • but are not under voluntary control.
    • E.g. motions such as upward rotation of the scapula and rotation of the clavicle, which occur with shoulder flexion, ext rotation of the tibia in knee extension.
accessory movements1
Accessory Movements
  • joint play.
    • the motions that occur between the joint surfaces
    • the distensibility or “give” in the joint capsule
    • necessary for normal joint functioning through the ROM
    • Demonstrated passively
    • but they cannot be performed actively
    • The movements include
      • distraction,
      • Sliding,
      • compression,
      • rolling,
      • spinning of the joint surfaces.
  • The term arthrokinematics is used for these motions
  • Thrust is a high-velocity,
    • short-amplitude motion
    • that the patient cannot prevent the motion.
    • The motion is performed at the end of the pathological limit (end of the available ROM when there is restriction.)
  • Is alter positional relationships
    • snap adhesions,
    • stimulate joint receptors.
manipulation under anesthesia

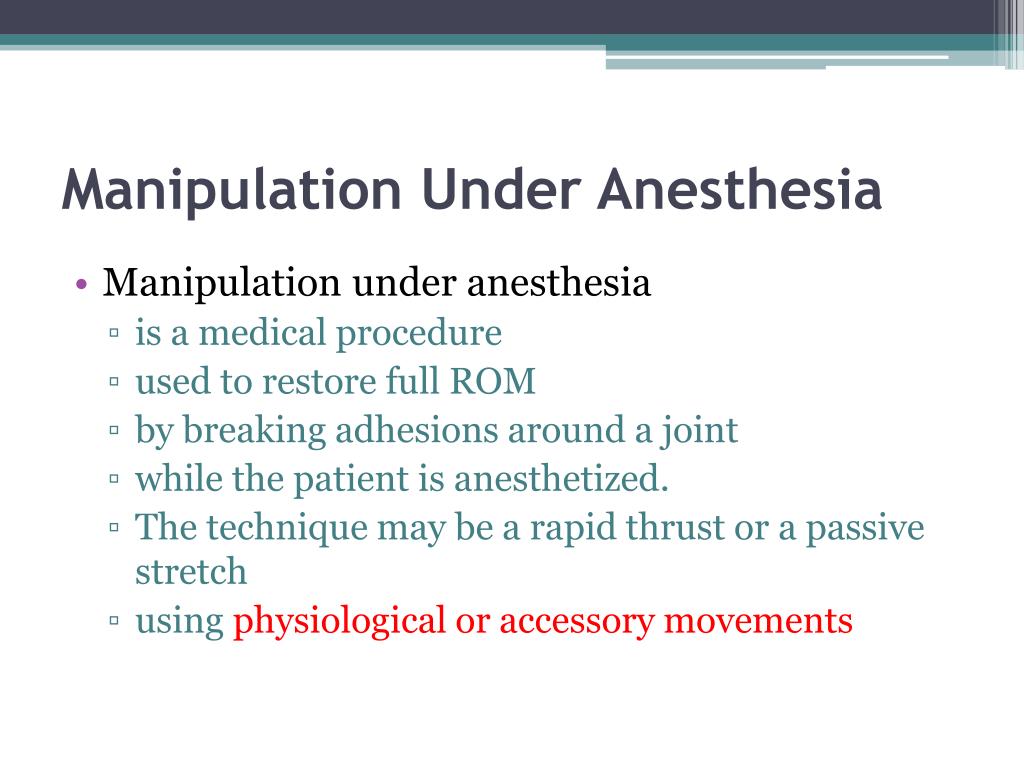

Manipulation Under Anesthesia
  • Manipulation under anesthesia
    • is a medical procedure
    • used to restore full ROM
    • by breaking adhesions around a joint
    • while the patient is anesthetized.
    • The technique may be a rapid thrust or a passive stretch
    • using physiological or accessory movements
muscle energy
Muscle Energy
  • Muscle energy techniques use
    • active contraction of deep muscles that attach near the joint and
    • whose line of pull can cause the desired accessory motion.
    • The therapist stabilize the segment on which the distal aspect of the muscle attaches.
    • A command for an isometric contraction of the muscle, that causes accessory movement of the joint

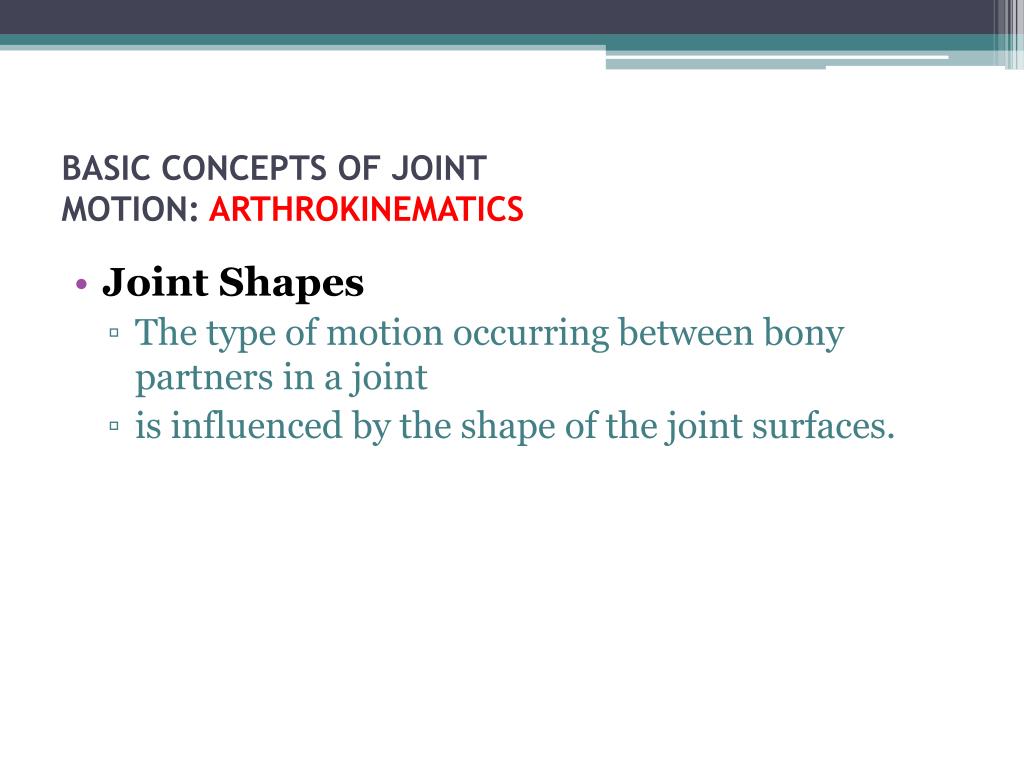

basic concepts of joint motion arthrokinematics
  • Joint Shapes
    • The type of motion occurring between bony partners in a joint
    • is influenced by the shape of the joint surfaces.
joint shapes

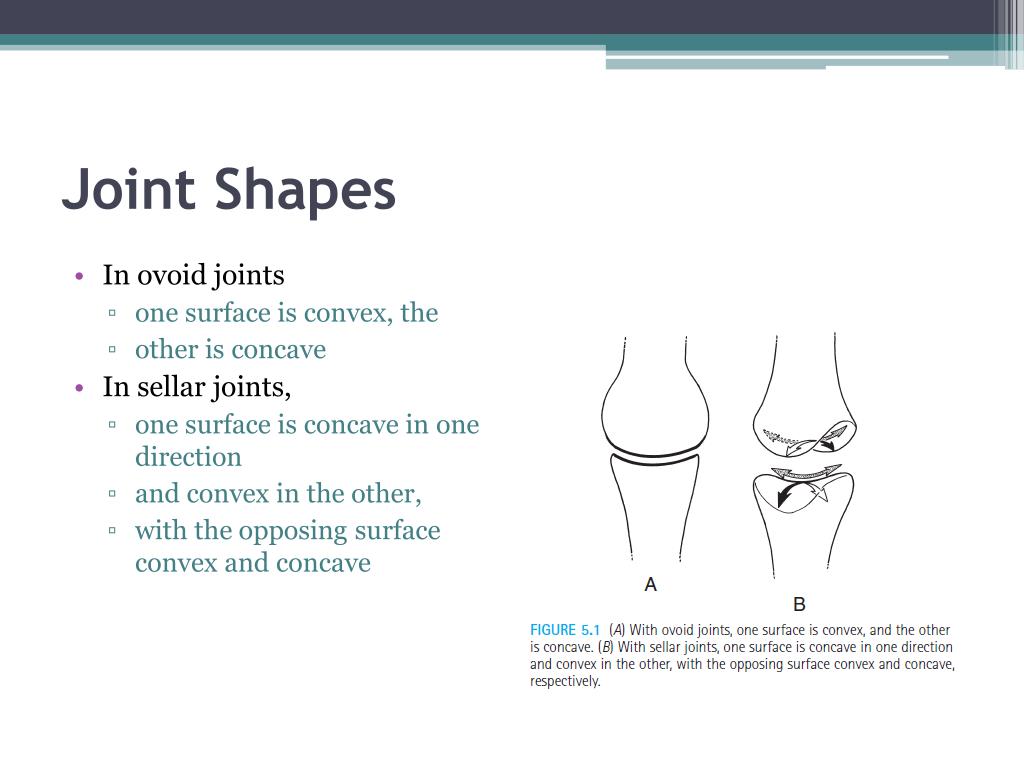

Joint Shapes
  • In ovoid joints
    • one surface is convex, the
    • other is concave
  • In sellar joints,
    • one surface is concave in one direction
    • and convex in the other,
    • with the opposing surface convex and concave
types of motion

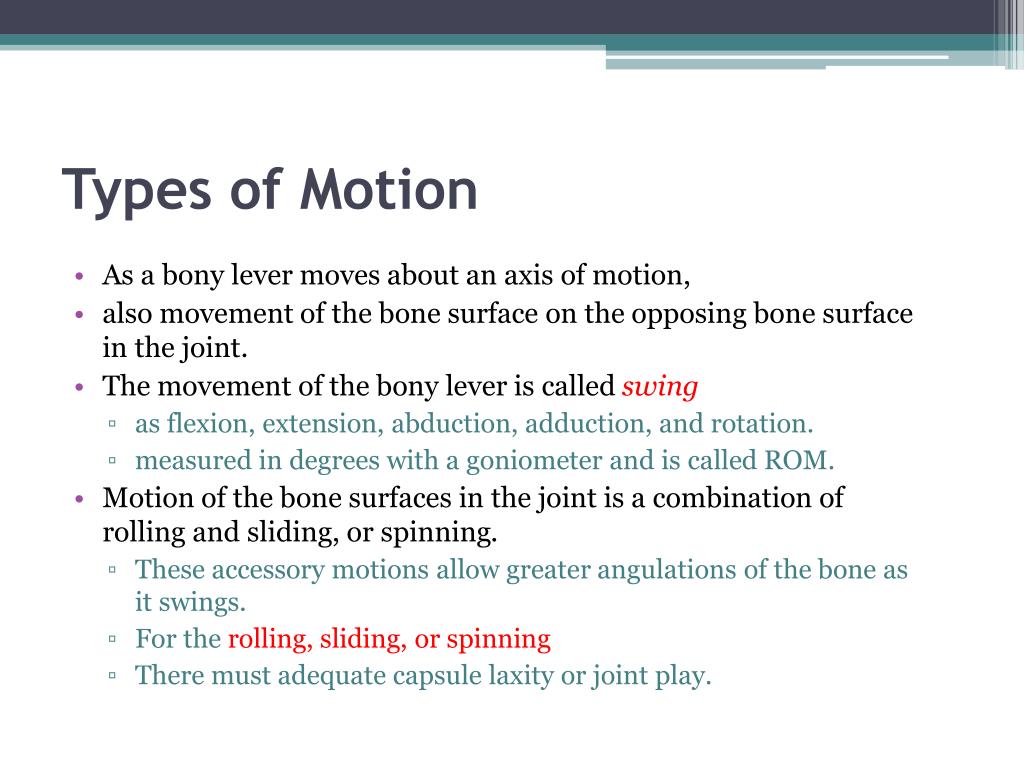

Types of Motion
  • As a bony lever moves about an axis of motion,
  • also movement of the bone surface on the opposing bone surface in the joint.
  • The movement of the bony lever is called swing
    • as flexion, extension, abduction, adduction, and rotation.
    • measured in degrees with a goniometer and is called ROM.
  • Motion of the bone surfaces in the joint is a combination of rolling and sliding, or spinning.
    • These accessory motions allow greater angulations of the bone as it swings.
    • For the rolling, sliding, or spinning
    • There must adequate capsule laxity or joint play.
types of motion1
Types of Motion
  • Roll
  • Characteristics of one bone rolling on another are as follows.
  • The surfaces are incongruent.
  • New points on one surface meet new points on the opposing surface.
  • Rolling results in angular motion of the bone (swing).
  • Rolling is always in the same direction as the swinging bone motion whether the surface is convex or concave.

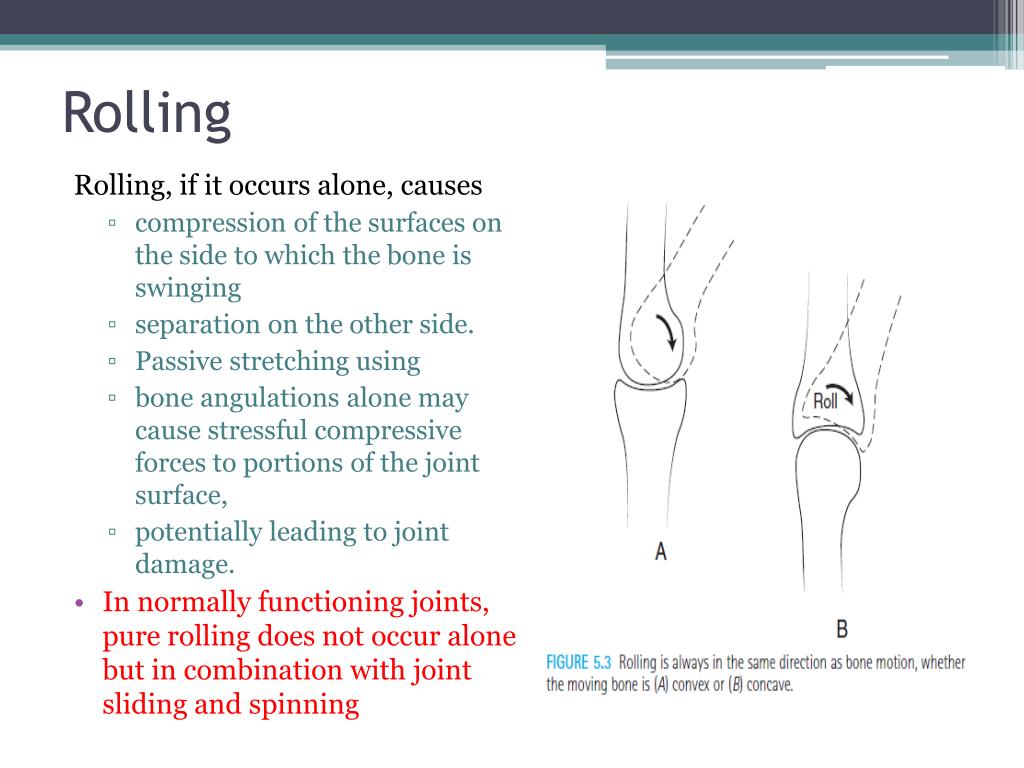

Rolling, if it occurs alone, causes

    • compression of the surfaces on the side to which the bone is swinging
    • separation on the other side.
    • Passive stretching using
    • bone angulations alone may cause stressful compressive forces to portions of the joint surface,
    • potentially leading to joint damage.
  • In normally functioning joints, pure rolling does not occur alone but in combination with joint sliding and spinning
slide translation


Characteristics of one bone sliding (translating) across another include the following.

  • For a pure slide, the surfaces must be congruent, either
  • Flat or curved
  • The same point on one surface comes into contact with
  • the new points on the opposing surface.
slide translation1
  • Pure sliding does not occur in joints
  • because the surfaces are not completely congruent.
  • The direction in which sliding occurs depends on
  • whether the moving surface is concave or convex.
  • Sliding is in the opposite direction of the angular movement of the bone if the moving joint surface is convex.
  • Sliding is in the same direction
  • as the angular movement of the bone
  • if the moving surface is concave.
combined roll sliding in a joint
Combined Roll-Sliding in a Joint
  • The more congruent the joint surfaces are, the more sliding
  • The more incongruent the joint surfaces are, the more rolling


  • There is rotation of a segment about a stationary mechanical axis
  • The same point on the moving surface creates an arc of a circle as the bone spins

Spinning rarely occurs alone in joints but

  • in combination
  • with rolling and sliding.
  • Three examples of spin occurring in joints of the body
  • are the shoulder with flexion/extension, the hip with
  • flexion/extension, and the radiohumeral joint with
  • pronation/supination
other accessory motions
Other Accessory Motions
  • Compression
  • Compression is the decrease in the joint space between
  • bony partners.
    • weight bearing jts
    • With muscle contration (stabilization)
    • With rolling
  • help move synovial fluid and thus help maintain cartilage health.
  • Abnormally high loads may lead
  • articular cartilage changes and deterioration

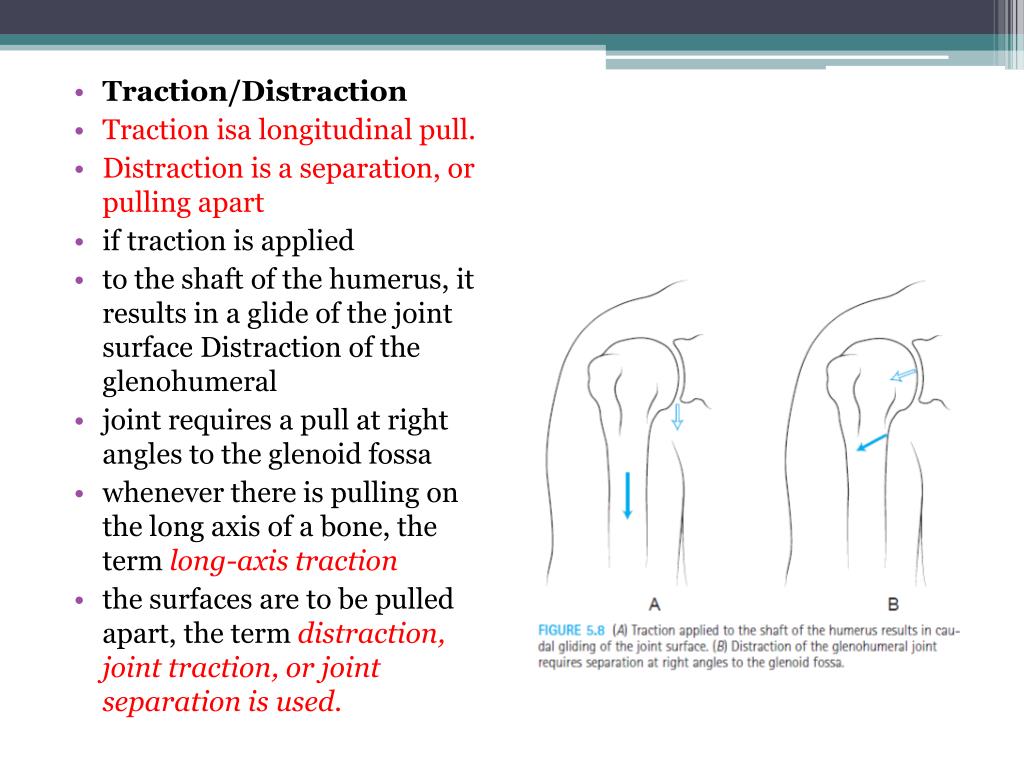

  • Traction isa longitudinal pull.
  • Distraction is a separation, or pulling apart
  • if traction is applied
  • to the shaft of the humerus, it results in a glide of the joint surface Distraction of the glenohumeral
  • joint requires a pull at right angles to the glenoid fossa
  • whenever there is pulling on the long axis of a bone, the term long-axis traction
  • the surfaces are to be pulled apart, the term distraction, joint traction, or joint separation is used.
open and close pack position
Open and close pack position

Position patient in a relaxed, distracted, supported position so the joint capsule is lax (loose(open)-packed position).

Close-packed position is one in which there is maximal contact of the articulating surfaces.

10 simple steps

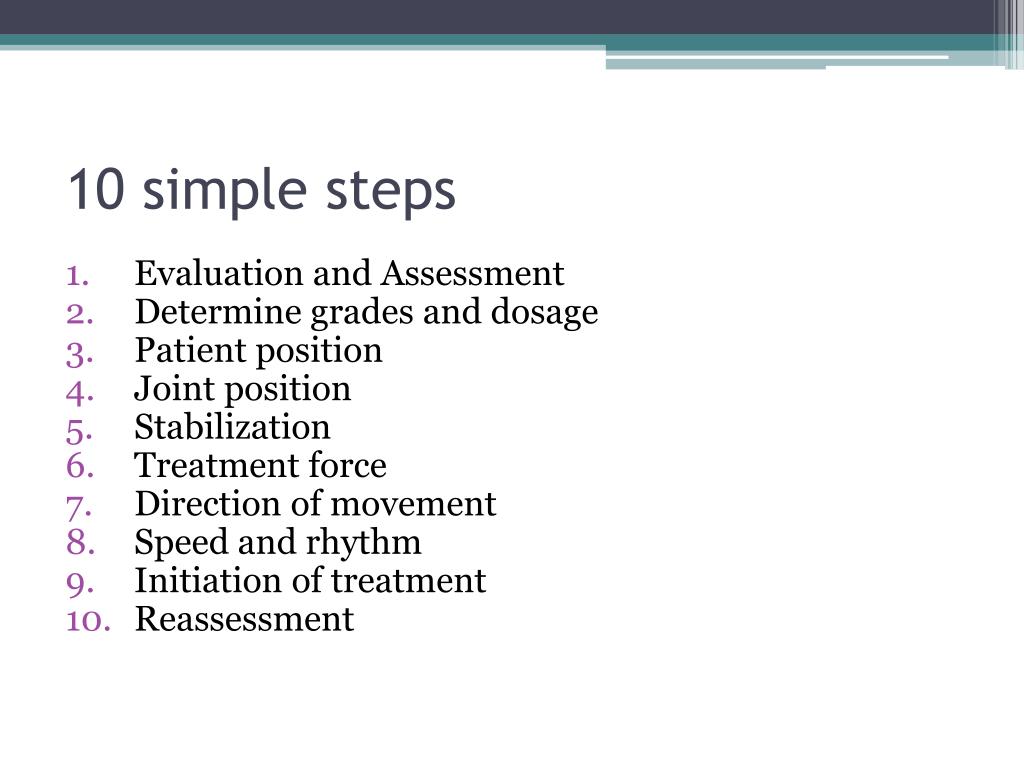

10 simple steps
  • Evaluation and Assessment
  • Determine grades and dosage
  • Patient position
  • Joint position
  • Stabilization
  • Treatment force
  • Direction of movement
  • Speed and rhythm
  • Initiation of treatment
  • Reassessment
grades of oscillations maitland
Grades of Oscillations (Maitland)
  • Grade I - small amplitude movement at the beginning of the range (pain and spasm)
  • Grade II - large amplitude movement within the midrange of the movement (pain and spasm)
  • Grade III - large amplitude movement at the end of the range (into restriction)
  • Grade IV - small amplitude movement at end range when tissue resistance (not pain) is limiting
  • Grade V - small amplitude, quick thrust manipulation at end range-
indications for joint mobilization
  • Pain, Muscle Guarding, and Spasm
    • Painful joints, reflex muscle guarding, and muscle spasm treated gentle joint-play techniques to stimulate neurophysiological and mechanical effects
  • neurophysiological and mechanical effects
    • stimulate the mechanoreceptors
    • Inhibit nociceptive stimuli
  • mechanical effects
    • Synovial fluid motion provide neutrients to jts

The small-amplitude joint techniques used to

  • treat pain, muscle guarding, or muscle spasm should not
  • place stretch on the reactive tissues

Reversible Joint Hypomobility

    • joint-play stretching techniques to elongate
    • hypomobile capsular and ligamentous connective tissue
  • Positional Faults/Subluxations
    • Malposition / regain ROM
    • realign the bony partners
  • Progressive Limitation
    • Diseases that progressively limit movement can be treated with joint-play
  • Functional Immobility
    • Patient functionaly imobile
contraindications and precautions
  • Hypermobility
  • Joint Effusion
  • Inflammation
conditions requiring special precautions for stretching
Conditions Requiring SpecialPrecautions for Stretching
  • Malignancy
  • Bone disease detectable on radiographs
  • Unhealed fracture
  • Excessive pain
  • Hypermobility in associated joints
  • Total joint replacements
  • Newly formed or weakened connective tissue
  • Systemic connective tissue diseases such as rheumatoid
  • Elderly individuals
