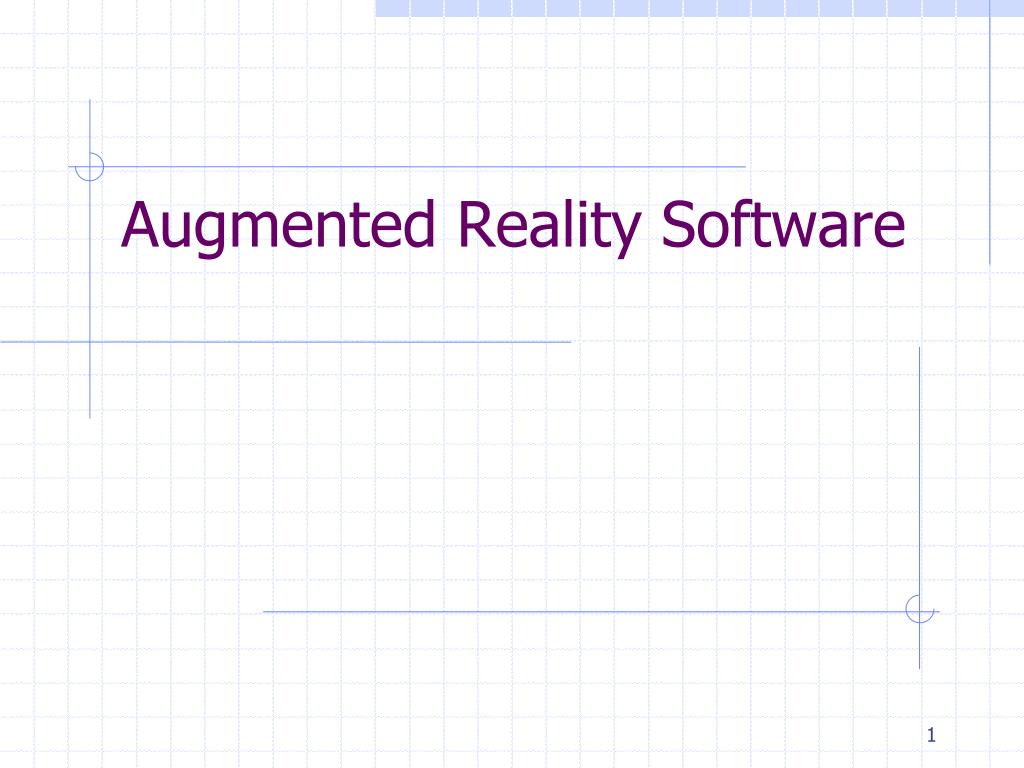

  1. Augmented Reality Software

  2. Outline • Augmented Reality (AR) defined • Types of AR • Expectations • Challenges • Demo Clips • Applications • ARToolKit • Demo • Questions

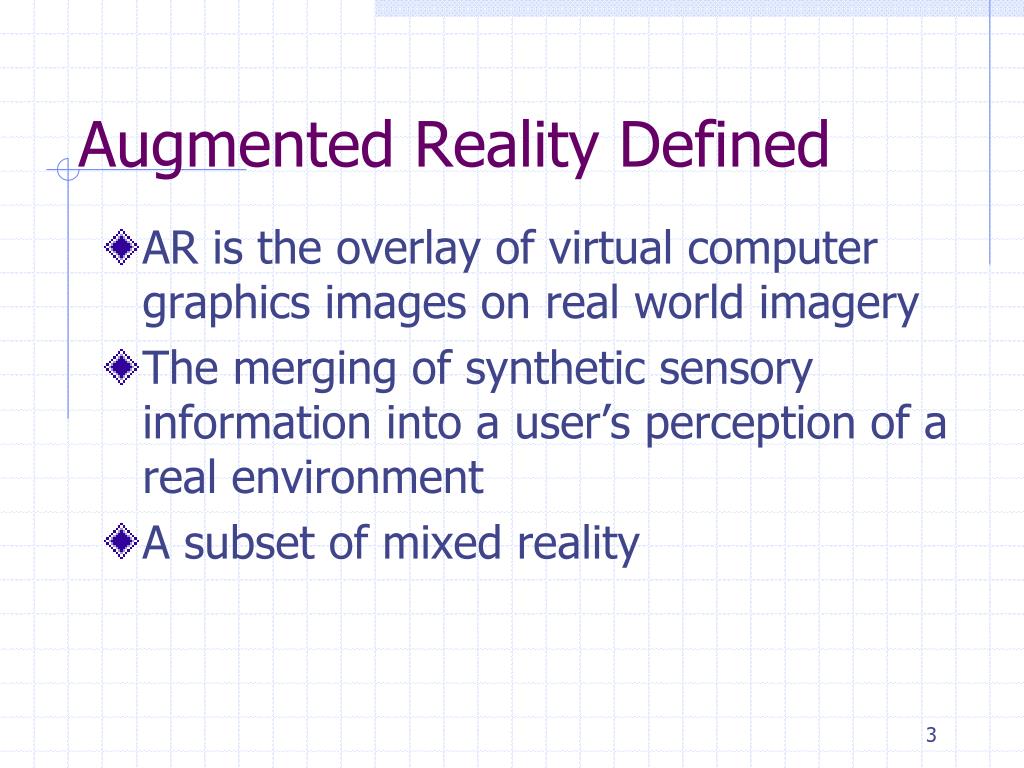

  3. Augmented Reality Defined • AR is the overlay of virtual computer graphics images on real world imagery • The merging of synthetic sensory information into a user’s perception of a real environment • A subset of mixed reality

  4. Types of Augmented Reality • Video see-through AR: virtual images are overlaid on live video of the real world and then presented to the user • Optical see-through AR: computer graphics are overlaid or cast onto a view of the real world • Typically requires a see-through head-mounted display (HMD)

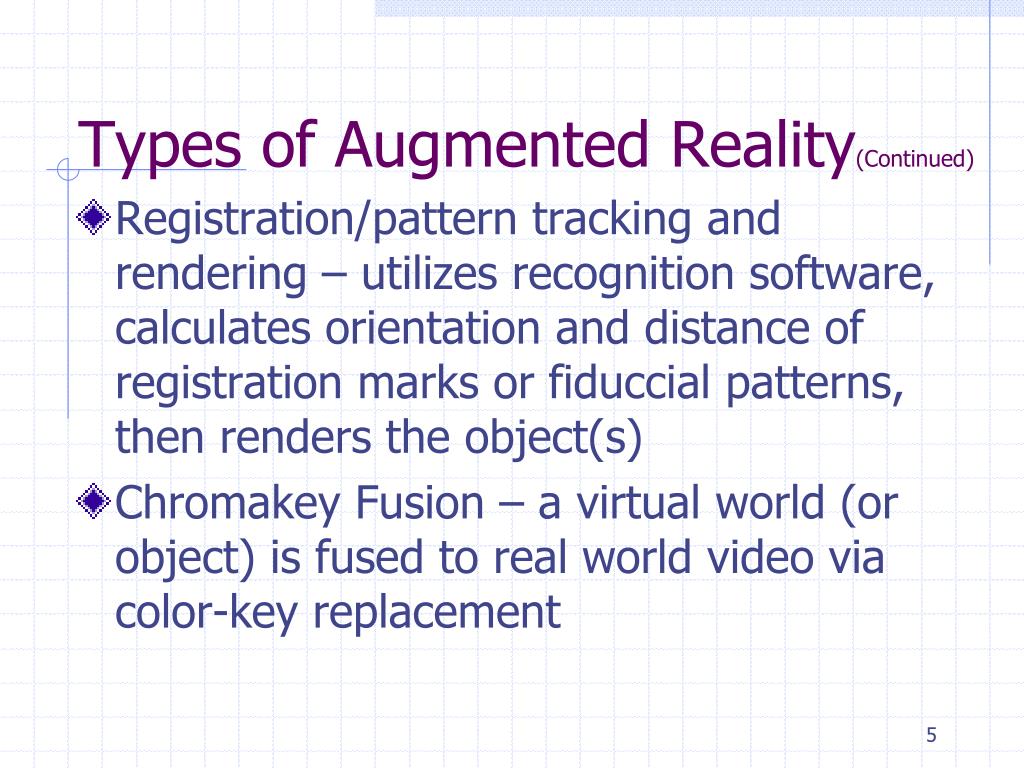

  5. Types of Augmented Reality(Continued) • Registration/pattern tracking and rendering – utilizes recognition software, calculates orientation and distance of registration marks or fiduccial patterns, then renders the object(s) • Chromakey Fusion – a virtual world (or object) is fused to real world video via color-key replacement

  6. Expectations (Some) • Near natural 3D perception of virtual objects or images in a real world setting, rendered in near real time • Fusion – achieving exact alignment when rendering virtual images with real world objects • Occlusion between real and virtual objects • Translucence of real and virtual objects

  7. Expectations (Some more) • Shadows cast upon real and virtual objects • Virtual object animations • Virtual object interactivity • Grasping/selecting/manipulating virtual objects • Collision detection between real and virtual objects • Modifying virtual object geometry and or appearance • Examples: dissection, compression, stretching, compounding, inscribing, etc.

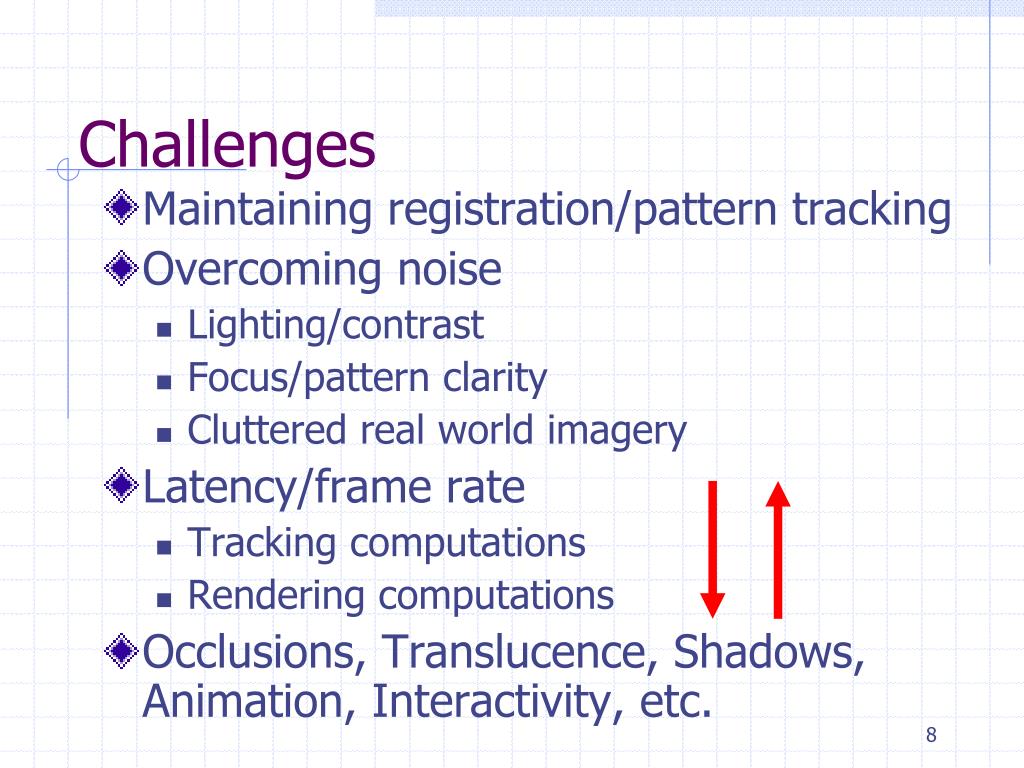

  8. Challenges • Maintaining registration/pattern tracking • Overcoming noise • Lighting/contrast • Focus/pattern clarity • Cluttered real world imagery • Latency/frame rate • Tracking computations • Rendering computations • Occlusions, Translucence, Shadows, Animation, Interactivity, etc.

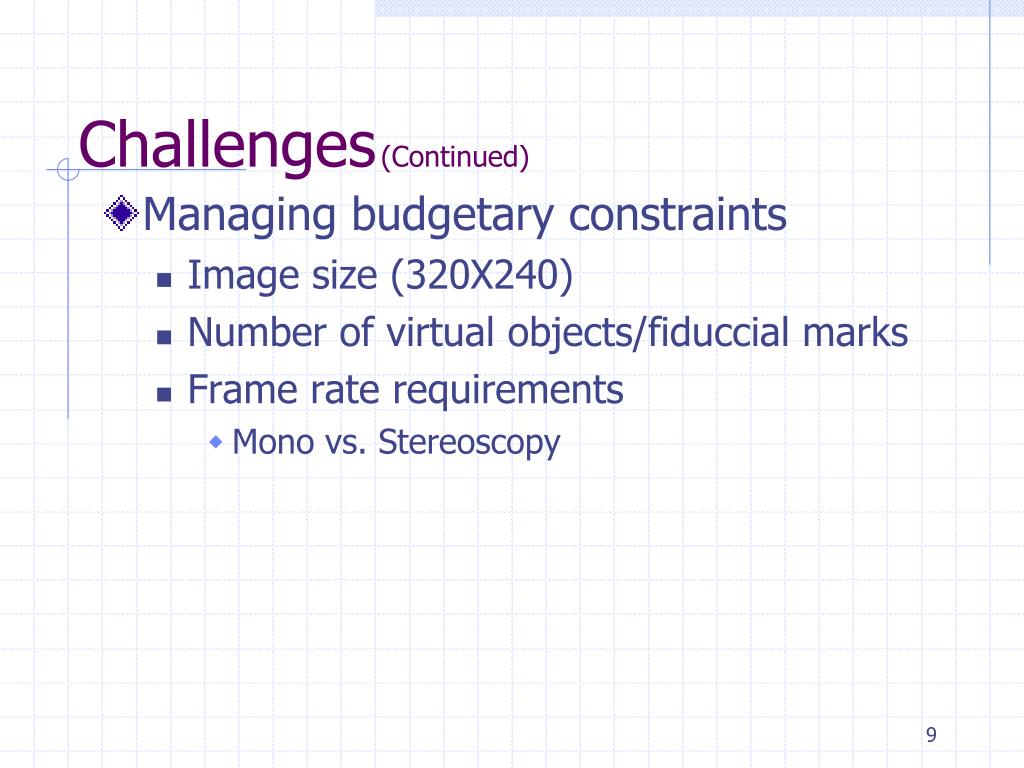

  9. Challenges(Continued) • Managing budgetary constraints • Image size (320X240) • Number of virtual objects/fiduccial marks • Frame rate requirements • Mono vs. Stereoscopy

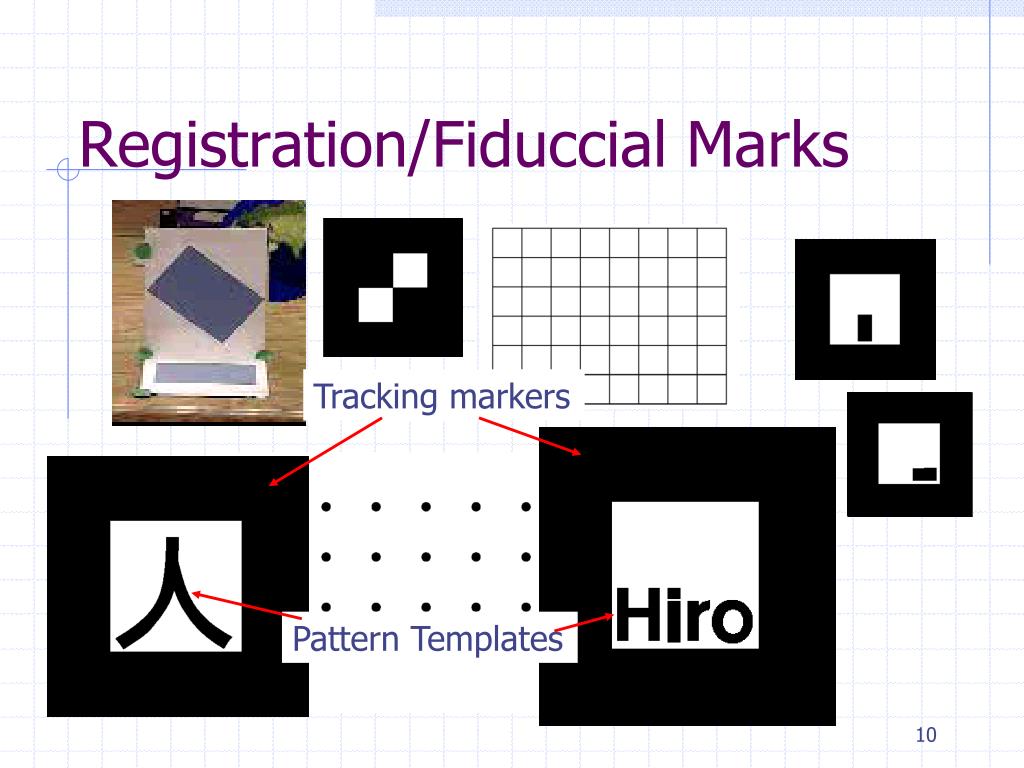

  10. Tracking markers Pattern Templates Registration/Fiduccial Marks

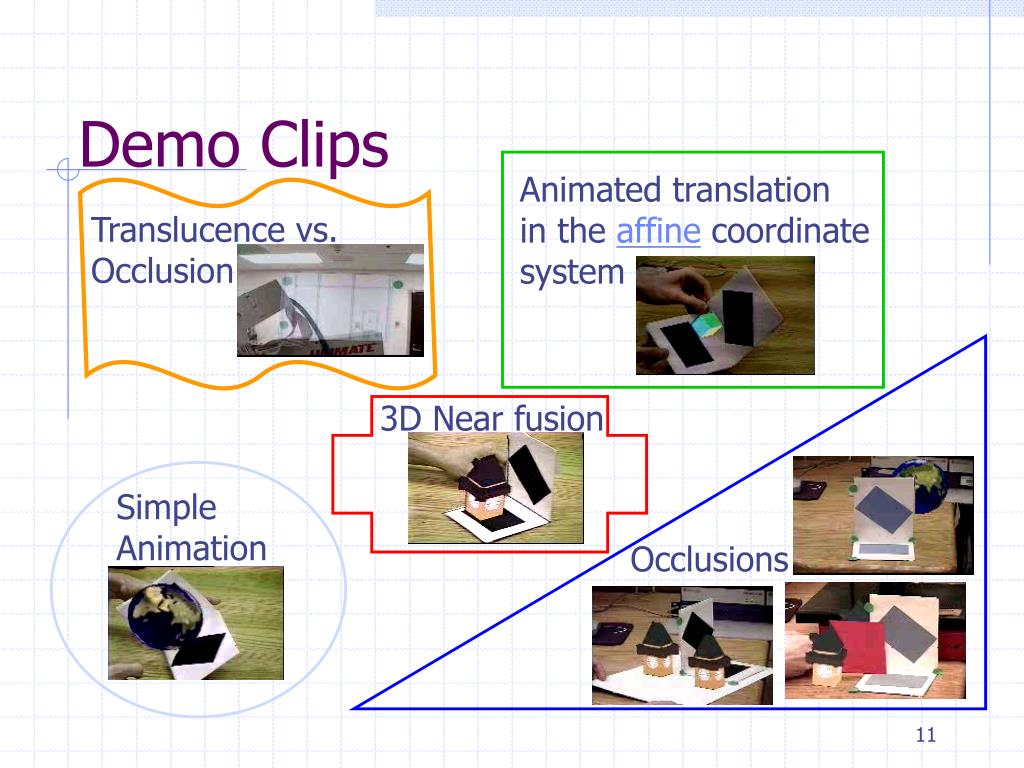

  11. Simple Animation Animated translation in the affine coordinate system Translucence vs. Occlusion Occlusions Demo Clips 3D Near fusion

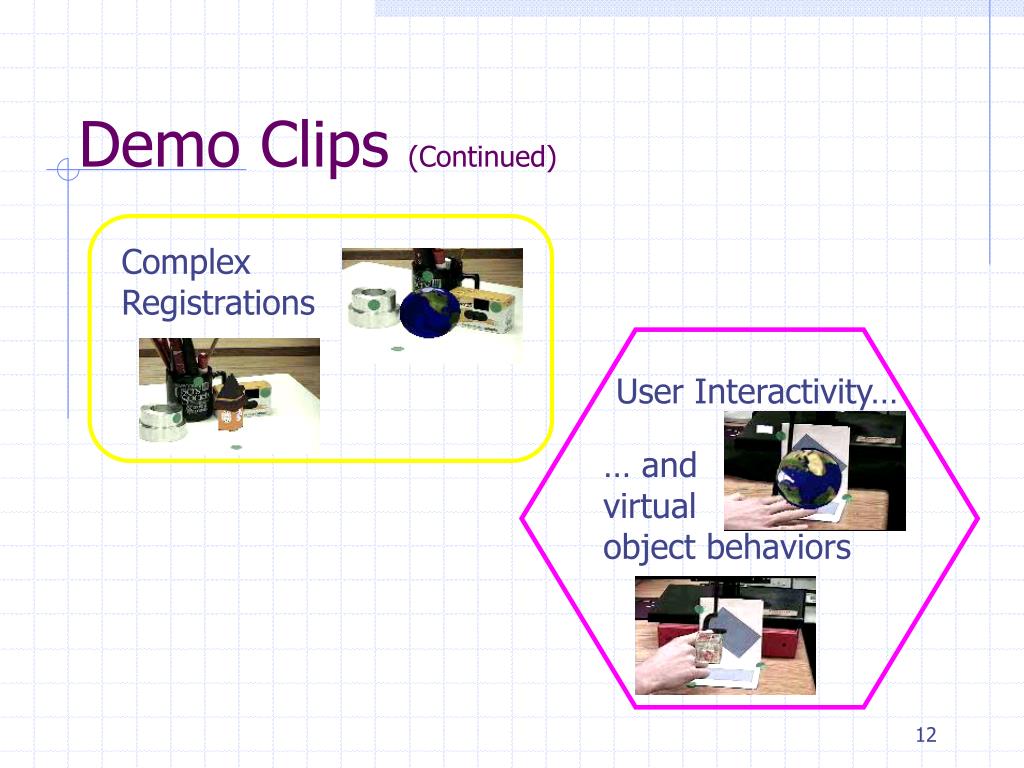

  12. Complex Registrations Demo Clips (Continued) User Interactivity… … and virtual object behaviors

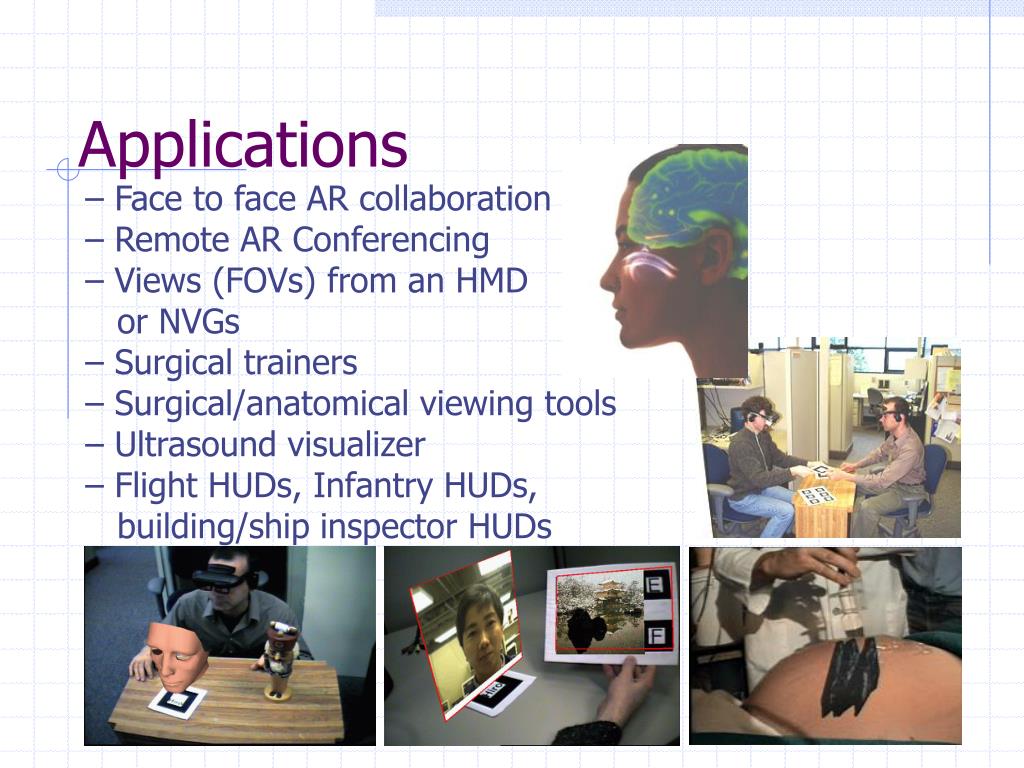

  13. Applications – Face to face AR collaboration – Remote AR Conferencing – Views (FOVs) from an HMD or NVGs – Surgical trainers – Surgical/anatomical viewing tools – Ultrasound visualizer – Flight HUDs, Infantry HUDs, building/ship inspector HUDs

  14. ARToolKit • C based language software library • Uses Microsoft’s Vision SDK/Video for Windows • Tackles viewpoint calculations in near real time to achieve fusion. • Supports both video and optical see-through AR • Operating System: • Windows 95/98/NT when using Connectix Color QuickCam • Windows 95/98 when using USB cameras • Requires GLUT 3.6 or higher

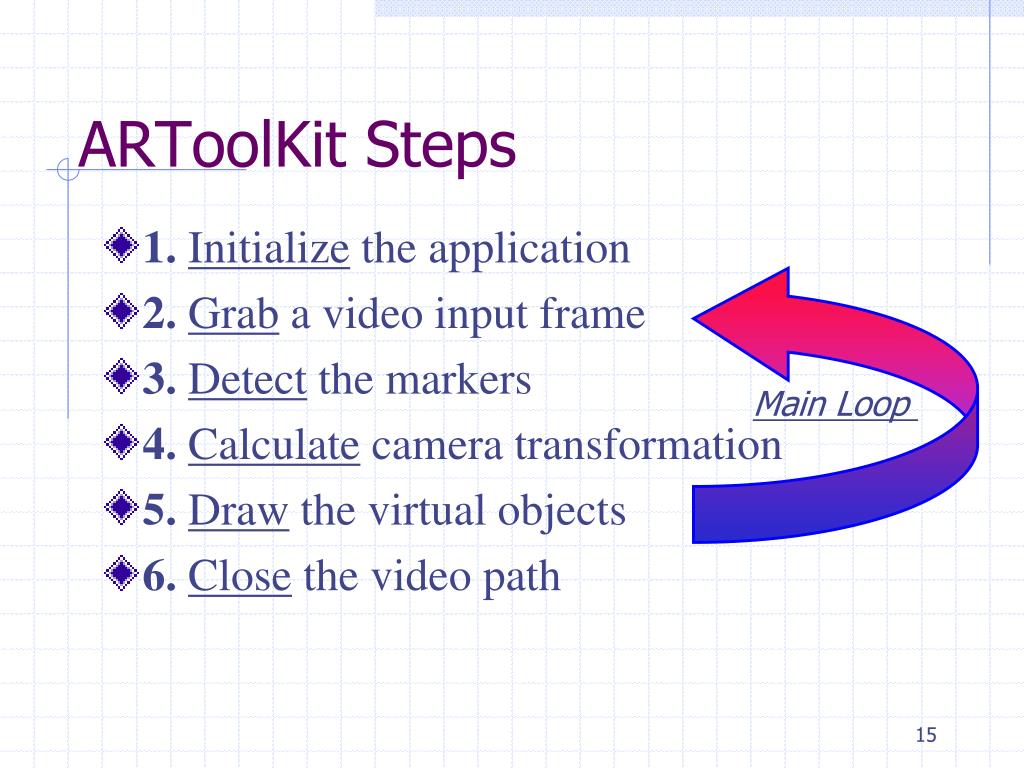

  15. ARToolKit Steps • 1.Initialize the application • 2.Grab a video input frame • 3.Detect the markers • 4.Calculate camera transformation • 5.Draw the virtual objects • 6.Close the video path Main Loop

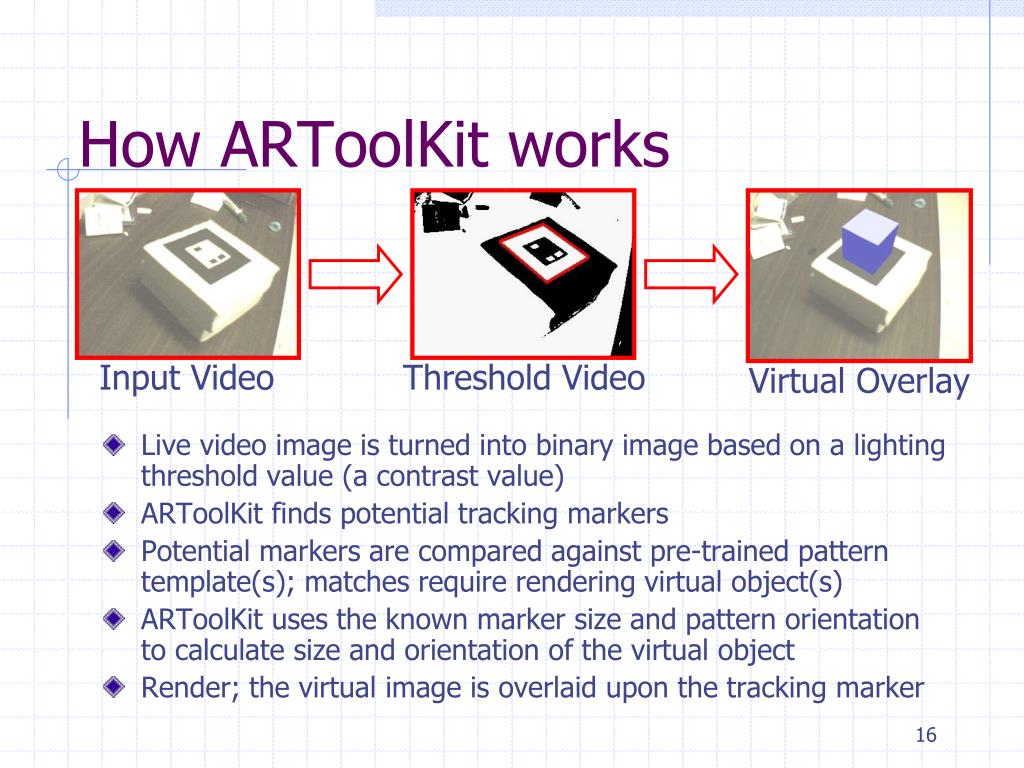

  16. Input Video Threshold Video Virtual Overlay How ARToolKit works • Live video image is turned into binary image based on a lighting threshold value (a contrast value) • ARToolKit finds potential tracking markers • Potential markers are compared against pre-trained pattern template(s); matches require rendering virtual object(s) • ARToolKit uses the known marker size and pattern orientation to calculate size and orientation of the virtual object • Render; the virtual image is overlaid upon the tracking marker

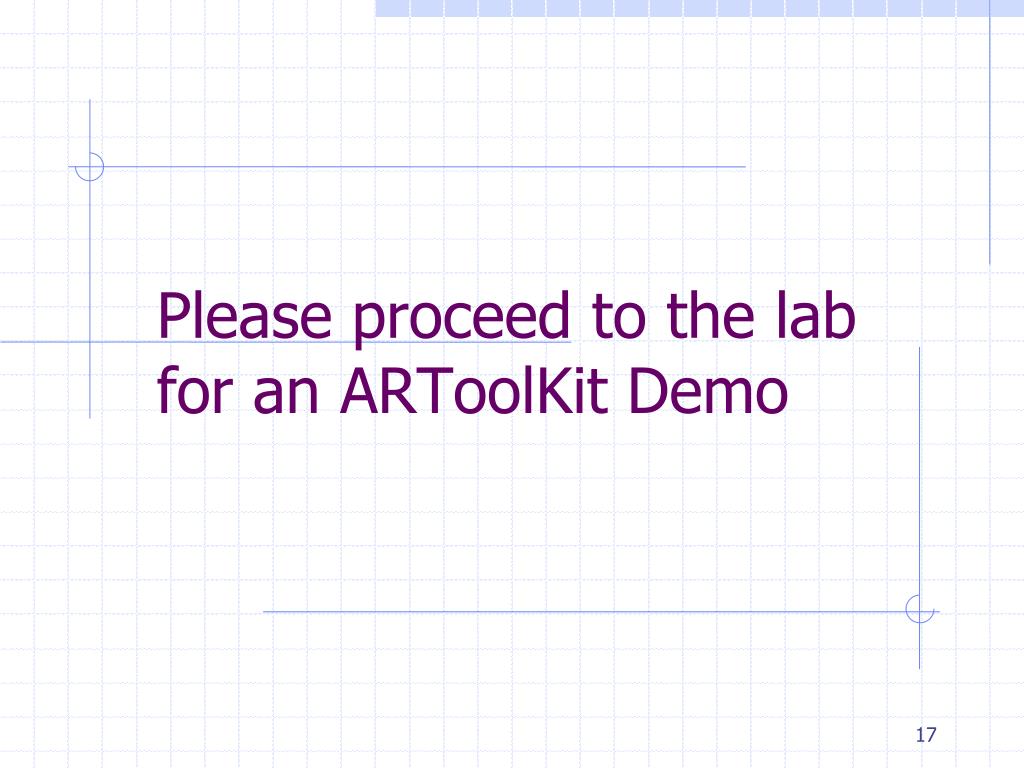

  17. Please proceed to the lab for an ARToolKit Demo

  18. Questions?

  19. Bibliography • James R. Vallino http://www.cs.rit.edu/~jrv/research/ar/ • Hirokazu Kato Mark Billinghurst Rob Blanding Richard May http://www.hitl.washington.edu/research/shared_space/

  20. The End
