Saving and Restoring the PLC

This guide provides detailed instructions on saving and restoring PLC (Programmable Logic Controller) ladder settings using external media. It covers the processes for saving projects to USB or hard drives and restoring them from external storage. Key steps include opening the existing ladder, saving it to the desired media, and loading projects into temporary storage. The manual also discusses the necessary steps to ensure successful uploads, including the use of privileged mode and confirming file selections. This is essential for maintaining efficient operation and backup of PLC systems.

blithe
Download Presentation

Saving and Restoring the PLC

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Saving and Restoring the PLC

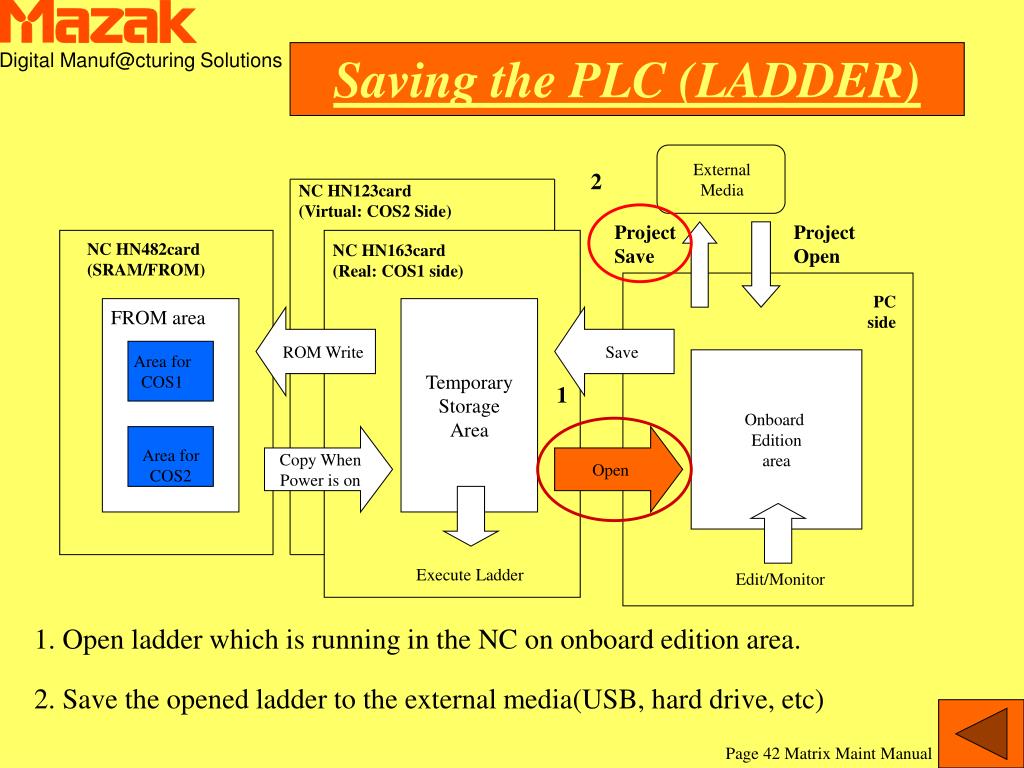

  2. 2 1 Saving the PLC (LADDER) External Media NC HN123card (Virtual: COS2 Side) Project Save Project Open NC HN482card (SRAM/FROM) NC HN163card (Real: COS1 side) PC side Temporary Storage Area FROM area ROM Write Save Area for COS1 Onboard Edition area Copy When Power is on Open Area for COS2 Execute Ladder Edit/Monitor 1. Open ladder which is running in the NC on onboard edition area. 2. Save the opened ladder to the external media(USB, hard drive, etc) Page 42 Matrix Maint Manual

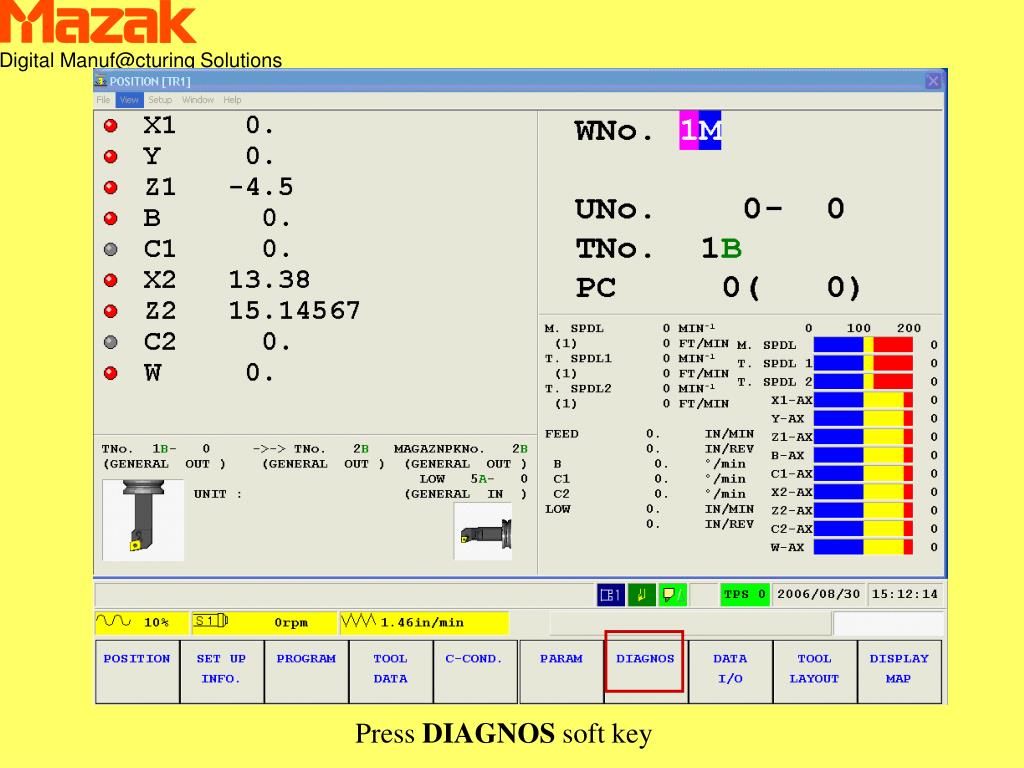

  3. Press DIAGNOS soft key

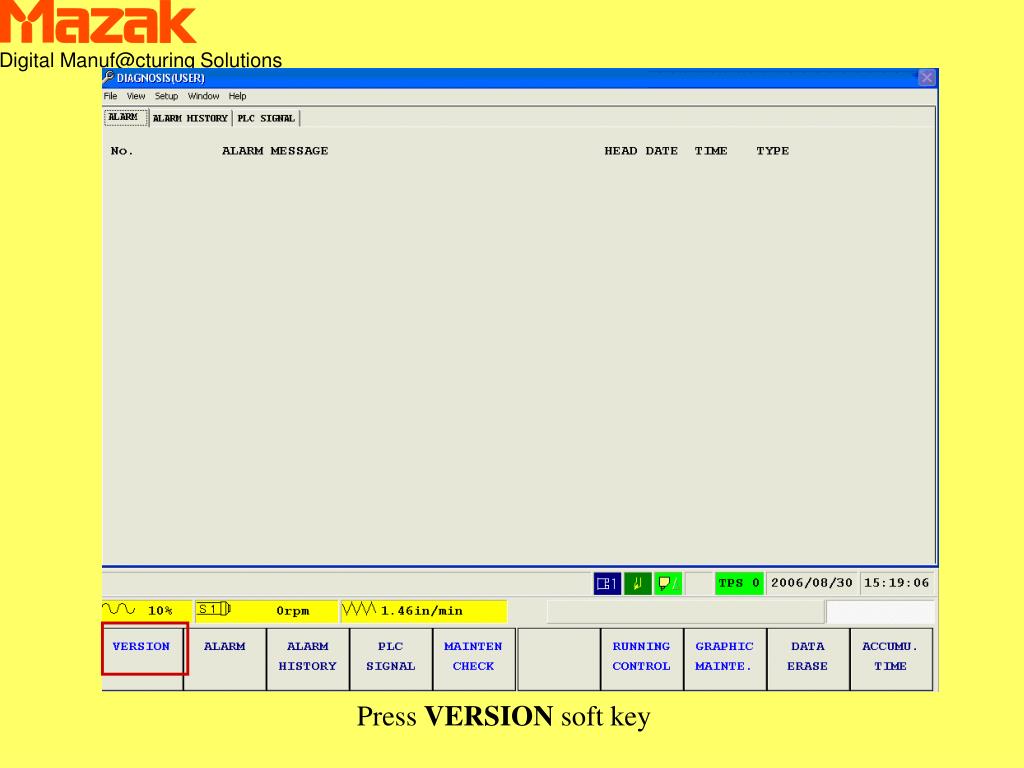

  4. Press VERSION soft key

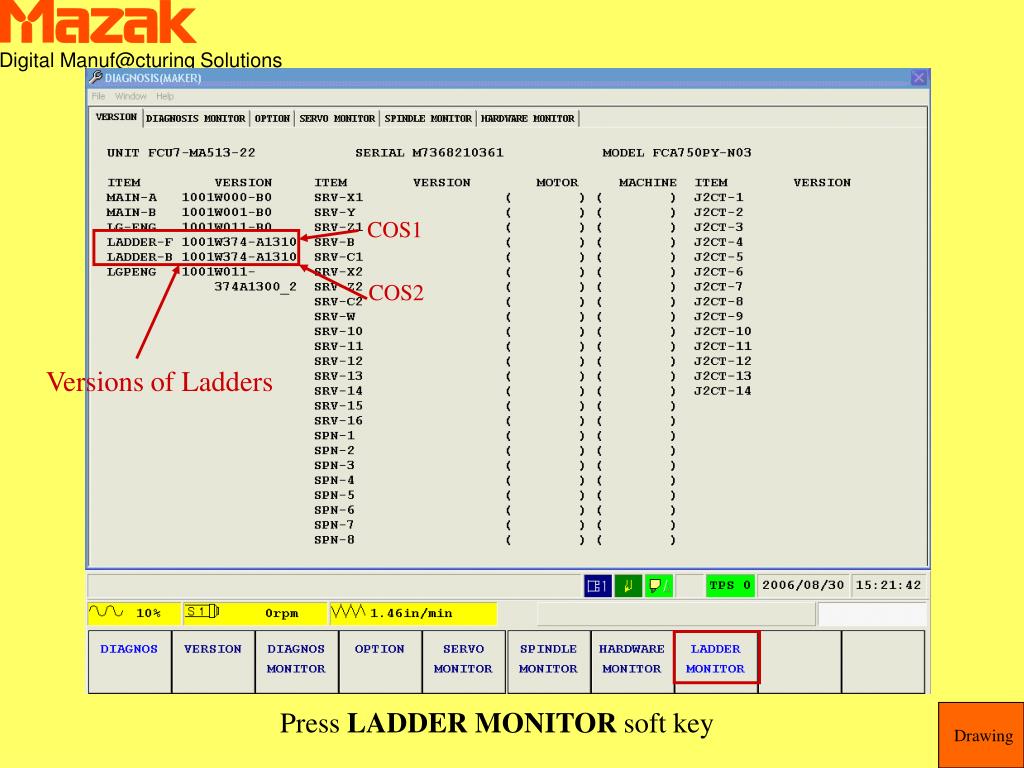

  5. COS1 COS2 Versions of Ladders Press LADDER MONITOR soft key Drawing

  6. Press ENVIRON SETTING soft key

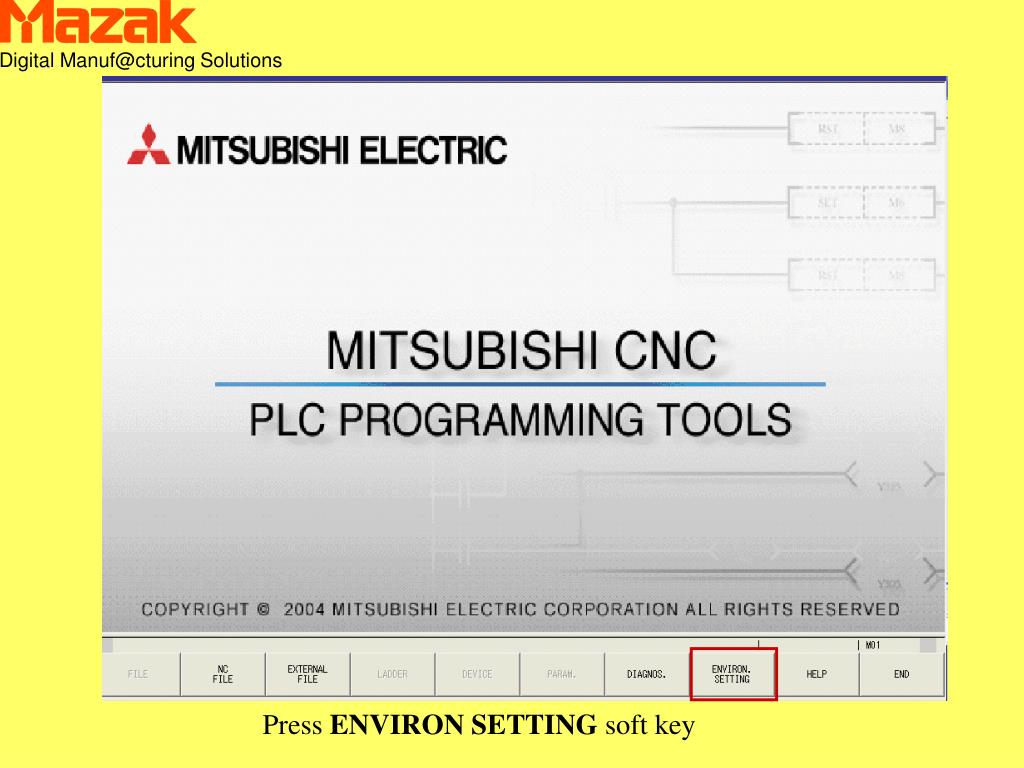

  7. Press CONNECT NC SETTING soft key

  8. Select M01 on drop down menu and Press SET soft key Press far left F1Display Menu Key once to get the first screen menu

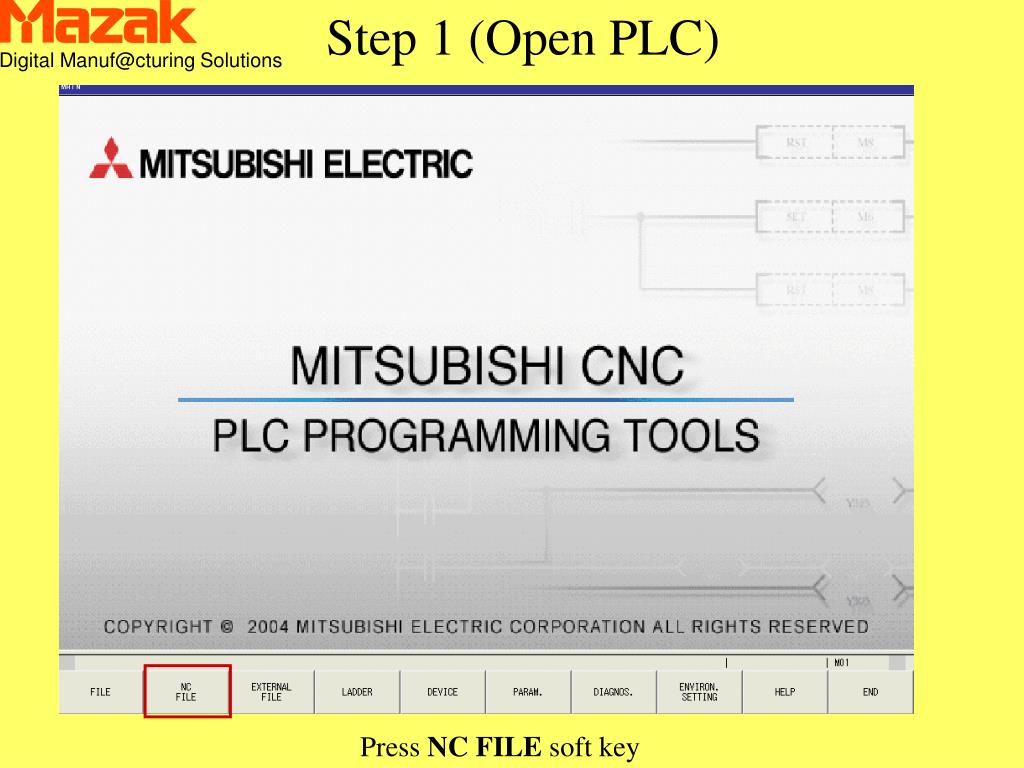

  9. Step 1 (Open PLC) Press NC FILE soft key

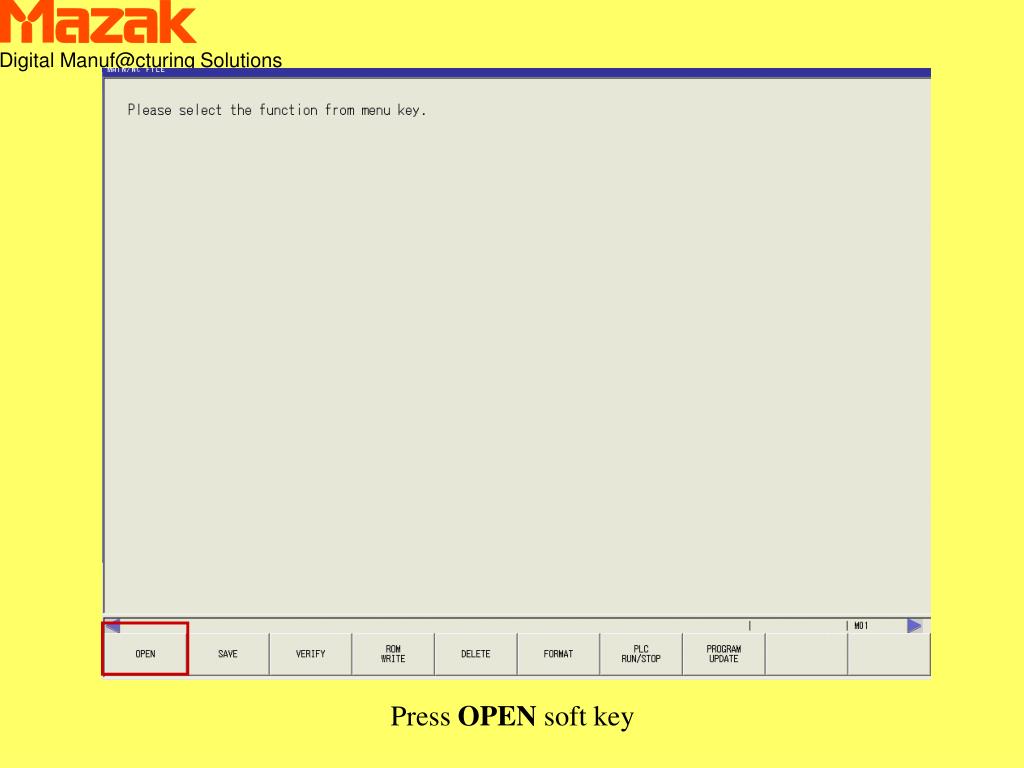

  10. Press OPEN soft key

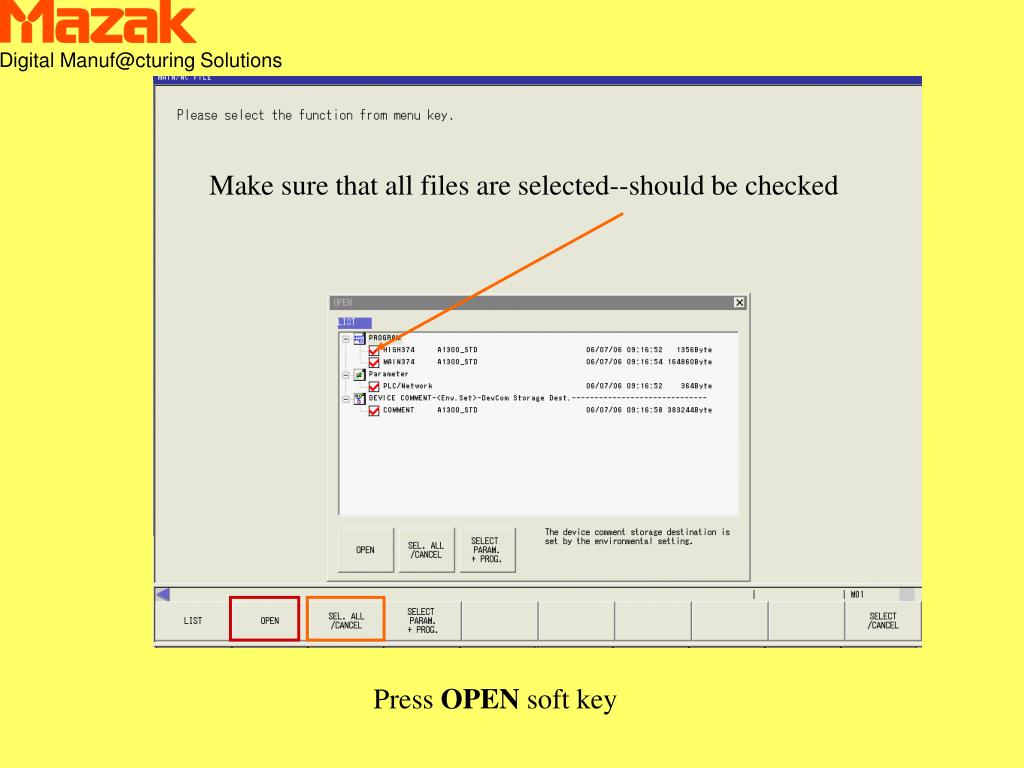

  11. Make sure that all files are selected--should be checked Press OPEN soft key

  12. Drawing Press OK soft key Press F1 Display Menu Key twice to get the first screen menu

  13. Step 2 (Save Project to External Media) Press EXTERNAL FILE soft key

  14. Press SAVE PROJECT soft key

  15. Make sure that all files are selected--should be checked Press EXTERNAL SAVE soft key

  16. Press DRIVE/PATH and select drive D for USB port D:\M01 Press PROJECT NAME and name ladder preferably with version

  17. Press SAVE soft key

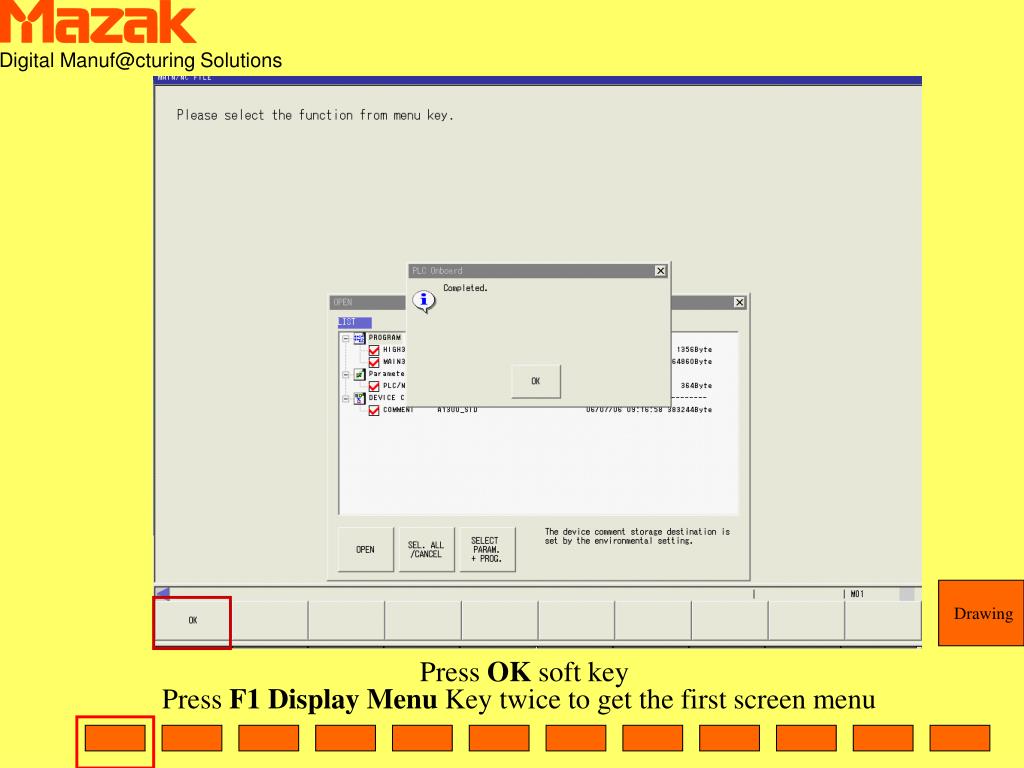

  18. Press OK soft key once ladder is saved to external media

  19. Windows Explorer

  20. Ladder Files

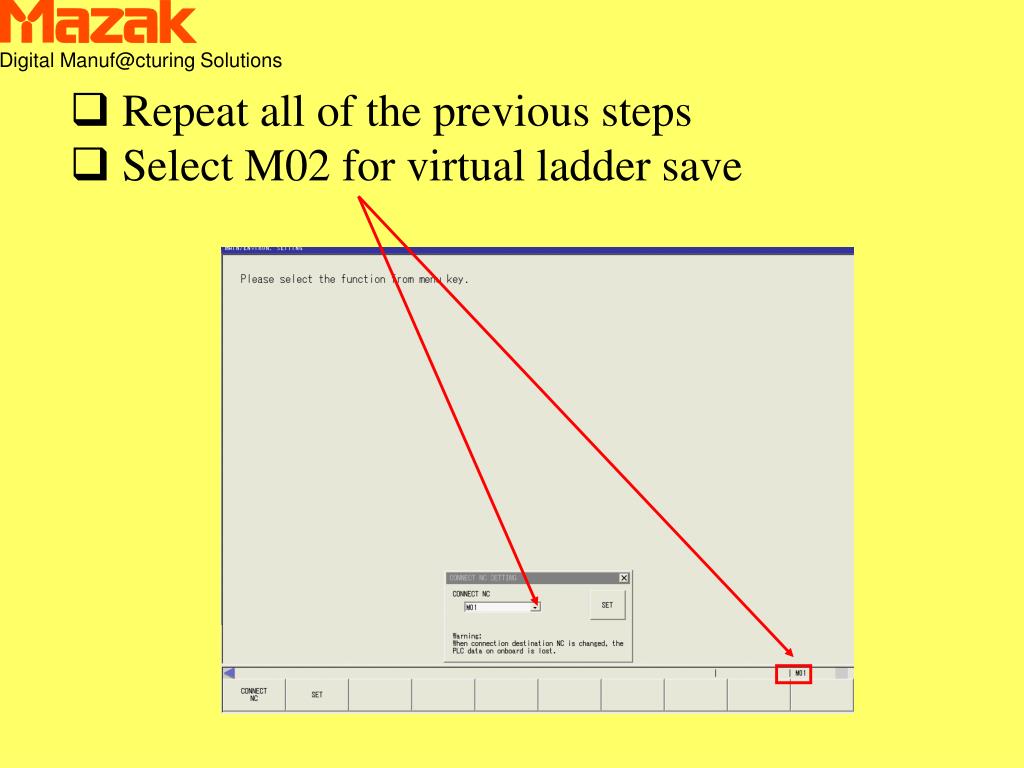

  21. Repeat all of the previous steps • Select M02 for virtual ladder save

  22. Restoring the PLC (LADDER) STEPS: 1. Clear the ladder which runs in temporary storage area 2. Open the project saved in external media onto the onboard edition area 3. Load the opened ladder to the temporary storage area in the NC 4. Save the ladder into the ROM area(HN482 card) If steps 2 and 3 are performed without deleting the ladder in step 1 then there will be two different ladders registered Must be in Privileged Mode to upload ladder Page 45 Matrix Maint Manual

  23. 2 4 1Erase Ladder 3 External Media NC HN123card (Virtual: COS2 Side) Project Open Project Save NC HN482card (SRAM/FROM) NC HN163card (Real: COS1 side) PC side Temporary Storage Area FROM area ROM Write Save Area for COS1 Onboard Edition area Copy When Power is on Open Area for COS2 Execute Ladder Edit/Monitor

  24. Press DIAGNOS soft key

  25. Press VERSION soft key

  26. Press LADDER MONITOR soft key

  27. Press ENVIRON SETTING soft key

  28. Press CONNECT NC SETTING soft key

  29. Select M01 on drop down menu and Press SET soft key Press far left F1Display Menu Key once to get the first screen menu

  30. Step 1 Press NC FILE soft key Drawing Drawing

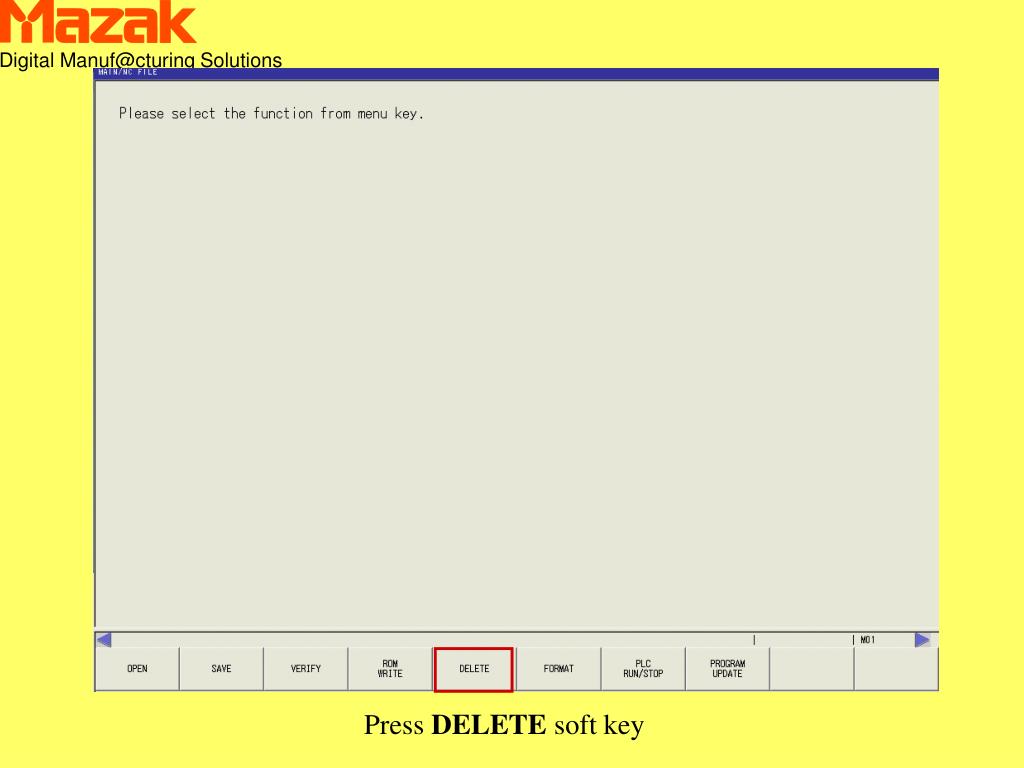

  31. Press DELETE soft key

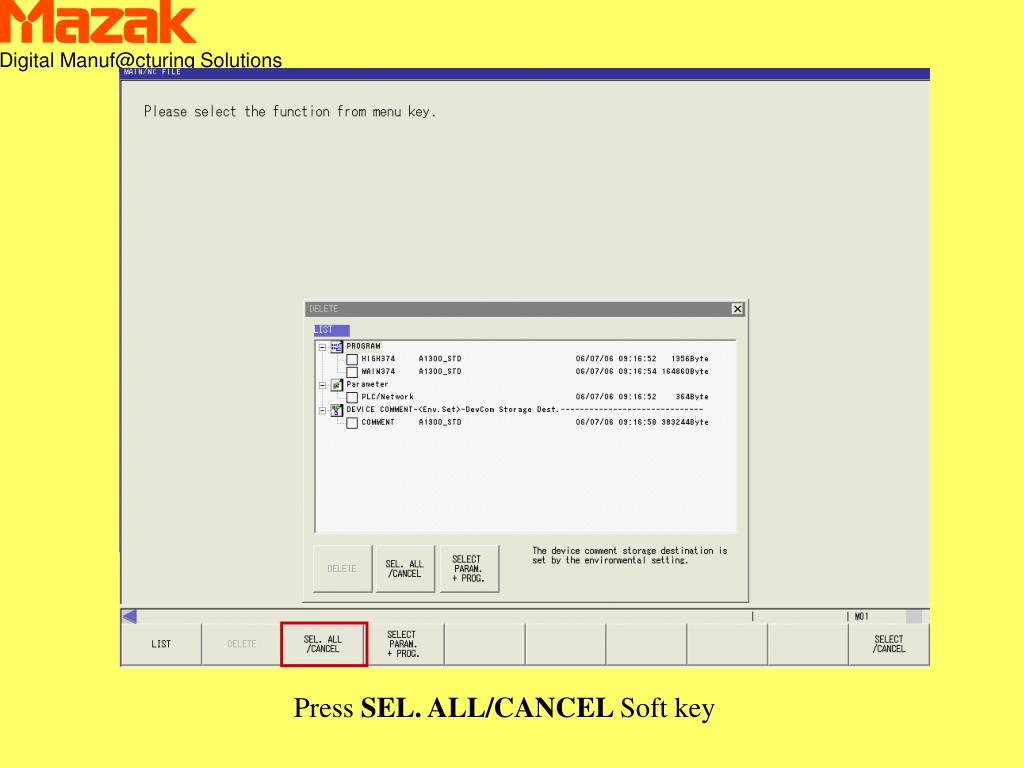

  32. Press SEL. ALL/CANCEL Soft key

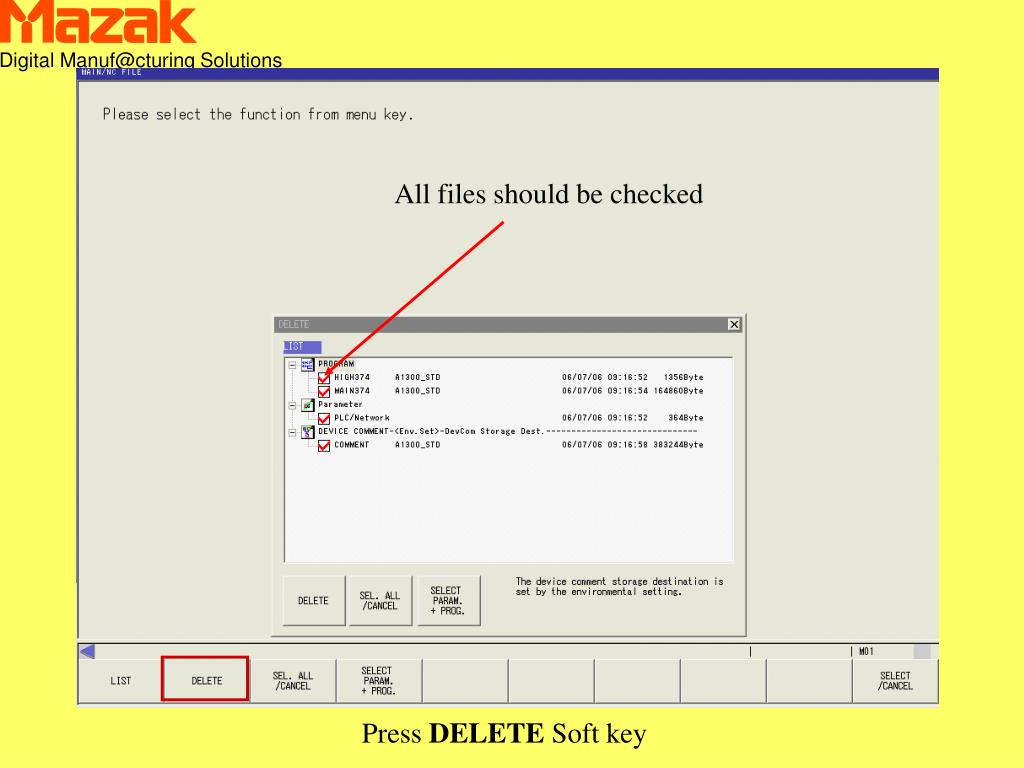

  33. All files should be checked Press DELETE Soft key

  34. Press YES Soft key

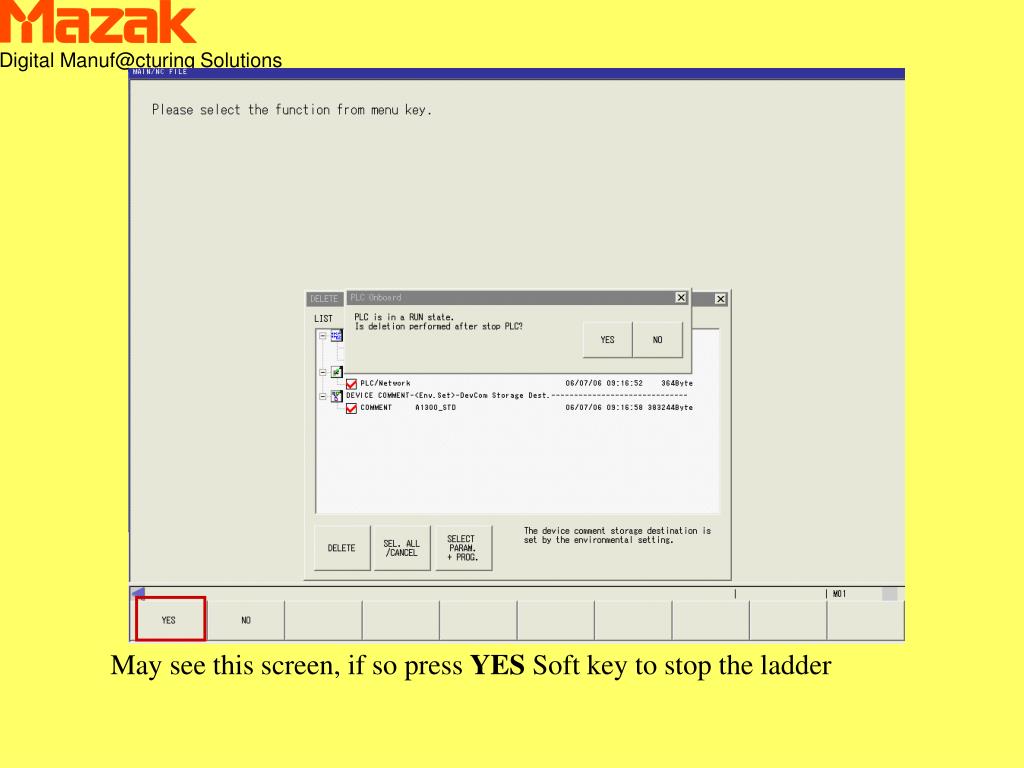

  35. May see this screen, if so press YES Soft key to stop the ladder

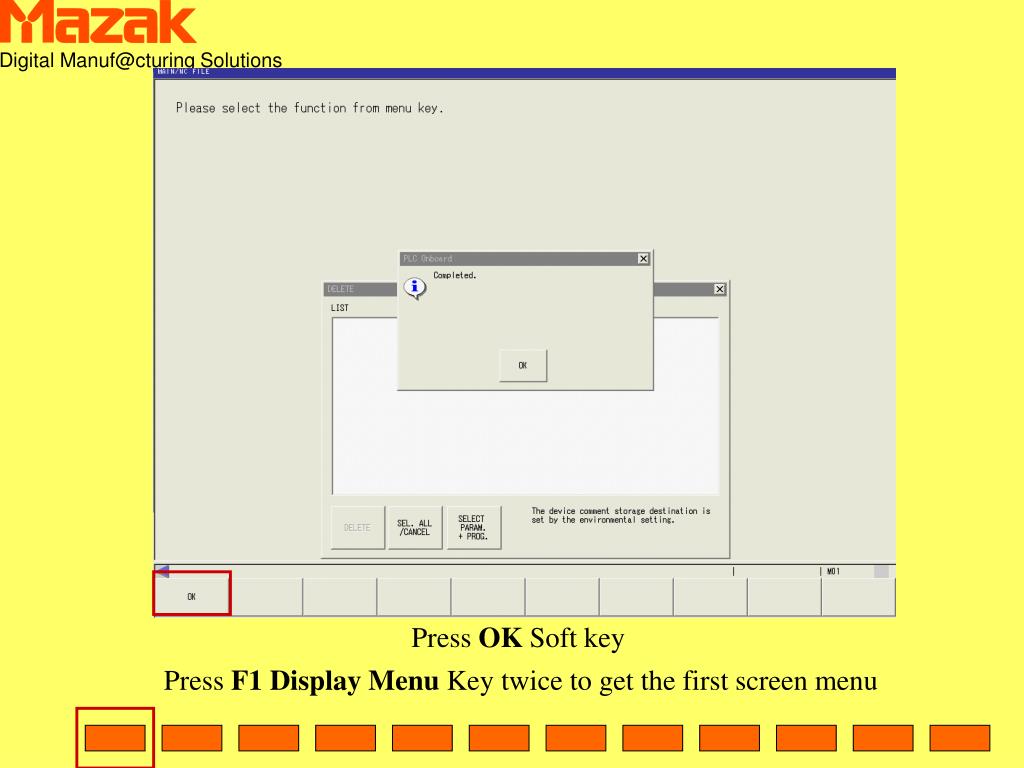

  36. Press OK Soft key Press F1 Display Menu Key twice to get the first screen menu

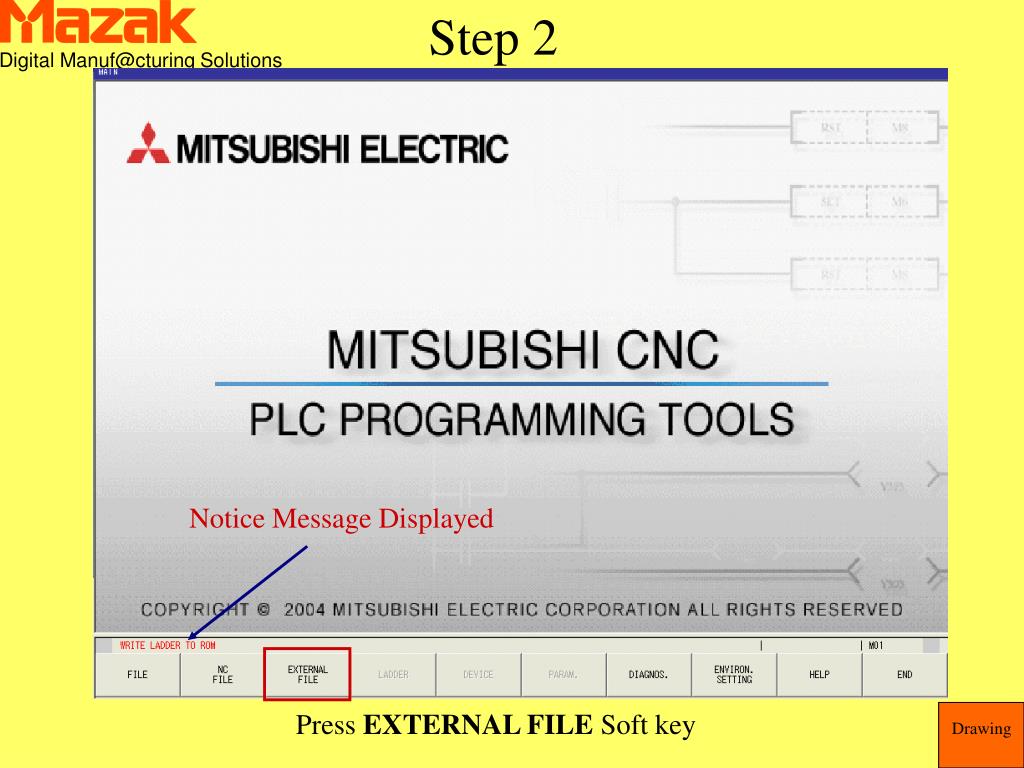

  37. Step 2 Notice Message Displayed Press EXTERNAL FILE Soft key Drawing Drawing

  38. Press OPEN PROJECT Soft key

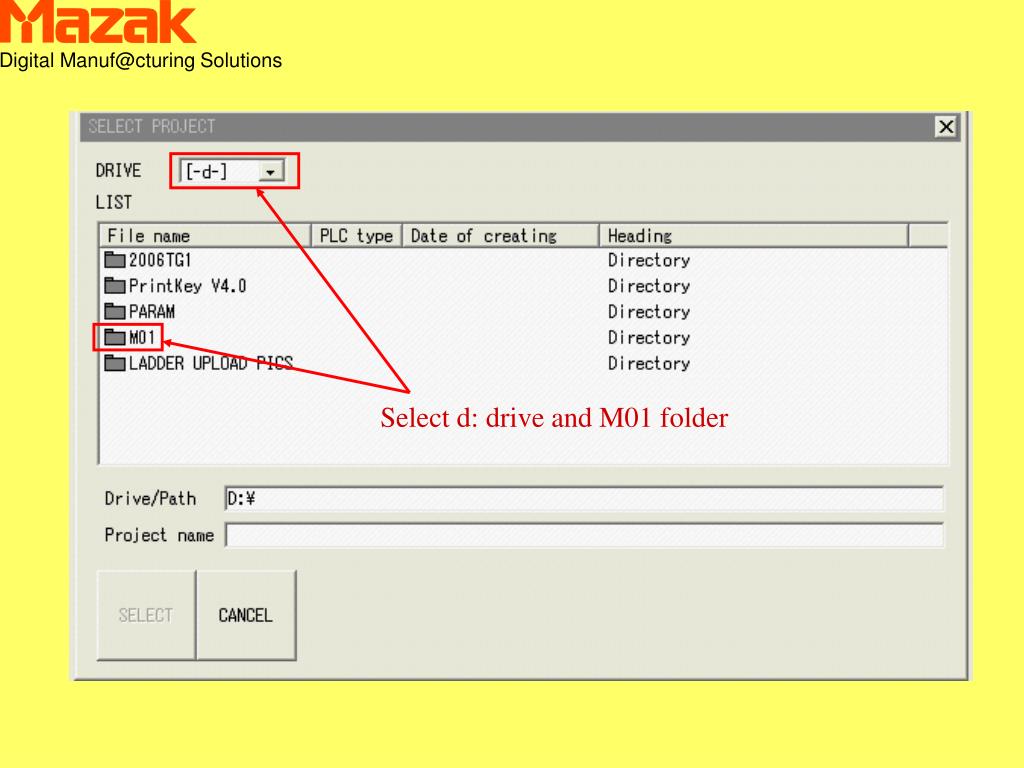

  39. Select d: drive and M01 folder

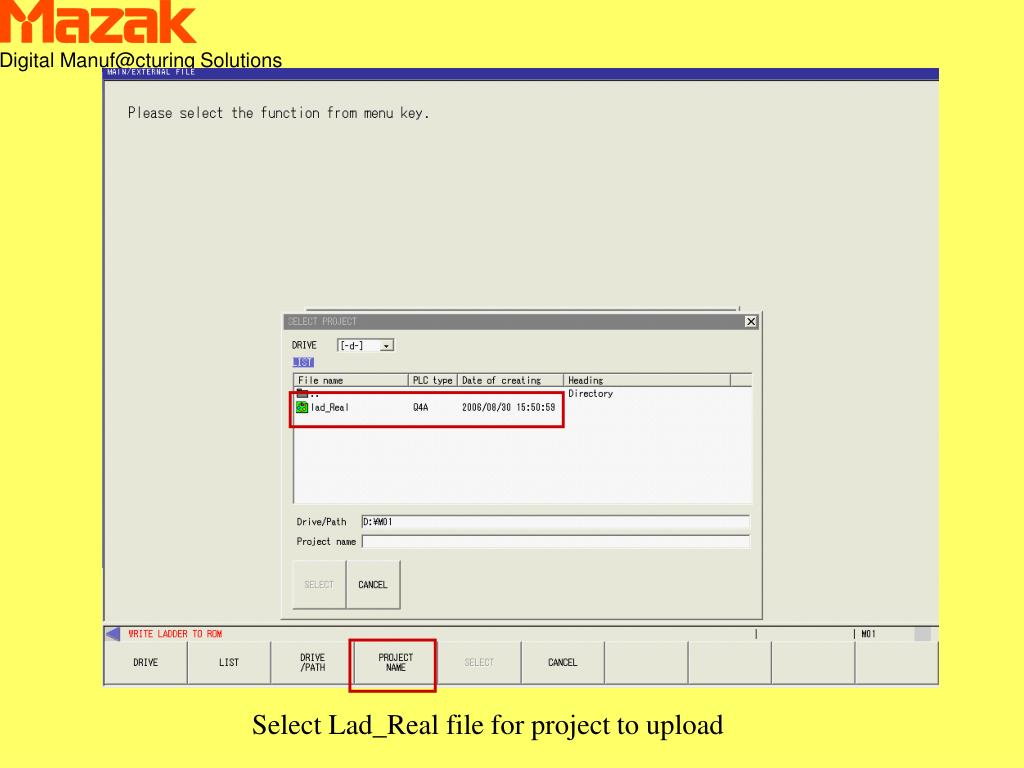

  40. Select Lad_Real file for project to upload

  41. Press SELECT Soft key

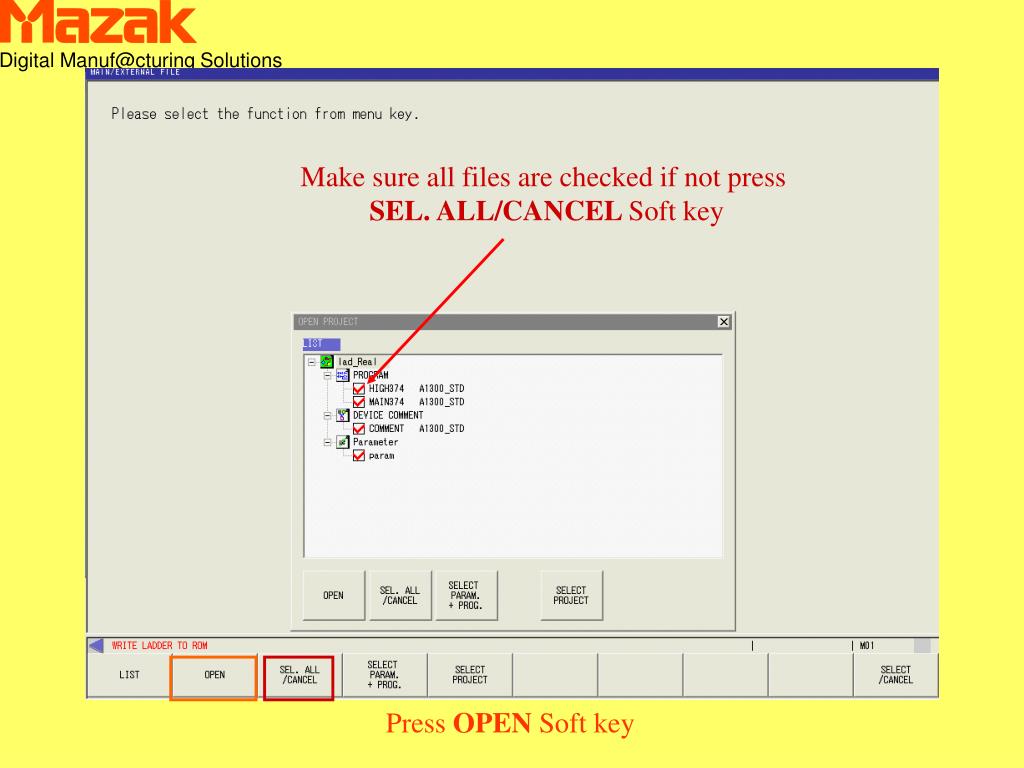

  42. Make sure all files are checked if not press SEL. ALL/CANCEL Soft key Press OPEN Soft key

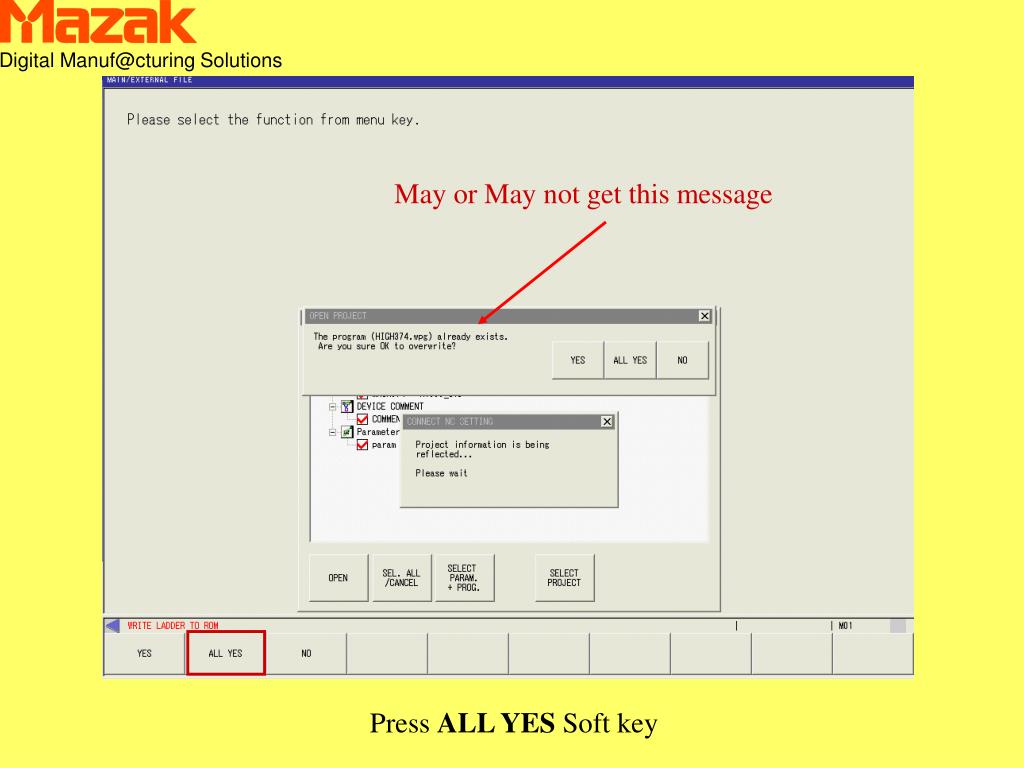

  43. May or May not get this message Press ALL YES Soft key

  44. Press OK Soft key Press F1 Display Menu Key twice to get the first screen menu

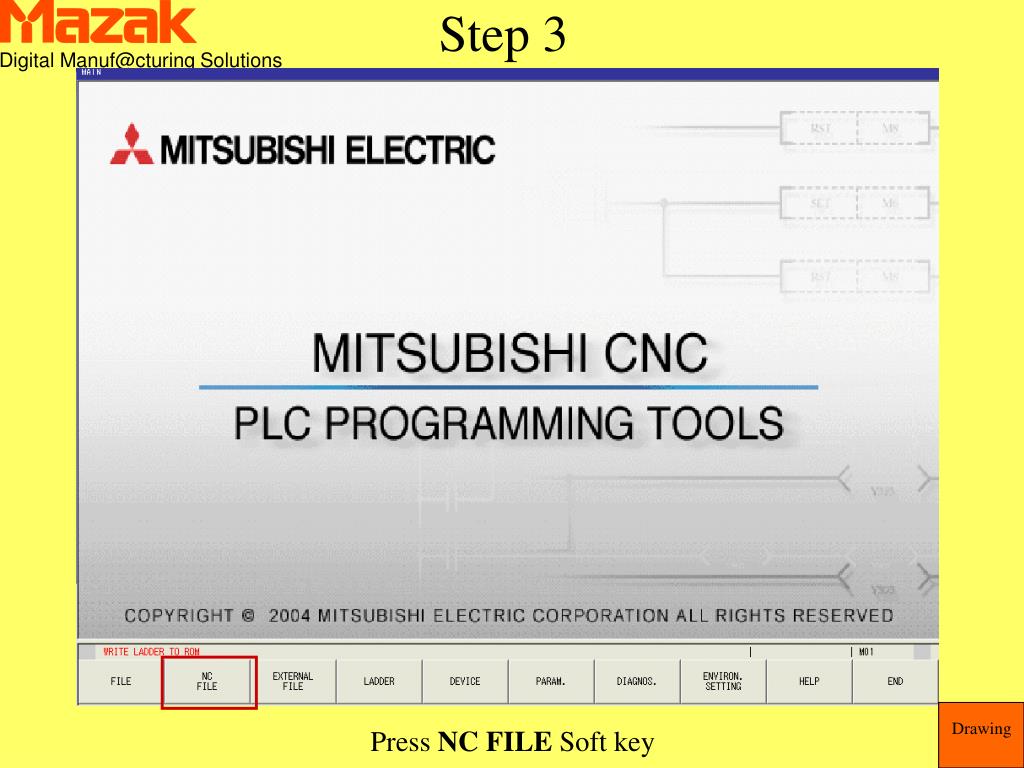

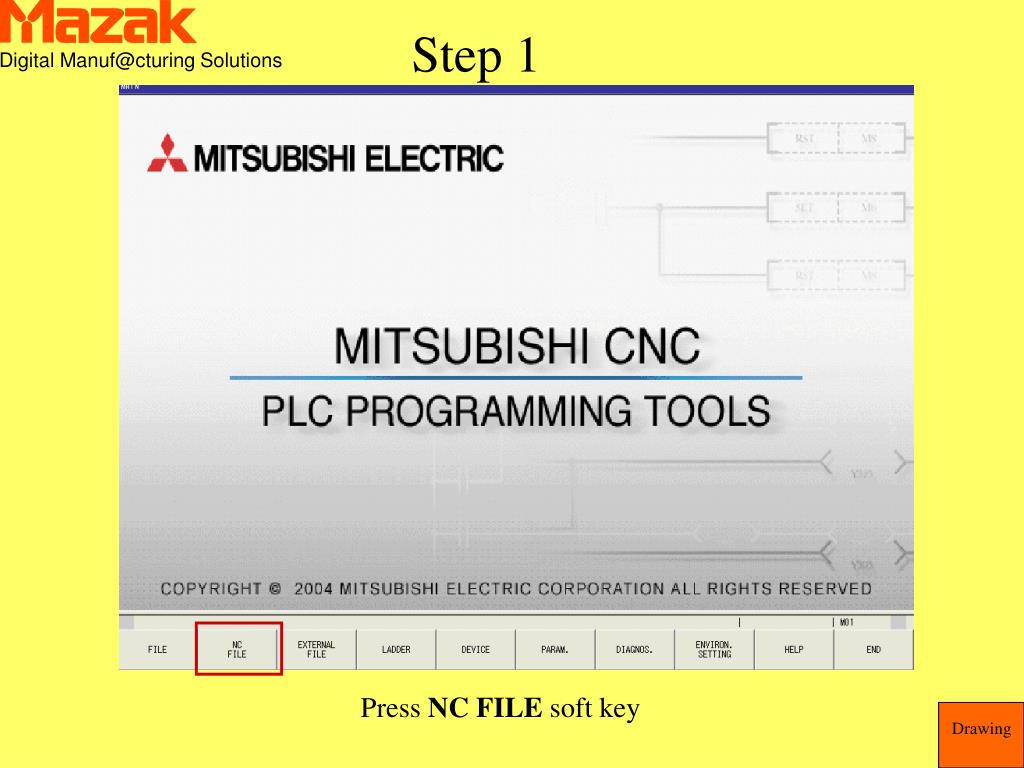

  45. Step 3 Drawing Drawing Press NC FILE Soft key

  46. Press SAVE Soft key

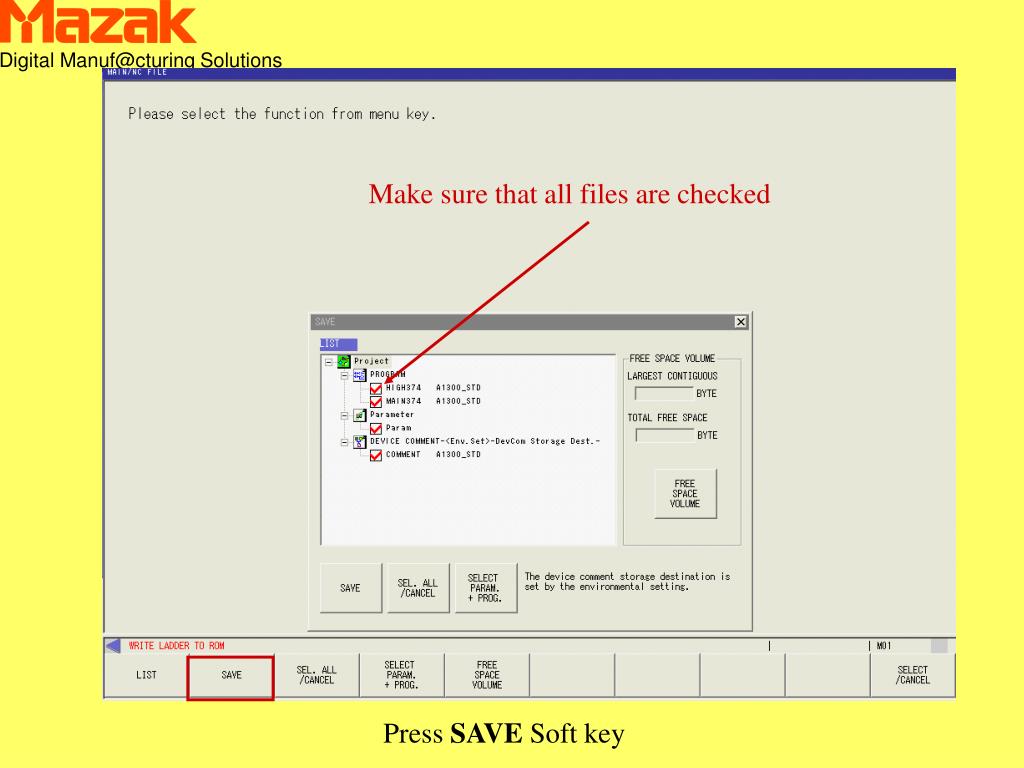

  47. Make sure that all files are checked Press SAVE Soft key

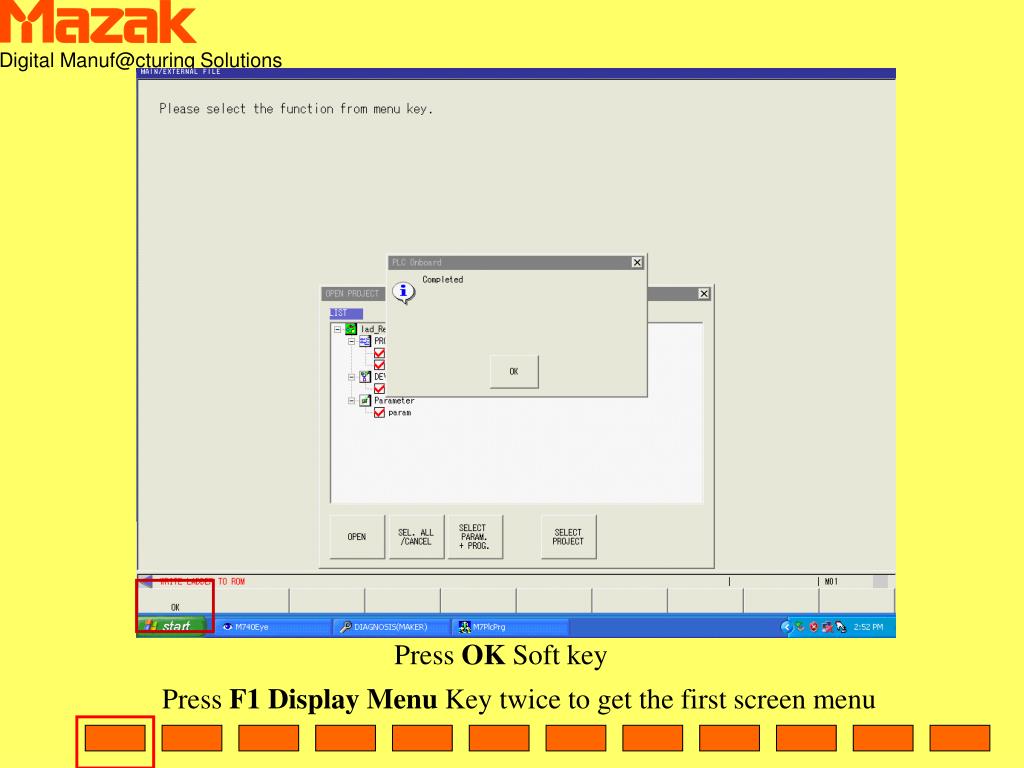

  48. Press OK Soft key

  49. Step 4 Press ROM WRITE Soft key Drawing Drawing
