Exploring Technical Areas of Concern in Mass Storage Systems Forum (HEPiX Vancouver, 2003)

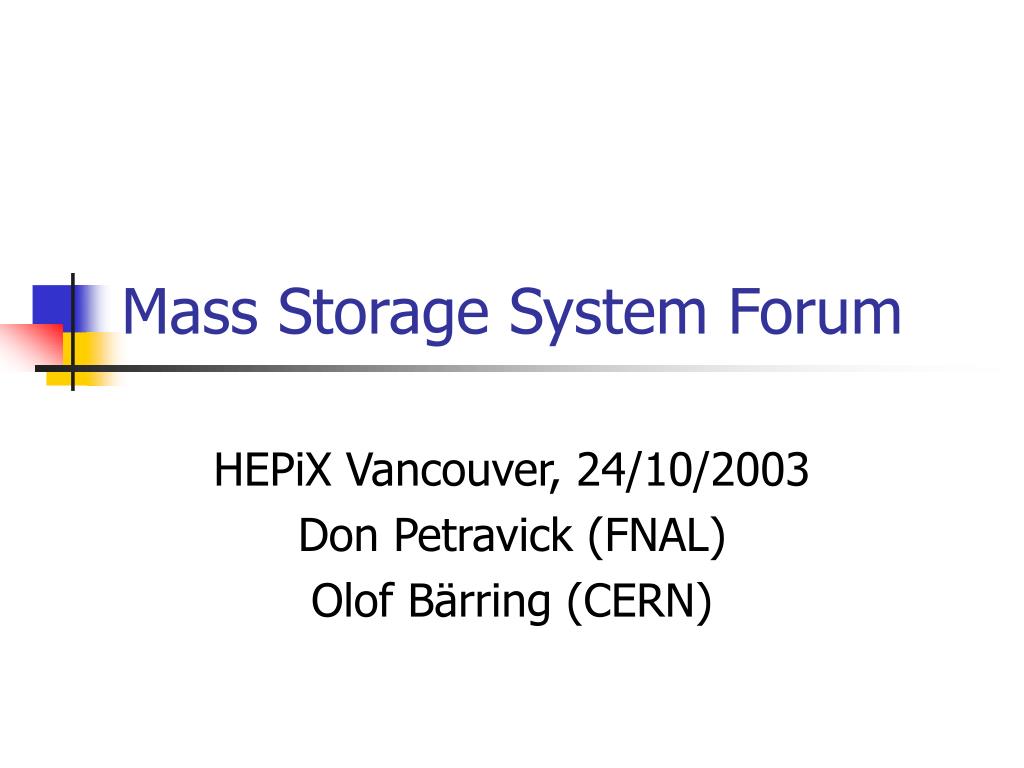

1. Mass Storage System Forum HEPiX Vancouver, 24/10/2003 Don Petravick (FNAL) Olof Bärring (CERN)

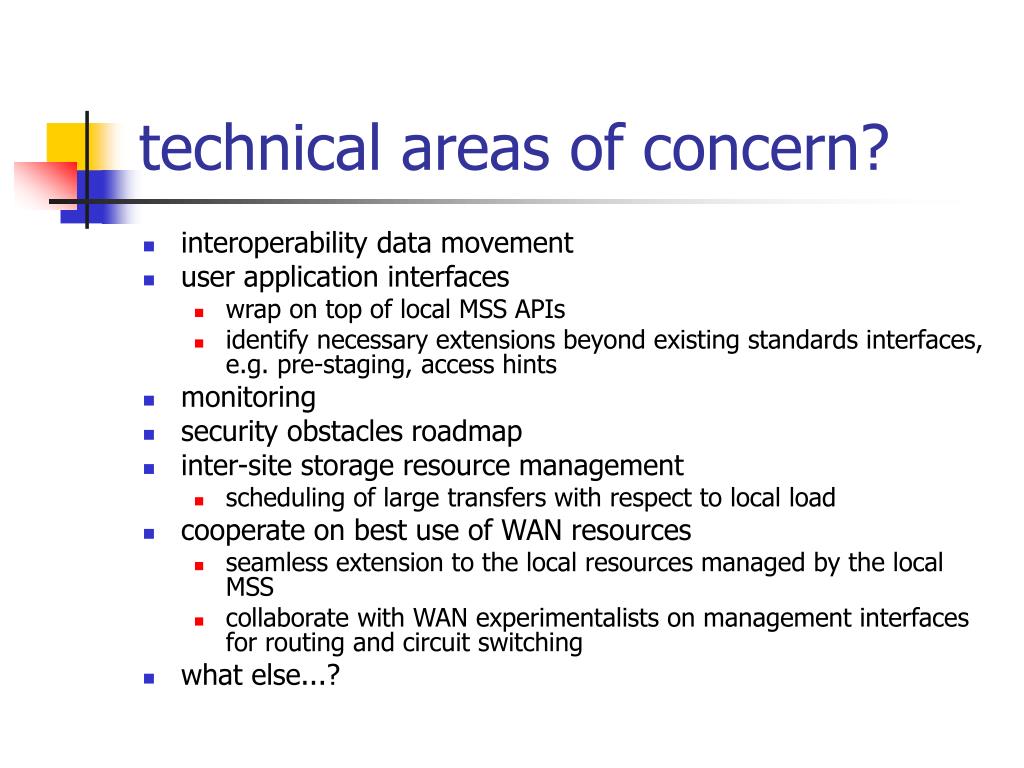

2. technical areas of concern? • interoperability data movement • user application interfaces • wrap on top of local MSS APIs • identify necessary extensions beyond existing standards interfaces, e.g. pre-staging, access hints • monitoring • security obstacles roadmap • inter-site storage resource management • scheduling of large transfers with respect to local load • cooperate on best use of WAN resources • seamless extension to the local resources managed by the local MSS • collaborate with WAN experimentalists on management interfaces for routing and circuit switching • what else...?

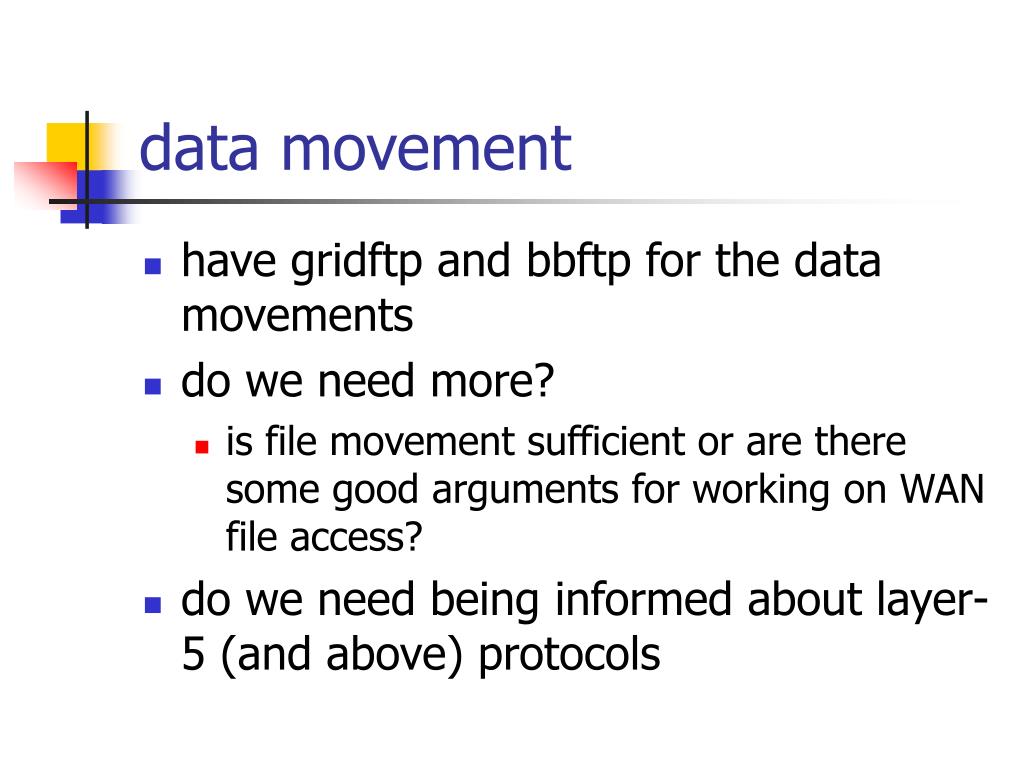

3. data movement • have gridftp and bbftp for the data movements • do we need more? • is file movement sufficient or are there some good arguments for working on WAN file access? • do we need being informed about layer-5 (and above) protocols

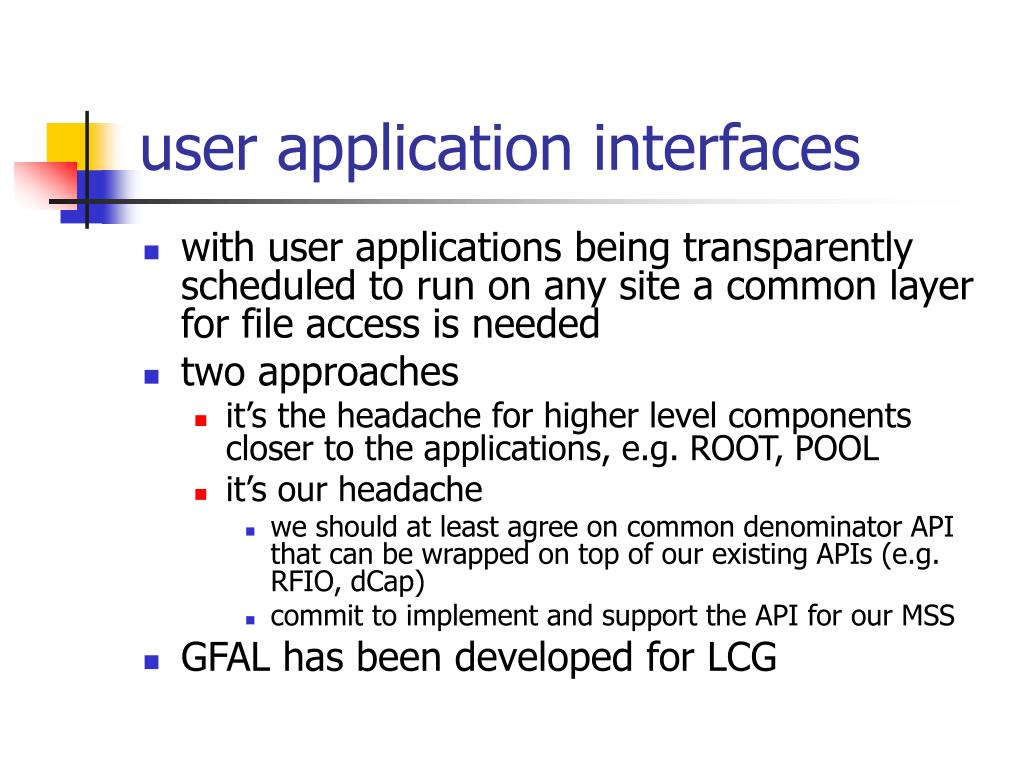

4. user application interfaces • with user applications being transparently scheduled to run on any site a common layer for file access is needed • two approaches • it’s the headache for higher level components closer to the applications, e.g. ROOT, POOL • it’s our headache • we should at least agree on common denominator API that can be wrapped on top of our existing APIs (e.g. RFIO, dCap) • commit to implement and support the API for our MSS • GFAL has been developed for LCG

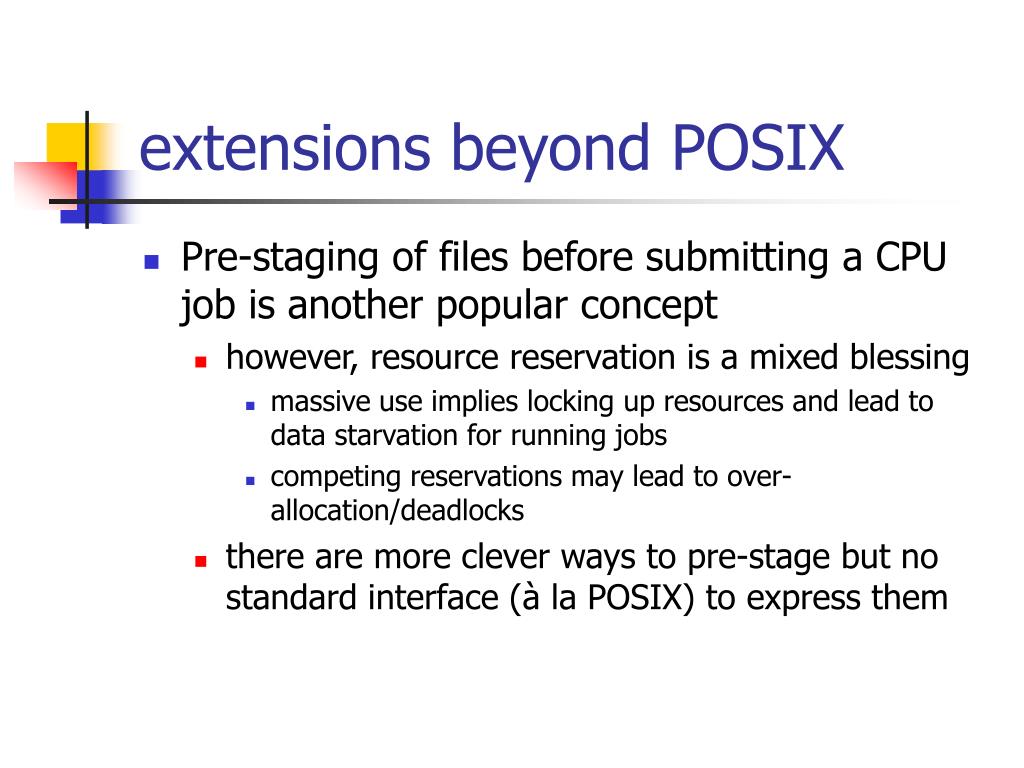

5. extensions beyond POSIX • Pre-staging of files before submitting a CPU job is another popular concept • however, resource reservation is a mixed blessing • massive use implies locking up resources and lead to data starvation for running jobs • competing reservations may lead to over-allocation/deadlocks • there are more clever ways to pre-stage but no standard interface (à la POSIX) to express them

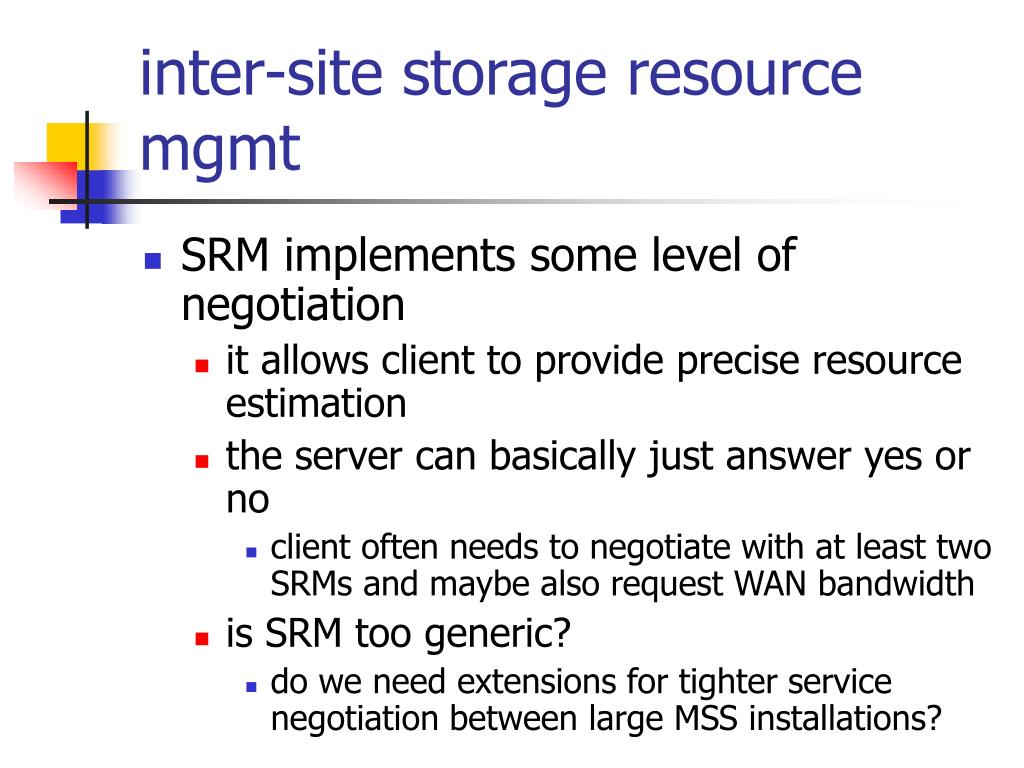

6. inter-site storage resource mgmt • SRM implements some level of negotiation • it allows client to provide precise resource estimation • the server can basically just answer yes or no • client often needs to negotiate with at least two SRMs and maybe also request WAN bandwidth • is SRM too generic? • do we need extensions for tighter service negotiation between large MSS installations?

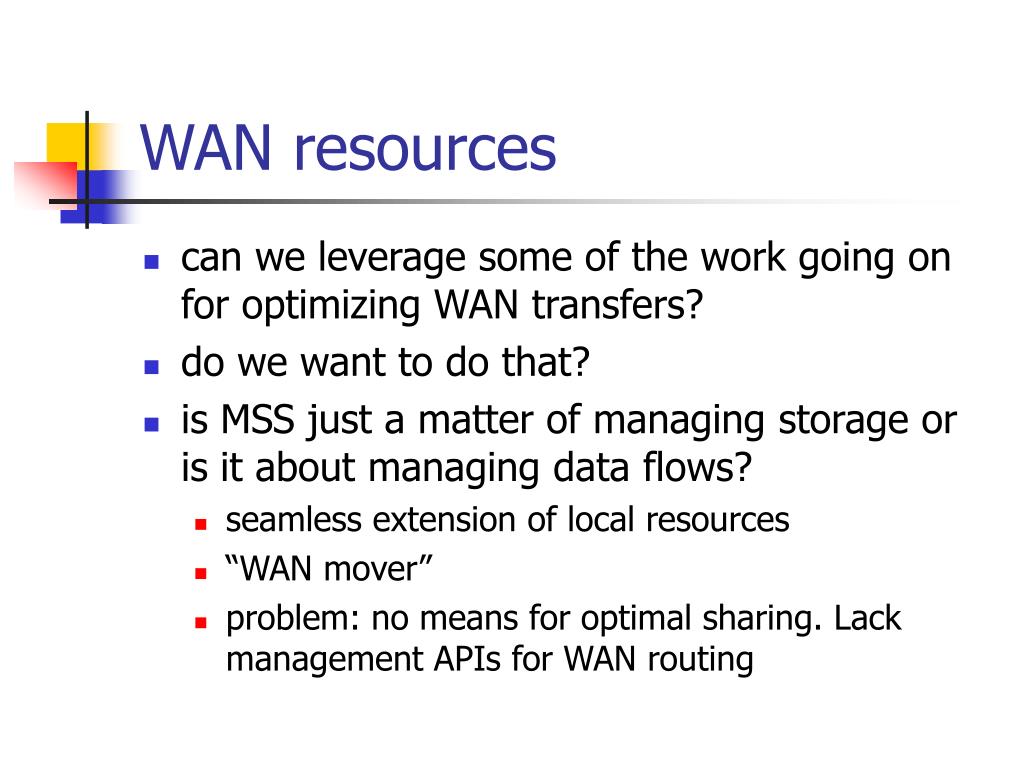

7. WAN resources • can we leverage some of the work going on for optimizing WAN transfers? • do we want to do that? • is MSS just a matter of managing storage or is it about managing data flows? • seamless extension of local resources • “WAN mover” • problem: no means for optimal sharing. Lack management APIs for WAN routing

8. Large Systems and Wide Area Networks • Large storage systems at several labs are developing “grid side” interfaces. • Advanced Networking is being explored generally and under the banner of LHC in particular. • Large storage systems have immense bandwidth and can present a realistic mix of traffic to research networks. • Network researchers are interested in end-to-end performance, which includes interaction with “disk.”

9. Some Salient Network Research:Layer 1-3 • Layer 1-3: • Lambda Networking – light path circuits for substantial all of the paths. • Requesting circuits and dealing with unavailability, faults • Network details of getting to such circuits

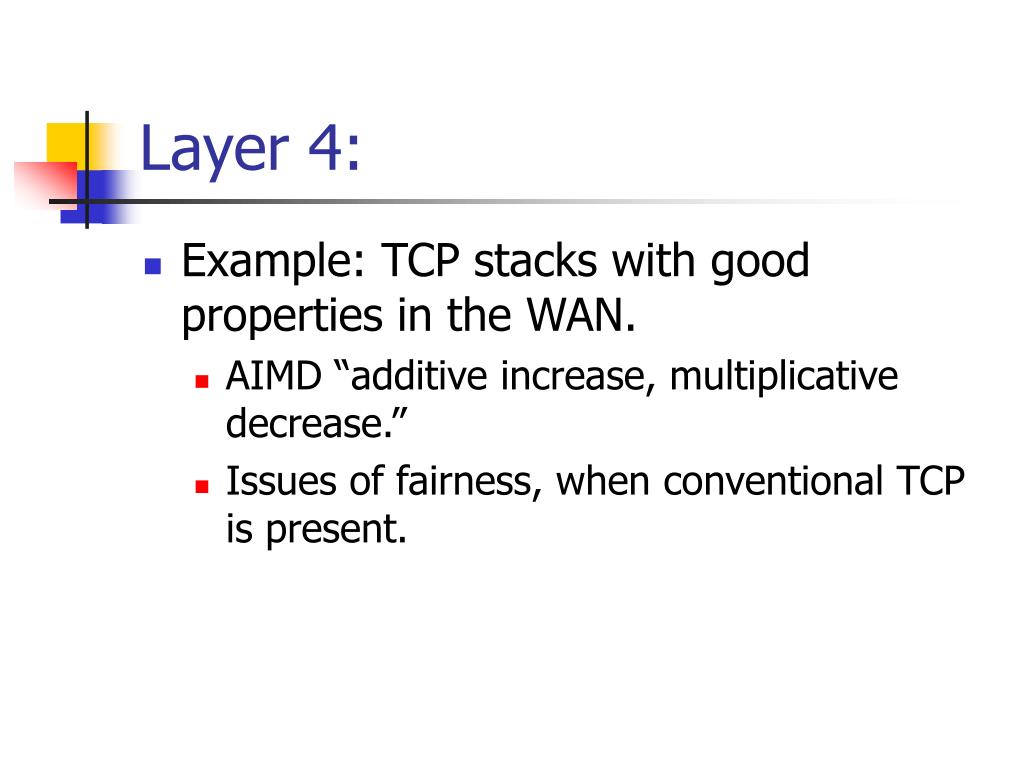

10. Layer 4: • Example: TCP stacks with good properties in the WAN. • AIMD “additive increase, multiplicative decrease.” • Issues of fairness, when conventional TCP is present.

11. Layer 5+: • Layer 5 example:-. • Current generation of // FTP’s. • Next generation of FTP (or more general protocols). • Layer 5+ :-. • Ability to take high level applications and steer them on to a research WAN, (possibly by making small changes to storage system).
