  1. The GSI Mass Storage System TAB GridKa, FZ Karlsruhe Sep. 4, 2002 Horst Göringer, GSI Darmstadt H.Goeringer@gsi.de

  2. Mass Storage @ GSI: Overview • recent history • current (old) system • functionality • structure • usage • new system • the requirements • structure • status • Outlook H.Goeringer@gsi.de

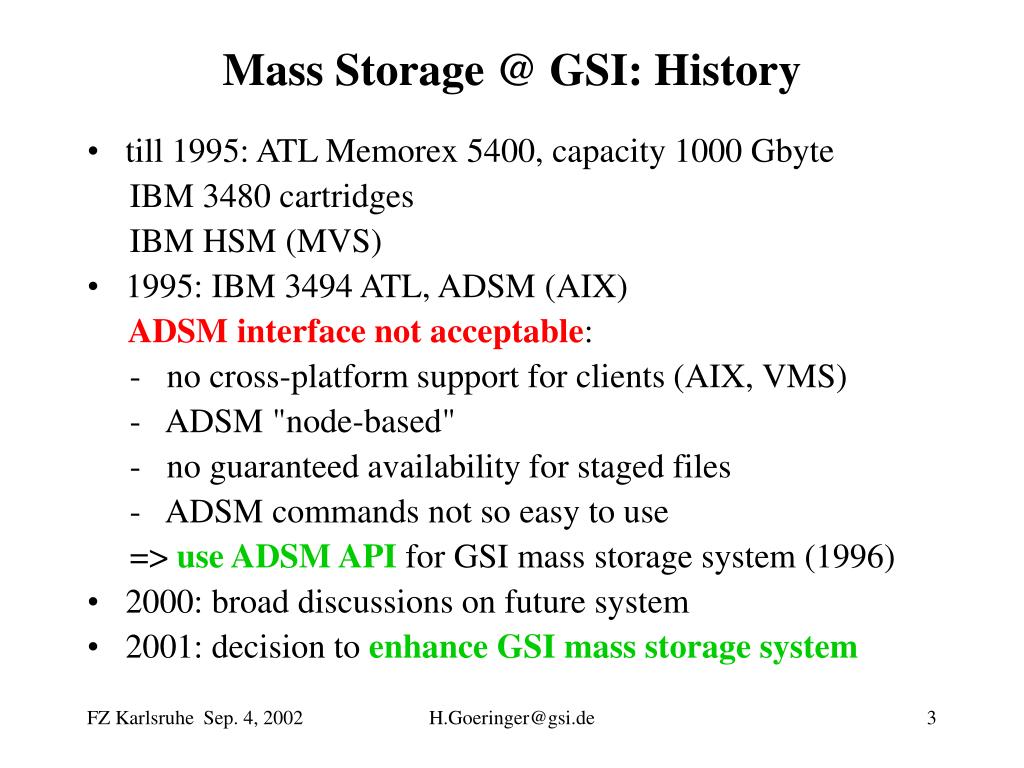

  3. Mass Storage @ GSI: History • till 1995: ATL Memorex 5400, capacity 1000 Gbyte IBM 3480 cartridges IBM HSM (MVS) • 1995: IBM 3494 ATL, ADSM (AIX) ADSM interface not acceptable: - no cross-platform support for clients (AIX, VMS) - ADSM "node-based" - no guaranteed availability for staged files - ADSM commands not so easy to use => use ADSM API for GSI mass storage system (1996) • 2000: broad discussions on future system • 2001: decision to enhance GSI mass storage system H.Goeringer@gsi.de

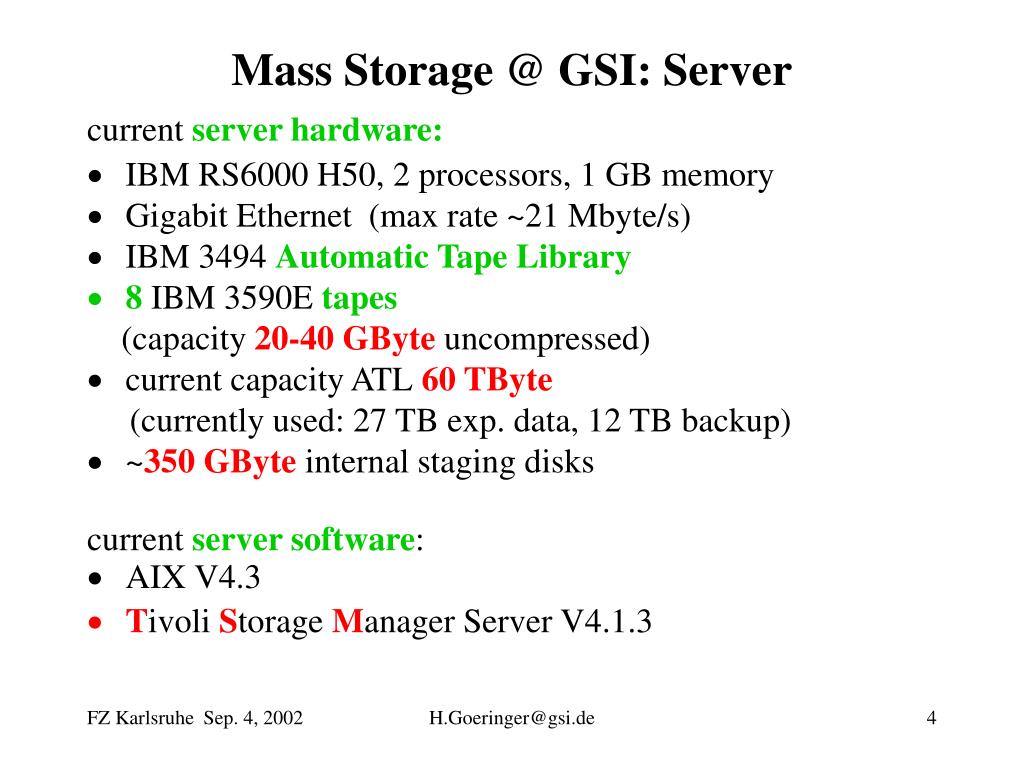

  4. Mass Storage @ GSI: Server current server hardware: • IBM RS6000 H50, 2 processors, 1 GB memory • Gigabit Ethernet (max rate ~21 Mbyte/s) • IBM 3494 Automatic Tape Library • 8 IBM 3590E tapes (capacity 20-40 GByte uncompressed) • current capacity ATL 60 TByte (currently used: 27 TB exp. data, 12 TB backup) • ~350 GByte internal staging disks current server software: • AIX V4.3 • Tivoli Storage Manager Server V4.1.3 H.Goeringer@gsi.de

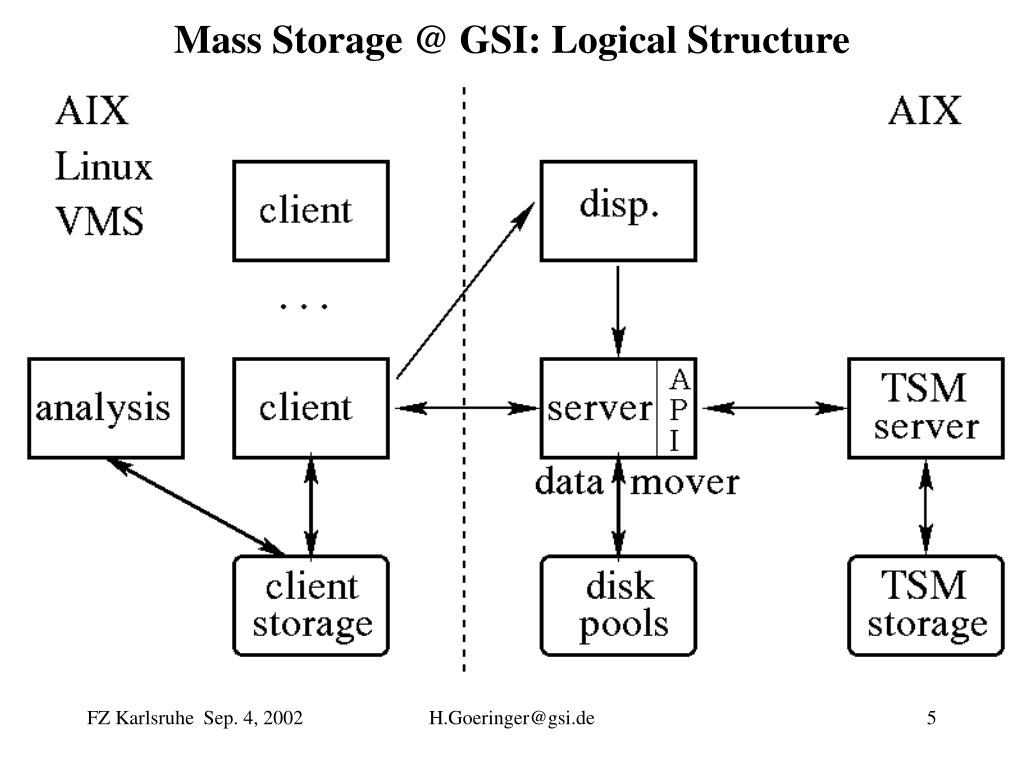

  5. Mass Storage @ GSI: Logical Structure H.Goeringer@gsi.de

  6. Mass Storage @ GSI: Functionality • command interface • archive • retrieve • query • stage • delete • pool_query • ws_query • RFIOAPI • functions available for open, close, read, seek, ... • ROOT@GSI: RFIO client accesses GSI mass storage • write functions: till end 2002 H.Goeringer@gsi.de

  7. Mass Storage @ GSI: Functionality • identical client interface on all GSI platforms (Linux, AIX, VMS) • unique name space • security policy • client tape support (ANSI Label) • server log files for - error reports - statistical analysis • GSI software: C with sockets • integrated in Alien H.Goeringer@gsi.de

  8. Mass Storage @ GSI: Stage Pool Manager • administers several Stage Pools with different attributes: • file life time • max space • user access • currently active pools: • RetrievePool: no guaranteed life time • StagePool: min life time guaranteed • future pools: • ArchivePool • pools dedicated to user groups H.Goeringer@gsi.de

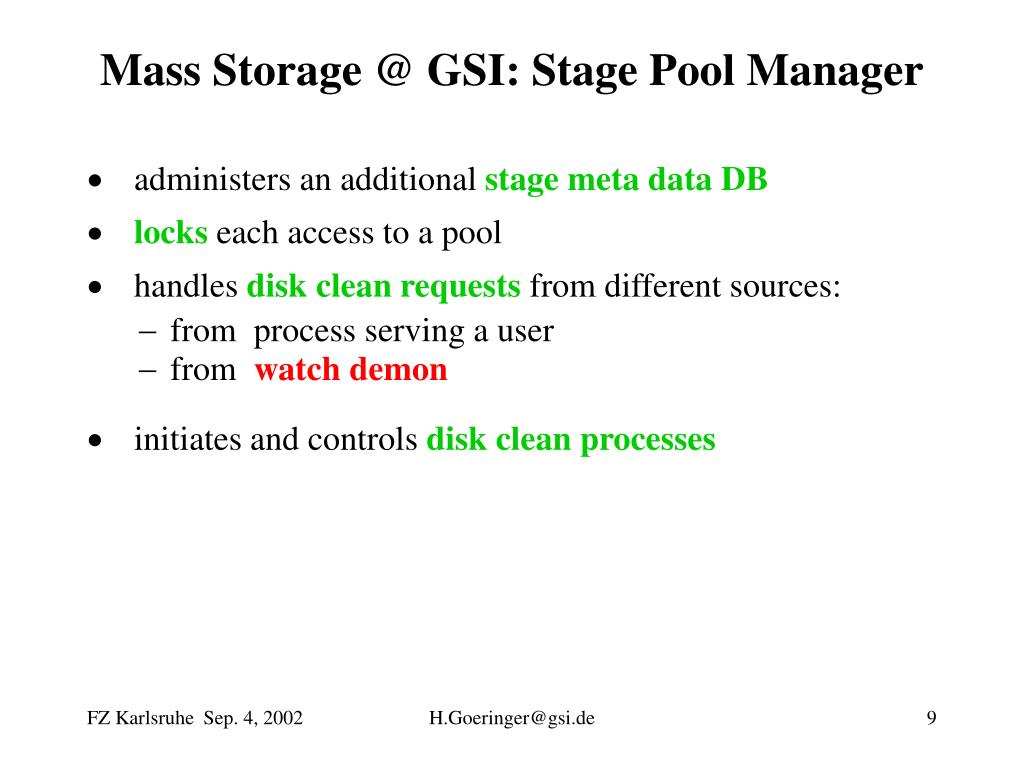

  9. Mass Storage @ GSI: Stage Pool Manager • administers an additional stage meta data DB • locks each access to a pool • handles disk clean requests from different sources: • from process serving a user • from watch demon • initiates and controls disk clean processes H.Goeringer@gsi.de

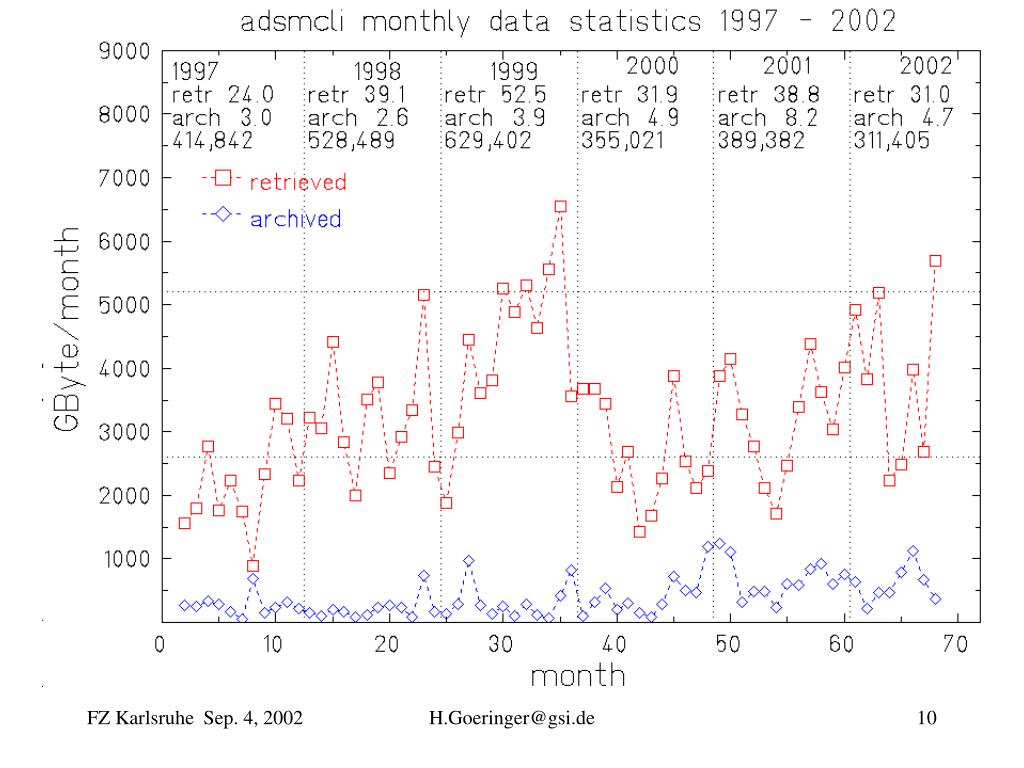

  10. H.Goeringer@gsi.de

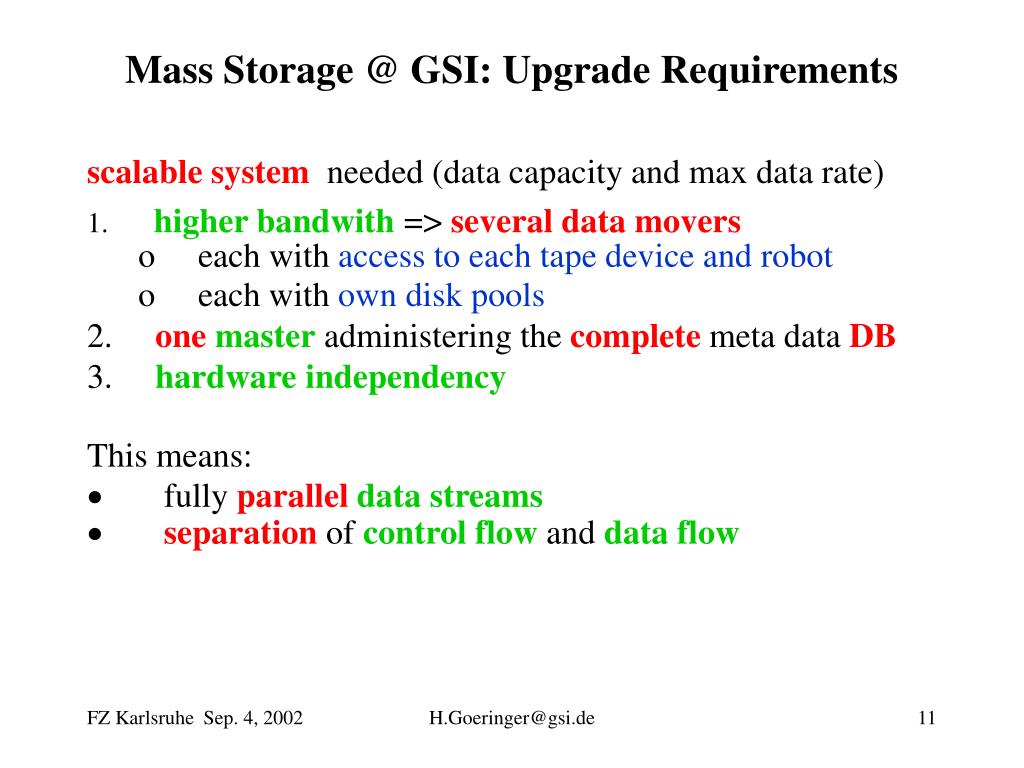

  11. Mass Storage @ GSI: Upgrade Requirements scalable system needed (data capacity and max data rate) • higher bandwith => severaldata movers • each with access to each tape device and robot • eachwith own disk pools • one master administering the completemeta data DB • hardwareindependency This means: • fully parallel data streams • separation of control flow and data flow H.Goeringer@gsi.de

  12. Mass Storage @ GSI: Upgrade Requirements enabling technologies: • Storage Area Network • Tivoli Storage Manager (successor of ADSM) H.Goeringer@gsi.de

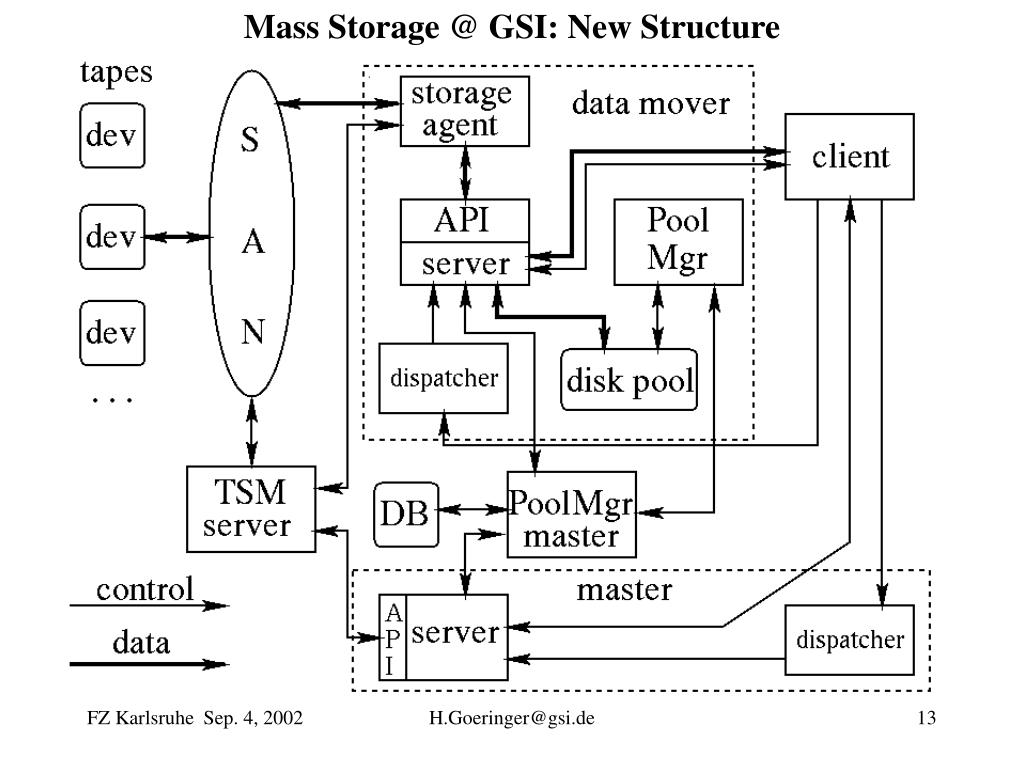

  13. Mass Storage @ GSI: New Structure H.Goeringer@gsi.de

  14. Mass Storage @ GSI: New Hardware new hardware: • tape robot StorageTek L700 (max 68 TByte) • 8 IBM 3850 Ultrium LTO tape drives (capacity 100 GByte uncompressed) • 2 TSM server (Intel PC, fail-safe Windows 2000 cluster) • 4 (8) data mover (Intel PC, Windows 2000) • SAN components Brokat switch 4100 (16 ports, each 1 Mbit/s) purpose: • verification of new concept • hardware test: SAN, ATL, tape drives, tape volumes • later: new backup system for user data H.Goeringer@gsi.de

  15. Mass Storage @ GSI: Status hardware, TSM/Storage Agent: seems to work (tests still running) new GSI software (for Unix) nearly ready • command client • RFIO client (read only) • server package (master and slaves on data movers) • stage pool manager (master and slaves on data movers) • in Oct 2002: to be used for production with current AIX server H.Goeringer@gsi.de

  16. Mass Storage @ GSI: Current Plans • in 2003: DAQ connection to mass storage • n event builders will write in parallel via RFIO to dedicated archive disk pools • enhanced performance and stability requirements • in 2003/2004: new ATL (several 100 TByte) to fulfill current requirements for next years H.Goeringer@gsi.de

  17. Mass Storage @ GSI: Outlook • the yearly increment of experimentdatagrows rapidly: • an order of magnitude next years • after 2006 Alice experiment running • "Future Project" of GSI => the mass storage system must be scalable in both, storage capacity, and data rates • the system must be flexible to follow the development of new hardware Our new concept fulfills these requirements! • TSM is a powerful storage manager satisfying our needs now and also in the next future • high flexibility with GSI made user interface H.Goeringer@gsi.de

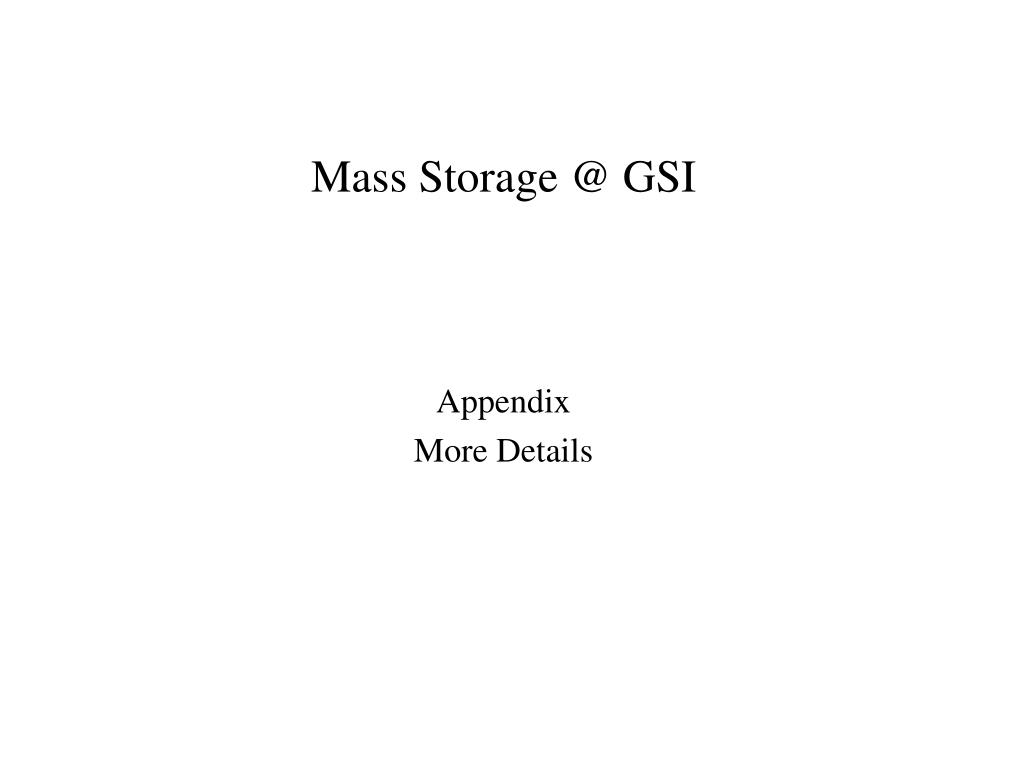

  18. Mass Storage @ GSI Appendix More Details

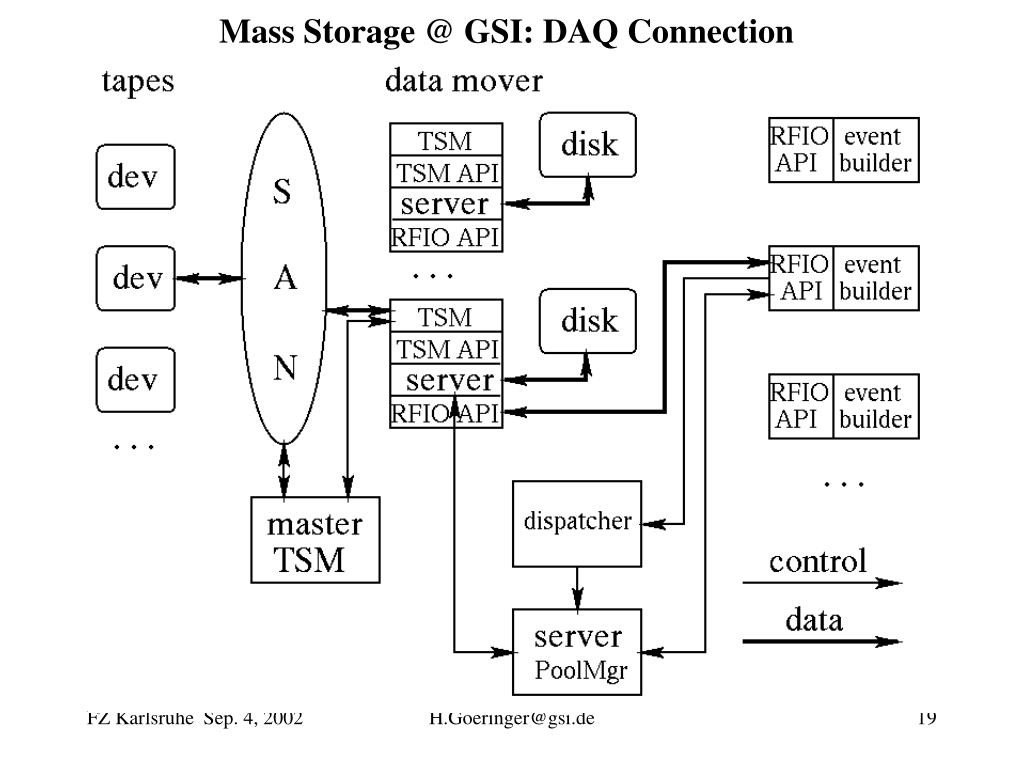

  19. Mass Storage @ GSI: DAQ Connection H.Goeringer@gsi.de

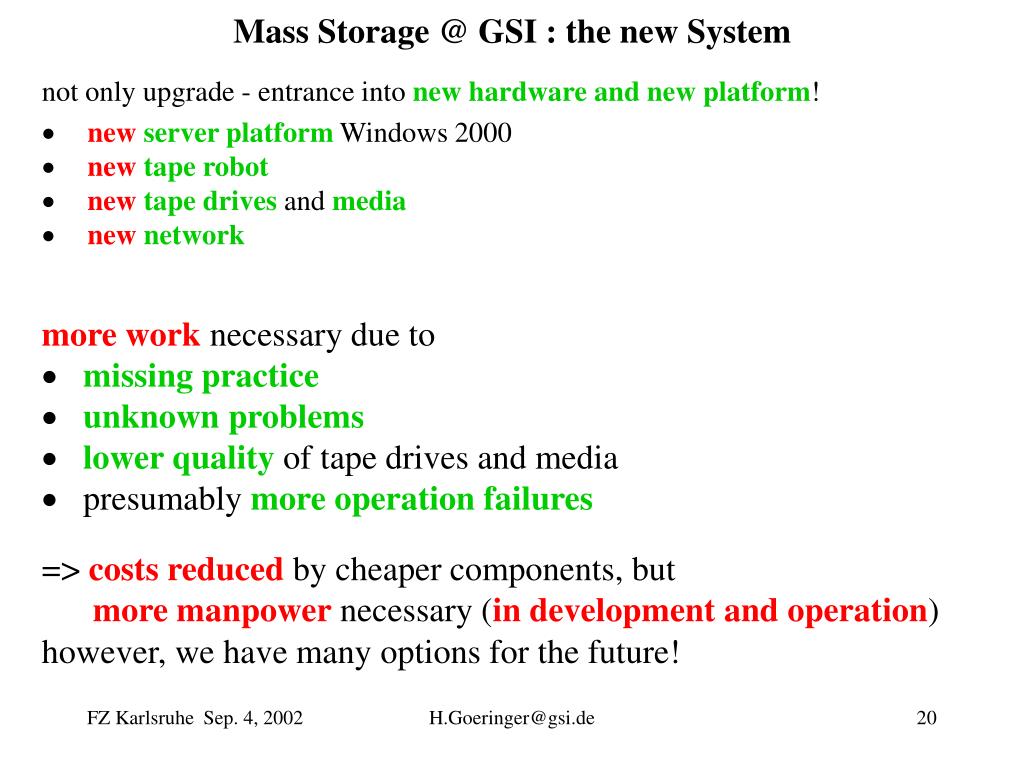

  20. Mass Storage @ GSI : the new System not only upgrade - entrance into new hardware and new platform! • newserver platform Windows 2000 • newtape robot • newtape drives and media • newnetwork more work necessary due to • missing practice • unknown problems • lower quality of tape drives and media • presumably more operation failures => costs reduced by cheaper components, but more manpower necessary (in development and operation) however, we have many options for the future! H.Goeringer@gsi.de

  21. Mass Storage @ GSI : the new System SW enhancements and adaptions (cont‘d): • adaption adsmcli server to new concept => tsmcli • division of functionality into several processes • code restructuring and adaptions • communication between processes • data mover selection (load balancing) • enhancement disk pool manager • subpools on each data mover => n slavedisk pool managers • communicationmaster - slaves • enhancement metadatadatabase • subpool selection • DAQ pool handling H.Goeringer@gsi.de

  22. Mass Storage @ GSI : the new System Potential risks: • newserver platform Windows 2000 • newtape robot • newtape drives and media • newnetwork more work necessary due to • missing practice • unknown problems • lower quality of tape drives and media H.Goeringer@gsi.de

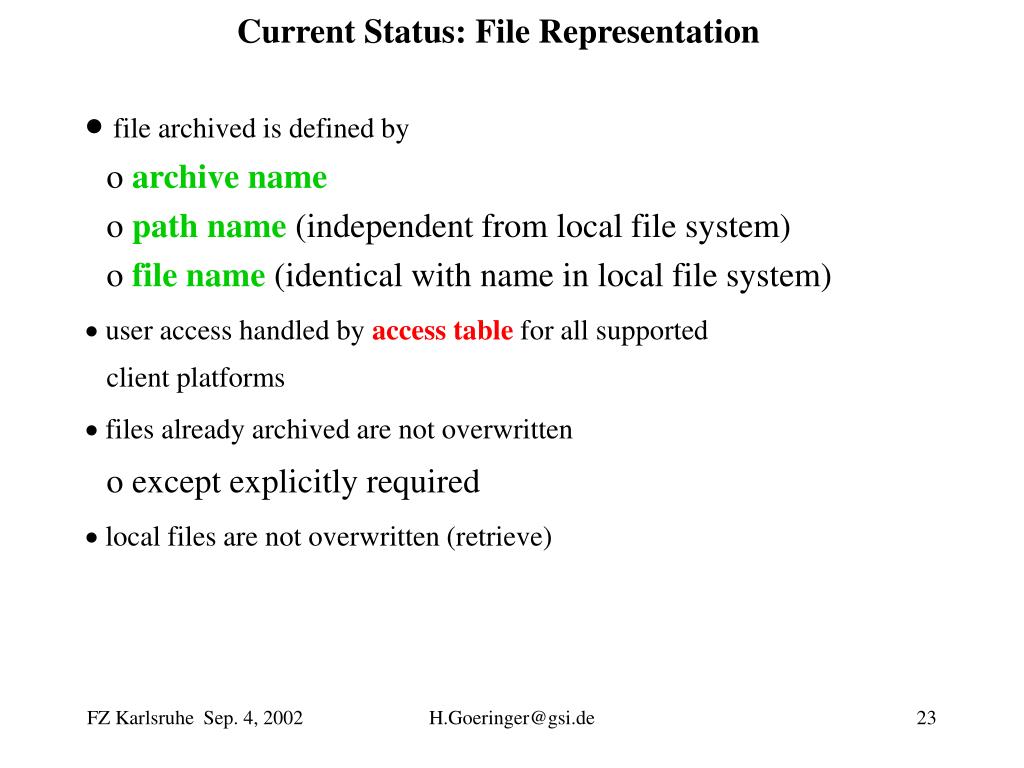

  23. Current Status: File Representation • file archived is defined by • archive name • path name (independent from local file system) • file name (identical with name in local file system) • user access handled by access table for all supported client platforms • files already archived are not overwritten • except explicitly required • local files are not overwritten (retrieve) H.Goeringer@gsi.de

  24. Current Status: Local Tape Handling • support of standard ANSI Label tapes on client side • tape volumes portable between client platforms (AIX, Linux, VMS) • enhanced error handling: • corrupt files do not affect others when handling a file list • missing EOF mark is handled • user friendly: archive complete tapevolume invoking one command H.Goeringer@gsi.de

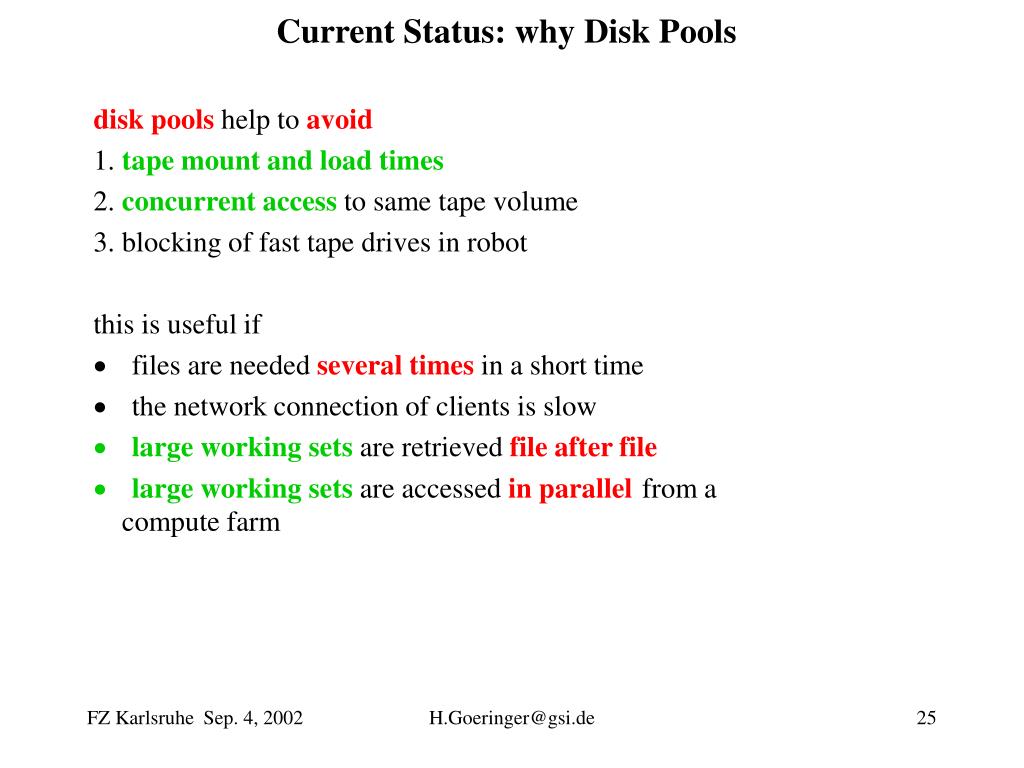

  25. Current Status: why Disk Pools disk pools help to avoid 1. tape mount and load times 2. concurrent access to same tape volume 3. blocking of fast tape drives in robot this is useful if • files are needed several times in a short time • the network connection of clients is slow • large working sets are retrieved file after file • large working sets are accessed in parallelfrom a compute farm H.Goeringer@gsi.de

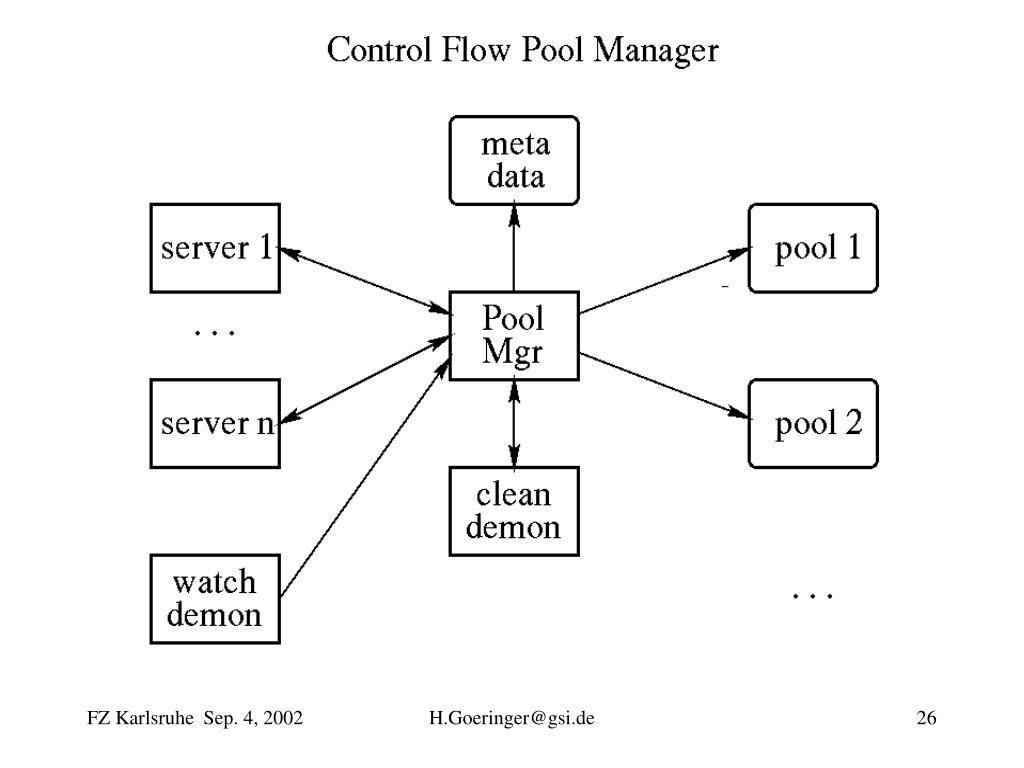

  26. H.Goeringer@gsi.de

  27. Disk Pool Manager: the current Pools • RetrievePool: • files stored via adsmcli retrieve • - inhibit with option stage=no • files stored when read via API • no guaranteed life time • StagePool: • files stored via adsmcli stage • min life time guaranteed (3 days currently) • current space: • hardware shared • overall: 350 GByte • StagePool: 100 GByte max • the RetrievePool uses space unused by the StagePool • (`lent space`) H.Goeringer@gsi.de

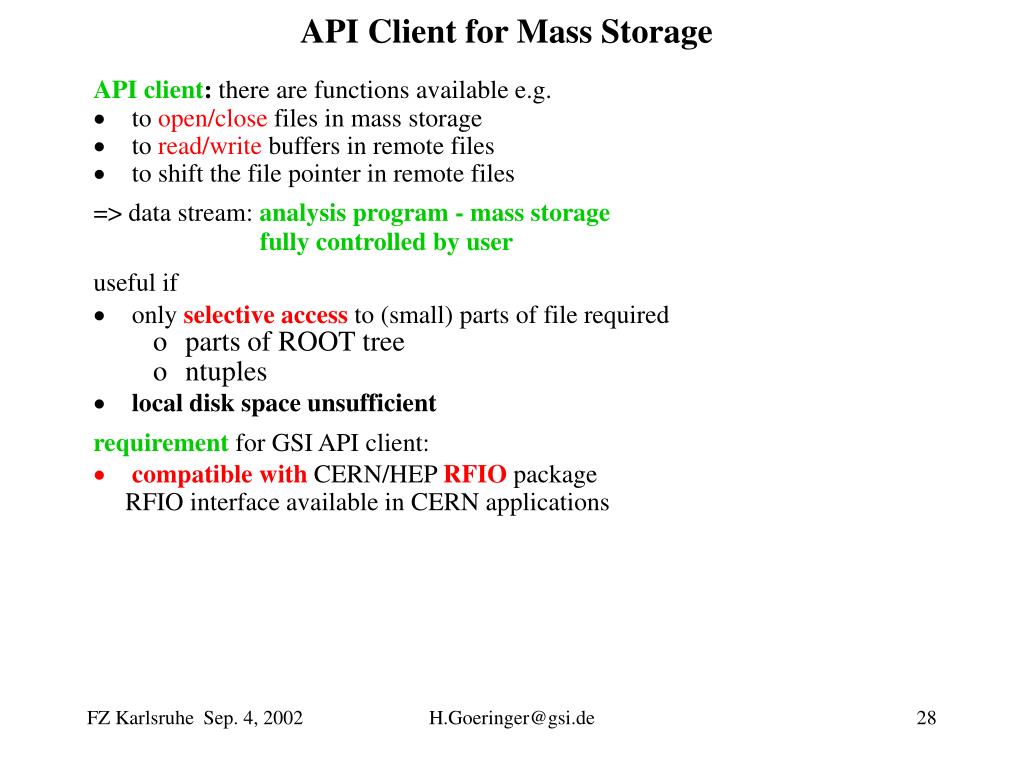

  28. API Client for Mass Storage API client: there are functions available e.g. • to open/close files in mass storage • to read/write buffers in remote files • to shift the file pointer in remote files => data stream: analysis program - mass storage fully controlled by user useful if • only selective access to (small) parts of file required • parts of ROOT tree • ntuples • local disk space unsufficient requirement for GSI API client: • compatible with CERN/HEP RFIO package RFIO interface available in CERN applications H.Goeringer@gsi.de

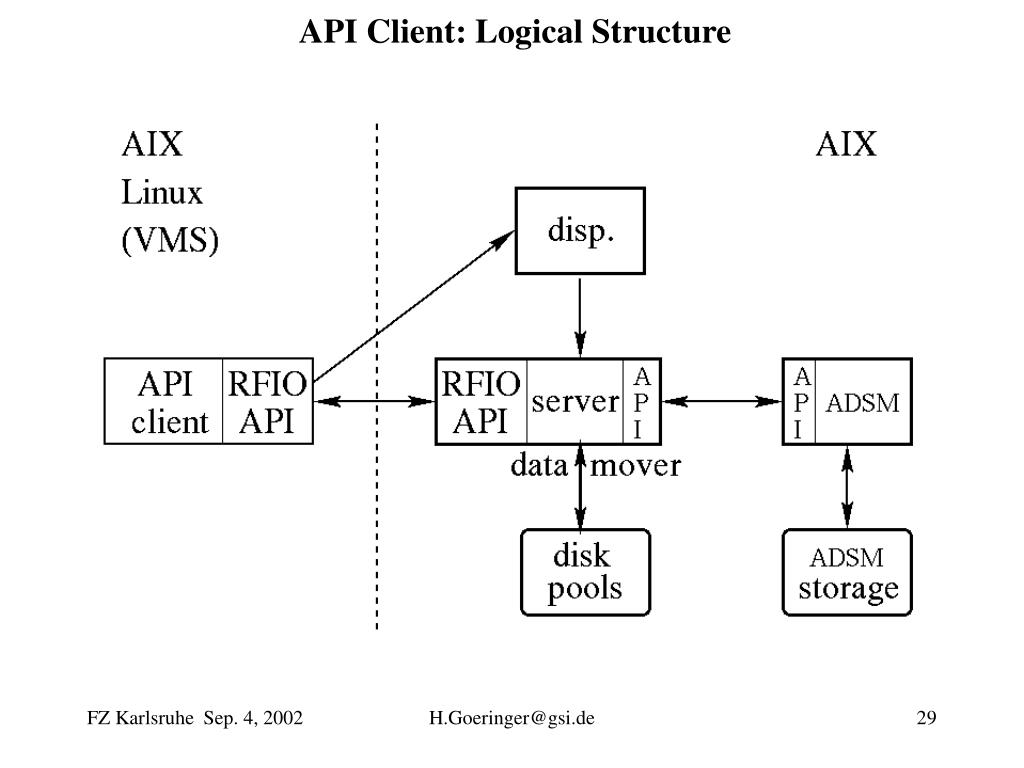

  29. API Client: Logical Structure H.Goeringer@gsi.de

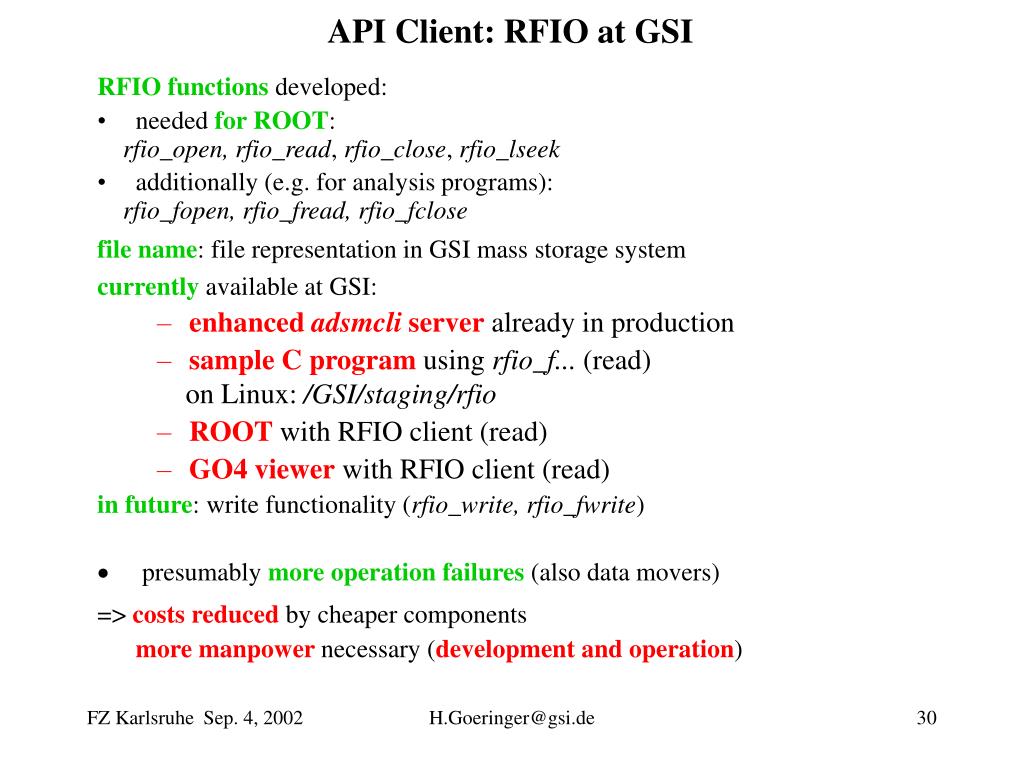

  30. API Client: RFIO at GSI RFIO functions developed: • needed for ROOT: rfio_open,rfio_read, rfio_close, rfio_lseek • additionally (e.g. for analysis programs): rfio_fopen,rfio_fread,rfio_fclose file name: file representation in GSI mass storage system currently available at GSI: • enhanced adsmcli server already in production • sample C program using rfio_f... (read) on Linux: /GSI/staging/rfio • ROOT with RFIO client (read) • GO4 viewer with RFIO client (read) in future: write functionality (rfio_write, rfio_fwrite) • presumably more operation failures (also data movers) => costs reduced by cheaper components more manpower necessary (development and operation) H.Goeringer@gsi.de

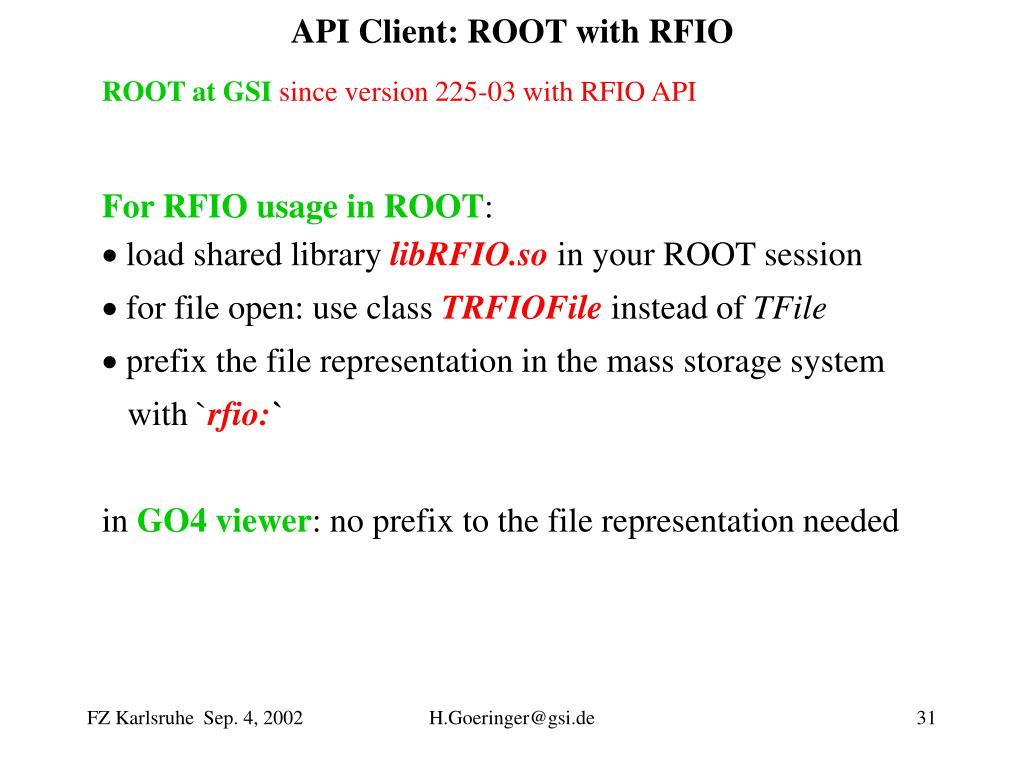

  31. API Client: ROOT with RFIO ROOT at GSIsince version 225-03 with RFIO API • For RFIO usage in ROOT: • load shared library libRFIO.so in your ROOT session • for file open: use class TRFIOFileinstead of TFile • prefix the file representation in the mass storage system with `rfio:` in GO4 viewer: no prefix to the file representation needed H.Goeringer@gsi.de

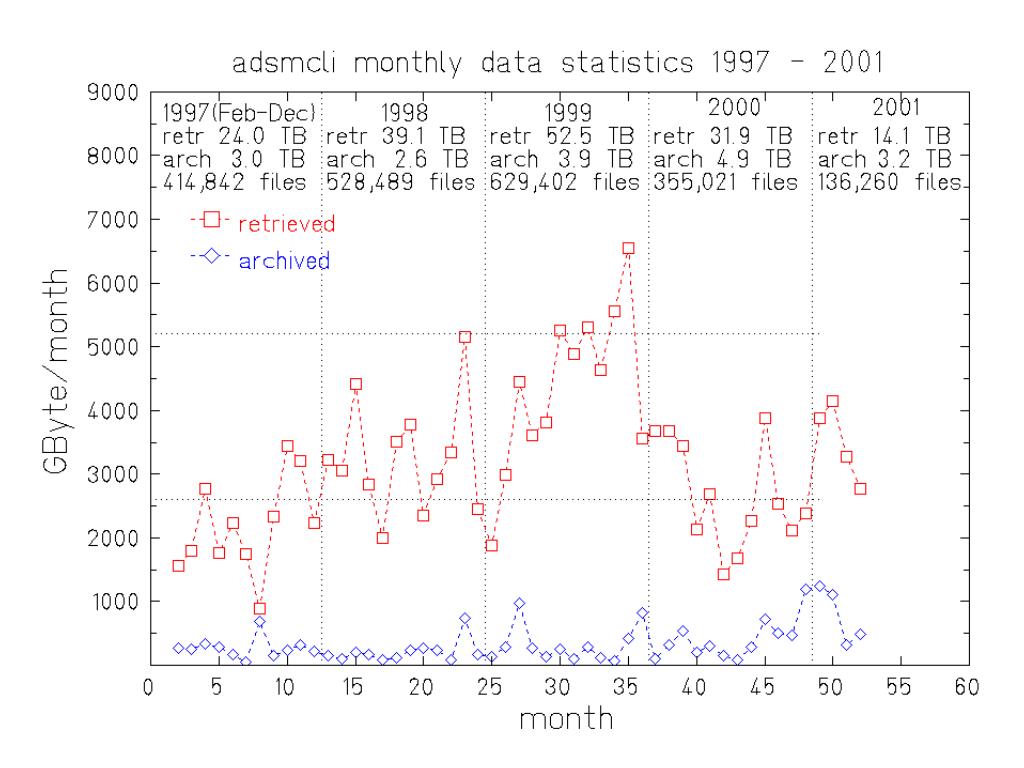

  32. H.Goeringer@gsi.de

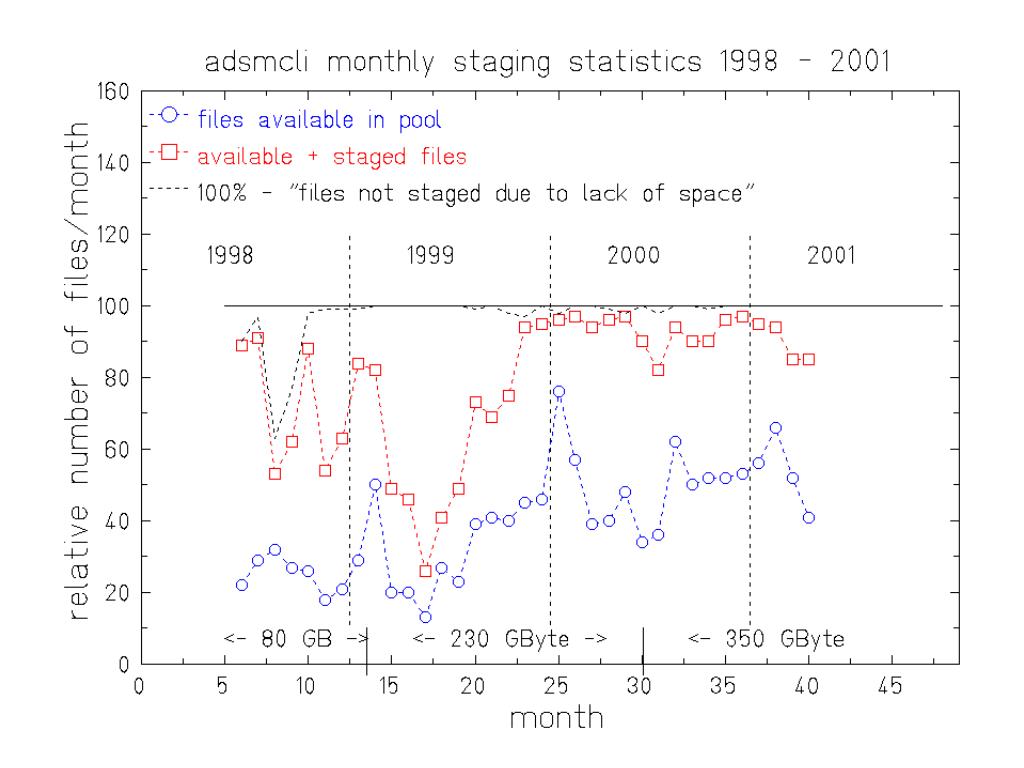

  33. H.Goeringer@gsi.de

  34. Mass Storage @ GSI : The current Bottlenecks data capacity: • in April 2001: tape robot nearly completely filled (30 TByte uncompressed) • since April 27, 2001: new tape drives IBM 3590E • write with double density: > 20 GByte/volume • copy all volumes => ~ 30 TByte free capacity • current requirements GSI (TByte): experiment backup accumulated 2001: 15 6.5 22 2002: 30 4.0 56 2003: 34 5.0 95 • additionally: multiple instances of experiment data! H.Goeringer@gsi.de
