Introduction to CIP system

The modern clean in place (CIP) system skid is a method employed to clean vessels and equipment commonly used in process plants. The basic process involves passing a cleaning fluid across a surface to remove any product soils. The biggest advantage this system offers is that it requires no equipment removal or any disassembly. It offers the most superior and automated cleansing, rinsing, and sanitizing. The CIP cycles are run after a processing run that has produced normal soiling or when there is a changing processing line from one product to another.

bhagwatipharma
Download Presentation

Introduction to CIP system

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Introduction to CIP system

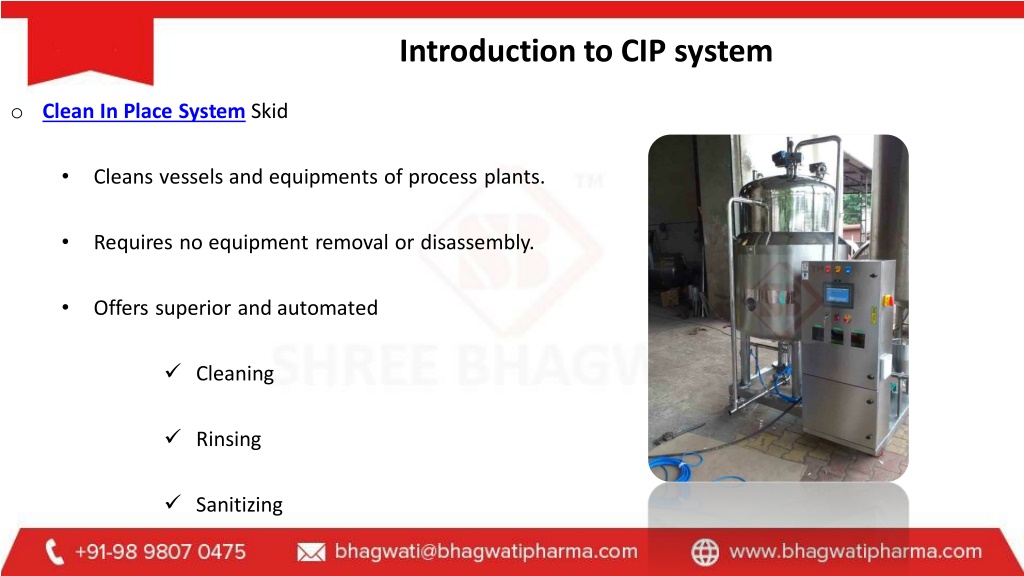

  2. Introduction to CIP system o Clean In Place System Skid • Cleans vessels and equipments of process plants. • Requires no equipment removal or disassembly. • Offers superior and automated ✓ Cleaning ✓ Rinsing ✓ Sanitizing

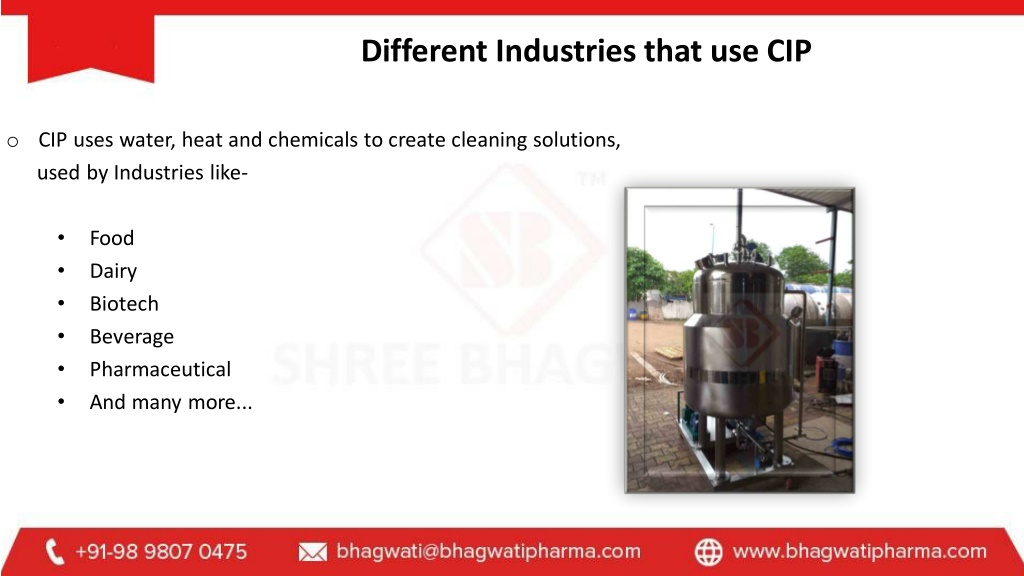

  3. Different Industries that use CIP o CIP uses water, heat and chemicals to create cleaning solutions, used by Industries like- • • • • • • Food Dairy Biotech Beverage Pharmaceutical And many more...

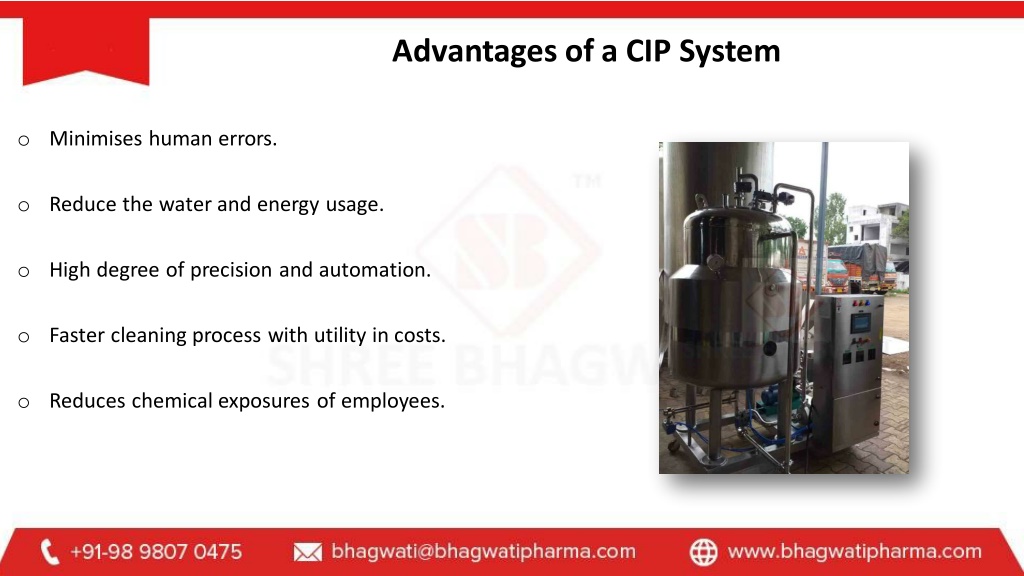

  4. Advantages of a CIP System o Minimises human errors. o Reduce the water and energy usage. o High degree of precision and automation. o Faster cleaning process with utility in costs. o Reduces chemical exposures of employees.

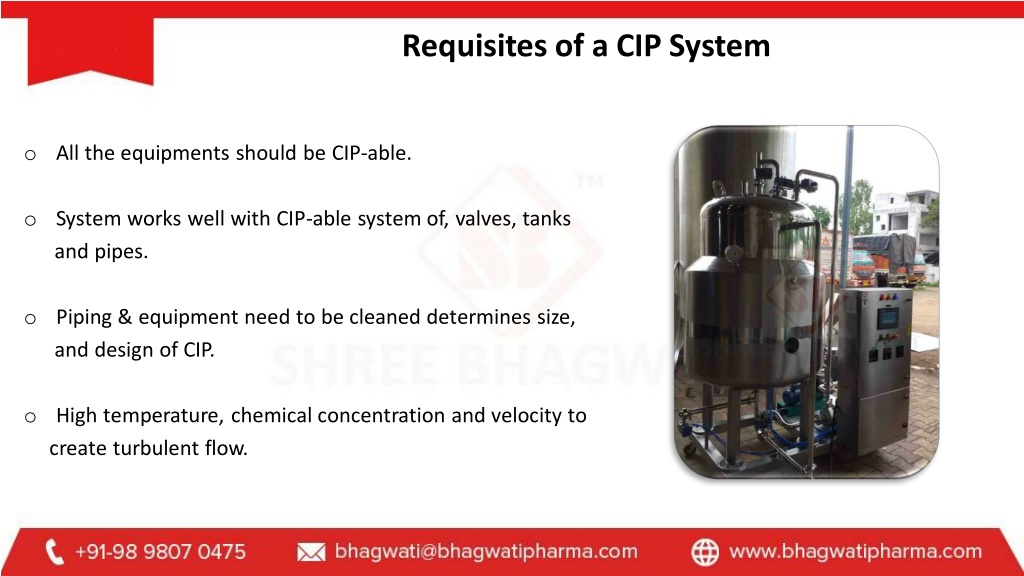

  5. Requisites of a CIP System o All the equipments should be CIP-able. o System works well with CIP-able system of, valves, tanks and pipes. o Piping & equipment need to be cleaned determines size, and design of CIP. o High temperature, chemical concentration and velocity to create turbulent flow.

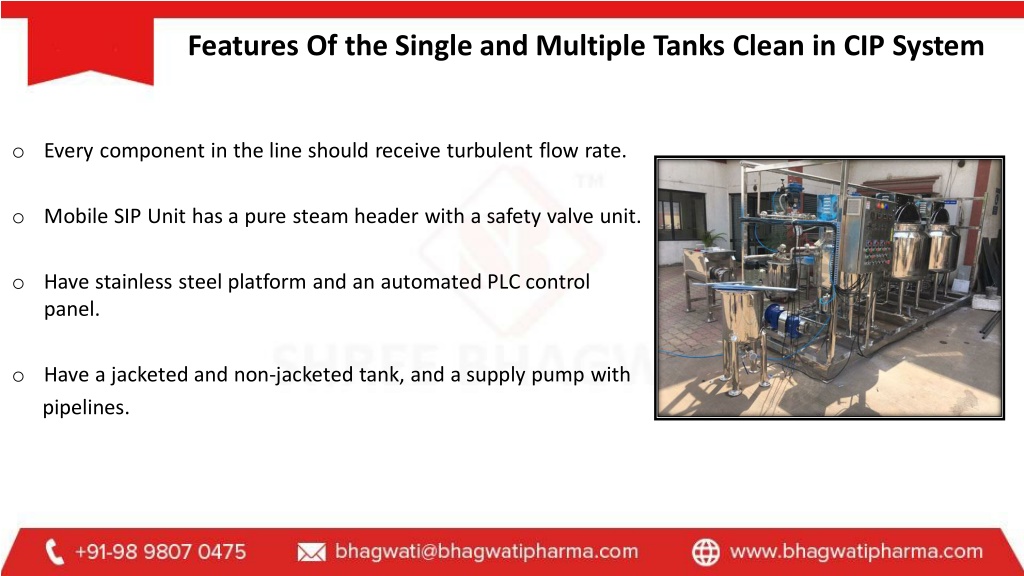

  6. Features Of the Single and Multiple Tanks Clean in CIP System o Every component in the line should receive turbulent flow rate. o Mobile SIP Unit has a pure steam header with a safety valve unit. o Have stainless steel platform and an automated PLC control panel. o Have a jacketed and non-jacketed tank, and a supply pump with pipelines.

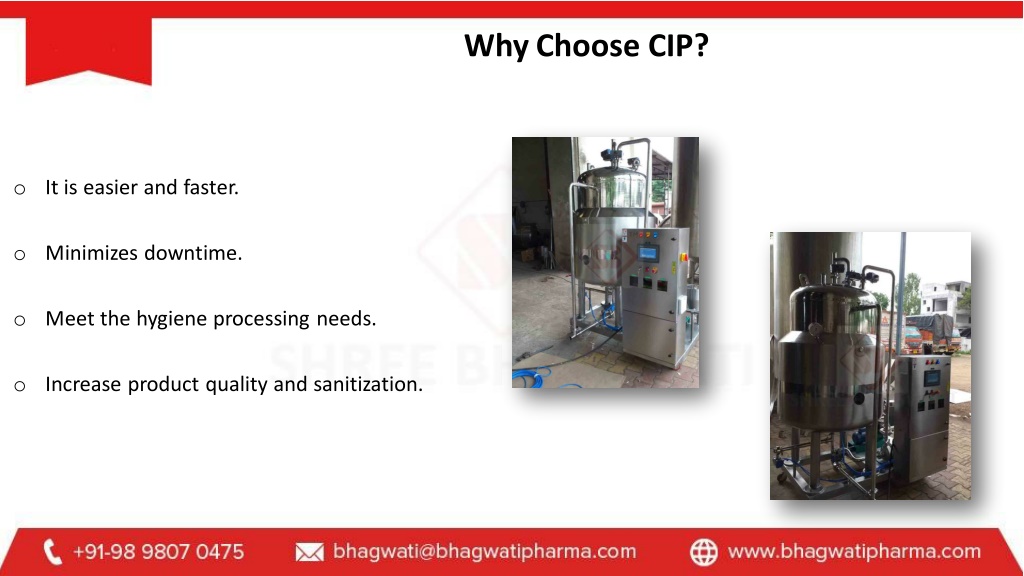

  7. Why Choose CIP? o It is easier and faster. o Minimizes downtime. o Meet the hygiene processing needs. o Increase product quality and sanitization.

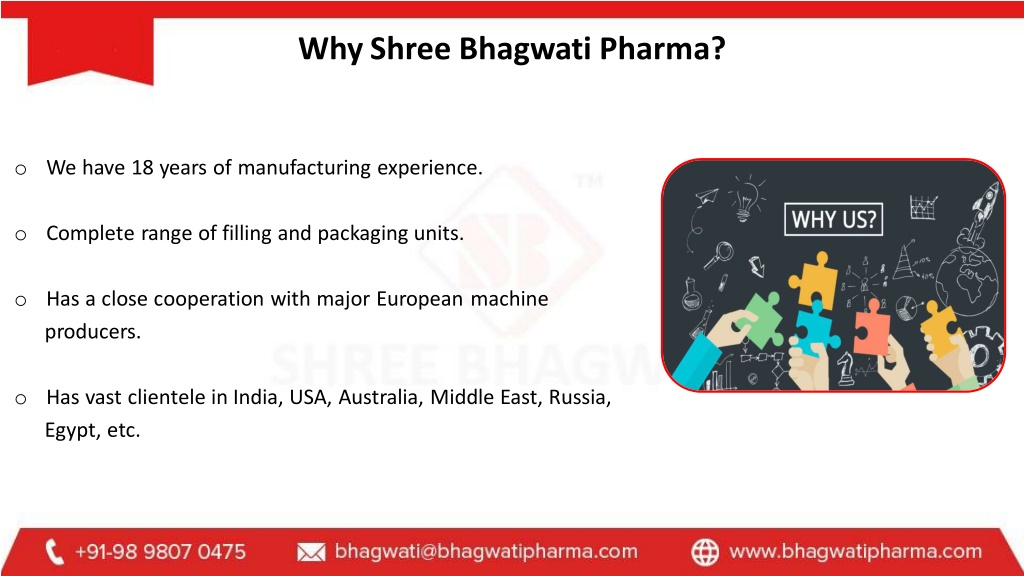

  8. Why Shree Bhagwati Pharma? o We have 18 years of manufacturing experience. o Complete range of filling and packaging units. o Has a close cooperation with major European machine producers. o Has vast clientele in India, USA, Australia, Middle East, Russia, Egypt, etc.

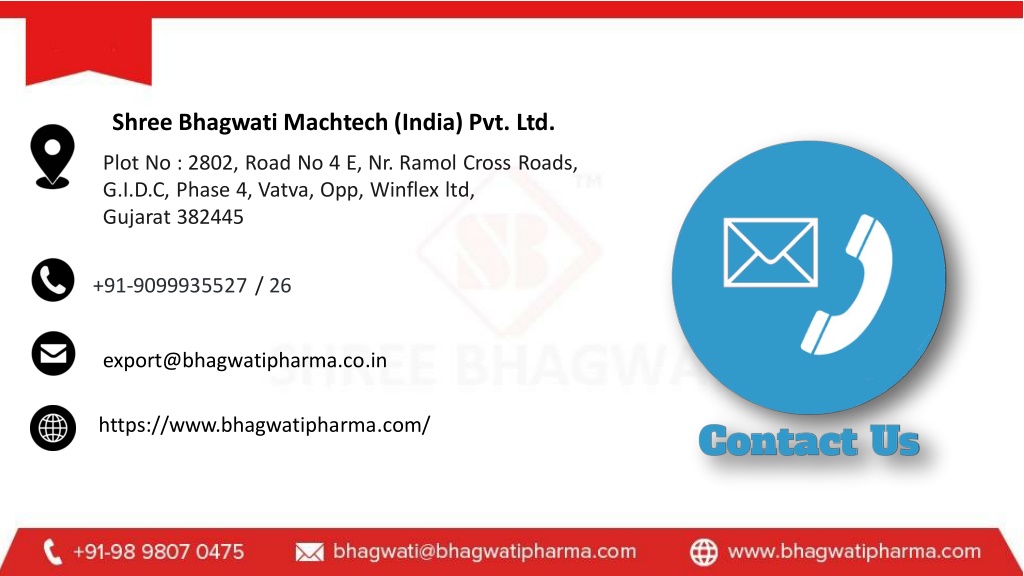

  9. Shree Bhagwati Machtech (India) Pvt. Ltd. Plot No : 2802, Road No 4 E, Nr. Ramol Cross Roads, G.I.D.C, Phase 4, Vatva, Opp, Winflex ltd, Gujarat 382445 +91-9099935527 / 26 export@bhagwatipharma.co.in https://www.bhagwatipharma.com/
