More on complexity measures

1. More on complexity measures Statistical complexity J. P. Crutchfield. The calculi of emergence. Physica D. 1994

2. complex  random C randomness,H I H • Entropy and algorithmic complexity associate maximum complexity with randomness • pure order and pure noise are not “complex” • complex systems have • intricate structure on multiple scales • repeating patterns • continual variation, … • complexity lies between order and chaos • Wolfram’s class 4 CAs • Langton’s “edge of chaos” • Mutual information shows complexity • RBN transition example (also k-SAT): • are there other measures like this?

3. when randomness = noise • the measures so far assume that randomness is information • even logical depth • Randomness is not very “deep” information • Sometimes, the “randomness” actually is information • the output of good compression algorithms is highly “random” • else the remaining structure could be used to compress it more “any sufficiently advanced communication is indistinguishable from noise” • crypto functions output “random” strings • else the remaining structure could be used to break the code

4. randomness and noise • in the real world, (some) randomness is just “noise” • of no interest, carrying no “information” • these pictures are all different microscopically, but all just “white noise” macroscopically • the differences are not important • information measures “overfit” noise as data • this kind of noisy randomness is intuitively simple • a small change to the noise, is just the same noise

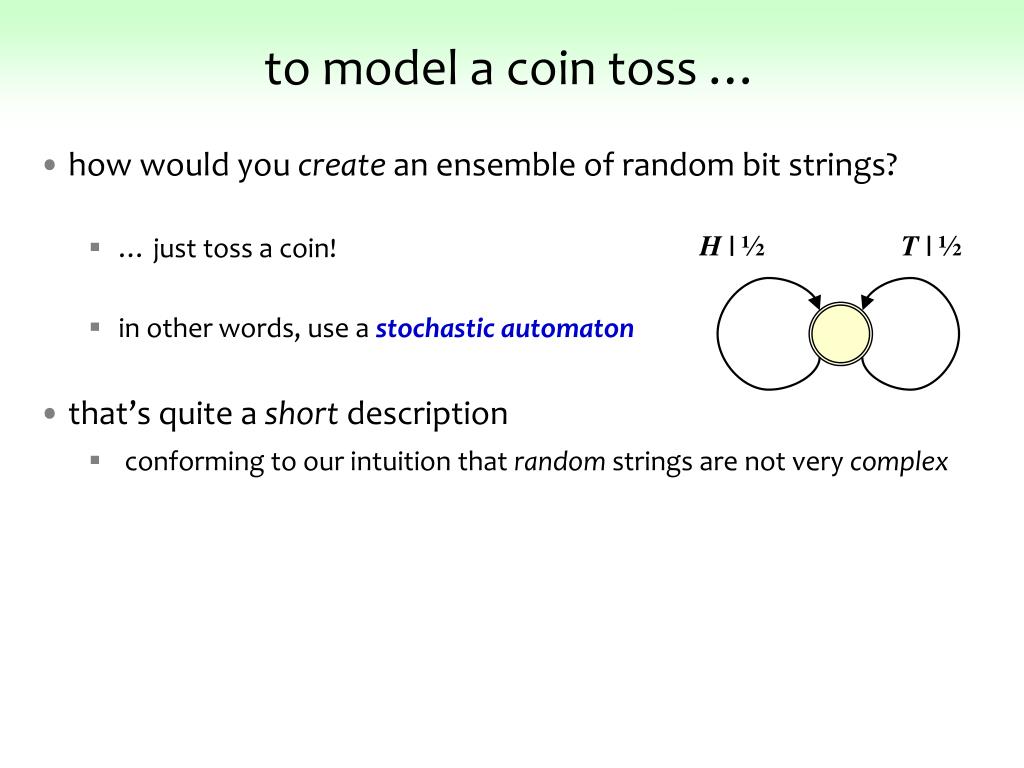

5. to model a coin toss … H | ½ T | ½ • how would you create an ensemble of random bit strings? • … just toss a coin! • in other words, use a stochastic automaton • that’s quite a short description • conforming to our intuition that random strings are not very complex

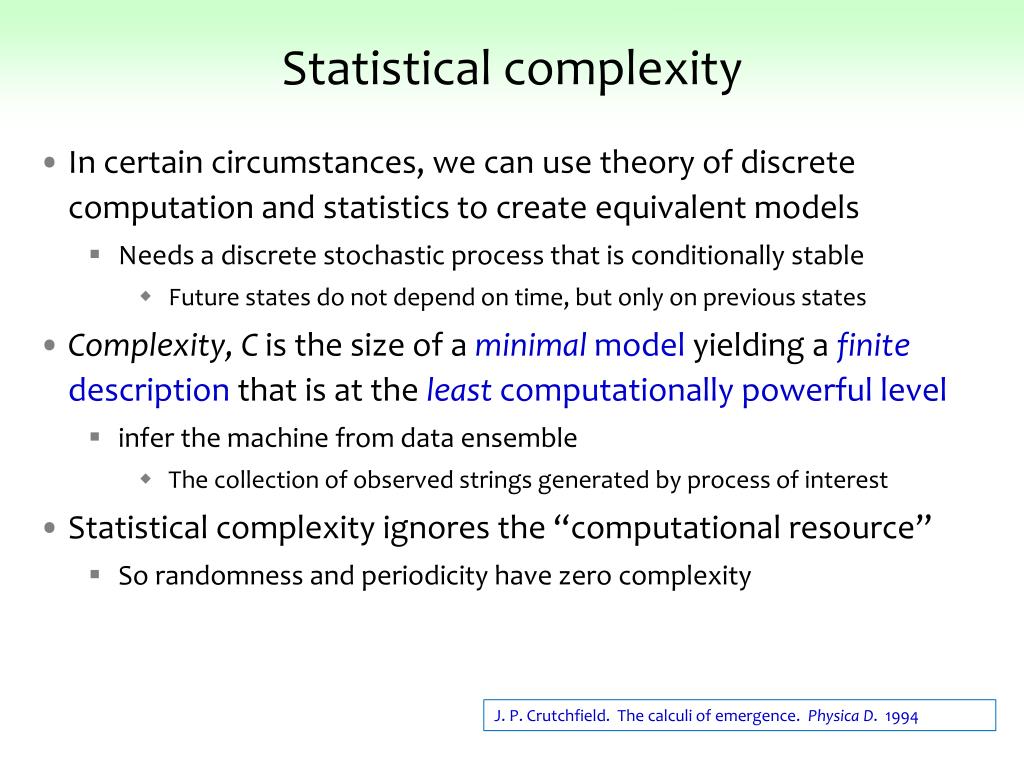

6. Statistical complexity • In certain circumstances, we can use theory of discrete computation and statistics to create equivalent models • Needs a discrete stochastic process that is conditionally stable • Future states do not depend on time, but only on previous states • Complexity, C is the size of a minimal model yielding a finite description that is at the least computationally powerful level • infer the machine from data ensemble • The collection of observed strings generated by process of interest • Statistical complexity ignores the “computational resource” • So randomness and periodicity have zero complexity J. P. Crutchfield. The calculi of emergence. Physica D. 1994

7. the inferred minimal model is called an e-machine • minimal model • size of the minimal stochastic machine • finite description • size of machine does not grow unboundedly with the size of the state • least computationally powerful level • e.g. finite state automaton, stack machine, UTM • Intuition: • Each observation represents a state, which incorporates an indirect indication of the hidden environment • States that lead to the same next state help to predict the environment • Causal states • An e–machine captures a minimal sequence of causal states J. P. Crutchfield. The calculi of emergence. Physica D. 1994

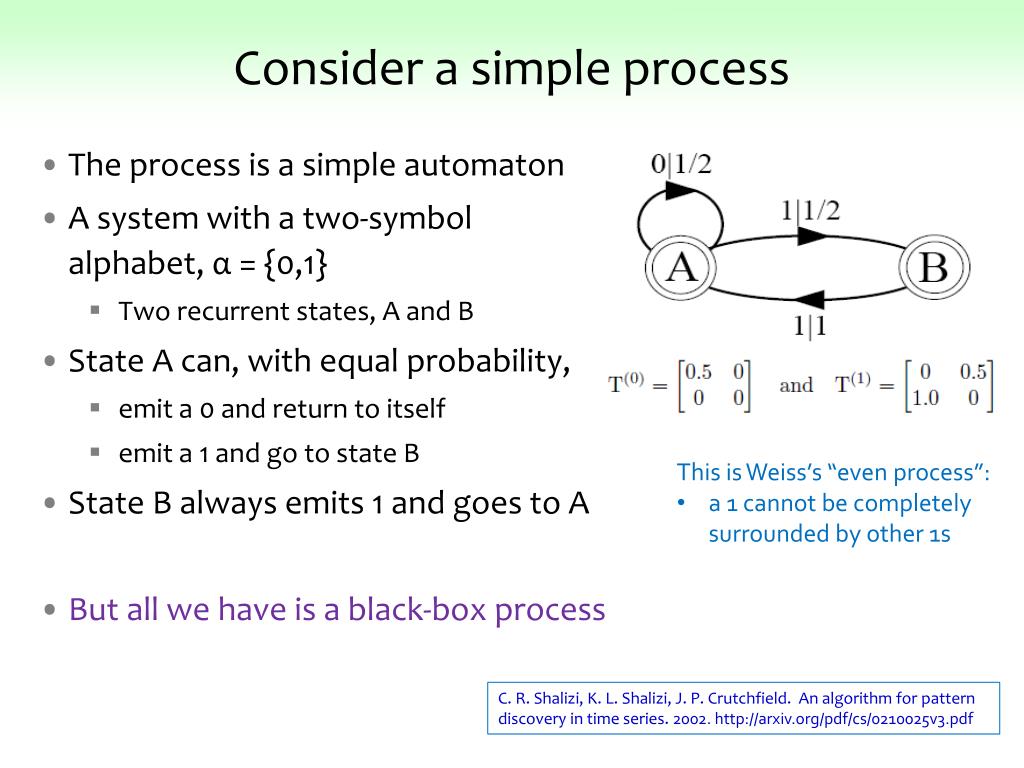

8. Consider a simple process • The process is a simple automaton • A system with a two-symbol alphabet, α = {0,1} • Two recurrent states, A and B • State A can, with equal probability, • emit a 0 and return to itself • emit a 1 and go to state B • State B always emits 1 and goes to A • But all we have is a black-box process • This is Weiss’s “even process”: • a 1 cannot be completely surrounded by other 1s C. R. Shalizi, K. L. Shalizi, J. P. Crutchfield. An algorithm for pattern discovery in time series. 2002. http://arxiv.org/pdf/cs/0210025v3.pdf

9. Record the process output • We need to deduce the automaton from data observations • Run the process many times • To get statistically useful data • e.g. 104 runs to word length = 4 C. R. Shalizi, K. L. Shalizi, J. P. Crutchfield. An algorithm for pattern discovery in time series. 2002. http://arxiv.org/pdf/cs/0210025v3.pdf

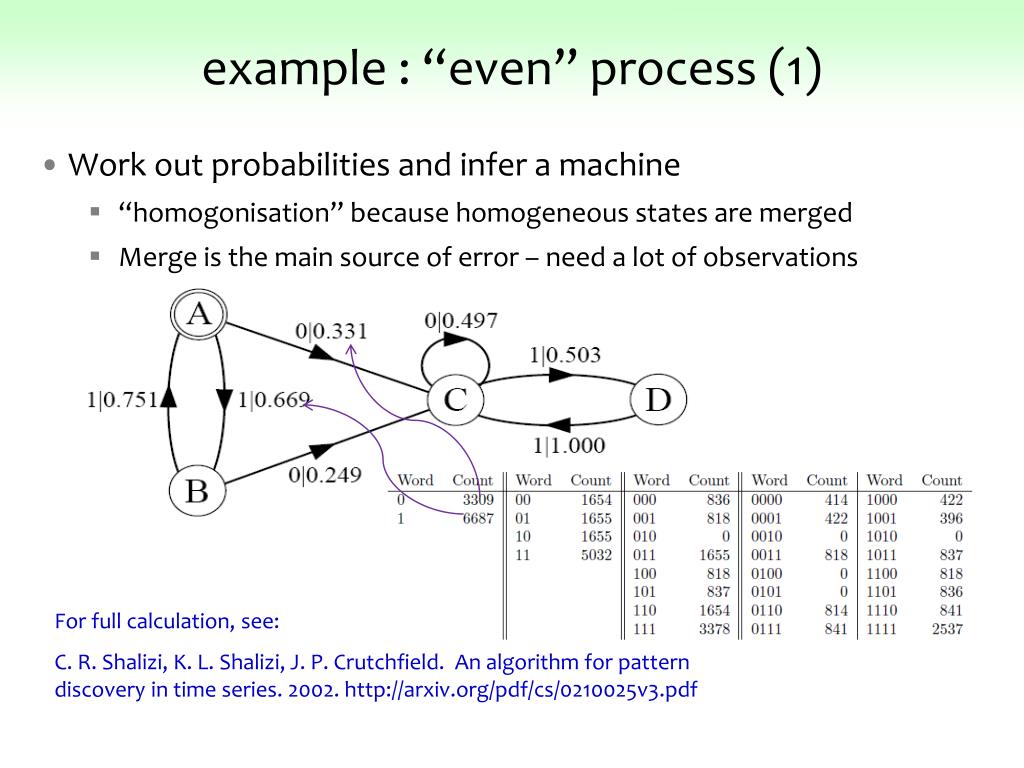

10. example : “even” process (1) • Work out probabilities and infer a machine • “homogonisation” because homogeneous states are merged • Merge is the main source of error – need a lot of observations For full calculation, see: C. R. Shalizi, K. L. Shalizi, J. P. Crutchfield. An algorithm for pattern discovery in time series. 2002. http://arxiv.org/pdf/cs/0210025v3.pdf

11. example : “even” process (2) • Check all states have incoming transitions • Reachability • Remove transient states • A and B form a transient cycle • The only exit is to produce a 0 and go to C • Every C state goes to C (adding 0) or D (adding 1) • Every state in D goes to C (adding 1) • “Determinisation” • Final e–machine has states C and D only C. R. Shalizi, K. L. Shalizi, J. P. Crutchfield. An algorithm for pattern discovery in time series. 2002. http://arxiv.org/pdf/cs/0210025v3.pdf

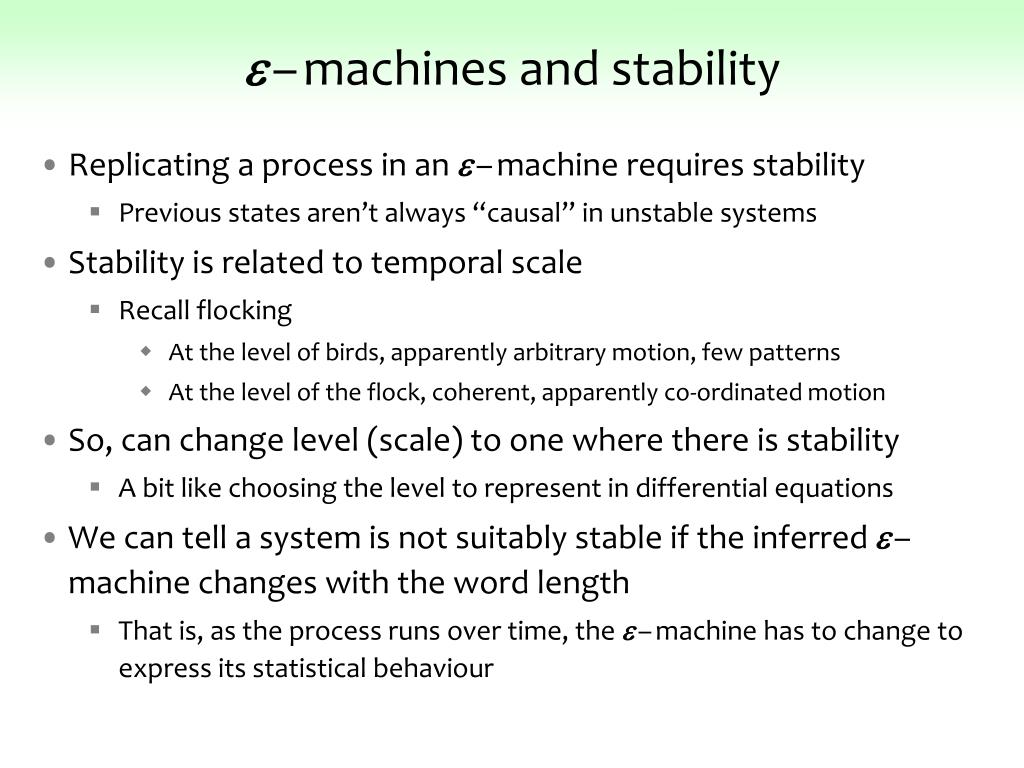

12. e–machines and stability • Replicating a process in an e–machine requires stability • Previous states aren’t always “causal” in unstable systems • Stability is related to temporal scale • Recall flocking • At the level of birds, apparently arbitrary motion, few patterns • At the level of the flock, coherent, apparently co-ordinated motion • So, can change level (scale) to one where there is stability • A bit like choosing the level to represent in differential equations • We can tell a system is not suitably stable if the inferred e–machine changes with the word length • That is, as the process runs over time, the e–machine has to change to express its statistical behaviour

13. e–machines and continuous systems • Most natural systems are continuous • Symbolic dynamics used to extract discrete time systems • Partition the state space and label each partition with a symbol • Over time, each point in the state space has a sequence of symbols • Its symbol at each observation point in its past and future • Loses information • Often deterministic continuous system gives stochastic discrete system Ц Point a is in region Ж at time t Over a series of discrete time observations, amoves through different regions: ... ЖЖЖϠϠЂЂЂЂ ЖЖ … Ц Ж Ж a Ђ a a a a a a a a a Ϡ Ђ Ϡ Ґ Ґ http://vserver1.cscs.lsa.umich.edu/~crshalizi/notabene/symbolic-dynamics.html (and citations)

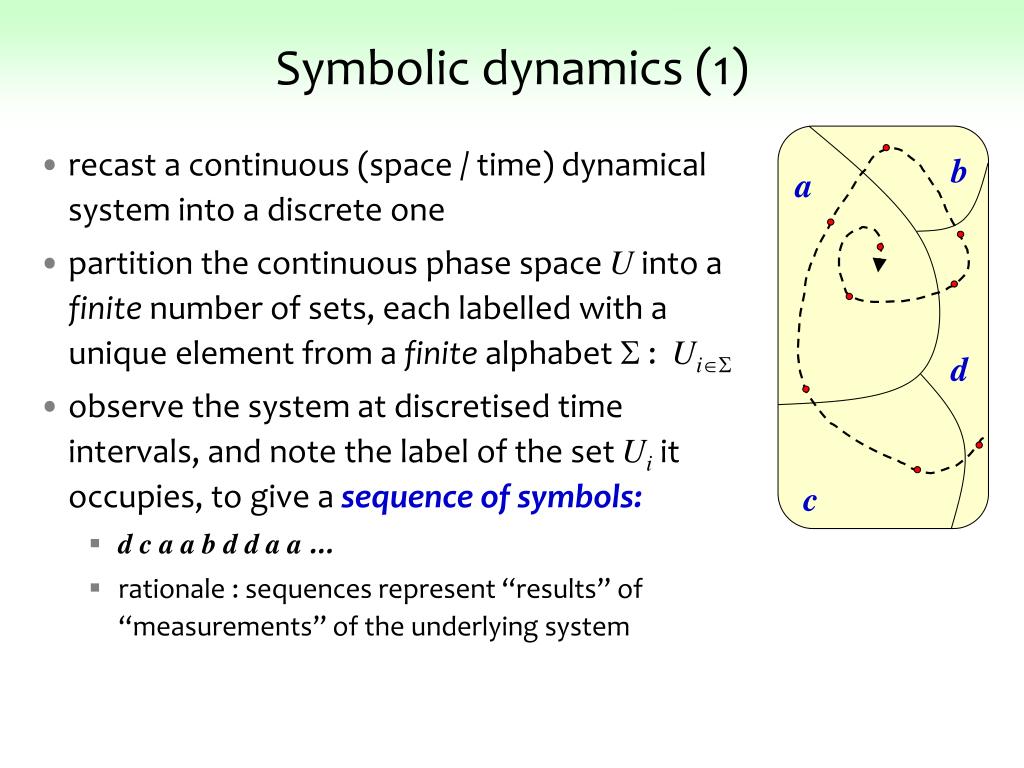

14. Symbolic dynamics (1) b a d c • recast a continuous (space / time) dynamical system into a discrete one • partition the continuous phase space U into a finite number of sets, each labelled with a unique element from a finite alphabet  : Ui • observe the system at discretised time intervals, and note the label of the set Ui it occupies, to give a sequence of symbols: • d c a a b d d a a … • rationale : sequences represent “results” of “measurements” of the underlying system

15. Symbolic dynamics (2) b a l= 3.5699… d c 3.5 < l < 4 • the symbolic dynamics of the system is the set of all sequences that can be produced (different initial conditions, etc) • defines a language • analyse the dynamics of these sequences • using entropy, mutual information, e-machines, etc. • e.g. Crutchfield’s analysis of the complexity and entropy of the logistic map: see J. P. Crutchfield. The calculi of emergence. Physica D. 1994

16. Analysis results for logistic map C randomness,H • periodic behaviour, small H, small C • automaton size = the period • chaotic behaviour, large H, small C • a small automaton captures the random behaviour (“coin toss”) • Complex behaviour, mid H, large C • near the transition from periodic to chaotic behaviour (“edge of chaos”) there is structure “on all scales” J. P. Crutchfield. The calculi of emergence. Physica D. 1994

17. Another complexity measure:multi-information • recall mutual information between two systems: • where H(X) is the entropy of system X • H(X,Y) is the joint entropy of the systems X and Y • I = 0 if X and Y are independent • For subsystems X1, X2, and the overall system X1,2 ,this gives:

18. multi-information (1) • multi-information generalises this to n subsystems of an overall system • SystemXS= X1,2,…n • Subsystems X1,X2, …, Xn • where • MI = 0 if all the subsystems are independent M. Studeny, J. Vejnarova. The multiinfomration function as a tool for measuring stochastic dependence. In Learning in Graphical Models. Kluwer, 1998

19. multi-information (2) XS Xa Xb X1 X2 … Xk … Xn • now consider partitioning the top level system XS into two subcomponents Xa, comprising subsystems X1,…, Xk , and Xb comprising subsystems Xk+1,…, Xn • the relationship between the multi-information of the whole system and its two big components is • rearranging, and substituting • so (unless the subsystems Xa and Xb are independent) : the MI of the whole is bigger than the parts

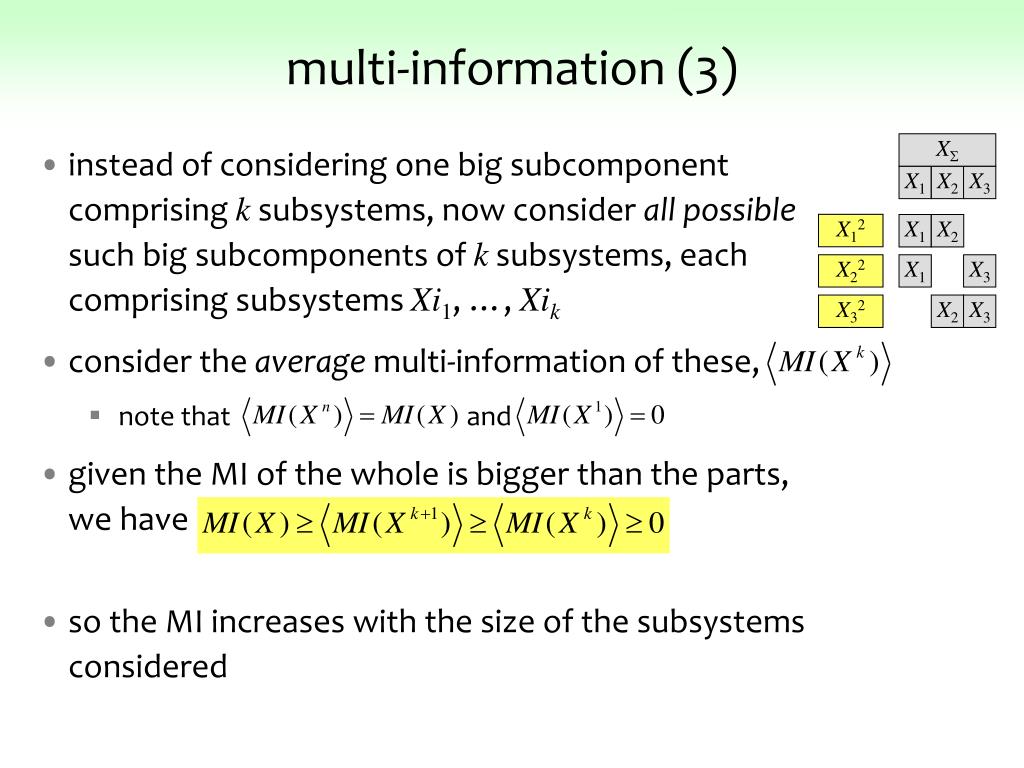

20. multi-information (3) XS X1 X2 X3 X12 X1 X2 X22 X1 X3 X32 X2 X3 • instead of considering one big subcomponent comprising k subsystems, now consider all possible such big subcomponents of k subsystems, each comprising subsystems Xi1,…, Xik • consider the average multi-information of these, • note that and • given the MI of the whole is bigger than the parts, we have • so the MI increases with the size of the subsystems considered

21. multi-information = complexity • complexity is the difference between actual increase of this average, and a linear increase: • C  0 • C is low if the system is random • all subsystems are independent, and so MI = 0 • C is low if the system is homogeneously structured • average MI increases linearly • C is high in the intermediate case, inhomogeneous groupings and clumpings • high, non-linearly increasing, average MIs G. Tononi, et al. A measure for brain complexity: relating functional segregation and integration in the nervous system. PNAS 91:5033-37, 1994

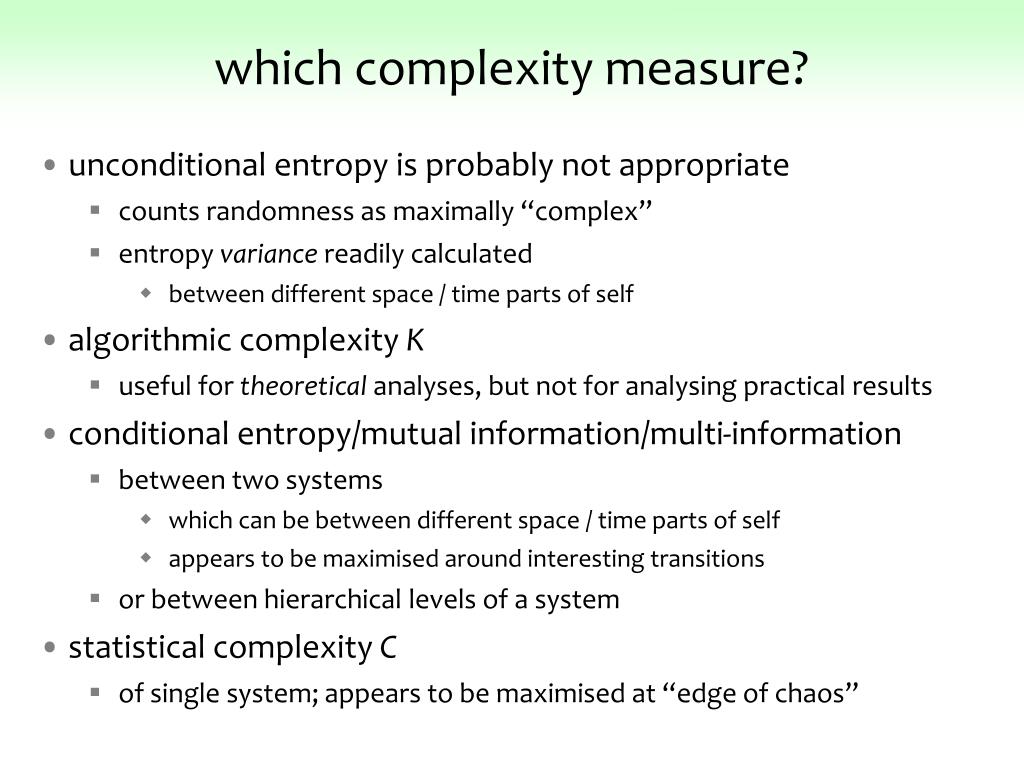

22. which complexity measure? • unconditional entropy is probably not appropriate • counts randomness as maximally “complex” • entropy variance readily calculated • between different space / time parts of self • algorithmic complexity K • useful for theoretical analyses, but not for analysing practical results • conditional entropy/mutual information/multi-information • between two systems • which can be between different space / time parts of self • appears to be maximised around interesting transitions • or between hierarchical levels of a system • statistical complexity C • of single system; appears to be maximised at “edge of chaos”

23. Some general sources • http://www.scholarpedia.org/article/Complexity • R. Badii, A. Politi. Complexity. Cambridge University Press. 1997 • J. P. Sethna. Statistical mechanics. Oxford University Press. 2006
