fitnesse lab

Fitnesse (Lab)

Alessandro Marchetto

Fondazione Bruno Kessler - IRST

outline

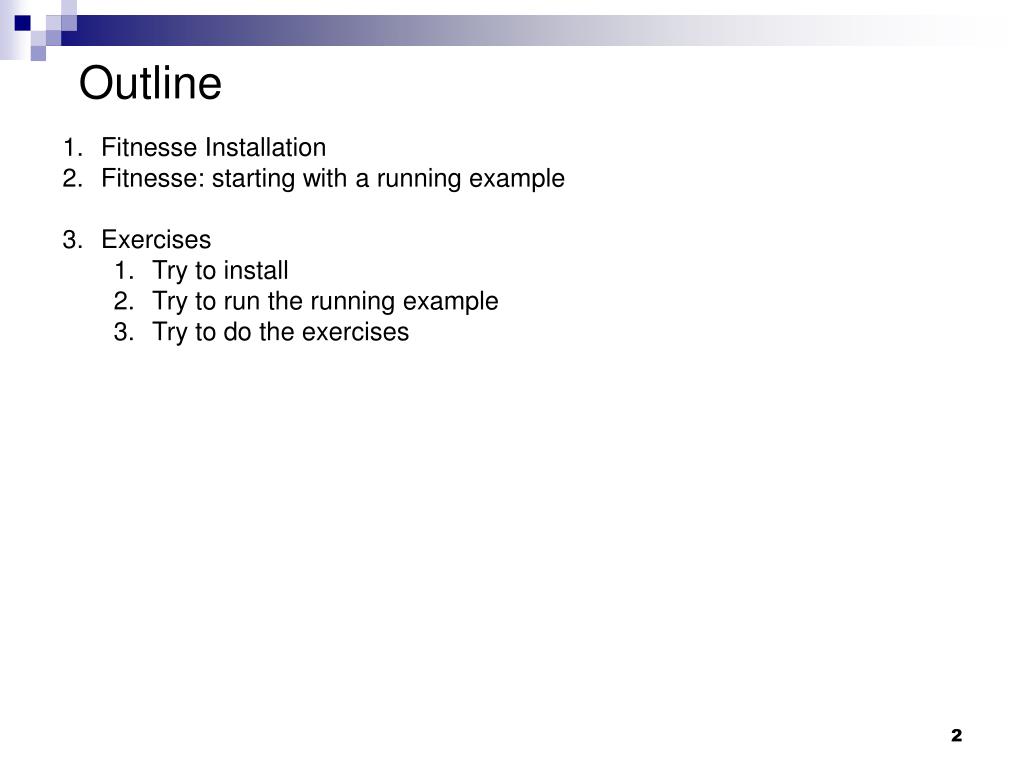

Outline
  • Fitnesse Installation
  • Fitnesse: starting with a running example
  • Exercises
    • Try to install
    • Try to run the running example
    • Try to do the exercises
install and run fitnesse

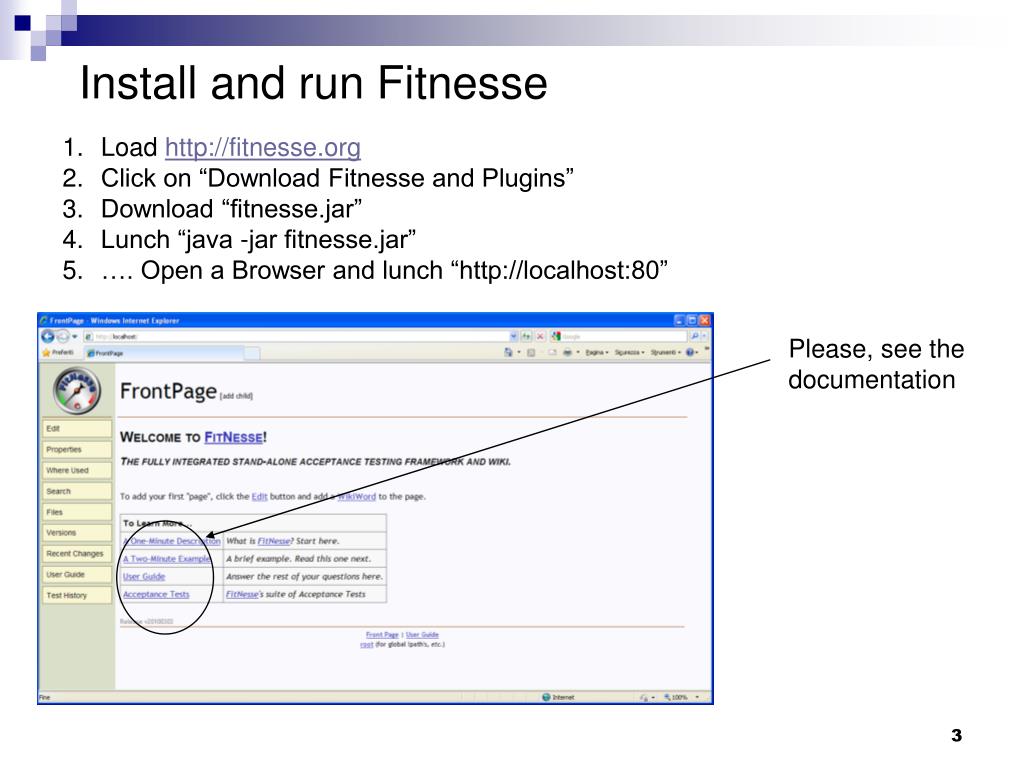

Install and run Fitnesse
  • Load http://fitnesse.org
  • Click on “Download Fitnesse and Plugins”
  • Download “fitnesse.jar”
  • Lunch “java -jar fitnesse.jar”
  • …. Open a Browser and lunch “http://localhost:80”

Please, see the

documentation

install fitnesse in eclipse i

2

1

3

Install Fitnesse in Eclipse (I)
  • Download the Eclipse plugin (in a local directory)
      • http://www.bandxi.com/fitnesse/com.bandxi.fitnesse_v1.0.2.zip
  • Install the plugin in your Eclipse
    • Lunch Eclipse
    • Select “Help  Software Update…”
    • Select “Available SoftwareAdd Site Archieve …”
install fitnesse in eclipse ii

5.2

6

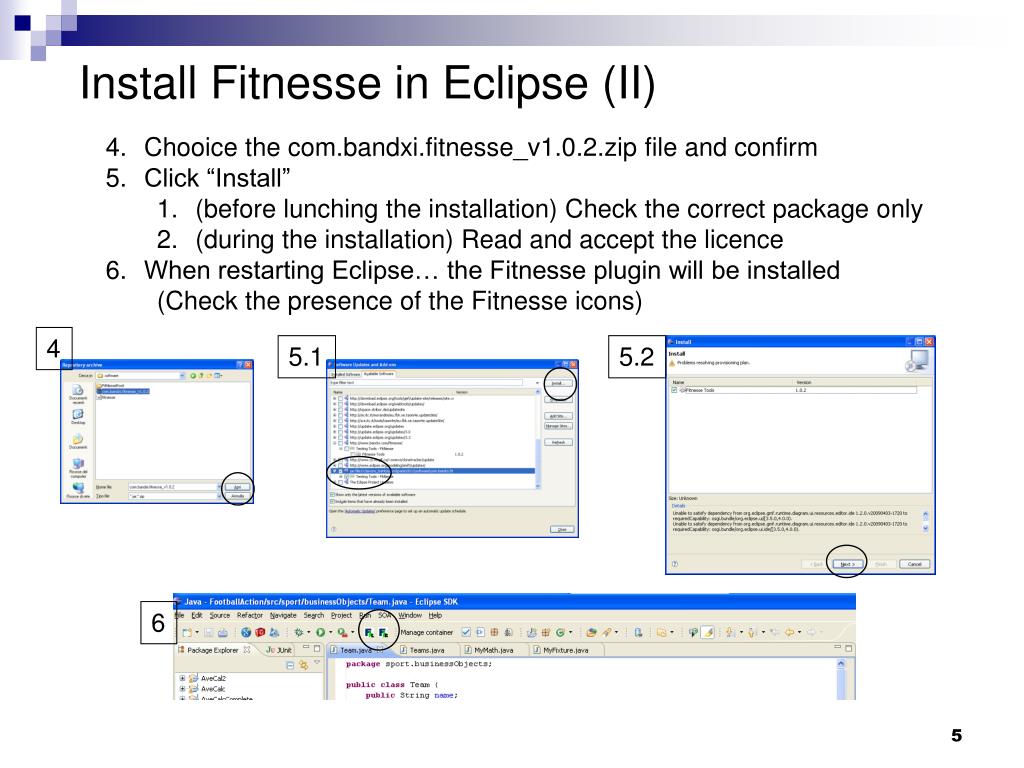

Install Fitnesse in Eclipse (II)
  • Chooice the com.bandxi.fitnesse_v1.0.2.zip file and confirm
  • Click “Install”
    • (before lunching the installation) Check the correct package only
    • (during the installation) Read and accept the licence
  • When restarting Eclipse… the Fitnesse plugin will be installed
    • (Check the presence of the Fitnesse icons)

4

5.1

slide6

Our running example: Sum Calculator

public class MySum {

public static int sum (int a, int b) {

return a+b;

}

}

public class MyFixture

extendsColumnFixture {

int a,b;

public int sum () {

return MySum.sum(a,b);

}

}

A full demo:

http://softeng.polito.it/courses/tutorial/FitnesseInEclipse.html

step by step i
Step-by-Step (I)

1. Create a new “Java Project” in Eclipse, called “MathOperators”

2. Write the class “Add” in the package “math” with a method “sum” that takes

two integer and returns the sum

package math;

publicclass Add {

publicstaticint sum (int a, int b){

return a+b;

}

}

slide8

3. In the Eclipse project create a new directory called “Fitnesse” and add the

  • Fitnesse library to the classpath
    • select the project  right botton of the mouse New  Folder …
    • select the project  right botton of the mouse  Fitnesse  Add Fitnesse libraries…
  • Select the new “Fitnesse” directory and start Fitnesse on it
    • select the directory  right botton of the mouse FitNesse
      • Lunch FitNesse runtime on this folder …  Confirm initialization …
    • … A new fitnesse wiki is starting for the current project

3

4

slide9

5

5. In the wiki click “Edit” to edit the table

6. Edit the table and save it

6

slide10

7. See the table and try to run it. To run:

1. In the wiki click “Properties” to make the page executable

2. Check “Test” and click “Save Properties”

8. In the wiki click “Test” to run the test … 

7.1

7.2

8

We need the fixture!

slide11

9. In the Eclipse project create a new package “fitures”

10.In the “fixtures” package create the fixtures.MyFixture fixture extending the

ColomnFixture …

package fixtures;

import math.Add;

import fit.ColumnFixture;

public class MyFixture1 extends ColumnFixture {

public int a;

public int b;

public int sum(){

int result;

return Add.sum(a,b);

}

}

slide13

Exercises…

  • Install Fitnesse
  • Run the running example
  • Download the exercise specifications
    • http://selab.fbk.eu/swat/exercises/fitneese-1.ppt
  • For each exercise:
    • Read its specification
    • Try to apply the black-box testing technique to identify test cases
    • Implement such test cases in Fitnesse
    • Run them
