  1. PSU / Middle SchoolsSolar Racers Workshop Solar and Car Fundamentals Andy Lau, andylau@psu.edu Dale & Toby Short, SCASD

  2. Overview • Maximize power produced • Minimize power needed Solar cells → motor → gears → wheels Makes power Friction Drag Acceleration Uses power

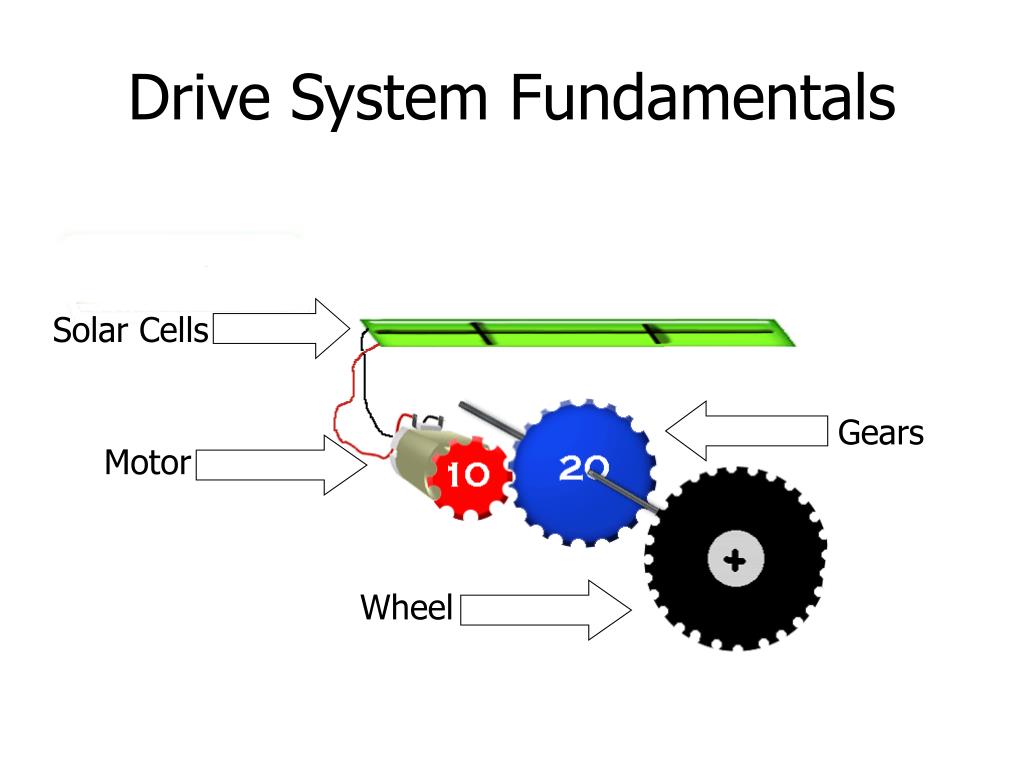

  3. Drive System Fundamentals Solar Cells Gears Motor Wheel

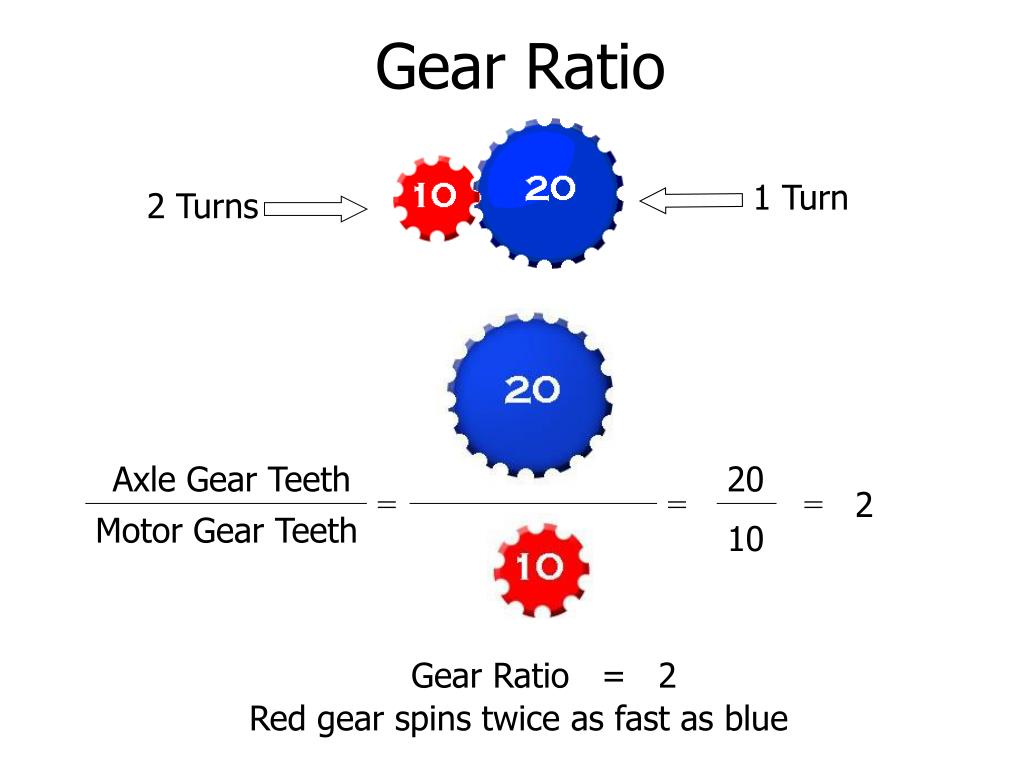

  4. Gear Ratio 1 Turn 2 Turns Axle Gear Teeth 20 = = = 2 Motor Gear Teeth 10 Gear Ratio = 2 Red gear spins twice as fast as blue

  5. 2 Turns Motor Speed Wheel Speed 1 Turn Motor Speed = Wheel Speed Gear Ratio 2 Turns = 1 Turn 2

  6. Circumference 2 π 6 = 38 cm Radius 6 cm 2π x Radius Radius 3 cm 2 π 3 = 19 cm

  7. How does wheel size affect the speed?

  8. Circumference Radius 6 cm Circumference = 2πr = 38 cm Radius 3 cm Circumference = 2πr = 19 cm • For each turn of the wheel your car travels the circumference of the drive wheel • Doubling wheel radius also doubles circumference which will make your car go twice as far in one rotation

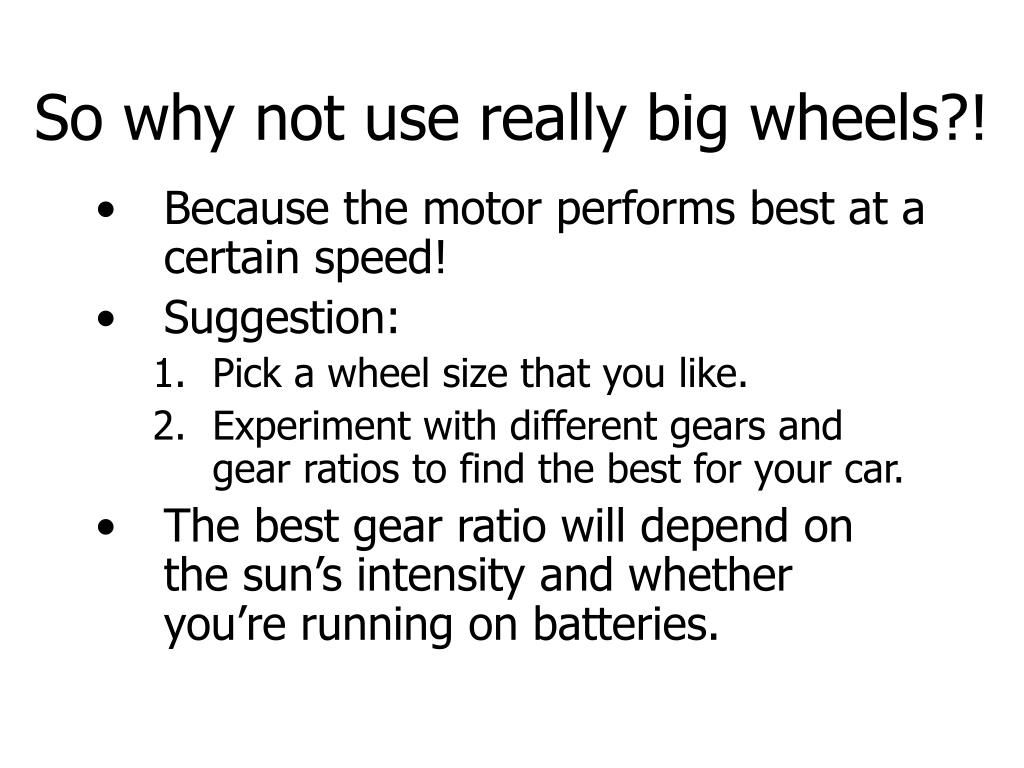

  9. So why not use really big wheels?! Because the motor performs best at a certain speed! Suggestion: Pick a wheel size that you like. Experiment with different gears and gear ratios to find the best for your car. The best gear ratio will depend on the sun’s intensity and whether you’re running on batteries.

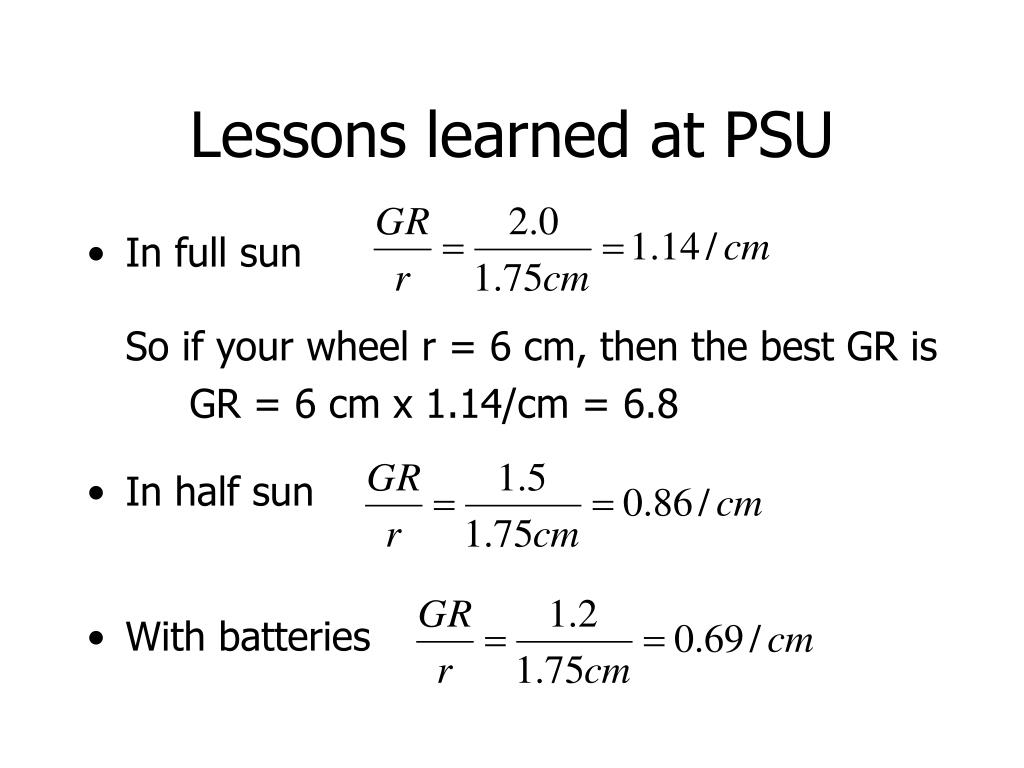

  10. Lessons learned at PSU • In full sun So if your wheel r = 6 cm, then the best GR is GR = 6 cm x 1.14/cm = 6.8 • In half sun • With batteries

  11. Getting the most power output from a PV panel Tilt towards sun Possibly increase solar input with reflectors

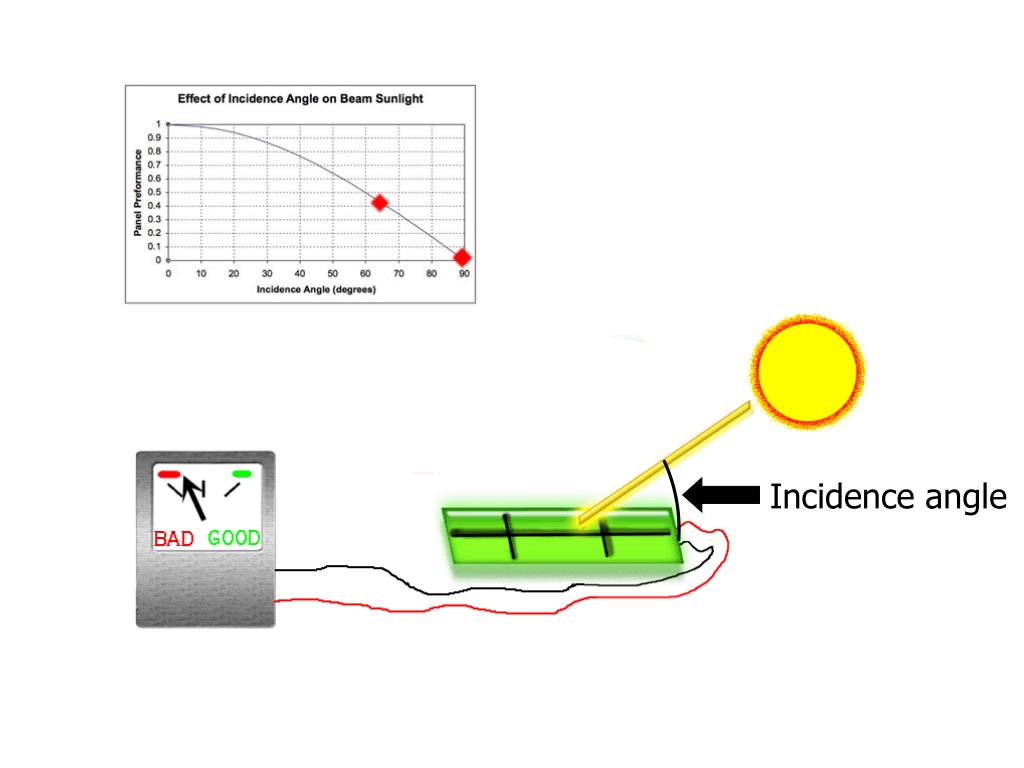

  12. Incidence angle

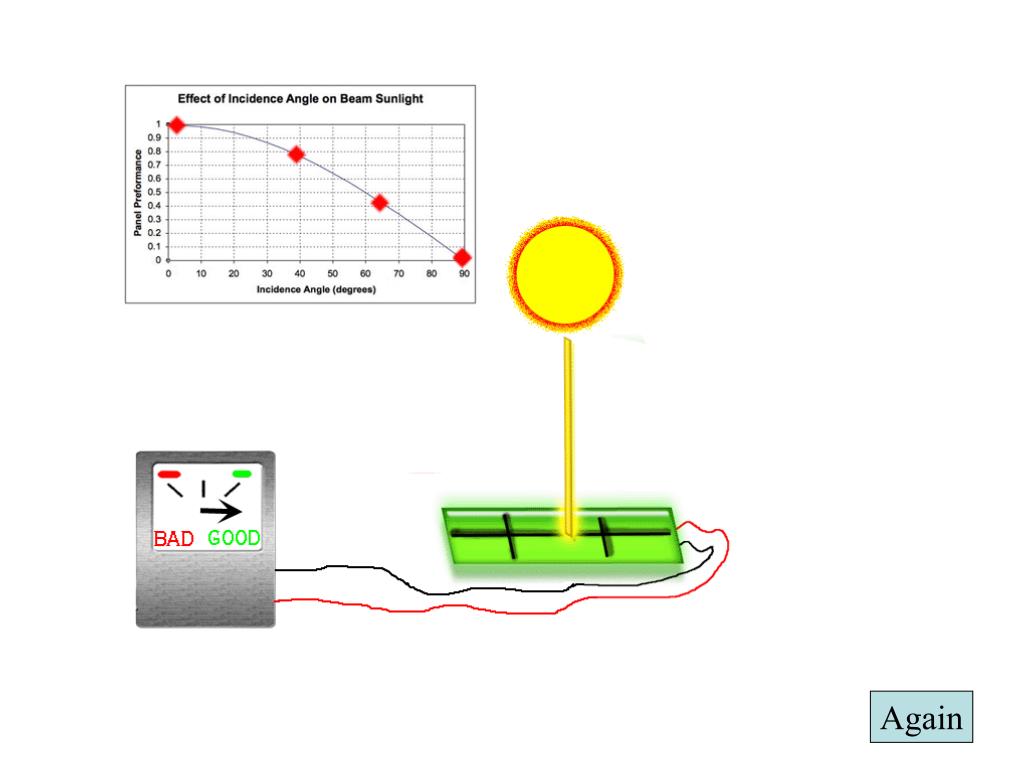

  13. Again

  14. Where is the sun?

  15. Where is the sun? On May 20 the sun will rise to around 70 degrees at solar noon (1 p.m.).

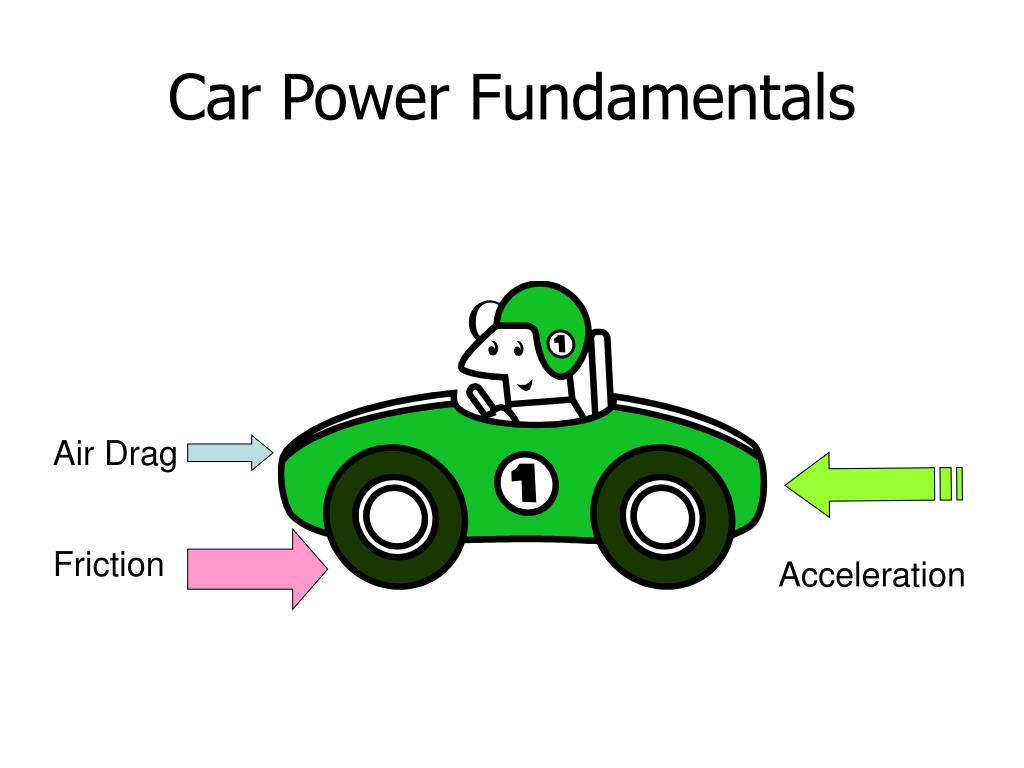

  16. Car Power Fundamentals Car Air Drag Friction Acceleration

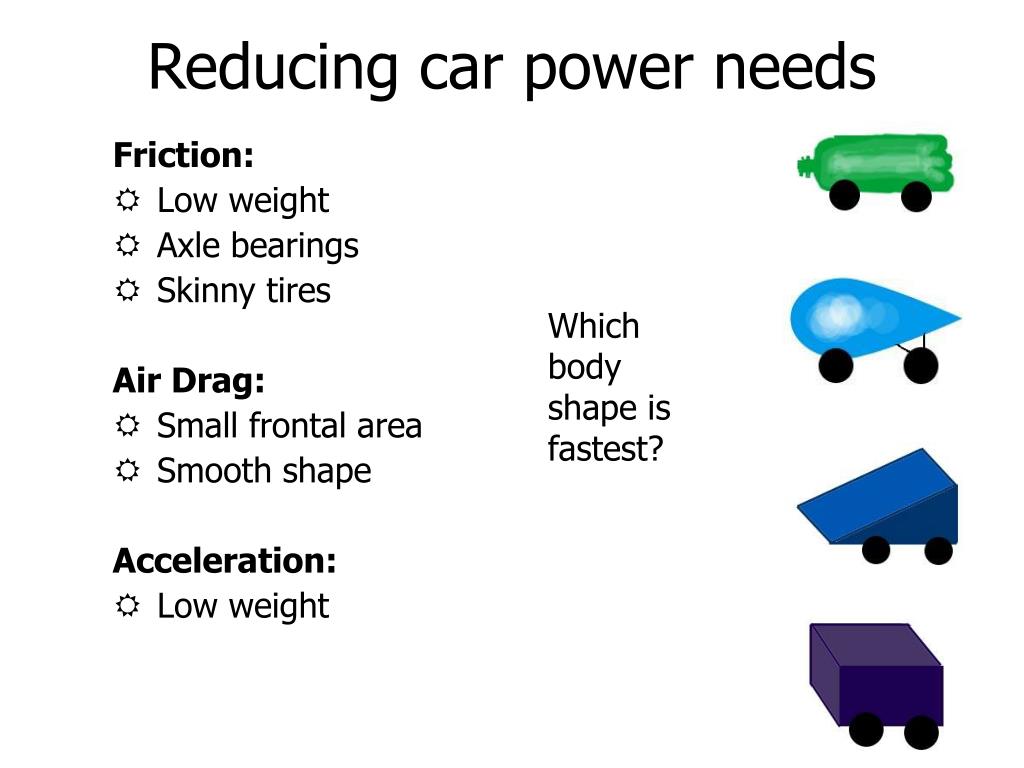

  17. Reducing car power needs • Friction: • Low weight • Axle bearings • Skinny tires Air Drag: • Small frontal area • Smooth shape Acceleration: • Low weight Which body shape is fastest?

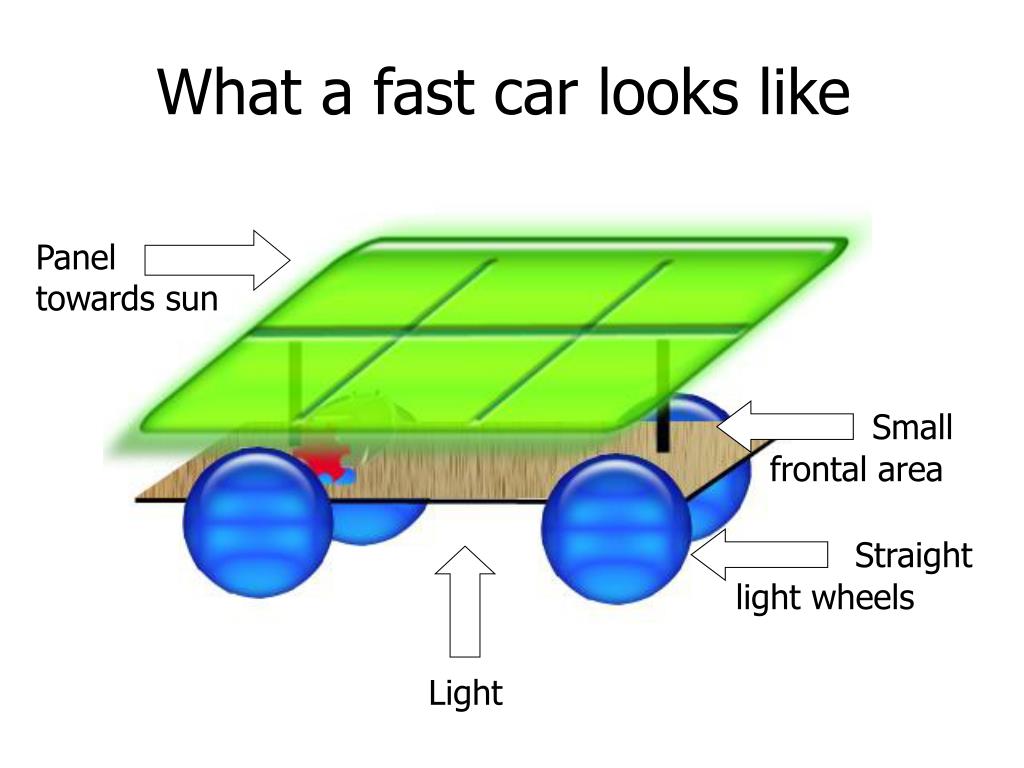

  18. What a fast car looks like Panel towards sun Small frontal area Straight light wheels Light

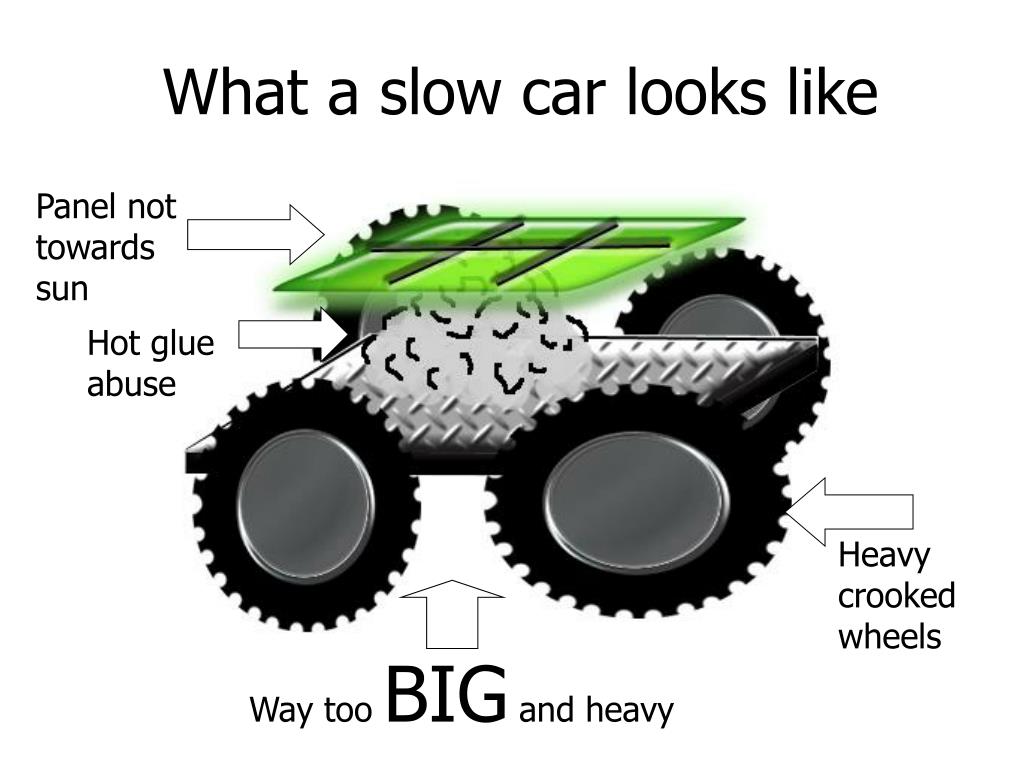

  19. What a slow car looks like Panel not towards sun Hot glue abuse Heavy crooked wheels Way too BIG and heavy

  20. So that’s all there is to it … Reflectors Make shape smooth Bearings Motor speed GR, r Reduce friction Face the sun Minimize weight Reduce frontal area

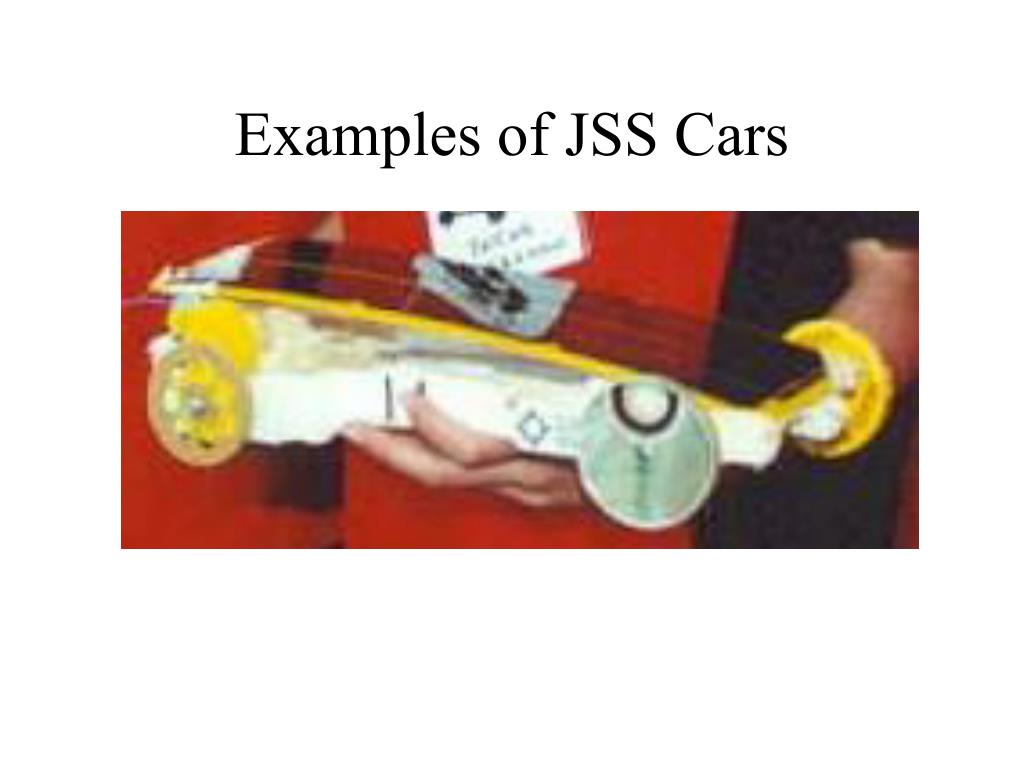

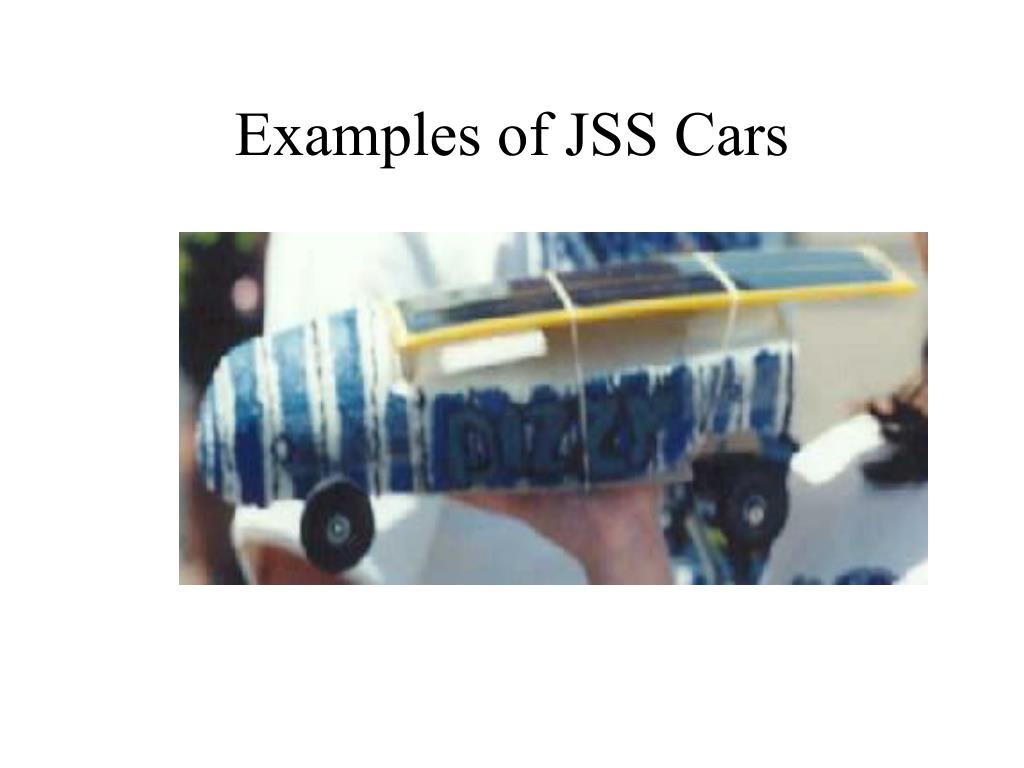

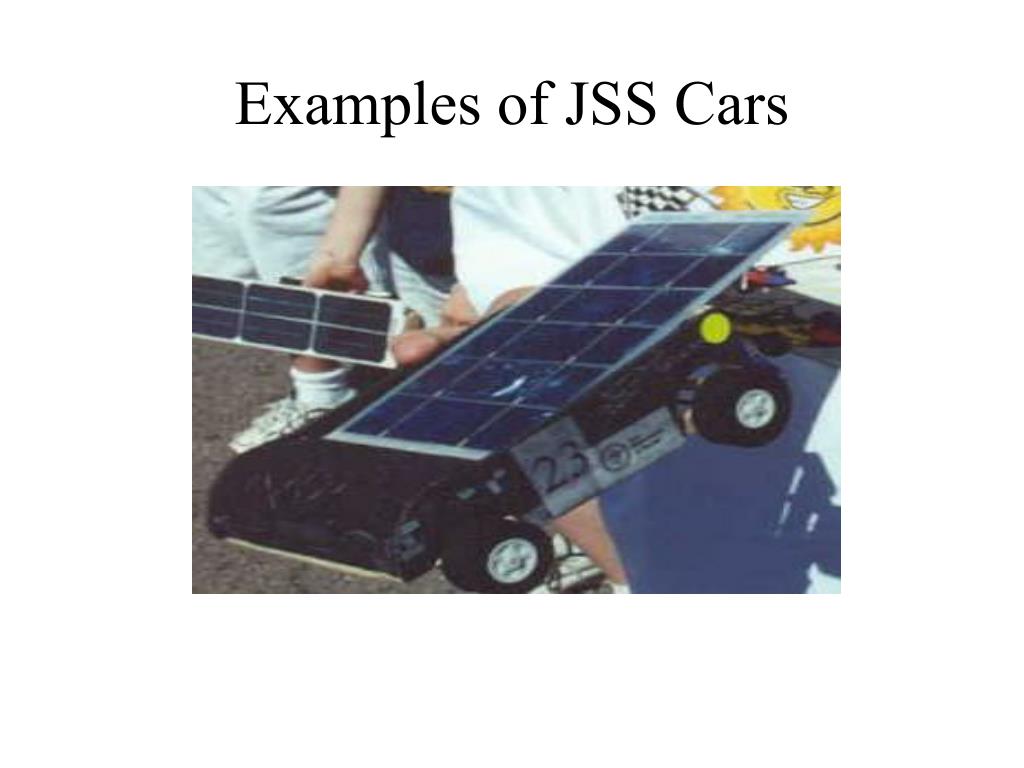

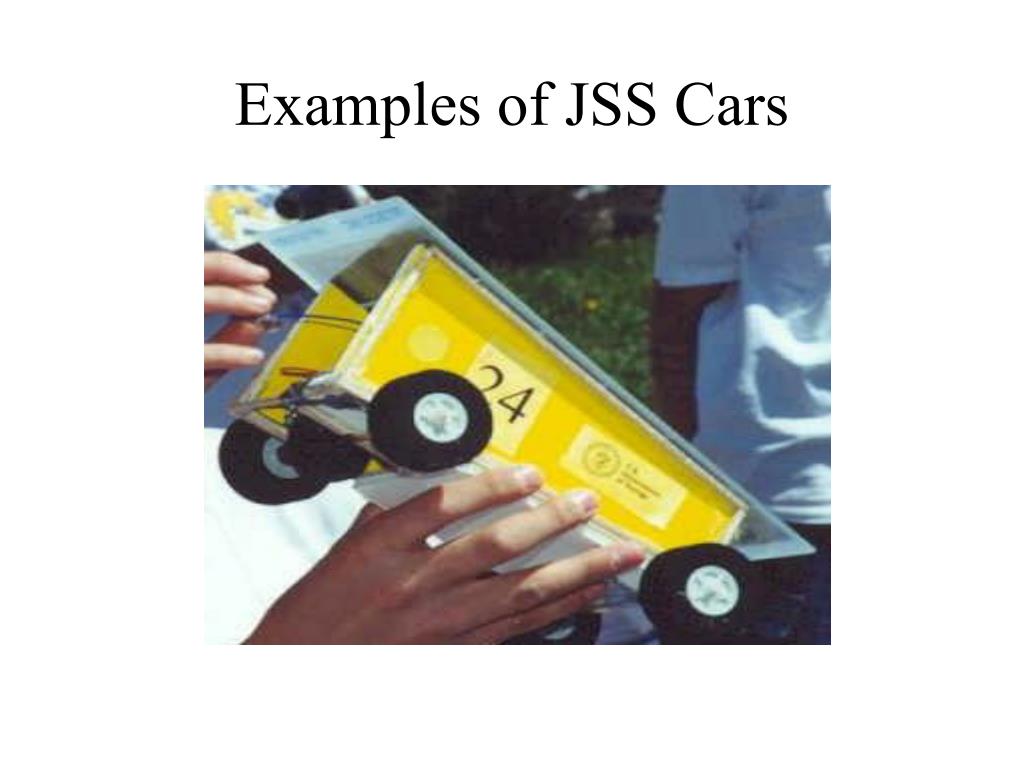

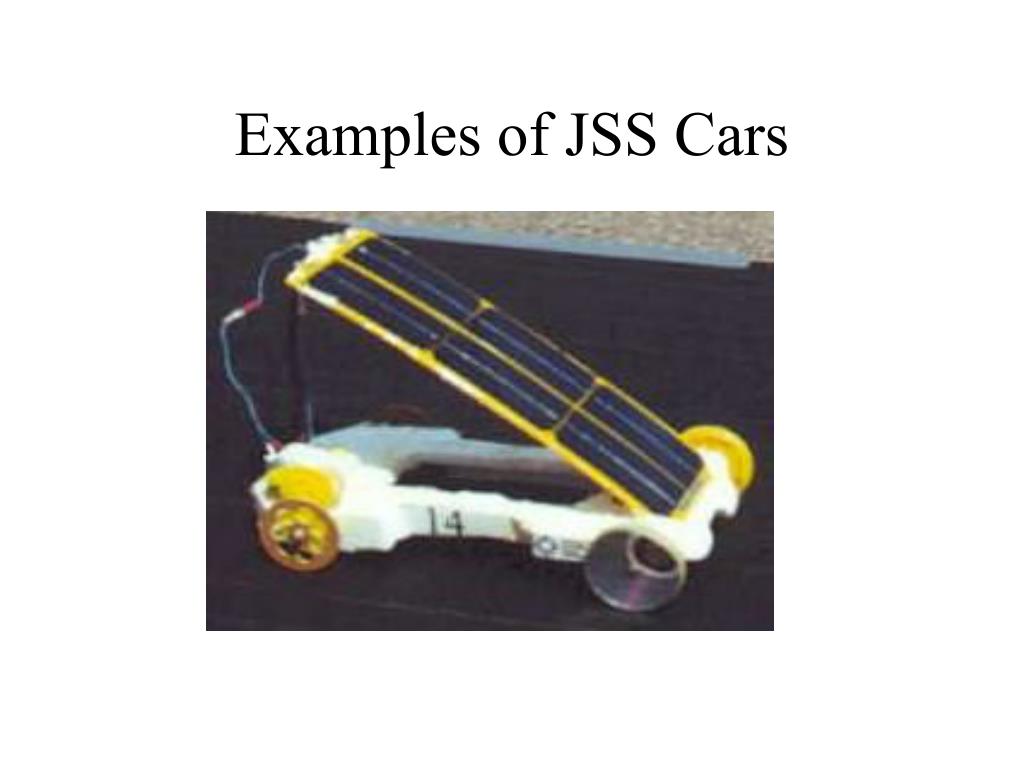

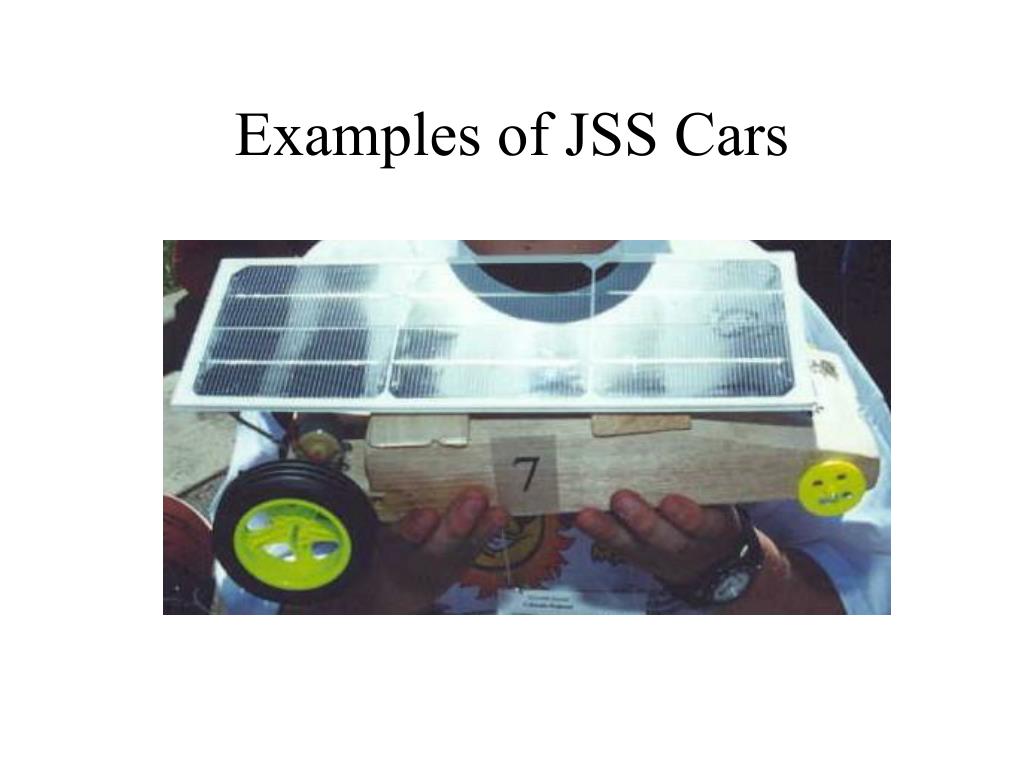

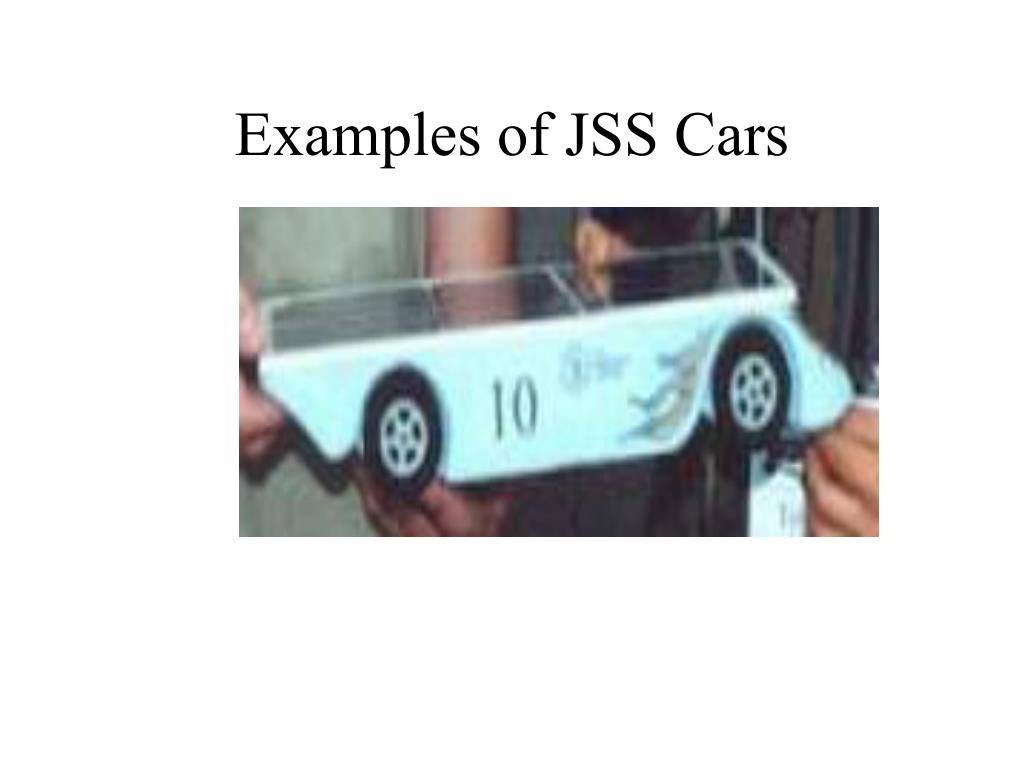

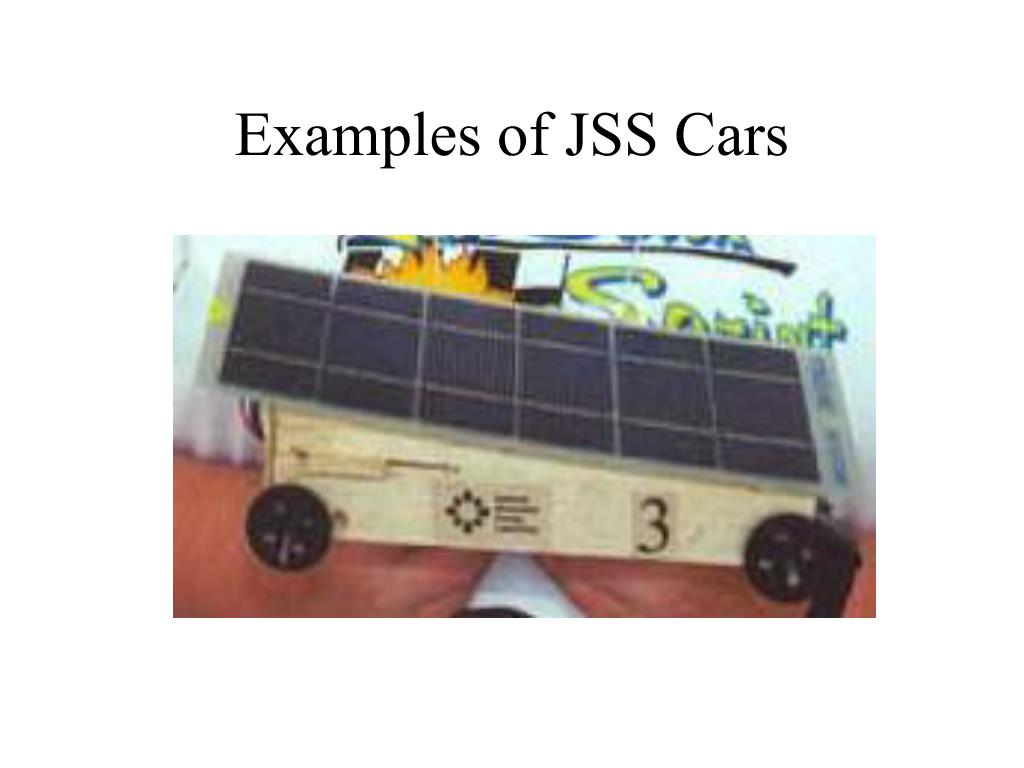

  21. Examples of JSS Cars

  22. Examples of JSS Cars

  23. Examples of JSS Cars

  24. Examples of JSS Cars

  25. Examples of JSS Cars

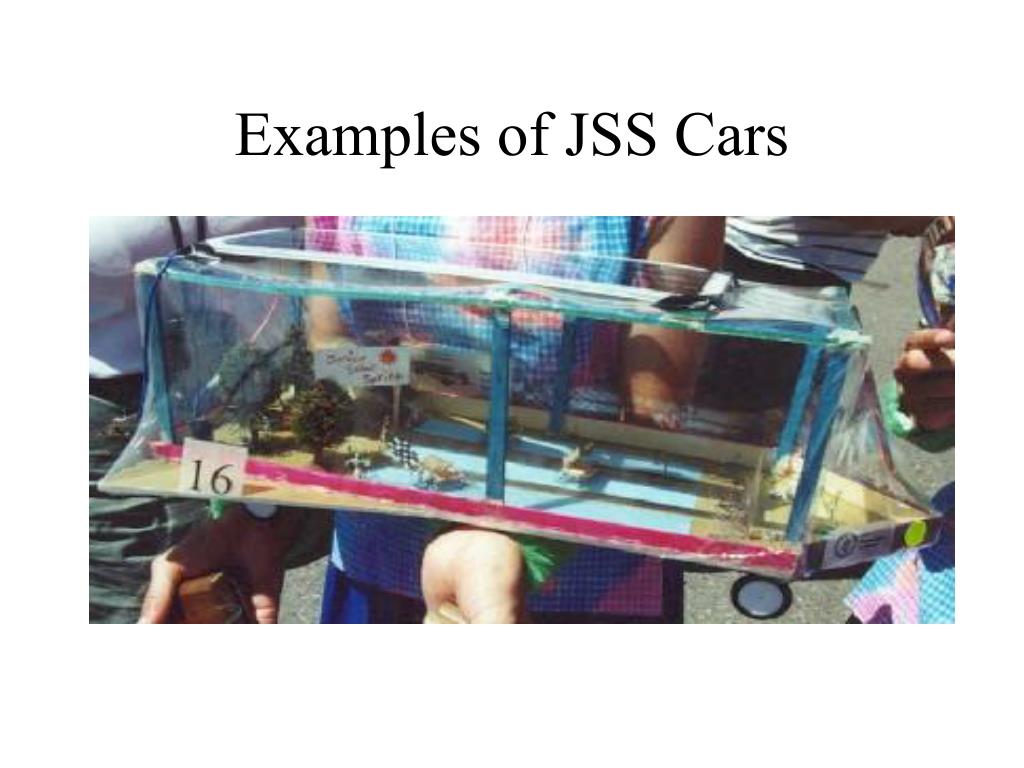

  26. Examples of JSS Cars

  27. Examples of JSS Cars

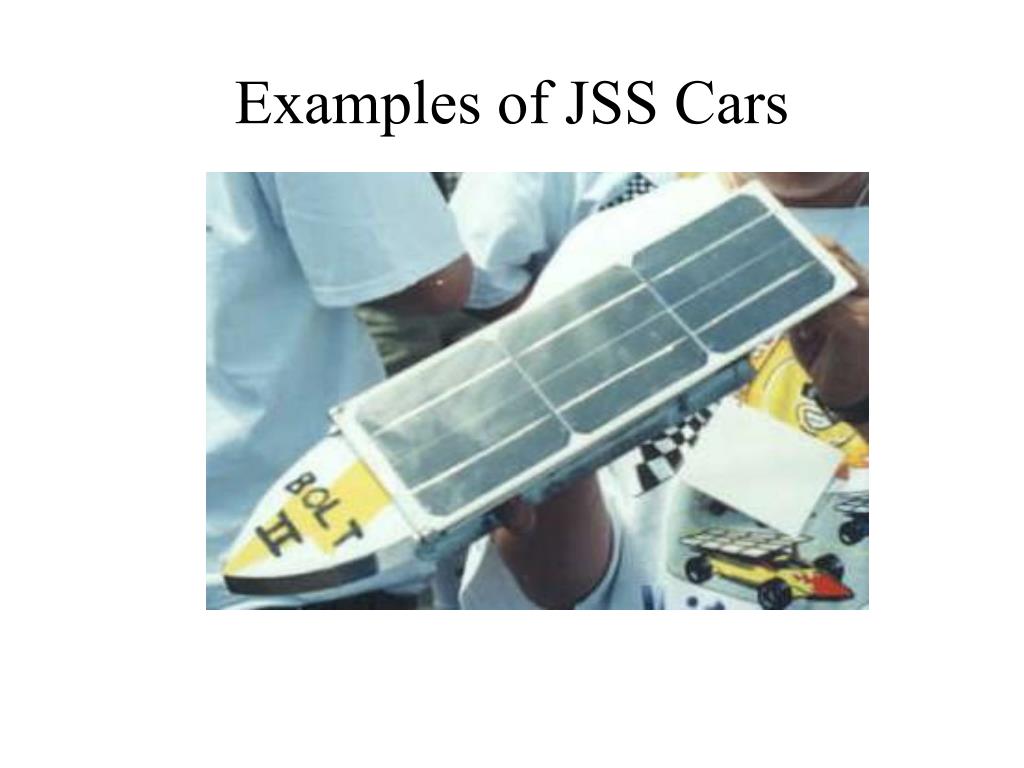

  28. Examples of JSS Cars

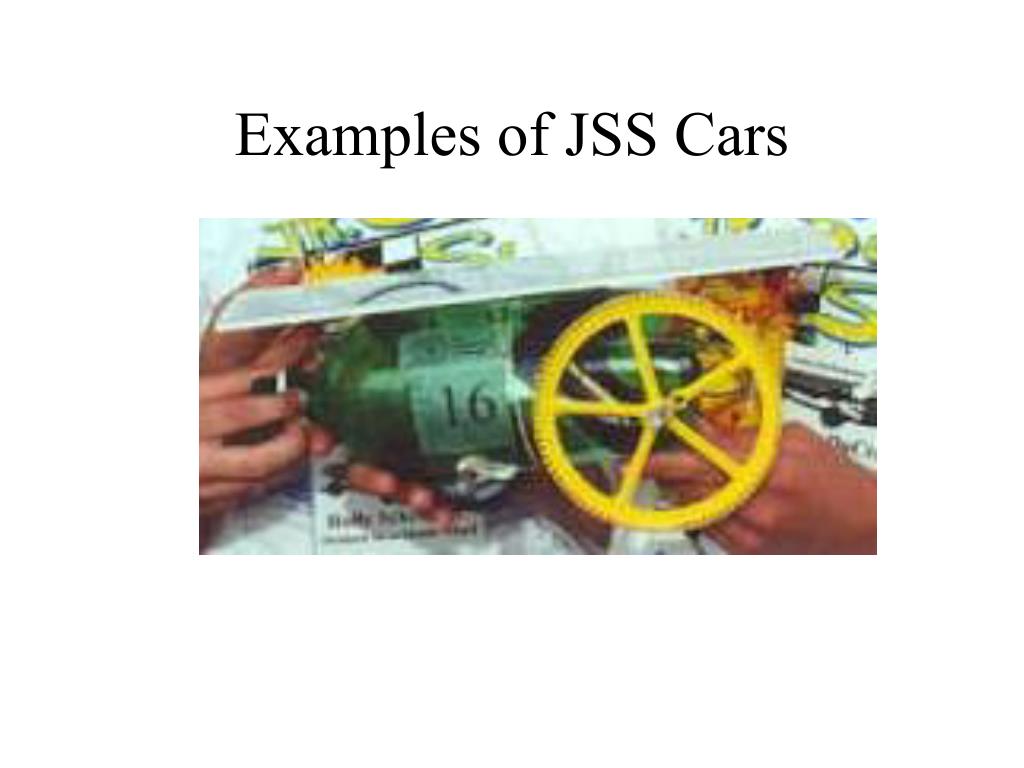

  29. Examples of JSS Cars

  30. Examples of JSS Cars

  31. Examples of JSS Cars

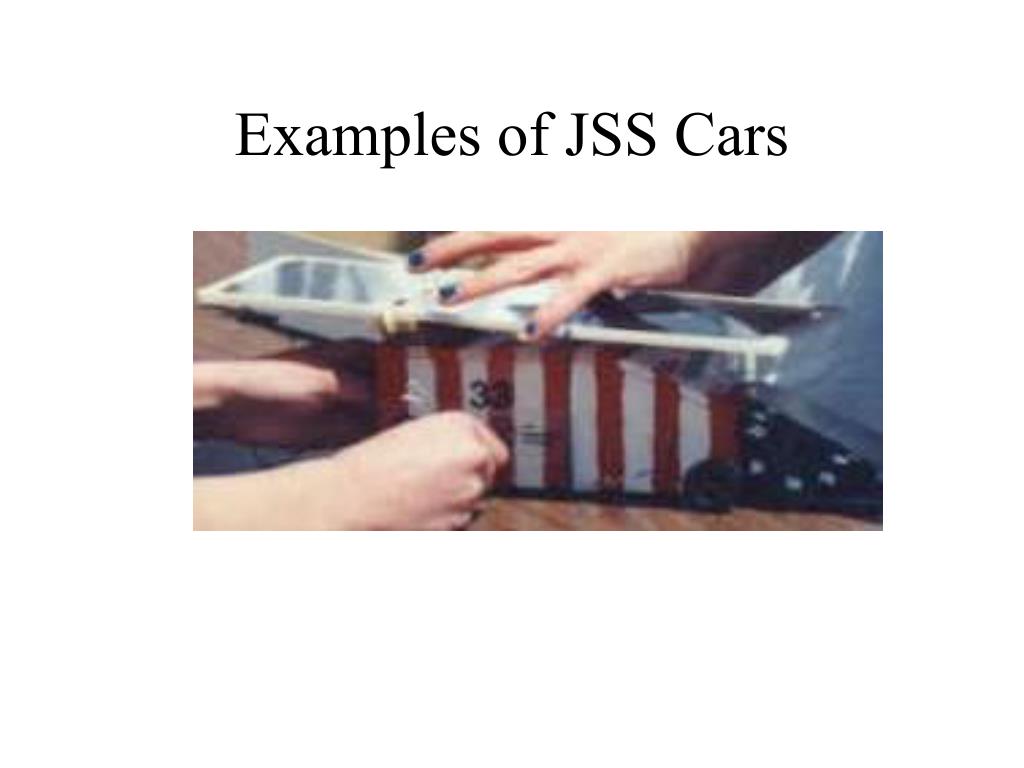

  32. Examples of JSS Cars

  33. Examples of JSS Cars

  34. Examples of JSS Cars

  35. Examples of JSS Cars

  36. Examples of JSS Cars

  37. Examples of JSS Cars

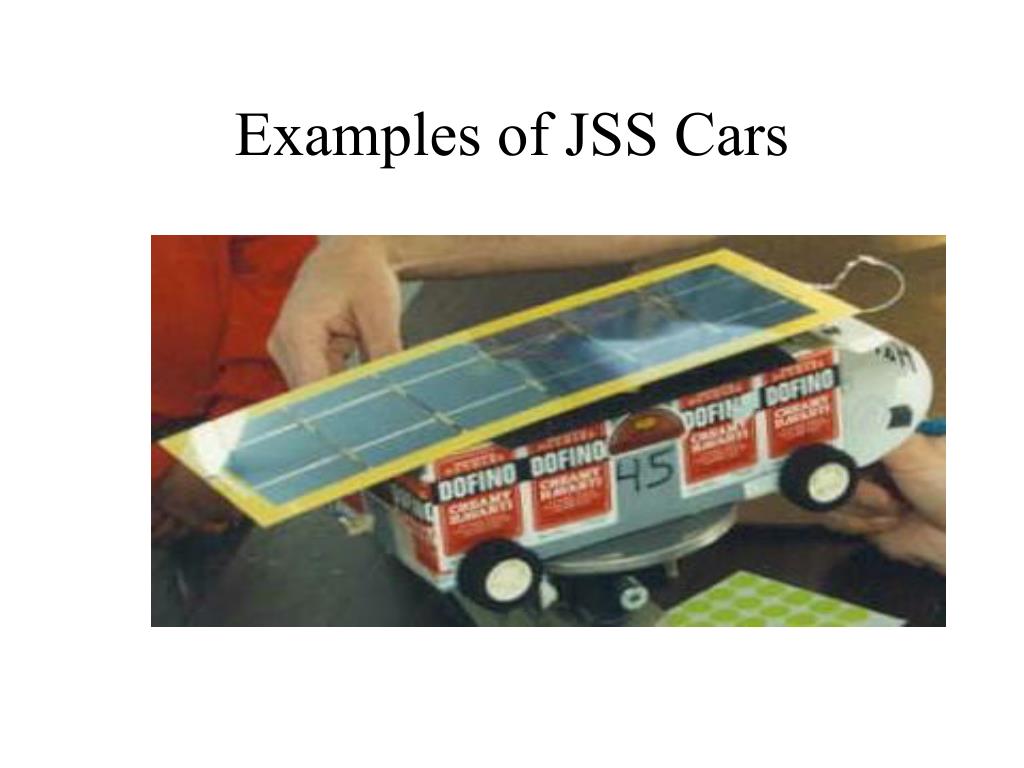

  38. Examples of JSS Cars

  39. The End Any questions?
