Presentation Transcript
Carbon sequestration in forests l.jpg

CARBON SEQUESTRATIONinFORESTS

ALABAMA FORESTRY COMMISSION

Walter E. Cartwright, RFAssistant Forest Management Division Director


Slide2 l.jpg

CarbonThe “New” Forest Product?


Sequestration l.jpg
SEQUESTRATION

  • Removal or separation; banishment or exile.

  • Withdrawal into seclusion; retirement.

  • Confiscation or seizure.

Webster’s Definition:



Slide5 l.jpg

Annual Net Flux of Carbon to the Atmosphere

from Land-Use Change: 1850-2000(Houghton and Hackler)


Slide6 l.jpg

“I think you should be moreexplicit here in step two.”



Slide8 l.jpg

View #2

No Worry, Just Keep on Smoking –

THE Fastest and Best way to Store Carbon!


Slide9 l.jpg

View #3

The Jury is Still Out.

A review of scientific journals shows there is a group of researchers who agree that the level of carbon in the atmosphere is increasing. . .

But that its correlation to change

in the climate is unknown.


Slide10 l.jpg

Perception is Reality

In the face of this uncertainty, society is stating its desire for action to be taken.

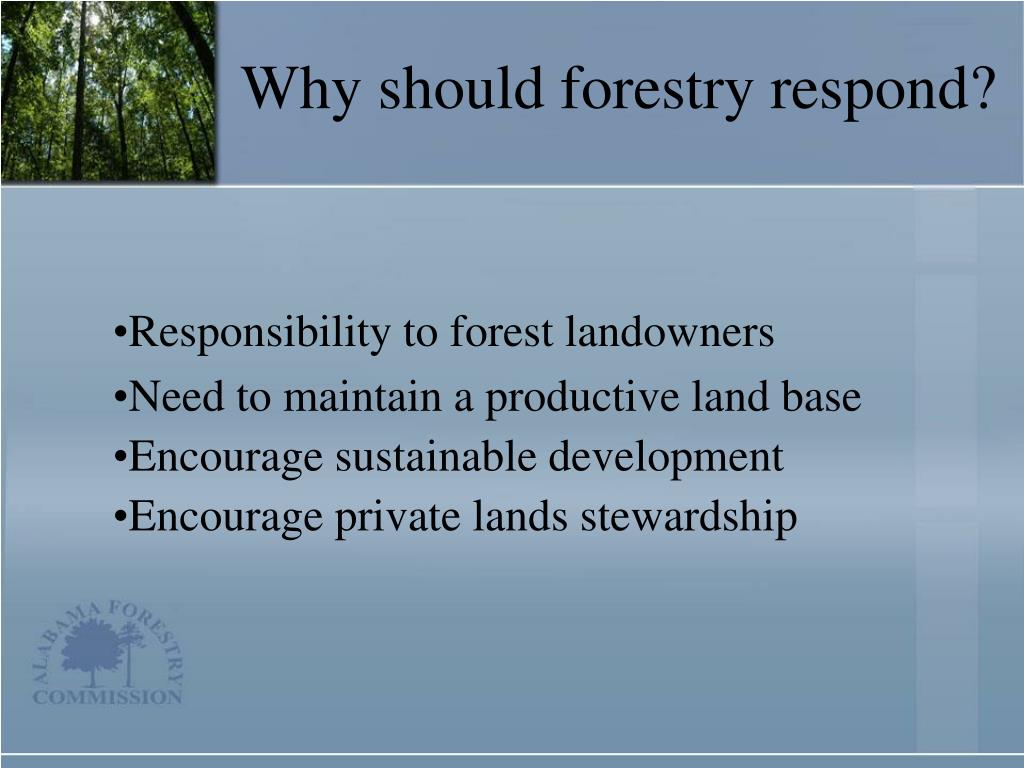

Slide11 l.jpg

Why should forestry respond?

  • Responsibility to forest landowners

  • Need to maintain a productive land base

  • Encourage sustainable development

  • Encourage private lands stewardship


Slide12 l.jpg

The Carbon Market Primer

  • Definition of Carbon Commodity

  • Methods of Carbon Sequestration

  • Basics of Cap and Trade

  • International Market

  • Current US Market

  • Regional and State Markets


Slide13 l.jpg

The Commodity

A carbon credit is equal to one metric ton of sequestered carbon. It is independent of the method used to sequester it.

1 metric ton = 1.1 US (short) ton1 US (short) ton = 2000 lbs1 Metric ton Carbon = 3.87 tons CO2


Slide14 l.jpg

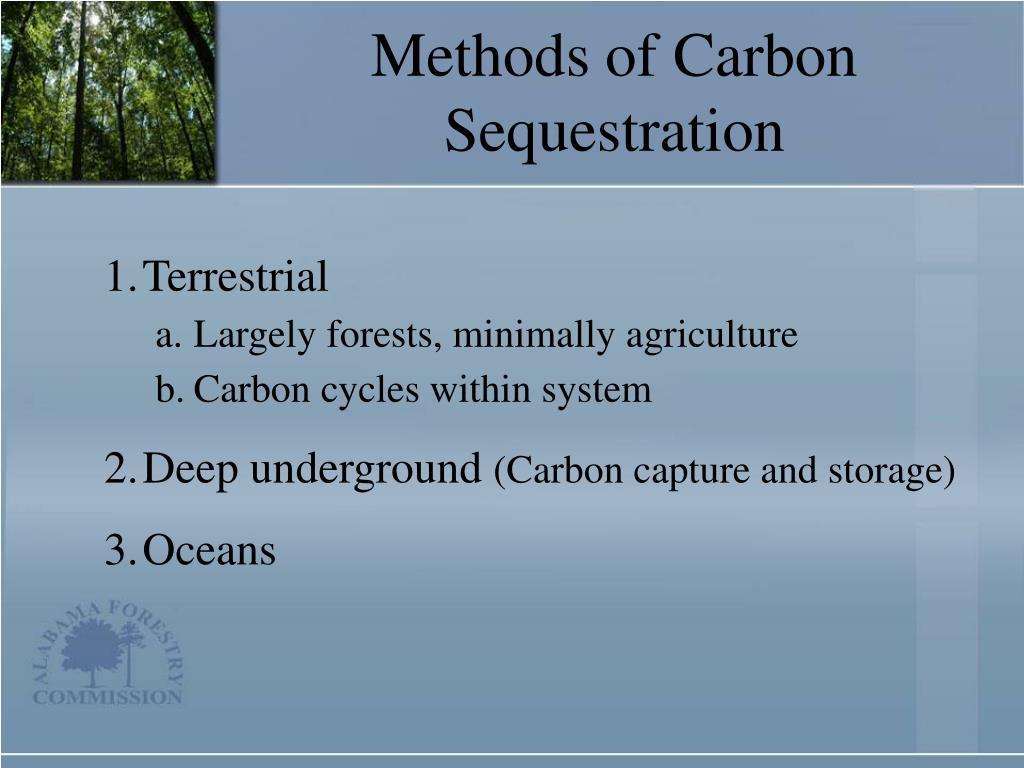

Methods of Carbon Sequestration

  • Terrestrial

    • Largely forests, minimally agriculture

    • Carbon cycles within system

  • Deep underground (Carbon capture and storage)

  • Oceans


Slide15 l.jpg

Basics of Cap and Trade

  • Regulator sets a cap on total emissions for a group of sources.

  • This cap is then divided into allowances (e.g. 1 ton CO2)

  • Allowances are distributed (given or auctioned to members of emitter group)

  • Emitters measure emissions

  • Emitters surrender allowances to ensure they remain below cap.

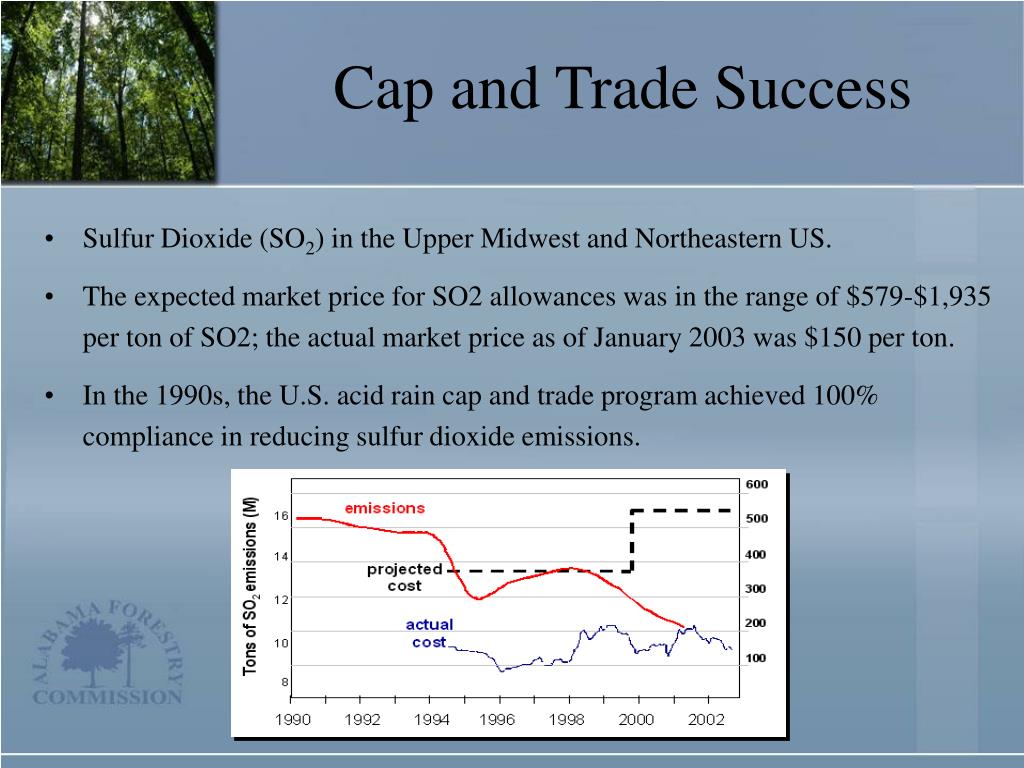

Slide16 l.jpg

Cap and Trade Success

Sulfur Dioxide (SO2) in the Upper Midwest and Northeastern US.

The expected market price for SO2 allowances was in the range of $579-$1,935 per ton of SO2; the actual market price as of January 2003 was $150 per ton.

In the 1990s, the U.S. acid rain cap and trade program achieved 100% compliance in reducing sulfur dioxide emissions.


Slide17 l.jpg

International Markets

Kyoto Protocols

  • Covers 160 countries and 55% of global greenhouse gas (GHG) emissions.

    • 2008 to 2012 developed nations reduce GHG emissions to level 5% below 1990 emission levels

  • If emissions are maintained or increase countries must engage in emissions trading.

    • Clean energy projects, land-based projects

  • FORESTRY OFFSETS ARE ELIGIBLE

  • This is legally binding


Slide18 l.jpg

International Markets

Kyoto Protocols

  • Cost of compliance is prohibitive for many countries

  • Treaty allows for developed nations to purchase carbon credits from non-developed countries

    • Note that non-developed nations do not have emissions targets but can sell carbon credits


Slide19 l.jpg

U.S. Market

Chicago Climate Exchange

Pilot Market

Voluntary

More than 200 participating organizations

  • This is the only legally binding market in the U.S.

  • Unlike Kyoto, allows offsets from N. America/developed nations

    • Renewable/energy efficiency

    • No-till agriculture

    • Landfill and agricultural methane

    • FORESTRY

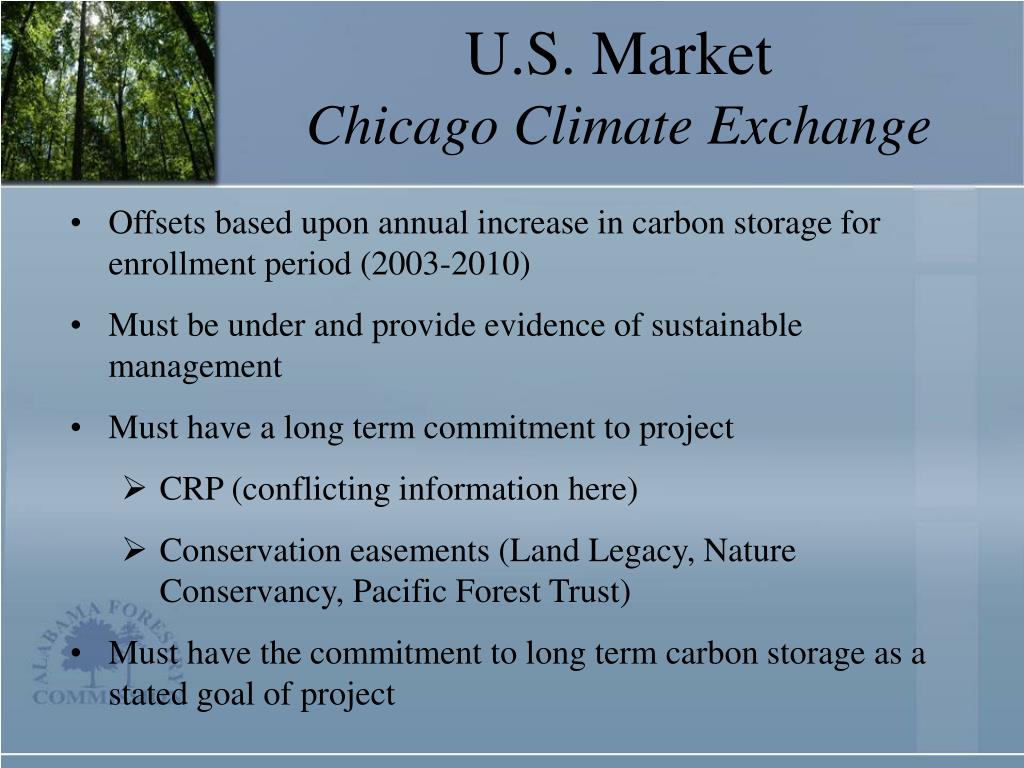

Slide20 l.jpg

U.S. Market

Chicago Climate Exchange

  • Offsets based upon annual increase in carbon storage for enrollment period (2003-2010)

  • Must be under and provide evidence of sustainable management

  • Must have a long term commitment to project

    • CRP (conflicting information here)

    • Conservation easements (Land Legacy, Nature Conservancy, Pacific Forest Trust)

  • Must have the commitment to long term carbon storage as a stated goal of project


Slide21 l.jpg

U.S. Market

Chicago Climate Exchange

  • Very difficult for small landowner to participate due to volume. (e.g. loblolly pine plantation in SE U.S. stores 2-5 metric tons/acre/year)

  • Third party bundles multiple projects to sell on open market (aggregator)

    • Reduce transaction costs

    • Individual projects do not generate sufficient volume

  • Still requires proof of long term commitment.

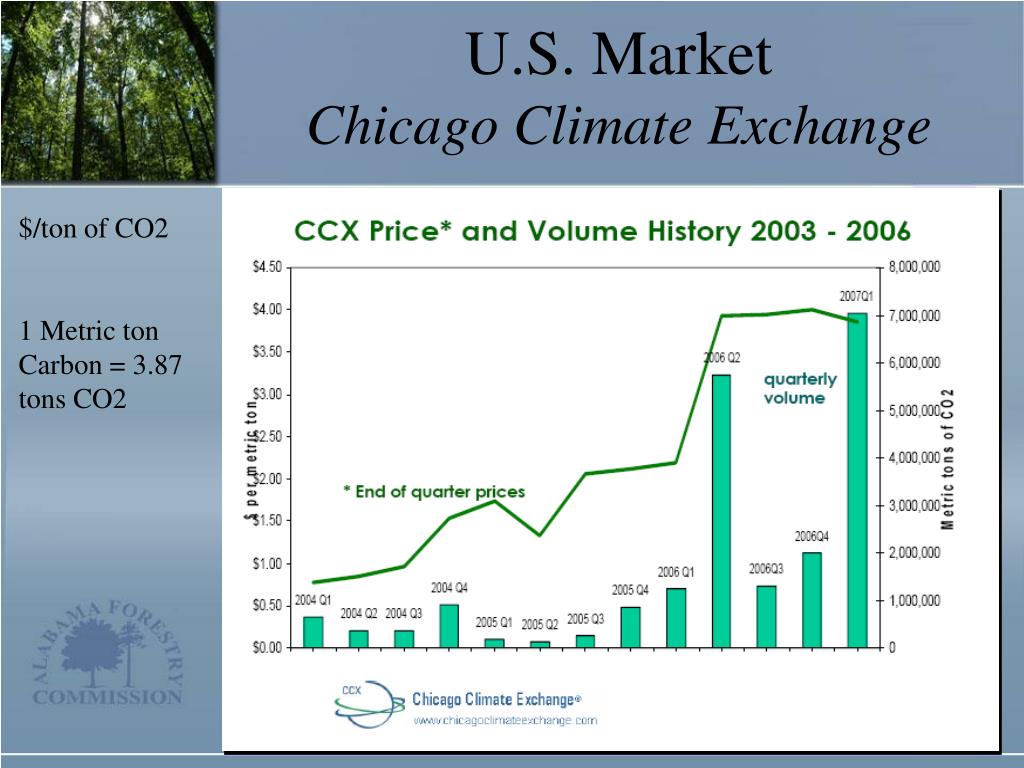

Slide22 l.jpg

U.S. Market

Chicago Climate Exchange

$/ton of CO2

1 Metric ton Carbon = 3.87 tons CO2


Slide23 l.jpg

Regional and State Markets

California Climate Action Registry

Regional Greenhouse Gas Initiative (RGGI)

Georgia Forestry Commission – Carbon Sequestration Registry


Slide24 l.jpg

Regional and State Markets

California Climate Action Registry

  • Nonprofit public/private partnership

  • Registry of voluntary GHG credits

  • Online reporting

  • Protocols for forestry

  • Conservation easement required

  • Most forest management is eligible

  • Requires baseline inventory (1990+) with projections. Monitoring and verification

  • Accepted for CCX


Slide25 l.jpg

Regional and State Markets

Regional Greenhouse Gas Initiative (RGGI or “ReGGi”)

  • Program will require electric power generators in participating states to reduce CO2 emissions

  • Already started with goal of reducing GHG emissions 10% by 2020

  • Implementation of a multi-state cap-and-trade program with a market-based emissions trading system.

  • Afforestation is only forestry offset

  • Offsets located anywhere but located in RGGI have greater weight

  • Sale of credits provide funding for forestry incentive programs


Slide26 l.jpg

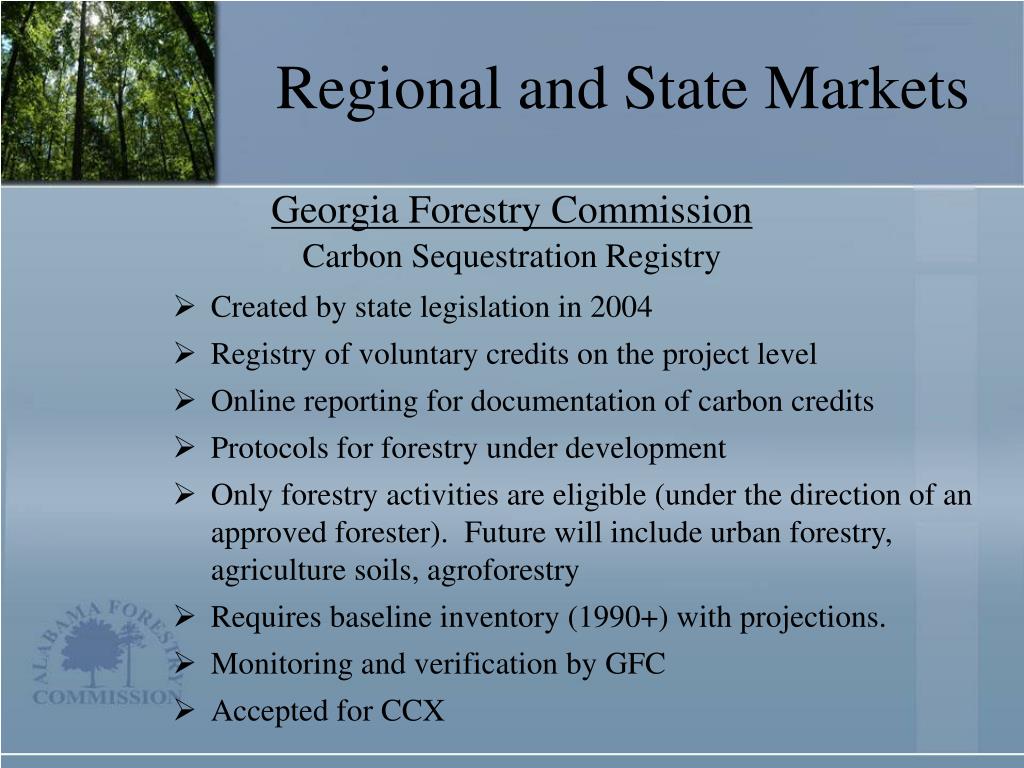

Regional and State Markets

Georgia Forestry Commission

Carbon Sequestration Registry

  • Created by state legislation in 2004

  • Registry of voluntary credits on the project level

  • Online reporting for documentation of carbon credits

  • Protocols for forestry under development

  • Only forestry activities are eligible (under the direction of an approved forester). Future will include urban forestry, agriculture soils, agroforestry

  • Requires baseline inventory (1990+) with projections.

  • Monitoring and verification by GFC

  • Accepted for CCX

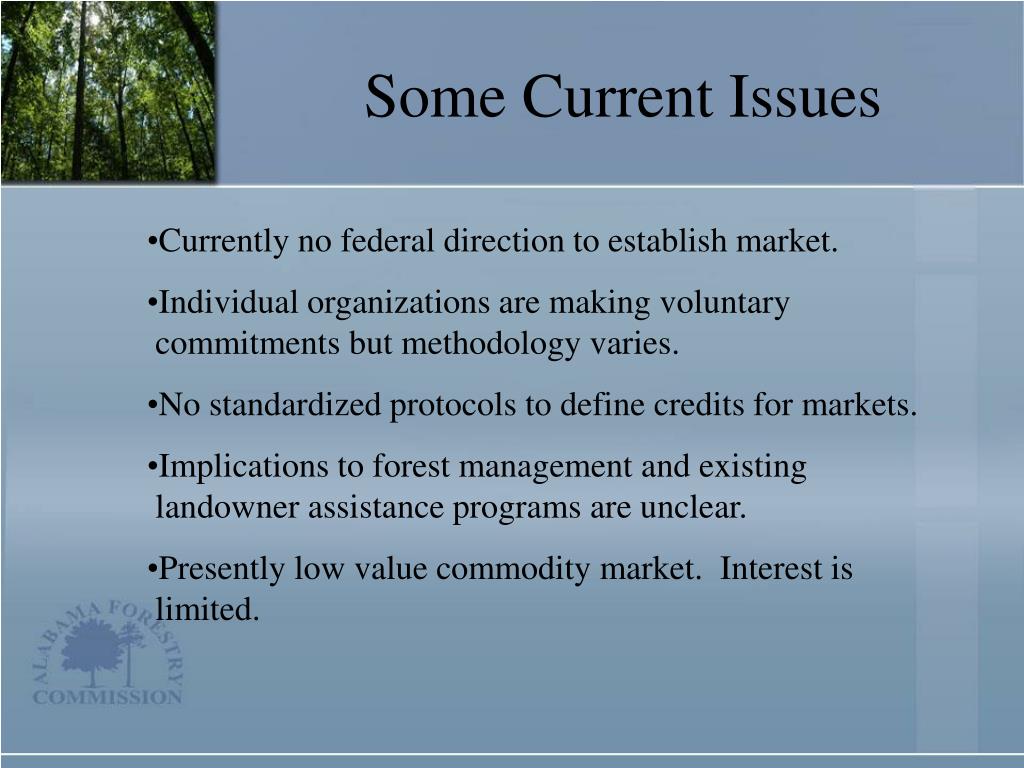

Slide27 l.jpg

Some Current Issues

Currently no federal direction to establish market.

Individual organizations are making voluntary commitments but methodology varies.

No standardized protocols to define credits for markets.

Implications to forest management and existing landowner assistance programs are unclear.

Presently low value commodity market. Interest is limited.


Slide28 l.jpg

Some Considerations for Forestry

  • Protocol/methodology standards

  • Research needs

    • Economic

    • Forest measurements

    • Management/Silviculture

  • Opportunities for existing landowner programs

  • Cooperation between state/federal forestry agencies

  • Interaction with other industry segments, including oil & gas, utility, coal, etc.

  • Information and education for forestry professionals and the general public



Slide31 l.jpg

Forests and the Carbon Cycle

  • Carbon is constantly cycled through oceans, atmosphere, and the biosphere.

  • Forest and Ag. Lands are an important carbon sink

  • Establishing new forests and active management can increase the terrestrial carbon sink.

  • New markets internalize this ecosystem service

  • Carbon as a Commodity


Relative carbon storage l.jpg
Relative Carbon Storage

  • GA timberland offsets ~12.6 million tonnes of CO2 / yr (FIA)

    • Above ground biomass (excluding foliage) + coarse woody roots

    • Mitigation of about 8% state CO2 emissions / yr (EPD)

  • Nationally, U.S. forests are also a carbon sink

    • Offset 12% of national CO2 emissions

  • Globally, however, deforestation contributes 18% of human caused CO2 emissions


Guidelines for carbon measurement in forests l.jpg
Guidelines for Carbon Measurement in Forests

  • Above ground Carbon

  • Below ground Carbon

  • Carbon in Forest Products


Slide34 l.jpg

Estimating Carbon Stocks

Protocols developed by UGA Warnell School of Forestry

Provide low-cost, conservative estimates of carbon accumulation based upon sound research and accepted models.

Guiding Principle:

Pools Considered:

Above Ground Live Biomass

Below Ground Live Biomass

Forest Soils

Forest Products


Slide35 l.jpg

Reporting Your Carbon Stocks

Start Year

Choose starting report year to begin tracking carbon.

Any year 1990 or later, provided appropriate data is available.

Carbon stocks will be tracked annually and compared to the starting report year to estimate carbon sequestration.

When initially reported, projects will report carbon stocks for report year and provide estimates of carbon stocks for ten years into the future


Slide36 l.jpg

Above Ground Carbon

Above ground pools accepted:

Main stem of live trees (bole)

Merchantable height

Reported by product class:

Pulpwood

Sawtimber

Two General Methods of carbon estimation accepted:

Carbon accumulation tables

Direct Measurements and G/Y models


Slide37 l.jpg

Direct Measurements and G/Y Models


C accumulation tables l.jpg
C Accumulation Tables

  • Carbon Tables developed for major stand types found in Georgia

  • Each table presents tons of carbon by age and product (pulp DBH <= 11.5” plus 15% degrade from stems with DBH > 11.5” and sawtimber DBH > 11.5” minus 15% degrade to pulp)


Slide39 l.jpg

Many Factors Impact Growth and Yield of Timber stands:

  • Species/Species Mix

  • Site quality (site index)

  • Stand origin (planted cutover, planted old field, natural

    regeneration)

  • Stand density (trees/acre, basal area/acre)

  • Thinning condition (un-thinned, one or more thins)

  • Management Intensity

  • Level of Genetic Improvement (if planted stand)


Registered forester examines the stand and identifies l.jpg
Registered Forester Examines the Stand and Identifies

  • Major species

  • Stand origin (planted cutover site, planted ag. field, natural)

  • Stand age

  • Site quality class

  • Stand density (low, high)

  • Thinning condition (pine stands only)

  • Management intensity (planted pine only)

  • Level of genetic improvement (planted pine only)


Slide41 l.jpg

Tables Developed for Combinations of the Following Categories:

Species – Loblolly pine, Slash pine, Longleaf pine, Hardwood

Origin – Planted cutover site, Planted ag field (CRP), Natural regeneration

Site Index Class (base age 25 for planted stands, base age 50 for natural stands)

Low, Medium, High (classes vary by species – see protocol)


Slide42 l.jpg

Stand Density at Planting

Low (<=575 trees/acre) High (> 575 trees/acre)

Stand density for natural regeneration – Low and High (class limits vary by species – no density classes for hardwood stands)

Thin History – Unthinned or Thinned


Slide43 l.jpg

Management Intensity

(planted stands only)

  • Extensive

    • No vegetation control via herbicides

    • No fertilization

  • Intensive

    • Successful woody vegetation control at site preparation

    • Herbaceous weed control in year of planting

    • Fertilization following thinning operations


Slide44 l.jpg

Level of Genetic Improvement

(planted stands only)

  • Unimproved (if unknown stands established < 1986)

  • First generation improvement (if unknown stands established between 1986 and 1999)

  • Second generation improvement (if unknown stands established 2000 forward)

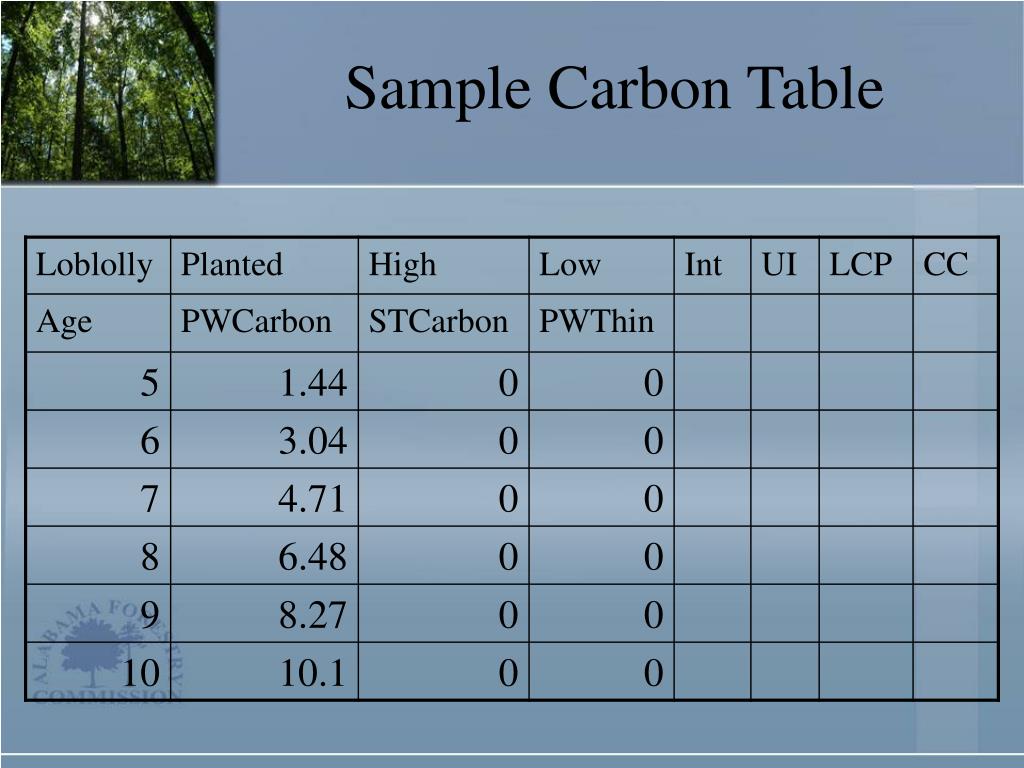

Slide45 l.jpg

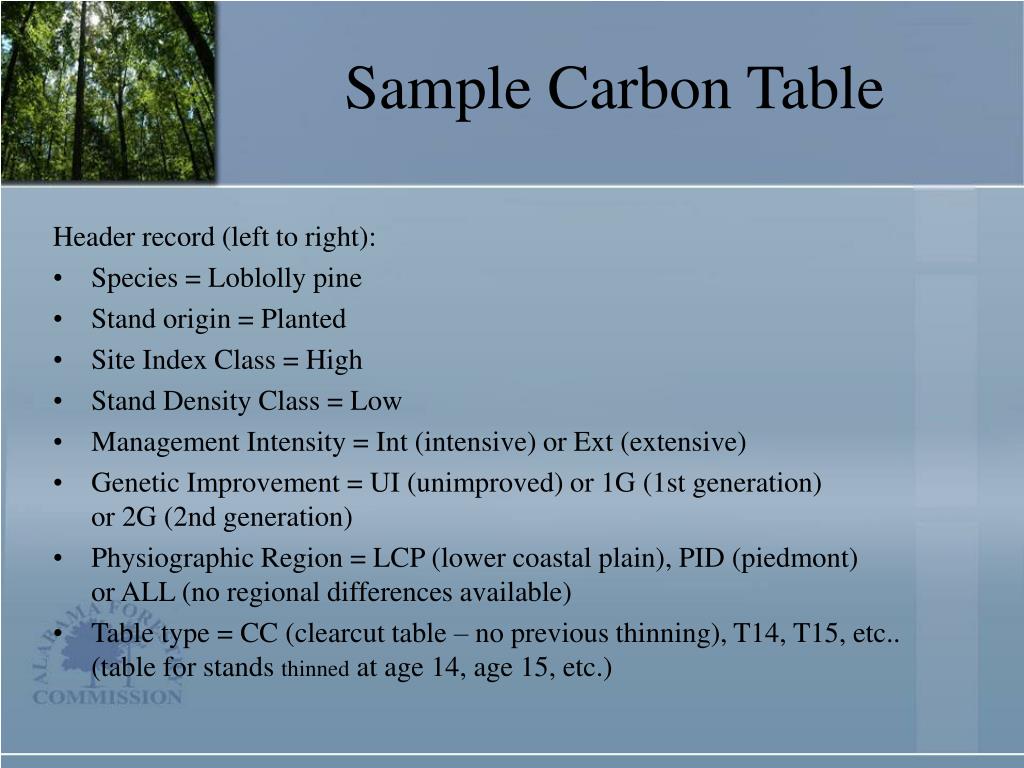

SampleCarbon Table


Slide46 l.jpg

Header record (left to right):

Species = Loblolly pine

Stand origin = Planted

Site Index Class = High

Stand Density Class = Low

Management Intensity = Int (intensive) or Ext (extensive)

Genetic Improvement = UI (unimproved) or 1G (1st generation) or 2G (2nd generation)

Physiographic Region = LCP (lower coastal plain), PID (piedmont) or ALL (no regional differences available)

Table type = CC (clearcut table – no previous thinning), T14, T15, etc.. (table for stands thinned at age 14, age 15, etc.)

SampleCarbon Table


Slide47 l.jpg

Planted Loblolly

High Site Index

Low Density

Intensive Management

Unimproved Genetics

Lower Coastal Plain

Clearcut table (i.e. no past thinning)


Slide48 l.jpg

QUESTIONS?

Walter E. Cartwright, RF

[email protected]

334.240.9331


ad
