sunoco partners marketing and terminals mariner south project lpg terminal nederland texas

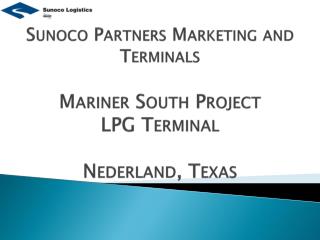

Sunoco Partners Marketing and TerminalsMariner South ProjectLPG TerminalNederland, Texas

terminal details
Terminal details
  • 5 ship docks designed for Aframax tankships 80K - 120KDWT
  • Mooring piles with quick-release capabilities
  • Mooring system analysis being conducted for slightly smaller LPGCs
planned operations
Planned Operations
  • Transfer propane/butane to/from liquefied gas carriers
  • Dual purpose – import and export of propane and butane based upon market demand
  • Annual throughput ~72,600,000 bbl
lpgcs
LPGCs
  • Slightly smaller than AFRAMAX
  • Capacities up to 83,000 m3
  • Fully refrigerated
  • Estimate 7-9 /mo
  • Maximum 11/ mo
consultations
Consultations
  • Sabine Pilots
  • Sabine Neches Navigation District (SNND)
  • USCG MSU
nothing to preclude lpg operations
Nothing to preclude LPG operations
  • No unusual challenges
  • LPGCs within the size range for night transit
  • Traffic increase within usual ranges
  • No differences compared to other traffic
characterization of the lpgc route
Characterization of the LPGC Route
  • Same issues as for as LNG until get above Golden Pass
  • Project width 400 - 800 ft
  • Depth 40 ft minimum
  • Port Arthur Ship Canal –no developed areas
sabine neches canal neches river
Sabine-Neches Canal & Neches River
  • West Port Arthur / City of Port Arthur
  • Residential/industrial at Port Neches
  • Residential areas at Nederland ~1.4 miles from dock
  • Environmental Resources
  • LPG operations present no new risks for those areas
marine safety change analysis
Marine Safety Change Analysis
  • Modest increase in deep draft vessel traffic volume
  • 2,800 vessel arrivals & 71,000 barge transits in 2012
  • 20% to/beyond Sunoco
  • 8 LPGCs/mo = 96/yr = 3.4% increase
  • 11 LPGCs/mo = 132/yr = 4.7% increase
impacts on local services
Impacts on Local Services
  • Pilots – 29 pilots and 2 trainees – Adequate for expected levels of operations
  • Tugs – local fleet = 11 vessels– #1 concern overall– Fleet might have to grow to meet demand
conclusion
Conclusion
  • Waterways leading to the Mariner South Project LPG Terminal at Nederland, TX are suitable for marine LPG operations
contacts
Contacts
  • Tom Rodino-Consultant
    • Office: 956-233-9931
    • tom@rodinoinc.com
  • Wayne Turner-Terminal Manager
    • Office: 409-721-4824
    • gwturner@sunocologistics.com
  • Glenda Davalos-Operations Integration Manager, Mariner South Project
    • Office: 409-721-4863
    • ggdavalos@sunocologistics.com
  • Ellen Clark-Supervisor-Lab, Lubes, Security
    • Office: 409-721-4851
    • emclark@sunocologistics.com
  • Joey Mahmoud-Vice President Engineering, Energy Transfer
    • Office: 281-714-2042
    • Joey.Mahmoud@energytransfers.com
