Enzymes

Enzymes. Course of reaction without enzyme. E A. without enzyme. E A with enzyme is lower. Reactants. Free energy. ∆ G is unaffected by enzyme. Course of reaction with enzyme. Products. Progress of the reaction. Enzymes are protein catalysts.

beryl
Download Presentation

Enzymes

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Enzymes

  2. Course of reaction without enzyme EA without enzyme EA with enzyme is lower Reactants Free energy ∆G is unaffected by enzyme Course of reaction with enzyme Products Progress of the reaction Enzymes are protein catalysts • Change the rates of a reaction (x 106-1012) without being consumed • Lower energy barriers  initial energy investment or activation energy(EA) • Cells can carry out necessary metabolic reactions even at moderate temperatures

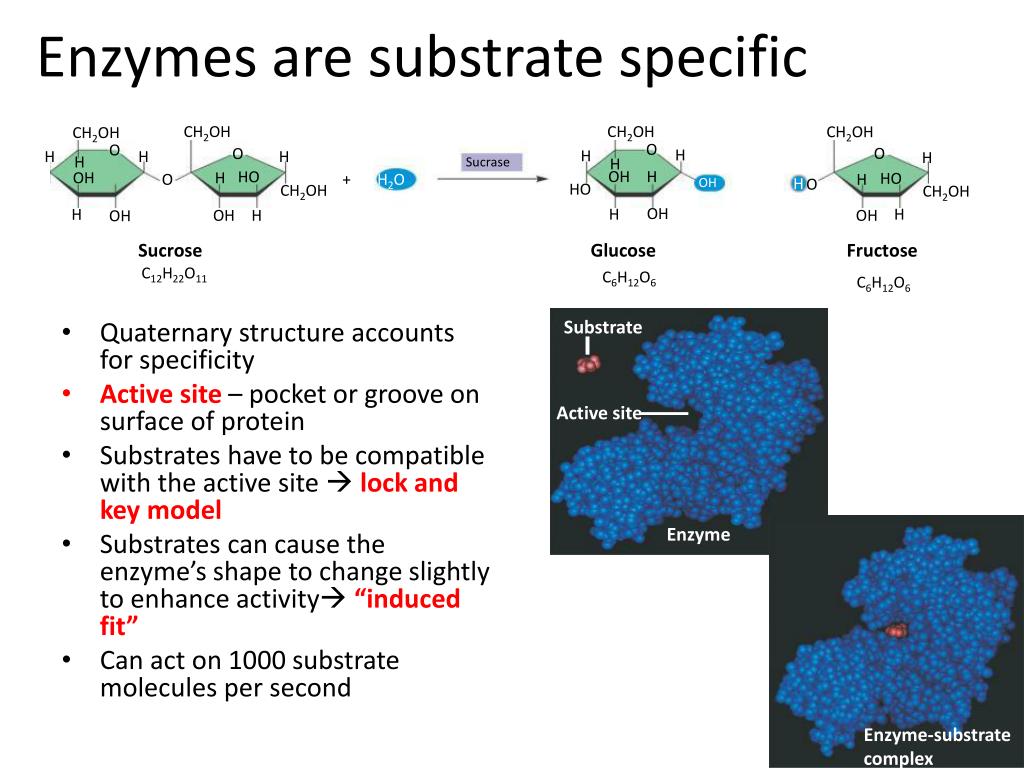

  3. Substrate CH2OH CH2OH CH2OH CH2OH O O O O H H H H H H H Sucrase H OH H HO OH H HO H2O O + H H OH O HO CH2OH CH2OH Active site OH H H H OH H OH OH Sucrose Glucose Fructose C12H22O11 C6H12O6 C6H12O6 Enzyme Enzymes are substrate specific • Quaternary structure accounts for specificity • Active site – pocket or groove on surface of protein • Substrates have to be compatible with the active site  lock and key model • Substrates can cause the enzyme’s shape to change slightly to enhance activity “induced fit” • Can act on 1000 substrate molecules per second Enzyme-substrate complex

  4. 1 Substrates enter active site; enzyme changes shape so its active site embraces the substrates (induced fit). 2 Substrates held in active site by weak interactions, such as hydrogen bonds and ionic bonds. 3 Active site (and R groups of its amino acids) can lower EA and speed up a reaction by • acting as a template for substrate orientation, • stressing the substrates and stabilizing the transition state, • providing a favorable microenvironment, • participating directly in the catalytic reaction. Substrates Enzyme-substrate complex 6 Active site Is available for two new substrate Molecules. Enzyme 5 Products are Released. 4 Substrates are Converted into Products. Products The catalytic cycle of an enzyme

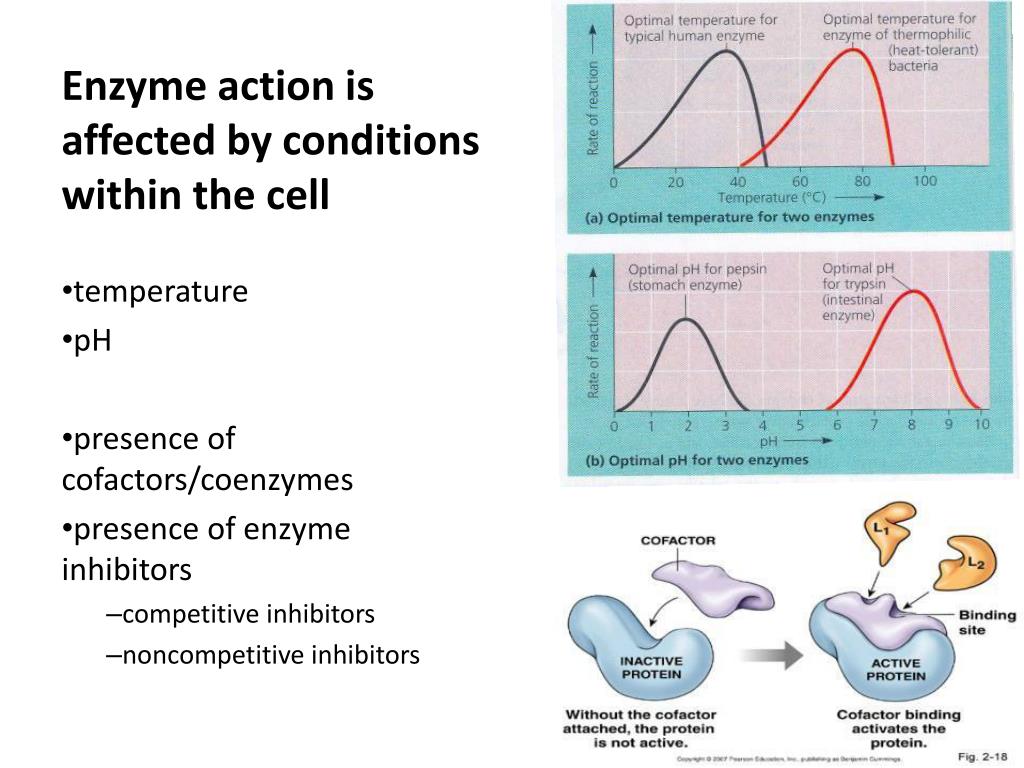

  5. Enzyme action is affected by conditions within the cell • temperature • pH • presence of cofactors/coenzymes • presence of enzyme inhibitors • competitive inhibitors • noncompetitive inhibitors

  6. A substrate can bind normally to the active site of an enzyme. Substrate Active site A noncompetitive inhibitor binds to the enzyme away from the active site, altering the conformation of the enzyme so that its active site no longer functions. Enzyme (a) Normal binding A competitive inhibitor mimics the substrate, competing for the active site. Competitive inhibitor Noncompetitive inhibitor (c) Noncompetitive inhibition (b) Competitive inhibition Enzyme inhibitors

  7. Metabolic control depends on allosteric regulation • Regulatory molecules activate/inhibit enzyme shape and function by binding to allosteric sites • Protein action at active site is affected by binding at a different site

  8. Feedback inhibition • Metabolic pathways make use of more than one enzyme • End product is an allosteric inhibitor that switches off enzyme action • e.g. synthesis of isoleucine from threonine

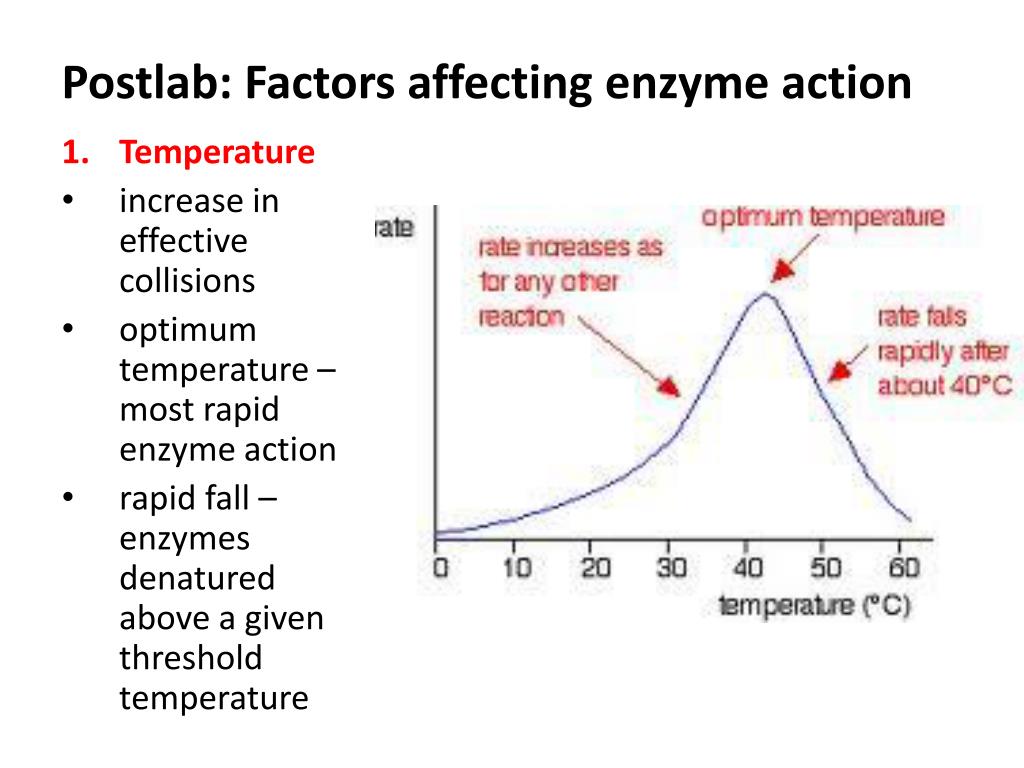

  9. Postlab: Factors affecting enzyme action • Temperature • increase in effective collisions • optimum temperature – most rapid enzyme action • rapid fall – enzymes denatured above a given threshold temperature

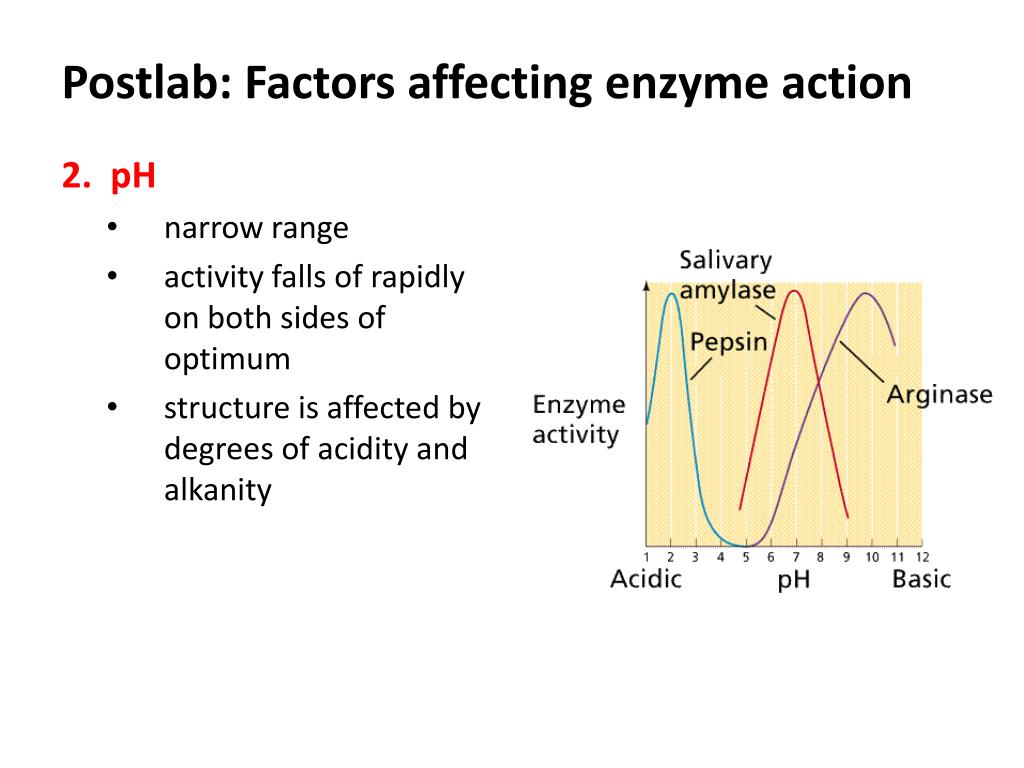

  10. Postlab: Factors affecting enzyme action 2. pH • narrow range • activity falls of rapidly on both sides of optimum • structure is affected by degrees of acidity and alkanity

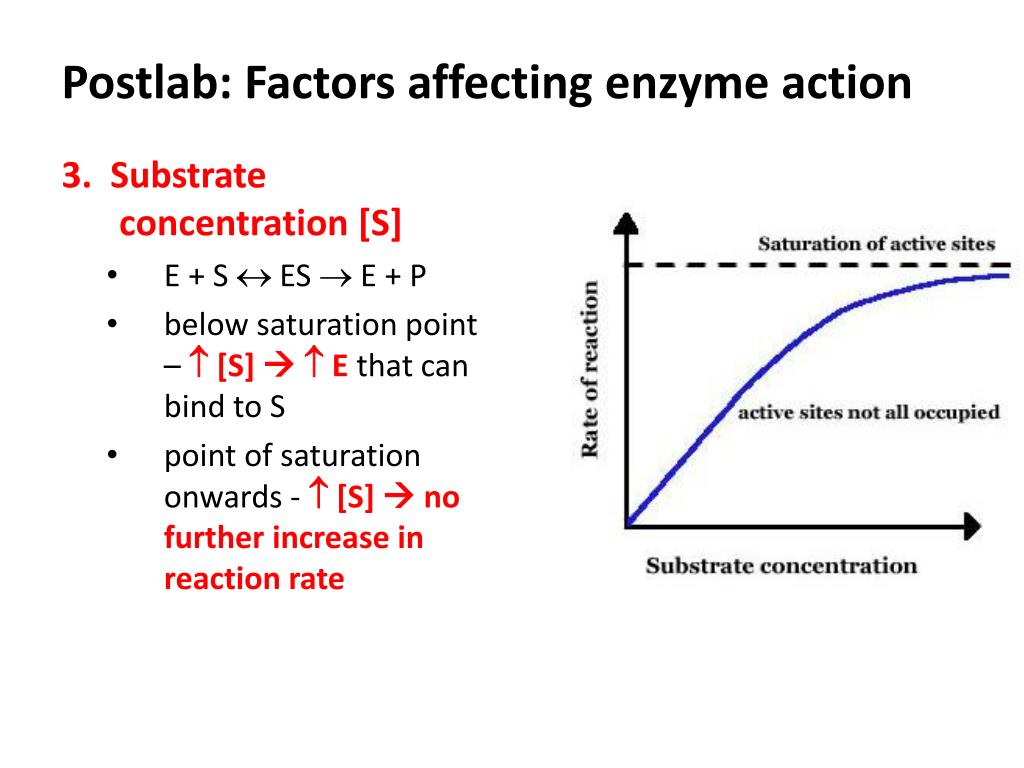

  11. Postlab: Factors affecting enzyme action 3. Substrate concentration [S] • E + S  ES  E + P • below saturation point –  [S]   E that can bind to S • point of saturation onwards -  [S]  no further increase in reaction rate

  12. Postlab: Factors affecting enzyme action 4. Enzyme concentration [E] • If excess substrate is available, rate  [E] • [P]  [E], c.p.
