Presentation Transcript
slide1

Information Process Agents (IPAs)

Consolidator

Consolidation

Mapping

Consolidators

Request/

Subscription

{Consolidated} Request;

Response

Information

Process

Agent

Web Service

(IPAWS)

Information

Request/

Subscription

Execution

Mapping

Requester

(Has WS interface

for returns)

{Not in DB}

Request

Manager

Resource

Manager

Data

Manager

(e.g., XML

DB)

Immediate

Parsing

Success/

Failure;

Asynchronous

Response

Synch

Context

Manager

Asynchronous

Response to RM

Broker/BPEL

Transformation

Service(s)

Asynchronous

Response

to RM

Asynchronous

Information

Update

Remote

CM

Remote IPAs

Decision

Support

Engine

Information

Source

Decision Support for Dynamic Target Engagement (DS-DTE)

Daniel H. Wagner Associates, Inc. - www.wagner.com

Daniel H. Wagner Associates, for the Office of Naval Research (ONR), under subcontract to Solers, Inc., and teamed with the Penn State University Applied Research Lab (ARL) and Information Sciences and Technology (IST) department, is developing an advanced information management architecture to provide timely and accurate decision support during dynamic target engagement. Figure 1 shows the agent-based information management process, which 1) receives and manages information requests through a standard Web Service interface, 2) attempts to retrieve information from the local data store, 3) consolidates off-board requests to reduce message traffic, 4) determines and invokes the optimal path to available information to satisfy those requests, 5) invokes appropriate transformations on returned information based on requester preferences, and 6) synchronizes process state and information across federated nodes. During Spiral Three of this ongoing project for ONR, we have implemented the information management process within the overall decision support architecture for Maritime Dynamic Targeting (MDT).

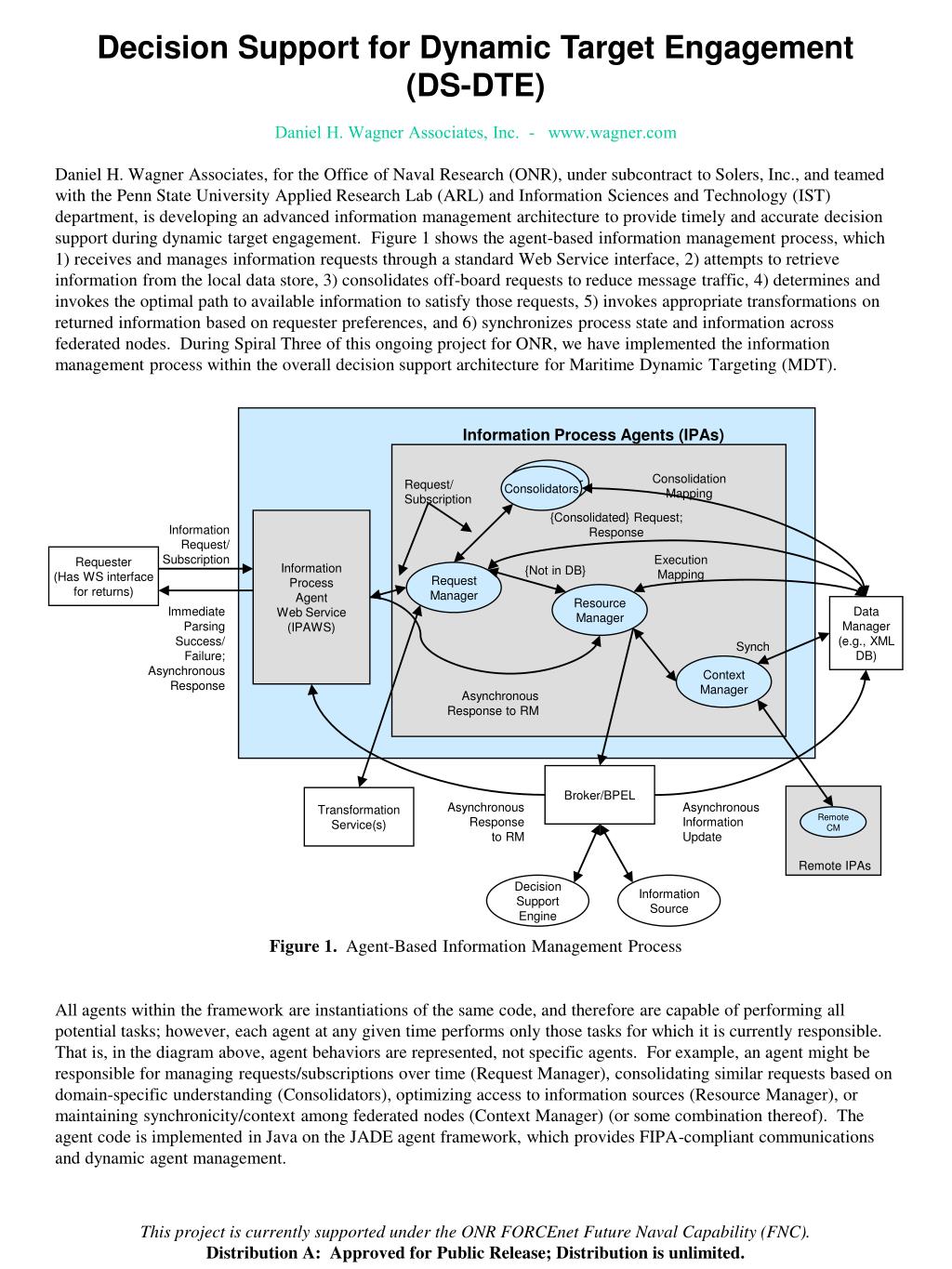

Figure 1. Agent-Based Information Management Process

All agents within the framework are instantiations of the same code, and therefore are capable of performing all potential tasks; however, each agent at any given time performs only those tasks for which it is currently responsible. That is, in the diagram above, agent behaviors are represented, not specific agents. For example, an agent might be responsible for managing requests/subscriptions over time (Request Manager), consolidating similar requests based on domain-specific understanding (Consolidators), optimizing access to information sources (Resource Manager), or maintaining synchronicity/context among federated nodes (Context Manager) (or some combination thereof). The agent code is implemented in Java on the JADE agent framework, which provides FIPA-compliant communications and dynamic agent management.

This project is currently supported under the ONR FORCEnet Future Naval Capability (FNC).

Distribution A: Approved for Public Release; Distribution is unlimited.
