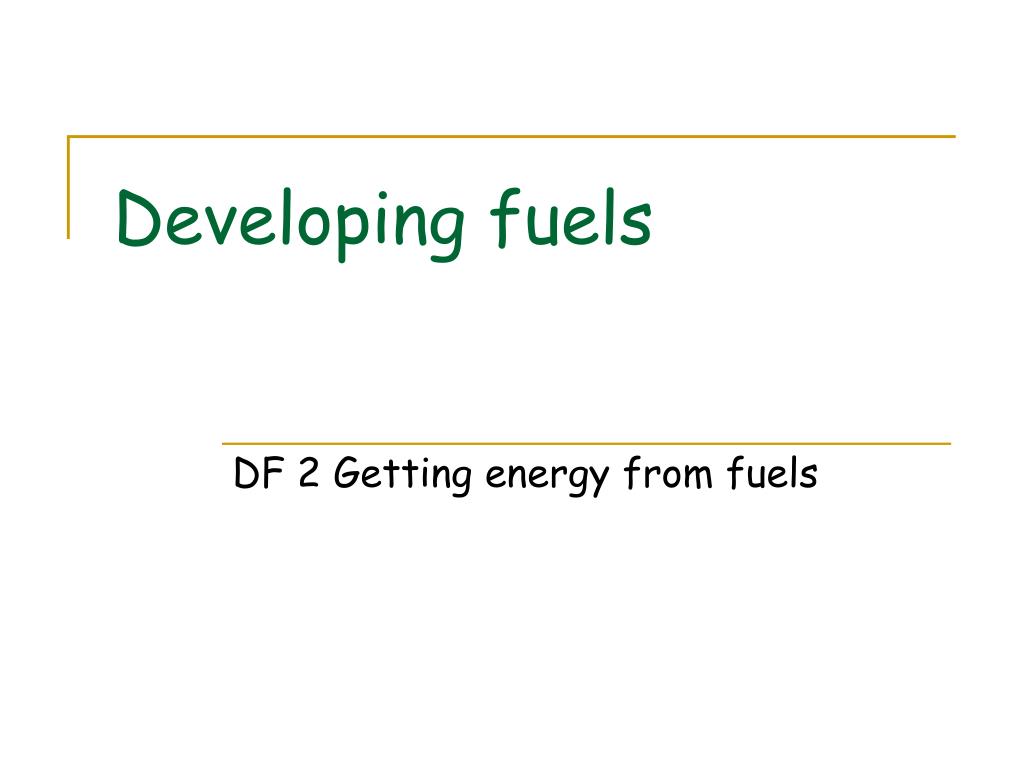

  1. Developing fuels DF 2 Getting energy from fuels

  2. The role of oxygen • Different fuels have different enthalpy changes of combustion • Enthalpy changes are negative during combustion the reactants lose energy to their surroundings • Enthalpy of combustion varies widely – why? • Fuels can’t release energy until they have combined with oxygen so we should think of fuel – oxygen systems as the energy sources

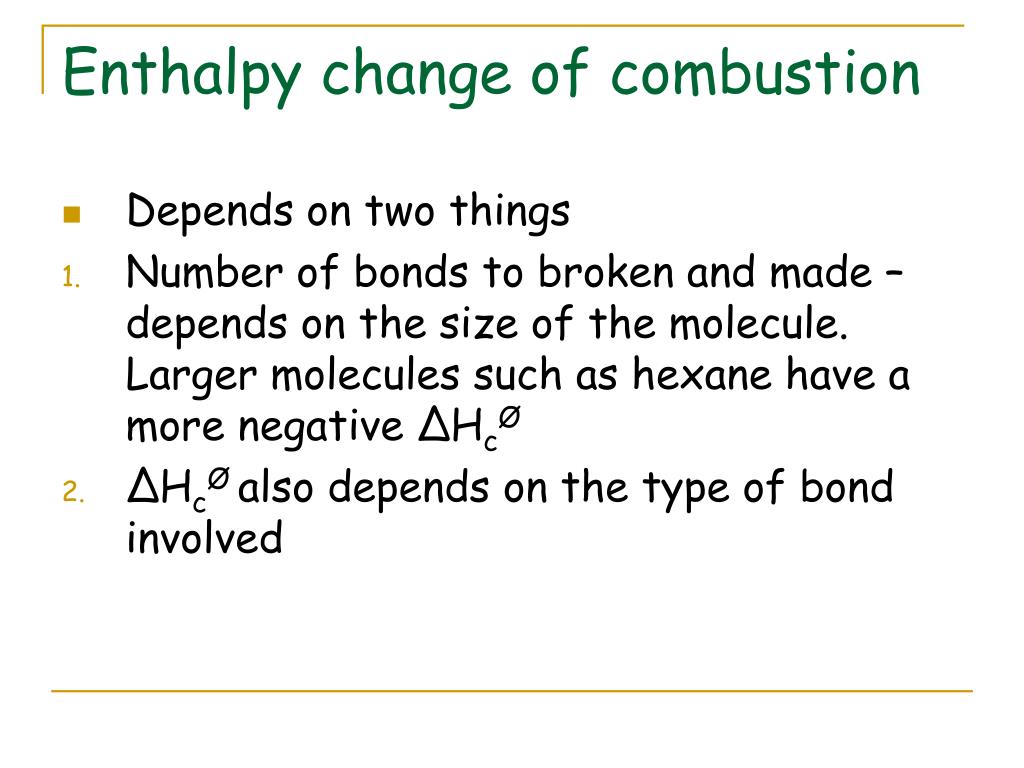

  3. Enthalpy change of combustion • Depends on two things • Number of bonds to broken and made – depends on the size of the molecule. Larger molecules such as hexane have a more negative ΔHcØ • ΔHcØ also depends on the type of bond involved

  4. Combustion of methanol and methane • Combustion of methane CH4 + 2O2 CO2 + 2H20 H l H-C-H O=O  O=C=O H-O-H l O=O H-O-H H • Combustion of methanol CH3OH + 1 ½O2 CO2 + 2H20 H l H-C-O-H O=O O=C=O H-O-H l ½ [O=O] H-O-H H • Products are the same • Key difference is methanol has an O-H bond already – one bond to the oxygen is already made – it is already partly oxidised where methane is not.

  5. Combustion of methanol and methane • Energy released during combustion comes from making bonds to oxygen. Methanol has one bond made already so it releases less energy when burnt. • General rule, more oxygen a fuel has in its molecule, the less energy it will give out. • Oxygenated fuels (alcohols and ethers) are less energy rich than hydrocarbons. • Not poor fuels – some ways better, less pollution, higher octane number (more later)

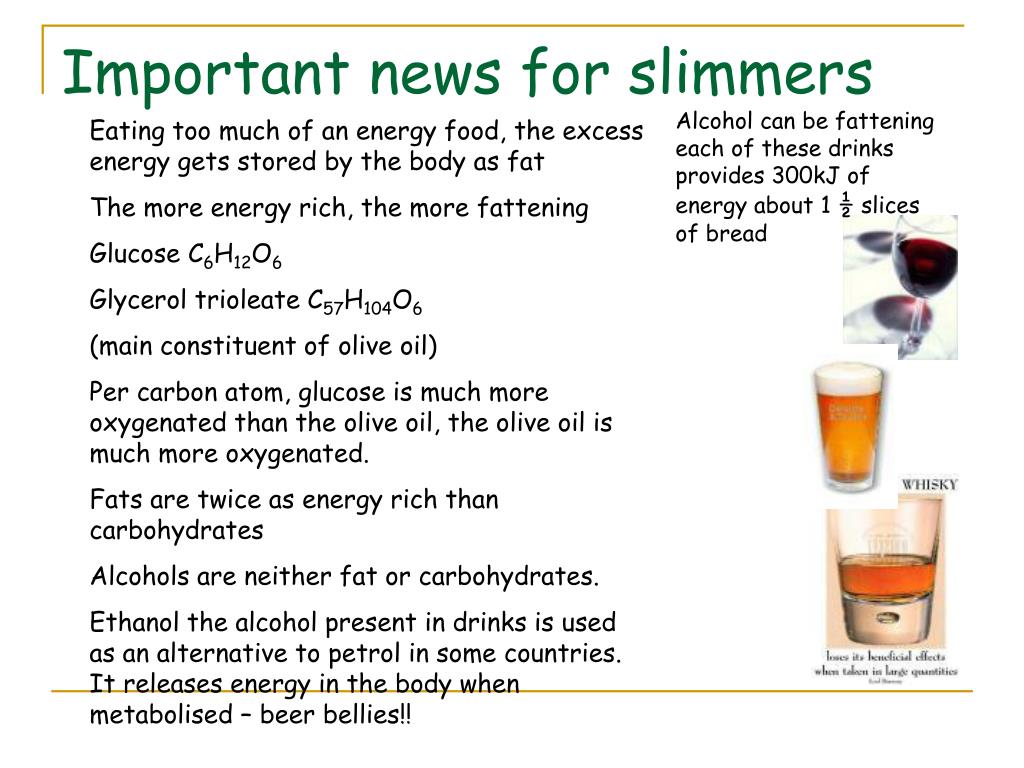

  6. Important news for slimmers Alcohol can be fattening each of these drinks provides 300kJ of energy about 1 ½ slices of bread • Eating too much of an energy food, the excess energy gets stored by the body as fat • The more energy rich, the more fattening • Glucose C6H12O6 • Glycerol trioleate C57H104O6 • (main constituent of olive oil) • Per carbon atom, glucose is much more oxygenated than the olive oil, the olive oil is much more oxygenated. • Fats are twice as energy rich than carbohydrates • Alcohols are neither fat or carbohydrates. • Ethanol the alcohol present in drinks is used as an alternative to petrol in some countries. It releases energy in the body when metabolised – beer bellies!!

  7. Carrying fuels around • For a practical uses - fuel enthalpy change of combustion may not be the most important thing to consider. • Energy density is often the decisive factor – how much energy you get per kilogram of fuel • We can work this out from energy change of combustion using relative molecular mass
