Presentation Transcript
outline
Outline
  • Common misconceptions
  • Theory of operation
  • Troubleshooting
  • Giant VdG at Syracuse University

NYSS-AAPT 9/29/2007

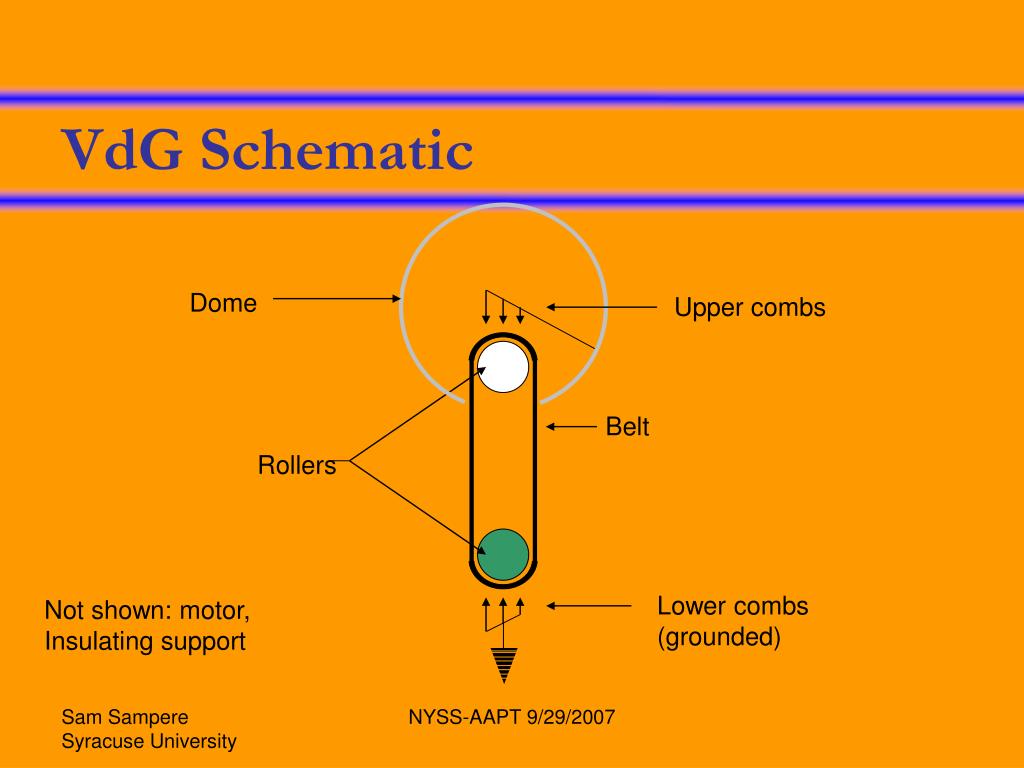

vdg schematic

Dome

Upper combs

Belt

Rollers

Lower combs

(grounded)

VdG Schematic

Not shown: motor,

Insulating support

NYSS-AAPT 9/29/2007

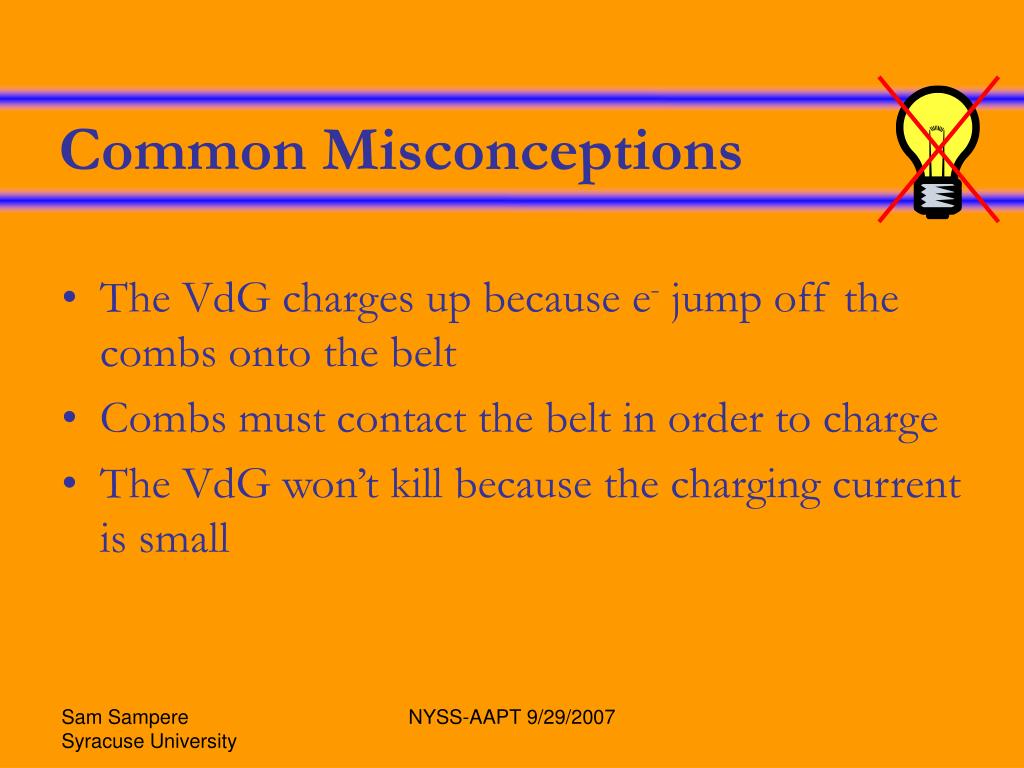

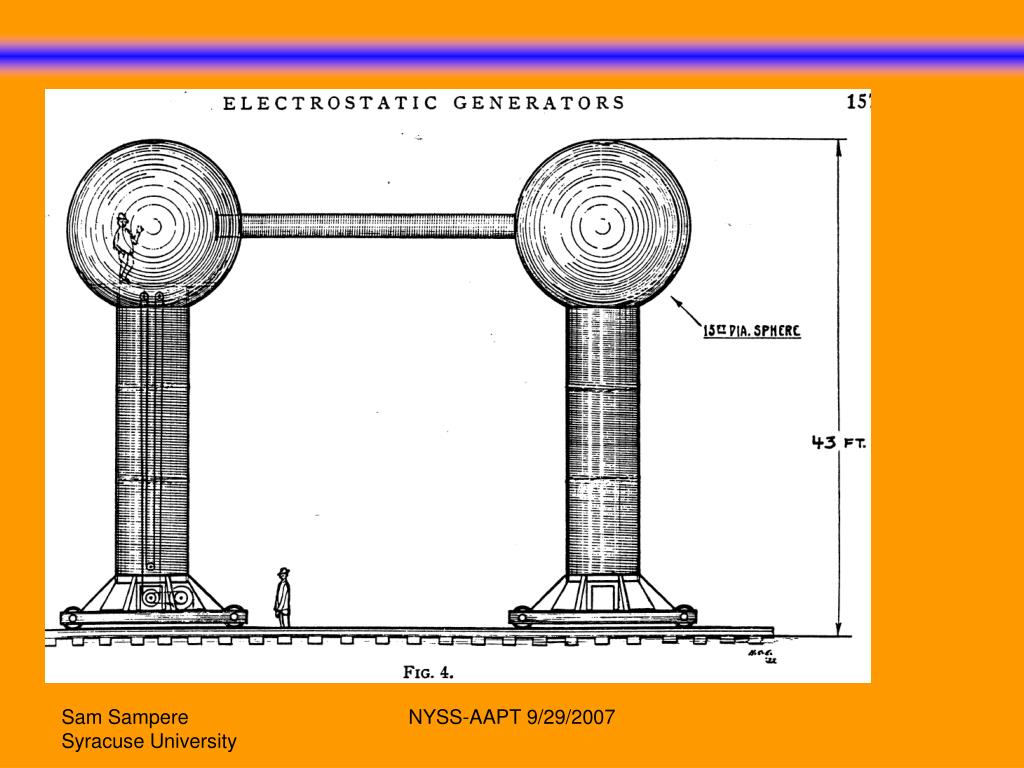

common misconceptions
Common Misconceptions
  • The VdG charges up because e- jump off the combs onto the belt
  • Combs must contact the belt in order to charge
  • The VdG won’t kill because the charging current is small

NYSS-AAPT 9/29/2007

operation
Operation

-

-

-

-

  • Roller becomes charged
  • Induces charge on combs
  • Ionize gas
  • Belt carries charge away
  • Reverse happens at top

-

e-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

  • Implies VdG functions

as a current source

Belt rotates clockwise

+

+

+

+

+

+

+

+

+

-

NYSS-AAPT 9/29/2007

mythbuster

-

-

-

-

-

e-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

Belt rotates clockwise

+

+

+

+

+

+

+

+

+

-

Mythbuster
  • e- are not ripped off needles
  • No need for belt to contact brushes
  • Does not charge in a vacuum

NYSS-AAPT 9/29/2007

spherical capacitor

-

-

-

-

-

-

-

-

-

-

For a toy VdG,

C = 2 x 10-12 F

For my 1 m diameter dome,

C = 5.5 x 10-11 F

E = 1/2CV2

= .25 J for 500,000 V

E = 1/2CV2

= 6.9 J for 500,000 V

Spherical Capacitor

+

+

+

+

C ~ ra for large rb

rb

ra

+

+

+

+

+

+

NYSS-AAPT 9/29/2007

parallel plate capacitor
Parallel Plate Capacitor

C = 100 μF

V = 10,000

E = 5,000 J

Charging time ~11 h

for I = 25 μA

E = 7J

V = 375 V

NYSS-AAPT 9/29/2007

troubleshooting and maintenance
Troubleshooting and Maintenance
  • Interference with charging mechanism
  • Prevent charge build up

Ammeter

-

-

-

-

-

-

-

-

-

-

-

-

-

  • Plasma?
  • Current?
  • Cleanliness?
  • Proximity of combs?
  • Sharp objects near dome?
  • Damaged dome?
  • HUMIDITY!!!!

+

+

+

+

+

+

+

+

+

-

NYSS-AAPT 9/29/2007

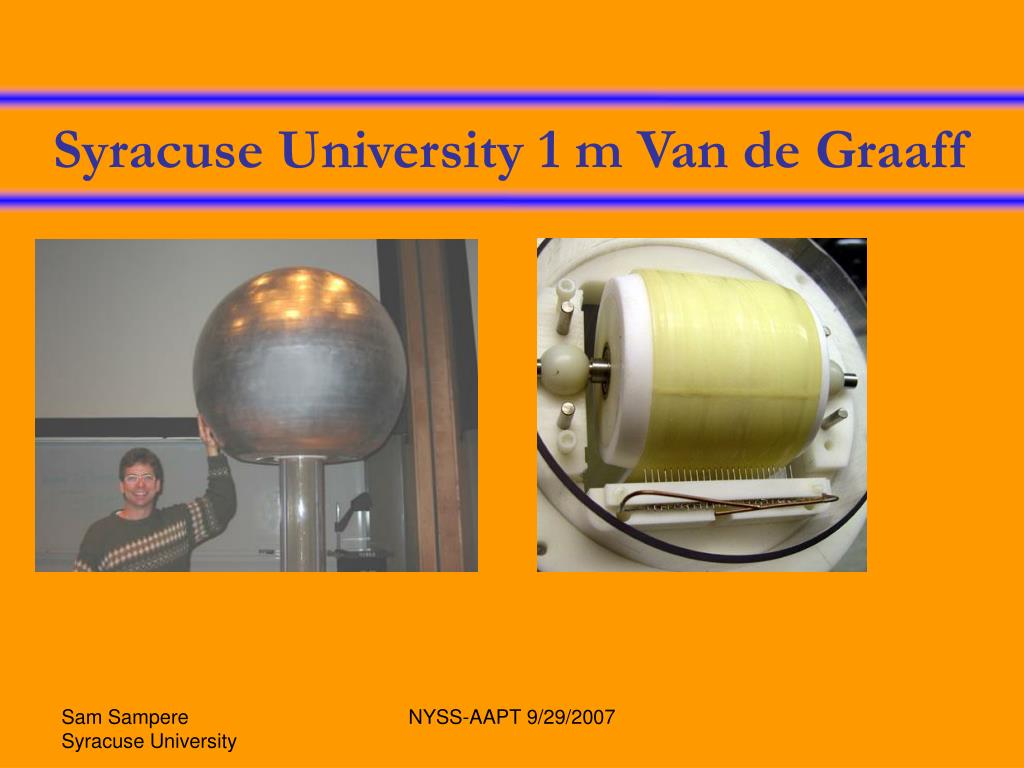

syracuse university 1 m van de graaff1
Syracuse University 1 m Van de Graaff

Plasma around upper comb

Lower comb assembly

NYSS-AAPT 9/29/2007
