RTCA SC-214/EUROCAE WG-78. John Gonda MITRE-CAASD Work Package 2 U. S. Co-Chair. SC-214/WG-78 TORs. Standards for Air Traffic Data Communication Services Produce data link standards for NextGen and SESAR DO-264/ED-78A Process Backwards compatibility

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'RTCA SC-214/EUROCAE WG-78' - bernad


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
rtca sc 214 eurocae wg 78

RTCA SC-214/EUROCAE WG-78

John Gonda

MITRE-CAASD

Work Package 2 U. S. Co-Chair

sc 214 wg 78 tors
SC-214/WG-78 TORs
  • Standards for Air Traffic Data Communication Services
    • Produce data link standards for NextGen and SESAR
    • DO-264/ED-78A Process
    • Backwards compatibility
      • FANS 1/A – ATN INTEROP Standard Domestic (DO-305/ED-154)
      • ATN B1 INTEROP Standard (DO-280B/ED-110B)
      • Continental SPR Standard (DO-290‑Chg 2/ED‑120‑Chg 2).
      • FANS 1/A INTEROP Standard (DO-258A/ED-100A)
      • SPR Standard for Air Traffic Data Link Services in Oceanic and Remote Airspace (DO-306/ED-122).
    • Coordinate
      • FAA, ICAO, EUROCONTROL,ATMAC R & P, PARC CWG, AEEC
wp 2 spr objectives maastricht
WP 2 SPR Objectives (Maastricht)
  • Organization of work
    • Resources
    • Schedule
  • Mature 4D TRAD OSD
    • Resolve OSA/OPA Approach
    • Resolve Interoperability Issues with FANS/ATN CPDLC and FANS ADS C
    • Resolve Env B/Far Term Scenario Approach
  • Introduce FLIPINT OSD
    • Discuss OSA/OPA?
    • Discuss Interoperability with FANS ADS C
  • Discuss status of D FLUP, D HIWAS, D RVR, ITP
sc 214 wg 78 organization
SC 214/WG 78 Organization
  • Chairs: Paul Mettus/Danny Van-Roosbroek
  • DFO: Gregg Anderson
  • New SGs structure until December 2009
    • PUB: Editors subgroup for WP1 SPR and Interop
    • WP1: WP1 Maintenance/Finalization (ad hoc)
      • Chairs: Jane, Thierry
    • SPR: WP 2 (4DTRAD,FLIPINT, ITP) SPR
      • Chairs: Dijana, John
    • INT: Interop for WP2 (4DTRAD, FLIPINT, ITP)
      • Chairs: Claudia, Frederic
    • Nav/Ground TP: JL De Menorval/TBD
editors
Editors
  • 4D TRAD
    • OSD (Maintenance) :Steve/Dijana
    • OSA :Bruno Godet
    • OPA :Wim Brondsema
    • INT :Greg Saccone
    • SPR Integration: Thierry and Jane
    • FANS Accomodation: Chris Collins
  • FLIPINT
    • OSD : John Gonda (Steve/Dijana review)
    • OSA : Todd K. (Bruno review)
    • OPA : Kathy Devito
    • SPR : Integration: Thierry and Jane
    • INT : Discussion at Maastricht?
    • FANS Accomodation: Chris Collins
  • WP1 SPR : Jane/Thierry
  • WP1 INT: Frederick (for ATN);Chris Collins(FANS Accommodation);TBD (ACARS, if required)
eurocae and rtca proposed dates

Mature Draft

WP1 + 4DTRAD OSD

RTCA Dates

WP1

Eurocae Dates

S1/S2

Standards

Published

WP2

Mature Draft

S1/S2

WP3

EUROCAE and RTCA Proposed Dates

WP1

FAA Call to Industry

WP2

WP3

2008

2009

2010

2011

2012

2013

2014

potential implications for users
Potential Implications for Users
  • Upgraded Software Applications
    • Context Management
    • Controller Pilot Data Link Communications (Additional Messages and Services)
    • Automatic Dependent Surveillance – Contract (Converged ADS-C over VDL-Mode 2)
    • Flight Information Services
  • New Operating Methods
    • Integration between navigation and communication functions for auto load, position reporting and intent downlink
    • Ability to negotiate preferred trajectory
  • No major hardware replacement
    • Assuming existing avionics meet Perf/Interop Standards
sg 3 scope atn fans1 a
SG-3 Scope (ATN & FANS1/A+)

DO-280B/ED-110B

ATN Baseline 1

Continental Services

DO-258A/ED-100A

FANS 1/A+

Continental and Oceanic Services

DO/ED-YYY

ATN Advanced

Continental & Oceanic Services

Air

INTEROP

Req.

ED-110B

ED-100A

DO/ED-YYY

ATN

INTEROP

Ground

INTEROP

Req.

ED-154

DO-305

ED-110B

ED-100A

DO/ED-YYY

FANS

INTEROP

DO/ED-YYY

DO

-

280

/

ED

-

110

FANS

1

/

A

+

ATN Advanced

ATN Baseline

1

Oceanic Services

Continental &

Continental Services

Oceanic Services

faa s nextgen efforts and alignment with europe
FAA’s NextGen Efforts and Alignment With Europe

Widespread 4-D Agreements

Widespread Delegated Separation =

Merging & Spacing (M&S), Crossing and Passing (C&P), In-Trail Procedures (ITP), Paired Approaches (PAIRAPP)

2010 2015 2020 2025

Existing Aircraft Avionics Capabilities

Aircraft Equipage

Avionics

Standards

Avionics

Available

RTCA SC214/WG78 Equipage

Segment 1

Segment 2

Segment 3

Integrated NextGen Equipage Rule

TRACON

En Route

Tower

Operational

Capabilities

Departure

Clearances

Data Link Automatic Terminal Information Service

Revised Departure

Clearances

TRACON Data Comm Including Routine Clearances, Comm Mgmt, 4-D TAP/CDA & Time Based Metering

Initial Trajectory Based Ops

Clearances

Conformance Management

Comm Mgmt

Traffic Flow Management Reroutes

Time Based Metering

Red = Terminal Function

Black = En Route Function

Purple = Cross Domain Function

  • Operational Terminal Info Service
  • NAS Status / Delays / Constraints / Sequencing & Hazardous WX

Initial Optimized Descent (TAP/

CDA)

European Deployment

A/C Forward

Fit Rule

A/C Retrofit Rule /

All Europe Ground Systems

LINK 2K+

4DLINK / SESAR

SESAR

Implementation Package 1

Implementation Package 2

Implementation Package 3

Initial 4D (Complex Clearances)

En Route ATC Clearances

Widespread 4-D Agreements

Conformance Management

Comm Mgmt

ATC Microphone Check

Widespread M&S / C&P / ITP / PAIRAPP

Taxi-Out & In; Terminal Info

TAP/CDAs

Initial TAP/CDA’s

traffic demand growth 2008 2025
Traffic Demand Growth 2008-2025

2025 Growth = 1.85x2008 based upon 3.7%/year

Based upon annual growth rate in Europe = Worst Case

environment definitions
Environment Definitions
  • Existing – Existing Stds, traditional airspace, 25% equipage
  • Env A – Mixed equipage airspace, 75% equipage
  • Env B - High Performance Airspace, 100% equipage (required)

Sector Peak Instantaneous Aircraft Count

FAA/Eurocontrol COCR V 2.0, RTCA DO 290

4d trajectory data link service

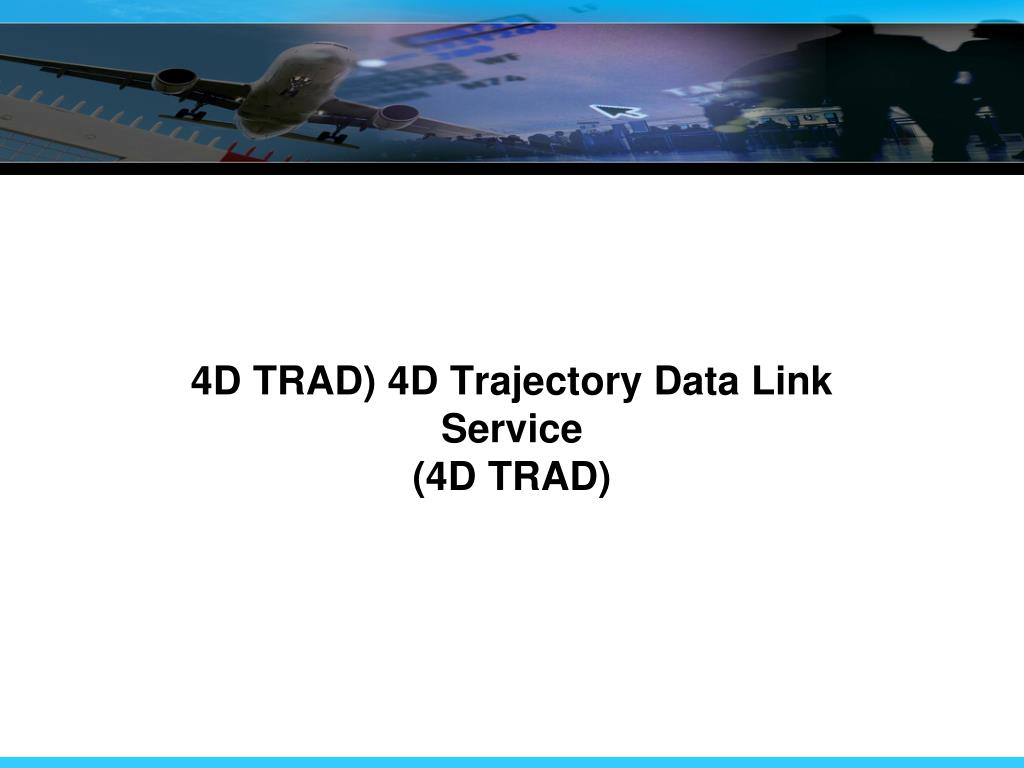

4D Trajectory – Data Link Service(

4D TRAD) 4D Trajectory Data Link Service(4D TRAD)

sc 214 4dtrad an integrated service
SC 214 4DTRAD – An Integrated Service

Trajectory Data Downlink

CPDLC

DLIC

ACL

Trajectory Data

ACM

Event Reporting

4DTRAD

MET Data

MET

Ground-Ground

ATSU 1

Human

ATSU 2

TFM

Pilot/Controller

FMS

ATSU X

Navigation

Flow Mgt

the 4d trajectory data link 4dtrad service closing the loop for air traffic control

The 4D Trajectory Data Link (4DTRAD) Service Closing the Loop for Air Traffic Control

John Gonda

MITRE CAASD

Michael R. C. Jackson, PhD

Honeywell Labs

Rob Mead & Greg Saccone

Boeing Research and Technology

background of rtca sc214 eurocae wg78

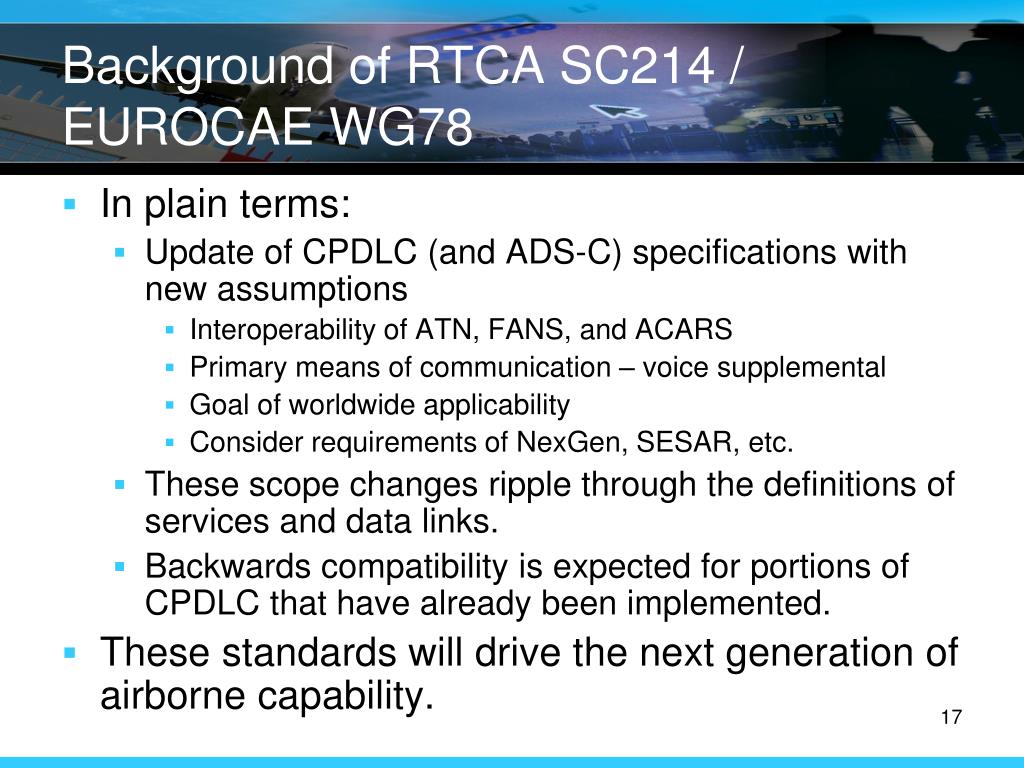

Background of RTCA SC214 / EUROCAE WG78
  • In plain terms:
    • Update of CPDLC (and ADS-C) specifications with new assumptions
      • Interoperability of ATN, FANS, and ACARS
      • Primary means of communication – voice supplemental
      • Goal of worldwide applicability
      • Consider requirements of NexGen, SESAR, etc.
    • These scope changes ripple through the definitions of services and data links.
    • Backwards compatibility is expected for portions of CPDLC that have already been implemented.
  • These standards will drive the next generation of airborne capability.
4d trad service description and status
4D TRAD Service Description and Status
  • Service Description (OSD) includes
    • Controller-Pilot Data Link Communication (CPDLC) Application
      • 3D+ Time or Speed
    • Flight Path Intent (FLIPINT) Service
      • Automatic Dependent Surveillance – Contract (ADS-C) Application

could support

  • Status
    • 4DTRAD Environment included in larger Integrated Safety and Performance Requirements Draft
    • 7 Operating Methods, 46 Operational Requirements, 3 Scenarios
    • OSD draft version 0.40 available on SC 214 website
      • http://www.faa.gov/about/office_org/headquarters_offices/ato/service_units/techops/atc_comms_services/sc214/
    • 4DTRAD Operational Safety Assessment (Env A/B CPDLC OSA) complete
    • 4DTRAD Operational Performance Assessment (Env A/B CPDLC OPA) complete
trajectory management and communications evolution
Trajectory Management and Communications Evolution

Focus of

SC214/WG78

SESAR

NextGen

Today

Transition

ICAO Flight Plan

ICAO Future Flight Plan

Flight Object Trajectory

CPDLC: L2K+ baseline

4D TRAD - 1

4D TRAD - 2

No RTA

(Departure slot)

RTA for planning

RTA for separation

Slide Courtesy of Eurocontrol

environment assumptions
Environment Assumptions
  • Airborne perspective
    • Existing Environment = existing capabilities in Traditional Airspace.
    • Environment A = upgraded capabilities in a mixed equipage situation requiring new safety and performance requirements.
    • Environment B = the strictest and most beneficial, full NextGen/SESAR capabilities in a 100% aircraft equipped High Performance Airspace.
  • Ground perspective
    • Transitioning from Radar-based to trajectory based ATM
    • Decision support tools
      • AMAN / TMA type tools for scheduling arrivals
      • En-route conflict probe and decisions support for controllers, e.g. EDA
motivations for data link

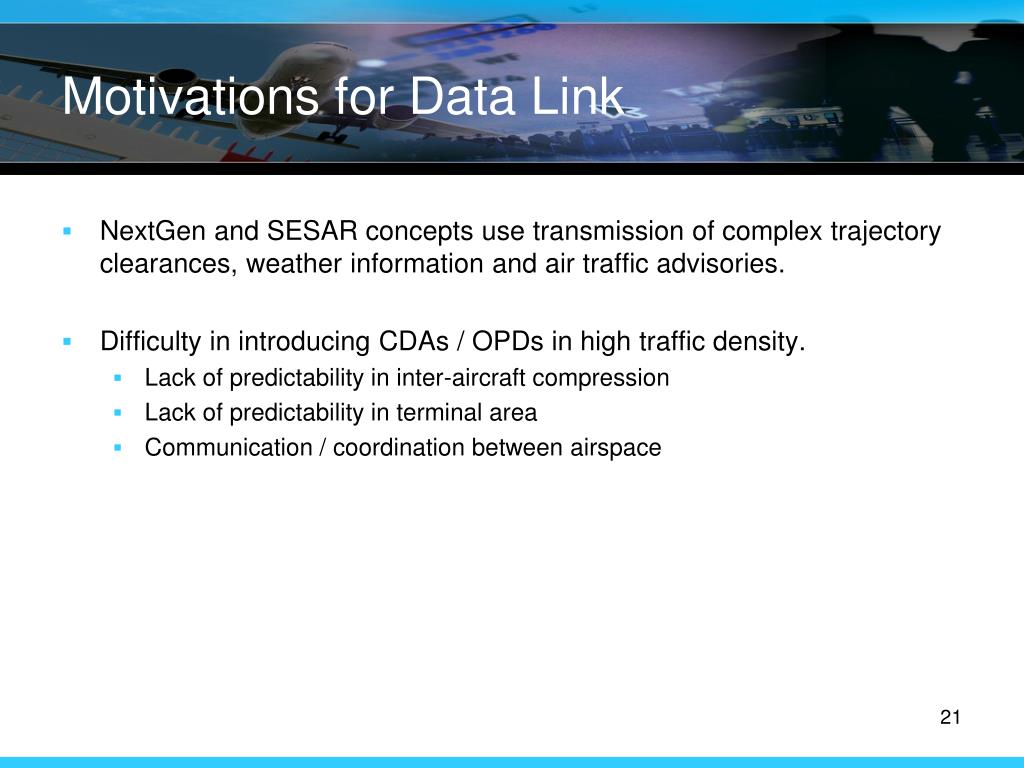

Motivations for Data Link
  • NextGen and SESAR concepts use transmission of complex trajectory clearances, weather information and air traffic advisories.
  • Difficulty in introducing CDAs / OPDs in high traffic density.
    • Lack of predictability in inter-aircraft compression
    • Lack of predictability in terminal area
    • Communication / coordination between airspace
representative data exchange

Point Type

Fly-by waypoint

Turn Direction

Left

0,L,934,N59302E017443,1279,090456

Time!

09:04:56

Lat / Lon

N59º30.2’E017º44.3’

Altitude

12,790 feet

Turn Radius9.34 NM

Representative Data Exchange
  • Route: ESSAESMS10
  • ---------starts here-----------
  • 1,,,N59397E017581.
  • 1,R,113,N59401E018009,108,090122.
  • C,,,N59376E018019,500,090227.
  • 0,R,557,N59359E017585,769,090306.
  • 0,L,934,N59302E017443,1279,090456.
  • 0,,,N59070E017184,2511,090907.
  • 0,R,1893,N59044E017155,2604,090932.
  • B,,,N58515E016548,3032,091149.
  • 8,,,N58380E016335,3500,091408.
  • 0,,,N58366E016312,3500,091423.
  • 0,,,N57592E015342,3500,092051.
  • 0,,,N57388E015041,3500,092420.
  • 0,,,N57024E014122,3500,093032.
  • 0,,,N56455E013489,3500,093323.
  • 9,,,N56354E013354,3500,093504.

Coordination of FLIPINT trajectory data with 4DTRAD messages

operational context of 4dtrad

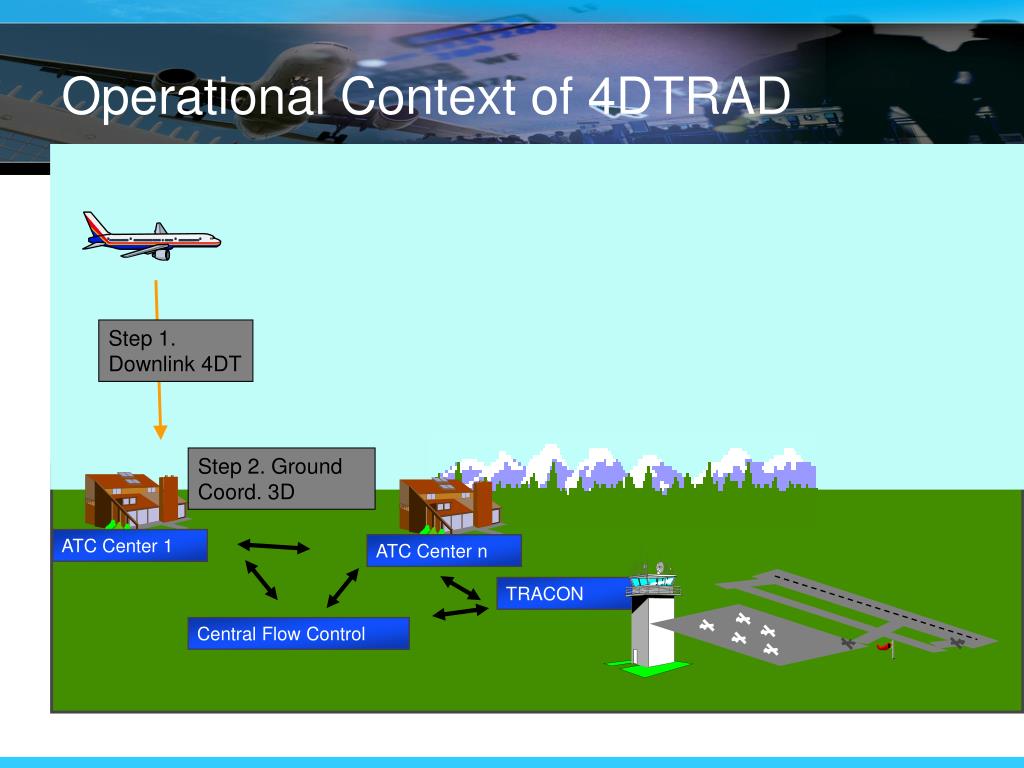

Operational Context of 4DTRAD

Step 1.

Downlink 4DT

ATC Center 1

ATC Center n

TRACON

Central Flow Control

step 1 downlink current 4d trajectory

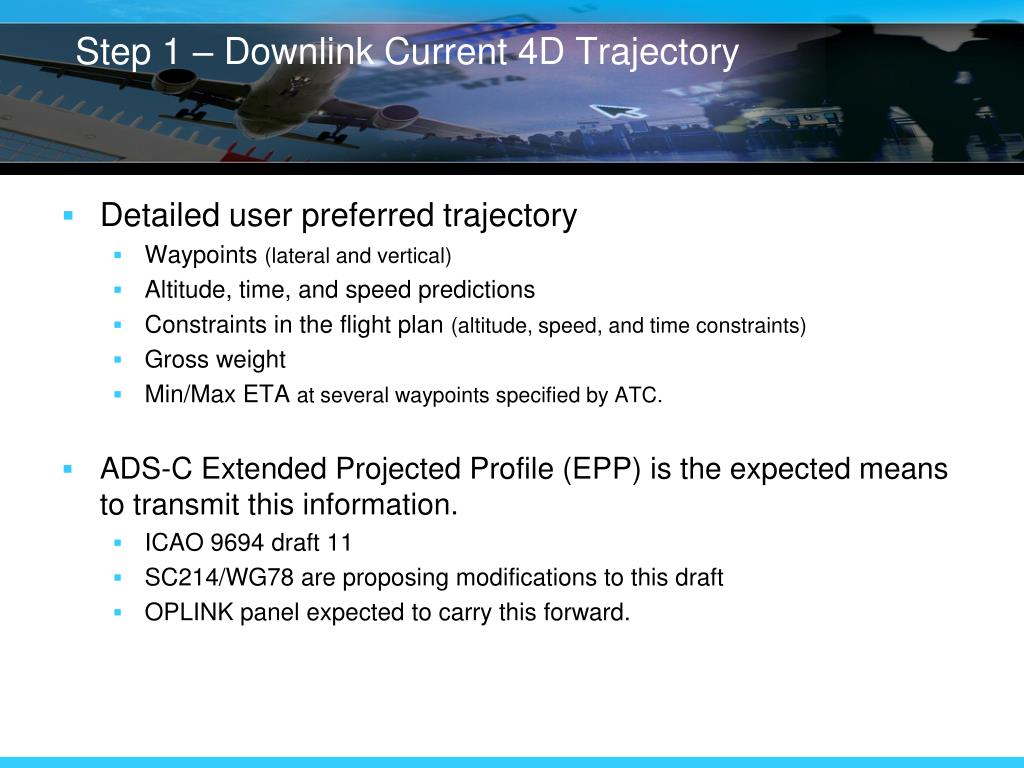

Step 1 – Downlink Current 4D Trajectory
  • Detailed user preferred trajectory
    • Waypoints (lateral and vertical)
    • Altitude, time, and speed predictions
    • Constraints in the flight plan (altitude, speed, and time constraints)
    • Gross weight
    • Min/Max ETA at several waypoints specified by ATC.
  • ADS-C Extended Projected Profile (EPP) is the expected means to transmit this information.
    • ICAO 9694 draft 11
    • SC214/WG78 are proposing modifications to this draft
    • OPLINK panel expected to carry this forward.
operational context of 4dtrad25
Operational Context of 4DTRAD

Step 1.

Downlink 4DT

Step 2. Ground Coord. 3D

ATC Center 1

ATC Center n

TRACON

Central Flow Control

step 2 ground ground coordination 3d

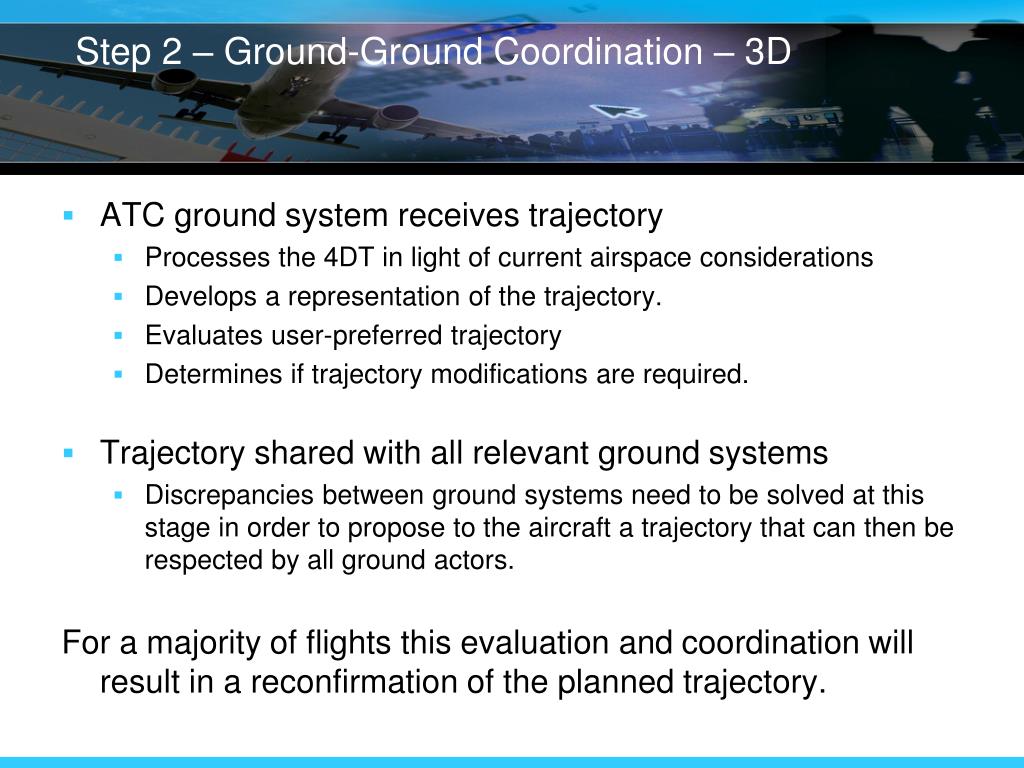

Step 2 – Ground-Ground Coordination – 3D
  • ATC ground system receives trajectory
    • Processes the 4DT in light of current airspace considerations
    • Develops a representation of the trajectory.
    • Evaluates user-preferred trajectory
    • Determines if trajectory modifications are required.
  • Trajectory shared with all relevant ground systems
    • Discrepancies between ground systems need to be solved at this stage in order to propose to the aircraft a trajectory that can then be respected by all ground actors.

For a majority of flights this evaluation and coordination will result in a reconfirmation of the planned trajectory.

operational context of 4dtrad27
Operational Context of 4DTRAD

Step 1.

Downlink 4DT

Step 3. 3D Route

Clearance

Step 2. Ground Coord. 3D

ATC Center 1

ATC Center n

TRACON

Central Flow Control

step 3 uplink of 3d route clearance
Step 3 – Uplink of 3D Route Clearance
  • If route change is necessary,
    • The ground coordinated route (with any necessary altitude and speed constraints) uplinked via CPDLC clearance.
    • Flight crew analyzes clearance
      • If acceptable
        • activated in the FMS
        • CPDLC clearance is accepted
        • updated 4DT is downlinked to the ground
      • In case of a rejection
        • negotiation can switch to voice at any time
  • Flight crew loads updated meteorological data for the modified route to ensure that the predicted times and speeds are accurate.
  • Aircraft trajectory downlink includes its preferred descent speed schedule for optimal operational and business needs.
    • ATC will attempt to effect deviations only to the extent needed to assure safety and capacity.
operational context of 4dtrad29
Operational Context of 4DTRAD

Step 1.

Downlink 4DT

Step 3. 3D Route

Clearance

Step 2. Ground Coord. 3D

Step 4. Ground Coord. 4D

ATC Center 1

ATC Center n

TRACON

Central Flow Control

step 4 time speed constraint determination
Step 4 – Time / Speed Constraint Determination
  • The 4th dimension (time / speed) may need to be adjusted
    • Ground system tools generate traffic sequence and schedules.
    • In light to medium density traffic, a simple speed assignment may suffice to prevent aircraft conflicts.
    • In higher density traffic, time or speed clearances can be used to improve the predictability of the aircraft arrival time at a metering fix.
  • The location and value of the CTA agreed to by multiple ground systems via ground-ground coordination, if appropriate.
operational context of 4dtrad31
Operational Context of 4DTRAD

Step 1.

Downlink 4DT

Step 3. 3D Route

Clearance

Step 5. Time / Speed Constraint

Step 2. Ground Coord. 3D

Step 4. Ground Coord. 4D

ATC Center 1

ATC Center n

TRACON

Central Flow Control

step 5 air ground negotiation of time constraint
Step 5 – Air-Ground Negotiation of Time Constraint
  • If time or speed constraints are required,
    • the ground system controlling the aircraft issues the clearance to the aircraft.
      • RTA used if how an aircraft meets the time constraint can be left up to the aircraft automation without impeding safety or capacity.
      • Speed schedule issued if ATC needs tighter control of the speed profile due to other traffic or control constraints.
  • Flight crew reviews the implications of the ground proposed time constraint and will either accept or reject it, similar to step 3.
    • For time constraints, the RTA function is engaged to track the time constraint using the speed profile.
operational context of 4dtrad33
Operational Context of 4DTRAD

Step 1.

Downlink 4DT

Step 3. 3D Route

Clearance

Step 5. Time / Speed Constraint

Step 6. Conformance Monitoring

Step 2. Ground Coord. 3D

Step 4. Ground Coord. 4D

ATC Center 1

ATC Center n

TRACON

Central Flow Control

step 6 conformance monitoring

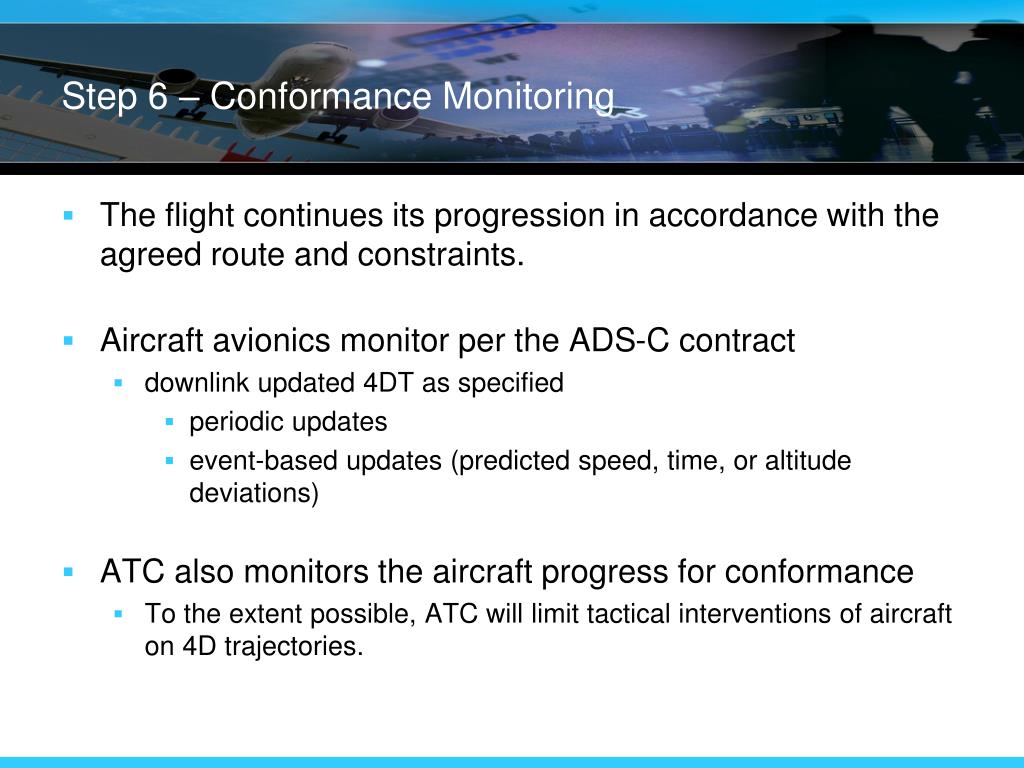

Step 6 – Conformance Monitoring
  • The flight continues its progression in accordance with the agreed route and constraints.
  • Aircraft avionics monitor per the ADS-C contract
    • downlink updated 4DT as specified
      • periodic updates
      • event-based updates (predicted speed, time, or altitude deviations)
  • ATC also monitors the aircraft progress for conformance
    • To the extent possible, ATC will limit tactical interventions of aircraft on 4D trajectories.
benefits of tbo
Benefits of TBO
  • Improved accuracy and predictability of trajectories
    • Early agreements of trajectories
    • Reduced tactical corrections
    • Increased fleet and aircrew utilization
  • Airspace capacity increase potential
    • Reduced controller & pilot workload
    • Reduced frequency congestion
  • Improved Safety
    • Reduction in pilot and controller errors
    • Additional means of communication
  • Helps enable Continuous Descent Approach / Optimized Profile Descent
    • Reduced fuel burn and emissions
    • Reduced noise
    • Reduced flight time delay
challenges to trajectory based ops
Challenges to Trajectory Based Ops
  • Consensus on details of operational concept
    • NexGen, SESAR, Boeing, Airbus, etc.
  • Critical mass of Users wanting to pursue TBO
    • Belief that SESAR and NextGen is needed
    • Business case – the cost to build must be recouped by benefits within a reasonable time period.
  • Standards for the datalink communications
    • RTCA, EUROCAE committee underway, ICAO also involved
  • Coordinated development of ground and airborne capability
    • Neither air nor ground systems will be built without confidence in the other
    • Chicken & Egg problem: ATM system <> Airplane Capability <> Airline Investment …
  • Mixed equipage
    • The system must be able to provide benefit with only a portion of aircraft equipped
  • Shared separation responsibility between ATM & pilot
    • Requires ATM tools & culture shift
flight path intent flipint spr
Flight Path Intent (FLIPINT) SPR
  • In WP2 TOR as separate service
  • Approach:
    • Strip out CPDLC related material from 4DTRAD OSD √
    • Align with ICAO 9694 Draft √
    • Coordinate with Nav Group
    • Complete OSA and OPA
    • Complete Interoperability material for FANS ADS-C
    • Include FLIPCY function (from DO 290.ED 120) and include intent to use for surveillance in remote Domestic airspace √
    • Delete Ground to Ground functions √
    • Delete trajectory conformance monitoring operating

method √

current draft or s that require nav expertise
Current Draft OR’s that Require Nav Expertise

Communication Domain

  • OR4 - The airborne domain and ground domain time sources shall be synchronized to within one second.
  • OR8 - Pilots and controller awareness on the 4DTRAD service termination shall be supported by their respective ground and airborne systems tools
  • OP.Rec1 - It is recommended that the airborne domain provide adequate guidance in the trajectory data, for example achievable min/max speeds and ETA min/max at each point in the trajectory, to support the ground systems processing
  • OR41 - The airborne system shall provide real time monitoring of the flight’s potential divergence from the accepted time or speed constraints including alerting functions in case of non-conformance
  • OR43 - The pilot shall be aware of any uplinked constraints and shall be required to approve and execute the aircrafts conformance to that constraint.
  • OR45 - The avionics supporting the trajectory negotiation process shall provide the flight crew with tools that support the review of the impact of the trajectory changes and constraints proposed by the ground systems
4d trajectory data link service39

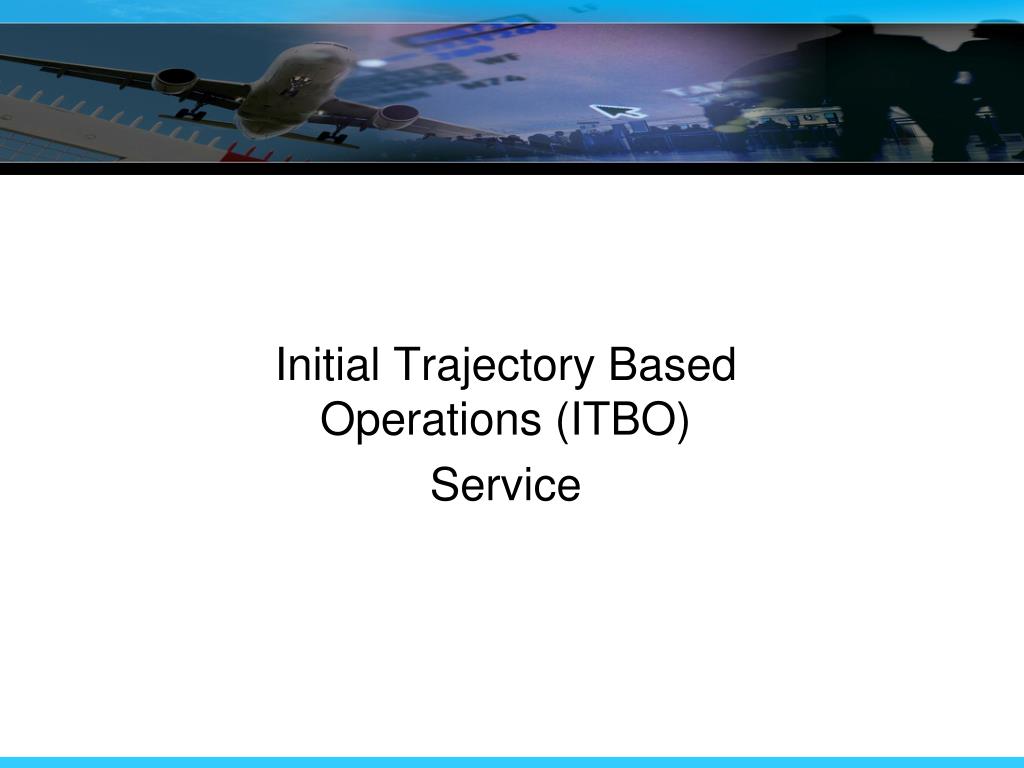

4D Trajectory – Data Link Service(

Initial Trajectory Based Operations (ITBO)

Service

basic issue

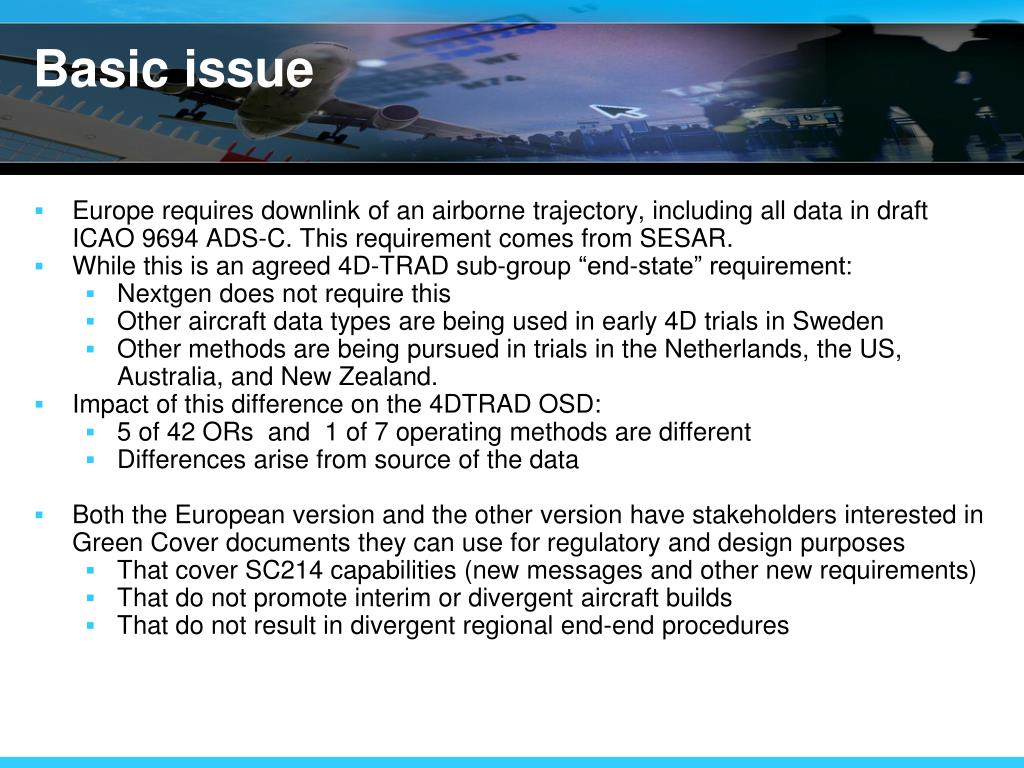

Basic issue
  • Europe requires downlink of an airborne trajectory, including all data in draft ICAO 9694 ADS-C. This requirement comes from SESAR.
  • While this is an agreed 4D-TRAD sub-group “end-state” requirement:
    • Nextgen does not require this
    • Other aircraft data types are being used in early 4D trials in Sweden
    • Other methods are being pursued in trials in the Netherlands, the US, Australia, and New Zealand.
  • Impact of this difference on the 4DTRAD OSD:
    • 5 of 42 ORs and 1 of 7 operating methods are different
    • Differences arise from source of the data
  • Both the European version and the other version have stakeholders interested in Green Cover documents they can use for regulatory and design purposes
    • That cover SC214 capabilities (new messages and other new requirements)
    • That do not promote interim or divergent aircraft builds
    • That do not result in divergent regional end-end procedures
4dtrad osd layout
4DTRAD OSD Layout

as of 3/10/2014

4DTRAD

(common OSD)

Operating method 1.b

4 requirementsonly on ground

Operating method 1.a

5 requirementsbased on a/c capability

Operating method 1

Operating method 1.b

  • One common 4DTRAD service
  • 6 common operating methods
  • 1 operating method (ITBO) with two alternatives
    • One requiring a specific downlink data set
    • One based on other means of acquiring the data set
    • Specific ground requirements for each (5 and 4)
    • Common, mandatory aircraft requirements
    • Differences are not visible at the operator level (controller or pilot)

Operating method 2

Operating method 3

Operating method 4

Operating method 5

Operating method 6

Operating method 6

proposed avionics options
Proposed Avionics Options

Configuration 1 does not equal Segment 1

fmf loadable uplinks
FMF-Loadable Uplinks
  • Msg# Uplink Message Element A340 747 777 787
  • 46 CROSS position AT level X X
  • 47 CROSS position AT OR ABOVE level X X
  • 48 CROSS position AT OR BELOW level X X
  • 49 CROSS position AT AND MAINTAIN level X
  • 50 CROSS position BETWEEN level AND level X
  • 51 CROSS position AT time X X X X
  • 52 CROSS position AT OR BEFORE time X X X X
  • 53 CROSS position AT OR AFTER time X X X X
  • 56 CROSS position AT OR LESS THAN speed X
  • 58 CROSS position AT time AT level X
  • 59 CROSS position AT OR BEFORE time AT level X
  • 60 CROSS position AT OR AFTER time AT level X
  • 62 AT time CROSS position AT AND MAINTAIN level X
  • 64 OFFSET distance direction OF ROUTE X X X
  • 65 AT position OFFSET distance direction OF ROUTE X
  • 67 PROCEED BACK ON ROUTE X
  • 73 predepartureclearance X X X
  • 74 PROCEED DIRECT TO position X X X
  • 75 WHEN ABLE PROCEED DIRECT TO position X X
  • 77 AT position PROCEED DIRECT TO position X X X
  • 79 CLEARED TO position VIA route clearance X X X X
  • 80 CLEARED routeclearance X X X X
  • 81 CLEARED procedure name X X
  • 83 AT position CLEARED route clearance X X X X
  • 84 AT position CLEARED procedure name X
  • HOLD AT position MAINTAIN level INBOUND TRACK deg dir X
  • HOLD AT position AS PUBLISHED MAINTAIN altitude X
fleet predictions
Fleet Predictions

Group 5

Group 1

Group 3

Group 2

Group 4

boeing s planned capabilities including aircraft counts for selected years
Boeing’s Planned Capabilities(Including Aircraft Counts for Selected Years)

* From MITRE 2007 Model Specific Forecast

slide47
SC-214 TORs for

NextGen/SESAR Synchronization

list of services for standards development
List of Services for Standards Development
  • Work Package 1: Data Link Initiation Capability (DLIC), ATC Clearance Service (ACL), ATC Communication Management Service (ACM), ATC Microphone Check Service (AMC), Departure Clearance Service (DCL), Data Link Taxi (D-TAXI), Airborne Situational Awareness In-Trail Procedures (ATSA-ITP), Data Link Operational Terminal Information Service (D-OTIS) Including: VOLMET, Notices to Airmen (NOTAMS), Data Link Automatic Terminal Information Service (D-ATIS).
  • Work Package 2: 4D Trajectory Data Link (4D TRAD), Flight Path Intent Service (FLIPINT), Data Link Runway Visual Range (D-RVR), Data Link Flight Update Service (D-FLUP), Data Link Hazardous In-Flight Weather Advisory Service Including: Micro-Bursts (MB), Special Air Reports (SAR), Wake Vortex Reports (WVR), Wind Shear Warning (WSW), Significant Meteorological Information (SIGMET).
new data communication paradigm

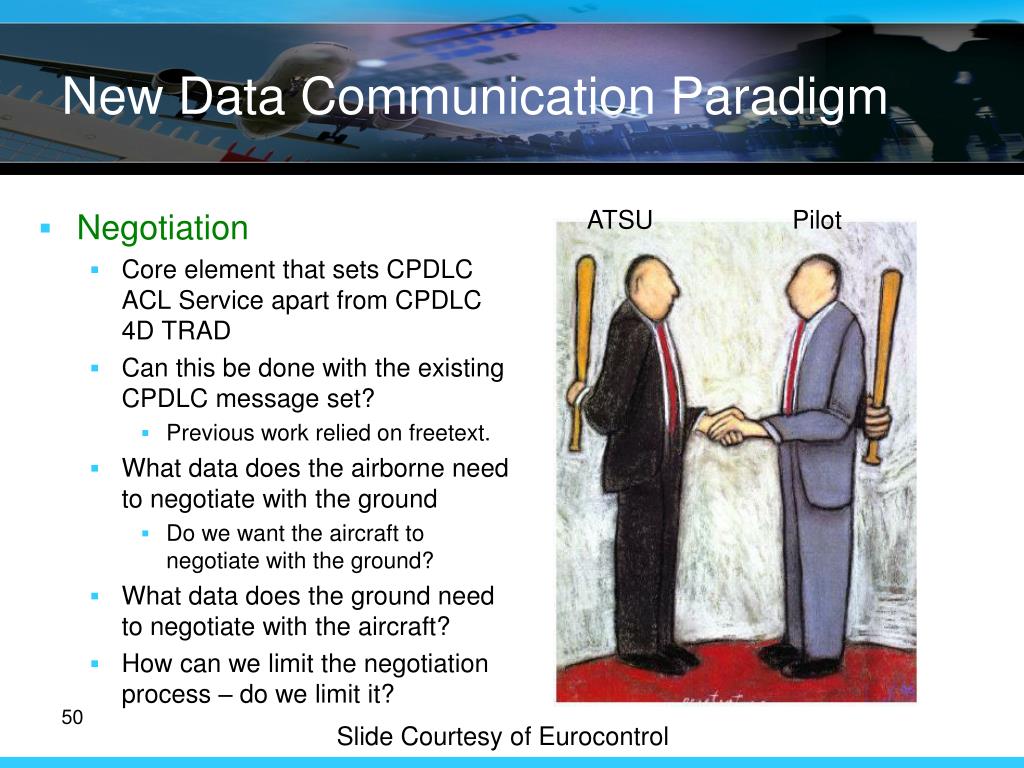

New Data Communication Paradigm
  • Negotiation
    • Core element that sets CPDLC ACL Service apart from CPDLC 4D TRAD
    • Can this be done with the existing CPDLC message set?
      • Previous work relied on freetext.
    • What data does the airborne need to negotiate with the ground
      • Do we want the aircraft to negotiate with the ground?
    • What data does the ground need to negotiate with the aircraft?
    • How can we limit the negotiation process – do we limit it?

ATSU

Pilot

Slide Courtesy of Eurocontrol

sesar ju
SESAR JU
  • Air Navigation Service Providers: the DSNA (France), the DFS (Germany), ENAV (Italy), NORACON (Northern Europe and Austria), AENA (Spain), and NATS (En Route) Limited (the United Kingdom);
  • Ground and Aerospace Manufacturing Industry: Frequentis, Indra, Natmig, SELEX Sistemi Integrati and Thales;
  • Aircraft Manufacturers: Airbus and Alenia Aeronautica
  • Airports: SEAC (a consortium expected to be comprise six large European airports), AENA and NORACON;
  • Airborne Equipment Manufacturers: Honeywell and Thales
caasd data comm position summary
CAASD Data Comm Position Summary
  • Position Paper published in November 2008 has SMT approval
  • Major Points
    • We support the FAA’s efforts,
    • DC is an important enabler for NextGen,
    • Emphasizes alignment and coordination with the Europeans,
    • S1 should be implemented with an eye toward evolving to 4DT,
    • DC provides significant benefits in the mid-term,
    • and we should leverage existing avionics offerings.
