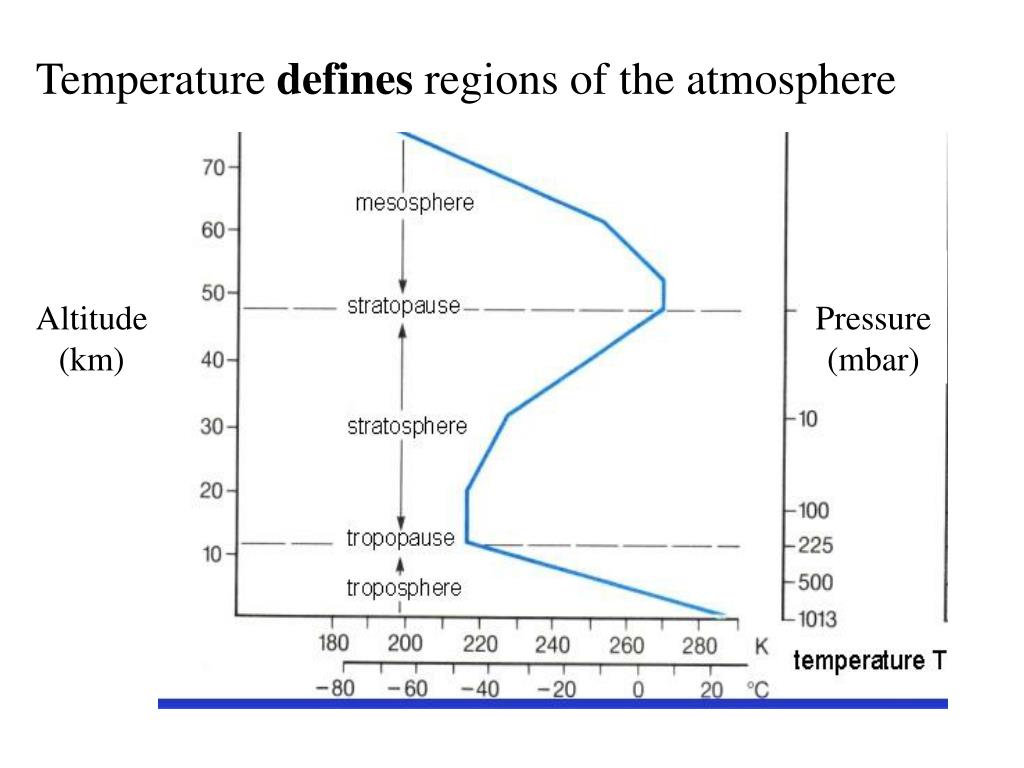

Atmospheric Structure . Theodore S. Dibble Chemistry Department SUNY-Environmental Science and Forestry Syracuse, NY. Temperature defines regions of the atmosphere. Pressure (mbar). Altitude (km). Pressure and the Barometric Law.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Atmospheric Structure' - bernad


Download Now An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
slide1

Atmospheric Structure

Theodore S. Dibble

Chemistry Department

SUNY-Environmental Science and Forestry Syracuse, NY

slide3

Pressure and the Barometric Law

P = Poe-Mgh/RTapplies to individual compounds at equilibrium

Atmosphere not at equilbrium!

Below 130 km, long lived gases have constant mole fraction

Pressure behaves as if M =28.8 g/mole (78:21:1 N2:O2:Ar)

Exercise: Calculate the partial pressure of

O2 at 6 km if PTotal is 0.5 bar.

slide4

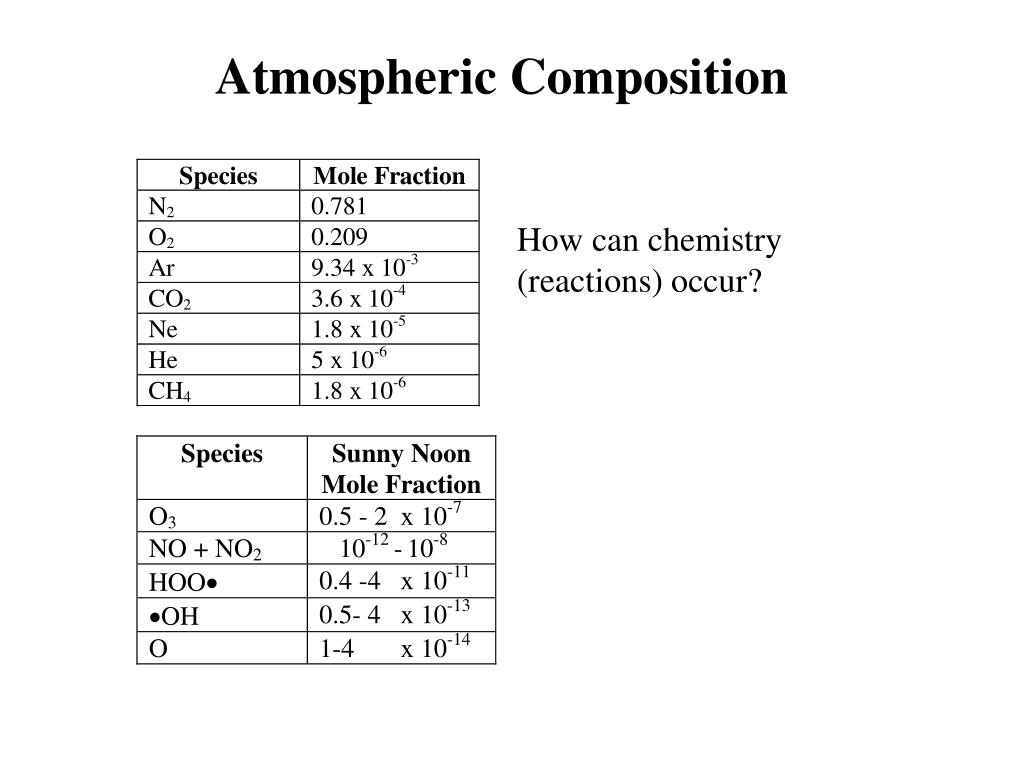

Atmospheric Composition

How can chemistry (reactions) occur?

slide5

Units

Part per million, etc. by volume = mole fraction

1 ppmv = mole fraction 1 x 10-6

1 ppbv = mole fraction 1 x 10-9

1 pptv = mole fraction 1 x 10-12

Molecules/cm3 (use ideal gas law)

1 atm = 2.5 x 1019 molecules cm-3 at 298 K

if PTotal = 1 atm, 1 ppmv = 2.5 x 1013 molecules cm-3

PTotal = 1 Torr  3.2 x 1016 molecules cm-3

At 220 K, 1 Torr = 4.3 x 1016 molecules cm-3

slide7

3 months

2 weeks

2 years

Mixing Times in Troposphere

slide8

Mixing in Troposphere

Vertical

ground to tropopause in 1 week

Horizontal

Around a latitude line in weeks

Mid-latitude to equator in months

Cross equator in 1 year

[CO] = 120 ppbv in N.H. and 60 ppbv in S.H.

Question: CO has a lifetime of ~2 months

Will it be evenly distributed over oceans and remote continental regions within the N.H.?

key points

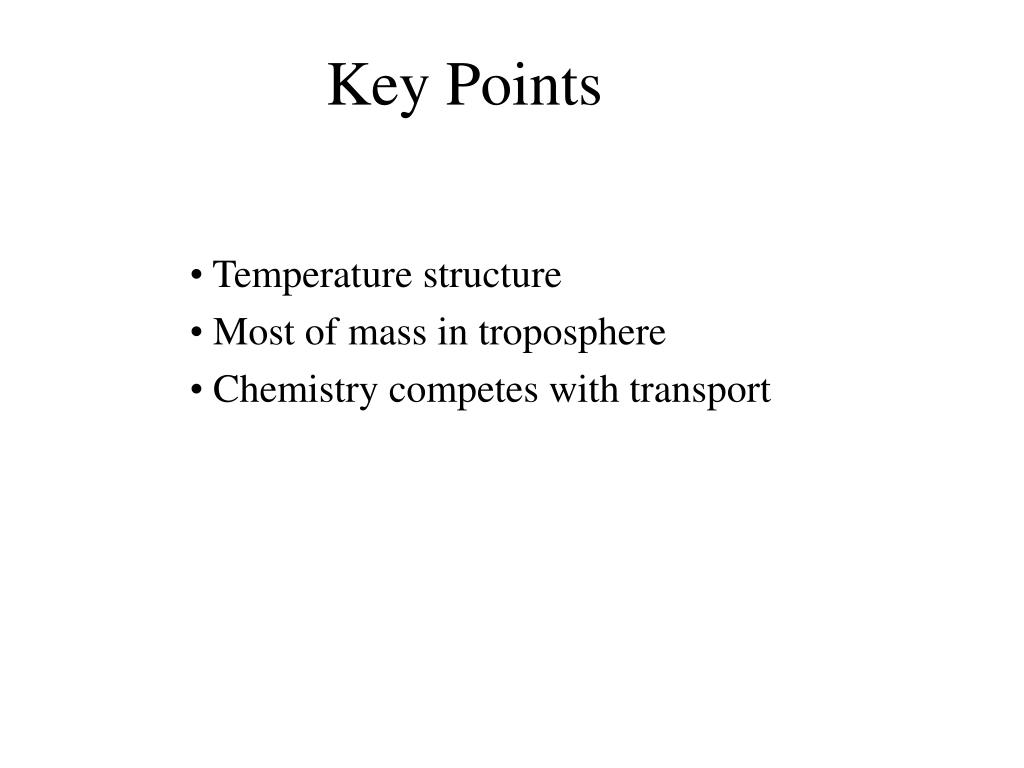

Key Points
  • Temperature structure
  • Most of mass in troposphere
  • Chemistry competes with transport
