set of logic values

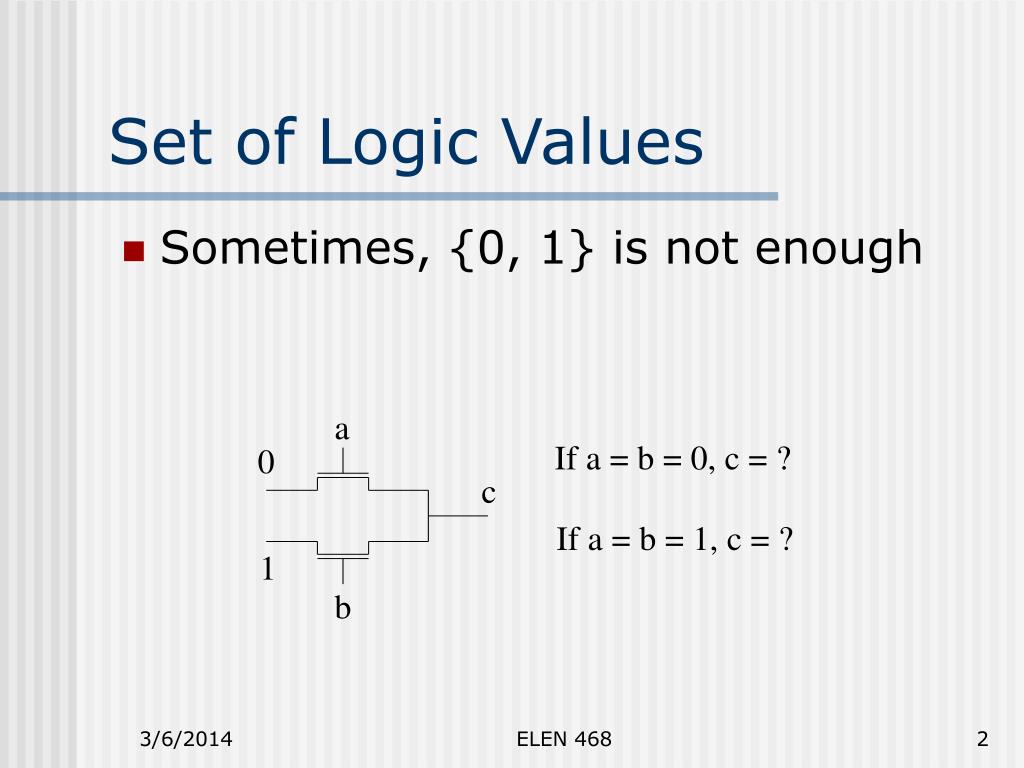

Set of Logic Values
  • Sometimes, {0, 1} is not enough

a

If a = b = 0, c = ?

0

c

If a = b = 1, c = ?

1

b

ELEN 468

logic values in verilog
Logic Values in Verilog
  • 0: Logical 0
  • 1: Logical 1
  • X: unknown
  • Z: high impedance

ELEN 468

x and z
X and Z

a

  • a = b = 0: c = Z
  • a = b = 1: c = X
  • Initially, every line is X
  • X is used in simulation. In real circuit, the value is determined by the circuit

0

c

1

b

ELEN 468

x x bar problem
X/X-bar Problem

X

a = ?

  • b = X-bar
  • But because in Verilog, there is no such thing as “X-bar”
  • b = X, and therefore a = X, which should be 0

b

ELEN 468

verilog nets
Verilog Nets
  • wire (default)
  • tri
  • wand
  • wor
  • triand
  • trior

tri

triand/trior

wand/wor

Not recommended!

ELEN 468

example
Example

ctrl

tri y;

bufif1(y, x, ctrl);

triand y;

bufif1(y, x1, ctrl1);

bufif1(y, x2, ctrl2);

y

x

ctrl1

x1

ctrl2

y

x2

ELEN 468

truth tables

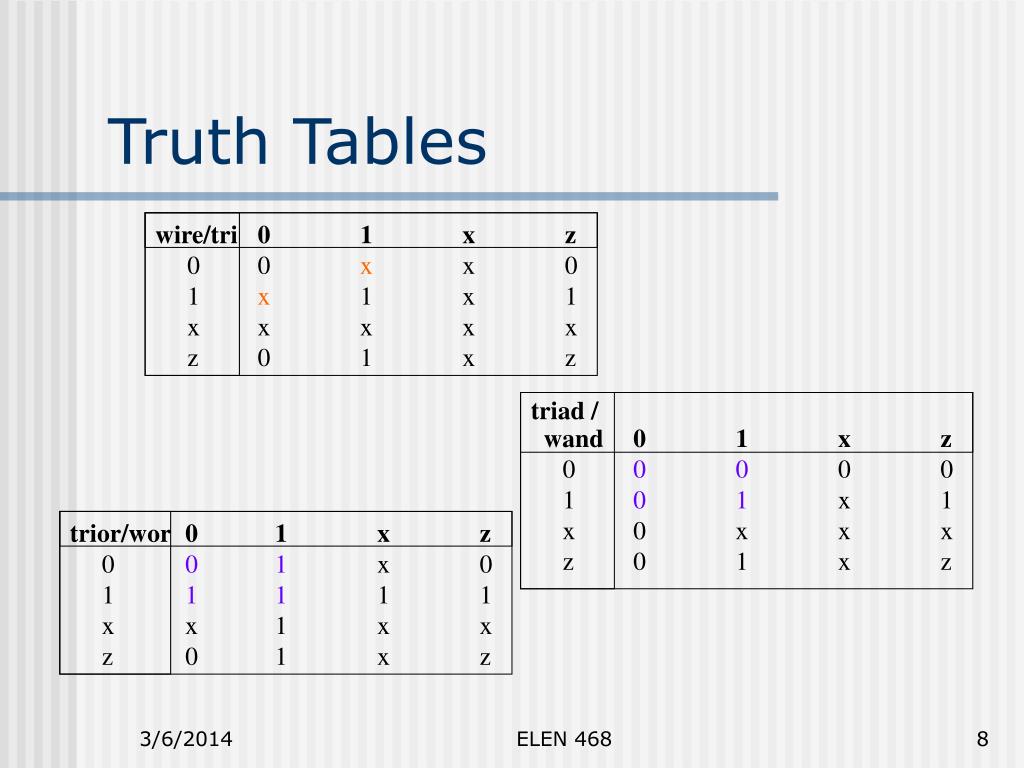

Truth Tables

wire/tri 0 1 x z

0 0 x x 0

1 x 1 x 1

x x x x x

z 0 1 x z

triad /

wand 0 1 x z

0 0 0 0 0

1 0 1 x 1

x 0 x x x

z 0 1 x z

trior/wor 0 1 x z

0 0 1 x 0

1 1 1 1 1

x x 1 x x

z 0 1 x z

ELEN 468

more verilog nets
More Verilog Nets

Vdd

tri0

  • supply0
  • supply1
  • tri0
  • tri1
  • trireg

Vdd

supply1

supply0

Gnd

Gnd

tri1

a

b

when a = b = 0,

the line maintains

its value

trireg

ELEN 468

signal strength
Signal Strength
  • 0 and 1 are strong values
  • supply0 and supply1 provide strong 0 and 1
  • tri0 and tri1 provide weak 0 and 1
  • Z has no value so it can be overwritten by any of above

ELEN 468

registers
Registers
  • reg: store logic value
  • integer: support computation, loops
  • real: store delay values
  • time: store time as 64-bit value
  • realtime: store time as real number

reg one_bit;

reg [31:0] one_word;

int i;

ELEN 468

ports

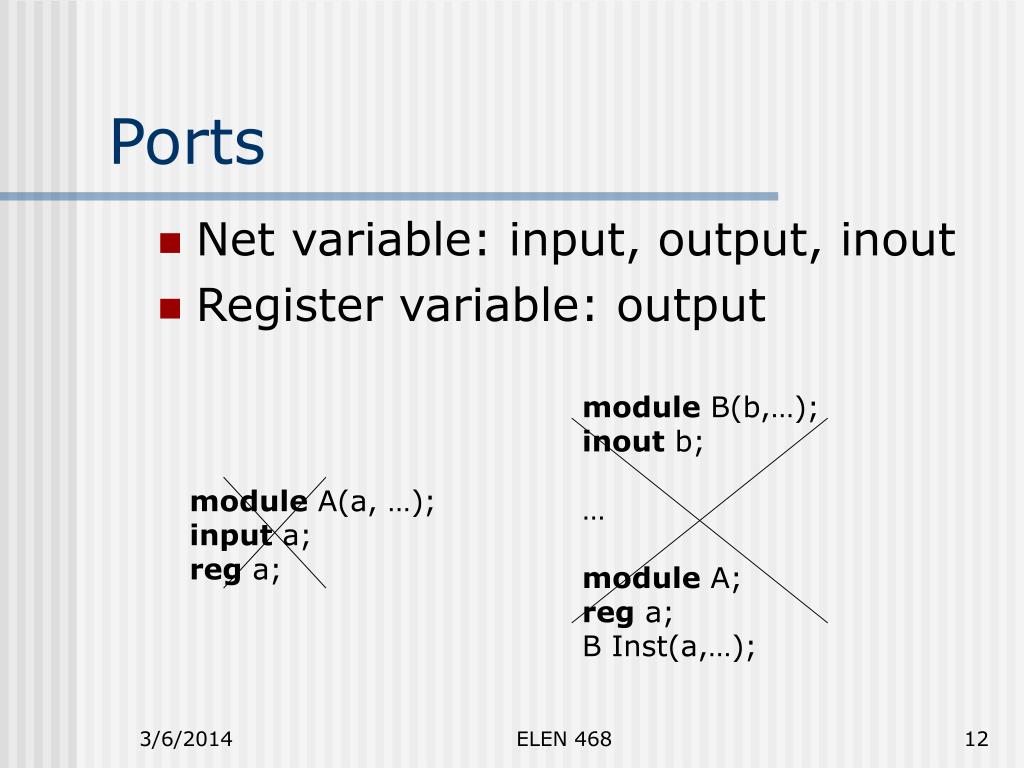

Ports
  • Net variable: input, output, inout
  • Register variable: output

module B(b,…);

inout b;

module A;

reg a;

B Inst(a,…);

module A(a, …);

input a;

reg a;

ELEN 468

memory
Memory
  • Memory is a collection of registers
    • reg [31:0] cache [0:1023];
      • 1 k memory of 32-bit words
    • reg [31:0] one_word;
    • reg [7:0] one_byte;
  • Reference can be made to only a word
    • one_word = cache[988];
    • one_byte = word[4];

ELEN 468

scope of a variable
Scope of a Variable
  • The scope of a variable defined in a module is within the module.

ELEN 468

de reference
De-Reference
  • To reference a variable defined inside an instantiated module
    • X.w
    • X.Y.Z.w

Module A - Instance X

wire w

Module B - Instance Y

Module C - Instance Z

wire w

ELEN 468

de referencing
De-referencing

module testbench();

reg [3:0] a, b;

wire [3:0] y;

adder M1 (y, a, b);

initial

$monitor($time,,”%”, M1.c);

endmodule

module adder(y, a, b);

wire c;

endmodule

ELEN 468

constants
Constants

parameter width = 32, depth = 1024;

parameter initial_value = 8’b1001_0110;

reg [width-1:0] memory [0:depth-1];

ELEN 468

operators
Operators
  • Arithmetic: +, -, *, /, %
    • Negative numbers are in 2’s complement
  • Bitwise: ~, &, |, ^, ~^
    • ~(10010) = 01101
    • (110) & (011) = 010
  • Reduction: &, ~&, |, ~|, ^, ~^
    • &(1001010) = 0
    • ^(1001010) = 1

ELEN 468
