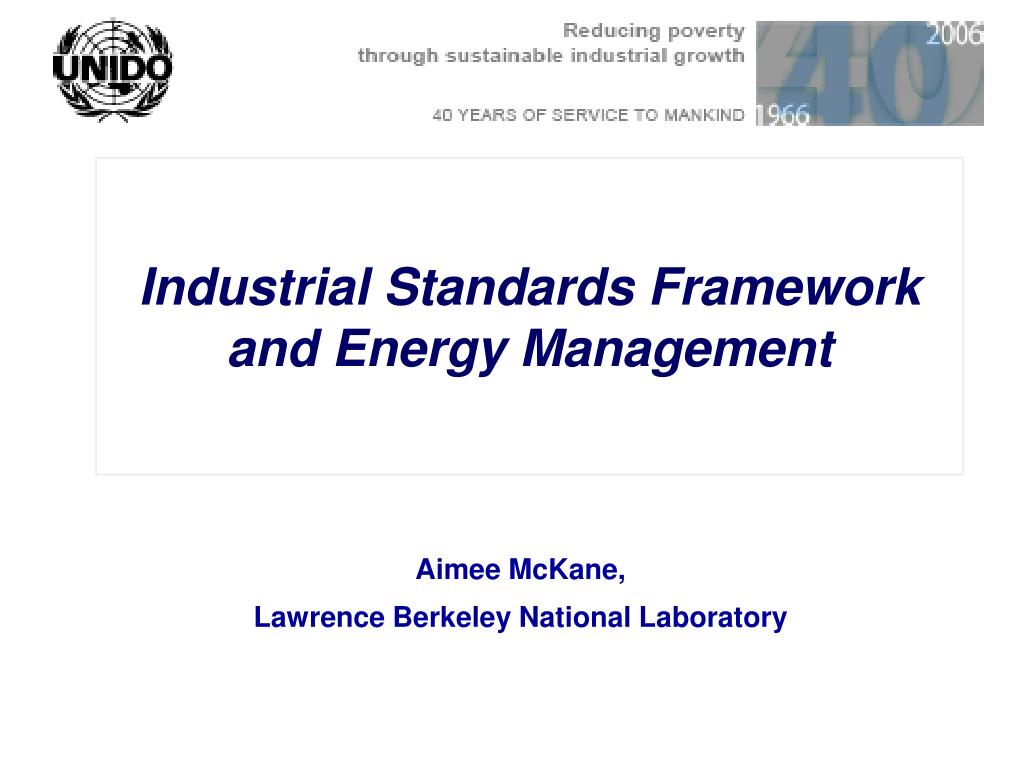

industrial standards framework and energy management

Industrial Standards Framework and Energy Management

Aimee McKane,

Lawrence Berkeley National Laboratory

industrial systems

?

Industrial Systems
  • Steam and motor-driven systems account for approximately for more than 50% of final manufacturing energy use worldwide
  • Energy savings potential from cost-effective optimization of these systems for energy efficiency is estimated at 10-12 EJ of primary energy1
  • A global effort to cost-optimize industrial systems for energy efficiency could achieve these energy savings through
    • the application of commercially available technologies
    • in existing and new industrial facilities

1 2007 IEA Statistics

elements of system optimization
Elements of System Optimization
  • Evaluating work requirements
  • Matching system supply to these requirements
  • Eliminating or reconfiguring inefficient uses and practices (throttling, open blowing, etc)
  • Changing out or supplementing existing equipment (motors, fans, pumps, compressors) to better match work requirements and

increase operating efficiency

elements of system optimization4
Elements of System Optimization
  • Applying sophisticated control strategies and variable speed drives that allow greater flexibility to match supply with demand
  • Identifying and correcting maintenance problems
  • Upgrading ongoing

maintenance practices

why aren t industrial systems more energy efficient
Why aren’t industrial systems more energy efficient?
  • Most managers are unaware that these systems are inefficient
  • System performance is not measured
  • No data = no way to assess performance or performance improvement
why aren t industrial systems more energy efficient6

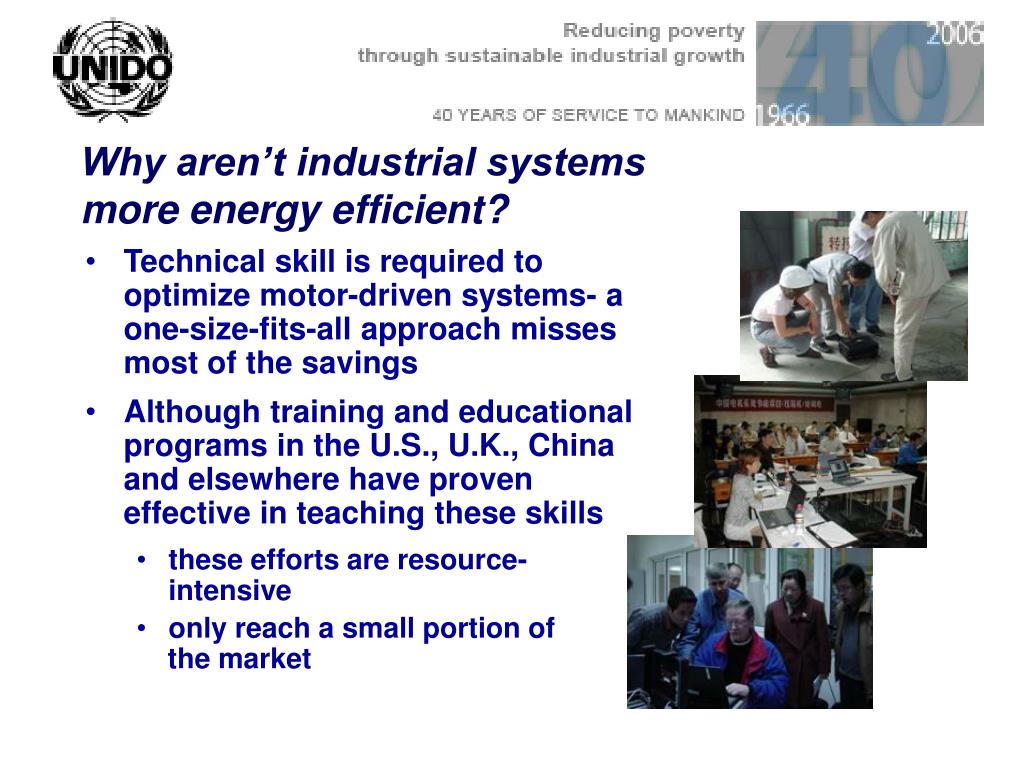

Why aren’t industrial systems more energy efficient?
  • Technical skill is required to optimize motor-driven systems- a one-size-fits-all approach misses most of the savings
  • Although training and educational programs in the U.S., U.K., China and elsewhere have proven effective in teaching these skills
    • these efforts are resource-intensive
    • only reach a small portion of

the market

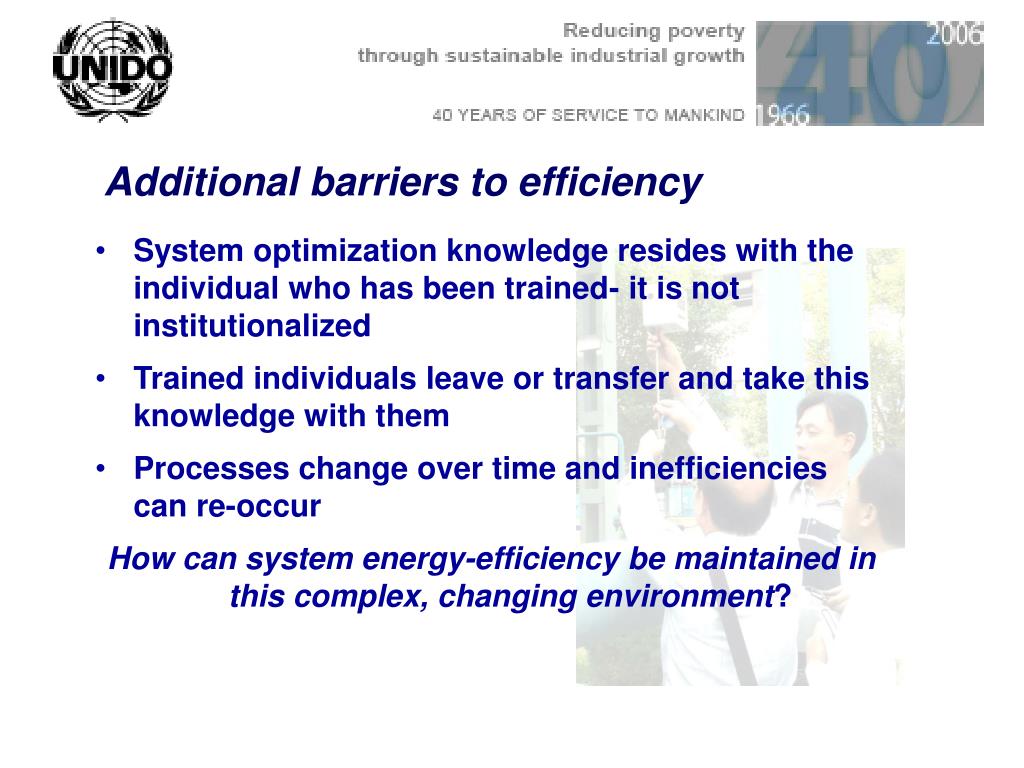

additional barriers to efficiency
Additional barriers to efficiency
  • System optimization knowledge resides with the individual who has been trained- it is not institutionalized
  • Trained individuals leave or transfer and take this knowledge with them
  • Processes change over time and inefficiencies can re-occur

How can system energy-efficiency be maintained in this complex, changing environment?

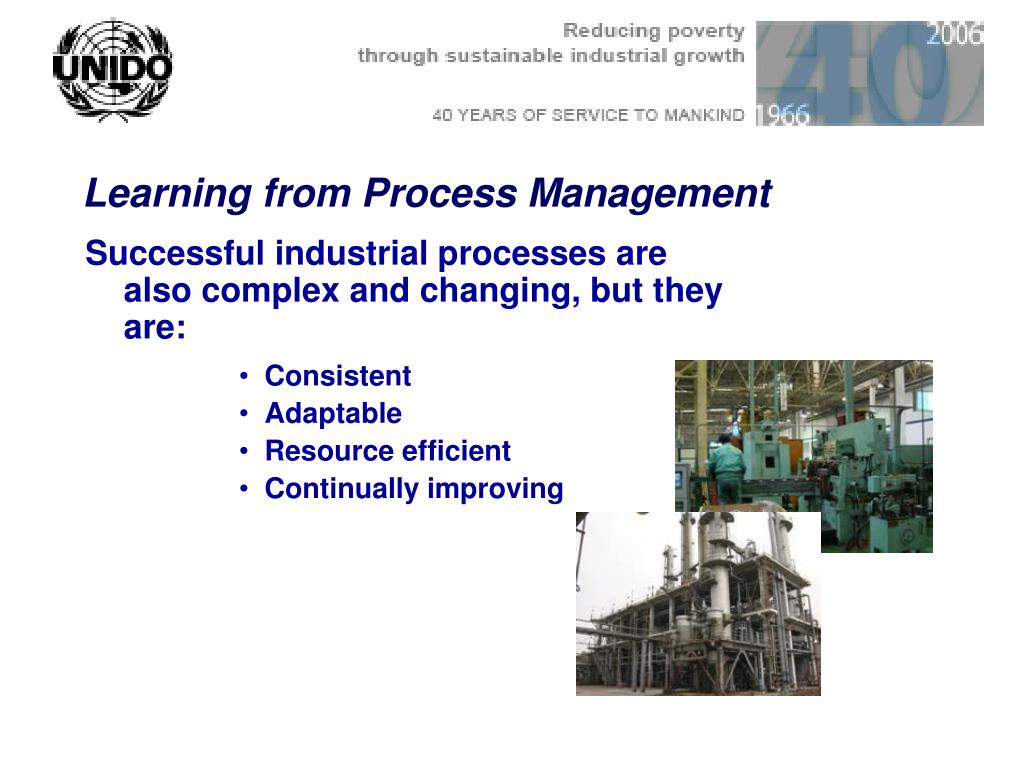

learning from process management
Learning from Process Management

Successful industrial processes are also complex and changing, but they are:

  • Consistent
  • Adaptable
  • Resource efficient
  • Continually improving
learning from process management9

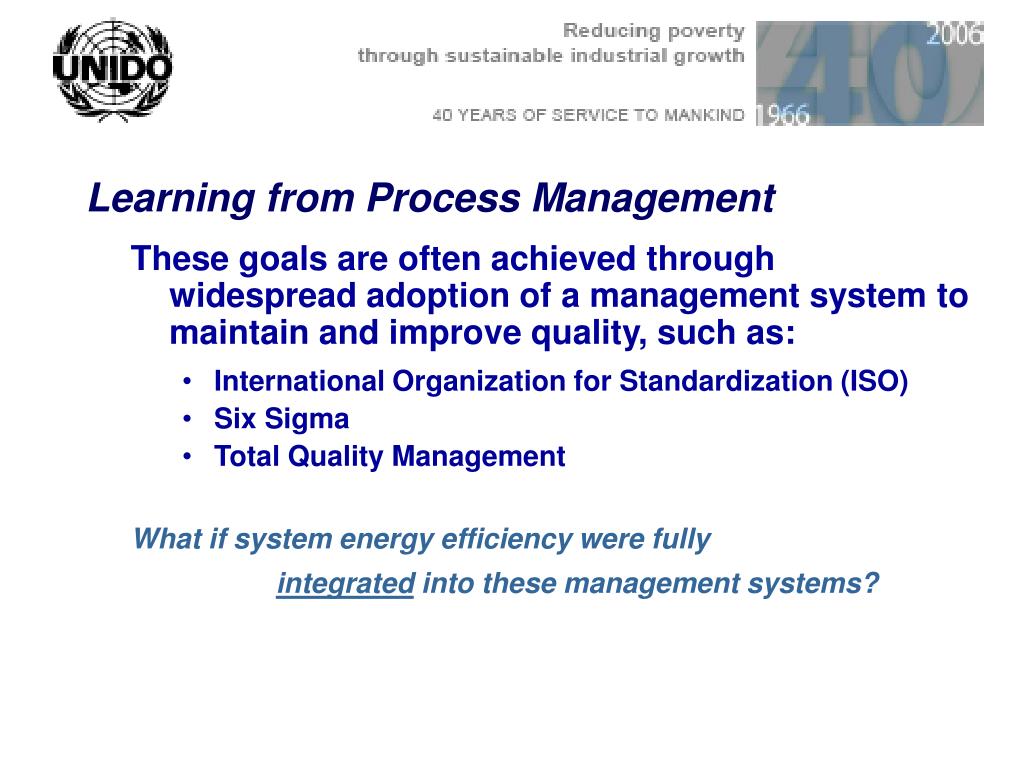

Learning from Process Management

These goals are often achieved through widespread adoption of a management system to maintain and improve quality, such as:

  • International Organization for Standardization (ISO)
  • Six Sigma
  • Total Quality Management

What if system energy efficiency were fully

integrated into these management systems?

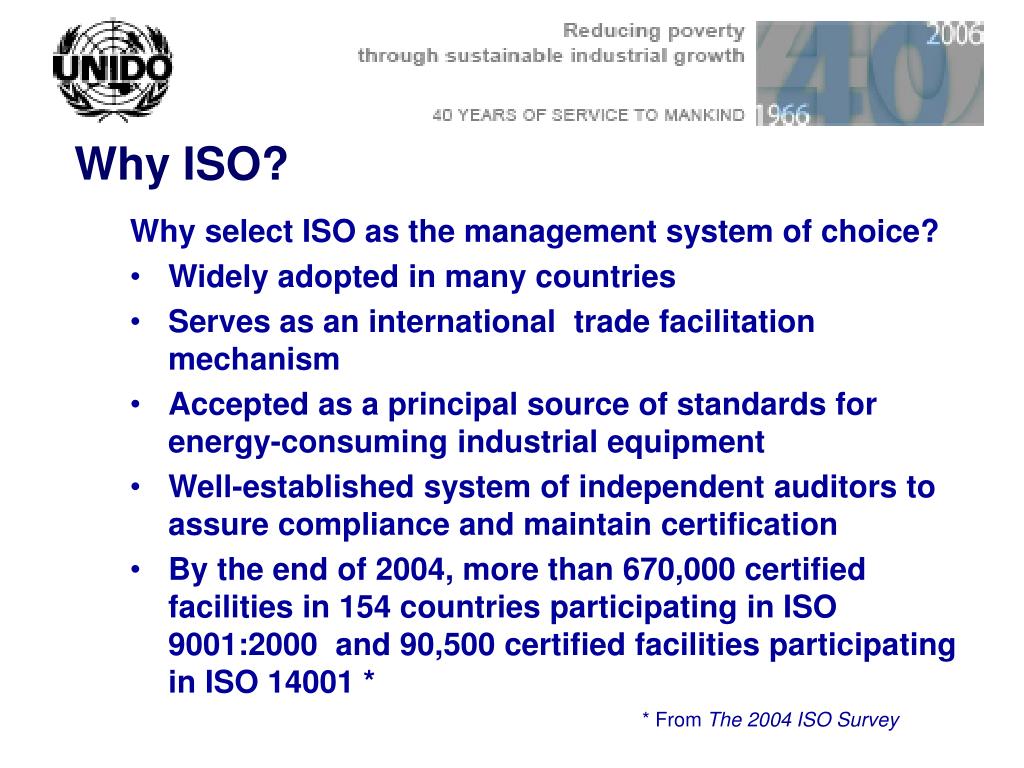

why iso
Why ISO?

Why select ISO as the management system of choice?

  • Widely adopted in many countries
  • Serves as an international trade facilitation mechanism
  • Accepted as a principal source of standards for energy-consuming industrial equipment
  • Well-established system of independent auditors to assure compliance and maintain certification
  • By the end of 2004, more than 670,000 certified facilities in 154 countries participating in ISO 9001:2000 and 90,500 certified facilities participating in ISO 14001 *

* From The 2004 ISO Survey

linking iso and energy efficiency
Linking ISO and Energy Efficiency

Use a top-down, bottom-up approach to industrial motor system efficiency through implementation of an Industrial Standards Framework, which includes:

  • Energy-efficiency standards (energy management, industrial systems)
  • Energy efficiency policies (targeted agreements, incentives, recognition)
  • Training (both awareness and expert level)
  • Tools (system optimization library)
why is a standards framework needed
Why is a Standards Framework Needed?

A standards framework would:

  • Provide achievable energy efficiency targets
  • Be complementary to systems optimization training
  • Offer technical guidance to factory personnel
  • Require written procedures and documentation to ensure that energy savings will be sustained

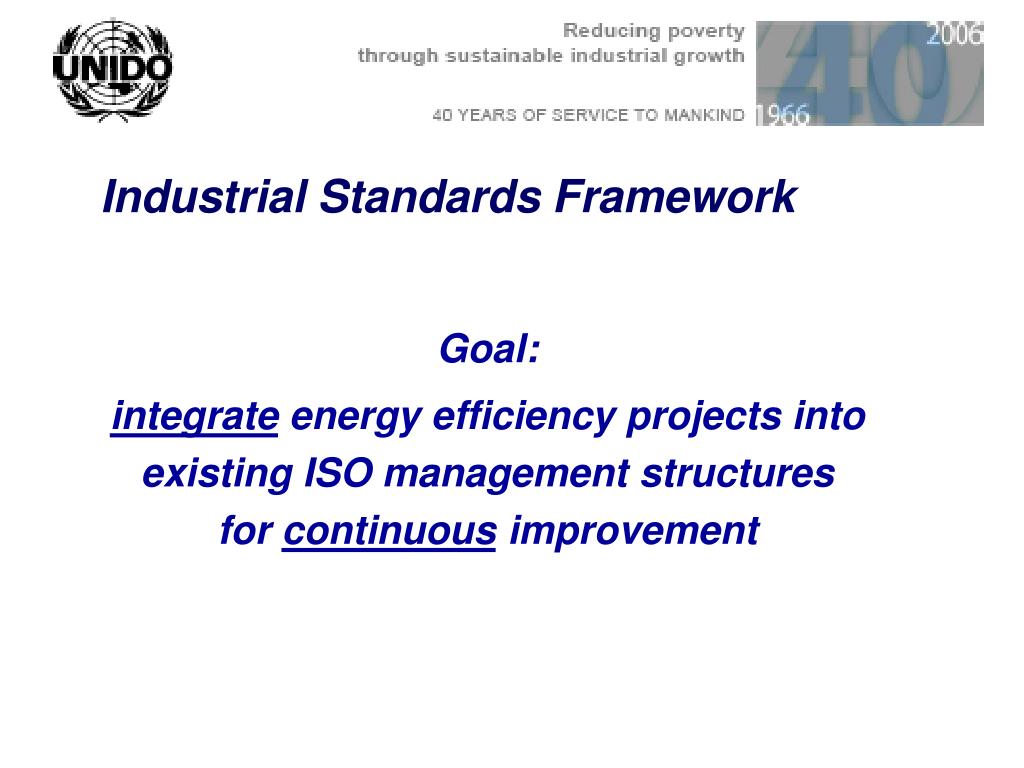

industrial standards framework
Industrial Standards Framework

Goal:

integrate energy efficiency projects into

existing ISO management structures

for continuous improvement

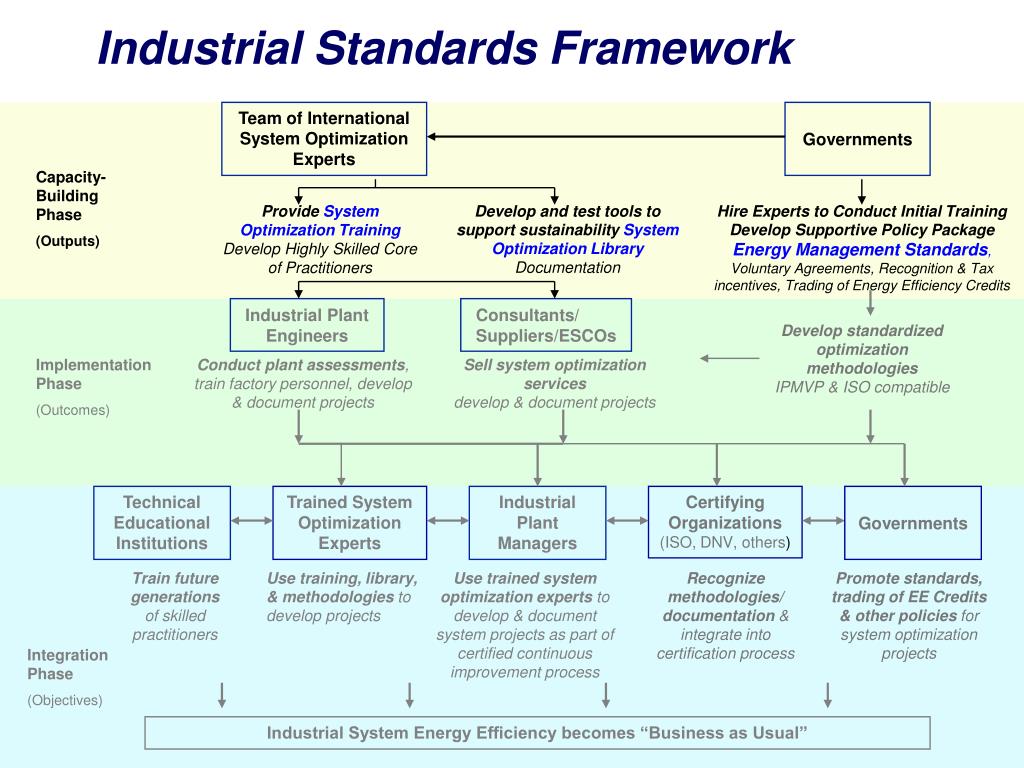

industrial standards framework14

Team of International System Optimization Experts

Governments

Industrial Standards Framework

Capacity-Building Phase

(Outputs)

Provide System Optimization Training Develop Highly Skilled Core of Practitioners

Develop and test tools to support sustainabilitySystem Optimization Library

Documentation

Hire Experts to Conduct Initial Training

Develop Supportive Policy Package

Energy Management Standards, Voluntary Agreements, Recognition & Tax incentives, Trading of Energy Efficiency Credits

Industrial Plant Engineers

Consultants/

Suppliers/ESCOs

Develop standardized optimization methodologies

IPMVP & ISO compatible

Implementation Phase

(Outcomes)

Conduct plant assessments, train factory personnel, develop & document projects

Sell system optimization services

develop & document projects

Technical Educational Institutions

Trained System Optimization Experts

Industrial Plant Managers

Certifying Organizations

(ISO, DNV, others)

Governments

Train future generations of skilled practitioners

Use training, library, & methodologies to develop projects

Use trained system optimization experts to develop & document system projects as part of certified continuous improvement process

Recognize methodologies/ documentation & integrate into certification process

Promote standards, trading of EE Credits & other policies for system optimization projects

Integration Phase

(Objectives)

Industrial System Energy Efficiency becomes “Business as Usual”

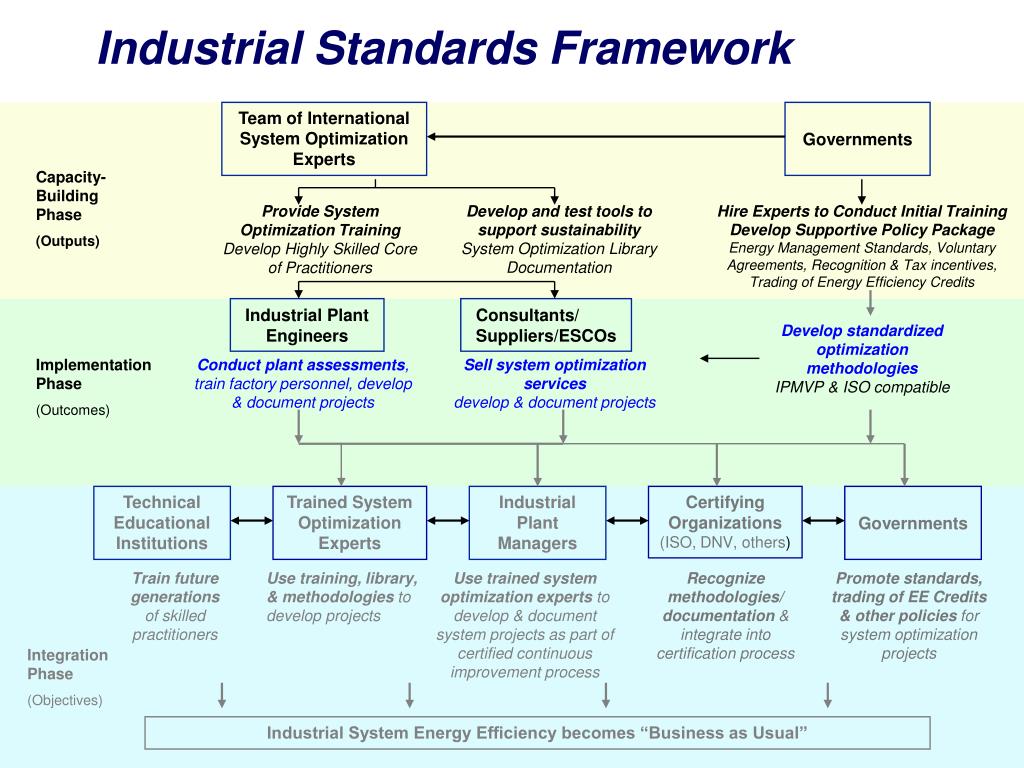

industrial standards framework15

Team of International System Optimization Experts

Governments

Industrial Standards Framework

Capacity-Building Phase

(Outputs)

Provide System Optimization Training Develop Highly Skilled Core of Practitioners

Develop and test tools to support sustainabilitySystem Optimization Library

Documentation

Hire Experts to Conduct Initial Training

Develop Supportive Policy Package

Energy Management Standards, Voluntary Agreements, Recognition & Tax incentives, Trading of Energy Efficiency Credits

Industrial Plant Engineers

Consultants/

Suppliers/ESCOs

Develop standardized optimization methodologies

IPMVP & ISO compatible

Implementation Phase

(Outcomes)

Conduct plant assessments, train factory personnel, develop & document projects

Sell system optimization services

develop & document projects

Technical Educational Institutions

Trained System Optimization Experts

Industrial Plant Managers

Certifying Organizations

(ISO, DNV, others)

Governments

Train future generations of skilled practitioners

Use training, library, & methodologies to develop projects

Use trained system optimization experts to develop & document system projects as part of certified continuous improvement process

Recognize methodologies/ documentation & integrate into certification process

Promote standards, trading of EE Credits & other policies for system optimization projects

Integration Phase

(Objectives)

Industrial System Energy Efficiency becomes “Business as Usual”

industrial standards framework16

Team of International System Optimization Experts

Governments

Industrial Standards Framework

Capacity-Building Phase

(Outputs)

Provide System Optimization Training Develop Highly Skilled Core of Practitioners

Develop and test tools to support sustainabilitySystem Optimization Library

Documentation

Hire Experts to Conduct Initial Training

Develop Supportive Policy Package

Energy Management Standards, Voluntary Agreements, Recognition & Tax incentives, Trading of Energy Efficiency Credits

Industrial Plant Engineers

Consultants/

Suppliers/ESCOs

Develop standardized optimization methodologies

IPMVP & ISO compatible

Implementation Phase

(Outcomes)

Conduct plant assessments, train factory personnel, develop & document projects

Sell system optimization services

develop & document projects

Technical Educational Institutions

Trained System Optimization Experts

Industrial Plant Managers

Certifying Organizations

(ISO, DNV, others)

Governments

Train future generations of skilled practitioners

Use training, library, & methodologies to develop projects

Use trained system optimization experts to develop & document system projects as part of certified continuous improvement process

Recognize methodologies/ documentation & integrate into certification process

Promote standards, trading of EE Credits & other policies for system optimization projects

Integration Phase

(Objectives)

Industrial System Energy Efficiency becomes “Business as Usual”

industrial standards framework17
Industrial Standards Framework

Top Down- Market Pull

National governments:

  • Issue energy management standard
  • Provide access to training on how to comply with standard
  • Provide access to tools (Industrial Systems Optimization Library) to document compliance
  • Recognize companies that make outstanding efforts to improve the operation of their motor systems
  • Develop agreements with industrial sectors that establish plant-specific energy efficiency targets

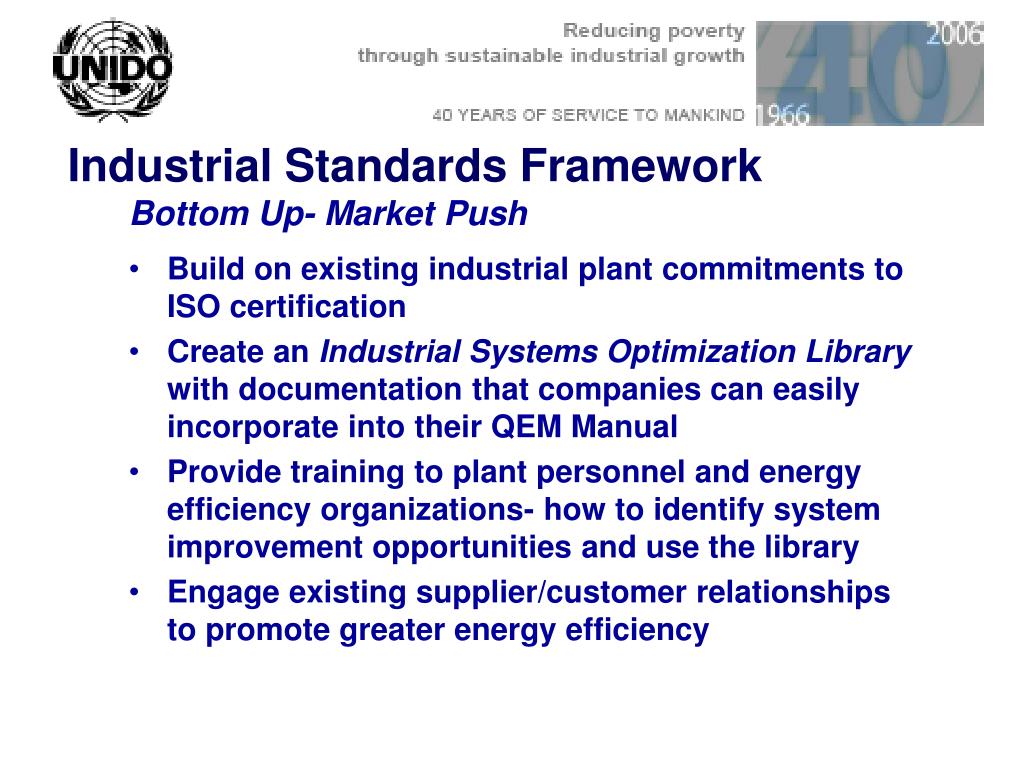

industrial standards framework18
Industrial Standards Framework

Bottom Up- Market Push

  • Build on existing industrial plant commitments to ISO certification
  • Create an Industrial Systems Optimization Library with documentation that companies can easily incorporate into their QEM Manual
  • Provide training to plant personnel and energy efficiency organizations- how to identify system improvement opportunities and use the library
  • Engage existing supplier/customer relationships to promote greater energy efficiency
industrial standards framework19

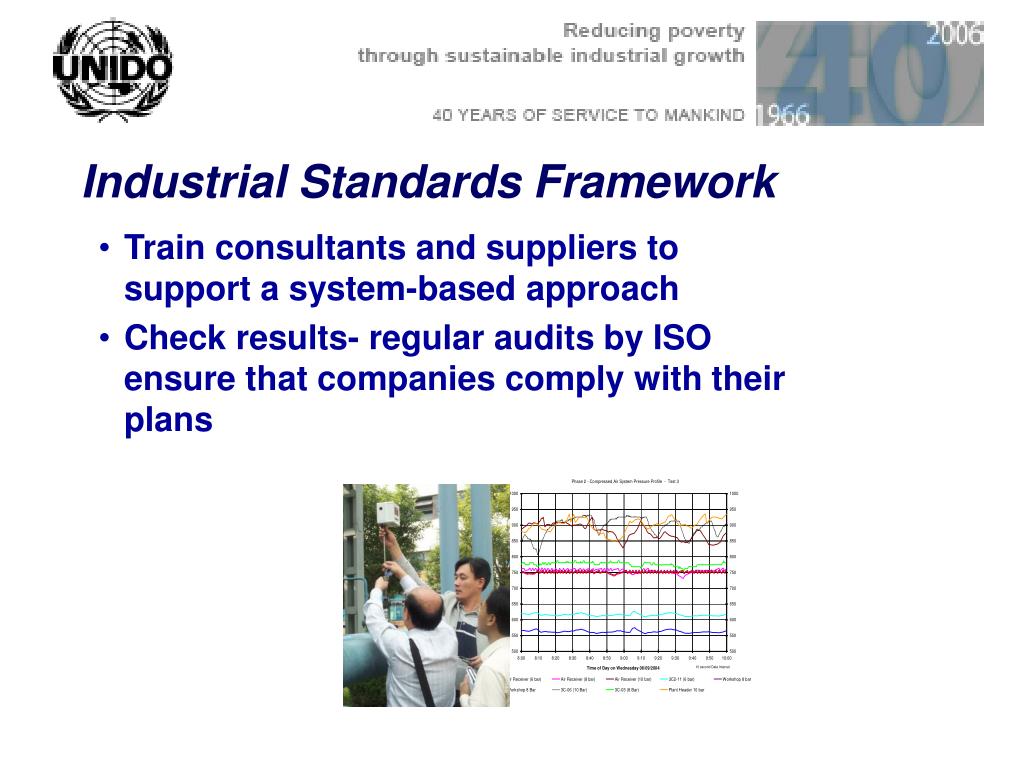

Industrial Standards Framework
  • Train consultants and suppliers to support a system-based approach
  • Check results- regular audits by ISO ensure that companies comply with their plans
independent verification of compliance

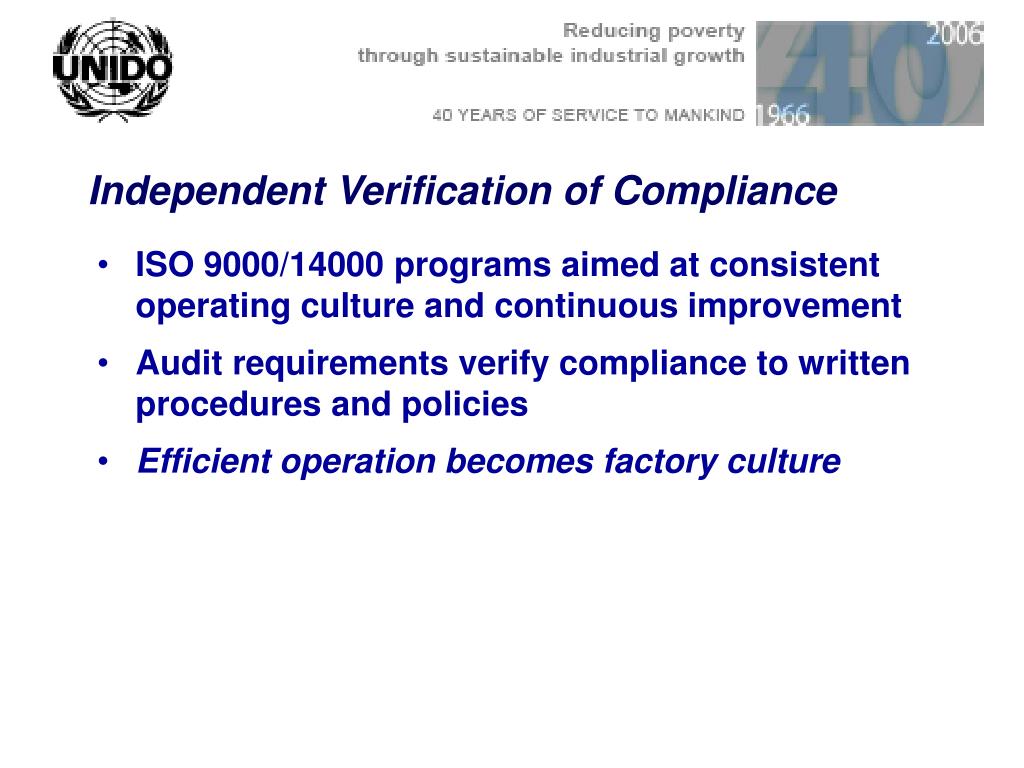

Independent Verification of Compliance
  • ISO 9000/14000 programs aimed at consistent operating culture and continuous improvement
  • Audit requirements verify compliance to written procedures and policies
  • Efficient operation becomes factory culture
results
Results
  • More completed energy efficiency projects
  • Project results are periodically checked by independent auditors
  • Improved energy efficient industrial systems
  • Sustainability
for more information

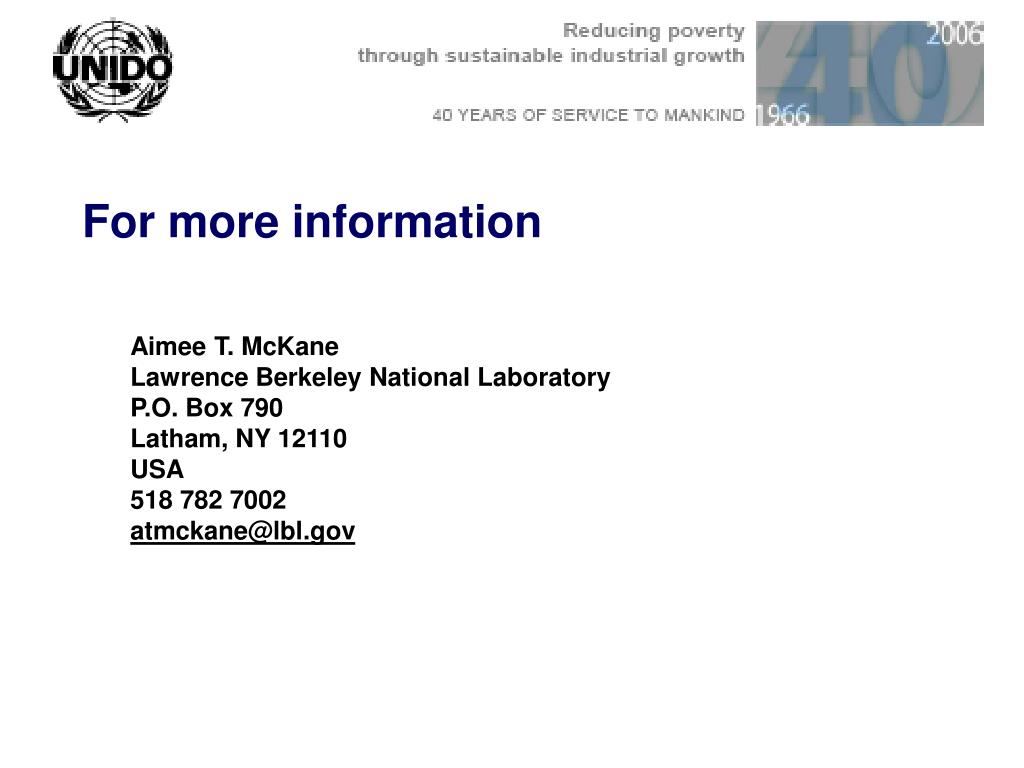

For more information

Aimee T. McKane

Lawrence Berkeley National Laboratory

P.O. Box 790

Latham, NY 12110

USA

518 782 7002
