Presentation Transcript

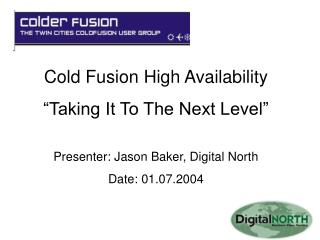

slide1

Cold Fusion High Availability

“Taking It To The Next Level”

Presenter: Jason Baker, Digital North

Date: 01.07.2004

about the presenter
About the Presenter:
  • 7 years of Cold Fusion development experience
  • Participated in the development of 100+ Cold Fusion websites
  • 10 years of Webhosting/ ISP/ Telecommunications experience
  • Co-Founder and Director of Operations for Digital North
  • Email: jbaker@digitalnorth.net

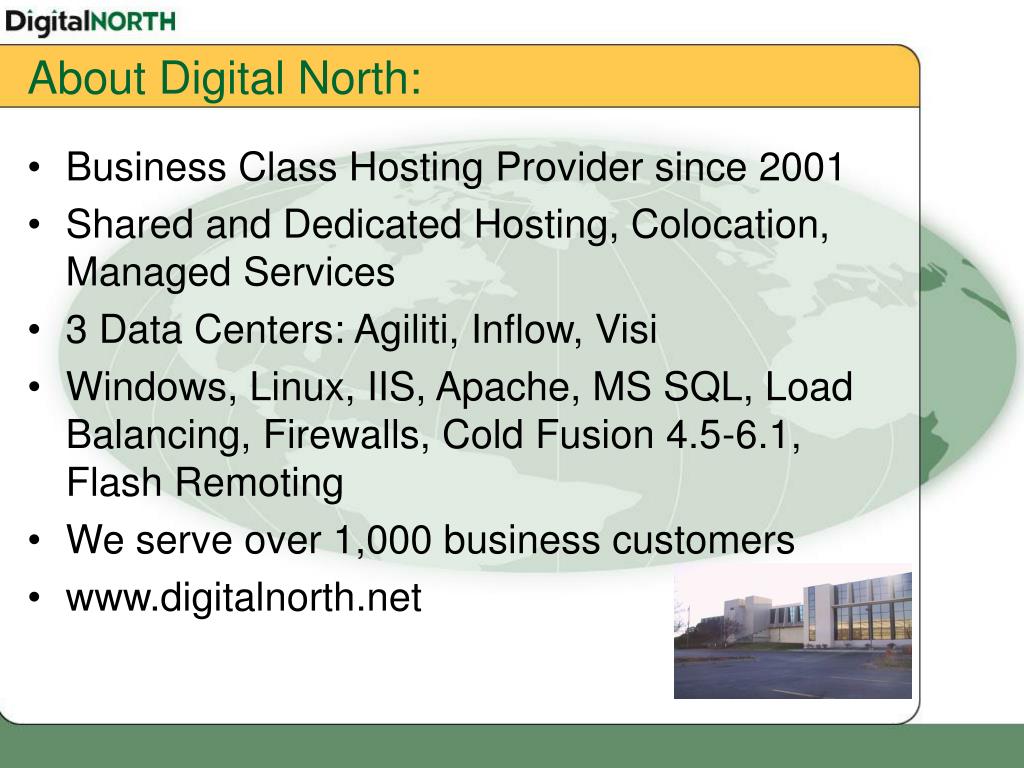

about digital north
About Digital North:
  • Business Class Hosting Provider since 2001
  • Shared and Dedicated Hosting, Colocation, Managed Services
  • 3 Data Centers: Agiliti, Inflow, Visi
  • Windows, Linux, IIS, Apache, MS SQL, Load Balancing, Firewalls, Cold Fusion 4.5-6.1, Flash Remoting
  • We serve over 1,000 business customers
  • www.digitalnorth.net
what is high availability
What is High Availability?
  • High Availability (HA) web applications provide maximum uptime while minimizing risks associated with service failures.
  • We need to think about the Datacenter, Network, Server, OS, Application, People
  • Risks: Architecture changes, Business process changes, Cost
  • Rewards: Better uptime, faster websites, happy customers 
ha infrastructure requirements
HA Infrastructure Requirements
  • Environment Is Everything
  • Physical service location
  • Climate control
  • Physical security – protection from yourself
  • Power backup and redundancy
  • Multiple upstream providers
  • Local network redundancy
  • Fire suppression
ha webserver requirements
HA Webserver Requirements
  • Server-class machine
  • Redundant power supplies
  • Redundant Array of Independent Disks (RAID)
  • Network storage
  • Redundant network access
  • Latest Firmware updates
ha os application requirements
HA OS & Application Requirements
  • Hardened OS: Windows, Linux, Sun
  • Security and performance tweaks
  • Virus Protection
  • Firewall Protection
  • Intrusion Detection
  • Data Backup – Onsite and Offsite
  • Service Monitoring
  • Cold Fusion Security Best Practices http://www.macromedia.com/devnet/server_archive/articles/prioritizing_network_server_security.html

Macromedia Security Zone: http://www.macromedia.com/devnet/security/security_zone/

what is load balancing
What is Load Balancing?
  • Load Balancing is using multiple webservers to maximize service performance and minimize service failures.
  • 2+ servers can handle more requests or handle current requests faster
  • 2+ servers minimize risks associated with hardware failure, OS failure, Cold Fusion failure

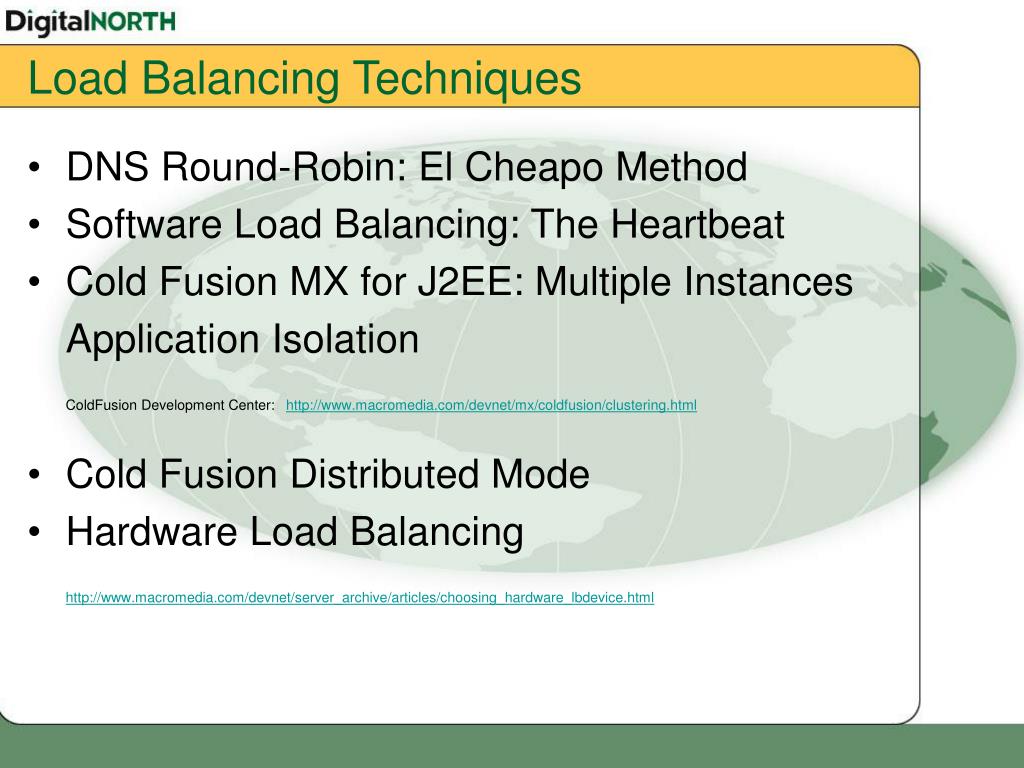

load balancing techniques
Load Balancing Techniques
  • DNS Round-Robin: El Cheapo Method
  • Software Load Balancing: The Heartbeat
  • Cold Fusion MX for J2EE: Multiple Instances

Application Isolation

ColdFusion Development Center:http://www.macromedia.com/devnet/mx/coldfusion/clustering.html

  • Cold Fusion Distributed Mode
  • Hardware Load Balancing

http://www.macromedia.com/devnet/server_archive/articles/choosing_hardware_lbdevice.html

hardware load balancing
Hardware Load Balancing
  • Network Architecture
  • Server failover: one server takes the load of two servers
  • Load balancing algorithms: Round Robin, Least Used, Fastest Response
  • Sticky sessions
  • Service monitoring agents
  • Active Content Verification
cold fusion development issues
Cold Fusion Development Issues
  • Best case scenario: Cold Fusion installation is identical on multiple servers
  • Store Cold Fusion session information in a database!! (Common problem)
  • Beware of local databases (MS Access)
  • Beware of writing to local disk (uploads), memory, or registry
  • Use replication to deploy application
  • Create a clustered development environment to properly test

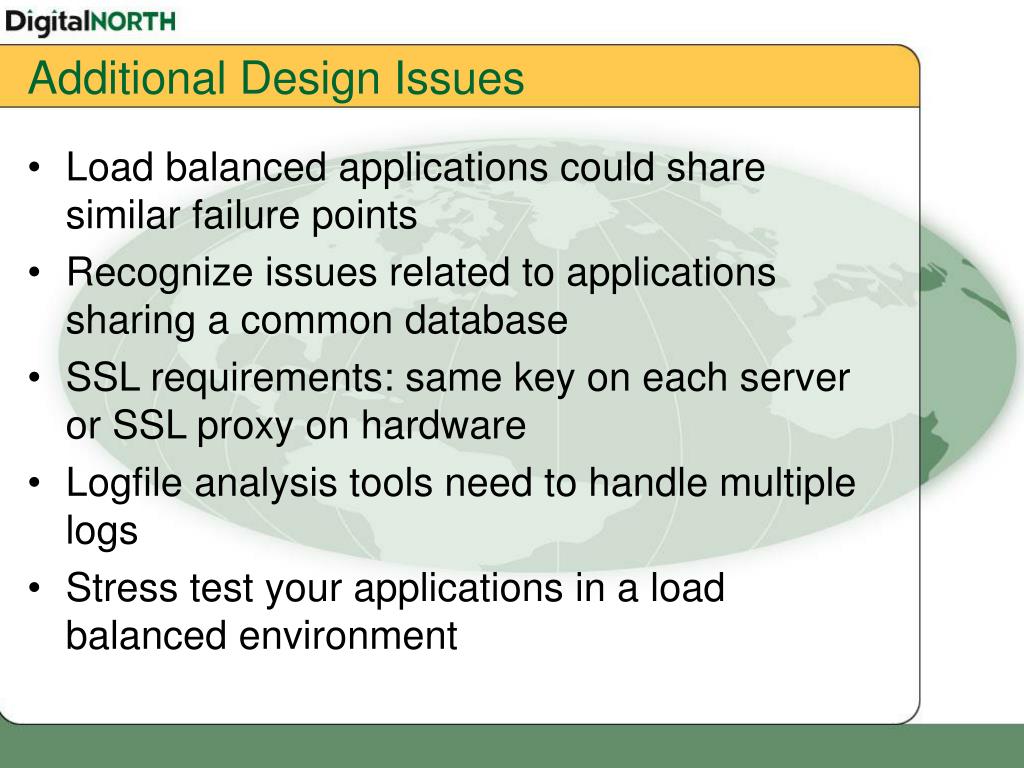

additional design issues
Additional Design Issues
  • Load balanced applications could share similar failure points
  • Recognize issues related to applications sharing a common database
  • SSL requirements: same key on each server or SSL proxy on hardware
  • Logfile analysis tools need to handle multiple logs
  • Stress test your applications in a load balanced environment

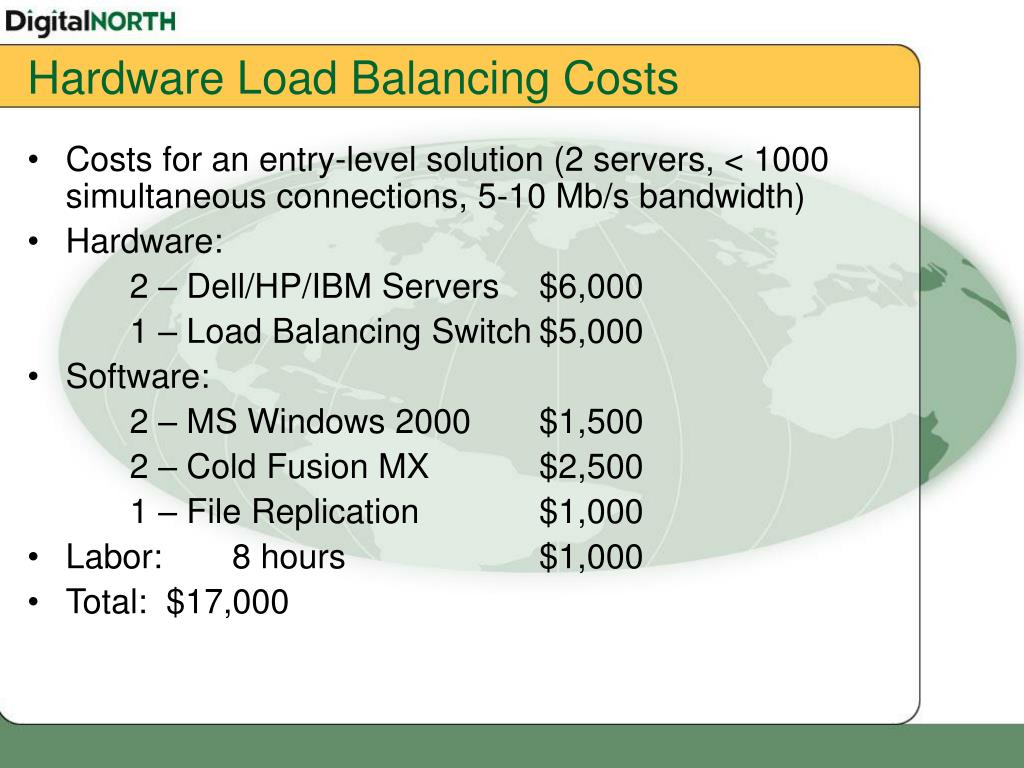

hardware load balancing costs
Hardware Load Balancing Costs
  • Costs for an entry-level solution (2 servers, < 1000 simultaneous connections, 5-10 Mb/s bandwidth)
  • Hardware:

2 – Dell/HP/IBM Servers $6,000

1 – Load Balancing Switch $5,000

  • Software:

2 – MS Windows 2000 $1,500

2 – Cold Fusion MX $2,500

1 – File Replication $1,000

  • Labor: 8 hours $1,000
  • Total: $17,000
