balancing rations

Balancing Rations

Animal Science II

Unit 8

  • Classify feeds as roughages and concentrates
  • Describe the six functions of a good ration
  • Explain the characteristics of a good ration
  • Balance livestock rations using commonly accepted practices
  • Contain more than 18% crude fiber when dry
  • Includes: hay, silage, pasture, fodder
  • 2 general class: legume roughage and non-legume roughage
legume roughages
Legume Roughages
  • Can take nitrogen from the air
  • Able to due so because they have nodules on their roots that contain bacteria
  • These bacteria fix the nitrogen from the air in soil and make it available for the plant to use
    • Do so by combining the free nitrogen with other elements to form nitrogen compounds
  • All the clovers, alfalfa, soybeans, trefoil, lespedeza, peas and beans
  • Usually higher in protein than nonlegume roughages
nonlegume roughages

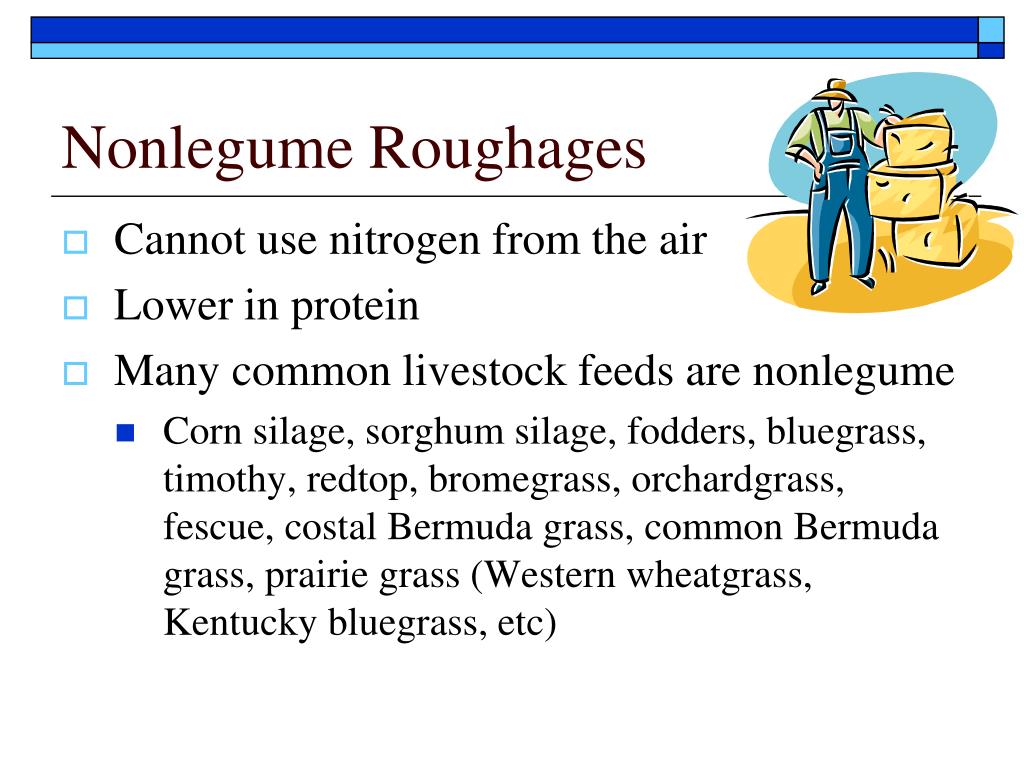

Nonlegume Roughages
  • Cannot use nitrogen from the air
  • Lower in protein
  • Many common livestock feeds are nonlegume
    • Corn silage, sorghum silage, fodders, bluegrass, timothy, redtop, bromegrass, orchardgrass, fescue, costal Bermuda grass, common Bermuda grass, prairie grass (Western wheatgrass, Kentucky bluegrass, etc)
  • Less than 18% crude fiber when dry
  • Two classes
    • Protein supplements
    • Energy feeds
protein supplements

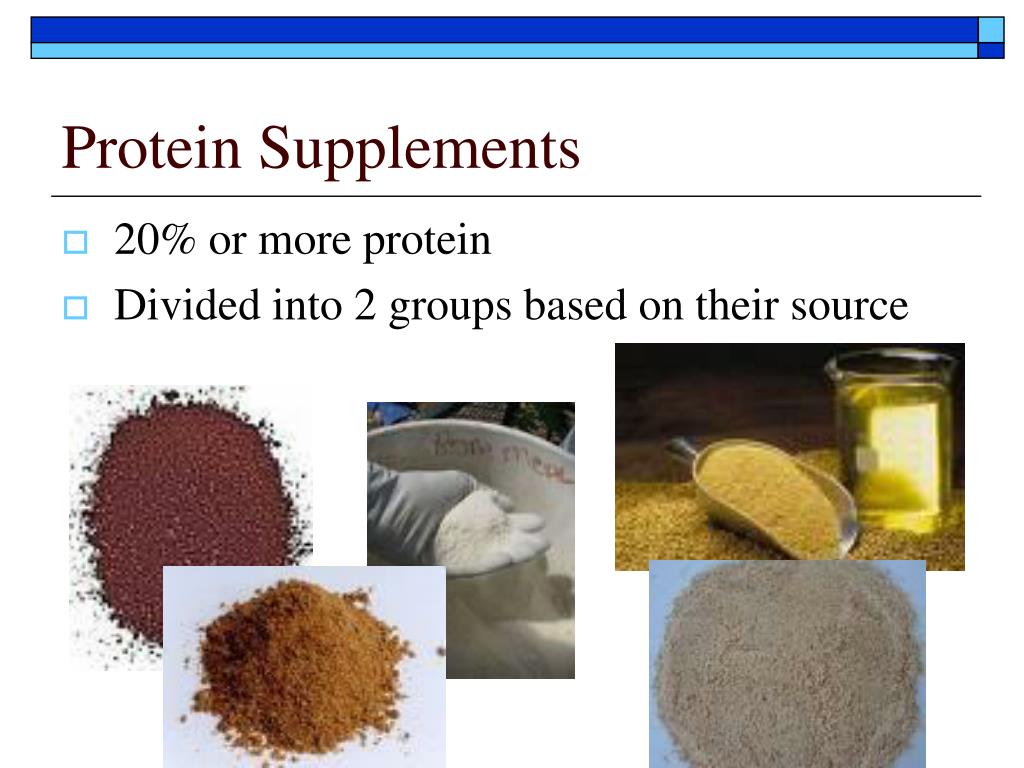

Protein Supplements
  • 20% or more protein
  • Divided into 2 groups based on their source

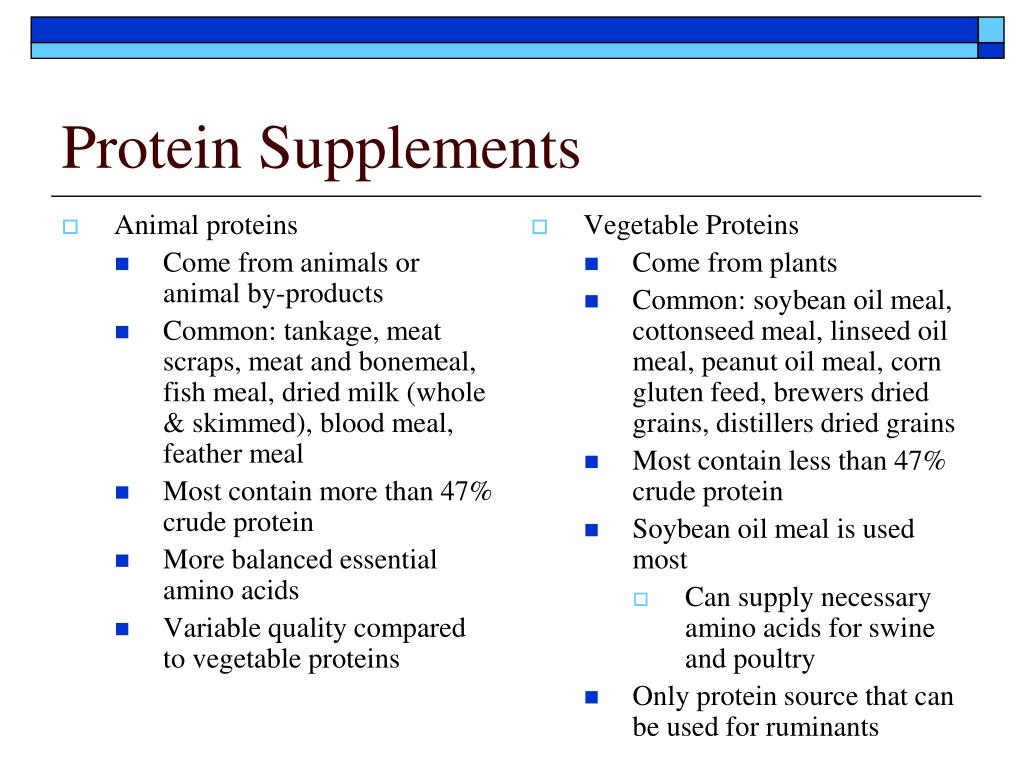

protein supplements9
Animal proteins

Come from animals or animal by-products

Common: tankage, meat scraps, meat and bonemeal, fish meal, dried milk (whole & skimmed), blood meal, feather meal

Most contain more than 47% crude protein

More balanced essential amino acids

Variable quality compared to vegetable proteins

Vegetable Proteins

Come from plants

Common: soybean oil meal, cottonseed meal, linseed oil meal, peanut oil meal, corn gluten feed, brewers dried grains, distillers dried grains

Most contain less than 47% crude protein

Soybean oil meal is used most

Can supply necessary amino acids for swine and poultry

Only protein source that can be used for ruminants

Protein Supplements
commercial protein supplements
Made by commercial feed companies

Mixes of animal and plant protein feeds

Usually made for 1 class of animal

Often mix of minerals, vitamins, antibiotics

Feed tag needs to be read and feeding directions followed

Commercial Protein Supplements
energy feeds
Energy Feeds
  • Feeds with less than 20% crude protein
  • Most grains
    • Oats, corn, sorghum, barley, rye, wheat, ground ear corn, wheat bran, wheat middling's, dried citrus pulp, dried beet pulp, dried whey
    • Corn is the most widely used
    • Followed by sorghum grain, oats, barley
ration characteristics13
Ration Characteristics
  • Animals need proper nutrition to efficiently produce meat, milk, eggs, wool, work, etc
  • A ration is the amount of feed given to an animal to meet its needs during a twenty-four hour period
  • A balanced ration is one that has all the nutrients the animal needs in the right proportions and amounts
  • Diet refers to the ration without reference to a specific time period

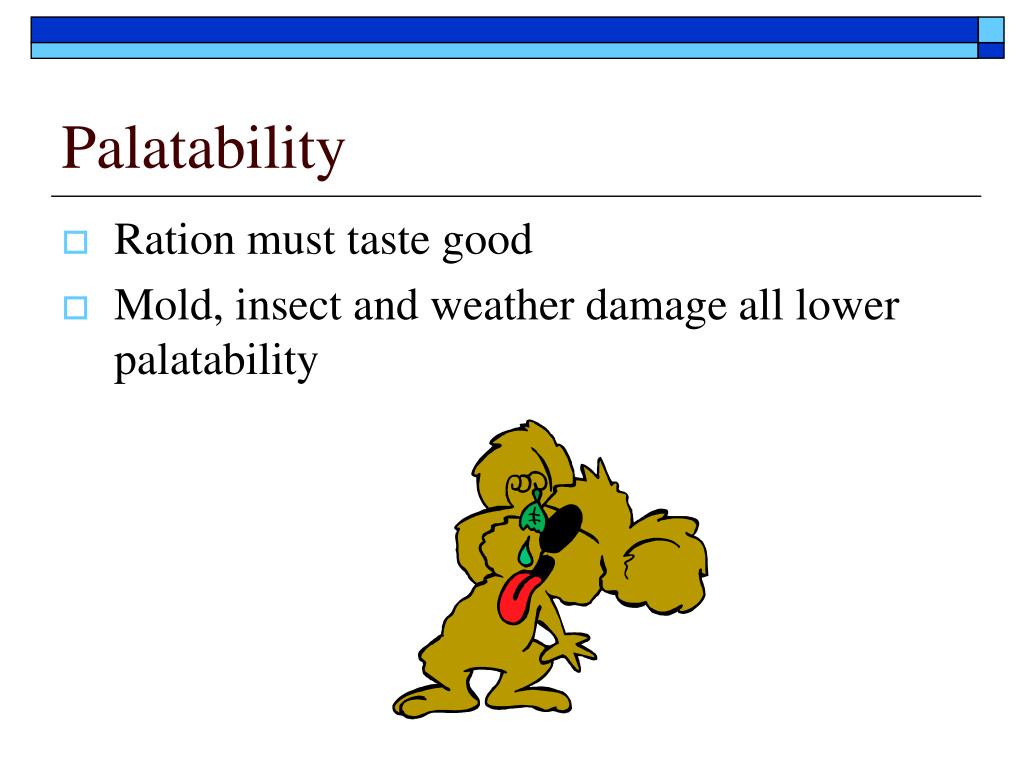

  • Ration must taste good
  • Mold, insect and weather damage all lower palatability
feed economics
Feed & Economics
  • Feed accounts for approximately 75% of the total cost of raising livestock
  • Therefore it is necessary to develop rations that are as economical as possible
poisonous plants

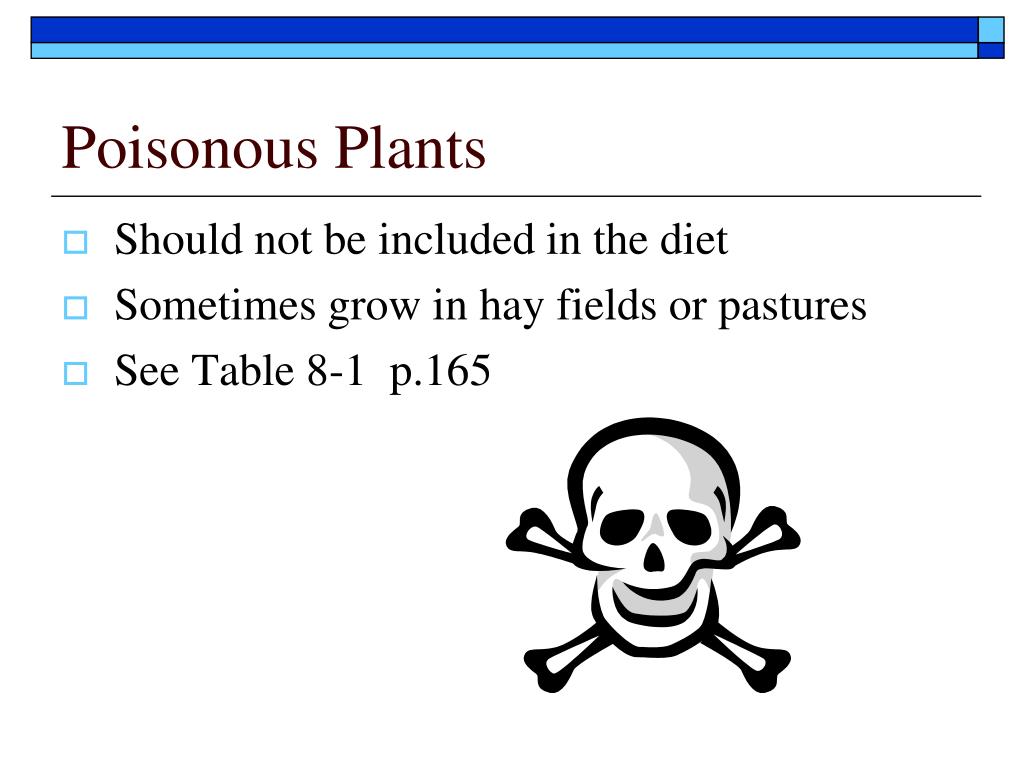

Poisonous Plants
  • Should not be included in the diet
  • Sometimes grow in hay fields or pastures
  • See Table 8-1 p.165
balancing for species and age

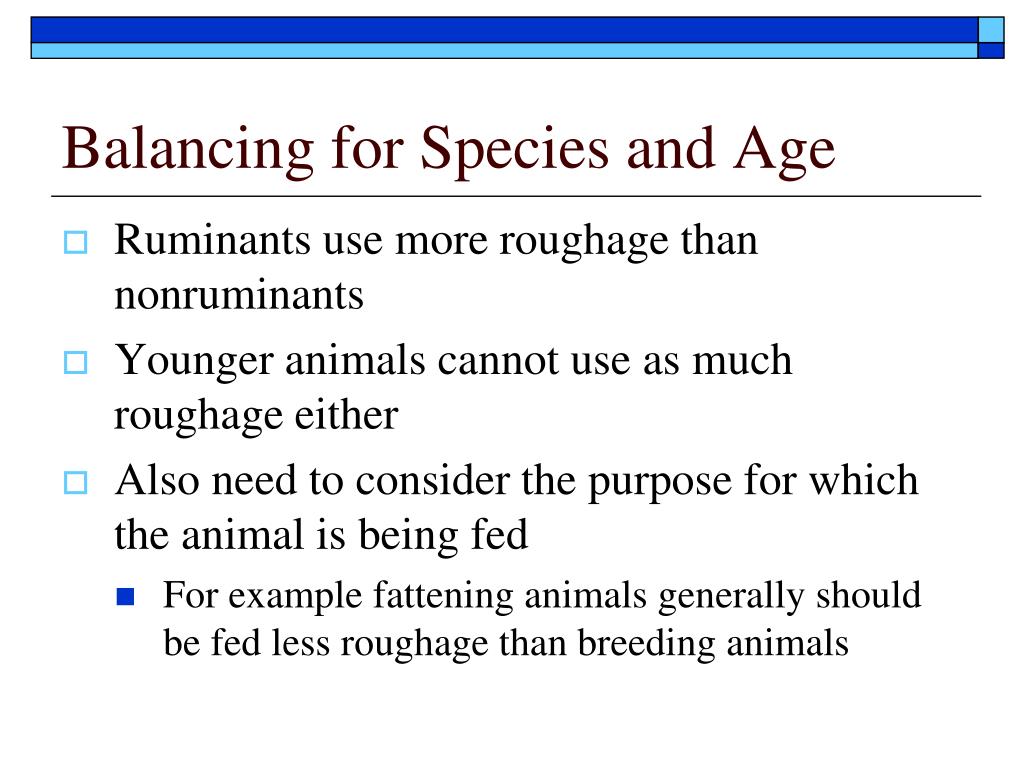

Balancing for Species and Age
  • Ruminants use more roughage than nonruminants
  • Younger animals cannot use as much roughage either
  • Also need to consider the purpose for which the animal is being fed
    • For example fattening animals generally should be fed less roughage than breeding animals
micronutrients and feed additives
Micronutrients and Feed Additives
  • Used in small quantities
  • Care needs to be taken to thoroughly mix these for uniform distribution
  • Excessive amounts of micronutrients can be harmful
functions of rations
Functions of Rations
  • Must be considered when determining nutrient requirements
  • Functions include
    • Maintenance
    • Growth
    • Fattening
    • Production
    • Work

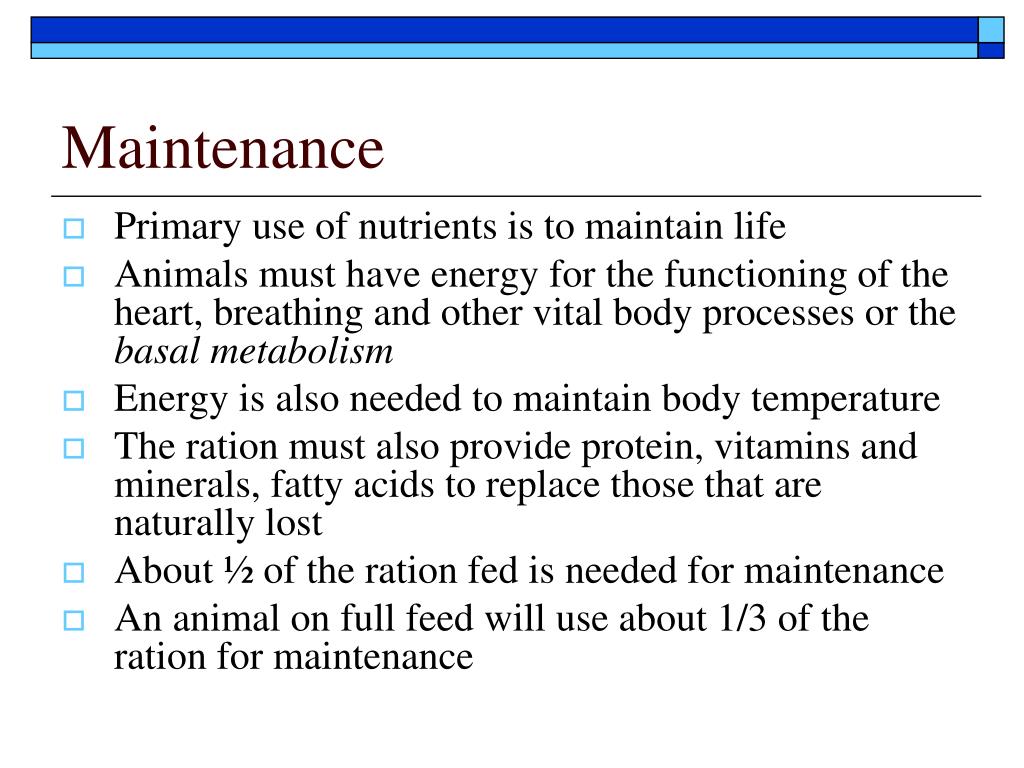

  • Primary use of nutrients is to maintain life
  • Animals must have energy for the functioning of the heart, breathing and other vital body processes or the basal metabolism
  • Energy is also needed to maintain body temperature
  • The ration must also provide protein, vitamins and minerals, fatty acids to replace those that are naturally lost
  • About ½ of the ration fed is needed for maintenance
  • An animal on full feed will use about 1/3 of the ration for maintenance
  • Nutrients can only be used for growth after maintenance requirements are met
  • Animals mature by growing
    • Larger species mature slower
  • Growth rate of large animals is faster than that of smaller animals

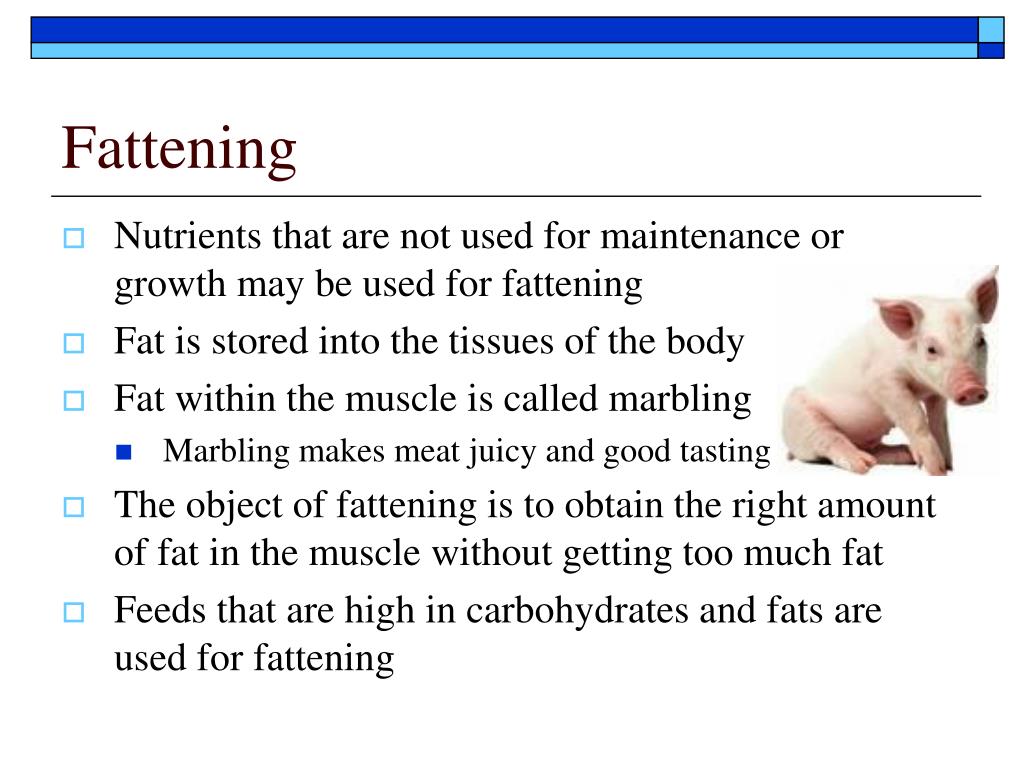

  • Nutrients that are not used for maintenance or growth may be used for fattening
  • Fat is stored into the tissues of the body
  • Fat within the muscle is called marbling
    • Marbling makes meat juicy and good tasting
  • The object of fattening is to obtain the right amount of fat in the muscle without getting too much fat
  • Feeds that are high in carbohydrates and fats are used for fattening
  • Cows, swine, horse, sheep, goats all produce milk to feed their young
  • Dairy goats and cows produce milk for human use as well
  • Chickens produce eggs
  • Sheep and goats produce mohair
  • All this production requires nutrients. The nutrients depend on the kind of production

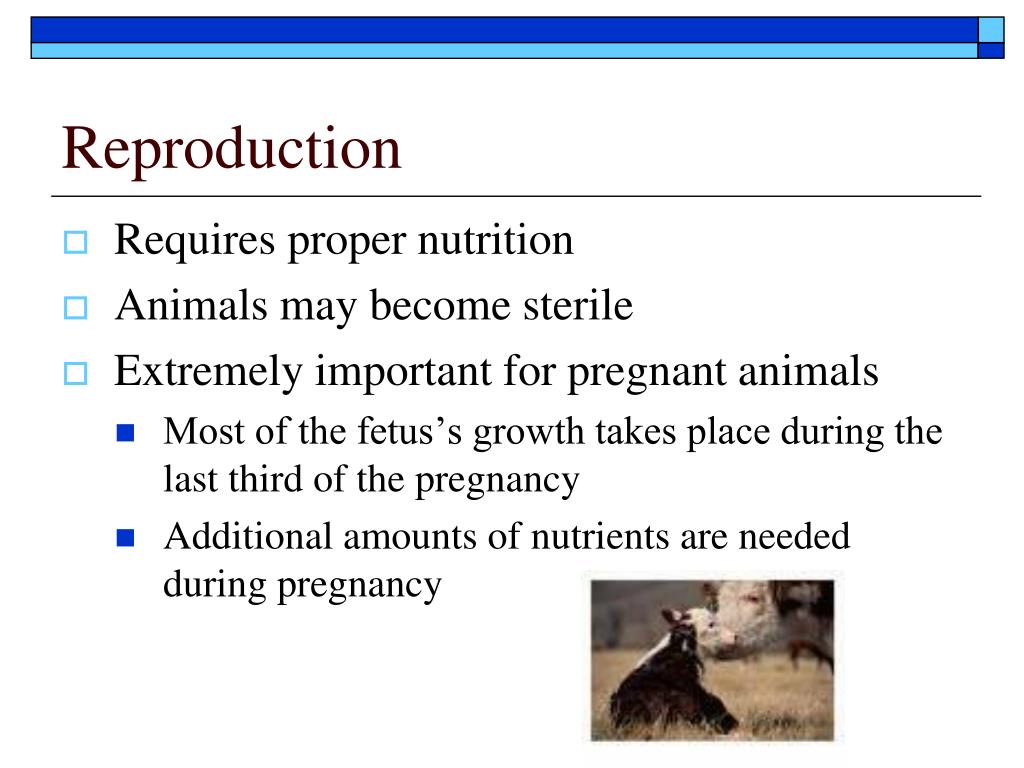

  • Requires proper nutrition
  • Animals may become sterile
  • Extremely important for pregnant animals
    • Most of the fetus’s growth takes place during the last third of the pregnancy
    • Additional amounts of nutrients are needed during pregnancy
  • Horses-riding, driving
  • Energy needed for work comes from carbohydrates, fats, extra protein
  • Other needs of the body are met before nutrients are available for work
  • Animal will use fat stored in the body for work if the ration does not supply enough
  • Extra salt is also needed due to animals sweating
general principals
General Principals
  • Must meet the nutritional needs
  • Nutrient allowance should be met as close as possible
    • Not more than 3% below the requirement
dry matter

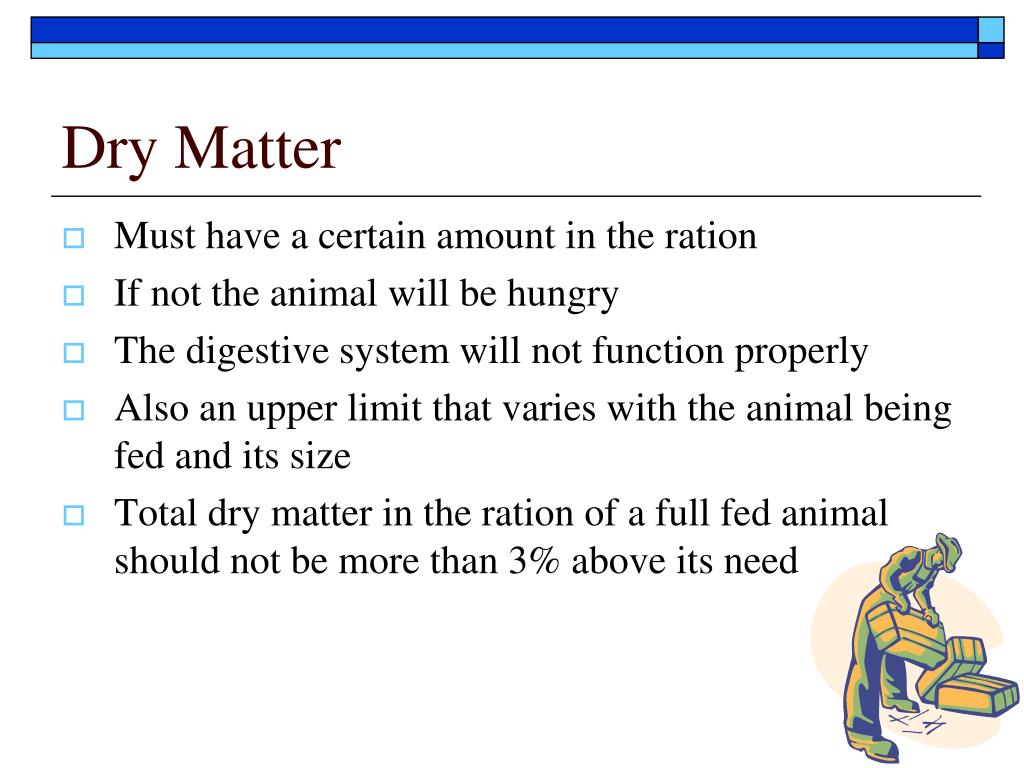

Dry Matter
  • Must have a certain amount in the ration
  • If not the animal will be hungry
  • The digestive system will not function properly
  • Also an upper limit that varies with the animal being fed and its size
  • Total dry matter in the ration of a full fed animal should not be more than 3% above its need
  • Measured by the total protein (TP) need of the animal
  • Digestible protein may also be used to balance the ration
  • Essential amino acids must be included when balancing a ration for nonruminants
  • Acceptable to allow 5-10% more protein in the ration than the animal needs
  • Four methods of measurement
    • Digestible Energy (DE)
    • Total Digestible Energy (TDE)
    • Metabolizable Energy (ME)
    • Net Energy (NE)
  • Gross energy of feed is measured in a lab using a bomb calorimeter
    • The feed is burned completely and the total amount of heat released from the burning is the gross energy
digestible energy
Digestible Energy
  • The gross energy of the feed minus the energy remaining in the feces of the animal after the feed is digested
metabolizable energy
Metabolizable Energy
  • For Ruminants
    • The gross energy in the feed minus the energy found in the feces, gaseous products of digestion and urine
  • For Non Ruminants
    • The gross energy in the feed minus the energy found in the feces and urine
net energy
Net Energy
  • Metabolizable energy minus the heat increment
  • Energy used for
    • Maintenance only NEm
      • Amount of energy used to keep the animal’s energy in equilibrium-there is no net gain or loss of energy in the animal’s body tissues
    • Maintenance plus production NEm+p
    • Production only NEp
      • Amount of energy need above the amount used for maintenance that is used for work, tissue growth, fat production, fetus growth, or milk, egg, or wool production and so on
total digestible nutrients tdn

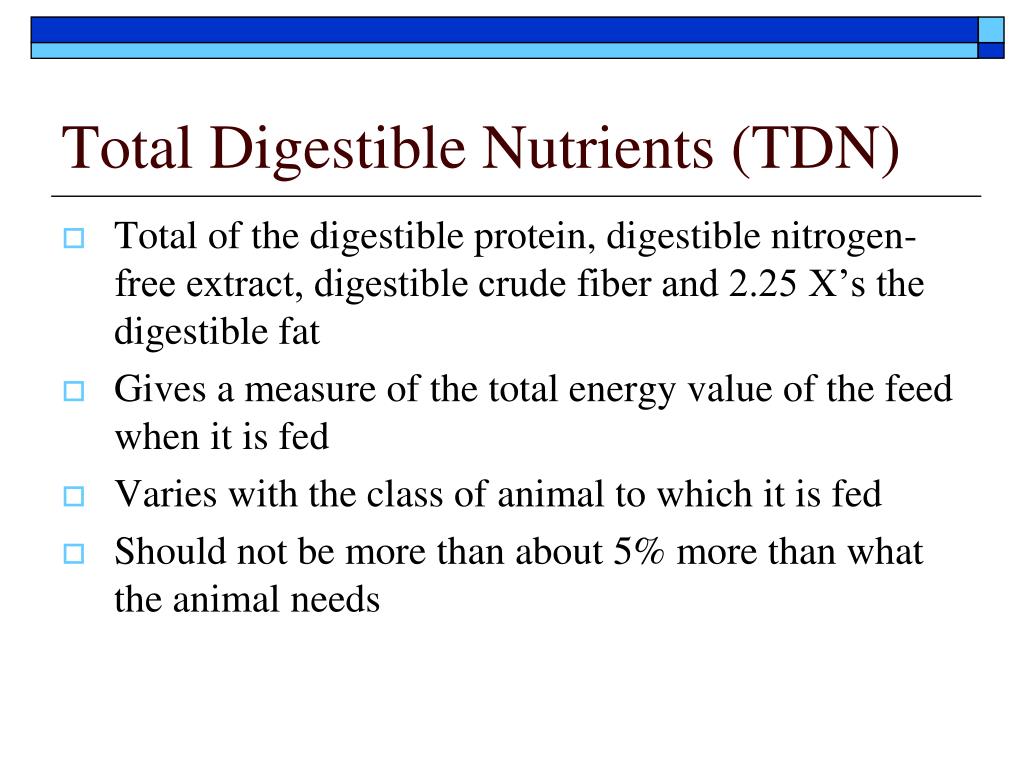

Total Digestible Nutrients (TDN)
  • Total of the digestible protein, digestible nitrogen-free extract, digestible crude fiber and 2.25 X’s the digestible fat
  • Gives a measure of the total energy value of the feed when it is fed
  • Varies with the class of animal to which it is fed
  • Should not be more than about 5% more than what the animal needs
balancing calcium and phosphorus
Balancing Calcium and Phosphorus
  • Important in balancing rations
  • Should be between a 1:1 and 2:1 ratio
  • The ratio is more important than the total amount being fed
    • Total Ca and P are often more than needed when other requirements are met
  • Other mineral needs are usually not considered and can be met with trace-mineralized salt
  • Vitamin A is taken into account when balancing the ration
  • Other vitamin needs are added with out calculating the vitamin content of the feed
  • Vitamin A will often be more than needed but is not harmful
  • Vitamin deficiencies can occur in cattle and sheep during pregnancy if low quality legume hay is fed
    • Vitamin supplements should always be added to pregnancy rations
getting the most bang for your buck
Getting the Most Bang for Your Buck
  • Some feeds are cheaper sources of nutrients than others
  • Energy feeds should be compared based on the price per pound of energy (TDN, DE, ME or NE)
  • Protein feeds should be compared in terms of price per pound of total protein or digestible protein
  • The least expensive source of nutrients should be used as much as possible
relationship between 100 dry matter basis and as fed basis
Relationship Between 100% Dry Matter Basis and As-Fed Basis
  • All feed contains some moisture and the amount varies with the feed, form of feed, stage of growth at harvest, length of time in storage, storage conditions
  • The appendix in the back of the book shows the average percent dry matter in the feeds listed
100 dry matter basis
100% Dry Matter Basis
  • Data presented is calculated on the basis that all moisture has been removed
as fed basis

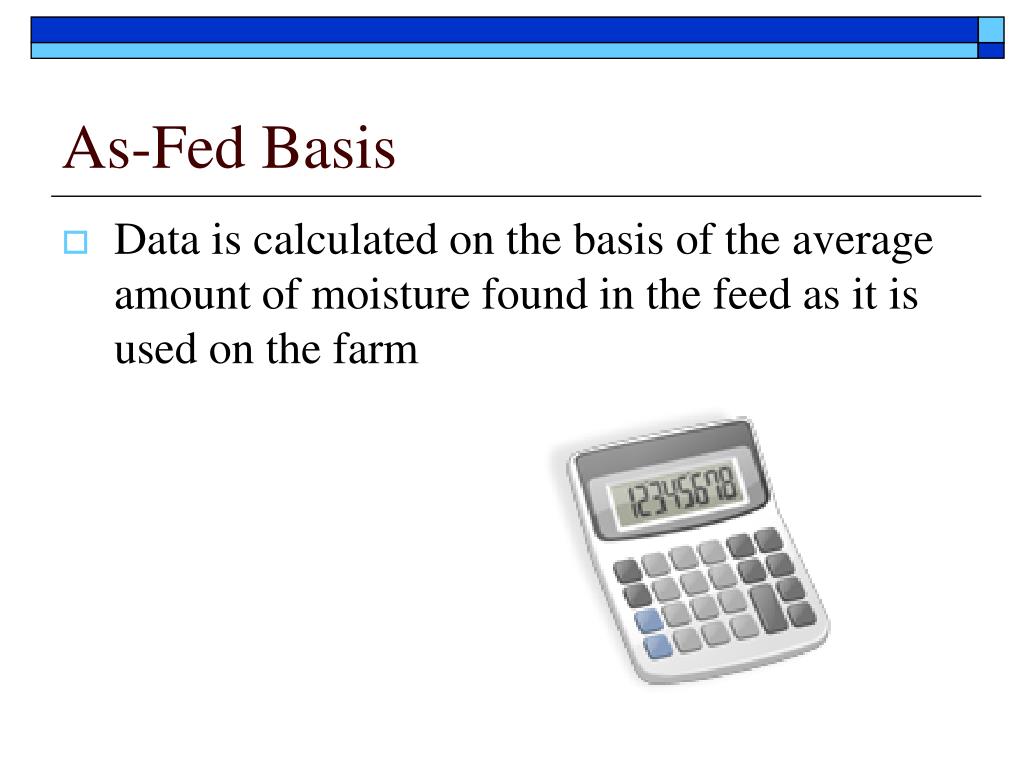

As-Fed Basis
  • Data is calculated on the basis of the average amount of moisture found in the feed as it is used on the farm
  • See p. 172-73 in text

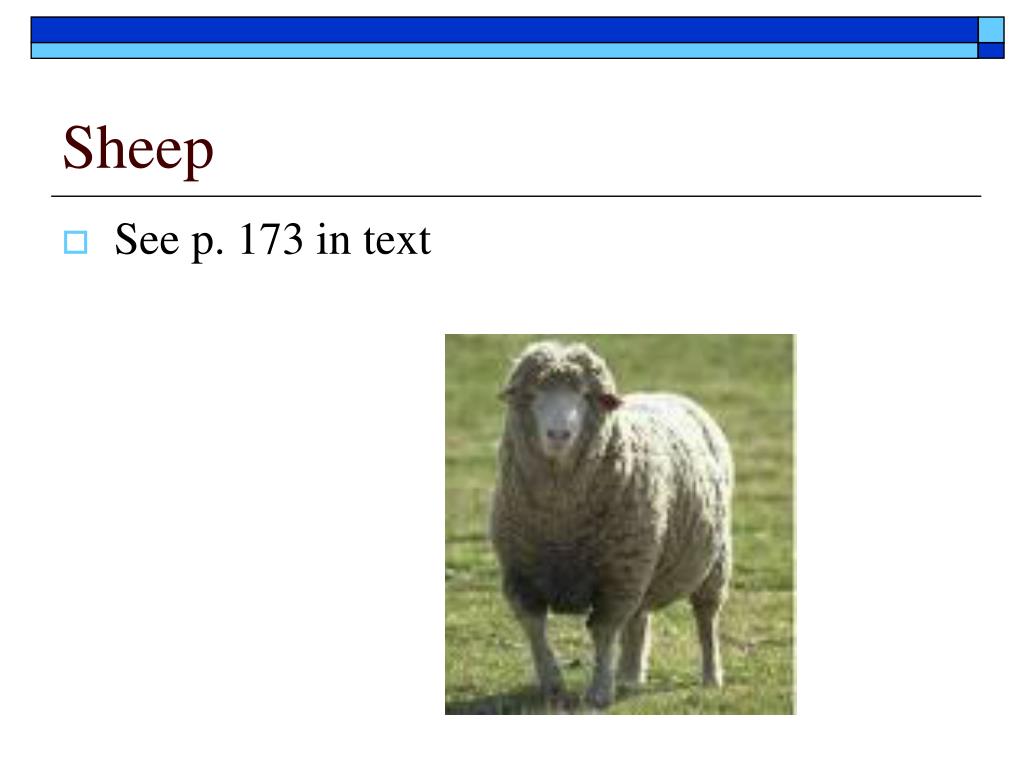

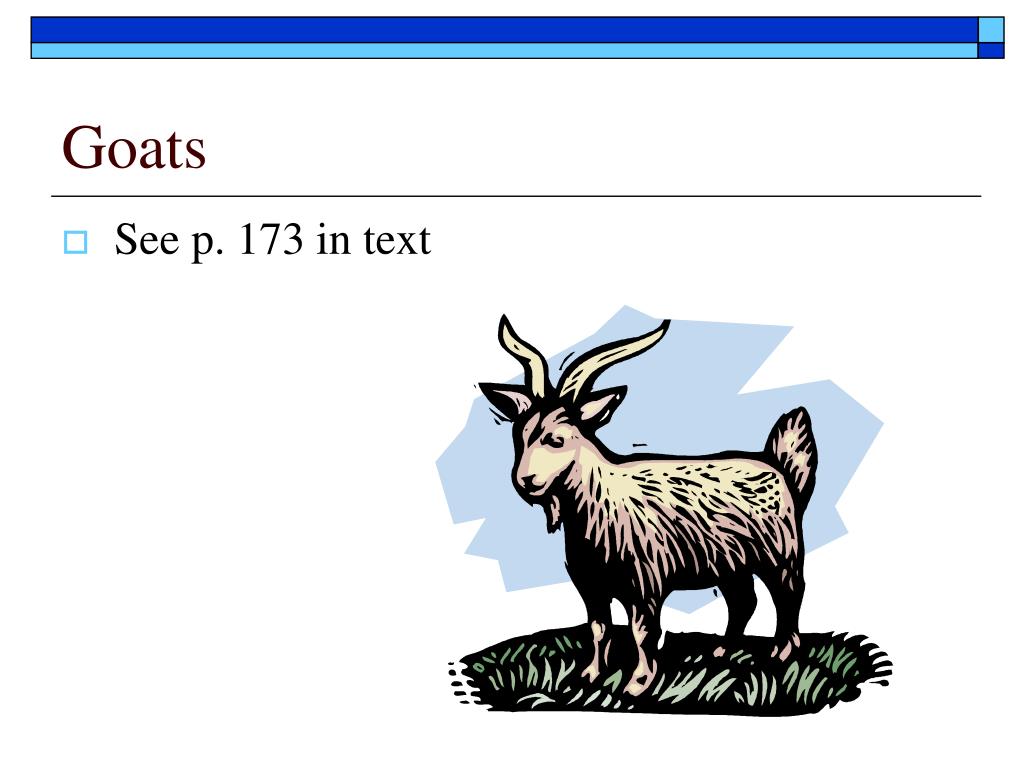

  • See p. 173 in text

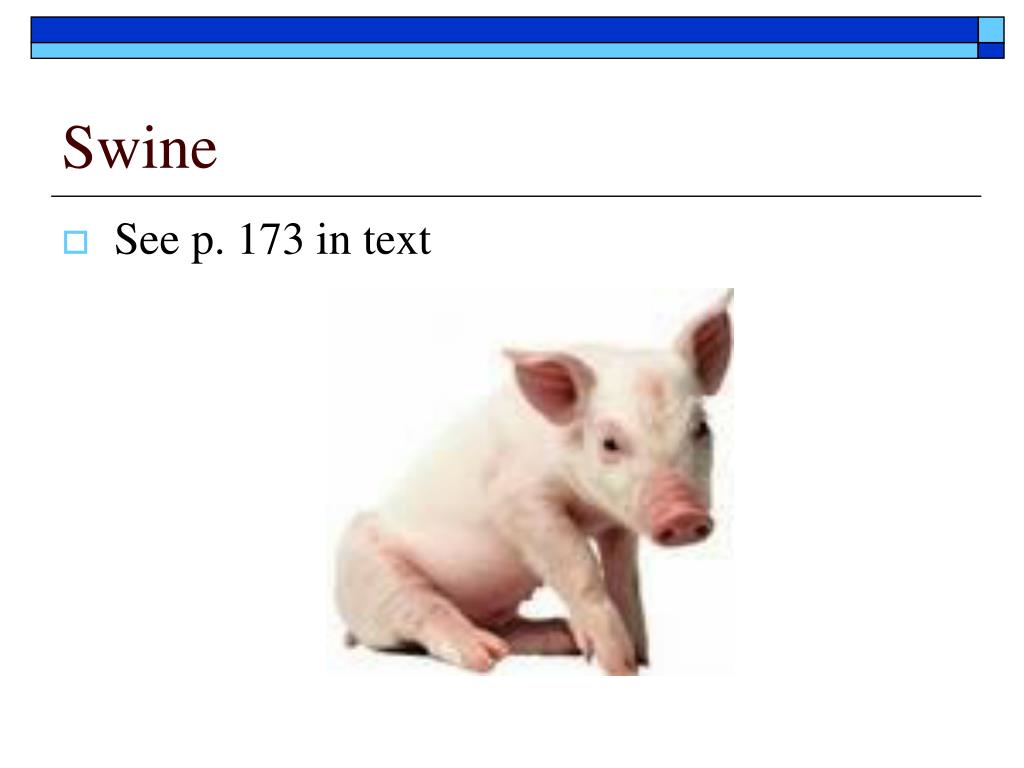

  • See p. 173 in text
  • See p. 173 in text
  • See p. 173-74 & Table 8-2
  • See p. 174 in text
step 1
Step 1
  • Identify the kind, age, weight and function of the animal(s) for which the ration is being formulated.
  • In our text suggested rations and feeding programs are found in the units on the specific species; these may be used for formulating rations.
step 2
Step 2
  • Consult the table of nutrients to determine the nutrient need(s) of the animal(s)
  • These requirements are called FEEDING STANDARDS
    • Based on average requirements
    • May not meet the needs under specific conditions
    • Adjustments may be needed if unusual conditions exsists
step 3
Step 3
  • Choose the feeds to be used
  • Consult the feed composition table to determine the nutrient content of the selected feed
  • Nutrient contents differ with species
step 4
Step 4
  • Calculate the amount of each feed to be used in the ration
  • Sevral methods are available to do this but we will use the Pearson Square Method
step 5
Step 5
  • Check the ration formulated against the needs of the animal(s)
  • If there is/are excessive amount(s) of a nutrient(s) present it may be necessary to reformulate the ration
determining ration costs
Determining Ration Costs
  • Check the ration cost to see if it is the most economical
  • Calculate cost per pound or per ton
  • Daily cost of feeding may also be calculated if a daily consumption rate is know
the pearson square
The Pearson Square
  • Cannot balance rations by trial and error
  • Pearson Square simplifies balancing rations
  • Can only use two feeds
using the pearson square
Using the Pearson Square
    • 2,000 pounds of feed is needed to feed a 100-pound growing hog. A feeding standards table shows that a 14% crude protein ration is needed. Corn and Soybean oil meal (SBOM) are selected as feeds. A feed composition table shows that corn has 8.9% and SBOM has 45.8% crude protein on an as-fed basis. How much corn and soybean oil meal need to be mixed together for 2,000 pounds of feed?
step 159
  • Draw a square with lines connecting the opposite corners.
  • Write the percent of crude protein (14) in the center of the square.


step 260
  • Write the feeds to be used and their crude protein percents at the left hand corners of the square.

Corn 8.9



oil meal 45.8

step 361
  • Subtract the smaller number from the larger, along the diagonal lines. Write the differences at the opposite end of the diagonals.

31.8= 45.8-14

Corn 8.9



oil meal 45.8


step 362
  • The difference between the percent protein in the soybean oil meal and the percent protein in the ration are the parts of corn needed.
  • The difference between the percent protein in the corn and the percent protein in the ration are the parts of soybean oil meal neeeded.
  • The sum of the numbers on the right equals the difference in the numbers on the left. This fact is used as a check to see if the square is set up correctly.
step 363

Parts Corn


Corn 8.9



oil meal 45.8

Parts SBOM




step 464
  • Divide the parts of each feed by the total parts to find the percent of each feed in the ration
    • Corn 31.8/36.9x100=86.2%
    • Soybean oil meal 5.1/36.9x100=13.8%
step 565
  • It is known that 2,000 pounds of the mixture is needed. To find the pounds of each feed in the mix, the percent of each feed is multiplied by the total pounds of the mix
    • Corn 2,000 x 0.862= 1,724 pounds
    • SBOM 2,000 x 0.138= 276 pounds

*Numbers have been rounded to full pounds.

step 6
  • Check the mix to ensure that the protein need is met. Multiply the pounds of the feed in the it’s precent protein .
    • Corn 1,724 x 0.089= 153 lbs of Corn
    • SBOM 276 x 0.458= 126 lbs of SBOM
  • Add the pounds of protein together
    • 153 + 126 = 279
  • Divide by the total weight of the mix
    • 279/2,000 x 100= 14%
  • The mix is balanced for crude protein content!
using the pearson square to mix two grains with a supplement start
Using the Pearson Square to Mix Two Grains with a Supplement (START)
  • Can be used to find out how much of two grains should be mixed with a supplement
  • Proportions of grain must be known first
  • 2,000 pound mix of corn, oats and soybean oil meal is needed. The mix is to contain 16% Digestible Protein. A decision is made to use ¾ corn and ¼ oats in the mix. Thus, the proportion of corn to oats is 3:1. How many pounds of corn, oats and soybean oil meal are needed?
step 169
  • Need to find the weighted average percent of protein in the corn and oats first.
  • To do this
    • Multiply the proportion of corn (3) by the percent digestible protein in corn (7.1). Do the same for oats. Then add the two answers together and divide by the total parts (4). This answer is the weighted average percentage of digestible protein in the corn oats mix.
step 1 cont
STEP 1 cont…
  • 3 x 7.1=21.3 (Corn)
  • 1 x 9.9= 9.9 (Oats)


  • 31.2/4= 7.8% Digestible Protein in the corn-oats mix
using the pearson square x
Using the Pearson Square X
  • Used in the same method as before to mix two feeds.
  • On a sheet of paper, work out this problem

3 parts Corn, 1 part oats 7.8


Soybean oil meal 41.7

using the pearson square72
Using the Pearson Square
  • Same method can be used for mixing two protein supplements and 1 grain
  • Can also be used to mix 2 grains and 2 protein supplements
    • Just remember that the proportions of like feed must be decided upon before hand and the weighted average percent of protein found
  • Any measure of nutrients in the feed may be used
    • Energy- TDN, NE, ME, DE
    • Protein- CP, DP
balancing a swine ration
Balancing A Swine Ration
  • See p. 178-179 in Text
balancing a ration for beef
Balancing a Ration for Beef
  • See p. 179-181 in Text
using algebraic equation to balance ration
Using Algebraic Equation to Balance Ration
  • May be used instead of Pearson Square
  • Basic equations are
    • X= pounds of grain needed
    • Y= pounds of supplement
  • Equation #1
    • X+Y= Total Pounds of Mix Needed
  • Equation # 2
    • (% Nutrient in grain) x (X) + (% Nutrient in Supplement) x (Y)= pounds of nutrient desired in mix
  • Same problem as the 1st Pearson Square Example
  • Mix of 2,000 lbs is to be balanced for protein using two feeds.
example cont
  • Place the desired values in equation 2
  • 0.089X+0.458Y=280
    • 280 is found by multiplying the quantity of feed (2,000 lbs) by the percent (14) [or the amount] of nutrient desired: 2,000x0.14)
example cont78
  • Either X or Y must be canceled by the multiplication of equation 1 by the percentage of nutrients for either X or Y, and the resulting equation 3 is subtracted from equation 2. This example uses the percentage crude protein for corn (0.089), giving equation 3
    • 0.089X+0.089Y=178 (178 is found by multiplying 0.089 times 2,000 lbs)
example cont79
  • SUBTRACT equation 3 from equation 2
    • 0.089X+0.458Y=280

-0.089X-0.089Y= -178


Y= 276 lbs soybean meal

  • X may then be found by substituting the value of Y in equation 1 and solving
    • X+276=2,000
    • X=2,000-276
    • X= 1,724 lbs of corn
algebraic equations
Algebraic Equations
  • Get the same result as Pearson square
  • May be used to balance rations using 3 or more feeds
  • Same initial step must be taken as when using the Pearson Square—group similar feeds into two groups and determine the proportions of each to be used in each group
    • After this is done the same procedure as above is followed.
