Aerosol Photometer AC220 V

Labnics Aerosol Photometer is a compact aerosol generator with a photometer for on-site leakage detection. It supports a flow range of 1,500 to 65,000 CFM (42 to 1839.5 mu00b3/min). At 10 u03bcg/L and 100 u03bcg/L concentrations, the flow is 65,000 CFM. It detects PAO, DOP, and polydisperse particles using heating.<br>

bentleyfay
Download Presentation

Aerosol Photometer AC220 V

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

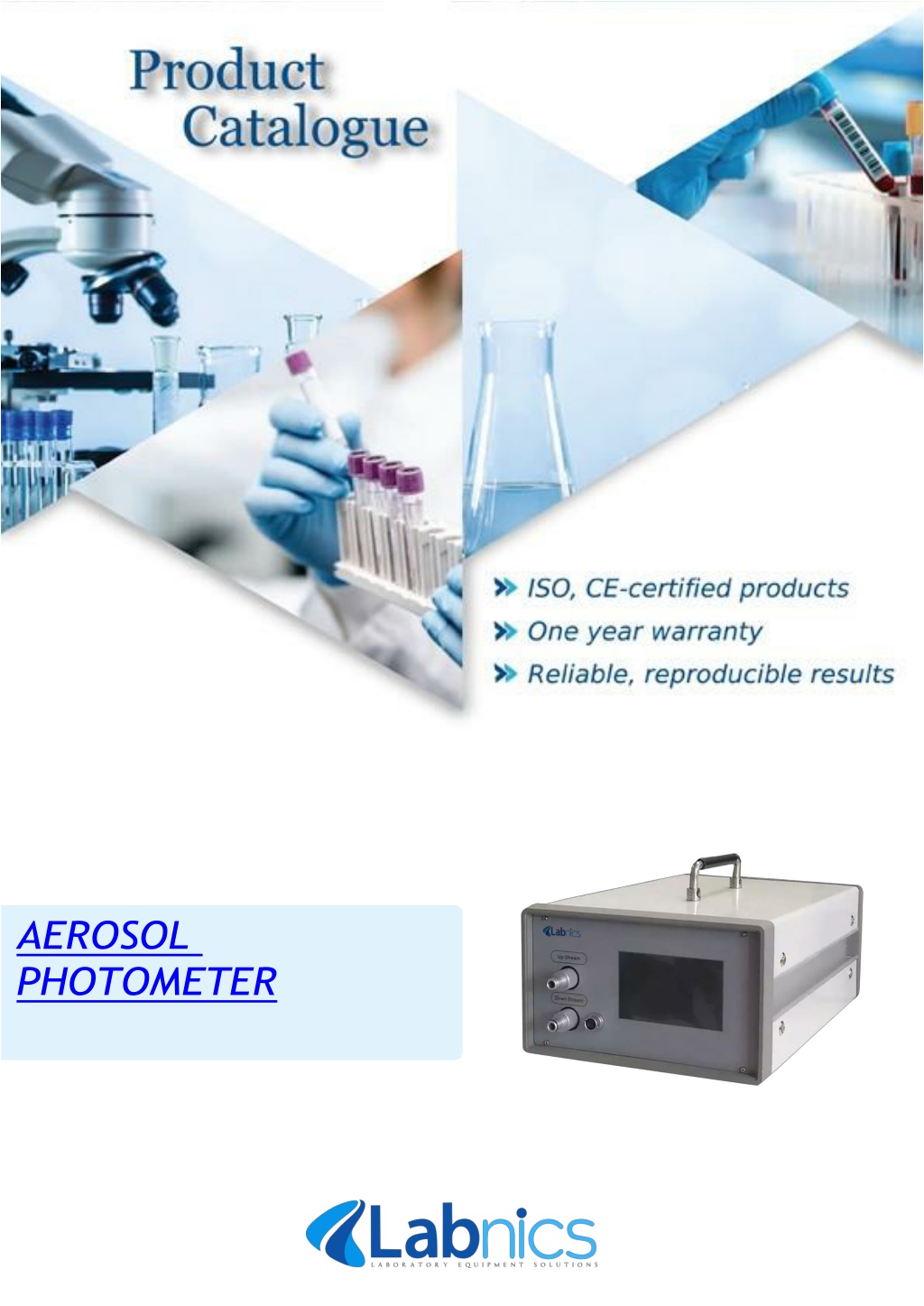

  1. AEROSOL PHOTOMETER

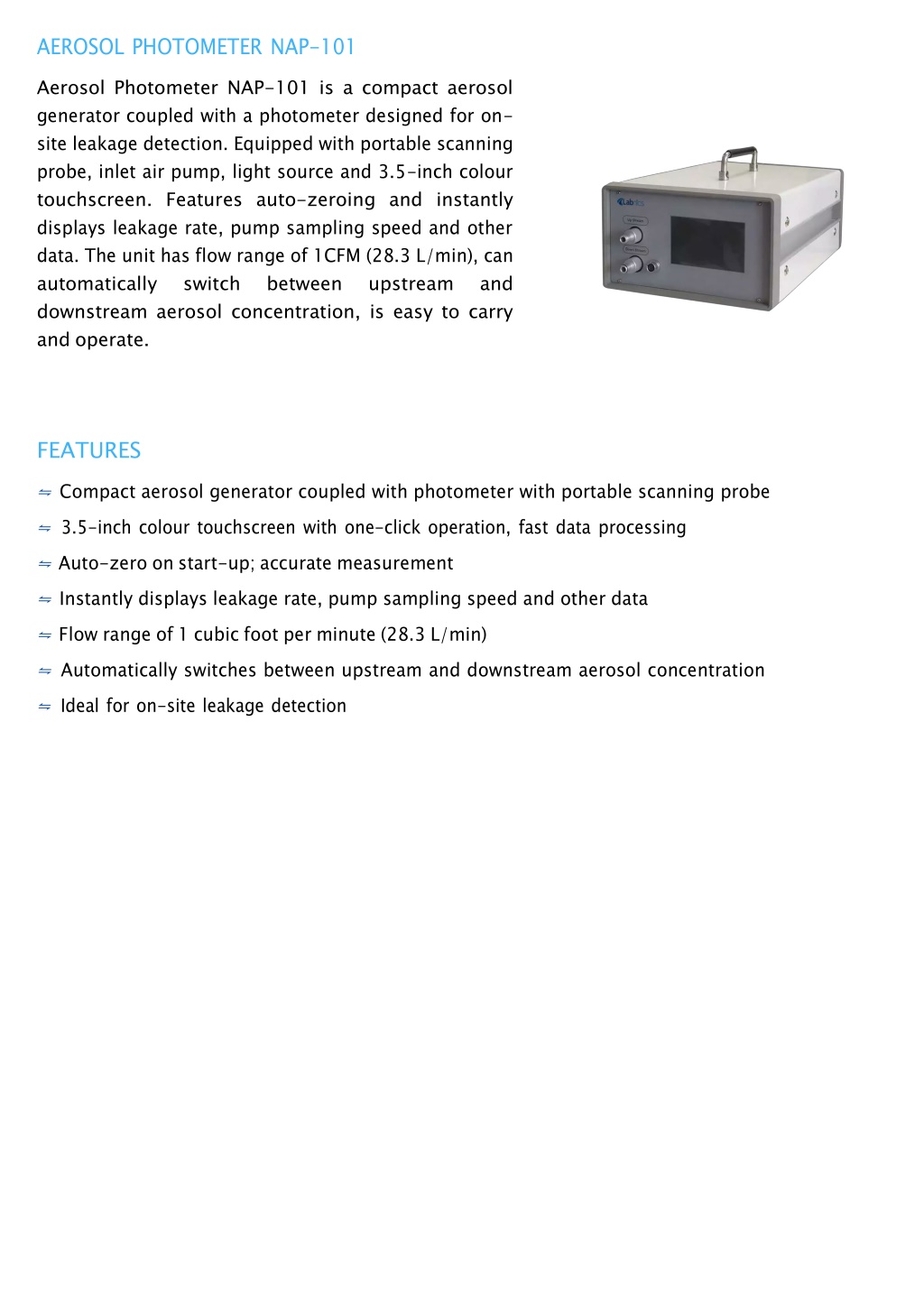

  2. AEROSOL PHOTOMETER NAP-101 Aerosol Photometer NAP-101 is a compact aerosol generator coupled with a photometer designed for on- site leakage detection. Equipped with portable scanning probe, inlet air pump, light source and 3.5-inch colour touchscreen. Features auto-zeroing and instantly displays leakage rate, pump sampling speed and other data. The unit has flow range of 1CFM (28.3 L/min), can automatically downstream aerosol concentration, is easy to carry and operate. switch between upstream and FEATURES ⇋ Compact aerosol generator coupled with photometer with portable scanning probe ⇋ 3.5-inch colour touchscreen with one-click operation, fast data processing ⇋ Auto-zero on start-up; accurate measurement ⇋ Instantly displays leakage rate, pump sampling speed and other data ⇋ Flow range of 1 cubic foot per minute (28.3 L/min) ⇋ Automatically switches between upstream and downstream aerosol concentration ⇋ Ideal for on-site leakage detection

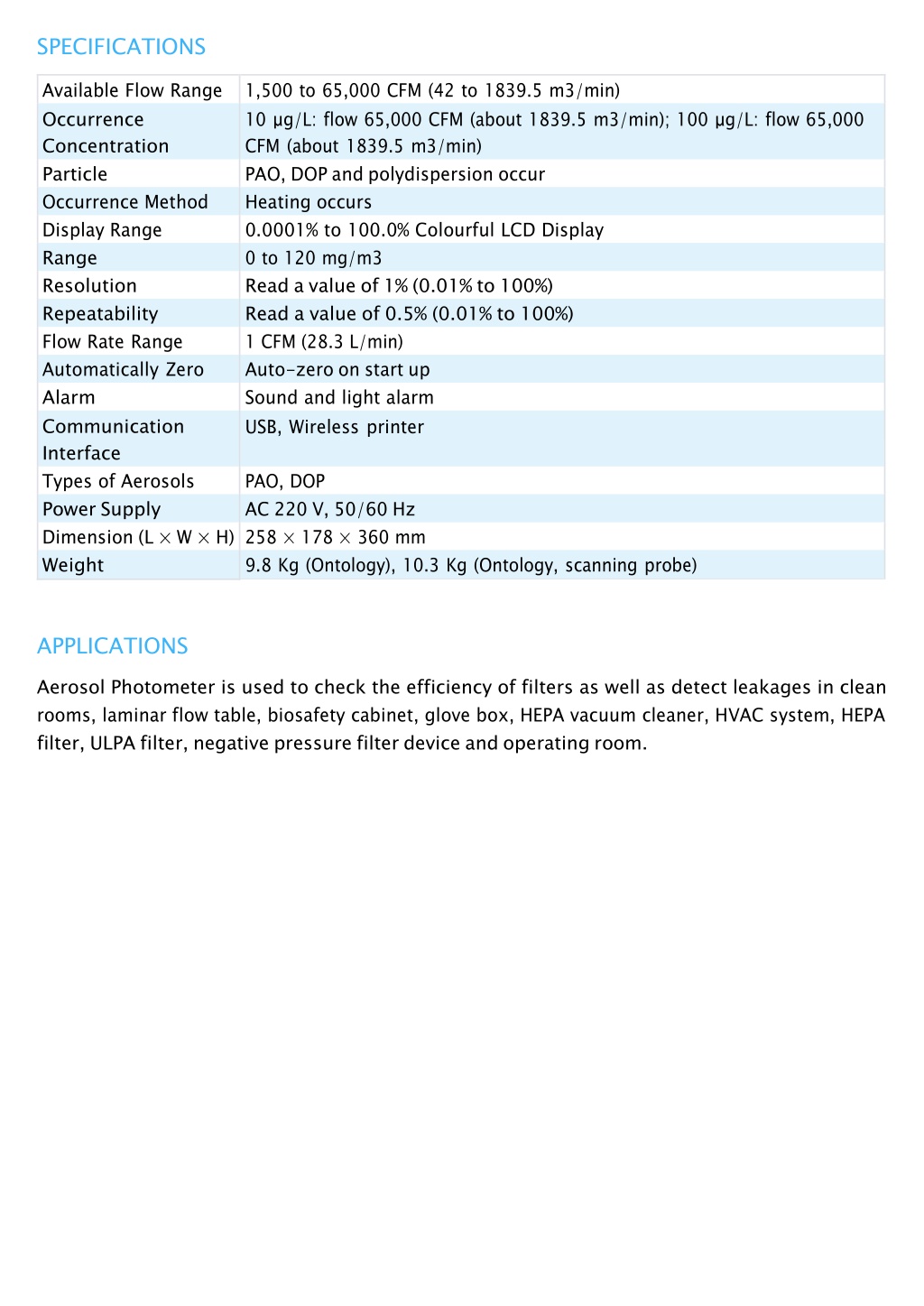

  3. SPECIFICATIONS Available Flow Range Occurrence Concentration Particle Occurrence Method Display Range Range Resolution Repeatability Flow Rate Range Automatically Zero Alarm Communication Interface Types of Aerosols Power Supply Dimension (L × W × H)258 × 178 × 360 mm Weight 1,500 to 65,000 CFM (42 to 1839.5 m3/min) 10 μg/L: flow 65,000 CFM (about 1839.5 m3/min); 100 μg/L: flow 65,000 CFM (about 1839.5 m3/min) PAO, DOP and polydispersion occur Heating occurs 0.0001% to 100.0% Colourful LCD Display 0 to 120 mg/m3 Read a value of 1% (0.01% to 100%) Read a value of 0.5% (0.01% to 100%) 1 CFM (28.3 L/min) Auto-zero on start up Sound and light alarm USB, Wireless printer PAO, DOP AC 220 V, 50/60 Hz 9.8 Kg (Ontology), 10.3 Kg (Ontology, scanning probe) APPLICATIONS Aerosol Photometer is used to check the efficiency of filters as well as detect leakages in clean rooms, laminar flow table, biosafety cabinet, glove box, HEPA vacuum cleaner, HVAC system, HEPA filter, ULPA filter, negative pressure filter device and operating room.

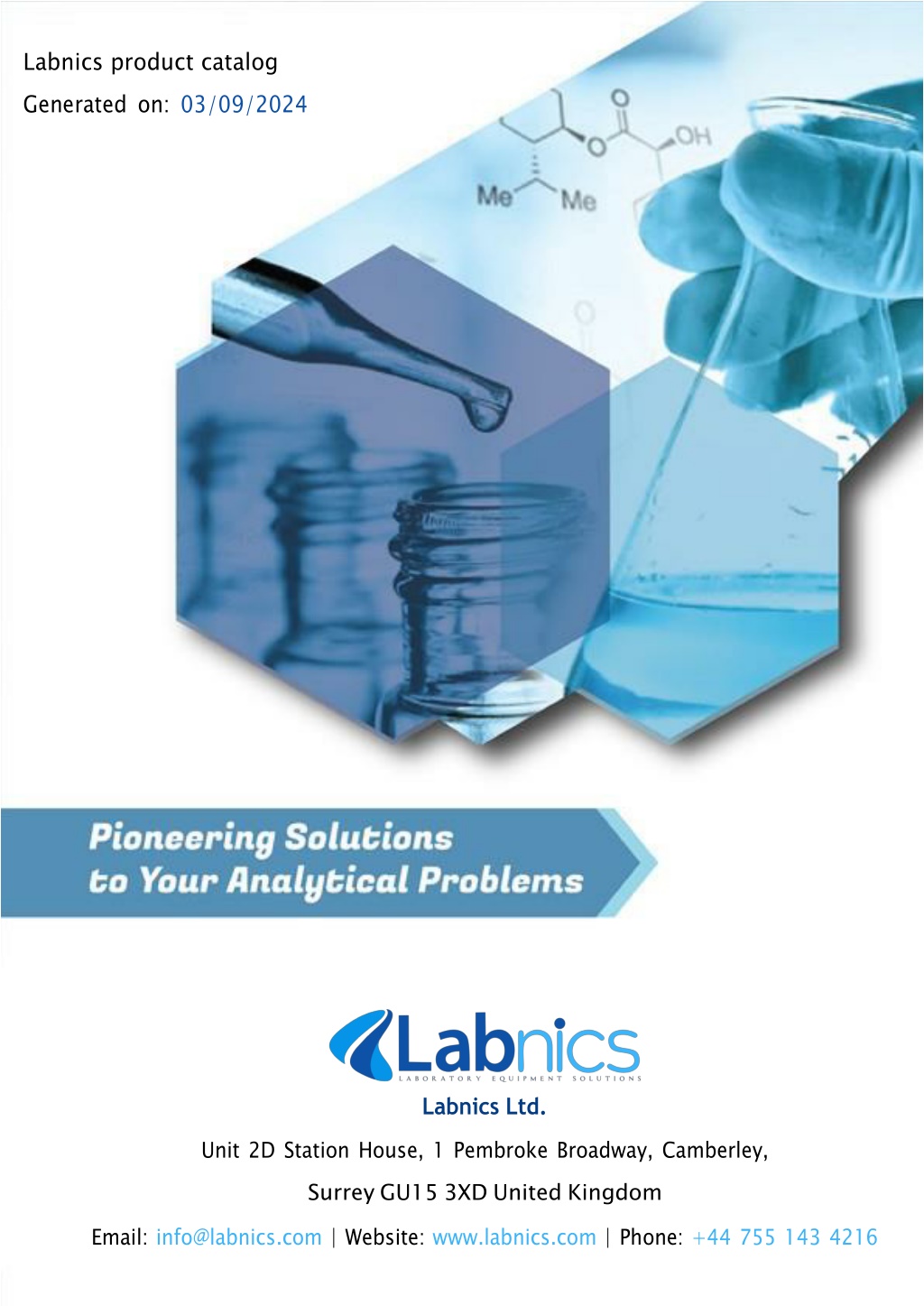

  4. Labnics product catalog Generated on: 03/09/2024 Labnics Ltd. Unit 2D Station House, 1 Pembroke Broadway, Camberley, Surrey GU15 3XD United Kingdom Email: info@labnics.com | Website: www.labnics.com | Phone: +44 755 143 4216
