Aerosol Photometer 26cmx7cmx16cm

Labnics aerosol photometer provides real-time integrity by detecting aerosol concentrations upstream and downstream. It has a dynamic range up to 600 u00b5g/L, and displays data from 0.0001% to 100.0% on an LCD. An audible and visual alarm activates when the set point is exceeded.<br>

bentleyfay
Download Presentation

Aerosol Photometer 26cmx7cmx16cm

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

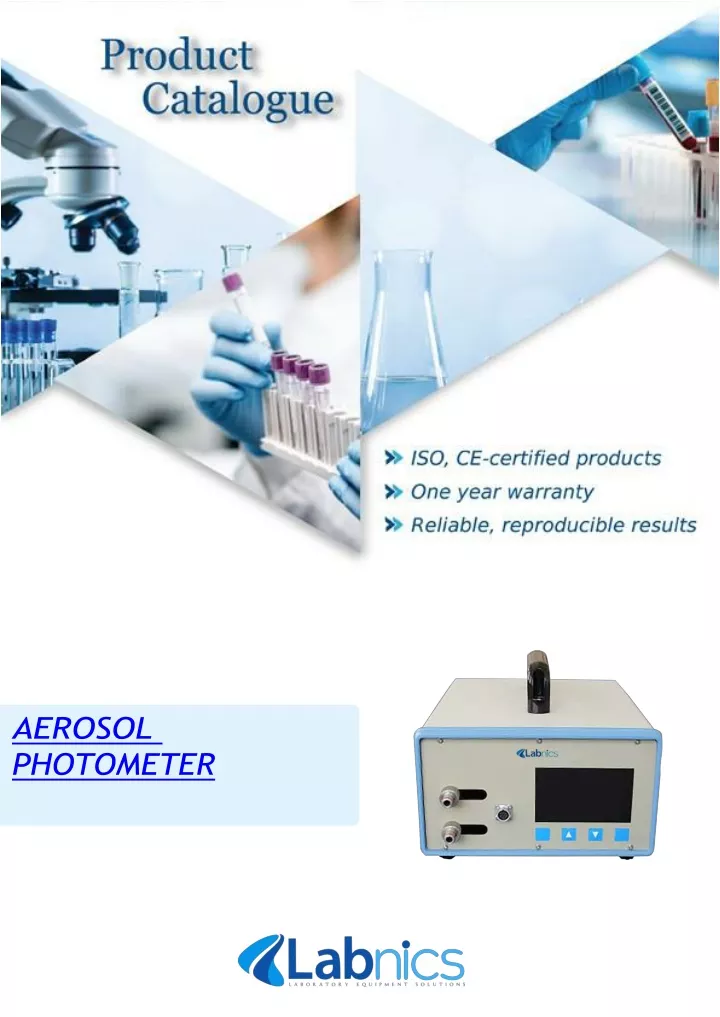

  1. AEROSOLPHOTOMETERNAP-100 Aerosol photometer NAP-100 provides real-time integrity through detection of aerosol concentration upstream and downstream. Its scanning probe can provide all the operation functions of the host. After performance verification, it has been proved by data and facts that its sensitivity, accuracy, repeatability and other technical indicators have fully reached the international advanced level. FEATURES ⇋ Solid, die-cast aluminium enclosure ⇋ Easy to assemble when internal parts are repaired and recalibrated ⇋ Automatic LCD display ⇋ long-life, stable, solid light scattering cavity light source ⇋ Operates at low energy, low heat, and low deviation from light ⇋ Scanning probe has 2.8-inch LCD display, equipped with 2.5m feet connecting assembly, the soft probe can be adjusted 360 degrees ⇋ Continuous, Storage, and Print modes

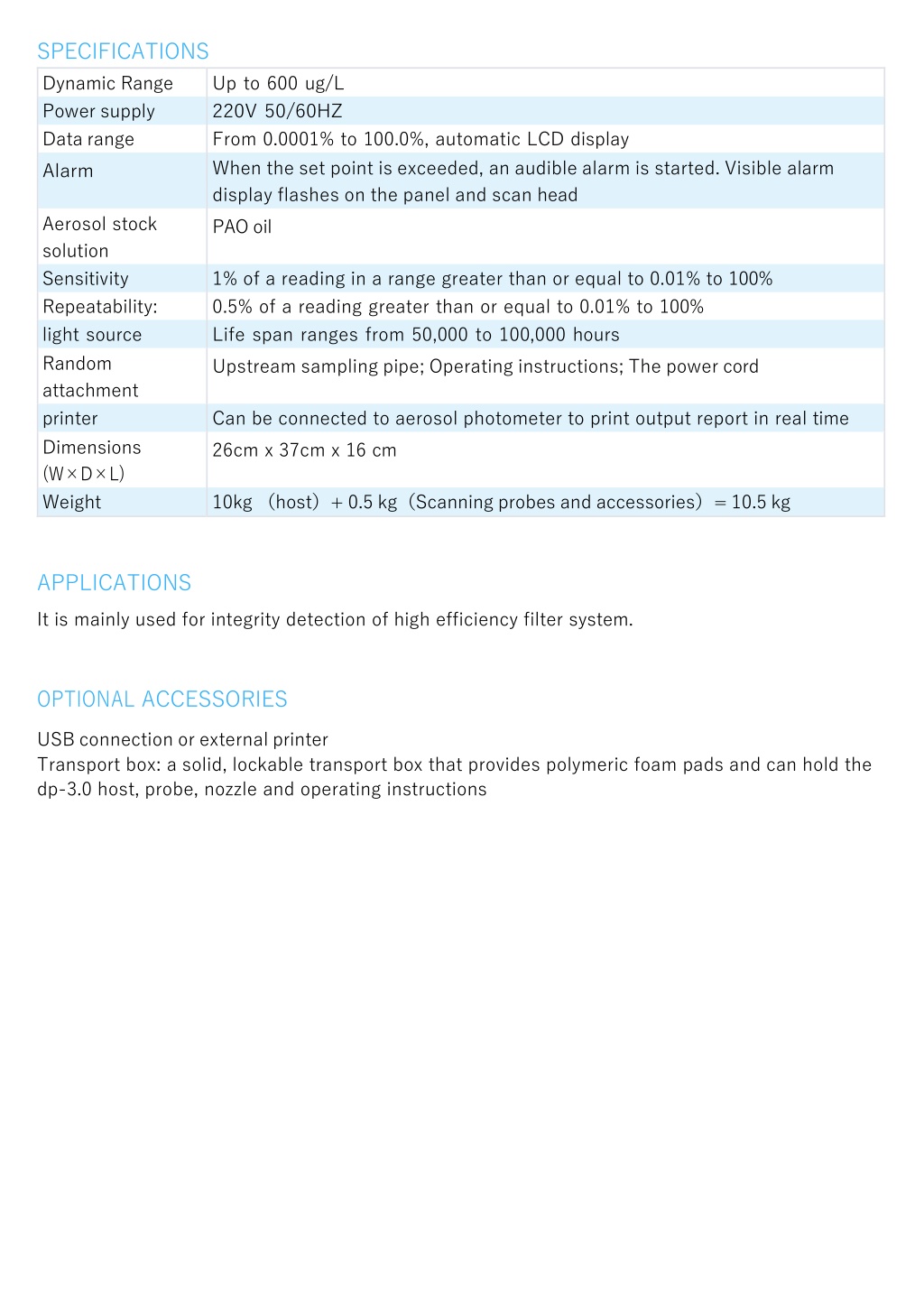

  2. SPECIFICATIONS Dynamic Range Power supply Data range Up to 600 ug/L 220V 50/60HZ From 0.0001% to 100.0%, automatic LCD display When the set point is exceeded, an audible alarm is started. Visible alarm display flashes on the panel and scan head Alarm Aerosol stock solution Sensitivity Repeatability: light source Random attachment printer Dimensions (W×D×L) Weight PAO oil 1% of a reading in a range greater than or equal to 0.01% to 100% 0.5% of a reading greater than or equal to 0.01% to 100% Life span ranges from 50,000 to 100,000 hours Upstream sampling pipe; Operating instructions; The power cord Can be connected to aerosol photometer to print output report in real time 26cm x 37cm x 16 cm 10kg （host）+ 0.5 kg（Scanning probes and accessories）= 10.5 kg APPLICATIONS It is mainly used for integrity detection of high efficiency filter system. OPTIONAL ACCESSORIES USB connection or external printer Transport box: a solid, lockable transport box that provides polymeric foam pads and can hold the dp-3.0 host, probe, nozzle and operating instructions

  3. Labnics product catalog Generated on: 02/09/2024 Labnics Ltd. Unit 2D Station House, 1 Pembroke Broadway, Camberley, Surrey GU15 3XD United Kingdom Email: info@labnics.com | Website: www.labnics.com | Phone: +44 755 143 4216
