  1. Some Technical Issues 1999 Asian Women's Network Training Workshop

  2. Contents • IP-address • netmask • gateway • nameserver(s) • automatic configuration 1999 Asian Women's Network Training Workshop

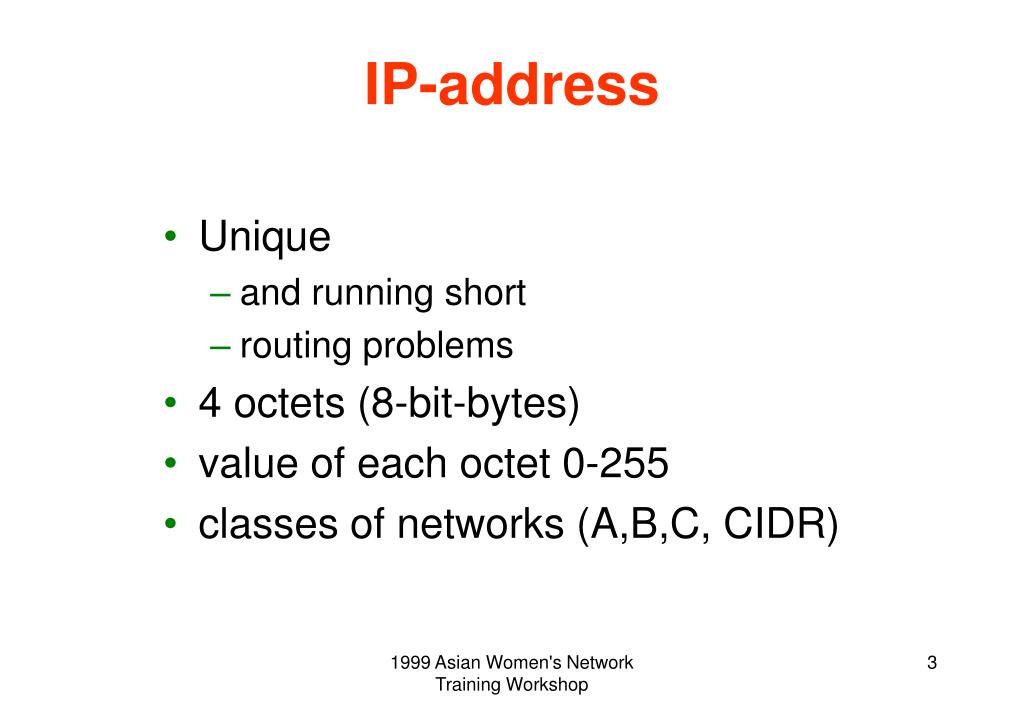

  3. IP-address • Unique • and running short • routing problems • 4 octets (8-bit-bytes) • value of each octet 0-255 • classes of networks (A,B,C, CIDR) 1999 Asian Women's Network Training Workshop

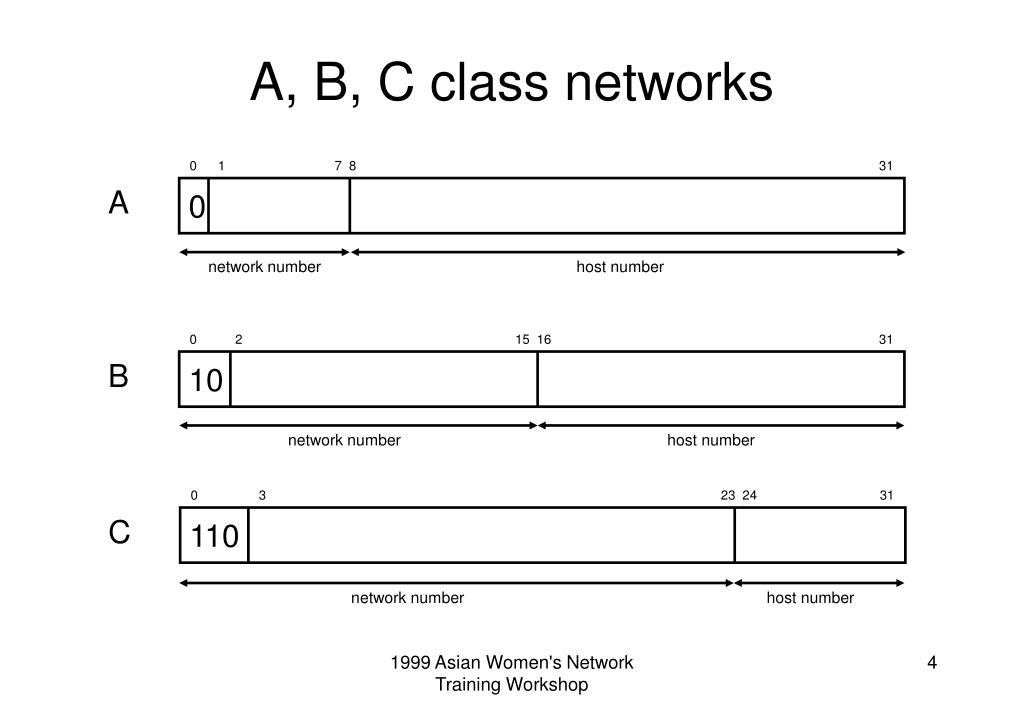

  4. 0 1 7 8 31 A 0 network number host number 0 2 15 16 31 B 10 0 3 23 24 31 network number host number C 110 network number host number A, B, C class networks 1999 Asian Women's Network Training Workshop

  5. 0 7 8 31 /8 network number host number 0 15 16 31 /16 network number host number 0 23 24 31 /24 network number host number CIDR 1999 Asian Women's Network Training Workshop

  6. 0 15 16 31 /16 network number host number CIDR (2) 0 16 17 31 /17 network number host number 0 17 18 31 /18 network number host number 1999 Asian Women's Network Training Workshop

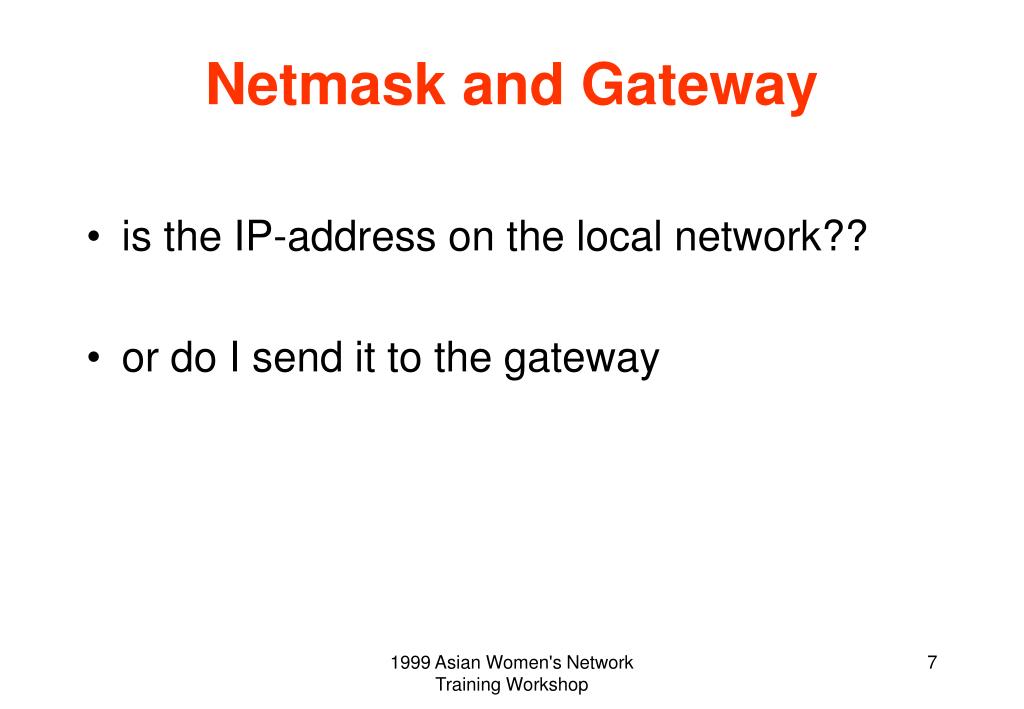

  7. Netmask and Gateway • is the IP-address on the local network?? • or do I send it to the gateway 1999 Asian Women's Network Training Workshop

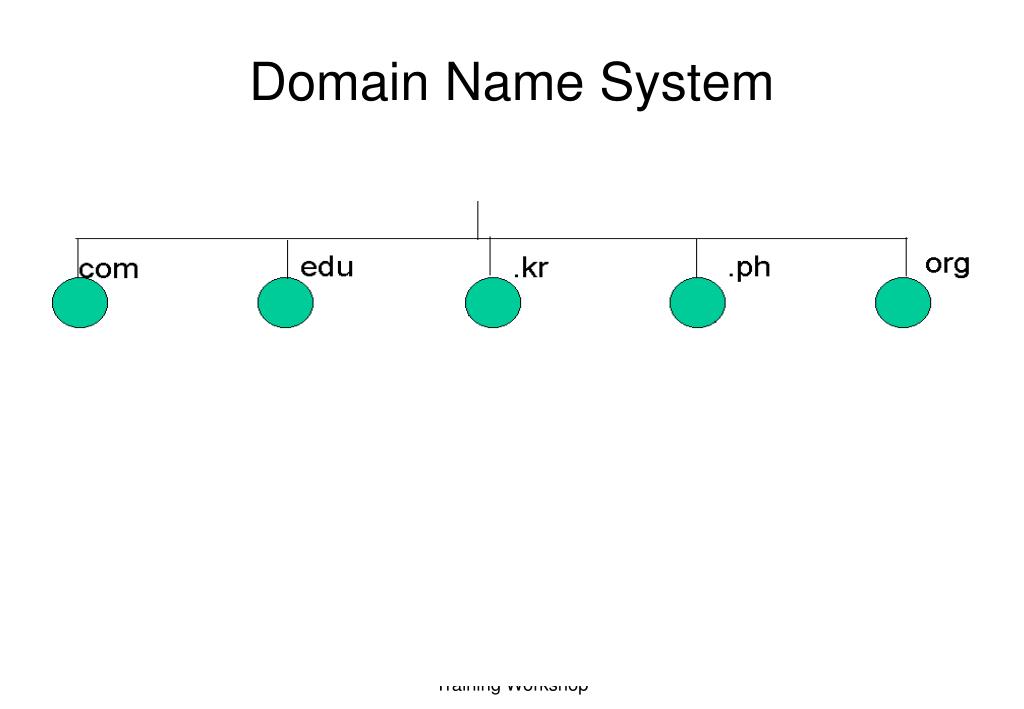

  8. Domain Name System 1999 Asian Women's Network Training Workshop

  9. Nameserver • converting names to IP-numbers • A-records • Type=A • Name=jca.apc.org • IP Address=210.149.85.82 • converting IP-numbers to names • PTR-records • Type=PTR • 82.85.149.210.IN-ADDR.ARPA • name=jca.apc.org 1999 Asian Women's Network Training Workshop

  10. Nameserver (2) • delivering e-mail • MX-records • name=jca.apc.org • type=MX • preference=20, mail exchanger =ni.jca.apc.org • preference=95, mail exchanger =ns.jca.apc.org 1999 Asian Women's Network Training Workshop

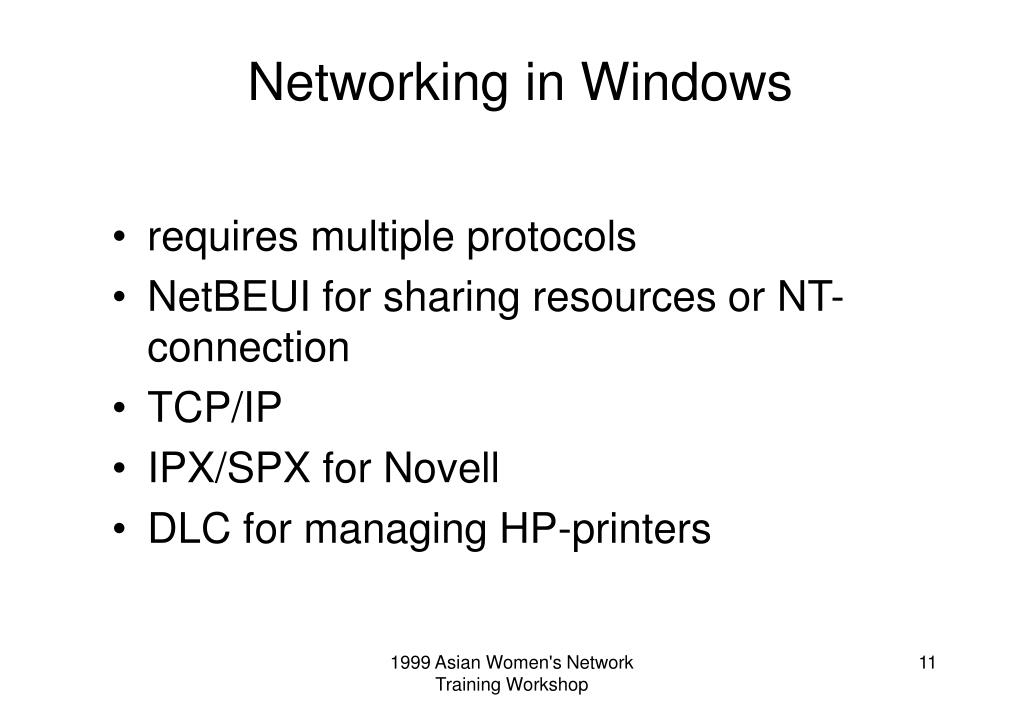

  11. Networking in Windows • requires multiple protocols • NetBEUI for sharing resources or NT-connection • TCP/IP • IPX/SPX for Novell • DLC for managing HP-printers 1999 Asian Women's Network Training Workshop

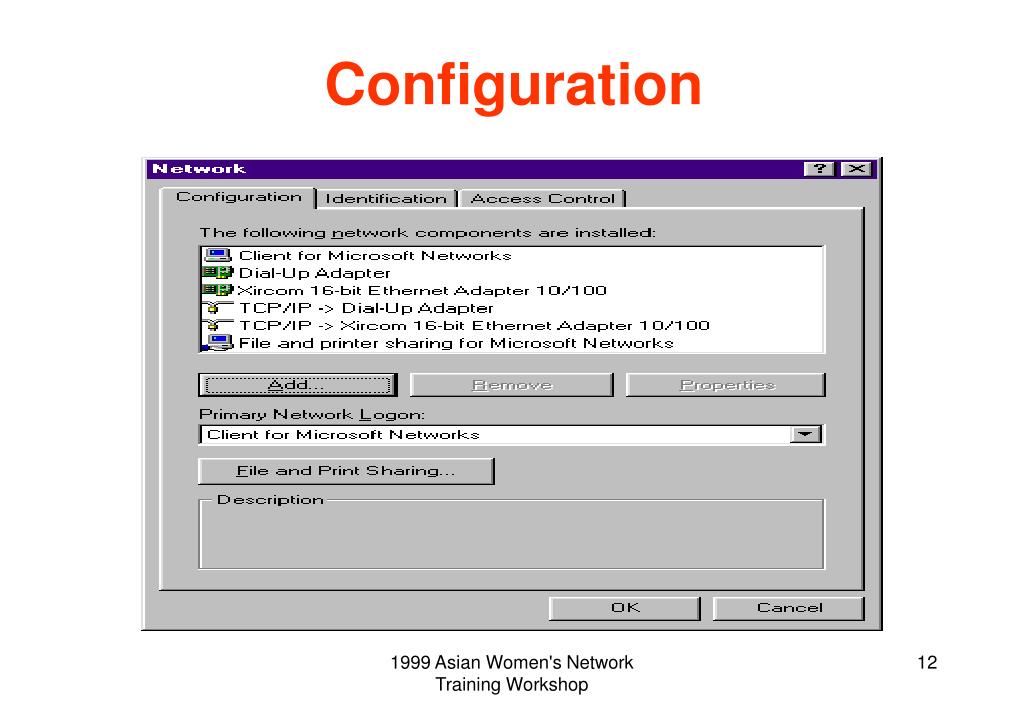

  12. Configuration 1999 Asian Women's Network Training Workshop

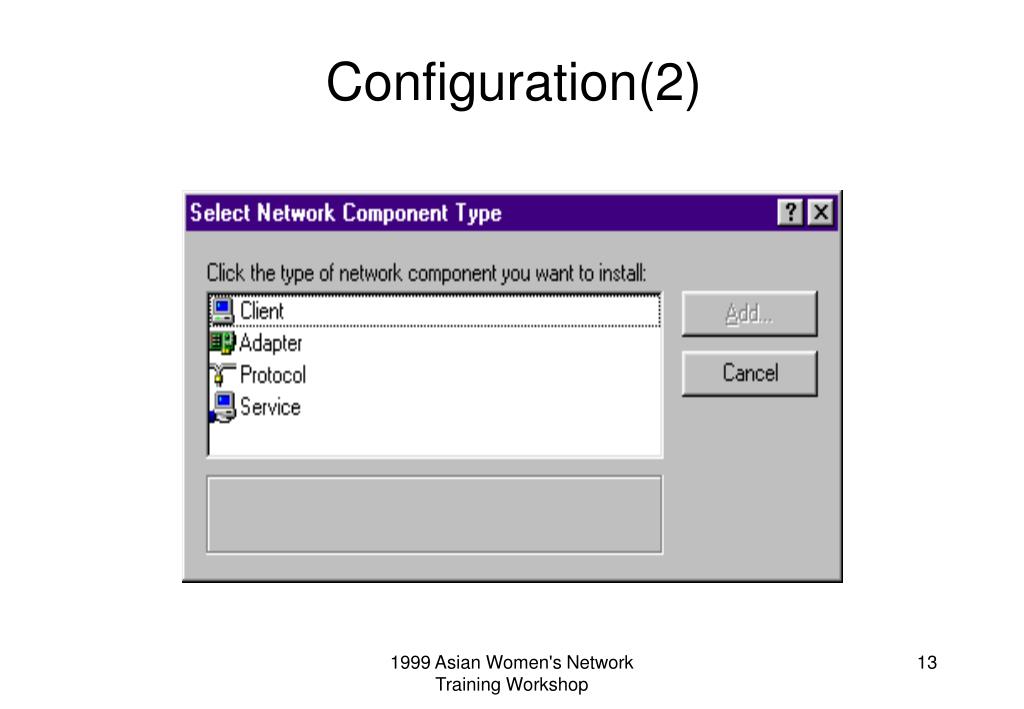

  13. Configuration(2) 1999 Asian Women's Network Training Workshop

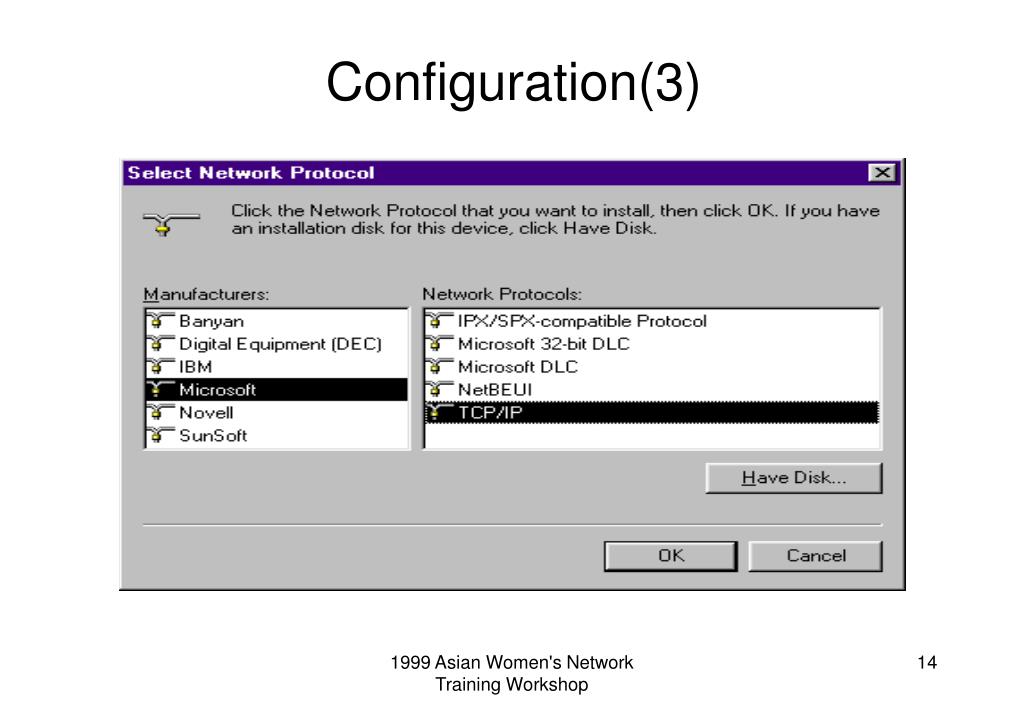

  14. Configuration(3) 1999 Asian Women's Network Training Workshop

  15. Configuration(4) 1999 Asian Women's Network Training Workshop

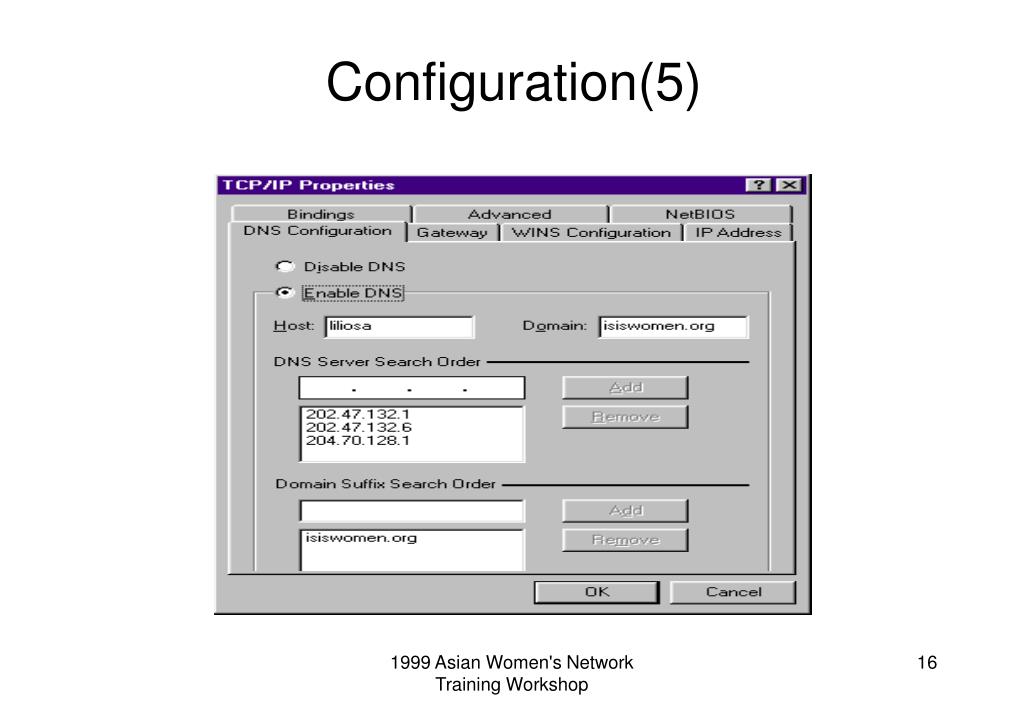

  16. Configuration(5) 1999 Asian Women's Network Training Workshop

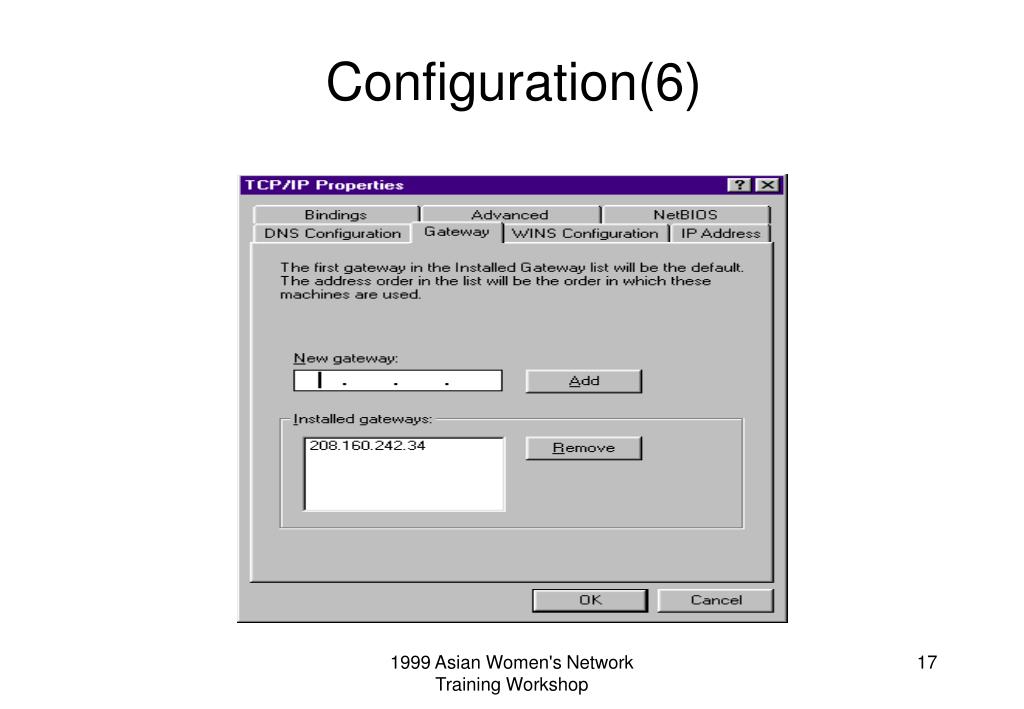

  17. Configuration(6) 1999 Asian Women's Network Training Workshop

  18. More information • Networking Personal Computers • DNS and BIND • DNS discussions http://www.isoc.org/internet/issues/dns/ http://www.ispo.cec.be/eif/dns/conclusions.html 1999 Asian Women's Network Training Workshop
