trd u electronics integration and status cern nov 07

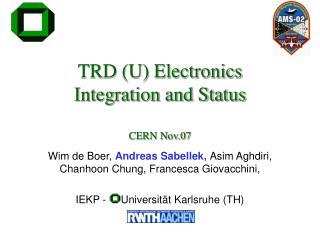

TRD (U) ElectronicsIntegration and StatusCERN Nov.07

Wim de Boer, Andreas Sabellek, Asim Aghdiri, Chanhoon Chung, Francesca Giovacchini,

IEKP - Universität Karlsruhe (TH)

outline
Outline
  • TRD Electronics System Overview
  • Cosmics Test Aachen
    • Setup
    • Data Analysis and Problems
  • FM Integration
    • FM Electronics
    • Detector Cabling
    • SlowControl
  • TRD DAQ Plans and Procedures

TIM Jul07, CERN

trd u electronics overview
TRD(U)-Electronics Overview

2 QM2 U-Crates

And 1 QM2 UPD

used in Aachen

Cosmics Test

TRD Octagon

82 Frontends x 64 „Straw Tubes“

= 5248 channels

TIM Jul07, CERN

trd cosmics test aachen
TRD Cosmics Test Aachen

Scintillators below floor for trigger

TIM Jul07, CERN

cosmics test electronics
Cosmics Test Electronics

Bridge Prototype

for cable fixation

TIM Jul07, CERN

eventdisplay
Eventdisplay

3D

Shower event

shows no dead modules

xz

yz

TIM Jul07, CERN

occupancy map
Occupancy Map

TIM Jul07, CERN

energy deposition
Energy Deposition

With top layer scintillator coincidence

TIM Jul07, CERN

problems
Problems
  • “noisy channel pair”: jumper cable wire tube end <<>> UFE board crosstalk
  • “Viking2 on UFE(5+7) “: sporadic pedestal shift on its 32 channels
  • “1st UDR link WAKE”: pedestal shift in readout -> QM2 S9048 with lower voltage output
  • “border channel with applied HV”: cable connection induces noise to first/last channel of a module ->1/16 of all channels
  • “1st UFE channels pedestal shift”: pedestal position dependant on readout frequency (currently under investigation)

TIM Jul07, CERN

hv noise
HV Noise

CH1

CH16

UTE

Depending on UHVD mounting position

HV may also be connected here

HV from UHVD Board

TIM Jul07, CERN

trd fm readout electronics upd and u crate
TRD FM Readout ElectronicsUPD and U-Crate

May 07

  • Flight Electronics Crates for Readout of complete TRD Subdetector production completed Jun07
  • TVT done Jul07

TIM Jul07, CERN

ams 02 crates map
AMS-02 Crates Map

TIM Jul07, CERN

cern cleanroom 867
CERN Cleanroom 867

FM TRD Readout

Electronics

Mounted to Jigs

19.Nov

U0 /

UPD0

U1 /

UPD1

Electronics

WAKE Jig

RAM Jig

TIM Jul07, CERN

electronics integration plans
Electronics Integration Plans
  • 21.Nov: Mount TRD to USS
  • 27./28.Nov: Connect DAQ+HV Cables TRD<>U-Crates (Aachen technicians)
  • 28.Nov: Connection Test (WAKE/RAM)
    • Connect AMSWire cable to U0/U1 JINF A1
    • Connect AMSWire to Aachen DAQ PC EPP-Box (must be nearby)
    • Power on UPD (by common powersupply? Individual?)
    • Read out Solid State Fuse Status and TripCounter of FrontEnd Powersupplies (UPSFE-boards) -> check for shorts in powerline
    • Perform pedestal calibration command on UDR2 boards; Read out calibration results and check for unusual pedestal position and noise values
    • IF Gas Status Ok: Ramp up High Voltage and check current-protection for shorts; Perform calibration and check for noise peaks (taking advantage of problem) to verify proper connection; ramp down HV
    • Power off UPD

TIM Jul07, CERN

switch to ams system
Switch to AMS-system
  • Script to initialize U-system available on JMDC
  • HV ramp up script (to be done)
  • Readout data when trigger is available. Procedure:
    • Check Gas status (Th.Siedenburg)
    • Check HV (or ramp up)
    • Perform DSP pedestal calibration
    • Start DAQ
    • (ramp down HV)
  • Cosmics calibration run
    • Raw data (maximum data rate?)
    • Track fit to check for correct cabling
    • Check for variation in gas gain (MOP analysis)

TIM Jul07, CERN

backups
backups

TIM Jul07, CERN
