bicycle powered water pump l.
Download
Skip this Video
Loading SlideShow in 5 Seconds..
Bicycle Powered Water Pump PowerPoint Presentation
Download Presentation
Bicycle Powered Water Pump

Loading in 2 Seconds...

play fullscreen
1 / 11

Bicycle Powered Water Pump - PowerPoint PPT Presentation


  • 489 Views
  • Uploaded on

Bicycle Powered Water Pump. Purple B Margaret Gentile Chris Grossman Charles Louison Jim Otten Jessica Rabl Chris Rivest. Overview. Irrigation critically lacking in third world countries. Current pumps do not meet economic and ergonomic requirements of farmers.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Bicycle Powered Water Pump' - benjamin


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
bicycle powered water pump

Bicycle Powered Water Pump

Purple B

Margaret Gentile

Chris Grossman

Charles Louison

Jim Otten

Jessica Rabl

Chris Rivest

overview

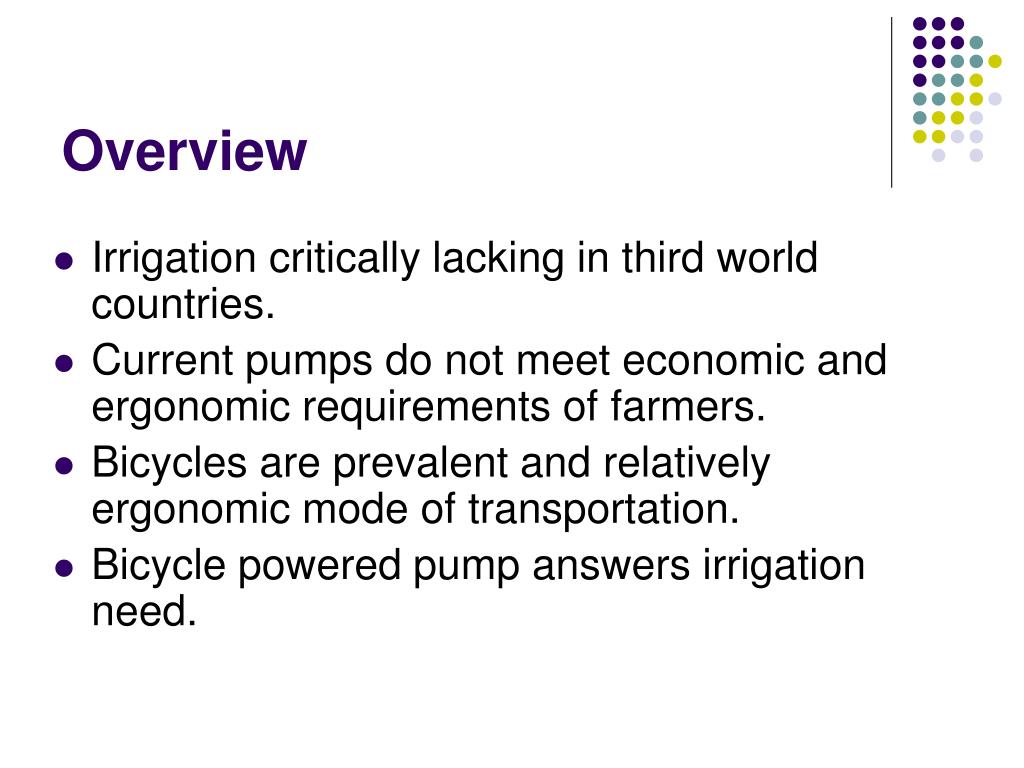

Overview
  • Irrigation critically lacking in third world countries.
  • Current pumps do not meet economic and ergonomic requirements of farmers.
  • Bicycles are prevalent and relatively ergonomic mode of transportation.
  • Bicycle powered pump answers irrigation need.
potential markets

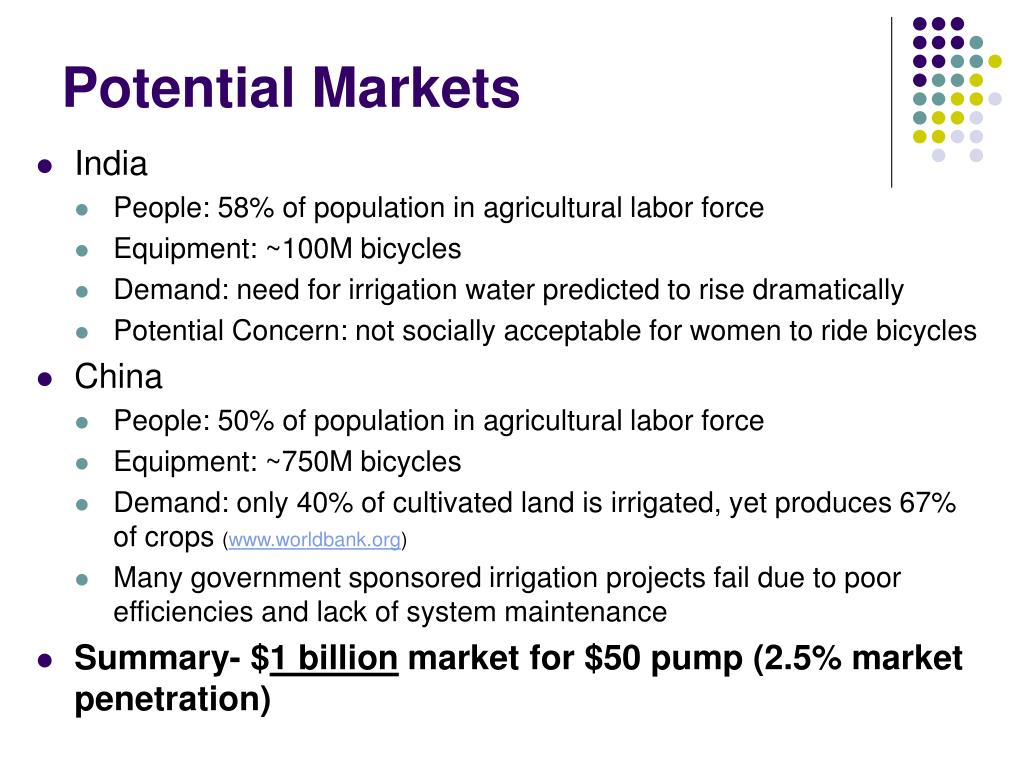

Potential Markets
  • India
    • People: 58% of population in agricultural labor force
    • Equipment: ~100M bicycles
    • Demand: need for irrigation water predicted to rise dramatically
    • Potential Concern: not socially acceptable for women to ride bicycles
  • China
    • People: 50% of population in agricultural labor force
    • Equipment: ~750M bicycles
    • Demand: only 40% of cultivated land is irrigated, yet produces 67% of crops (www.worldbank.org)
    • Many government sponsored irrigation projects fail due to poor efficiencies and lack of system maintenance
  • Summary- $1 billion market for $50 pump (2.5% market penetration)
moneymaker pump benchmark
MoneyMaker Pump Benchmark
  • max pumping rate = 1.5L/sec
  • total pumping head = 13m
  • max useable well depth = 6m
  • max distance pumping across flat land = 200m
  • max amount of land irrigated = 2.4acres
  • pump weight = 20kg
  • manufacture cost = $200
  • consumer cost = $50
critical issues benchmarking

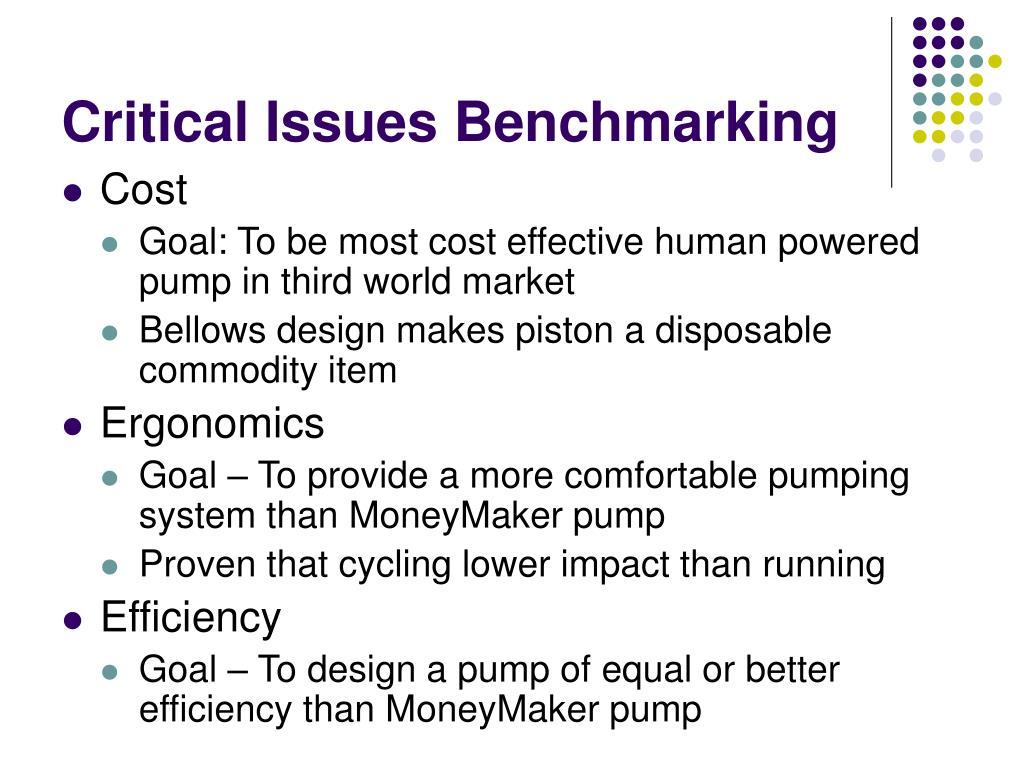

Critical Issues Benchmarking
  • Cost
    • Goal: To be most cost effective human powered pump in third world market
    • Bellows design makes piston a disposable commodity item
  • Ergonomics
    • Goal – To provide a more comfortable pumping system than MoneyMaker pump
    • Proven that cycling lower impact than running
  • Efficiency
    • Goal – To design a pump of equal or better efficiency than MoneyMaker pump
issues addressed by mockup
Issues Addressed by Mockup
  • Feasibility of low cost goal
    • pump built for less than $25
    • Critical bellows component costs on order of pennies
    • Still need to reduce cost of other components (valve etc.)
  • Pump Design
    • Various designs considered, bellows chosen on cost basis
    • Bellows pump found to work best when two are run in parallel
  • Efficiency
    • Design for taking power off rear wheel – still needs testing
    • Pump – still need to address valve and sealant issues
mockup design
Mockup Design

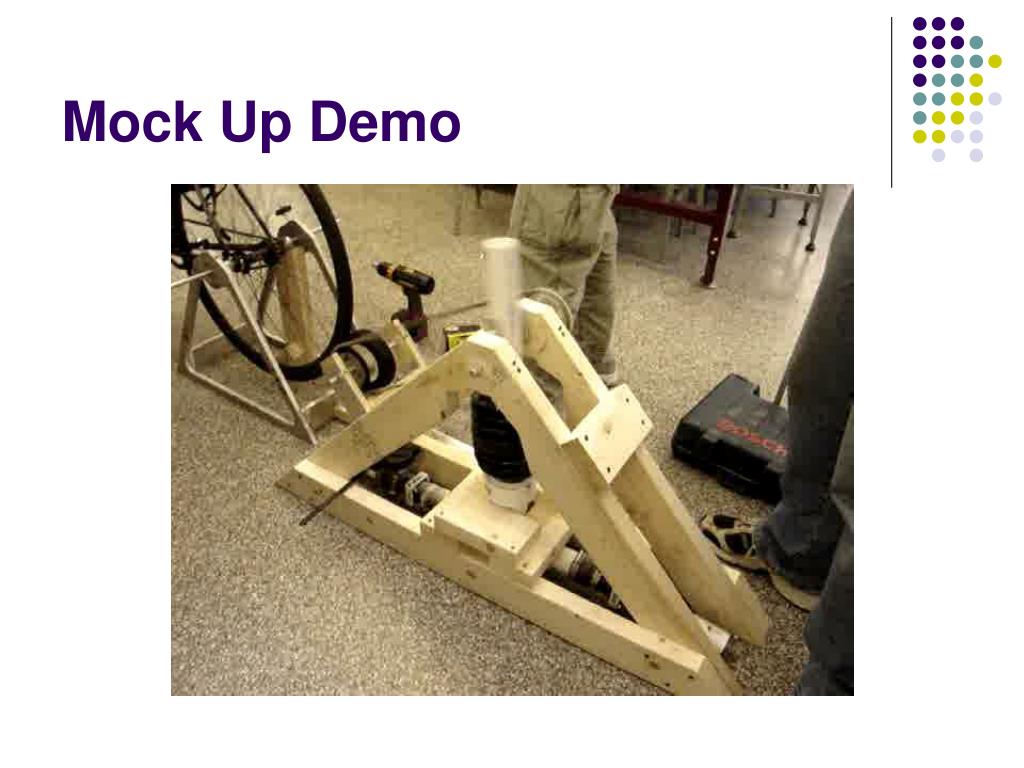

  • standard bicycle fits into universal stand
  • power taken off rear wheel with roller
  • roller transmits power via chain to crank shaft
  • crank shaft powers positive displacement bellows pump
pump testing
Pump Testing

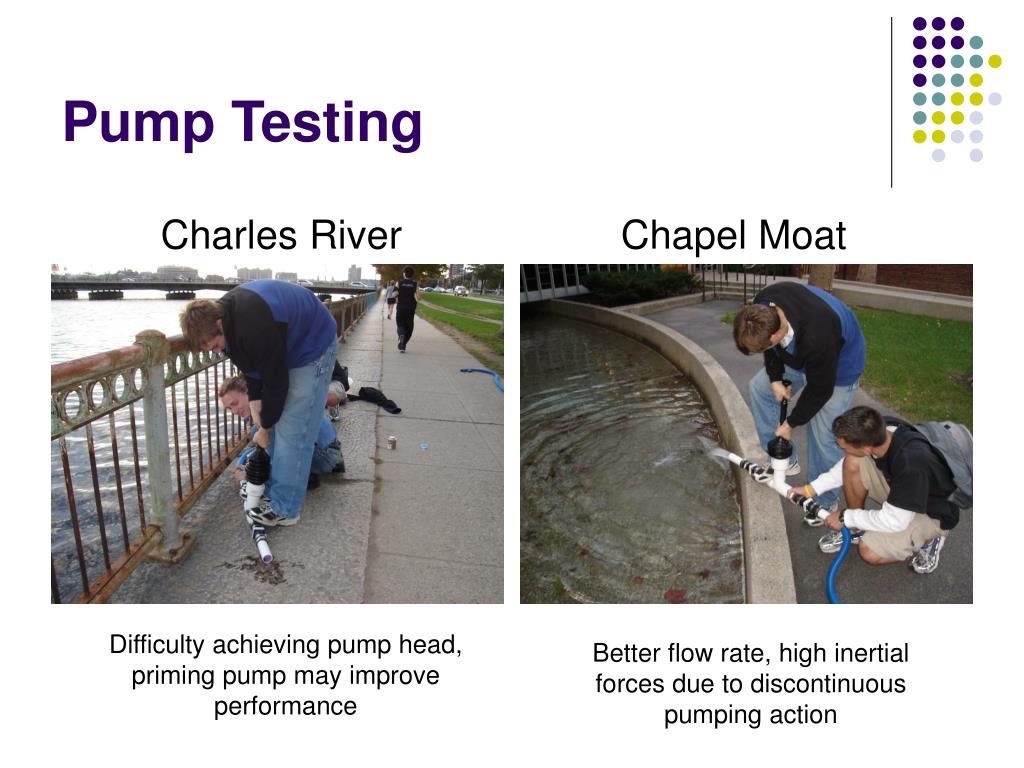

Charles River

Chapel Moat

Difficulty achieving pump head, priming pump may improve performance

Better flow rate, high inertial forces due to discontinuous pumping action

test results manual
Test Results (Manual)
  • Single bellows hand pumping rate = .75L/sec
  • Inertia matters!
  • Double out of phase bellows reduced force by ~6x
  • Priming necessary
  • Cheap pump feasible
future work lessons learned
Future Work/Lessons Learned
  • Install double pump technology/dual reservior to reduce inertial forces
  • Reduce compliance in power transmission
  • Implement drive reduction
  • Extract quantitative data from mockup - measure efficiency
  • Pumps are fun!
