Typical cytokines secreted by types of CD4 T cells

IL-6, IL-17, IL-22. TGF-b, IL-10, +/- IL-4. IL-2, IFN-g, TNF-alpha, TNF-beta (a.k.a: LT-alpha). IL-4, IL-5, IL-6, IL-10, IL-13. Typical cytokines secreted by types of CD4 T cells. Notable TFs RORgT FOXP3 (some T regs) STAT1, T-bet, STAT4 STAT6, GATA3. Th17. Reg. CD4 T cell.

benjamin-buck
Download Presentation

Typical cytokines secreted by types of CD4 T cells

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. IL-6, IL-17, IL-22 TGF-b, IL-10, +/- IL-4 IL-2, IFN-g, TNF-alpha, TNF-beta (a.k.a: LT-alpha) IL-4, IL-5, IL-6, IL-10, IL-13 Typical cytokines secreted by types of CD4 T cells Notable TFs RORgT FOXP3 (some T regs) STAT1, T-bet, STAT4 STAT6, GATA3 Th17 Reg. CD4 T cell Th1 Th2 1

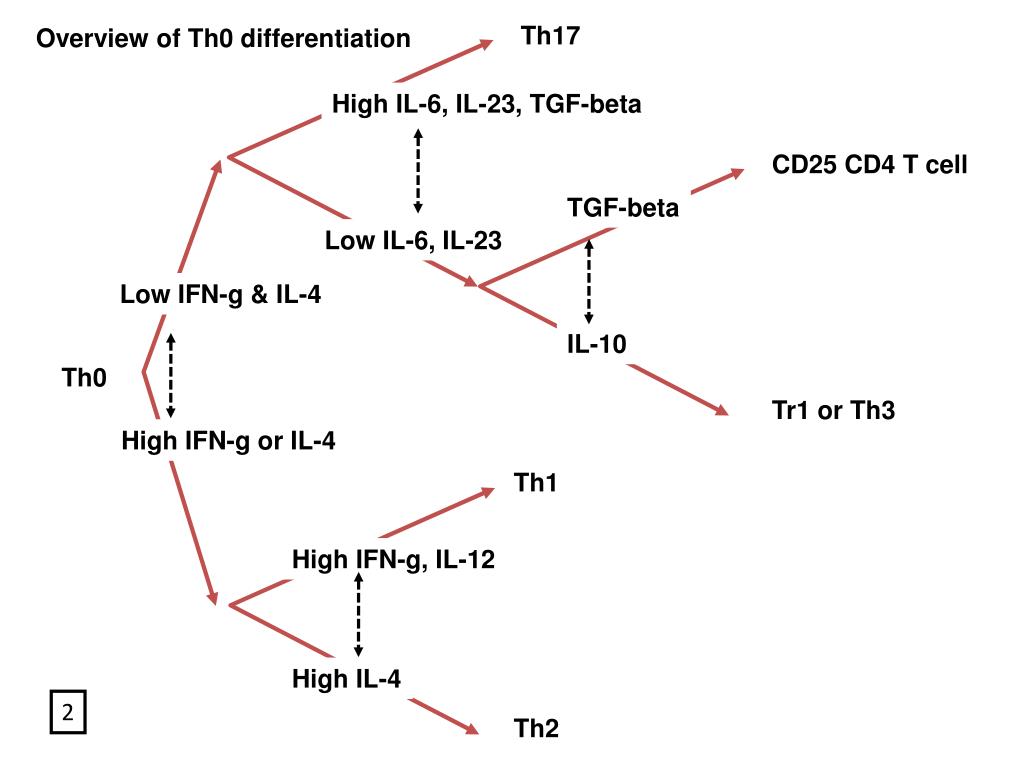

  2. Th17 Overview of Th0 differentiation High IL-6, IL-23, TGF-beta CD25 CD4 T cell Tr1 or Th3 TGF-beta Low IL-6, IL-23 Low IFN-g & IL-4 IL-10 Th0 High IFN-g or IL-4 Th1 Th2 High IFN-g, IL-12 High IL-4 2

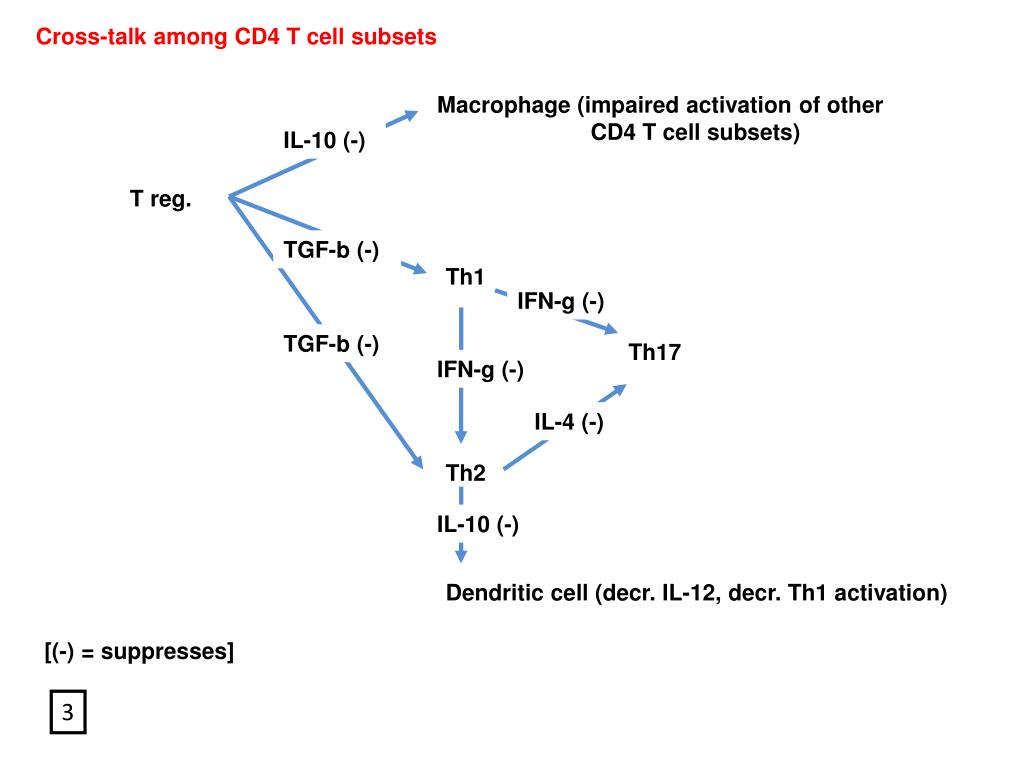

  3. Cross-talk among CD4 T cell subsets Macrophage (impaired activation of other CD4 T cell subsets) IL-10 (-) T reg. TGF-b (-) Th1 IFN-g (-) TGF-b (-) Th17 IFN-g (-) IL-4 (-) Th2 IL-10 (-) Dendritic cell (decr. IL-12, decr. Th1 activation) [(-) = suppresses] 3

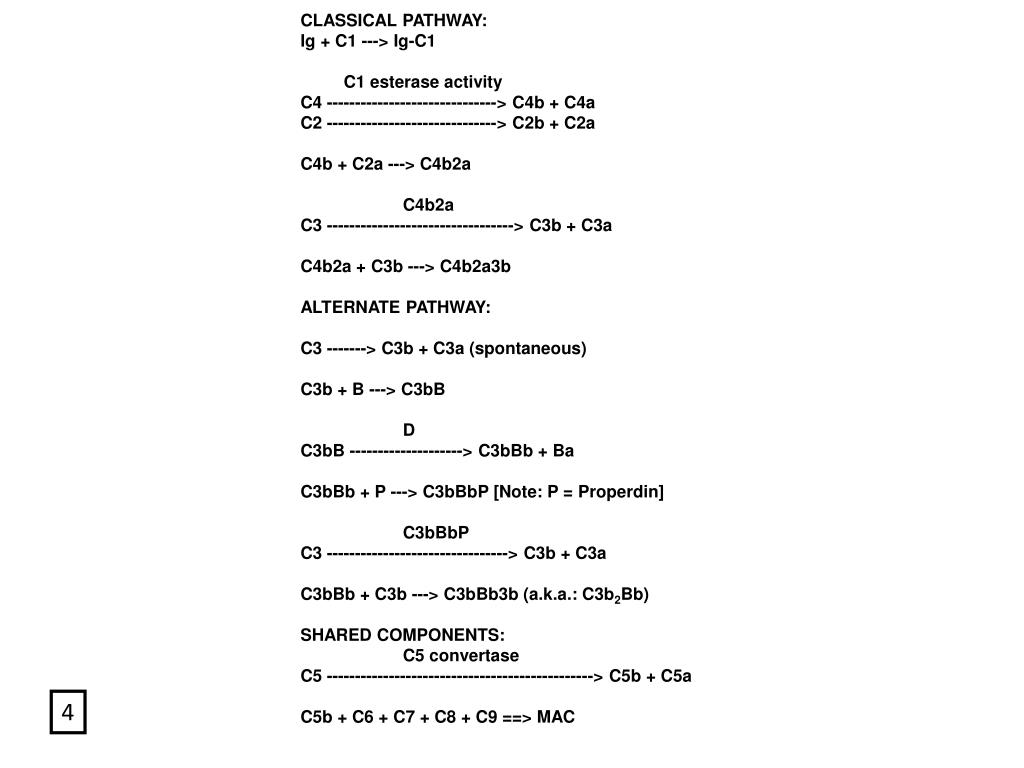

  4. CLASSICAL PATHWAY: • Ig + C1 ---> Ig-C1 • C1 esterase activity • C4 ------------------------------> C4b + C4a • C2 ------------------------------> C2b + C2a • C4b + C2a ---> C4b2a • C4b2a • C3 ---------------------------------> C3b + C3a • C4b2a + C3b ---> C4b2a3b • ALTERNATE PATHWAY: • C3 -------> C3b + C3a (spontaneous) • C3b + B ---> C3bB • D • C3bB --------------------> C3bBb + Ba • C3bBb + P ---> C3bBbP [Note: P = Properdin] • C3bBbP • C3 --------------------------------> C3b + C3a • C3bBb + C3b ---> C3bBb3b (a.k.a.: C3b2Bb) • SHARED COMPONENTS: • C5 convertase • C5 -----------------------------------------------> C5b + C5a • C5b + C6 + C7 + C8 + C9 ==> MAC 4
