part 3
Part 3

RECURRENCE FREQUENCY OF FLOODING

slide2
River flow data can be shown in a variety of formats on probability plots like that shown here, which relates the annual maximum discharge along the Snohomish River in Washington. The 100-year recurrence frequency event can be estimated from these kinds of plots, though not always with significant accuracy.
flood frequency analysis

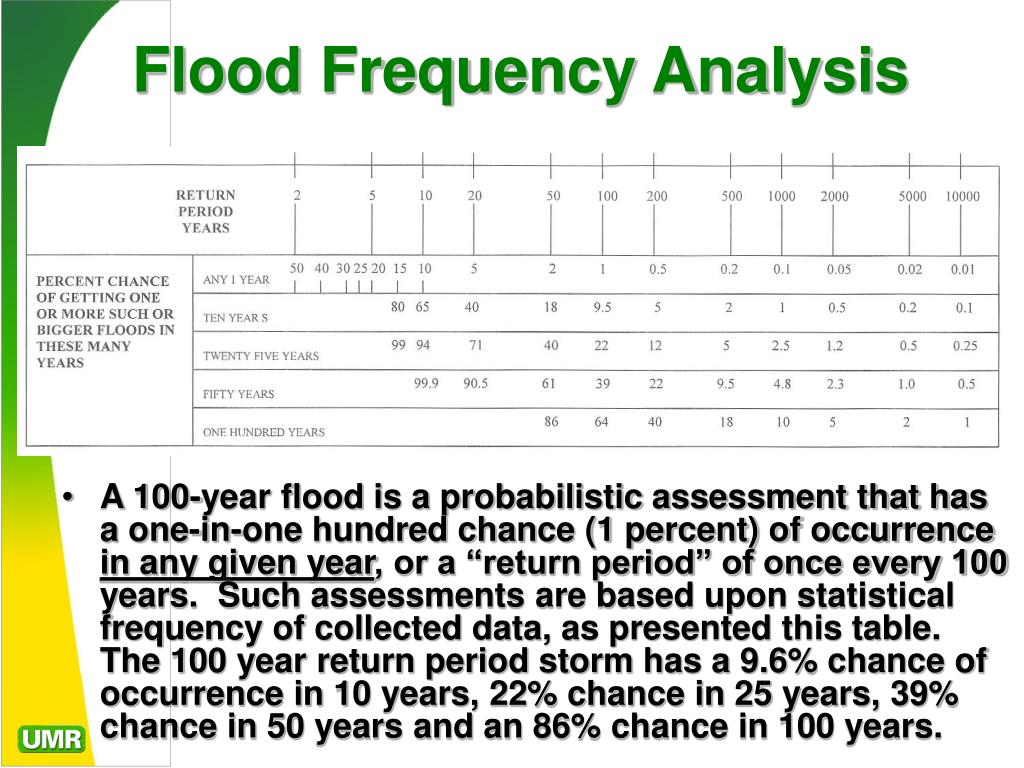

Flood Frequency Analysis
  • A 100-year flood is a probabilistic assessment that has a one-in-one hundred chance (1 percent) of occurrence in any given year, or a “return period” of once every 100 years. Such assessments are based upon statistical frequency of collected data, as presented this table. The 100 year return period storm has a 9.6% chance of occurrence in 10 years, 22% chance in 25 years, 39% chance in 50 years and an 86% chance in 100 years.
slide4

This isohyetal map was constructed for the record storm sequence of Dec 18-27,1964 in northern California. Note the local variances in precipitation, between 10 and 30+ inches of rain

  • Isohyetal maps provide contours of precipitation. They can be constructed for significant events or annual rain and snowfall.
slide5
Channel gradients normally exhibit a log spiral decay shape. The gradient decreases with increasing tributary accretion downstream. One exception is the Colorado River, which flows for hundreds of miles without any substantive accretion.
slide6
Volume of average annual discharge from major rivers in the continental United States, for channels whose average Q > 17,000 cfs
slide7
The Mississippi River drains about 41% of the continental United States. It is the longest river in the world, with the third largest watershed. Prior to 1950 it transported between 550 and 740 million tons of sediment per year (now about 220 mt/yr). It has the 6th largest silt load of any river in the world.
profile of lower mississippi river
Profile of lower Mississippi River

The bed of the Mississippi River is below sea level during the last 450 miles of its course, up to Greenville, Mississippi. This causes the upper portion of the river to fall over the lower part, creating turbulence and undercurrents which wreck havoc on outboard bends in the channel.

slide9
The mouth of the Mississippi River has extended 16 km since 1764 and 11 km since the jetties were emplaced after 1879.
slide10
TERRACES

River systems excavate their beds in response to major shifts in base level, such as sea level; and changes in flow regimen, caused by changing weather patterns, which impact runoff and sediment load

defined bed and bank
Defined bed and bank
  • A first-order channel or watercourse exhibits a easily discerned channel, described by a bed and opposing banks, as sketched here. It need not convey water as a perennial channel.
slide13

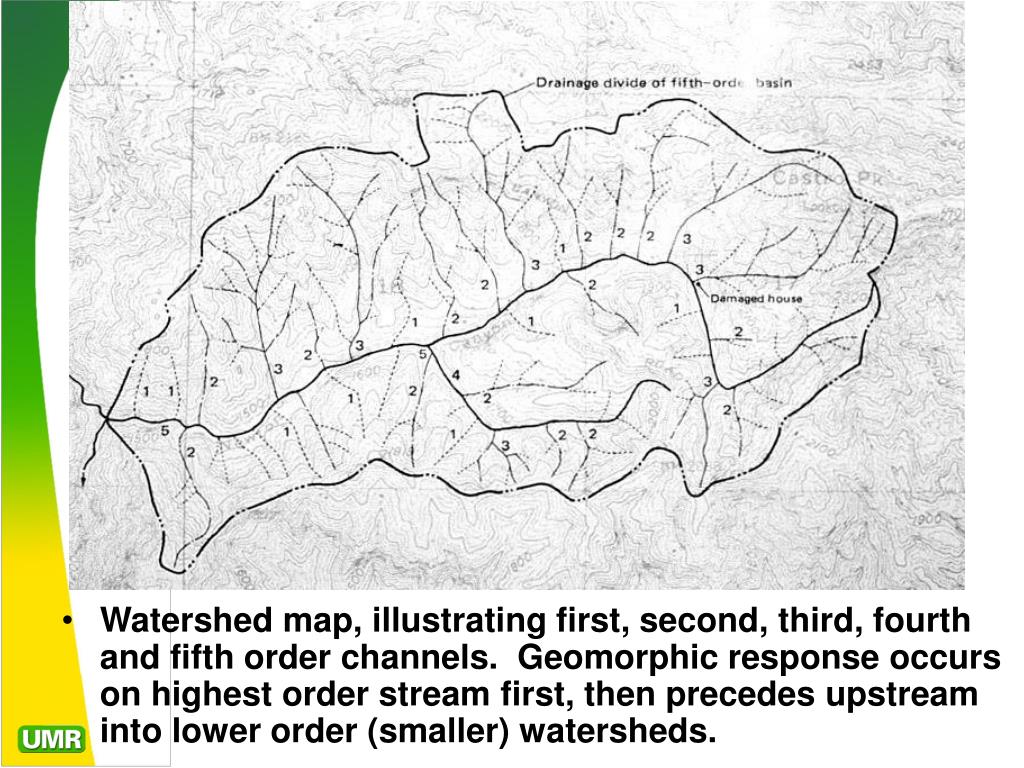

Watershed map, illustrating first, second, third, fourth and fifth order channels. Geomorphic response occurs on highest order stream first, then precedes upstream into lower order (smaller) watersheds.
